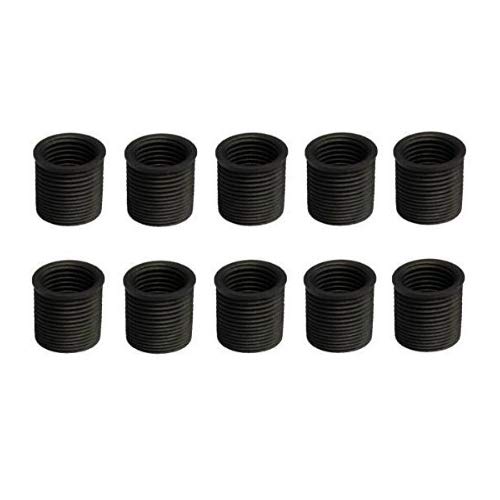

TIME-SERT M6 x 1.0 Thread Repair Inserts 9.4mm — 10-Pack Steel Sleeves for Restoring Stripped Threads

TIME-SERT M6x1.0x9.4mm inserts are precision-engineered steel thread repair sleeves sold in a 10-piece pack for restoring stripped M6x1.0 threads to OEM fit and strength.

These TIME-SERT p/n 16101 inserts provide a permanent, reusable internal thread solution when original threads are damaged by wear, cross-threading, or corrosion. Each insert is sized for M6 x 1.0 metric fasteners with a 9.4mm inserted length, and they are designed for installation using the matching TIME-SERT installation kit p/n 1610. Made for mechanics, technicians, and fabricators, these inserts deliver consistent alignment and load-bearing capacity compared with thread repair adhesives or oversize tapping alone.

How do these inserts restore a stripped M6 thread?

The inserts replace the damaged internal thread with a new, precisely machined steel sleeve that accepts the original M6 bolt size. Installation creates a controlled interference fit between the insert and the host material, producing strong mating threads that resist pullout and loosening.

• Fits original M6 x 1.0 fasteners—no bolt substitution required
• 9.4mm insert length provides adequate engagement in thin- to medium-thickness components
• Steel construction restores shear and tensile capacity
• Works in aluminum, cast iron, magnesium, and other softer substrate metals

What tools and kit are needed to install these TIME-SERT inserts?

These inserts require the TIME-SERT installation kit p/n 1610, which contains the drill, counterbore, tap, driver, and installation mandrel specific to M6 inserts. Using the correct kit ensures proper hole preparation, chamfer, and controlled insertion to avoid damage to surrounding material.

• TIME-SERT kit p/n 1610 is mandatory for correct installation
• Basic shop tools such as a bench vise or drill press improve accuracy
• Torque wrench recommended for final bolt installation to OEM spec

How long do TIME-SERT inserts last and what maintenance do they require?

Once installed correctly, these steel inserts provide a long-lasting mechanical thread that resists wear and repeated assembly cycles. No special maintenance is required beyond normal inspection and proper torque when reinstalling fasteners; if subjected to extreme corrosion, periodic checks are advisable.

• Durable steel construction resists thread wear over many cycles
• Inspect periodically in corrosive or high-vibration environments
• Replace only if insert or housing is mechanically damaged

Can I use these inserts in thin-walled components or sheet metal?

The 9.4mm length gives good engagement in moderate-thickness parts, but very thin sheet metal may not provide sufficient base material for full insert retention. For thin applications, confirm wall thickness against the recommended minimum for M6x1.0 inserts or consider backing plates, bushings, or a different insert length/series.

• Suitable for many thin-to-medium wall applications, depending on material
• Use backing or reinforcement for very thin sheets to ensure load distribution
• Consult TIME-SERT guidelines or technical data for minimum material thickness

Who is this for: These TIME-SERT M6x1.0x9.4mm inserts (10-pack) suit professional technicians, automotive and motorcycle mechanics, restoration specialists, and serious DIYers who need a dependable, OEM-style thread repair. If you frequently work on aluminum heads, engine brackets, transmissions, or other components where original M6 threads must be restored to factory fit and strength, this insert pack plus the TIME-SERT kit p/n 1610 will provide a repeatable, engineering-grade repair option.
