ZOMIYU M10x1.25 Thread Repair Kit — 14mm One-Piece 304 Stainless Inserts, 10pcs with Matched Drill Tap & Driver

ZOMIYU M10x1.25 Metric Thread Repair Kit restores damaged M10x1.25 internal threads using ten 14mm one-piece 304 stainless steel inserts and a full set of matched tools.

When a bolt thread in an engine cover, transmission case, or structural aluminum part strips out, a reliable repair needs more than a temporary fix. The ZOMIYU M10x1.25 kit supplies solid, single-piece stainless inserts (no coiled wire) plus the drill, tap, counterbore, driver and threadlocker designed to work together. That matched system ensures the rethreaded hole has correct dimensions, improved strength, and long-term corrosion resistance for demanding machine and vehicle repairs.

How do these one-piece inserts differ from helicoil-style coils?

One-piece solid inserts are stamped from 304 stainless and retain a rigid shape, eliminating the risk of unraveling or compressing like wire-coil inserts. They sit in a precisely counterbored seat to support the mating bolt and resist deformation under load. Because the kit provides tooling matched to the insert geometry, the finished internal thread aligns to the intended size and thread pitch.

• Solid 304 stainless construction for corrosion resistance and rigidity
• Integrated seating design prevents insert rotation or collapse
• Supplied drill, tap and driver engineered for these inserts
• Better for high-stress or repeated-service fastenings than coils

What measurements and checks should I make before starting a repair?

Verify bolt diameter (M10), thread pitch (1.25), and the usable hole depth to make sure a 14mm insert is appropriate. Check the parent material thickness and access for the counterbore and tap; the kit’s drill and tap sizes are different from the final internal thread and must be used as supplied. If the surrounding material is too thin or the hole is blocked, the insert may not sit properly.

• Confirm M10x1.25 bolt and pitch match the damaged thread
• Measure hole depth and wall thickness for 14mm insert fit
• Ensure clearance for drill, tap and counterbore tools
• Assess parent material: aluminum, cast iron or steel with sufficient support

What tools and consumables are included, and how are they used?

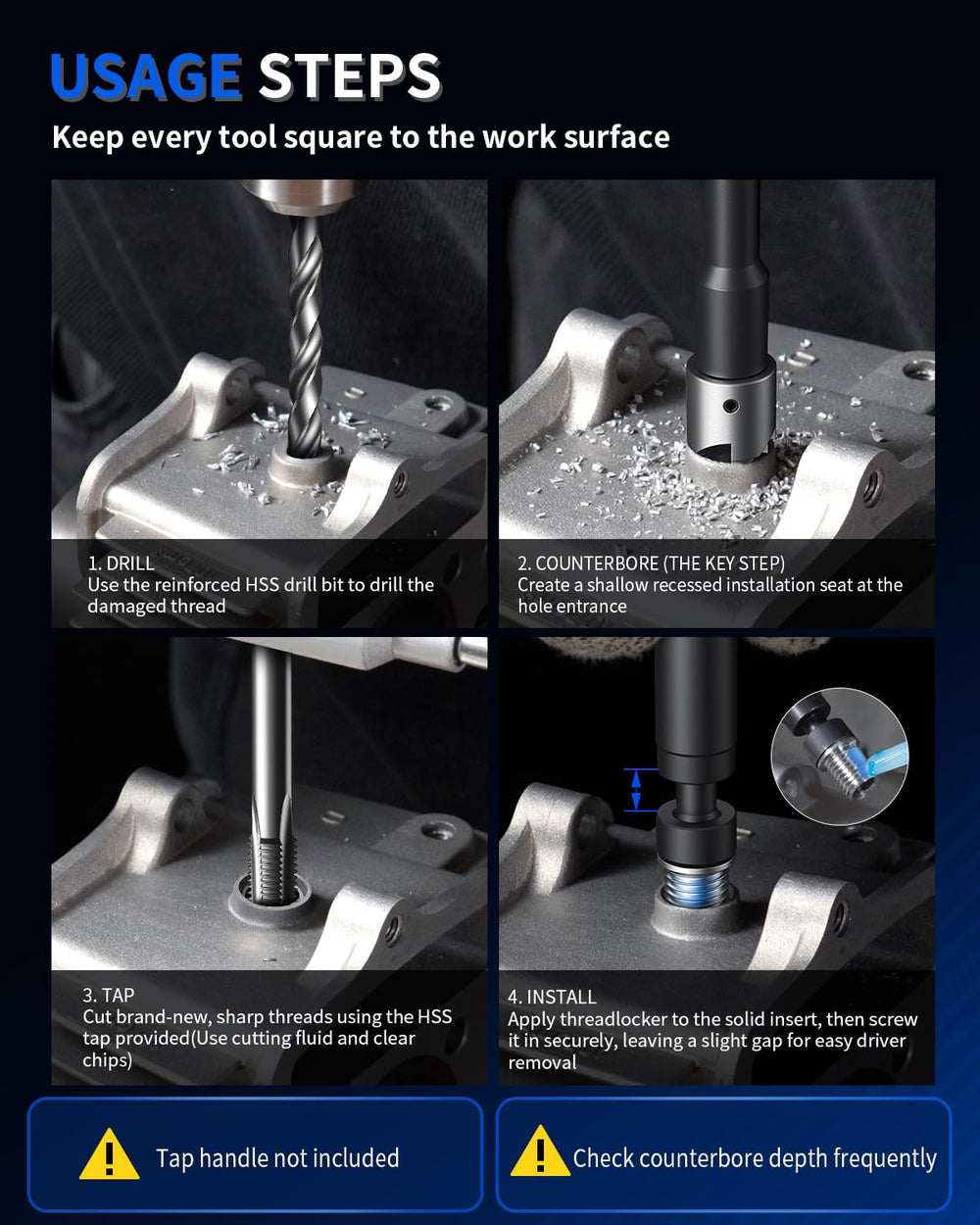

The kit includes ten solid inserts, an HSS drill bit, an HSS tap, a counterbore tool, an installation driver and two bottles of threadlocker. Use the drill to remove damaged threads to the correct diameter, the counterbore to form the seating recess, the tap to cut the pilot threads for the insert, and the driver to press the insert into place. Apply threadlocker on the bolt threads as recommended to reduce the chance of the insert loosening during service.

• HSS drill bit and HSS tap sized for these one-piece inserts
• Counterbore tool creates the recessed seat for flush installation
• Driver installs each solid insert to the right depth and alignment
• Two threadlockers for secure fastener retention after repair

Are there installation cautions I should be aware of?

Counterbore depth controls how the insert finishes relative to the mating surface—too shallow leaves it proud, too deep reduces support and could cause leaks in fluid housings. A separate tap handle is not included, so confirm you have proper access and torque control. Always check depth frequently and avoid over-counterboring, especially near oil passages or sealing surfaces.

• Monitor counterbore depth to avoid proud or under-supported inserts
• Tap handle not included; ensure tool access and clearance
• Use threadlocker to prevent loosening during future removal
• Test-fit bolts and check for leaks in fluid-containing housings

Who is this for: The ZOMIYU M10x1.25 Metric Thread Repair Kit is designed for mechanics, fabricators, restoration hobbyists and DIYers who work on engines, transmissions, motorcycles, ATVs/UTVs, bicycles and industrial equipment. It suits anyone needing a durable, permanent repair for stripped M10x1.25 threads in aluminium, cast iron, steel or similar materials where access and wall thickness allow a 14mm insert.
