BILITOOLS 3/8-16 Thread Repair Kit — HSS Drill, 304 Stainless Helicoil Inserts, Case

BILITOOLS 3/8-16 inch Thread Repair Kit is a complete HSS drill, tap and 304 stainless helicoil insert set designed to restore damaged 3/8-16 SAE internal threads and strengthen weak metal fittings.

Whether you're fixing a stripped bolt hole in an engine block, restoring mounting points on a bracket, or creating a stronger thread in softer metals, this kit supplies the drill, tap, installation tool, break-off tool and stainless inserts needed to complete the repair. All pieces are housed in a sturdy iron case for transport and organization. The components are built for repeated use across metals, composites and plastics, so you can finish a repair the first time and return the part to reliable service.

How does this kit repair a stripped 3/8-16 thread?

The process removes the damaged material, cuts a new thread, and installs a stainless coil insert that provides a fresh, precision 3/8-16 internal thread. Using the included HSS drill and tap yields accurate sizing before inserting the helicoil to restore strength and alignment.

• Use the HSS drill to reach the correct minor diameter cleanly.
• Tap the hole with the supplied 3/8-16 tap to form new threads for the insert.
• Wind a 304 stainless helicoil insert into the tapped hole with the installation tool.
• Break off the installation tang with the break-pin tool to finish the repair.

What materials and applications is the kit suitable for?

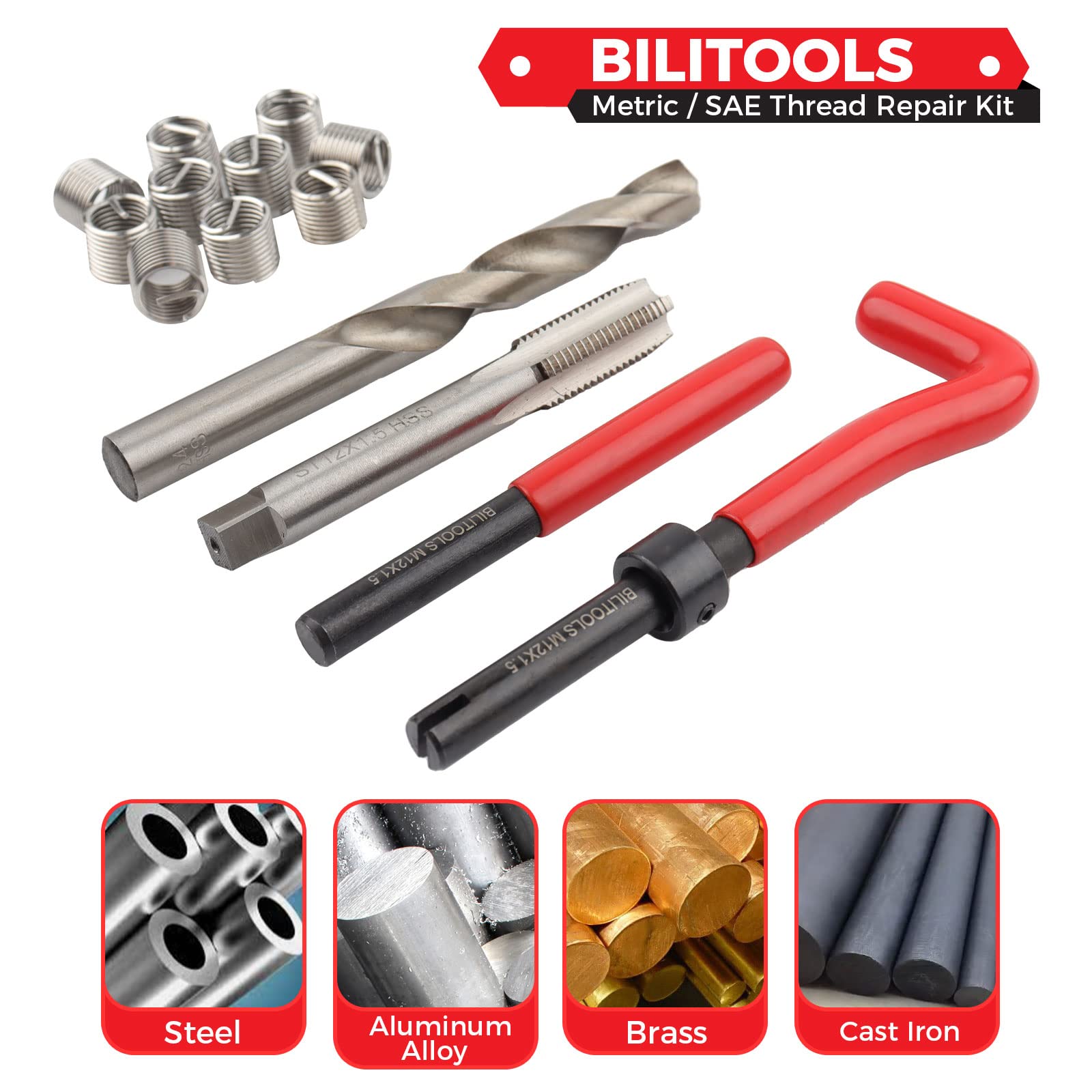

This kit works on steel, aluminum, cast iron, composites and many engineering plastics. It is designed for automotive, marine, machinery and household repairs where restored thread strength and durability are required.

• Automotive cylinder heads, intake manifolds and oil pans.
• Plumbing fixtures, pump housings and valve mounts.
• Repairing mounting bosses on machinery and brackets.
• Use on composite panels and thicker polymer parts where metal inserts are needed.

What tools and parts come in the kit, and how are they organized?

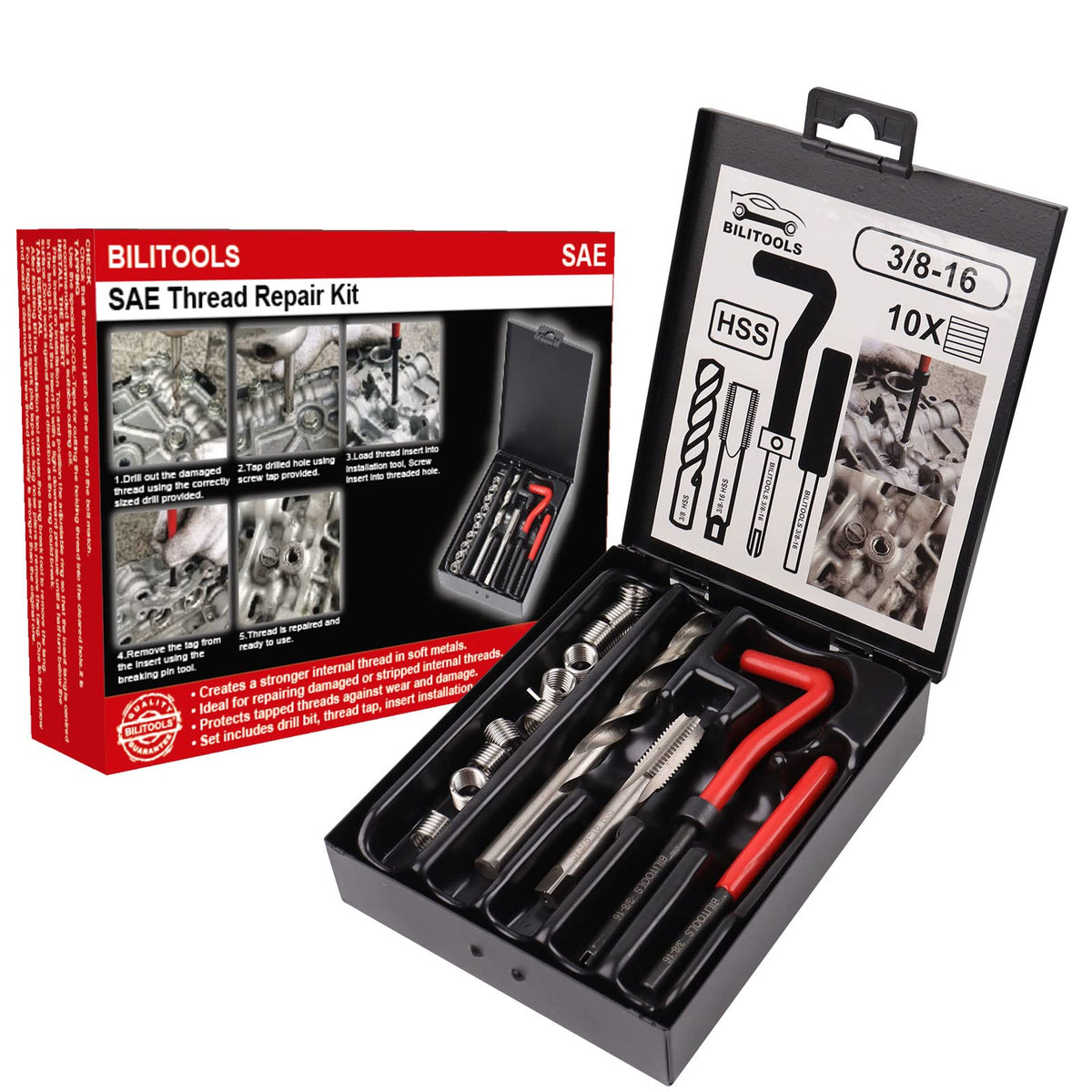

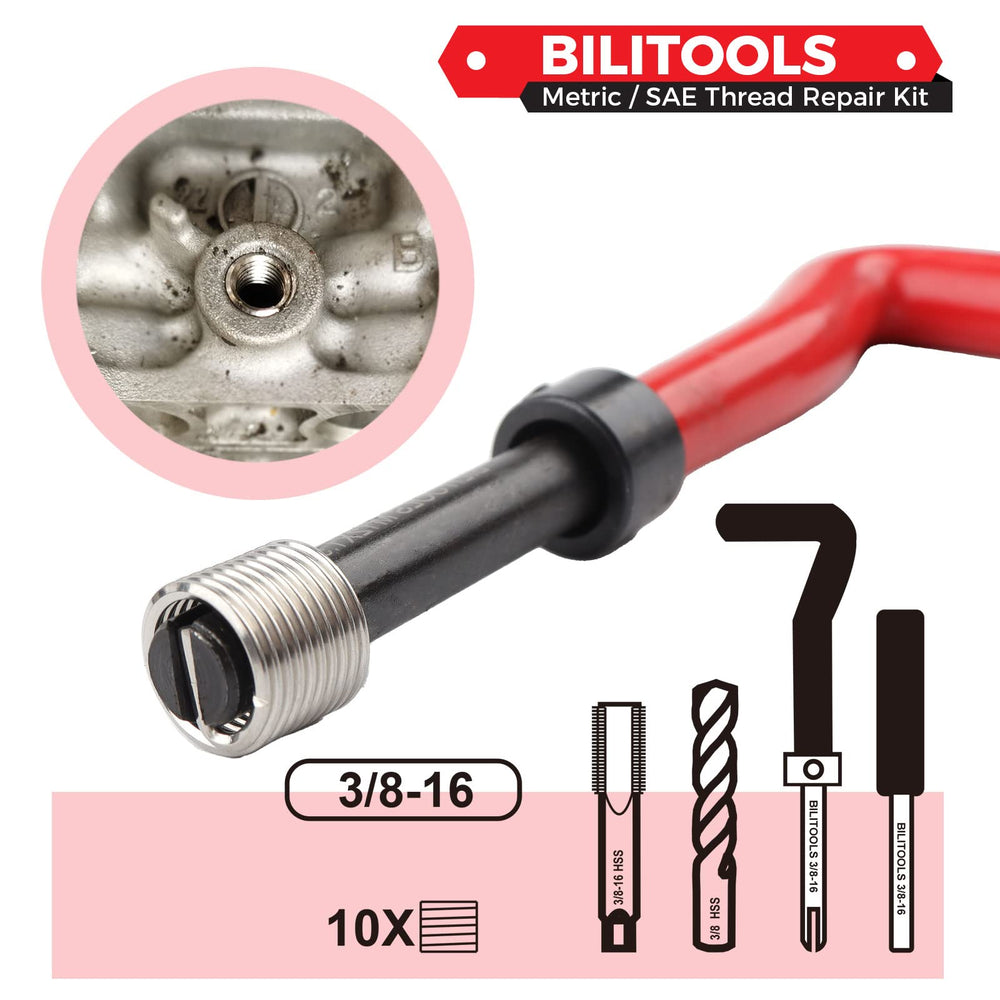

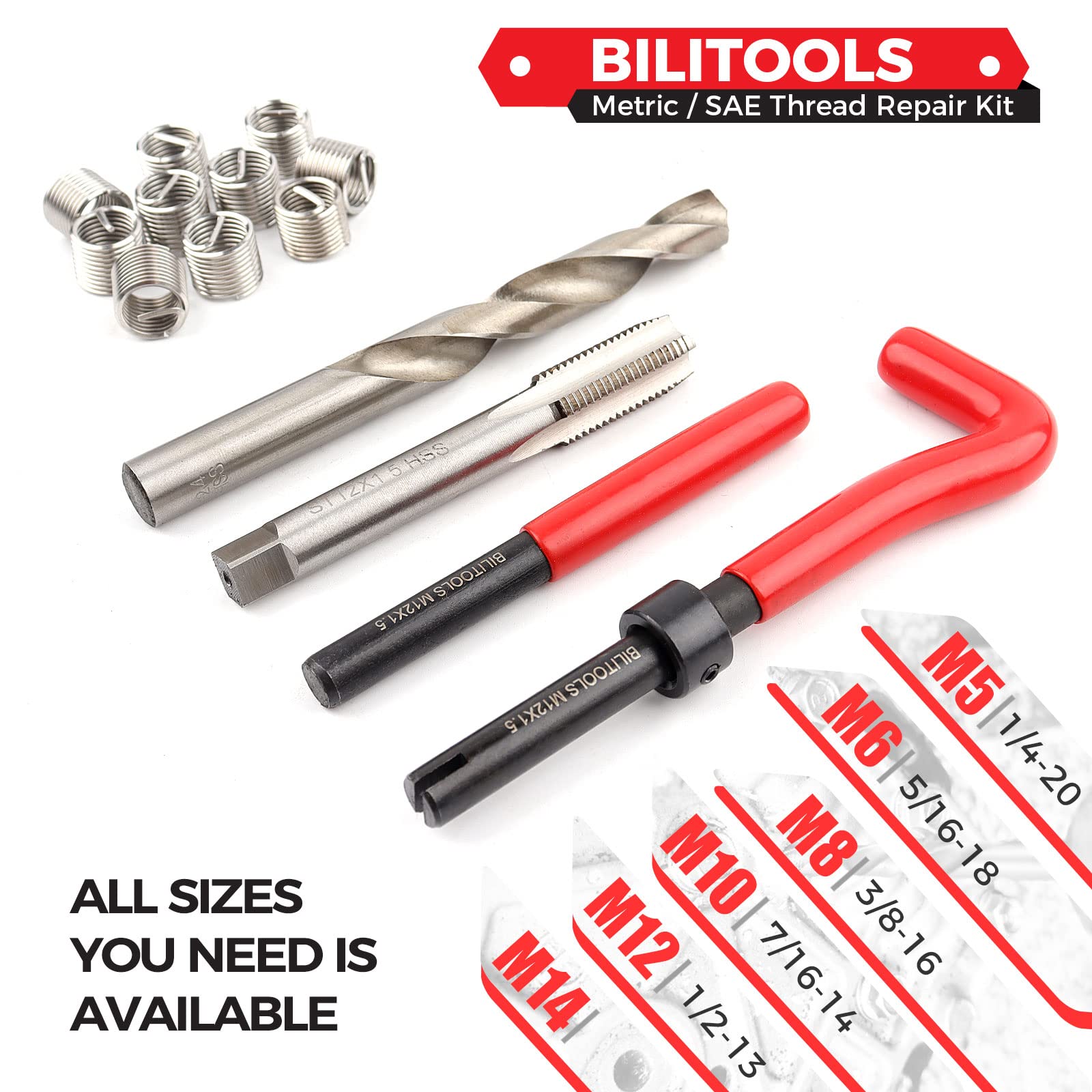

The set includes HSS drill bit, 3/8-16 tap, multiple 304 stainless helicoil inserts, an installation driver, and a break-pin tool—arranged in a durable iron case for easy access. The layout keeps components protected and quick to identify when switching between jobs.

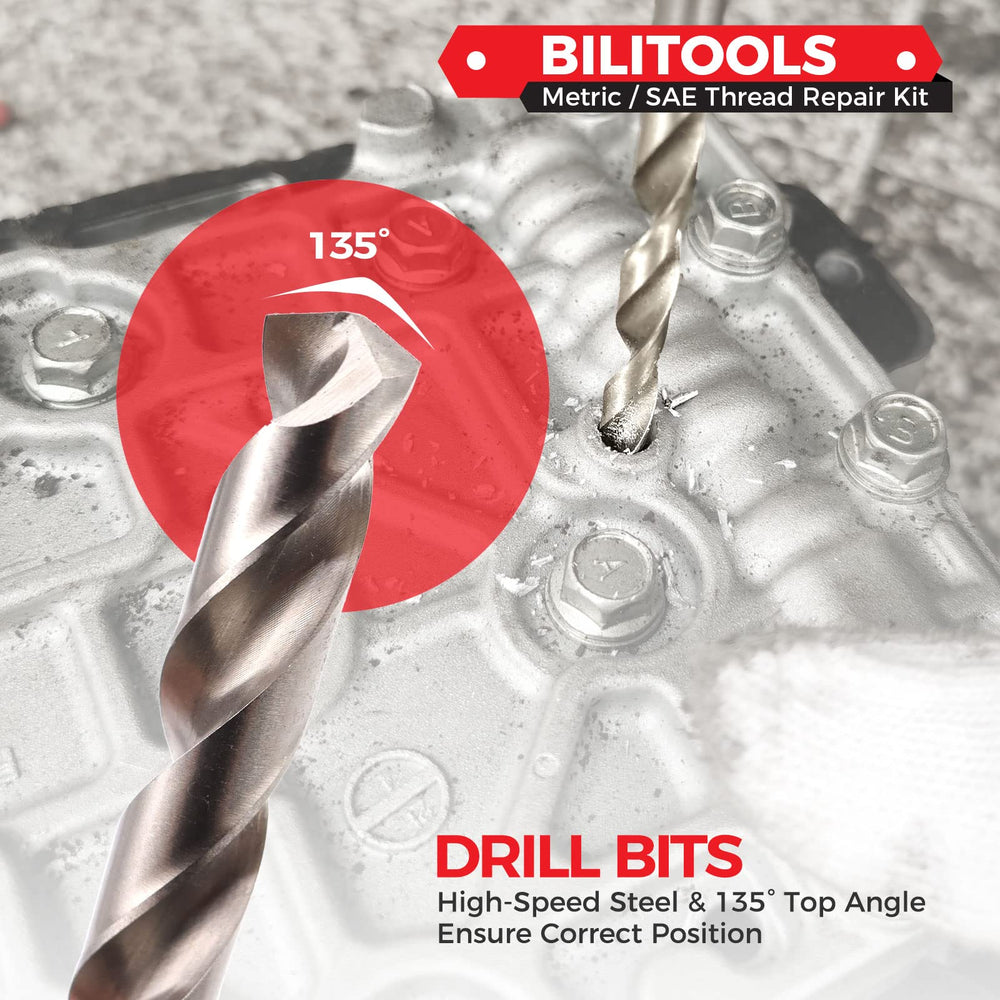

• High-speed steel drill with 135° point for efficient penetration.
• Precision 3/8-16 tap matched to the insert profile.
• 304 stainless inserts sized for longevity and higher torque capacity.
• Installation driver and break-off tool stored in labeled slots inside the case.

How long will a 304 stainless helicoil last compared to original threads?

304 stainless inserts provide a corrosion-resistant, wear-tolerant internal thread that often outlasts threads cut directly into softer metals. While lifetime depends on load and environment, the stainless coils reduce damage risk and allow higher clamp forces without pulling out.

• Corrosion resistance extends service life in humid or marine settings.
• Insert distributes load to surrounding material to prevent stripping.
• Suitable for repeated assembly and disassembly compared with bare softer-metal threads.

Who is this for? If you maintain vehicles, industrial equipment, plumbing, or do regular DIY metalwork and need a reliable way to repair or reinforce 3/8-16 internal threads, BILITOOLS' kit provides the parts and tools to complete professional-strength thread repairs at the workshop or on-site.
