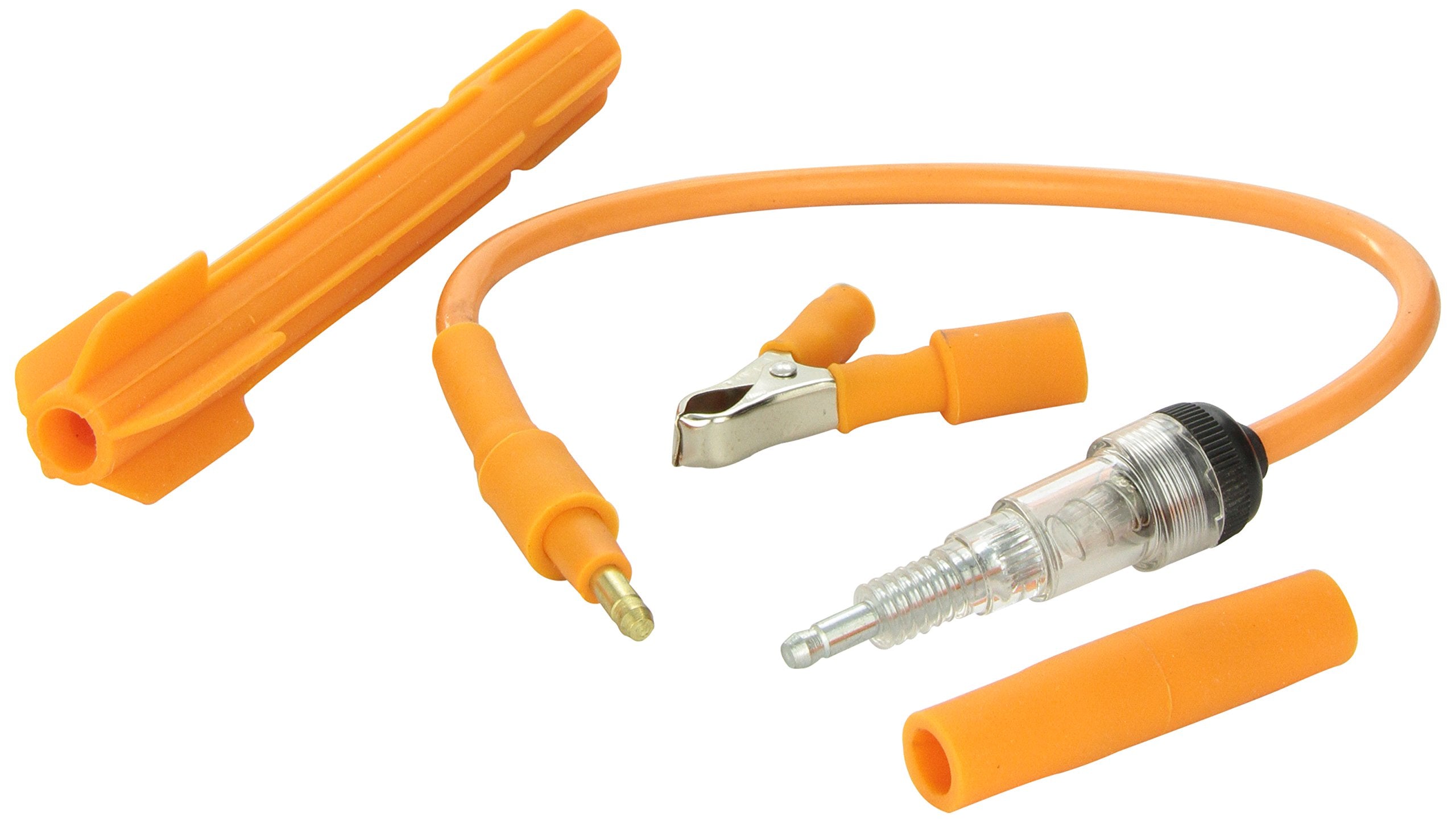

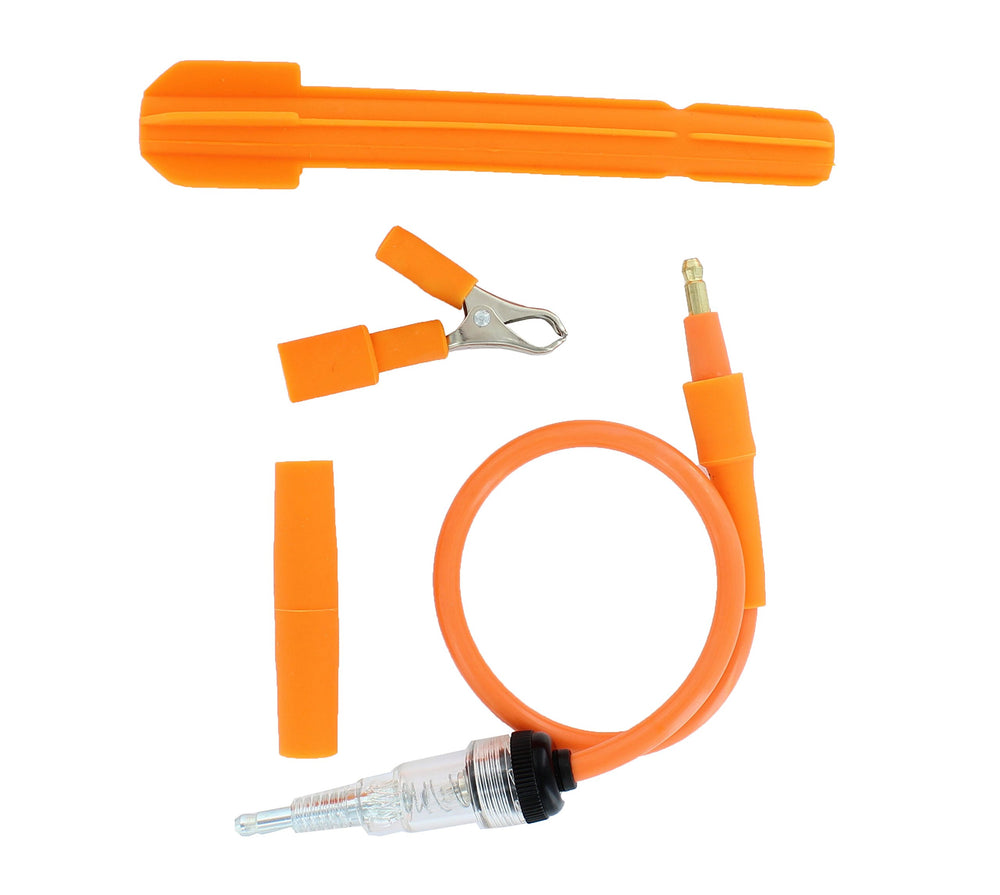

Tool Aid in-line Spark Checker Kit for Recessed Plugs — High-Visibility Orange, Visual Ignition Diagnostic

Tool Aid 23970 is an in-line spark checker designed to let technicians visually verify ignition activity on vehicles with recessed spark plugs and both conventional and coil-on-plug systems.

When diagnosing misfires or intermittent ignition faults, this compact kit gives a clear, safe view of spark behavior without removing recessed plugs. It helps distinguish ignition problems from fuel or mechanical issues by converting high-voltage spark events into a visible, flashing indicator that’s easy to interpret on the bench or in the engine bay.

How does the Tool Aid 23970 reveal whether a cylinder is firing?

The checker intercepts the high-voltage lead and displays the spark as a visible flash so you can compare cylinders. Flash rate and brightness help indicate whether the ignition event is strong, weak or absent, letting you spot problems that a code reader alone won’t show.

• Connects in-line with the spark plug lead for a duplicate spark display
• Flashing lamp indicates presence and relative strength of ignition
• Works on both conventional and coil-on-plug ignition systems
• Useful for comparing each cylinder’s performance quickly

Can this kit help identify fuel delivery versus ignition faults?

Yes — the pattern and frequency of flashes can point toward ignition or fuel delivery issues. A consistent strong flash suggests ignition is functioning while irregular or absent flashes may indicate spark, wiring, or fuel delivery faults.

• Regular, bright flashes suggest healthy ignition
• Weak or irregular flashes suggest poor spark, wire, or connector problems
• No flash points to a lost ignition event or open circuit
• Flashing alongside fuel symptoms narrows down the root cause

Is the Tool Aid 23970 safe and easy to use on modern vehicles?

Engineered for safety and visibility, the unit’s bright orange color and in-line design make it straightforward to install and observe. It is intended for use with newer vehicles that have recessed plugs; basic technician knowledge and standard safety precautions are still recommended.

• High-visibility safety orange housing for quick location
• In-line hookup avoids removing recessed spark plugs
• Compatible with domestic and imported cars, trucks, and SUVs
• Requires careful handling around high-voltage circuits

What specific benefits will a technician get from using this spark checker?

This tool supplies diagnostic information not available from OBD-II code readers alone, giving a direct visual of ignition behavior at each cylinder. That enables faster troubleshooting, fewer unnecessary part replacements and improved confidence when isolating electrical, plug, or fuel issues.

• Pinpoints spark-related faults versus fuel or mechanical causes
• Reduces guesswork and prevents costly part swapping
• Speeds up cylinder-by-cylinder comparisons during diagnosis
• Works across a wide range of vehicle makes and ignition types

Who is this for: The Tool Aid 23970 is ideal for professional mechanics, automotive technicians and experienced DIYers who need a reliable, fast way to inspect ignition events on vehicles with recessed spark plugs. If you troubleshoot misfires, intermittent ignition faults or perform routine ignition system checks on modern cars, trucks or SUVs, this compact in-line checker is a practical addition to your diagnostic kit.
