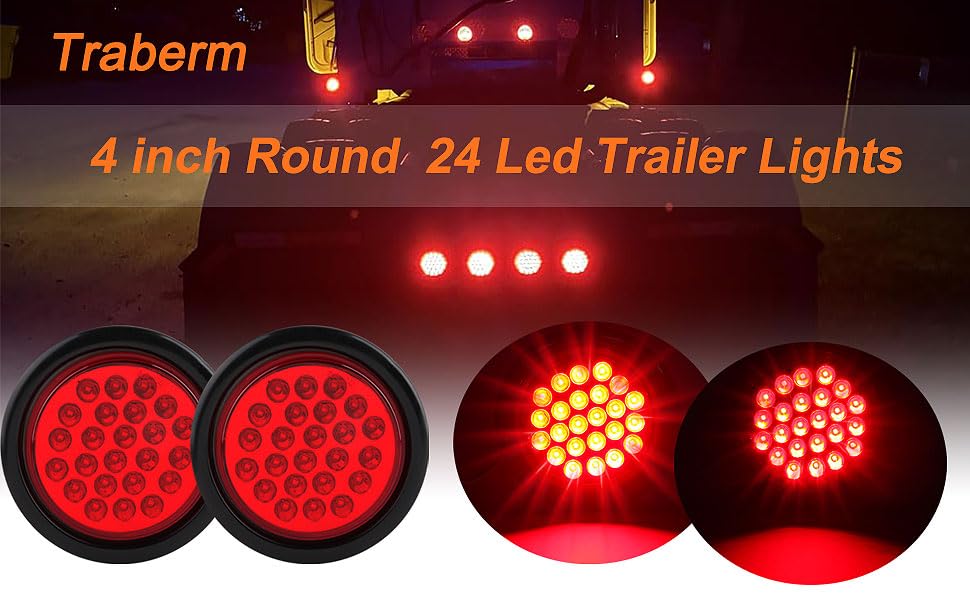

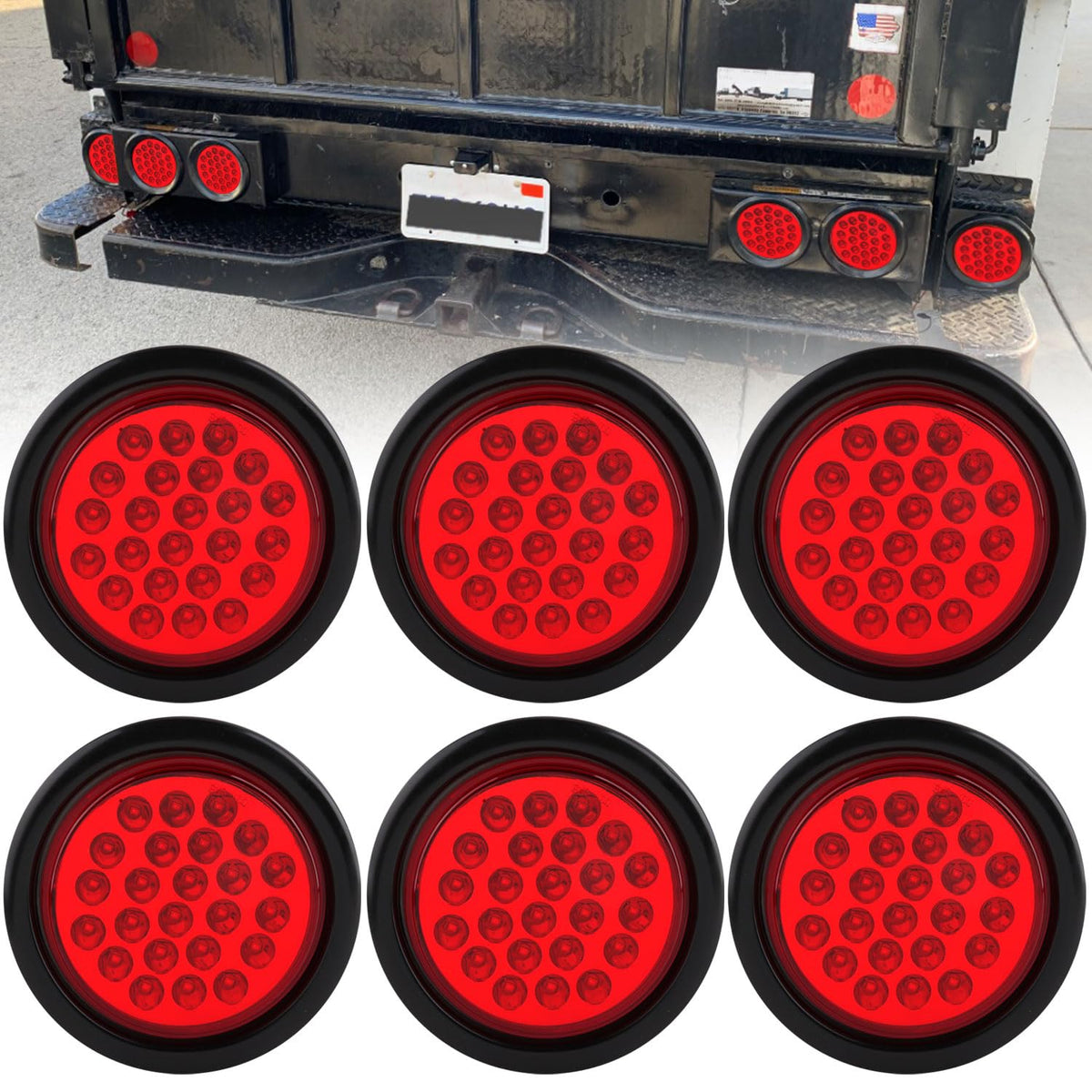

Traberm 4 in Round LED Trailer Tail Lights - 6-Pack Red, 24-LED, IP67 Waterproof

These are six 4-inch round red LED trailer tail lights from Traberm, each with 24 LEDs, IP67 waterproofing, and plug-and-play three-prong compatibility for stop, turn and running functions.

Built for trailers, trucks, utility vehicles and marine trailers, this kit supplies six flush-mount LED tail lights plus rubber grommets and three-prong wire pigtails to complete most installations. The lights run on 12V DC (compatible across an 8–16V range), use low-current LEDs that are brighter than incandescent lamps, and are designed to resist water and road vibration. The package includes everything needed to install multiple lights quickly and offers Traberm’s two-year support.

How do these lights connect and power up?

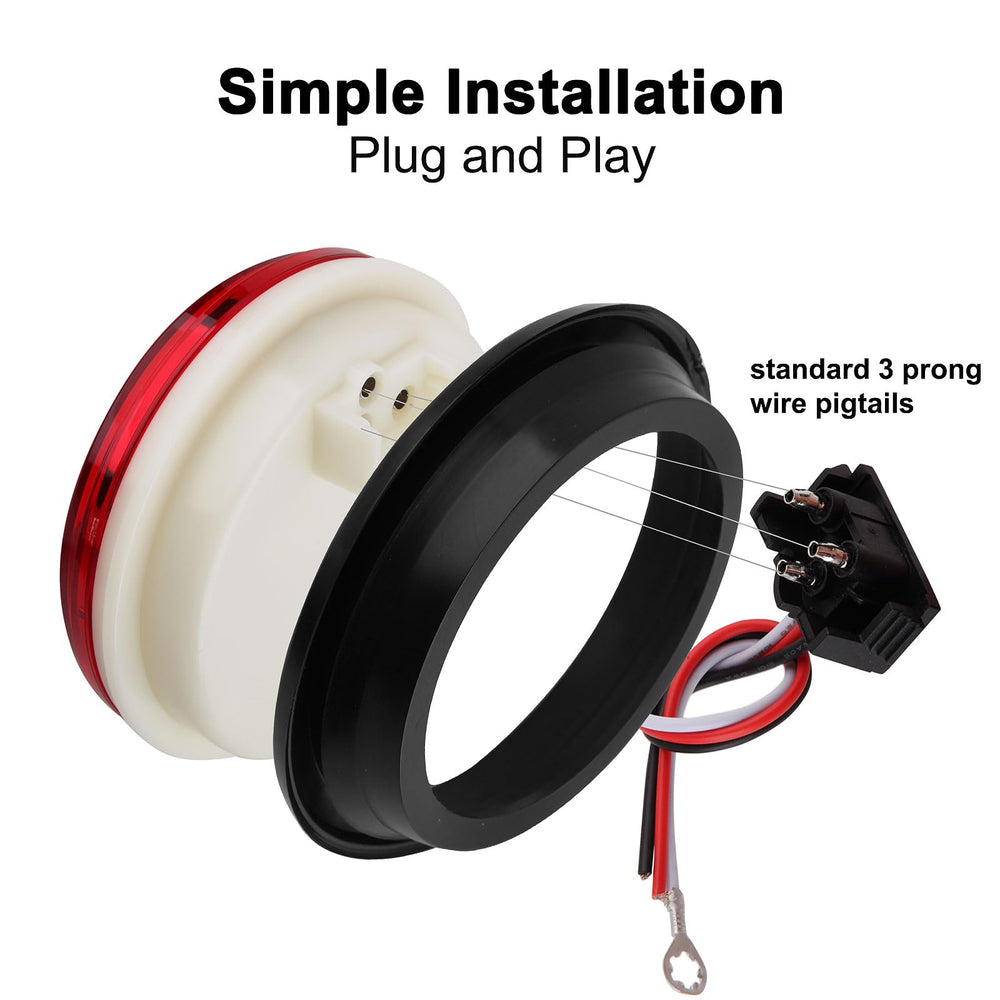

Each lamp accepts a standard three-prong plug for a fast, tool-minimal wiring hookup. The three wires are color-coded for easy identification: ground (white), high-brightness stop/turn/brake (red), and low-brightness tail/running (black). They draw less current than traditional bulbs while delivering stronger illumination.

• Standard 3-prong pigtails included for immediate connection
• 12V DC nominal, works across 8–16V systems
• Color-coded wires: white ground, red brake/turn, black running
• Flush-mount design with rubber grommet for vibration isolation

What are the physical dimensions and installation requirements?

The lens assembly has a 4-inch inner diameter with a 5.3-inch grommet ring and roughly 1-inch depth. For recessed installations you’ll want to prepare a hole near 4.6 inches; for surface mount applications, a 5.4-inch diameter hole with 1.2-inch depth is recommended. No screws are required—the rubber grommet holds the light securely when pressed into the cutout.

• 4" inner diameter lens, 5.3" grommet outer ring
• Recessed hole: about 4.6"; surface hole: 5.4" diameter, 1.2" depth
• 1" overall thickness; installs without screws
• Fits standard three-pin wiring systems (connector not always included)

Are these lights weatherproof and durable for heavy use?

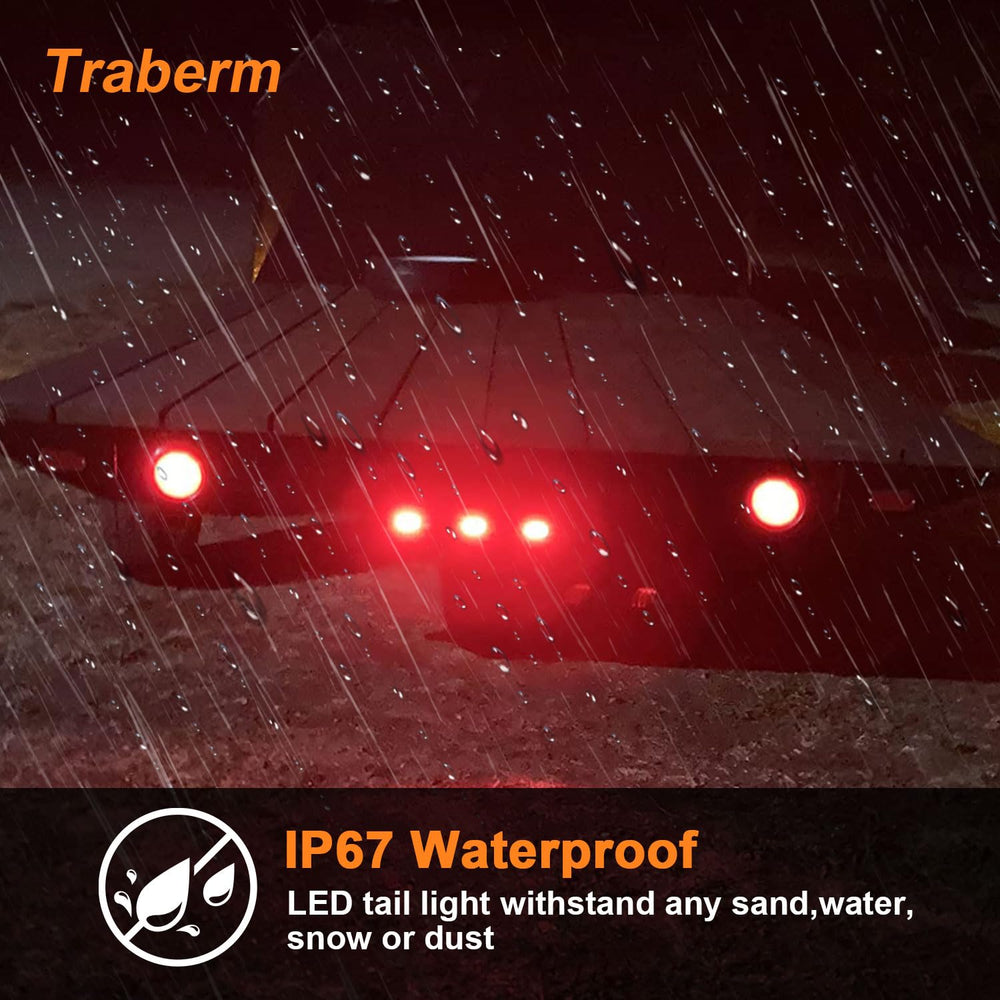

Yes — the lights carry an IP67 rating to keep moisture and dust out, making them suitable for road, trailer and marine environments. The LED array is more shock- and vibration-resistant than filament bulbs, and the rubber grommet helps cushion the housing against frame movement. Traberm backs the kit with a two-year support period for peace of mind.

• IP67-rated for waterproofing and dust protection
• 24 LED chips per lamp for brighter, low-current output
• Rubber grommets reduce vibration and seal cutouts
• Two-year customer support and responsive email help

Which types of vehicles and trailers will these lights work on?

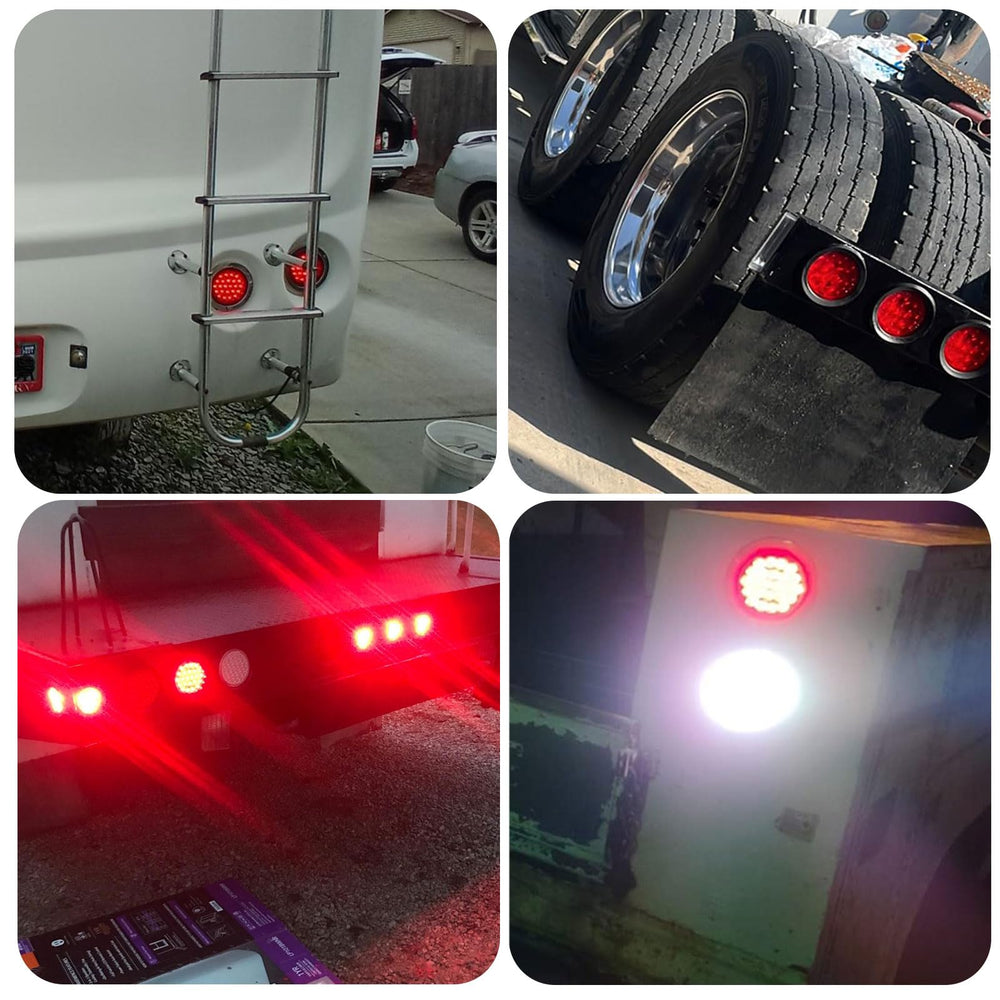

The lights are engineered to operate across a wide range of 8–16V DC systems, so they suit semi trailers, utility trailers, horse trailers, pickup trucks, boats on trailers, service vans and many other commercial or recreational vehicles. Their compact 4-inch design makes them easy to place where space is limited but visibility is required.

• Compatible with trailers, trucks, boats on trailers, and utility vehicles
• Works on most 12V vehicle electrical systems and 8–16V ranges
• Useful for stop/turn/brake and tail running light roles
• Compact size fits tight mounting locations

Who is this for: installers, fleet managers and weekend DIYers who need a reliable, compact LED tail light solution for multiple mounting locations. Choose this six-piece Traberm kit when you want brighter, longer-lasting lighting that installs fast, resists weather, and covers several mounting points at once.
