Traberm Trailer Light Box Kit with 6" Oval LED Tail Lights & 2" Marker LEDs — Steel, IP67 Waterproof

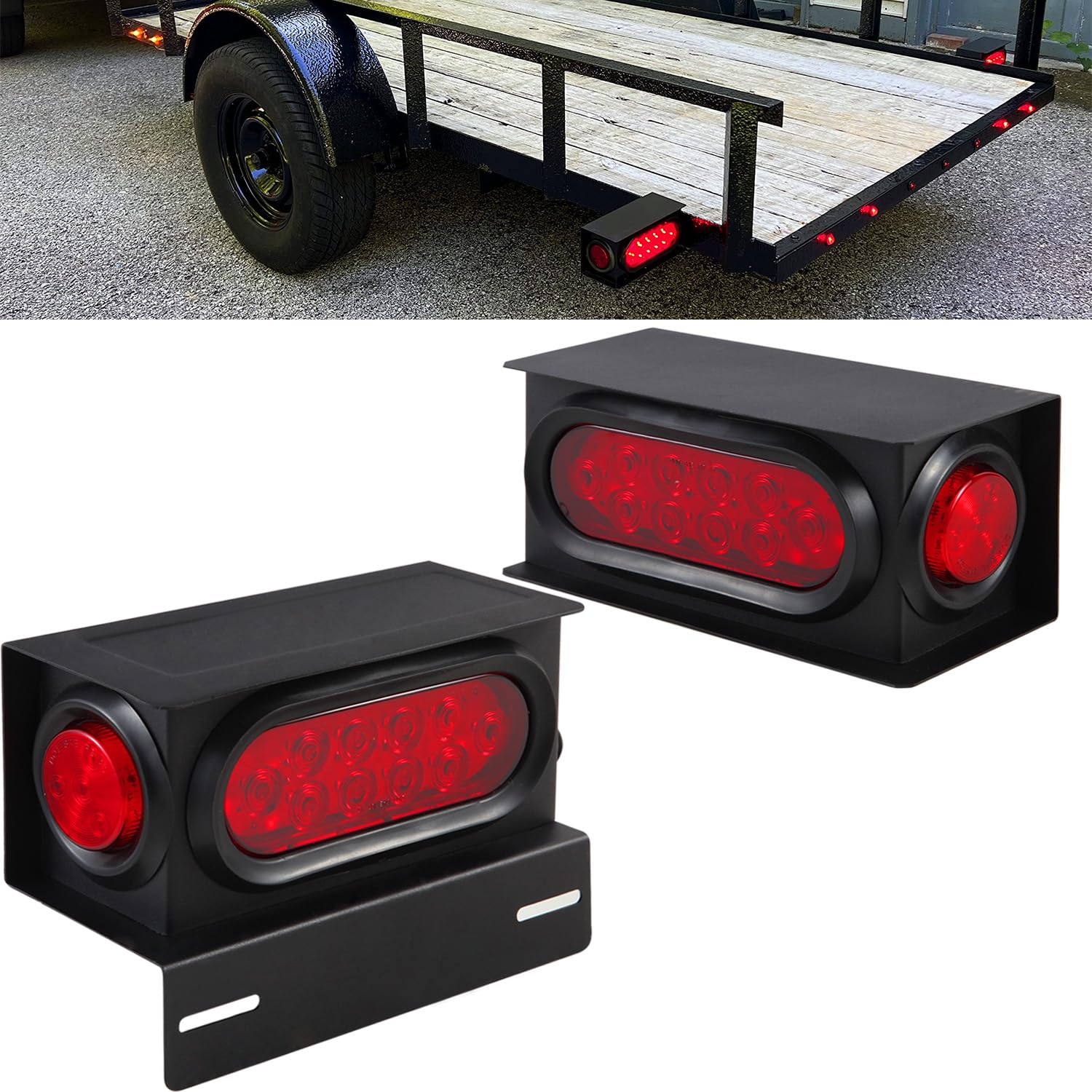

Traberm's 2-piece welded steel light box kit includes two heavy-duty mount boxes plus bright 6" oval LED tail lights and 2" round marker LEDs for a complete, weatherproof trailer lighting solution.

This kit combines rugged welded-mount steel housings with plug-and-play LED fixtures so you can add tail, stop/turn and marker lights quickly and reliably. The boxes are powder-coated for corrosion resistance and pre-cut to accept the included 6" oval tail lamps and 2" round side markers, giving you a factory-like fit. LEDs improve visibility while using less power and lasting far longer than incandescent bulbs, and the kit's IP67-rated components stand up to road spray, mud and rain.

How do I install the light box and LED lamps?

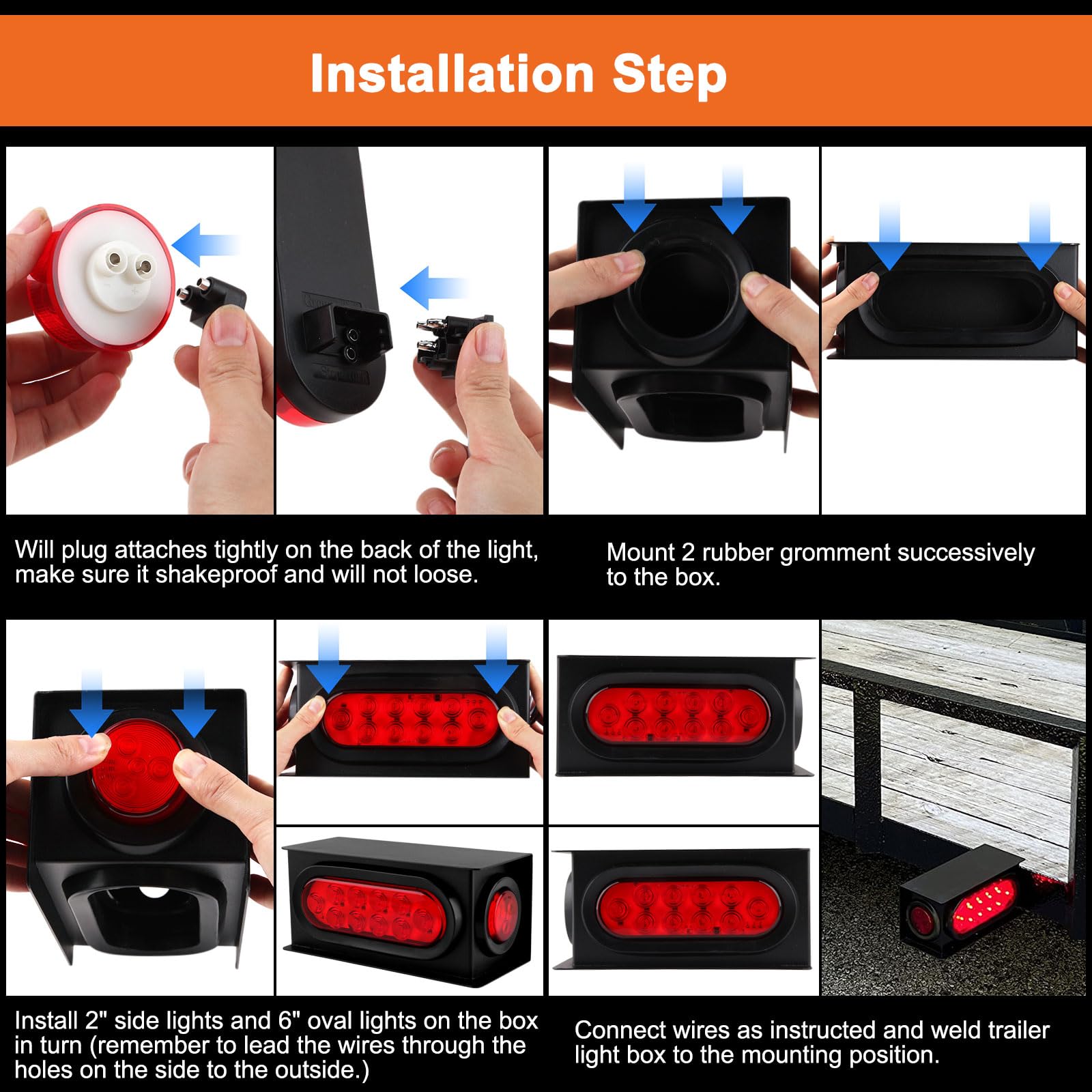

Installation is straightforward: position and weld or bolt each steel box to your trailer frame, press the lamp grommets into the pre-cut openings, then connect the pigtail wires to the trailer wiring harness. The lights use standard color coding to simplify hookups, and rubber gaskets seal the lenses for weather protection.

• Weld or bolt the heavy-duty boxes to frame rails or tongue.
• Insert rubber grommets, push in 6" oval and 2" round LEDs.
• Match wire colors: oval 3-prong (white ground, red brake/turn, black tail); round 2-prong (black ground, red positive).
• Test stop, turn and running functions before finalizing mount.

What performance can I expect from the LEDs in varied conditions?

The included LEDs use multiple high-output diodes to deliver bright, consistent light for stop, turn and running functions, improving nighttime visibility and recognition by other drivers. With IP67 protection and robust housings, the lamps resist moisture and road debris for dependable operation in wet or dusty environments.

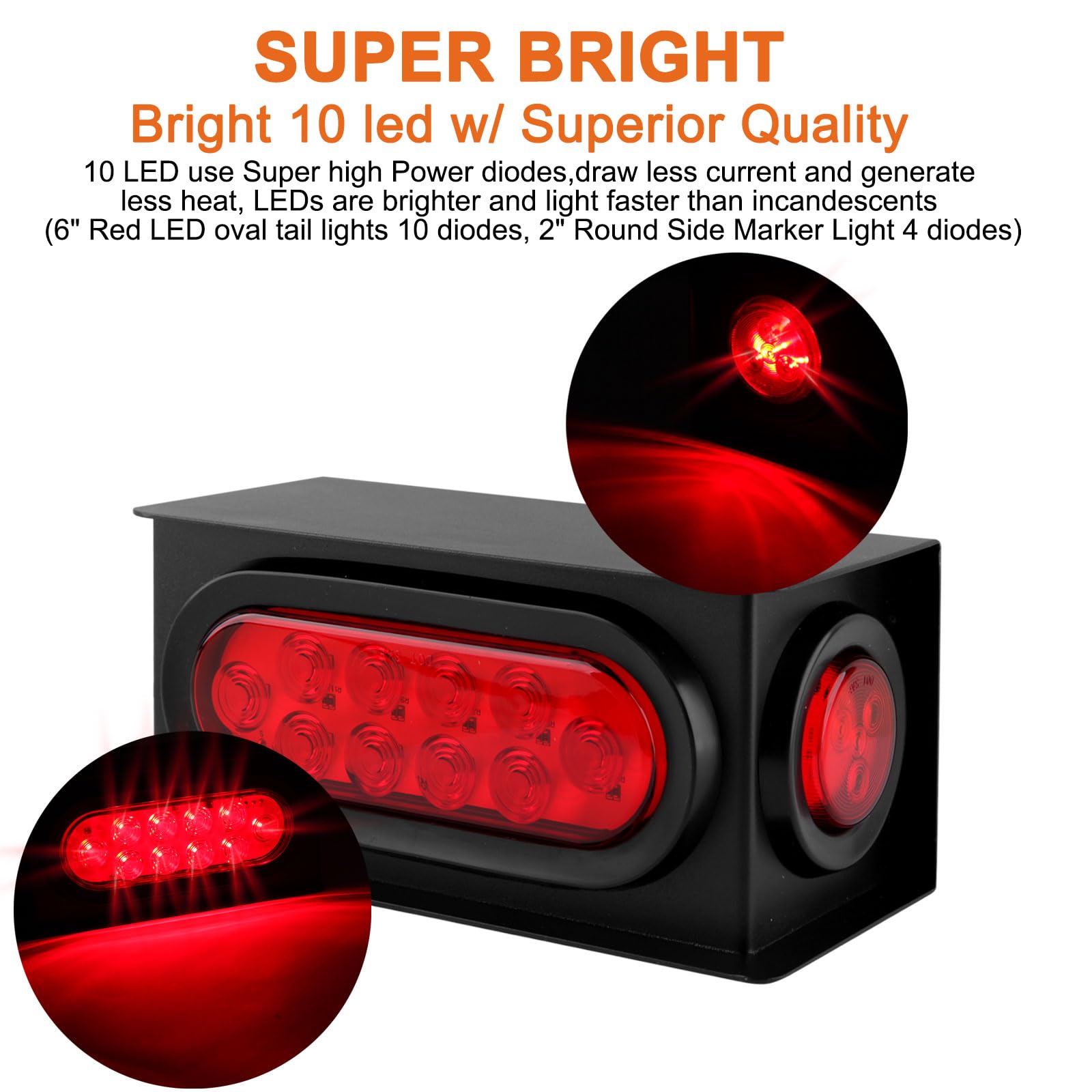

• 6" oval tail lights: 10 ultra-bright LEDs for stop/turn/tail functions.
• 2" round marker lights: 4 bright LEDs for side visibility and marking.

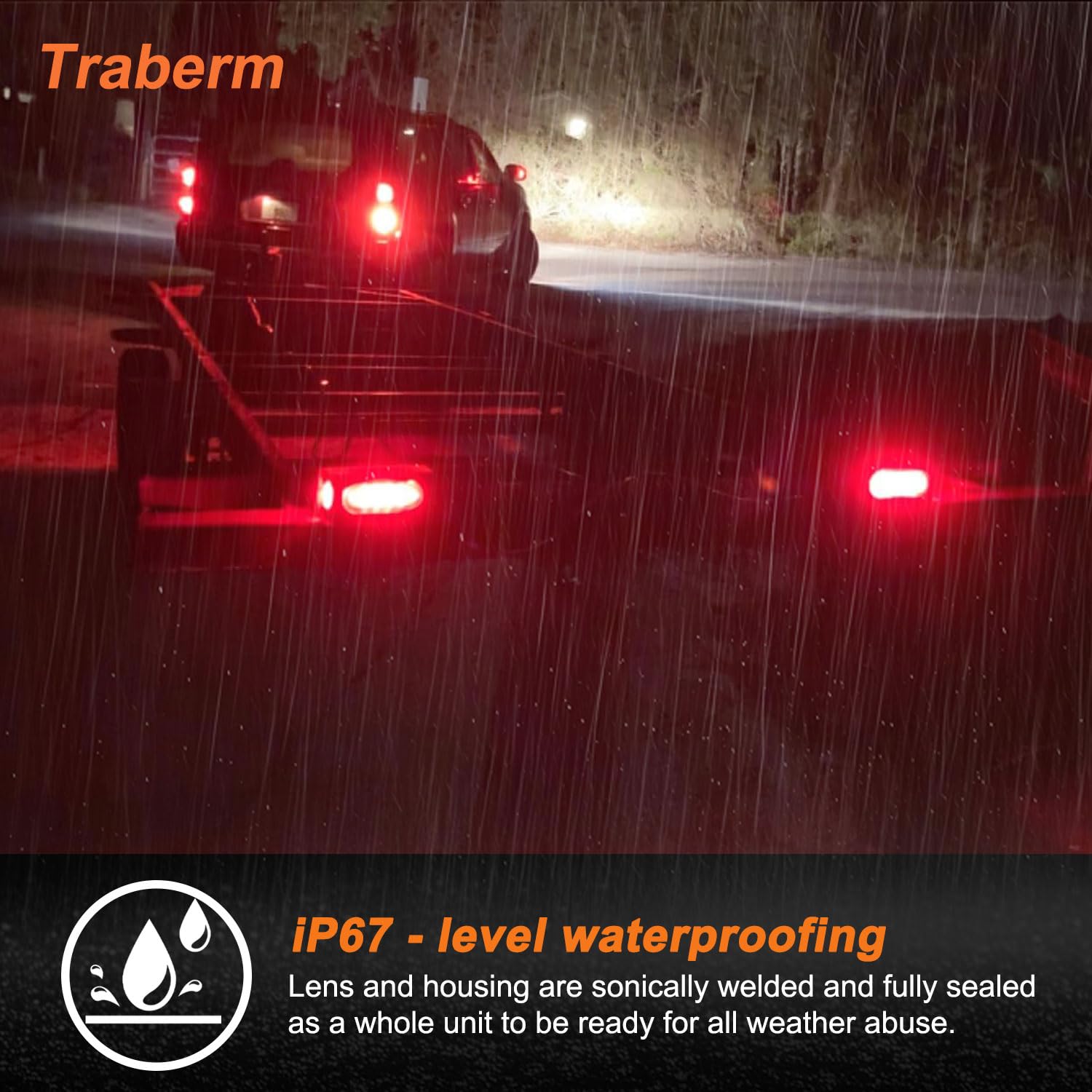

• IP67 waterproofing to survive heavy rain and washdowns.
• Low current draw for long-term reliability and minimal battery load.

Will this kit fit my trailer type and wiring system?

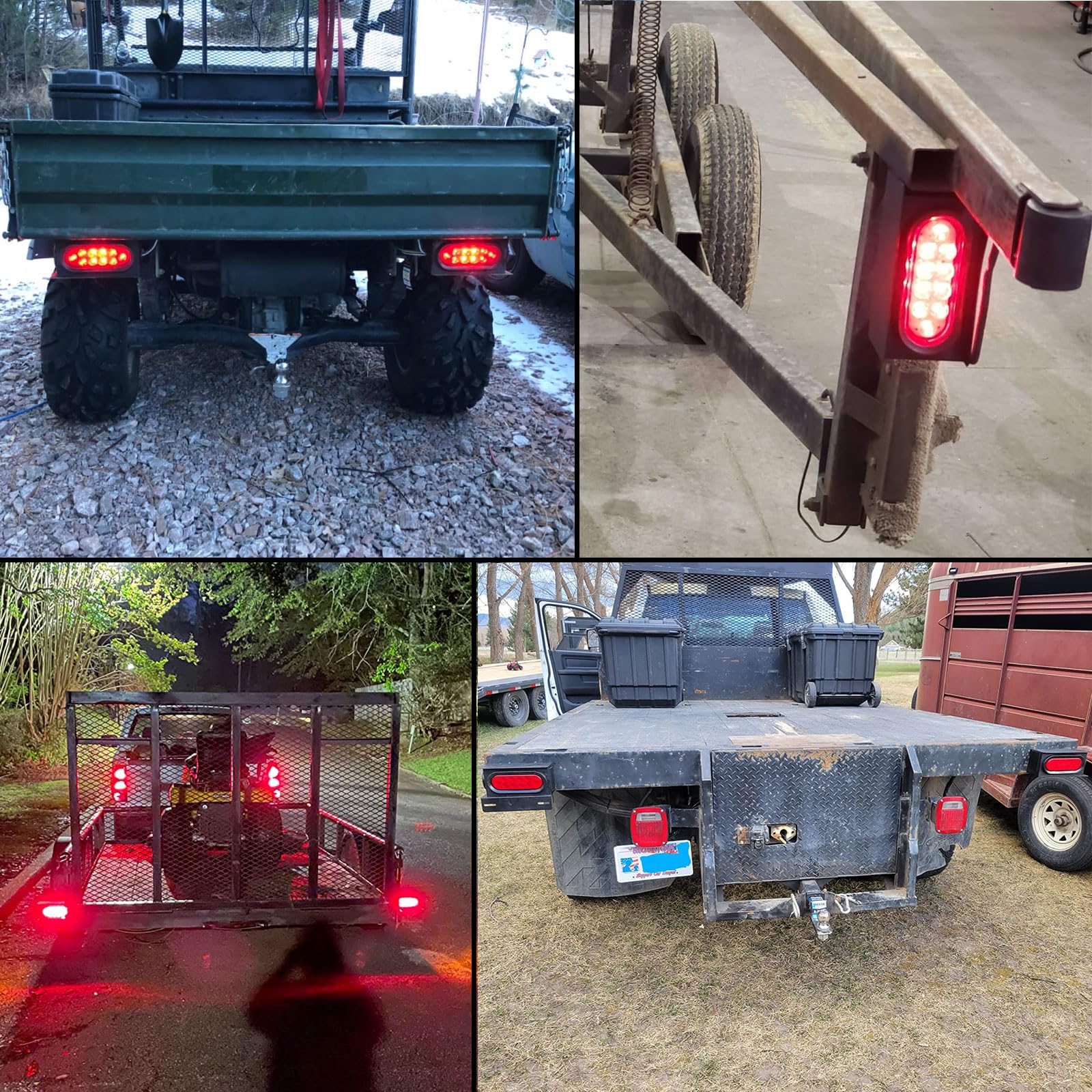

The kit is designed for universal trailer use and suits many vehicle and trailer types, including flatbeds, horse trailers, travel trailers, dump trucks and semi applications. The pigtails conform to common 3-prong and 2-prong wiring schemes so integration with existing harnesses is normally quick and simple.

• Universal design for trucks, trailers, tractors and RVs.

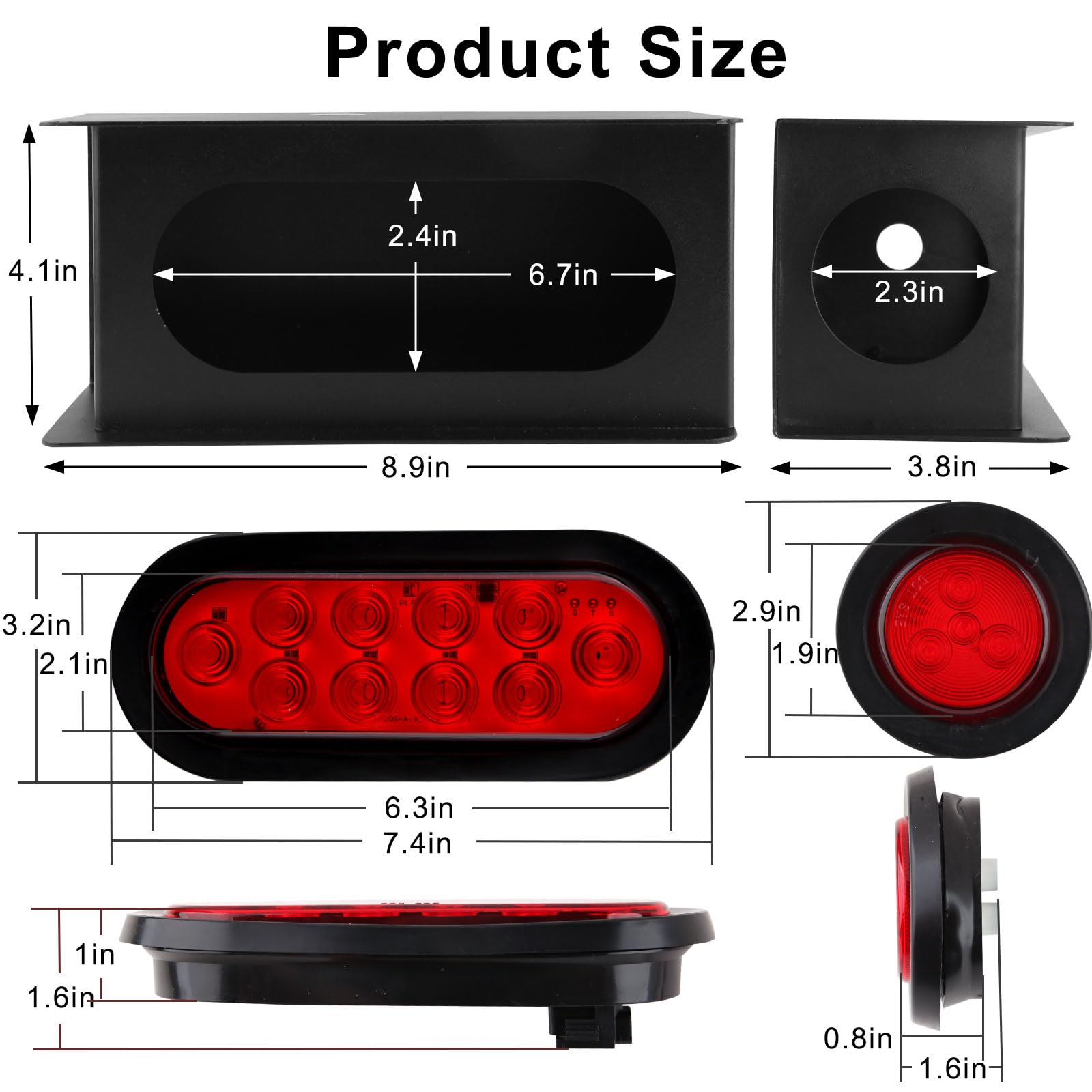

• Pre-cut box openings sized for the included 6" and 2" lamps.
• Standard wire colors and pigtails for direct hookups.
• Works with common 12V trailer electrical systems.

Who is this for? This Traberm kit is aimed at trailer owners, fleet maintenance techs and fabricators who need a durable, ready-to-install lighting solution that looks integrated and resists the elements. If you want to upgrade to long-lasting LEDs, replace damaged housings with welded-mount boxes, or furnish new trailer builds with sealed, bright lights, this kit provides the components and weatherproofing necessary for professional results. Technical support is available from the manufacturer for pre- or post-purchase questions.
