Ucreative 90° Silicone Elbow Coupler 3.5" to 4" — 4‑ply, 5mm Wall, High‑Temp

Ucreative 90 Degree Elbow 3.5" to 4" is a heavy‑duty silicone 90° coupler built to join 3.5" and 4" pipes for turbo and intake systems with high heat, pressure, and flexibility.

This molded silicone elbow serves as a reliable junction for charged or atmospheric air paths where a tight, flexible 90‑degree turn is needed. Constructed from 4‑ply silicone with a 5 mm wall thickness and a 5" leg length, it bridges inner diameters from 88.9 mm (3.5") to 101.6 mm (4.0"), tolerating extremes from -60°C to 230°C and resisting bursts up to 2 MPa. The piece ships as a single unit and is designed for universal installation on turbo piping, intake tubes, intercooler connections, and similar ductwork.

How does this elbow handle high temperatures and cold starts?

The silicone formulation and 4‑ply construction keep the coupler stable across wide temperature swings, so it won’t harden in cold weather or soften under engine heat. This makes it suitable for repeated thermal cycles without rapid degradation.

• Operating range: -60°C to 230°C (-140°F to 428°F)
• Thick 5 mm walls resist heat-related deformation
• Molded design reduces joint stress at turning points

Can this elbow fit different pipe sizes and installation angles?

The part is tapered to adapt between 3.5" and 4.0" inner diameters and the 90° bend is optimized for compact routing. It is intended as a universal coupler for straight connections where a right‑angle turn is required.

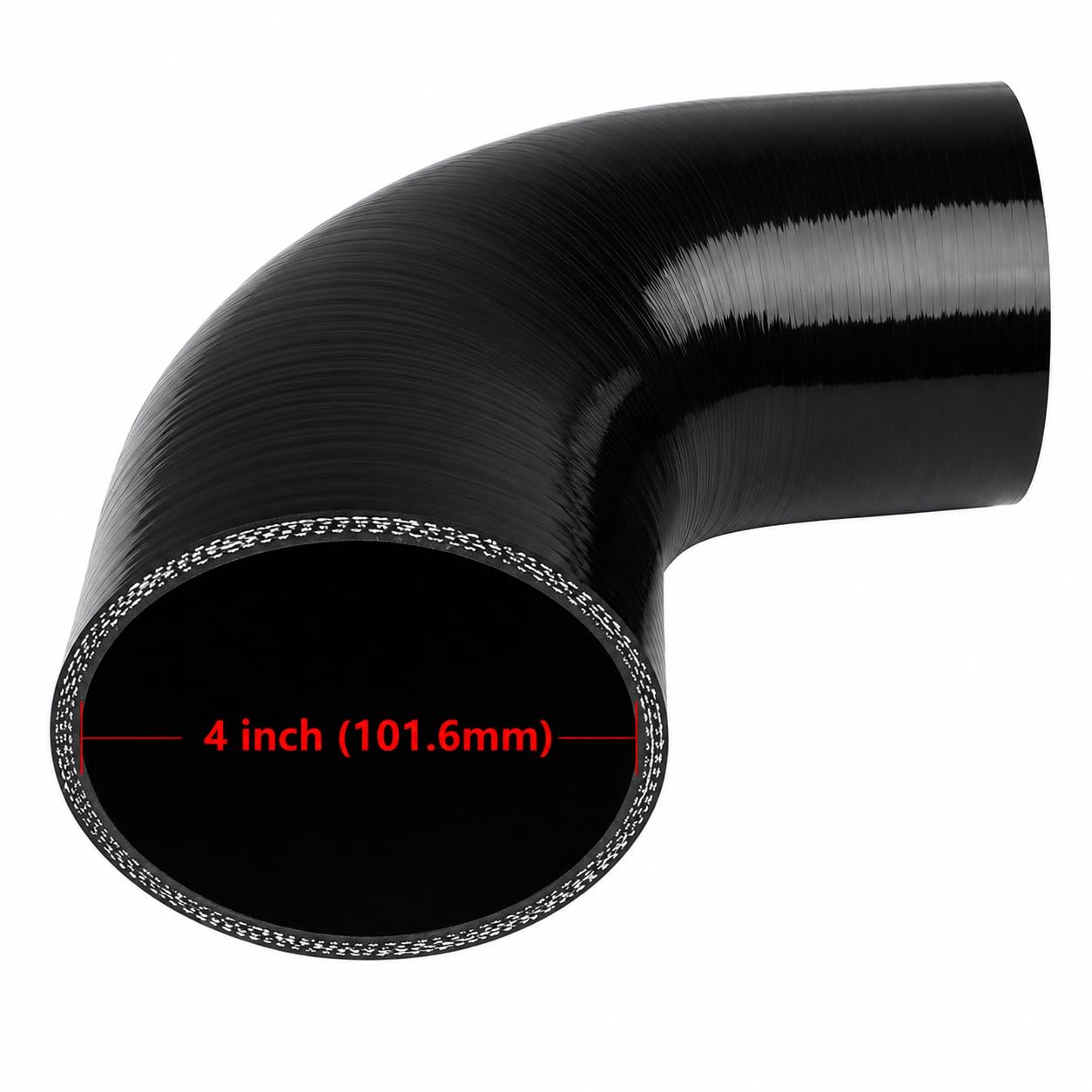

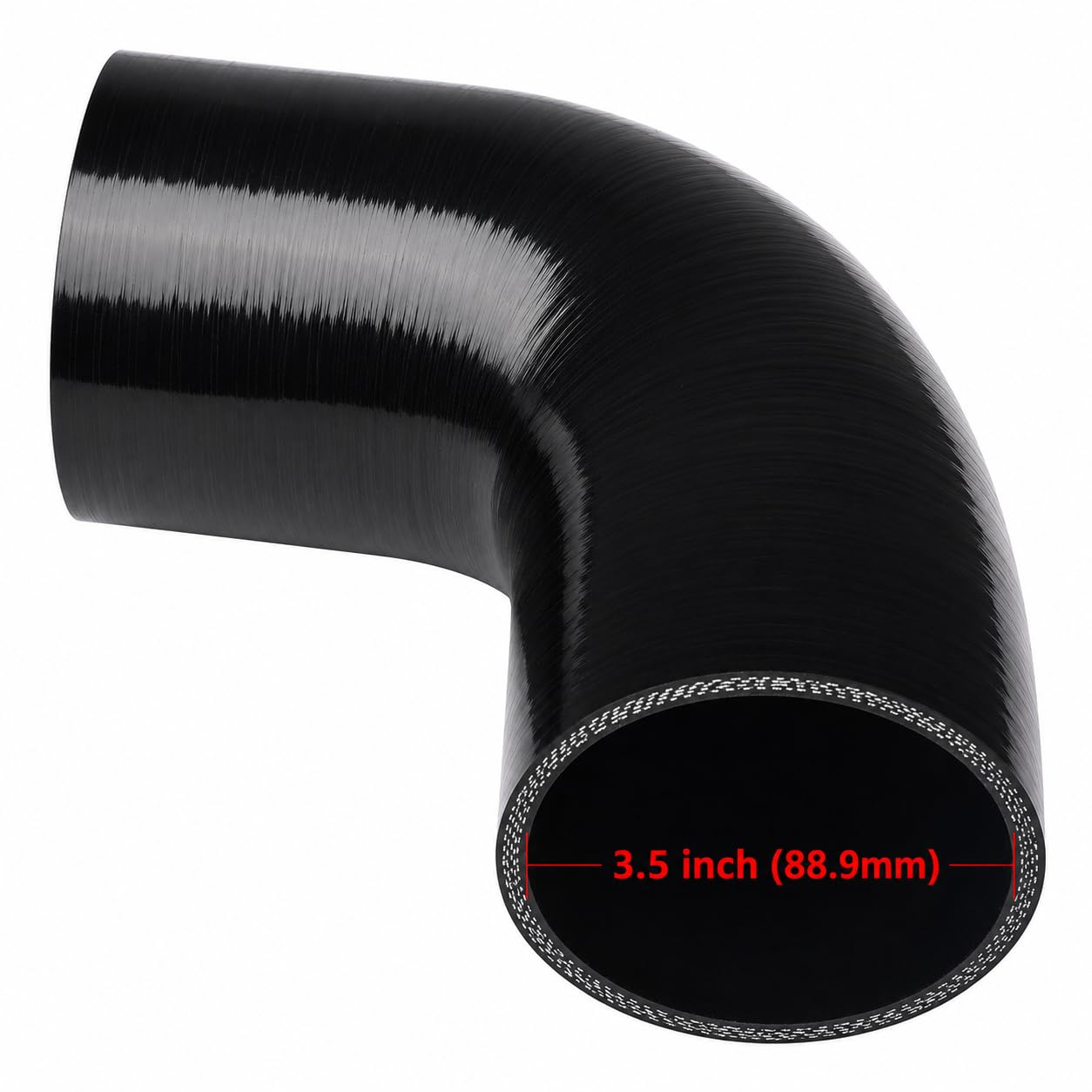

• Inner diameter range: 88.9 mm to 101.6 mm (3.5"–4.0")

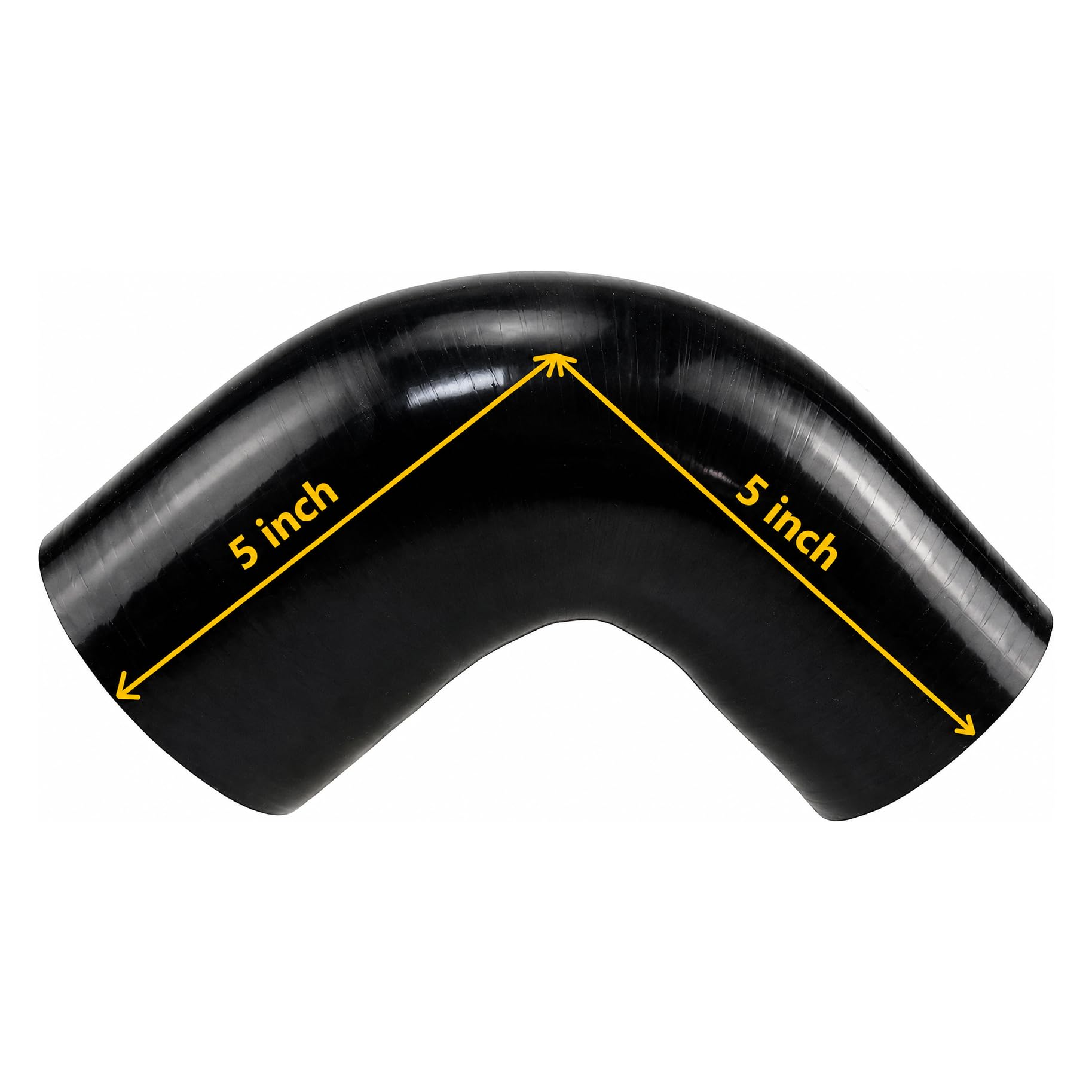

• Each leg length is 125 mm (5") for secure clamp placement
• Works with turbo, intake, intercooler, and charge pipe systems

What strength and pressure performance should I expect?

With a bursting pressure rated at 2 MPa and a reinforced 4‑ply structure, this coupler withstands boost and pressure spikes common in forced‑induction setups. Proper hose clamps on the 5" legs ensure consistent sealing under load.

• Bursting pressure: 2 MPa for resilience under boost
• 4‑ply silicone provides tear and puncture resistance
• Designed for repeated clamp tightening without warping

How easy is it to install and maintain this silicone elbow?

Installation requires only basic hose clamps and standard hand tools; the 5" legs give adequate room for clamp placement and alignment. Maintenance is minimal—inspect clamps and hose condition periodically and clean with mild detergent if needed.

• Includes one 90° silicone hose in the package
• Simple clamp‑on installation; no adhesive required
• Clean with non‑abrasive detergent to preserve silicone finish

Who is this for: This Ucreative silicone 90° elbow suits mechanics, tuners, and DIY car enthusiasts needing a robust, heat‑tolerant elbow to link unequal pipe sizes in turbo, intercooler, and intake systems. It’s ideal when you require a compact right‑angle connection with reliable sealing and long service life under demanding automotive conditions.
