Ucreative AN10 10ft Nylon-Braided Fuel Line Kit — CPE Hose, 500 PSI Working Pressure

This kit combines a 10-foot length of CPE synthetic rubber hose wrapped in a tough nylon braid with an assortment of swivel fittings and a clamp to let you route AN10 (0.56 inch ID) lines neatly through tight engine bays. It’s built for elevated working pressures, wide operating temperatures, and repeated bending where flexible, abrasion-resistant hose is needed. Read on to see how the parts and performance specifications match common install scenarios and what limitations you should consider before buying.

How strong and heat-resistant is this fuel line kit?

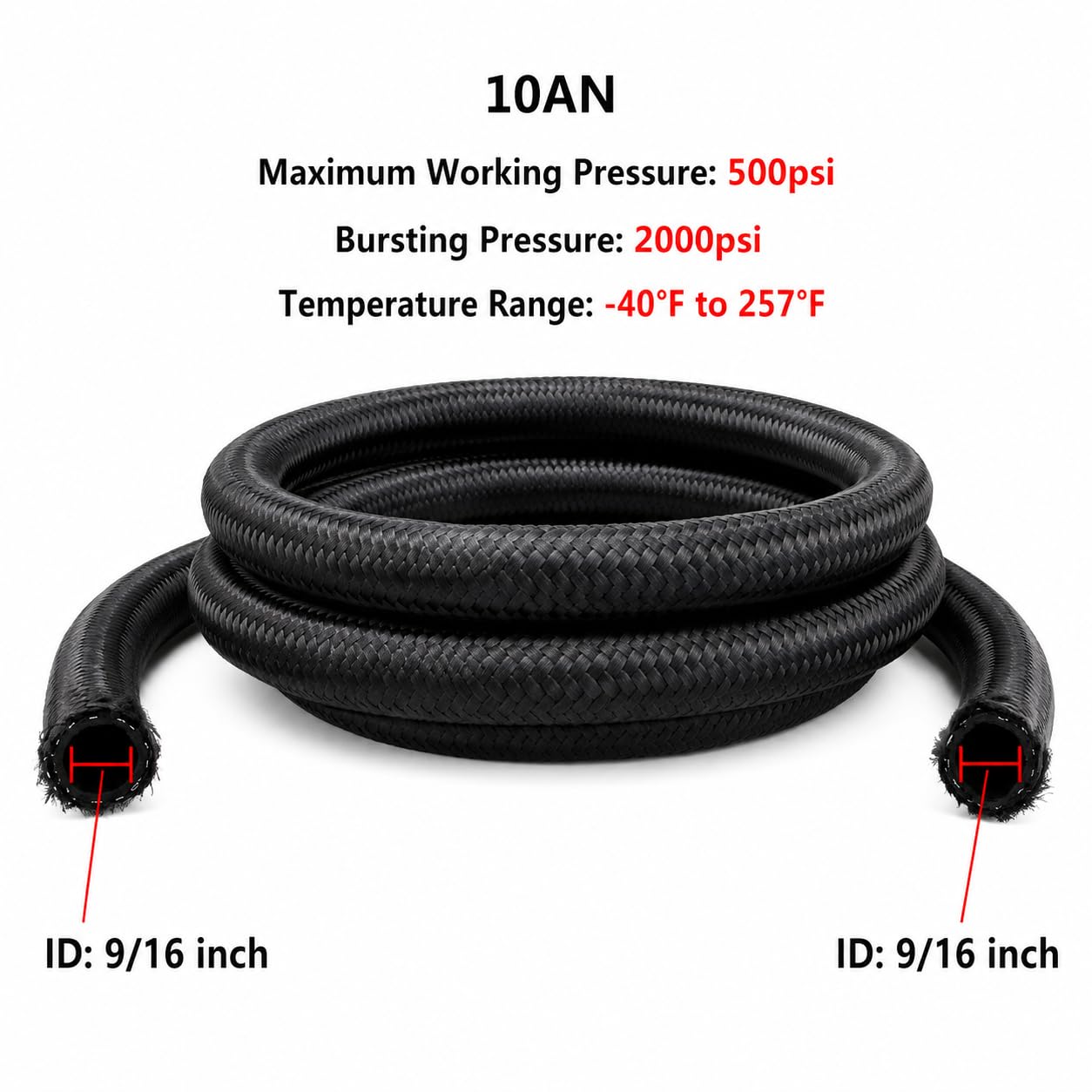

The hose is rated for a maximum working pressure of 500 psi and a bursting pressure of 2000 psi, giving ample safety margin for most fuel and oil systems. Its temperature tolerance spans roughly -40°F to 257°F, so it holds up in cold starts and under high under-hood heat loads.

• Working pressure: 500 psi
• Burst pressure: 2000 psi
• Temperature range: -40°F to 257°F
• Nylon braid protects the CPE inner tube from abrasion and kinking

What fittings and hardware are included, and how do they help routing?

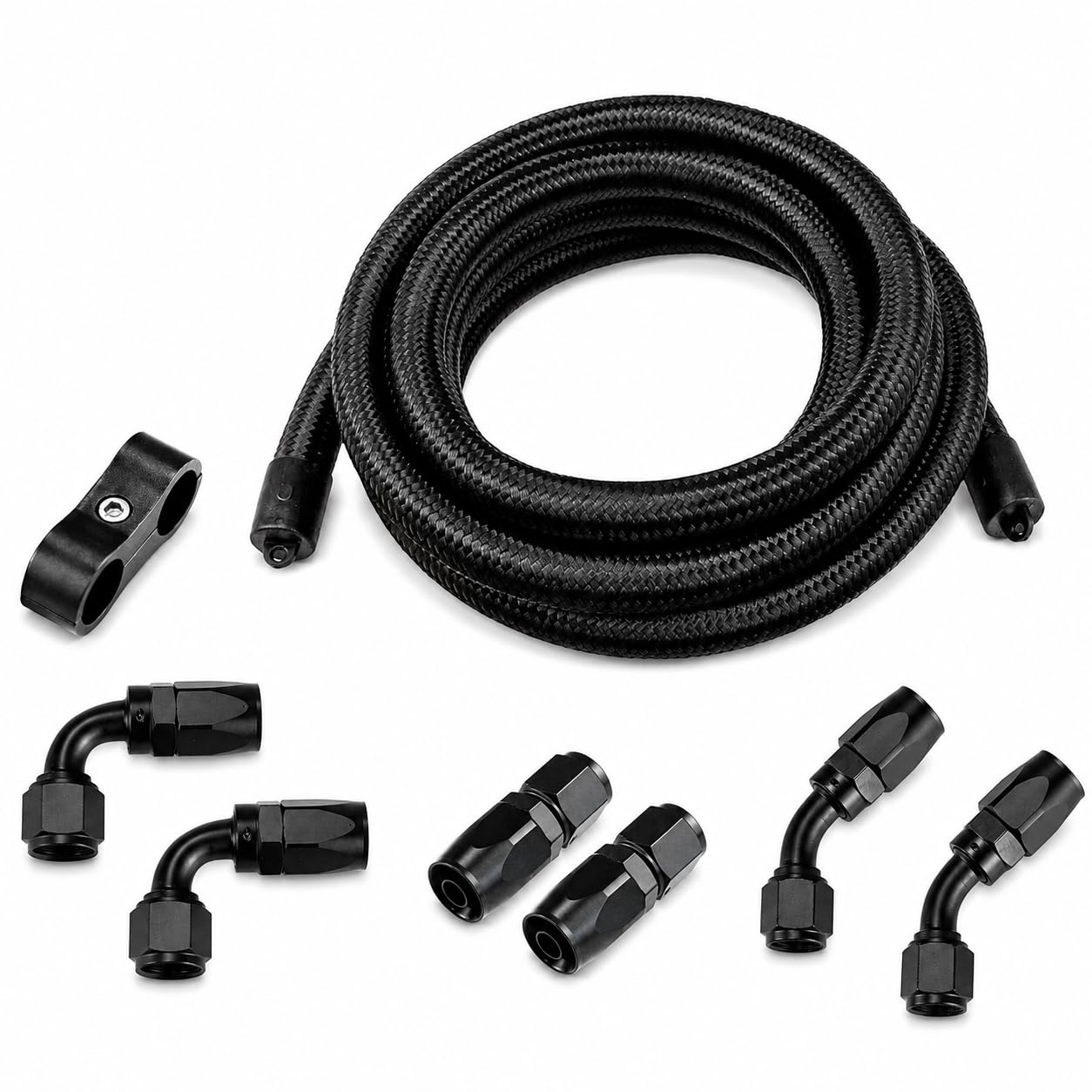

The kit ships with multiple swivel hose ends to give you routing flexibility: straight, 45-degree, and 90-degree swivel fittings allow clean connections to pumps, filters, and rails without twisting the hose. A separator clamp is included to secure runs and prevent chafing against chassis or engine components.

• 2 × straight swivel hose ends
• 2 × 45° swivel hose ends
• 2 × 90° swivel hose ends
• 1 × hose separator clamp for tidy mounting

What are the hose dimensions and material compatibility I need to know?

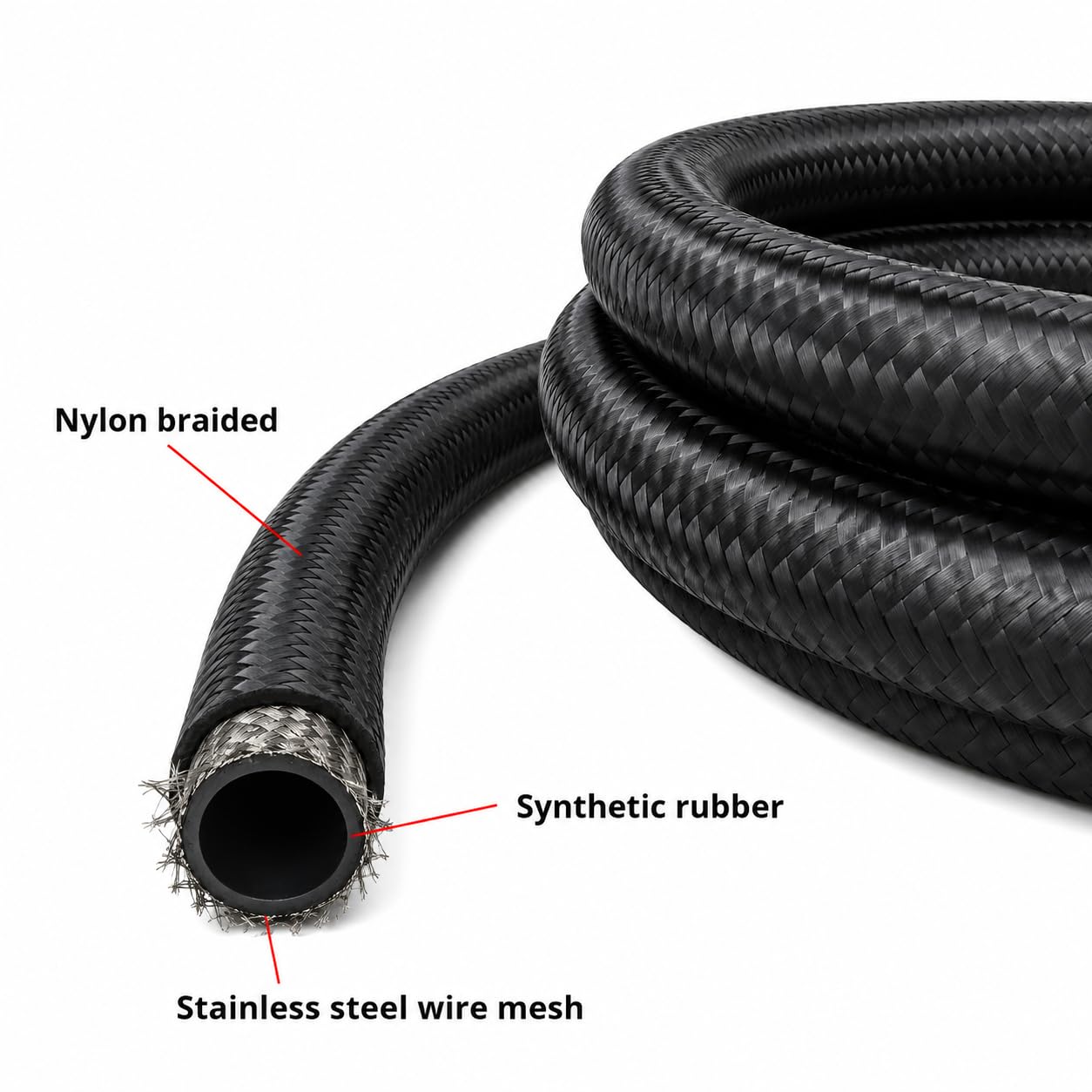

The internal diameter is 0.56 inch (14.2 mm) with a 0.78 inch (20 mm) outer diameter, and the included length is 10 feet — verify measurements against your planned routing before cutting. The tube is made of CPE synthetic rubber with a nylon outer braid; note that the included fittings are not compatible with PTFE hose types, E85 fuel, or rubber hose installations.

• Hose ID: 0.56 inch (14.2 mm)
• Hose OD: 0.78 inch (20 mm)
• Length: 10 feet (measure before purchase)
• Materials: CPE inner tube with nylon braid exterior

Do I need a professional to install this hose kit?

Installation by a trained mechanic or experienced installer is recommended because correct assembly, torquing, and routing are critical for leak-free performance under pressure. The manufacturer offers free replacement without a return if the kit leaks, but professional installation reduces the risk of improper fitting or damage during assembly.

• Professional installer recommended for best reliability
• Free replacement if a leak occurs (no return required)
• Double-check fittings/torque and routing to avoid chafe

Who this kit is for: this Ucreative AN10 CPE nylon braided hose and fitting kit suits gearheads, racers, and professional installers who need a flexible high-pressure line for fuel, oil, or general fluid transfer where abrasion resistance and multiple swivel orientation options are required. It’s not intended for PTFE hose conversions, direct E85 use, or replacement of rubber-only lines without verifying compatibility. If you need a versatile 10-foot AN10 solution that balances strength, temperature tolerance, and routing flexibility, this kit is a practical option.
