US Cargo Control L-Track Double Stud Fittings (10-Pack) — 5,000 lb Break Strength, Zinc-Coated

Heavy-duty L Track double stud fittings (10 pack) from US Cargo Control provide secure, spring-locking anchor points for truck beds and trailers with a 5,000 lb break strength and 1,666 lb working load limit.

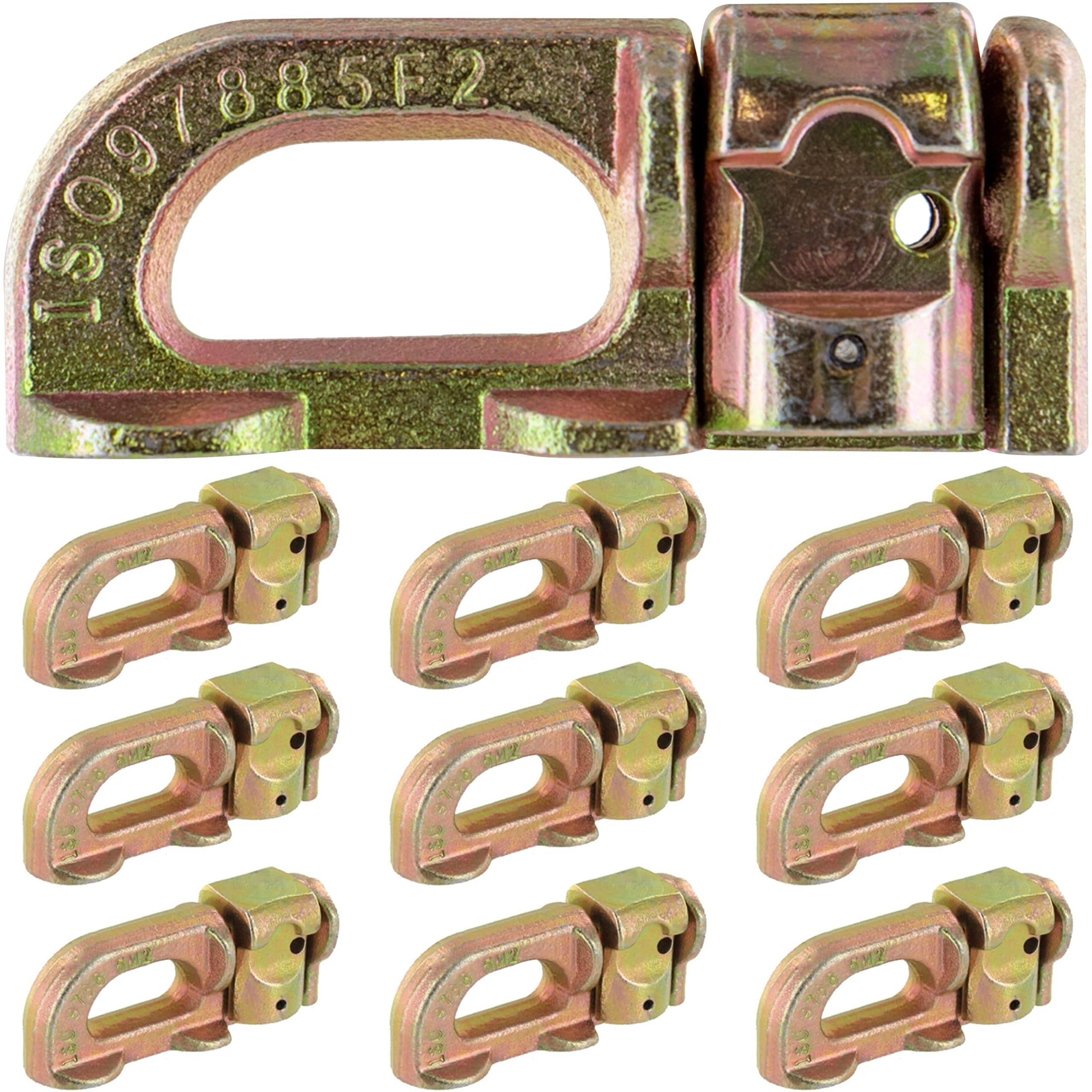

These zinc-coated metal fittings convert any compatible L track rail into reliable tie-down points for motorcycles, ATVs, UTVs and general cargo. Each double-stud unit occupies two track slots and uses an automatic locking clip with spring release for fast placement and removal. Sold as a set of 10, they give you multiple anchor locations to build a flexible, durable cargo restraint system.

How strong are these fittings for everyday hauling?

The double stud design increases strength and stability compared with single-stud anchors. Each fitting has an assembly break strength of 5,000 pounds and a rated working load limit of 1,666 pounds, making them suitable for many recreational and light-commercial tie-down needs when used correctly with rated webbing.

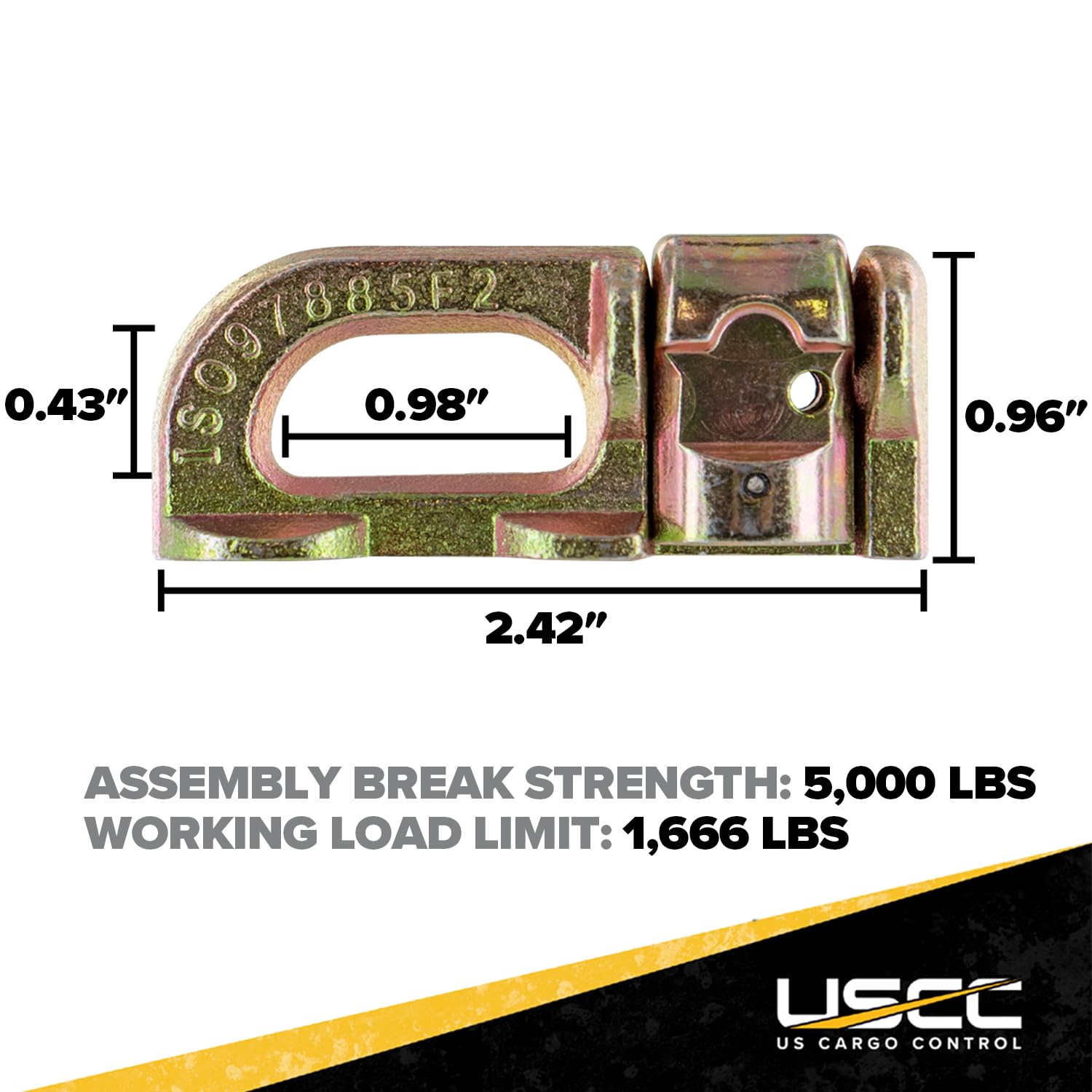

• Assembly break strength: 5,000 lb
• Working load limit (WLL): 1,666 lb

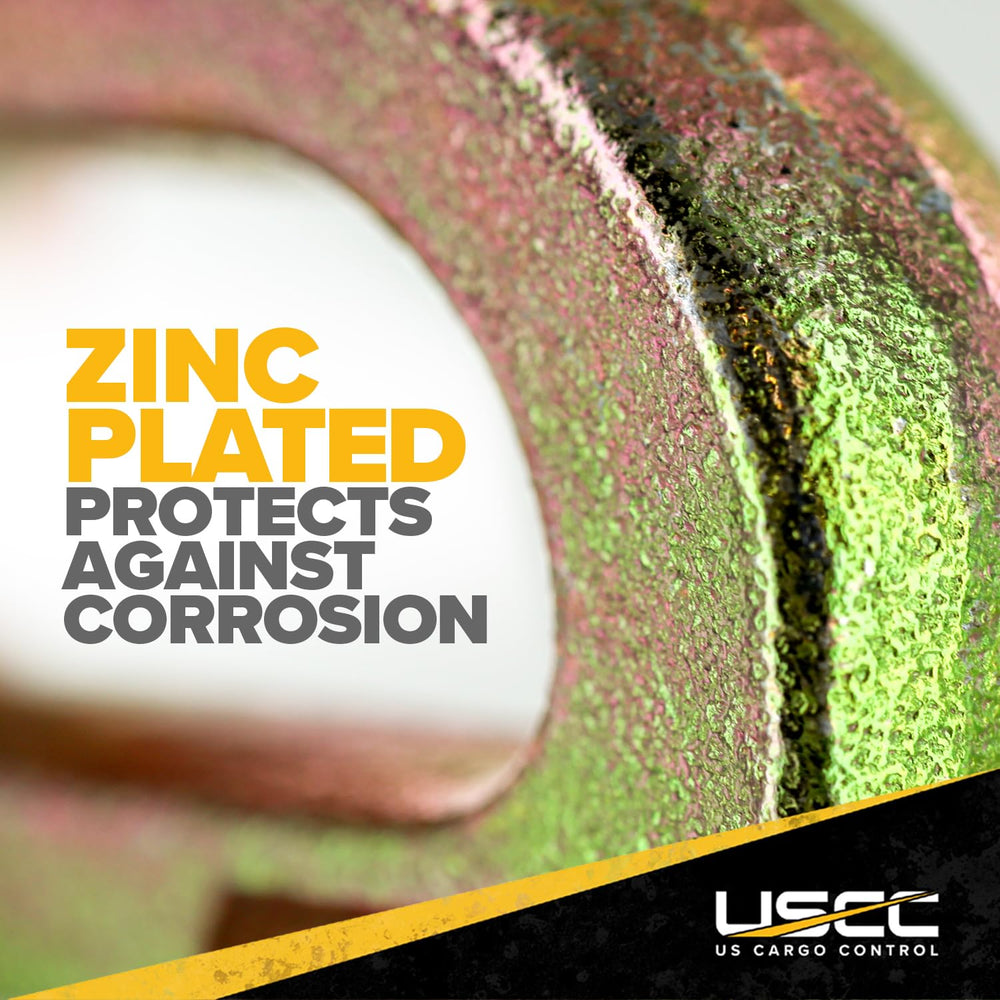

• Material: zinc-coated corrosion-resistant metal
• Weight: approximately 0.3 lb per fitting

Which L track rails are these compatible with?

These studs work with a broad range of L track styles so you can mix and match on trailers and truck beds. They fit standard L Track rails, aircraft-style seat track, angled L Track and recessed rail systems, providing flexibility when outfitting existing hardware.

• Compatible with standard and recessed L Track
• Works with aircraft-style seat track and angled L Track
• Fits most common rail slot sizes used for cargo restraint

How do I install and remove the double stud fittings?

Installation is tool-free and quick: lift the spring-loaded end clips, insert the two bottom discs into adjacent track slots, slide the fitting about halfway between slots, then release the clip to lock. To remove, lift the clip and reverse the steps—this automatic locking mechanism keeps the fitting secure under load.

• Lift the end clips to open the spring lock
• Insert the two discs into track slots and slide to position
• Release the clip to engage the automatic lock

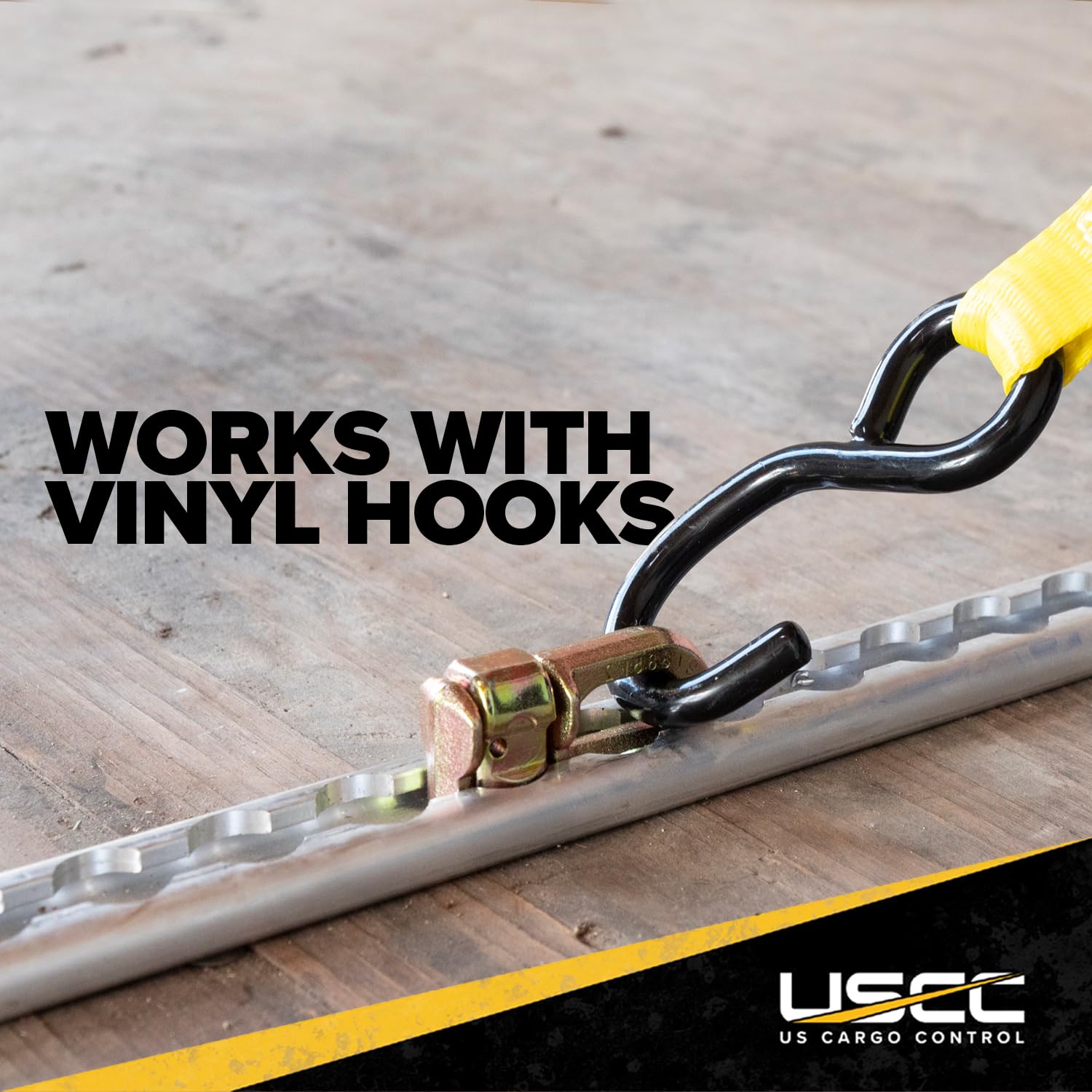

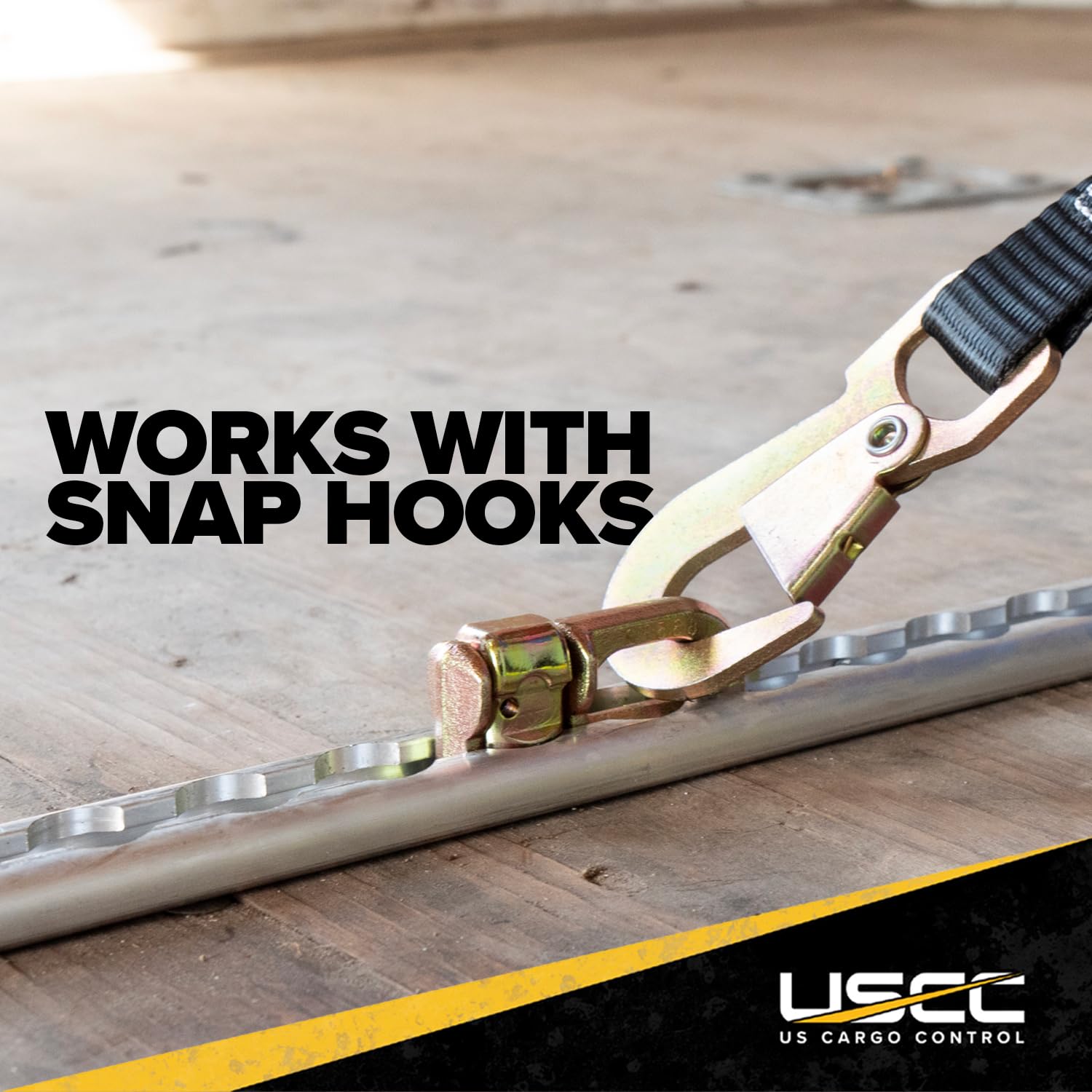

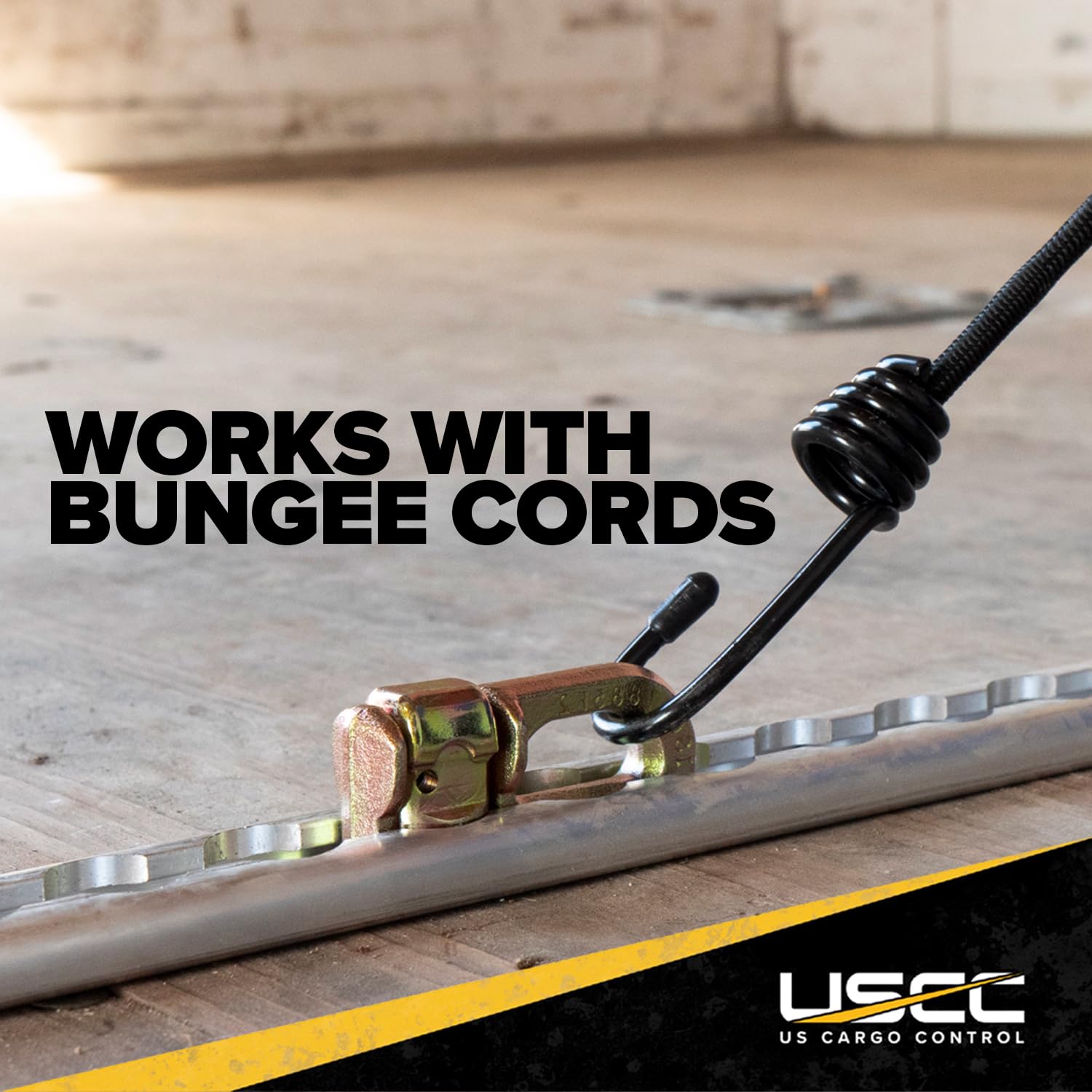

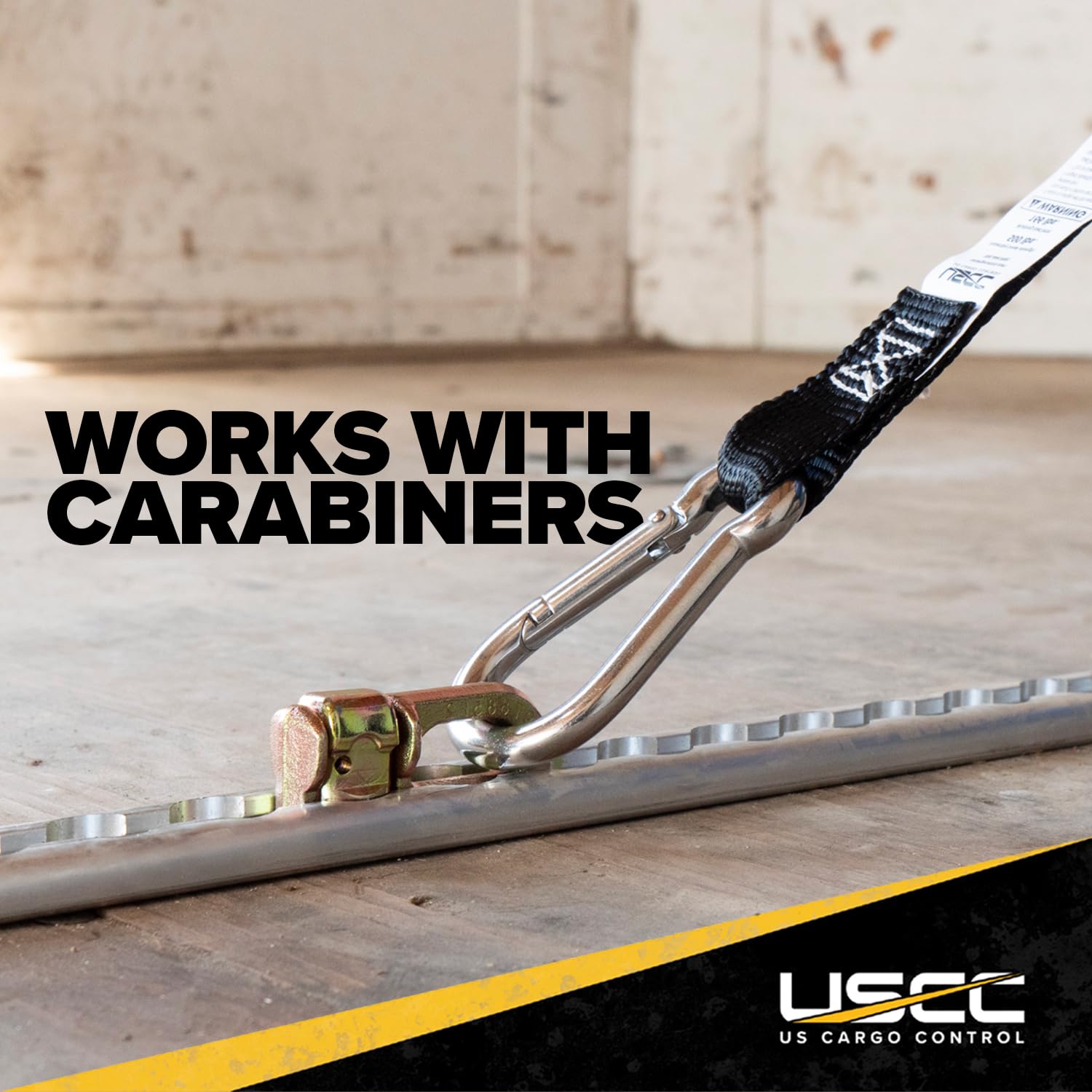

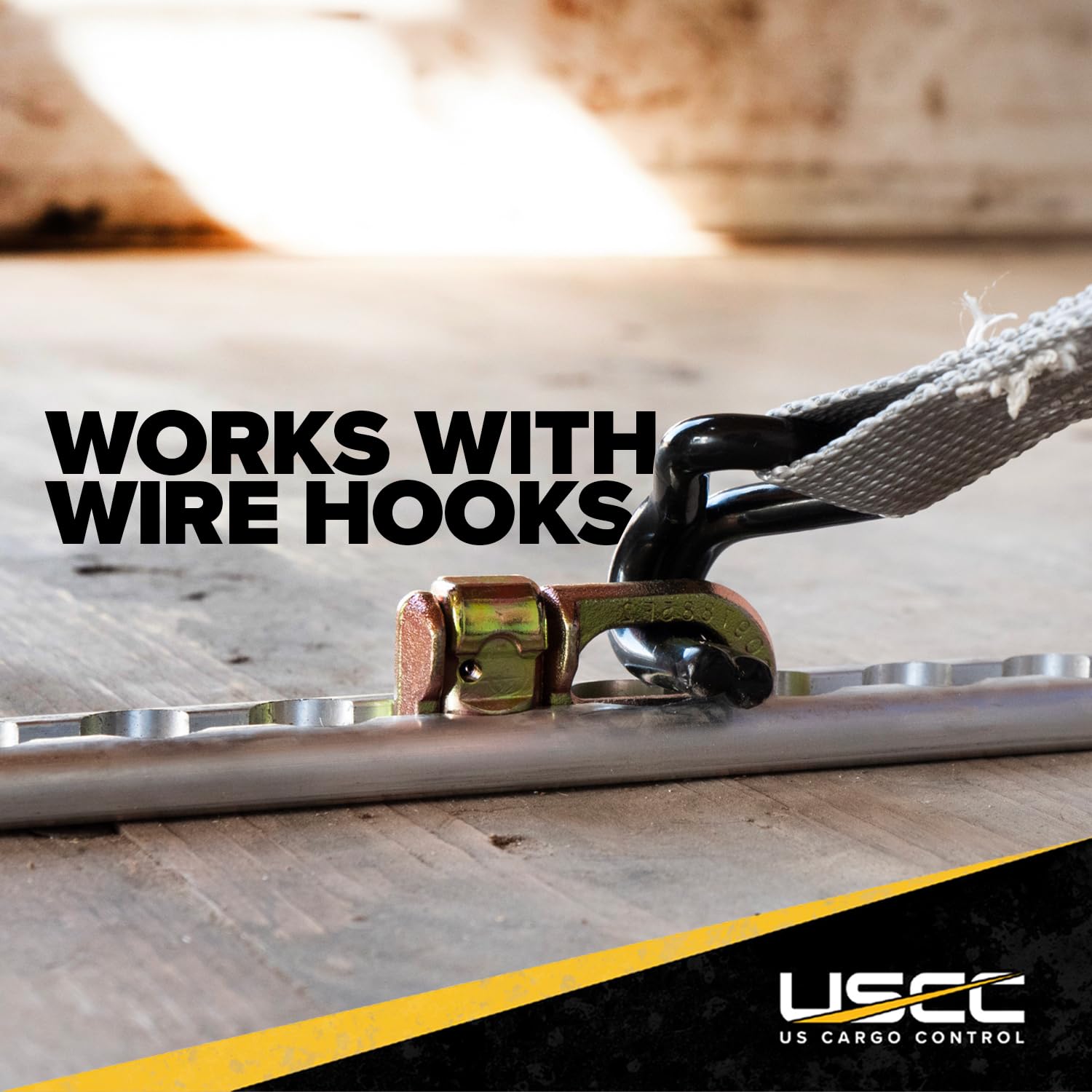

• Slot accommodates tie-down webbing for secure attachment

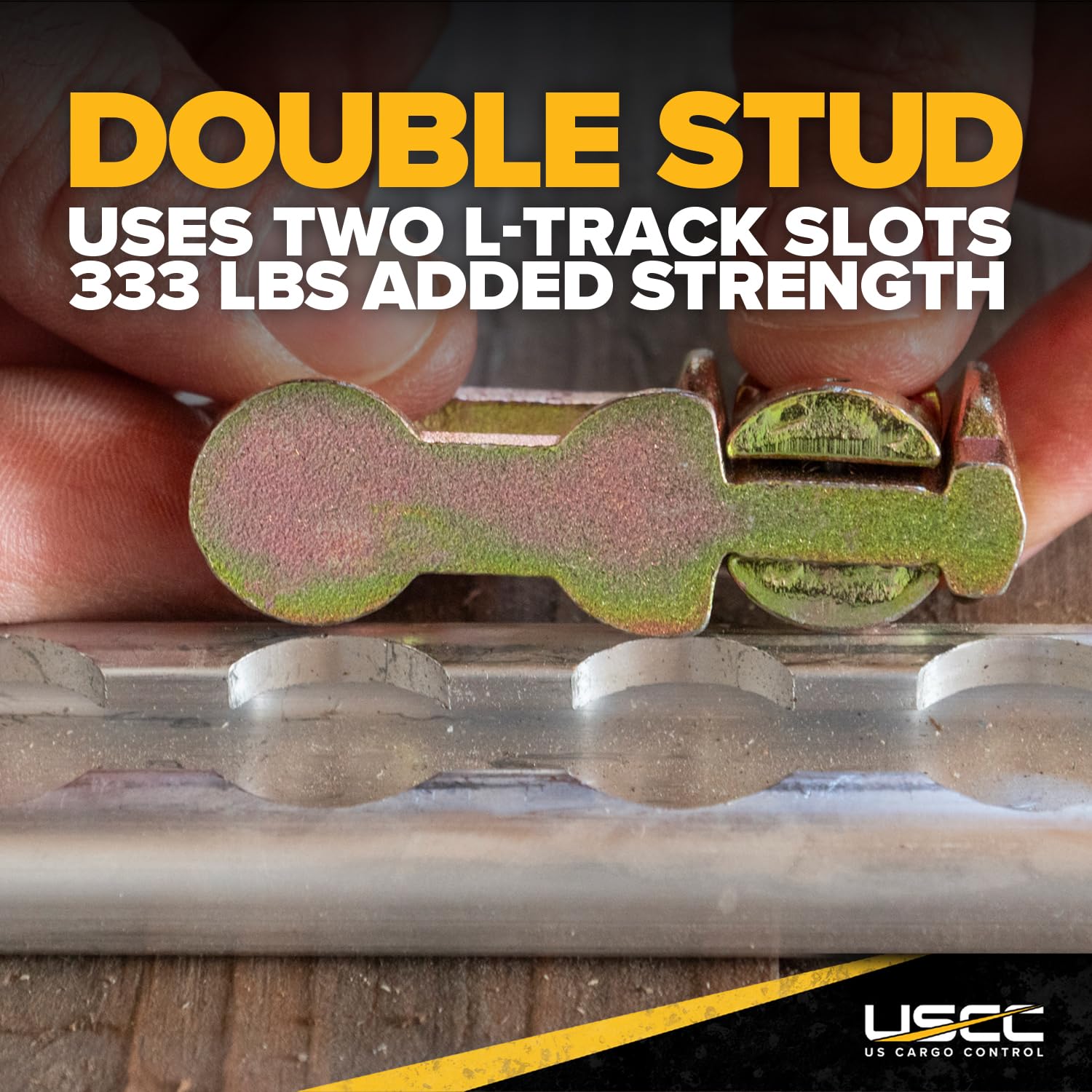

What makes the double stud design better than a single stud anchor?

Using two studs spreads load across more of the rail and reduces rotational movement under tension, which improves stability when securing tall or shifting cargo. This design choice increases the effective strength of the anchor point and lowers the chance of bending or slipping in demanding conditions.

• Two-point engagement reduces torque and rotation
• Improved load distribution across track slots
• Stronger than equivalent single-stud anchors under similar conditions

Who is this product for: Owners and operators who need dependable, easy-to-use anchor points for secure transport — including outdoor enthusiasts hauling motorcycles, ATVs, UTVs, and tradespeople using trailers for equipment. The 10-pack suits anyone building a complete L Track tie-down system or upgrading multiple mounting locations in a truck bed or trailer. Use with properly rated straps and follow vehicle and trailer load guidelines for safe transport.
