US Cargo Control L-Track Stud Fitting with D-Ring — Black 10-Pack, 1,333 lb WLL, Spring-Loaded Anchors

Heavy-duty L-track stud fittings with integrated D-rings that create instant, adjustable tie-down anchors rated 1,333 pounds working load limit per fitting.

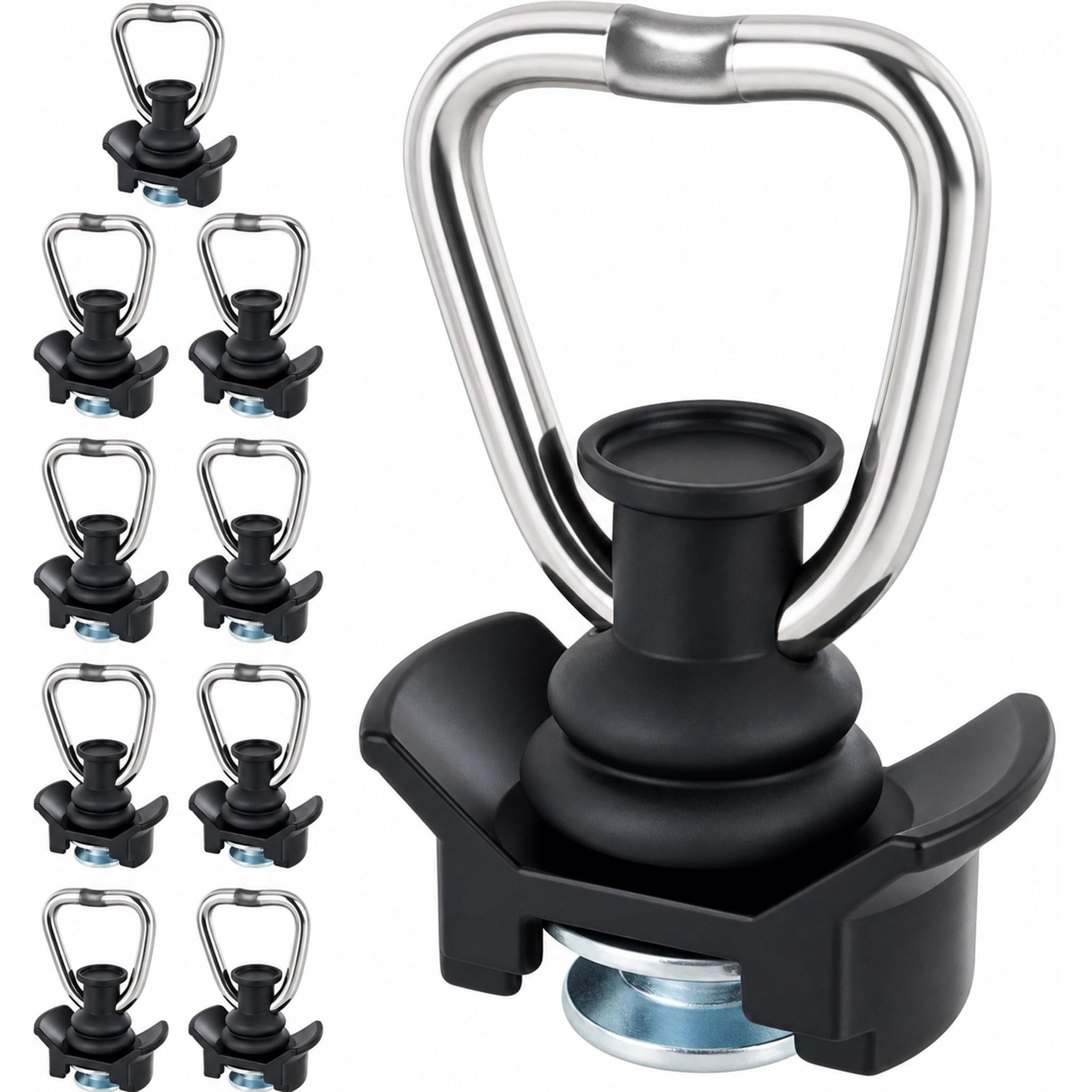

These US Cargo Control Black L Track Stud Fittings convert standard L-track rails into flexible anchoring points for securing gear in vans, trucks, and trailers. Sold in a 10-pack, each stud uses a spring-loaded plunger to lock into place and a welded D-ring to attach straps, hooks, or rope. Built for repeated use, the fittings are compatible with common L-track profiles — standard, recessed, angled, and aircraft-style seat track — and offer an assembly break strength of 4,000 pounds so you can reconfigure tie-downs quickly on the go.

How do these L-track studs attach and stay secure?

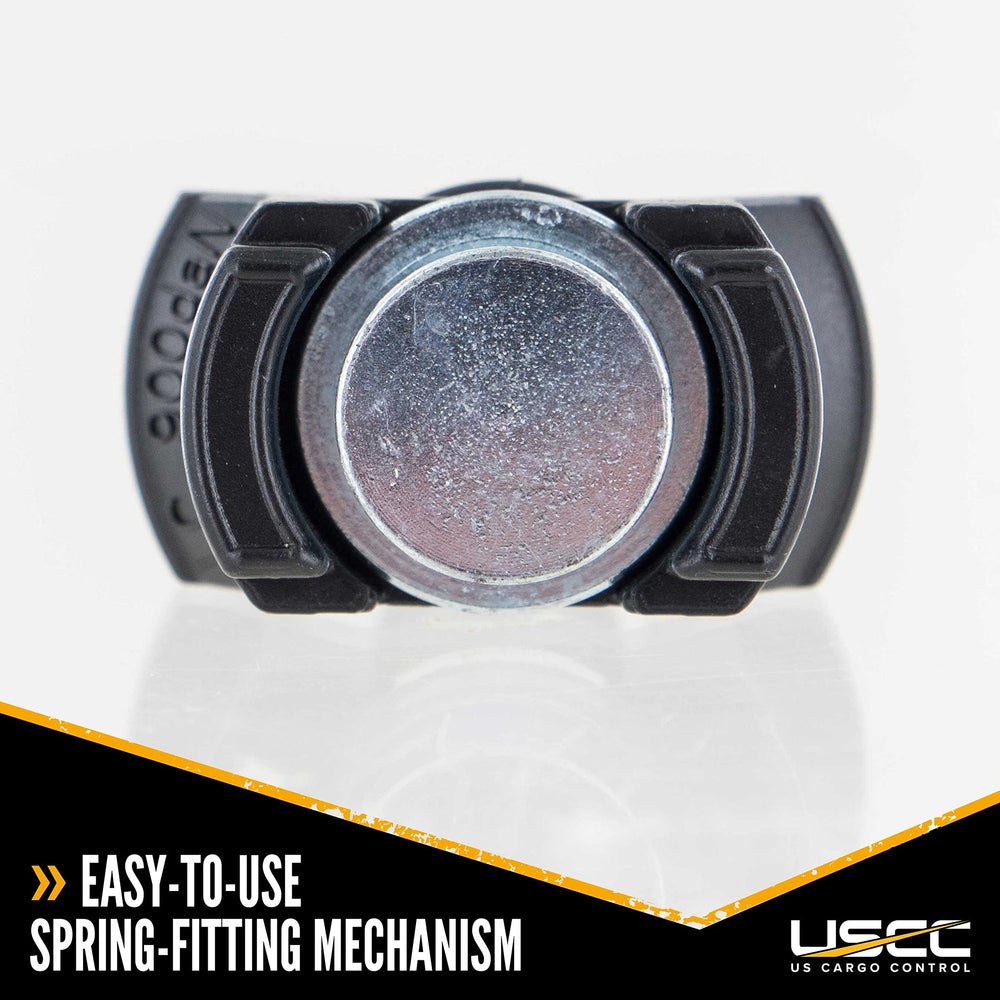

The studs lock into L-track channels via a spring-loaded plunger that drops into the track slot and holds under tension. To move or remove the fitting, depress the plunger for quick release; the mechanism prevents unintended movement during transit. Installation requires no special tools beyond sliding the stud into the rail and seating it firmly.

• Spring-loaded plunger for positive engagement and easy release
• Fits multiple L-track styles including recessed and angled rails
• Quick reconfiguration — slide, depress plunger, and reposition

What loads and strength ratings should I rely on?

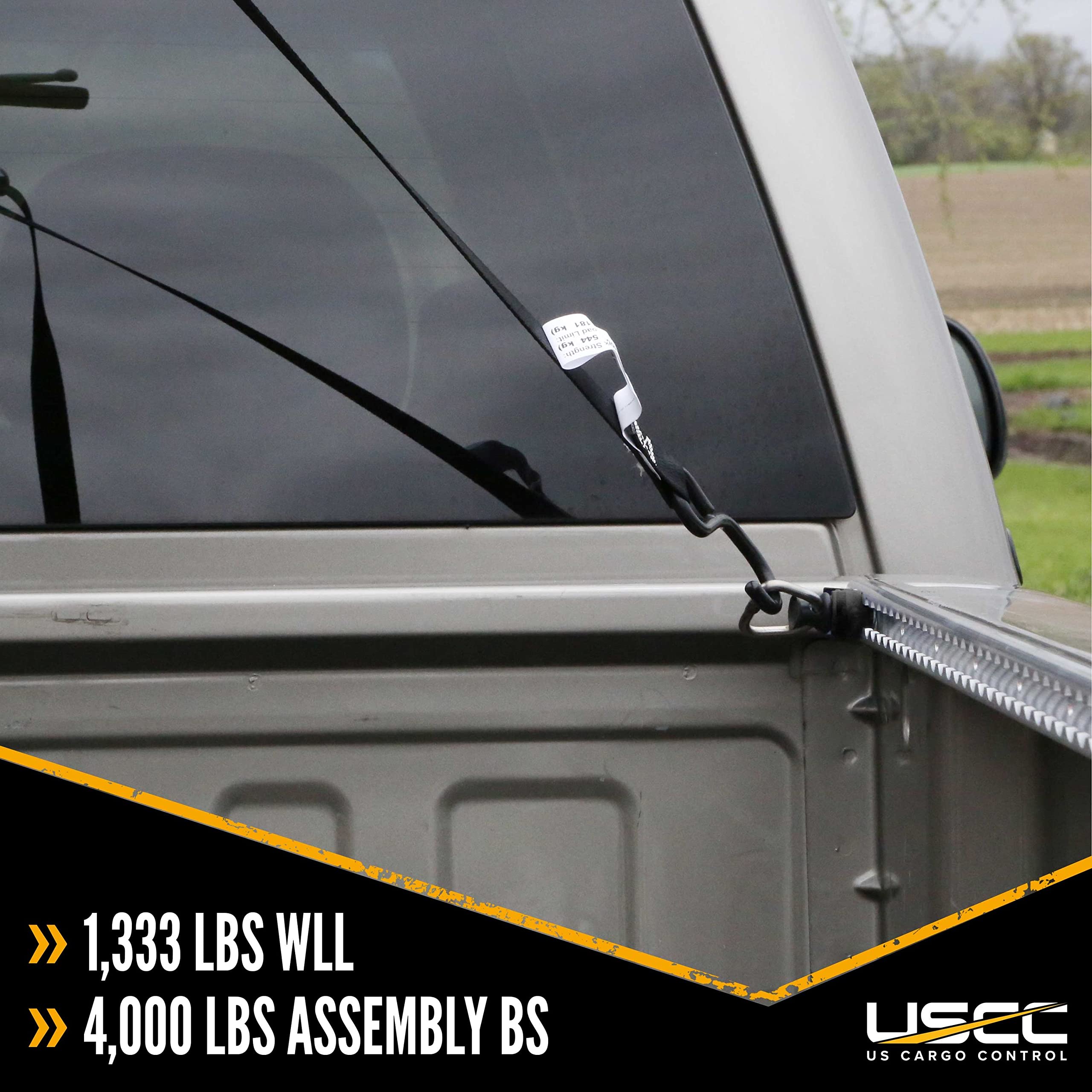

Each stud fitting has a working load limit (WLL) of 1,333 pounds and an assembly break strength of 4,000 pounds. WLL is the safe operational limit for common tie-down tasks; the higher break strength provides a safety margin for shock or dynamic loads. Always consider the combined WLL of multiple anchors and the rating of straps or hardware you pair with these studs.

• Working Load Limit: 1,333 pounds per fitting
• Assembly Break Strength: 4,000 pounds per fitting
• Recommended: use rated straps and follow combined WLL calculations

Which vehicles and cargo are these best suited for?

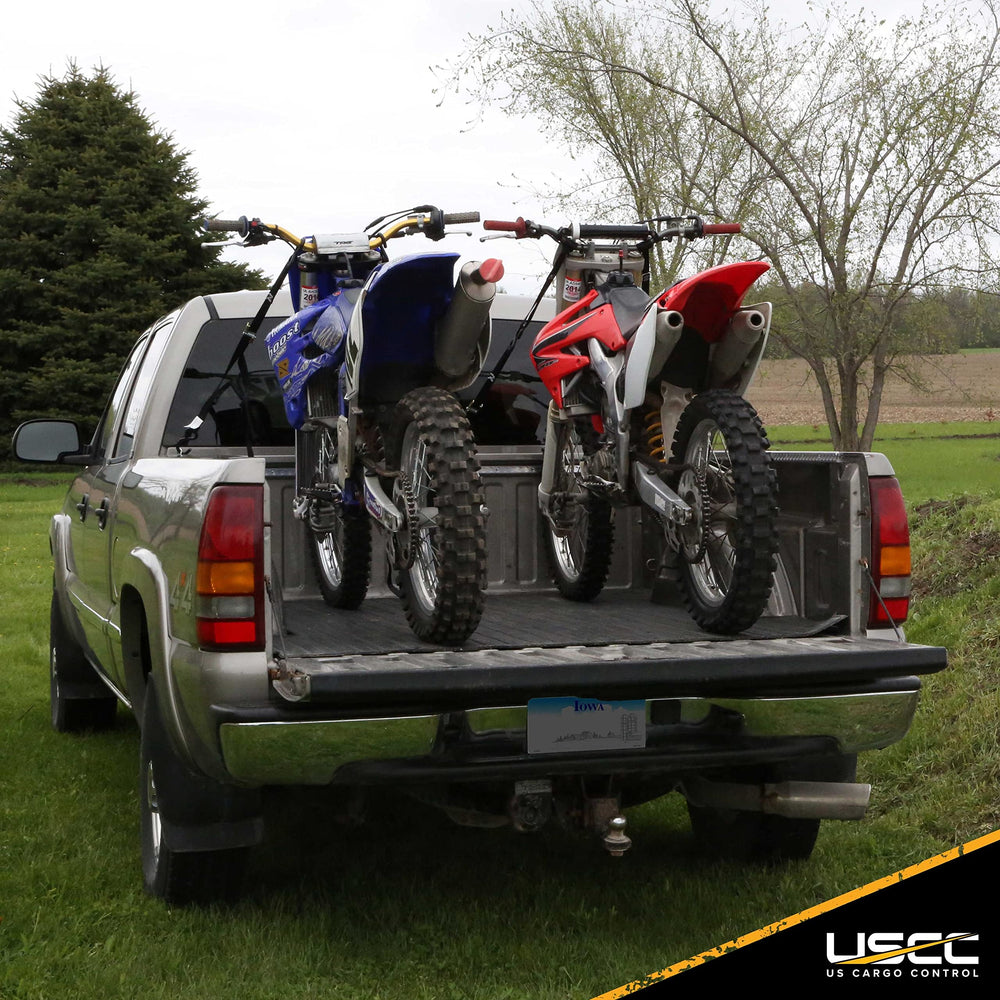

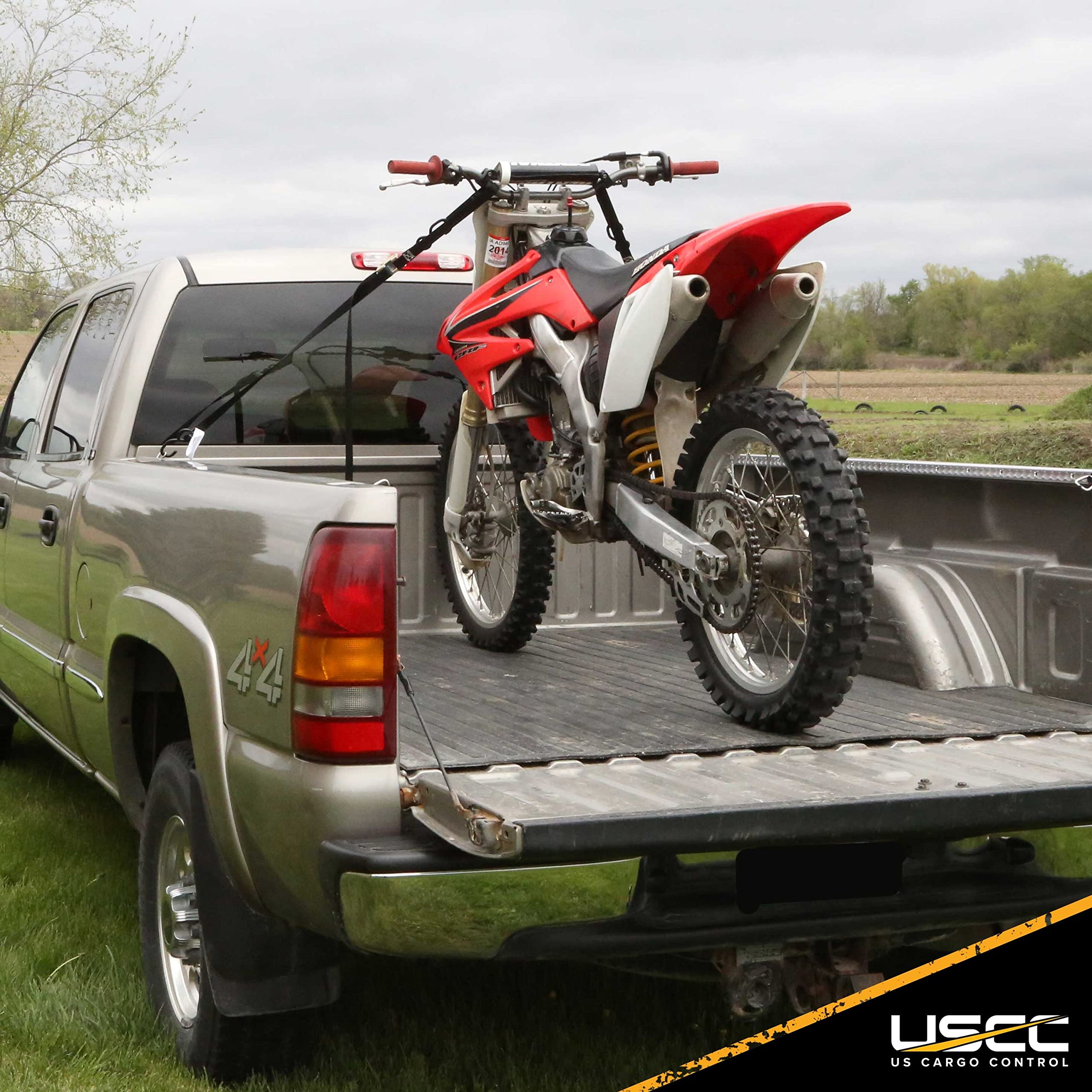

These L-track studs are designed for commercial and recreational vehicles where adjustable anchor points matter. They work well for securing motorcycles, ATVs, utility tractors, furniture, and general freight inside enclosed trailers, work vans, and pickup rigs fitted with L-track rails. The low-profile black finish reduces visual distraction while resisting abrasion in high-traffic cargo areas.

• Ideal for vans, trailers, box trucks, and pickup adapted with L-track
• Commonly used to secure powersports, equipment, and palletized loads
• Ten-pack gives flexibility to set multiple tie-down zones at once

How easy is it to integrate these with straps and other hardware?

The welded D-ring accepts hooks, carabiners, and strap end fittings for immediate use with most cargo straps. Its open D-shape gives clearance for quick connections and simple angle changes when tightening loads. Because the fitting is made to accepted L-track dimensions, it pairs seamlessly with standard L-track accessories and strap hardware.

• Welded D-ring fits common strap hooks and carabiners
• Compatible with industry-standard L-track accessories
• Black finish helps hide wear and dirt from repeated use

Who is this for: These US Cargo Control L-track stud fittings are built for fleet managers, contractors, movers, and recreational users who need dependable, reconfigurable tie-down points. If you run a mobile business, transport powersports or equipment frequently, or want the flexibility to rearrange anchors without drilling new mounting points, this 10-pack offers a practical combination of strength, compatibility, and quick operation. Remember to pair these studs with rated straps and follow vehicle and cargo safety guidelines when calculating combined working loads.
