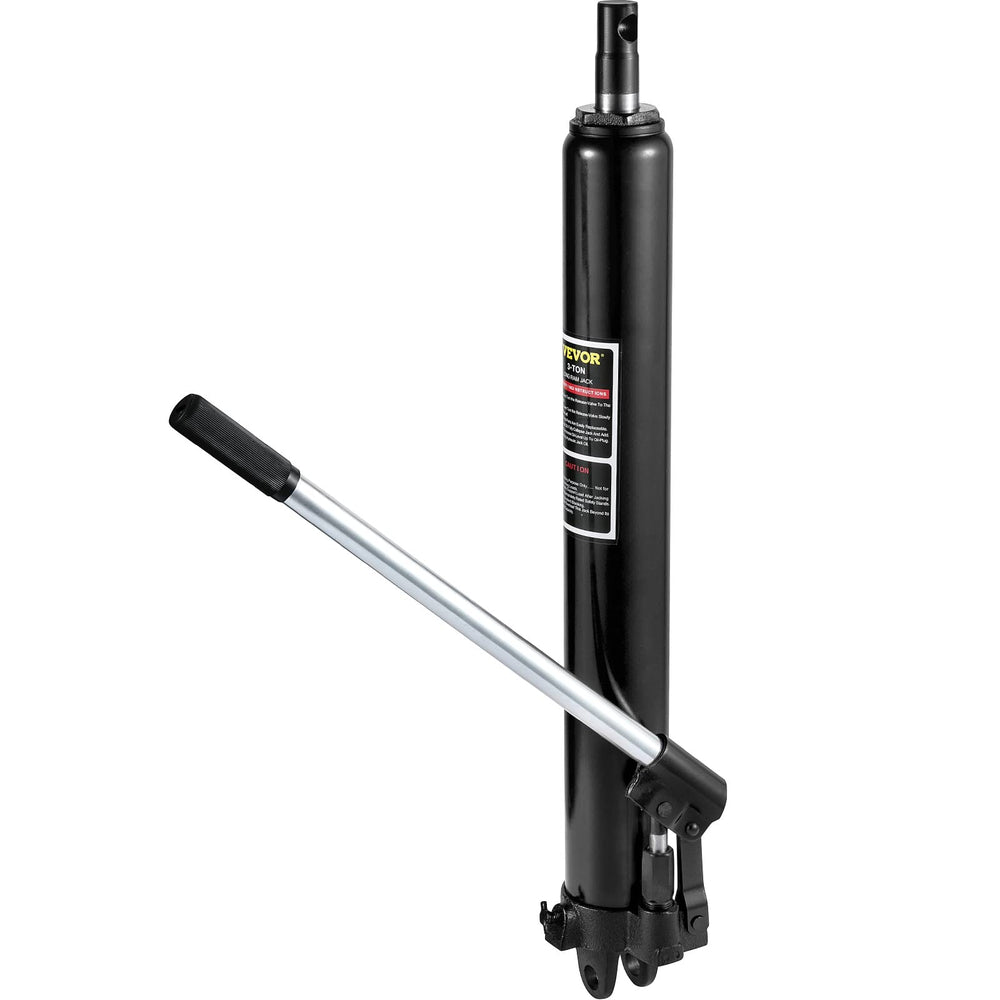

VEVOR Hydraulic Long Ram Jack 3 Ton (6,600 lb) — 26"–45.7" Lift, Clevis Base, Overload Valve

The VEVOR Hydraulic Long Ram Jack is a heavy-duty 3-ton (6,600 lb) hydraulic ram designed to mount to shop cranes and engine hoists to lift loads from 26" to 45.7" safely and with minimal effort.

If you retrofit a shop crane, engine hoist, or garage lift for occasional heavy lifting, this long ram jack converts existing equipment into a reliable hydraulic lifter. Built from high‑grade steel with a powder-coated finish, the unit combines a large-diameter hydraulic cylinder, an integrated overload bypass valve, and a clevis base so you can mount it directly to most crane frames. It ships with a comfort-grip handle and is intended for vertical use in both residential and commercial settings.

How much weight can this long ram jack safely lift?

The VEVOR long ram jack is rated for a maximum load of 3 tons (6,600 lbs). That capacity covers most light‑duty engine lifts, transmission moves, and general shop lifting tasks when mounted correctly and used vertically only.

• Rated capacity: 3 tons / 6,600 lbs
• Designed for vertical operation only—do not use at an angle
• Integrated overload valve prevents overextension
• Use with appropriate slings, chains, and rated crane hardware

What is the lifting range and stroke length?

This ram provides a wide working range to suit different lift heights: 26 inches minimum to 45.7 inches maximum, giving you a large 19.7 inch stroke. That stroke helps you pick up loads from low starting points and reach heights that many short‑ram jacks cannot.

• Minimum lift height: 26 in / 66 cm
• Maximum lift height: 45.7 in / 116 cm
• Stroke (travel): 19.7 in / 50 cm
• Piston rod dia.: 1.1 in / 2.8 cm for solid load contact

How does the hydraulic system and build quality support long-term use?

The cylinder uses a large-diameter hydraulic design that reduces internal pressure for smoother operation and less wear. A built-in oil‑bypass and overload valve protects the system from overextension, while polished piston surfaces and polyurethane sealing rings minimize leakage and extend service life.

• Large-diameter steel cylinder reduces oil pressure and wear
• Y-style polyurethane seal with backup ring to prevent drift
• Overload valve and oil-bypass for safety and reliability

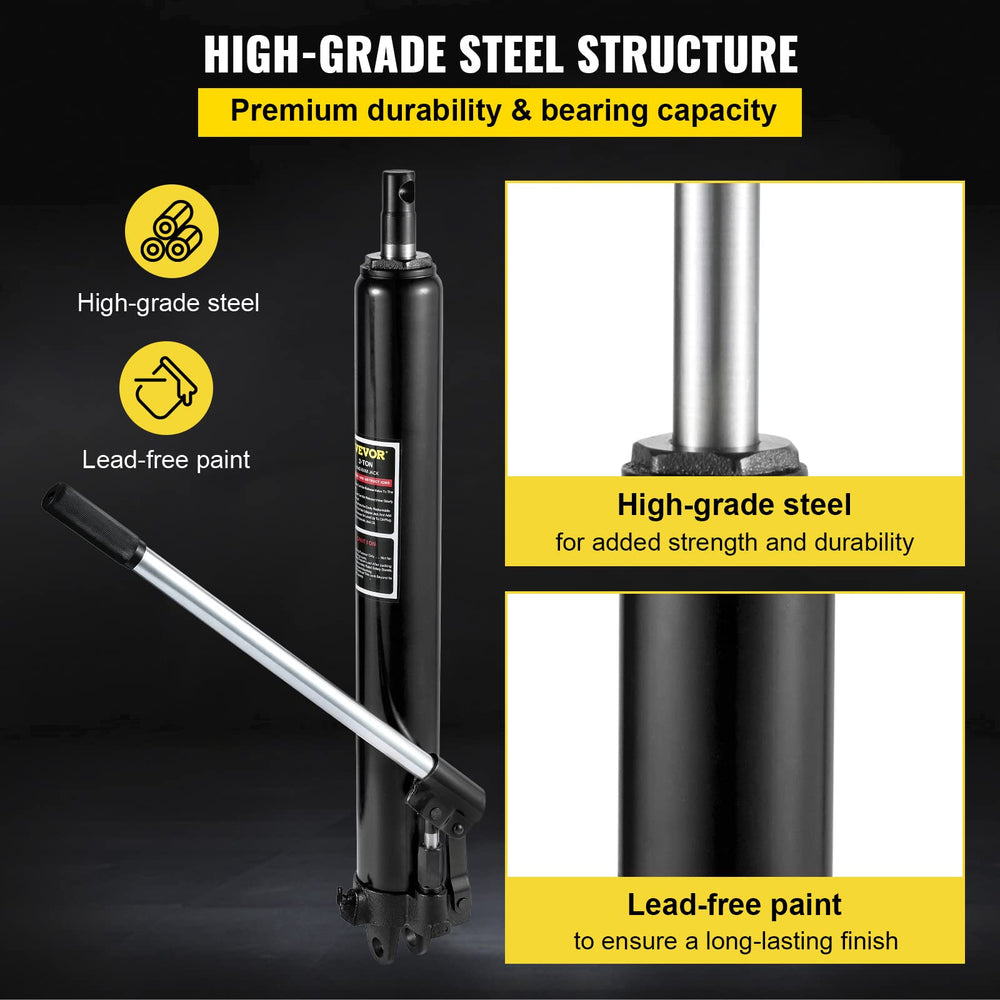

• Powder-coated, lead-free paint resists grease and dirt

How do I mount and operate the jack on my engine hoist or shop crane?

The ram features a clevis-style base that mounts directly to most shop crane frames; the single-piston glide pump requires minimal user force. Install into the crane’s lower mounting point, secure with the correct pin, use the supplied handle for pumping, and operate the slow-release function for controlled lowering.

• Clevis base fits most shop cranes and engine hoists
• Single-piston pump provides labor‑saving lift action
• Includes a rubber-grip handle for comfortable pumping
• Always follow crane and jack manufacturer mounting torque and safety steps

Who is this long ram jack for?

This VEVOR Hydraulic Long Ram Jack is aimed at DIY mechanics, small repair shops, and home garages that need to upgrade a crane or hoist for heavier lifting without a full hydraulic replacement. It’s also suitable for light commercial environments where a compact, mountable ram with a long stroke and 3‑ton capacity is needed. Not for angled lifting or vehicle jacking—intended as a vertical lift solution when combined with rated cranes and proper rigging.
