WINTOOLS 27-Pc Universal Press & Pull Sleeve Kit — 34–80mm Sleeves, Thrust-Bearing Spindles

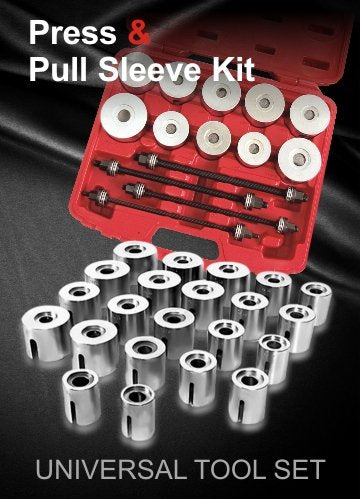

WINTOOLS 27-piece Universal Press & Pull Sleeve Kit is a complete removal and installation system for bushes, bearings and seals that lets you press or pull components precisely without a hydraulic press.

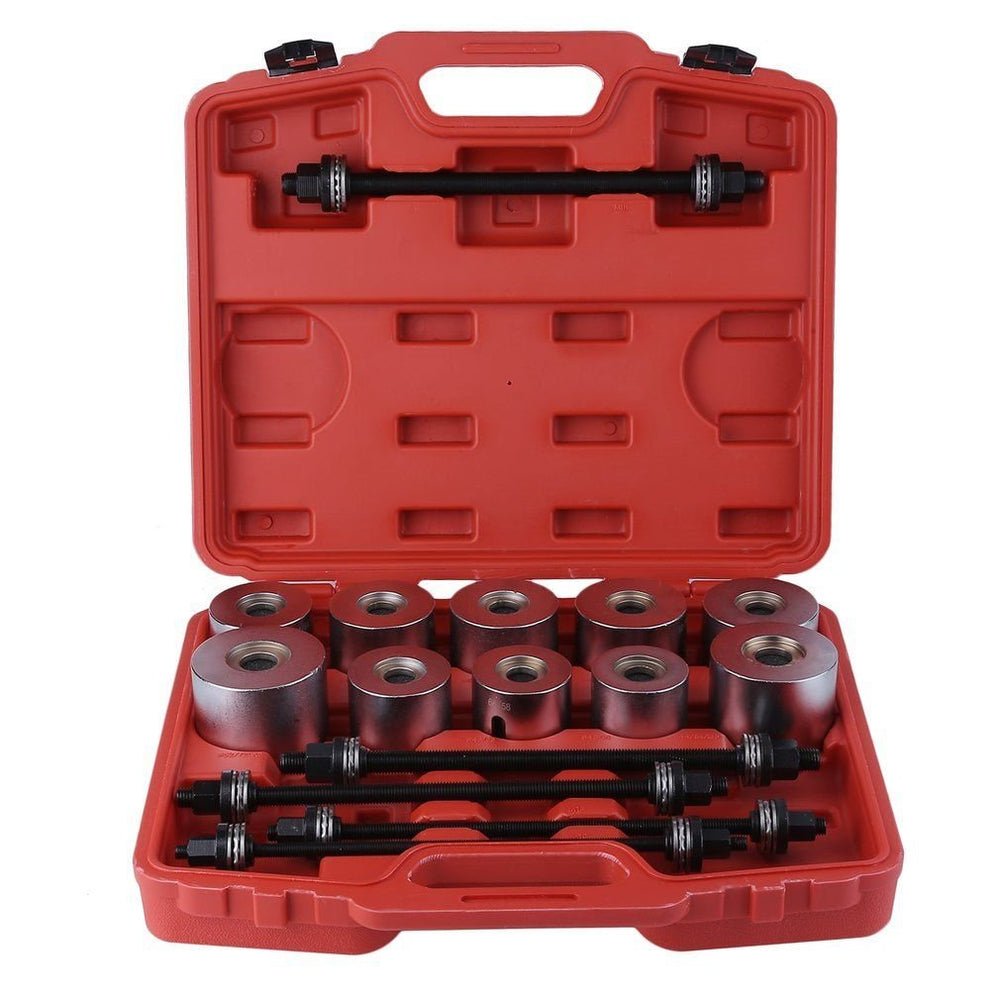

This all-in-one kit bundles 22 press sleeves, 5 threaded pulling spindles with thrust bearings, and dual-sided end caps in a rugged case so you can extract and install a wide range of bearings and bushes safely and quickly. The sleeves are CNC-formed from 40Cr material with stepped outside diameters and U-plots for visual alignment. Spindles are heavy-duty steel with thrust bearings to reduce friction and make extraction smoother. The result is less chance of housing damage and faster turnaround in workshops, garages or mobile repair work.

How does the kit remove bearings and bushes without a press?

The set uses matched sleeves and pulling spindles to transfer axial force directly through the bearing or bush, allowing controlled pushing or pulling. Thrust bearings on the spindles reduce torque and let you tighten nuts smoothly for steady removal. Dual-sided end caps provide a universal contact face so sleeves can be used in either orientation for greater flexibility.

• 22 sleeves sized for inner diameters 34–80 mm and outside diameters 44–90 mm for broad compatibility

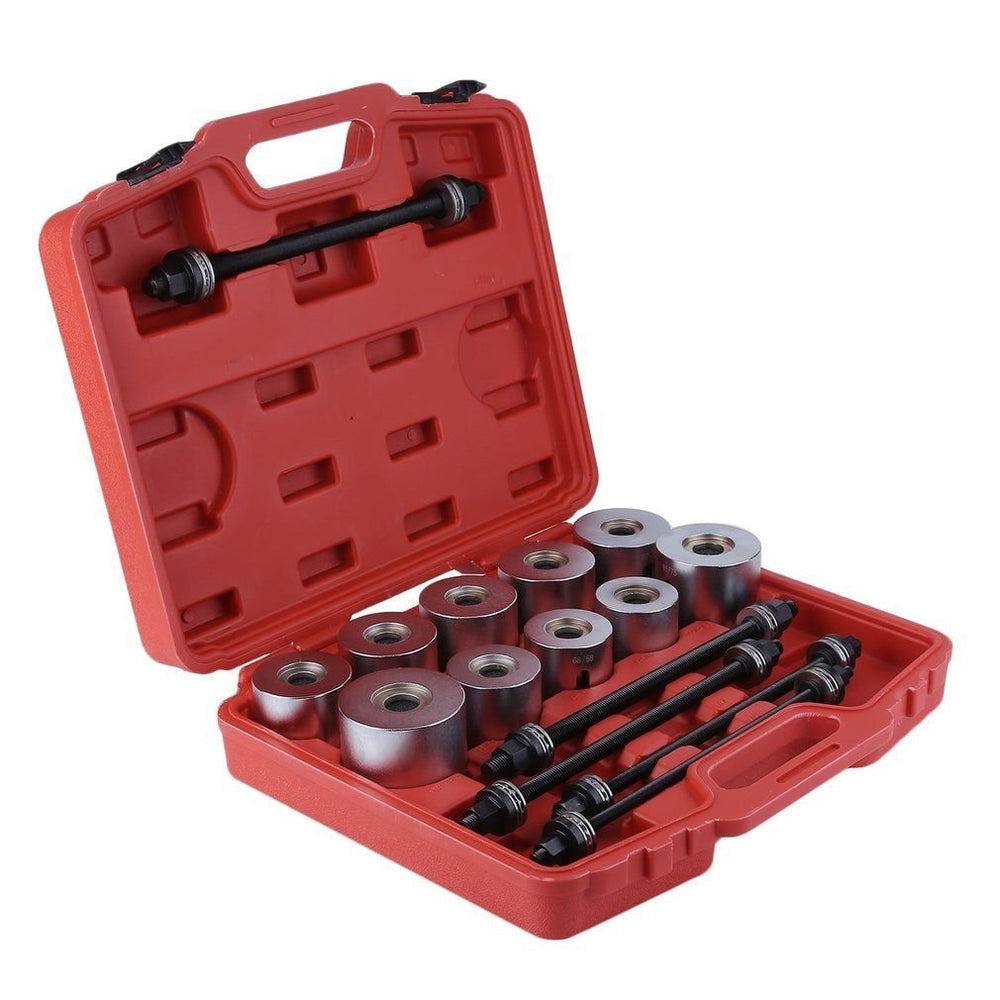

• Five spindle sizes (M10–M18) with fitted thrust bearings for low-friction extraction

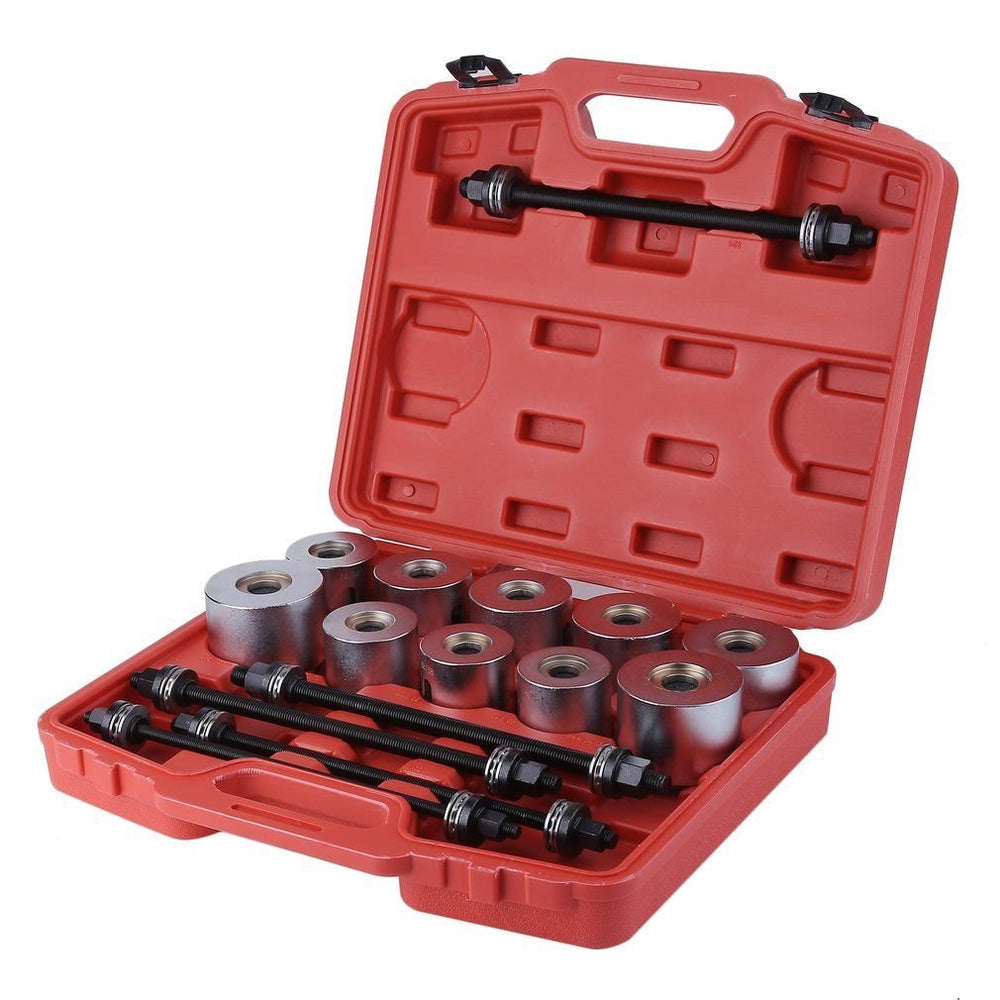

• U-plot on each sleeve for simple visual alignment and centering
• Double-sided end caps to match sleeve orientation and prevent marring

Which job types and components will this set work on?

This kit is designed for general-purpose removal and installation tasks on a wide variety of rotating components. It works on silent bearings, ball bearings, bearing bushes, shaft seals, rubber bearings, hydraulic bearings and many suspension housings. It also supports light press-fit installations when used with a workshop press for higher-force tasks.

• Suitable for engine and suspension bearings, bushings, and seals
• Compatible with both solid and rubber-sealed components
• Use by hand or combined with a workshop press for heavier installs
• Reduces risk of damaging housings compared with improvised pullers

What are the kit specifications and build details I should know?

The kit includes a wide selection of sleeve diameters and outside profiles to match common bearing and bush sizes encountered in automotive and industrial maintenance. Sleeves are high-strength 40Cr steel, spindles are 45# carbon steel, and the set ships in a compact case measuring roughly 46 x 10.5 x 36.5 cm and weighing about 17.44 kg. The design emphasizes durability and repeatable alignment.

• Press sleeve side diameters: 34–80 mm; outside diameters: 44–90 mm
• Pulling spindles: M10, M12, M14, M16, M18 with nuts included
• Materials: 22 sleeves 40Cr; 5 spindles 45# carbon steel with thrust bearings
• Kit dimensions approx. 46 x 10.5 x 36.5 cm; weight ~17.44 kg

Who is this for? The WINTOOLS 27-piece Universal Press & Pull Sleeve Kit is aimed at professional mechanics, small repair shops, restoration specialists and serious DIY technicians who need a reliable, repeatable method to remove and install bearings, bushes and seals without specialized hydraulic equipment. If you handle varied vehicle or machinery work and want to minimize housing damage and downtime, this kit supplies the sleeves, spindles and features to get the job done cleanly and efficiently.
