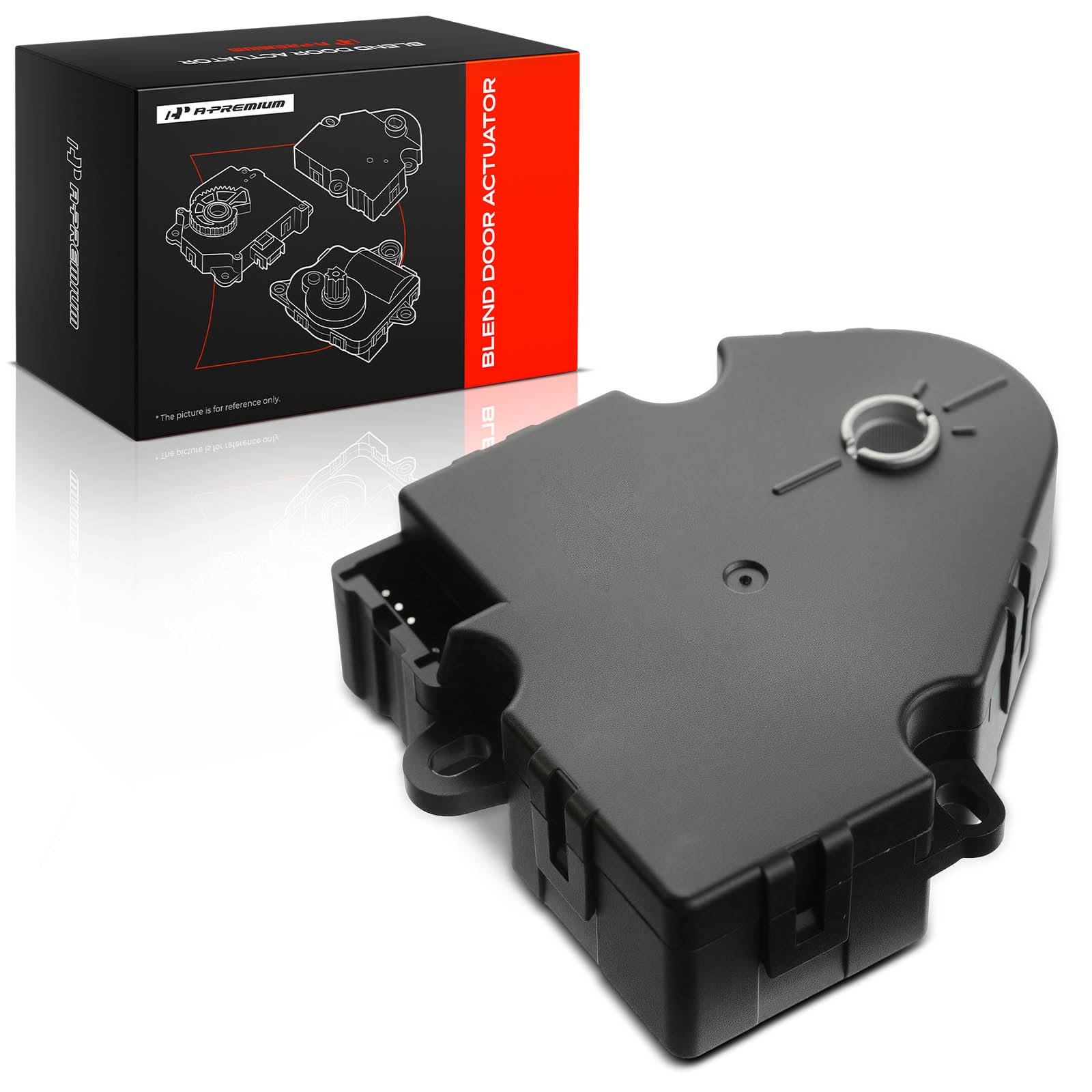

A-Premium HVAC Heater Blend Door Actuator Main 5-Pin for GM SUVs (2007–2012) — Restores Airflow & Temp Control, 1-Year Warranty

The A-Premium HVAC heater blend door actuator is a direct-replacement 5-pin main actuator designed to restore proper air distribution and temperature control for select Buick, Chevrolet, GMC, and Saturn models.

If your vehicle is producing unusual airflow, the vents won't switch between hot and cold, or you hear clicking noises from the dash, the blend door actuator is often the culprit. This A-Premium unit replaces OE reference numbers such as 20826182 and 15232218 and fits specific model years for Buick Enclave, Chevrolet Traverse, GMC Acadia, and Saturn Outlook. It comes ready with a five-pin connector and a one-year unlimited-mileage warranty, but requires calibration after installation to ensure correct operation.

Which vehicles does this actuator fit?

This actuator is built to match the fit and function of original equipment for several GM crossover and SUV models produced in the late 2000s and early 2010s. Confirming year, make, and model before ordering avoids fitment issues. Always check the vehicle selector and special notes on the product page for exact compatibility.

• Buick Enclave: 2008–2012
• Chevrolet Traverse: 2009–2012
• GMC Acadia: 2007–2012
• Saturn Outlook: 2007–2010

How do I install and calibrate the A-Premium blend door actuator?

Installation is straightforward for a technician or a DIYer comfortable with dash panels and HVAC components. The unit features a five-pin connector matching OE harnesses; after mechanical installation, the vehicle's HVAC system needs a calibration routine to align travel limits and stop positions. Calibration ensures accurate temperature mixes and mode changes.

• Disconnect battery before starting to avoid electrical shorts.
• Remove dash panel or access panel to reach the actuator mounting location.
• Disconnect the old actuator, replace with the A-Premium unit, and secure mounting screws.
• Follow manufacturer or vehicle-specific calibration steps after reconnecting power.

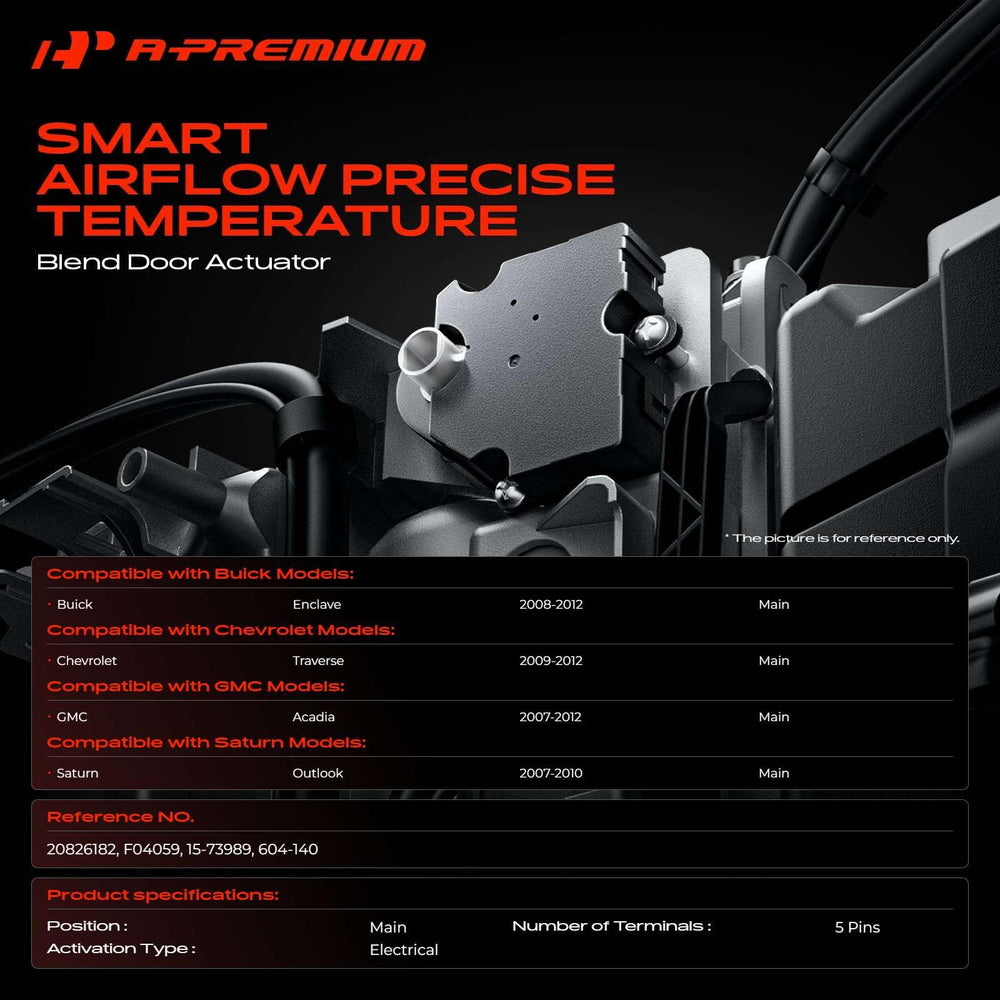

What are the key features and part references I should check?

This replacement matches several OE reference numbers so you can cross-check against the part you’re replacing. It performs the same function as the original—controlling blend doors that route air from the HVAC box to the cabin—and includes a manufacturer-backed warranty for confidence. Note the actuator is sold as the main blend/air inlet/temperature actuator depending on the vehicle’s configuration.

• OE and cross-reference numbers: 20826182, 15232218, 25782069, 604-140, F04059
• Connector: 5-pin electrical plug for direct harness compatibility
• Function: controls air mix, inlet, and mode doors in the HVAC box
• Warranty: one-year unlimited-mileage coverage from A-Premium

Will this fix clicking noises and inconsistent temperature changes?

Yes—many symptoms like clicking behind the dash, stuck vent positions, or uneven temperature are caused by a failing blend door actuator. Replacing the faulty actuator with this A-Premium unit typically resolves those issues, provided the HVAC linkage and doors themselves are intact. If mechanical door damage exists, additional repairs may be required.

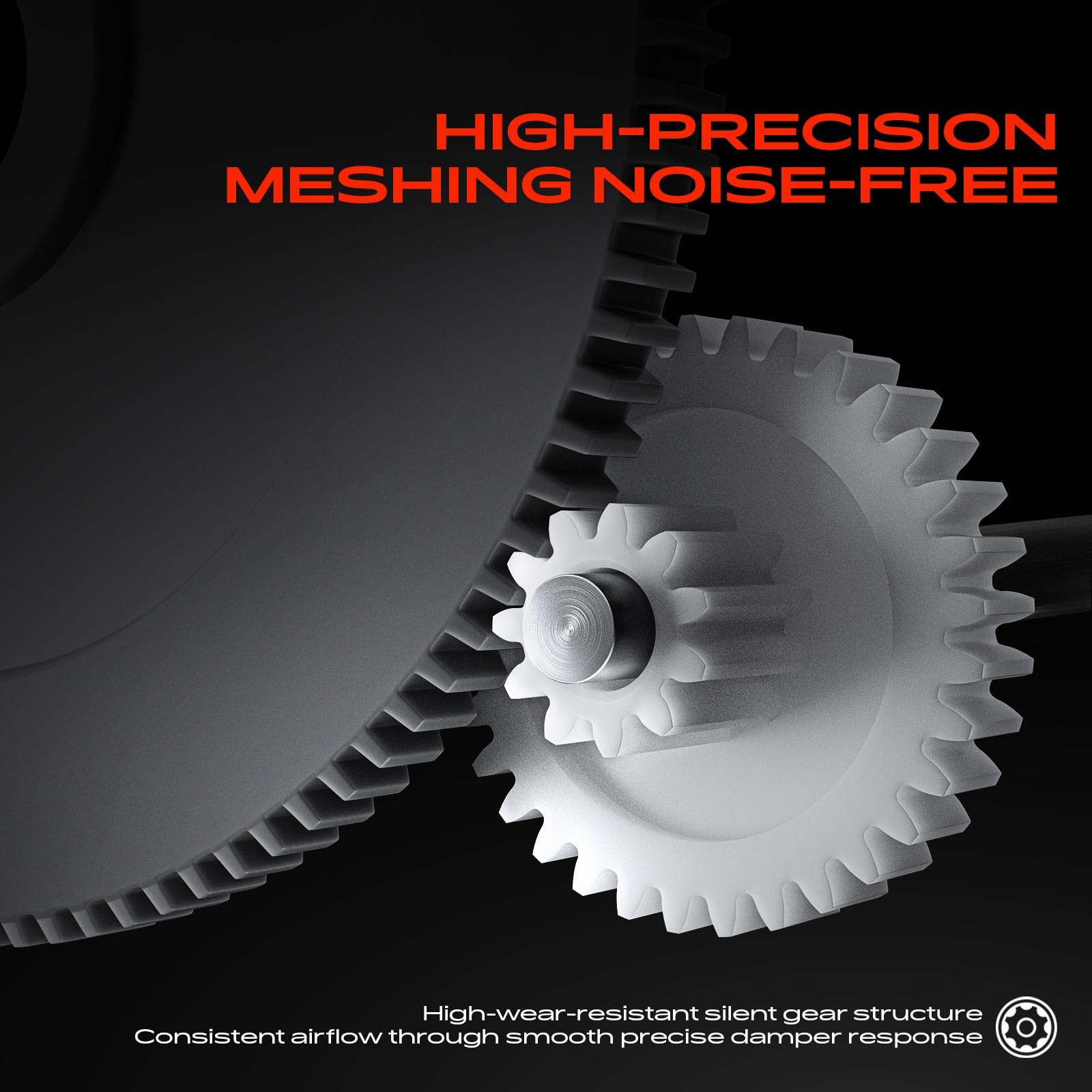

• Eliminates intermittent vent switching and clicking sounds when actuator gears fail
• Restores accurate hot/cold air mixing to the cabin
• Requires calibration to synchronize travel endpoints and stops

Who is this for: This A-Premium blend door actuator suits owners and technicians who need a reliable direct-replacement part for Buick Enclave, Chevrolet Traverse, GMC Acadia, or Saturn Outlook within the listed years. It's ideal if you're troubleshooting HVAC airflow problems, hearing dash clicking, or replacing a confirmed defective actuator and want an OE-referenced, warrantied unit. Be prepared to perform or request a calibration after installation for proper operation.
