Autel MaxiVCI V200 Wireless OBD2 Dongle VCI200 — CAN‑FD & DoIP Support, 164 ft Range

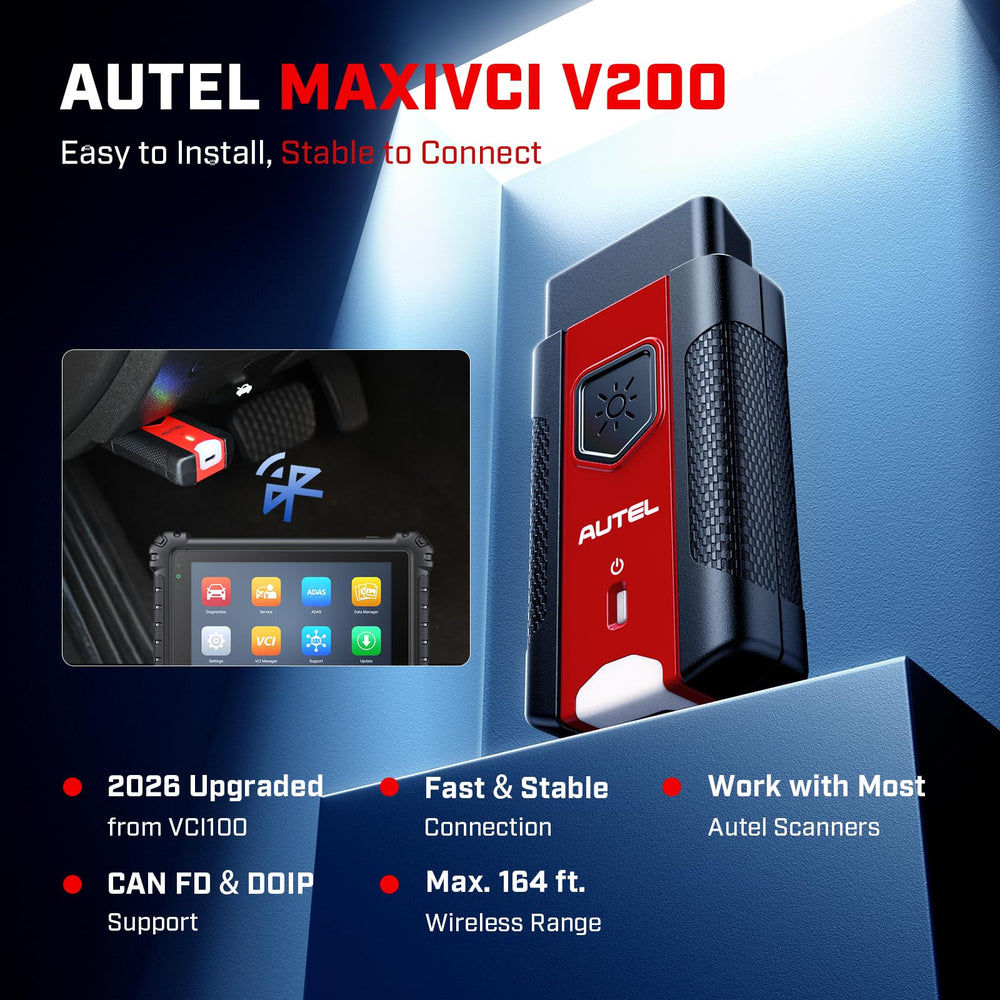

If you run a workshop or diagnose vehicles at home, the V200 modernizes your diagnostic toolkit by removing cable constraints and enabling support for newer vehicle network standards. Built as a drop-in wireless dongle, it pairs automatically with supported Autel tablets and scanners so you can read codes, run tests, and flash ECUs without chasing a tethered connection.

How does the V200 improve speed and compatibility?

The V200 includes native CAN‑FD and DoIP protocols, which are required for many 2026-and-later vehicles. CAN‑FD delivers substantially higher data throughput than classic CAN, while DoIP enables Ethernet-based communication used by some manufacturers for ECU flashing and multi-ECU sessions.

• Native CAN‑FD support for faster frame rates and larger payloads.
• DoIP compatibility for Ethernet-based ECU access and flashing.
• Backwards compatible with legacy CAN and OBD-II vehicles.
• Supports a wide list of Autel scanners for broad tool compatibility.

What connection options and wireless range does it offer?

The V200 supports wireless Bluetooth connection up to 164 feet, a large jump from earlier models. That extended range lets technicians move around the bay or work outside the cabin while staying linked to the diagnostic tablet, reducing trips back to the vehicle.

• Bluetooth wireless link with up to 164 ft (50 m) practical range.
• USB connection option for wired use or firmware updates.
• Auto-pairing: first-time sync happens automatically with supported Autel devices.

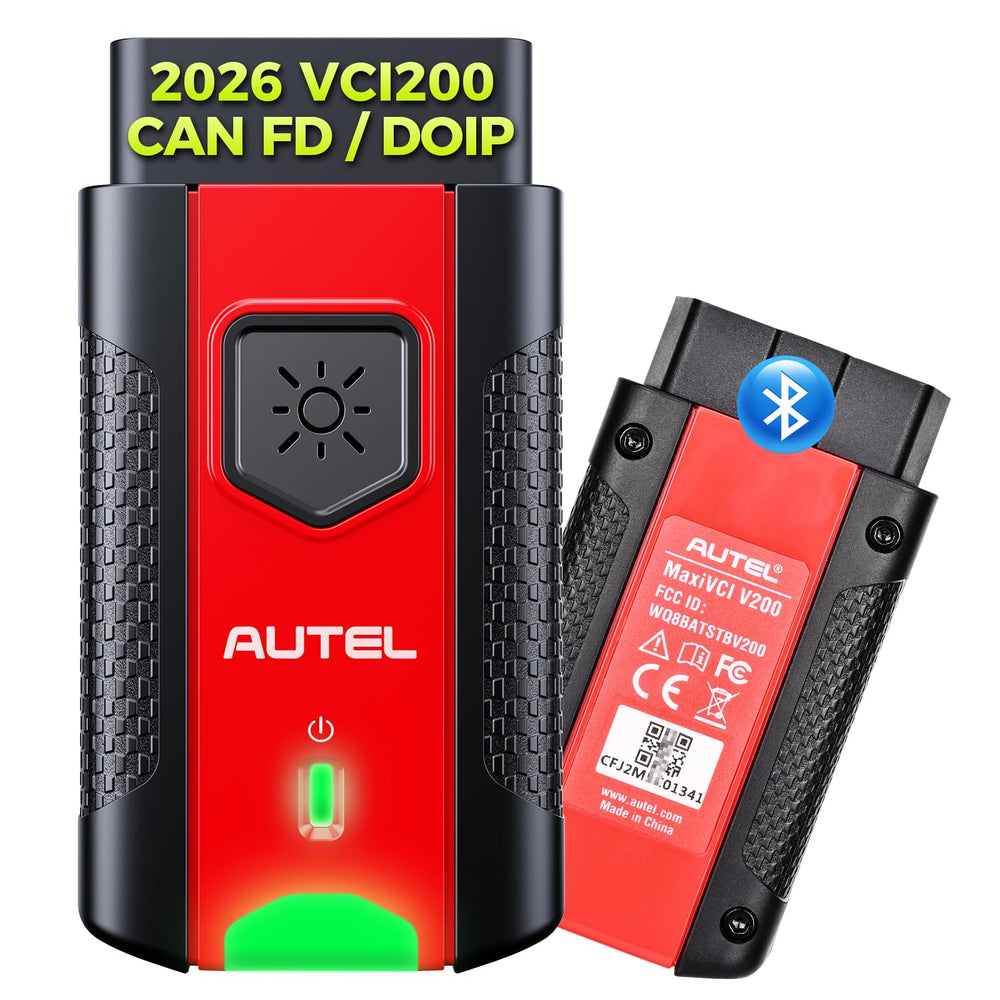

• Lightweight, compact dongle that plugs into the vehicle DLC for instant use.

Which Autel scanners are compatible with the V200?

The V200 is designed to extend wireless and protocol support to a variety of Autel models. It works with many IM and 906-series tablets and several BT-series handhelds, enabling those tools to access newer vehicle networks.

• IM Series: KM100, KM100X, KM100E.
• 906 Series: MS906 Pro variants, MK906 Pro variants, MS906 MAX and listed Pro‑TS models.
• Other supported models: BT608, BT609.
• Use with OBDI vehicles via an OBDI adapter connected to the V200’s vehicle data connector.

How do I update, connect, and get support for the V200?

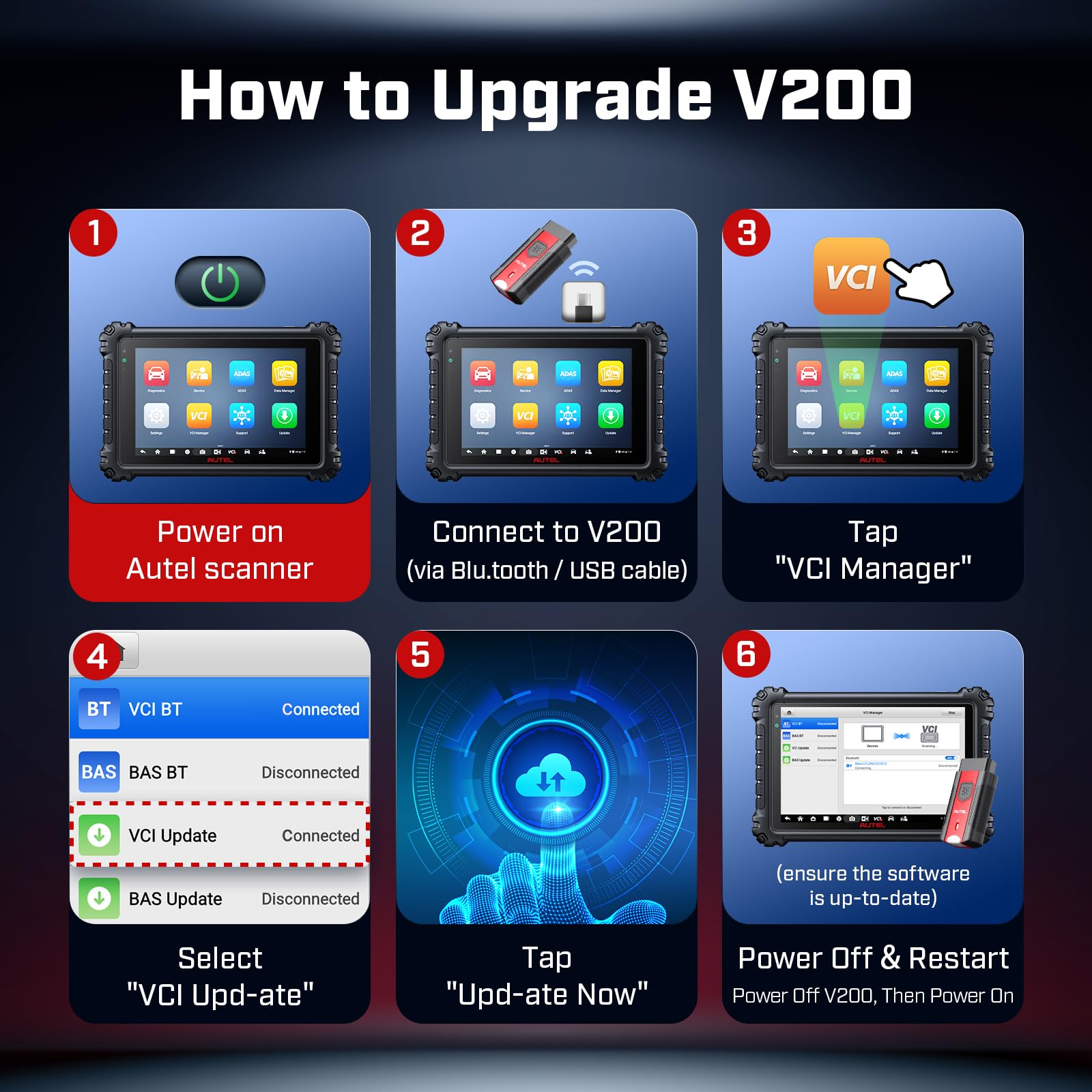

Updating firmware and managing the V200 is handled through Autel’s VCI Manager on your scanner or tablet. The process is straightforward, and Autel provides continuous firmware improvements plus customer support if you encounter connection issues.

• Open VCI Manager on your Autel tablet to run VCI updates.
• Connect via Bluetooth or USB, then choose "VCI Update" and follow prompts.
• Automatic pairing usually occurs on first use; contact support if pairing fails.
• Autel provides lifetime firmware upgrades, 12-month warranty, and 30-day returns.

Who is this for? The Autel MaxiVCI V200 is aimed at independent technicians, repair shops, and advanced DIYers who need wireless diagnostics and coverage for modern vehicle networks. If you already own a compatible Autel scanner and want to add CAN‑FD/DoIP capability, eliminate cable clutter, and diagnose vehicles at greater distance, the V200 is a practical, future-ready upgrade. It’s especially valuable for shops that service newer-model cars using Ethernet‑based ECUs or that want to improve workflow with faster, more stable data transfer.
