CURT Trailer Brake Controller Wiring Harness Universal 24-inch 12-Gauge, Quick-Plug

CURT 51516 is a universal quick-plug brake controller wiring harness that provides a simple splice-in connection to power and control your electric trailer brakes.

If your vehicle lacks a factory brake controller plug, the CURT 51516 harness offers a reliable, vehicle-agnostic wiring solution that snaps into any CURT brake controller equipped with a quick-plug end. Built with 12-gauge, color-coded wires and a protective slit-loom sleeve, this harness is designed to ensure consistent power delivery, reduce abrasion risk, and simplify installation when paired with standard splicing tools or the CURT universal wiring kit #51500.

How does this harness make installing a brake controller easier?

The 51516 replaces hard-to-route adapter requirements by offering a quick-plug connector plus blunt-cut pigtails to splice into your vehicle’s wiring. It removes the need for vehicle-specific factory plugs and lets you position the controller for convenient dash access.

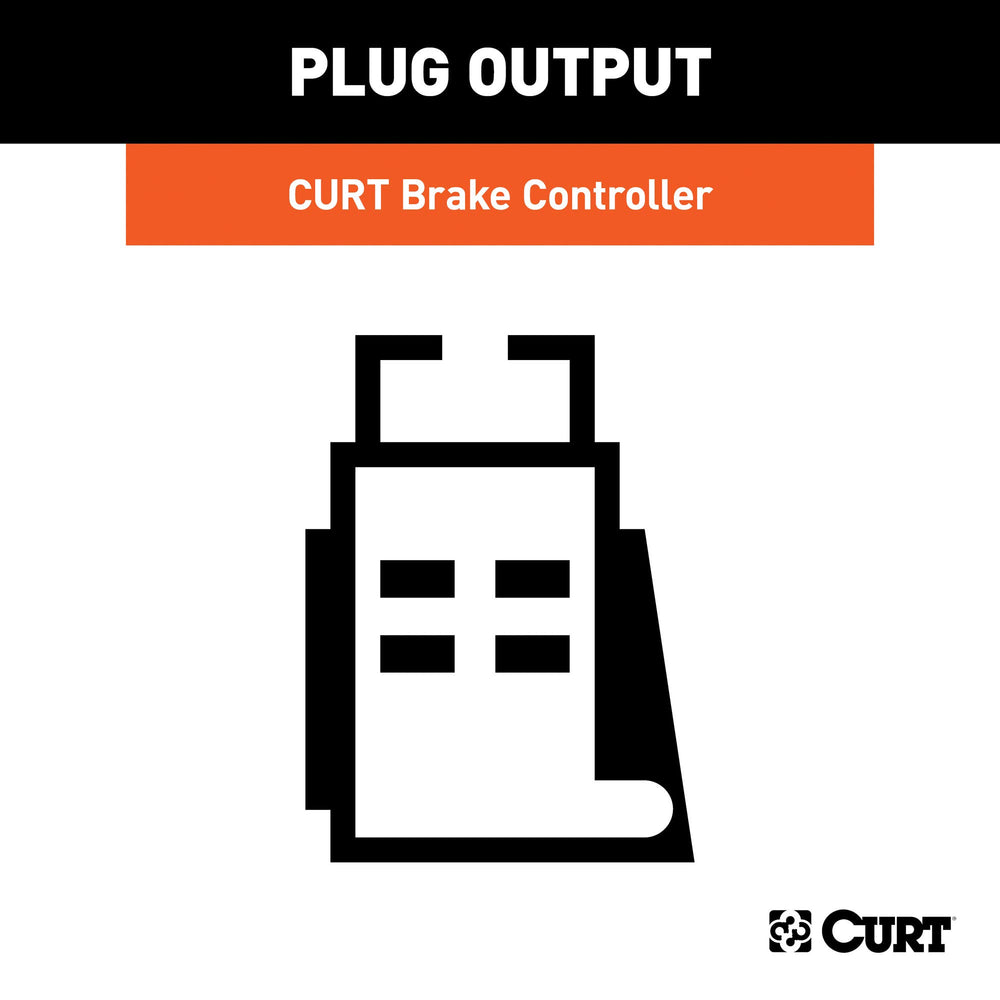

• Quick-plug end snaps directly to CURT brake controllers.
• Blunt-cut, color-coded wires simplify matching electrical functions.
• 24-inch length provides flexible dash placement.
• Compatible with the CURT universal wiring kit #51500 for easier splicing.

Will this harness deliver stable power to my trailer brakes?

Yes — the harness uses quality 12-gauge conductors sized for reliable current flow between vehicle, brake controller and trailer brakes. The robust wire gauge and clear color coding reduce voltage drop and wiring errors common in lighter aftermarket assemblies.

• 12-gauge wires for consistent power transfer.
• Color coding aligns with standard brake controller functions.
• Shielding via slit-loom sleeve protects conductors from abrasion.
• Designed for electric brake controllers with CURT quick-plug connectors.

What vehicles and brake controllers will this universal splice-in harness work with?

The 51516 is intended for vehicles that do not have a factory-installed brake controller plug; it’s universal for use with CURT controllers that feature the matching quick-plug connector. For exact fitment, check your vehicle’s wiring and the CURT application listing, and consider vehicle-specific harnesses if a factory plug exists.

• Works with CURT brake controllers equipped with a quick-plug end.
• Ideal for vehicles lacking a factory brake controller connector.
• Can be spliced into a wide variety of wiring systems using standard tools.
• Refer to CURT application info for detailed vehicle compatibility.

What does the harness include and how is it protected?

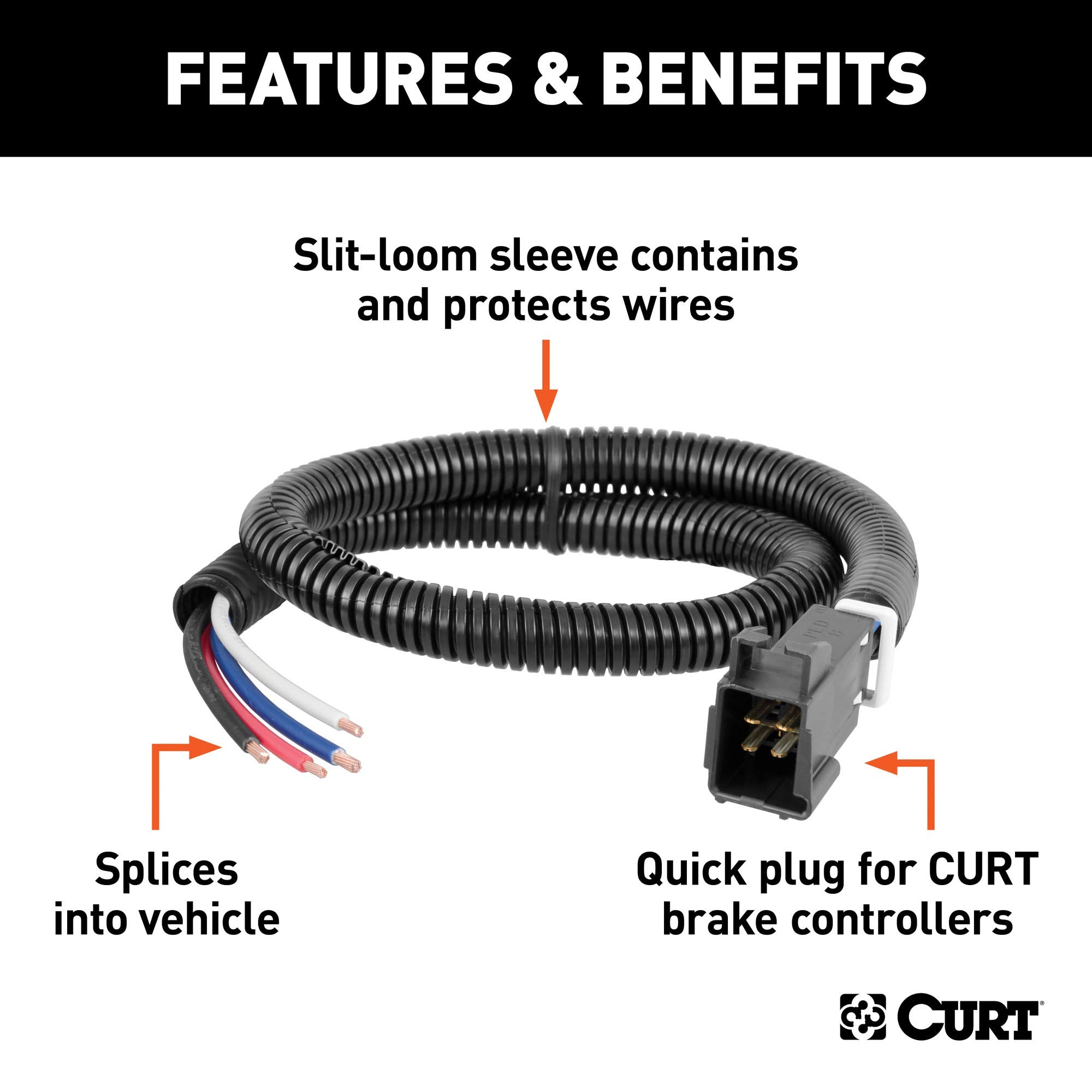

The kit includes a quick-plug interface with color-coded, blunt-cut pigtails and a protective slit-loom sleeve. The sleeve bundles the wires, helping prevent chafing, crushing, and premature wear where wiring routes through dash openings or under dash panels.

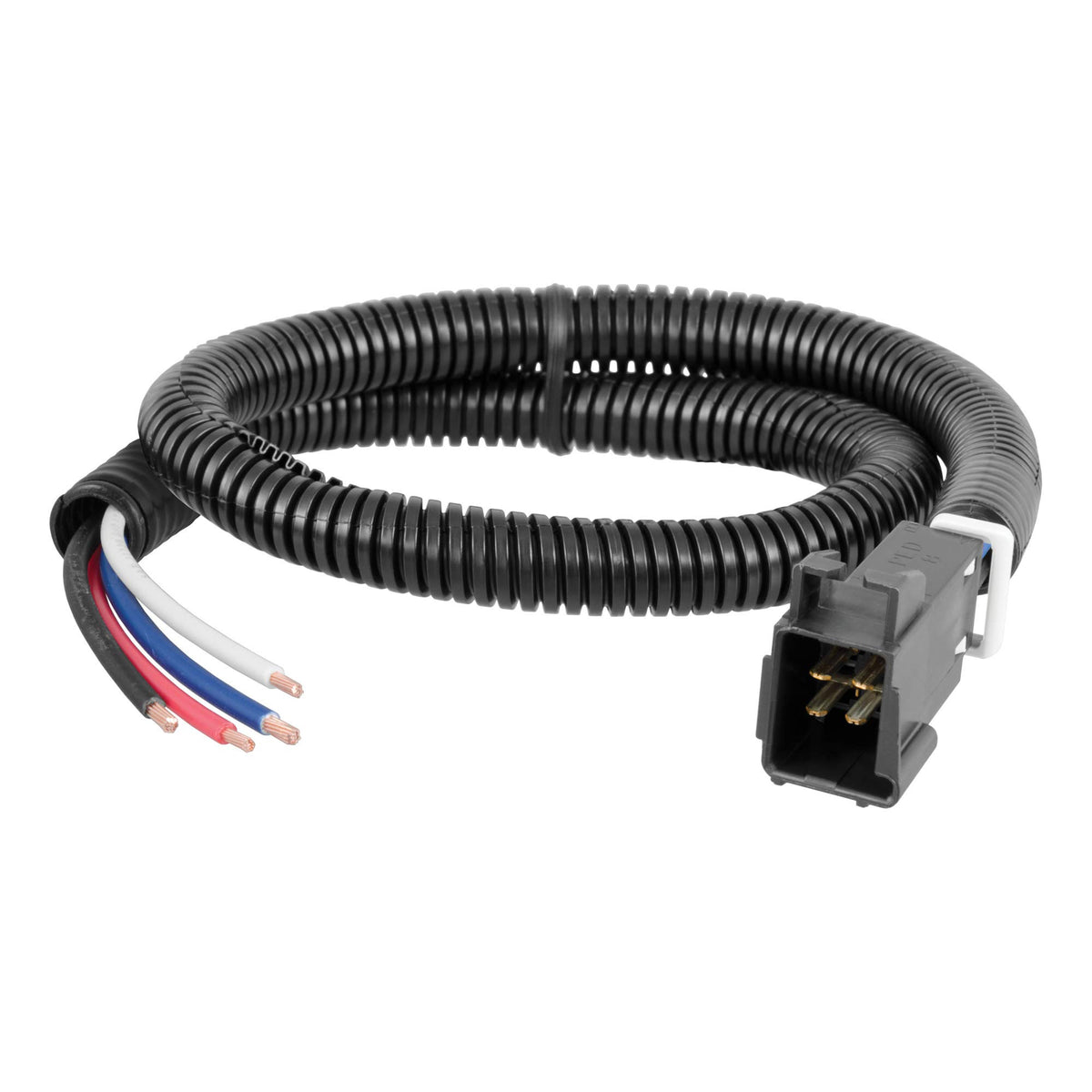

• Quick-plug connector for fast attachment to CURT controllers.
• Blunt-cut pigtails for splicing into vehicle wiring.
• Slit-loom sleeve to protect and organize wires.
• 24-inch lead length for flexible routing and mounting.

Who is this for? If you tow trailers that rely on electric brakes and your vehicle doesn’t include a factory controller plug, CURT 51516 is a practical, durable wiring solution. It’s aimed at DIY installers, fleet technicians, and anyone pairing a CURT brake controller to older vehicles or specialty trucks where a prewired connector is absent. For a plug-and-play experience on compatible models, consider vehicle-specific harnesses; otherwise the 51516 offers a universal, professional-grade splice-in option to get your brake controller working safely and reliably.
