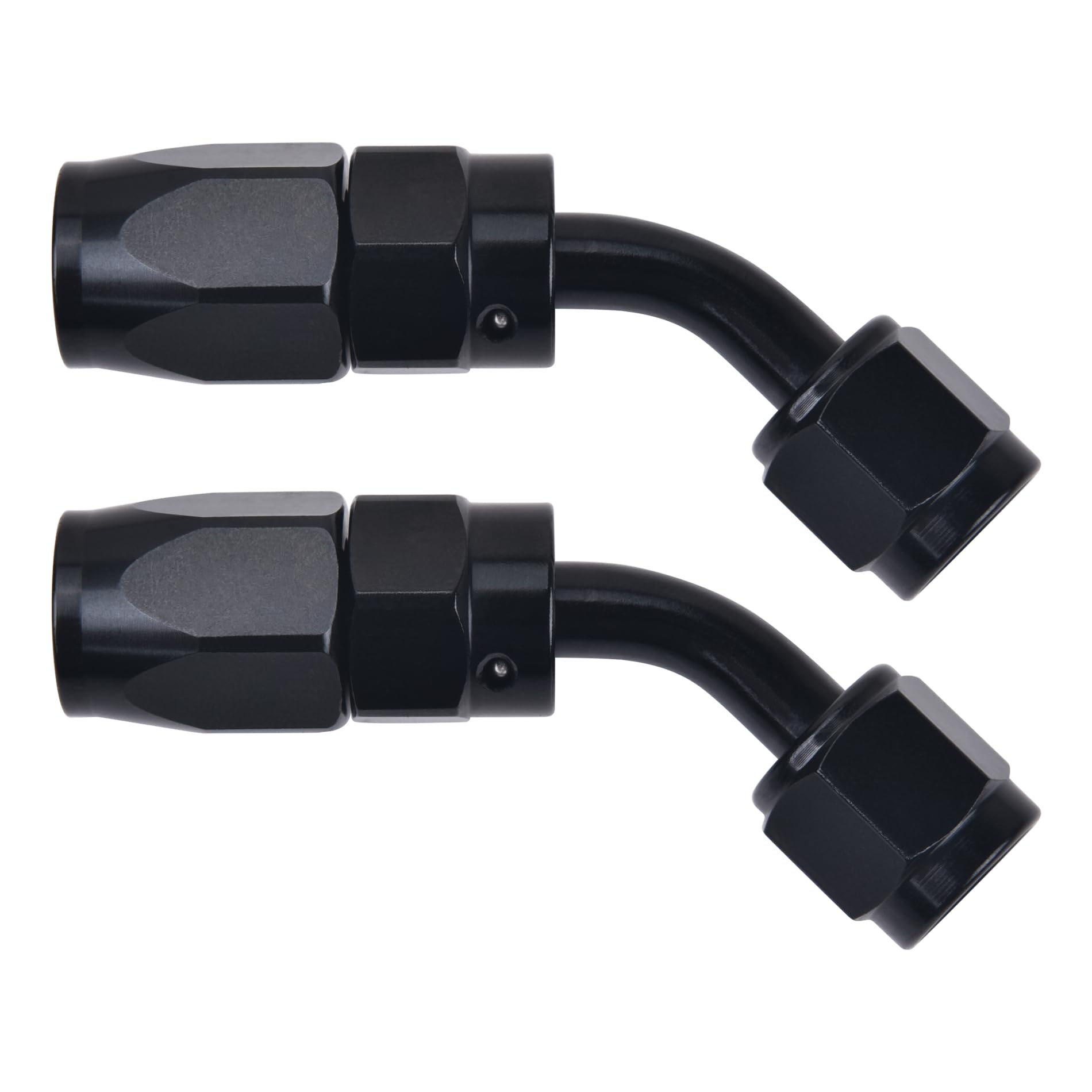

EVIL ENERGY 10AN 45° Hose End Fitting 2pc — 7/8-14 UNF to 37° AN Swivel, 6061-T6 Aluminum, 1,500 PSI

EVIL ENERGY 2PCS 10AN 45° hose end fittings are lightweight, 6061-T6 aluminum swivel connectors that adapt 7/8-14 UNF threaded ports to 37° AN-sealed braided fuel hoses.

These two 10AN 45-degree hose ends are designed for professional and DIY automotive fuel, oil, or coolant lines where a compact angled connection and a reusable swivel are needed. Machined from 6061-T6 aluminum for strength and corrosion resistance, each fitting uses a 37° AN seating angle and threads to a 7/8-14 UNF port. The fittings are compatible only with stainless steel braided and nylon braided CPE-style hoses and are rated for demanding operating ranges.

How do these 45° fittings improve hose routing in tight engine bays?

The 45° angle reduces sharp bends and stress on braided hoses, creating smoother flow paths and preventing premature wear. Their compact profile clears obstructions while maintaining a secure AN seal at the hose end.

• 45° orientation minimizes kink risk and improves line geometry
• Low-profile design fits within congested engine compartments
• Swivel body lets you orient the hose after thread-up for precise alignment

What materials and performance limits should I expect from these fittings?

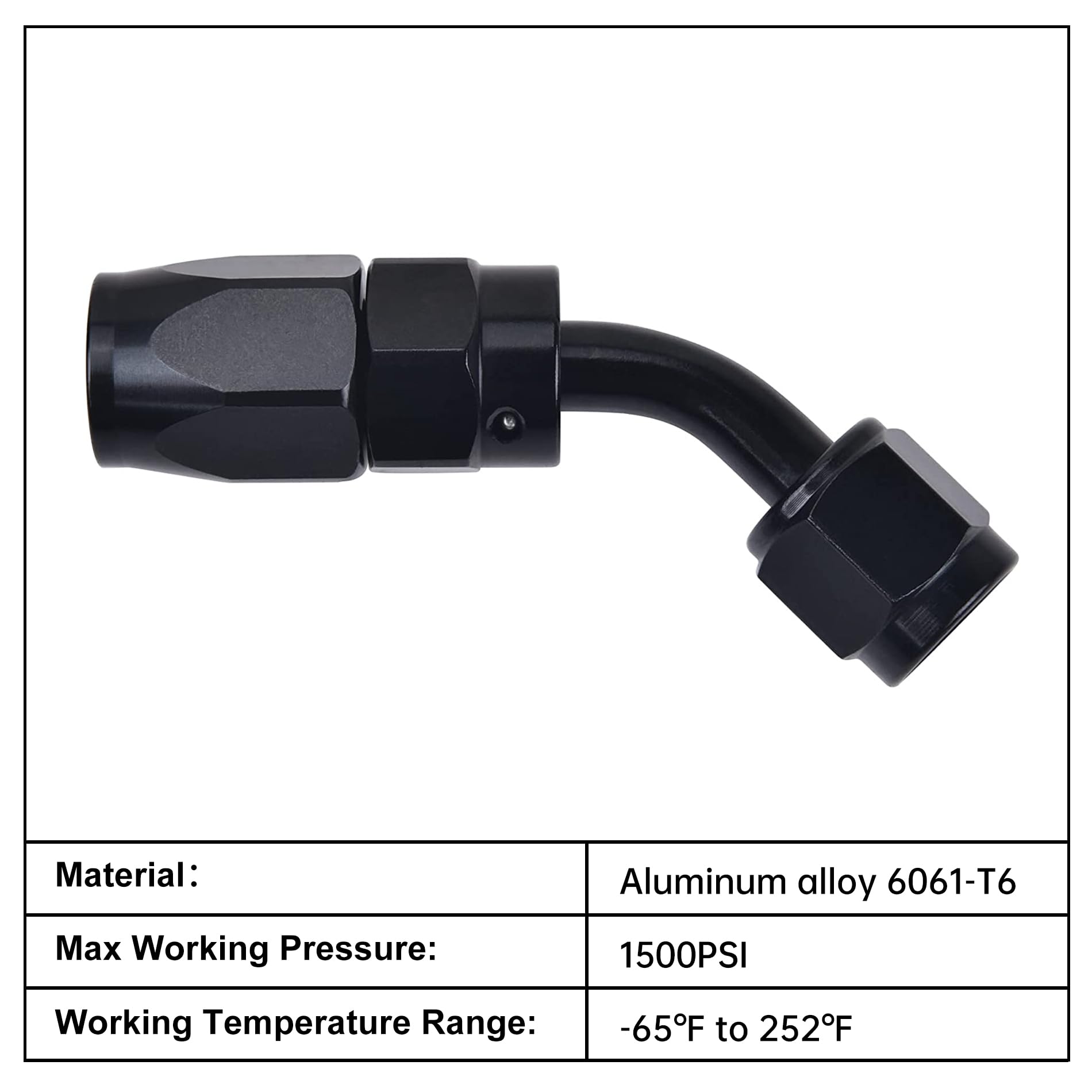

EVIL ENERGY uses 6061-T6 aluminum to balance strength, weight, and corrosion resistance—suitable for most automotive fluid systems. The fittings carry a maximum working pressure of 1,500 PSI and operate across a broad temperature span, making them versatile for many environments.

• 6061-T6 aluminum construction for durability and light weight
• Rated to 1,500 PSI maximum working pressure
• Temperature range from -65°F to 252°F (-53°C to 122°C)

Which hoses and ports are compatible with these 10AN swivel ends?

These fittings are built specifically for CPE braided hose types—stainless steel and nylon braided lines that accept AN-style ends. The threaded side uses a 7/8-14 UNF thread size and seals using a 37° AN flare contact, so match them to ports and hoses that follow AN/UNF standards.

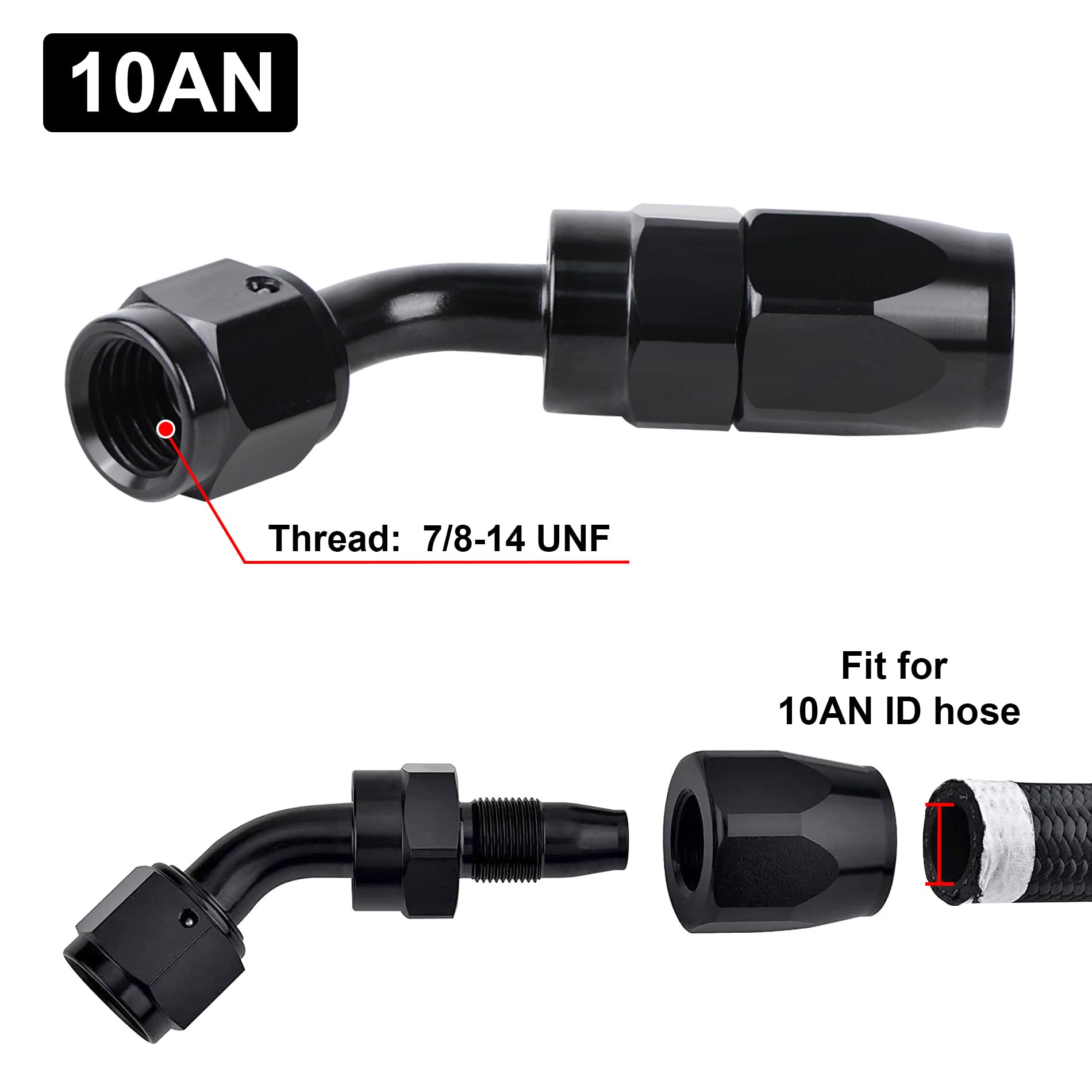

• Thread size: 7/8-14 UNF (accepts compatible threaded ports)
• AN sealing: 37° flare on the AN side for leak-resistant contact

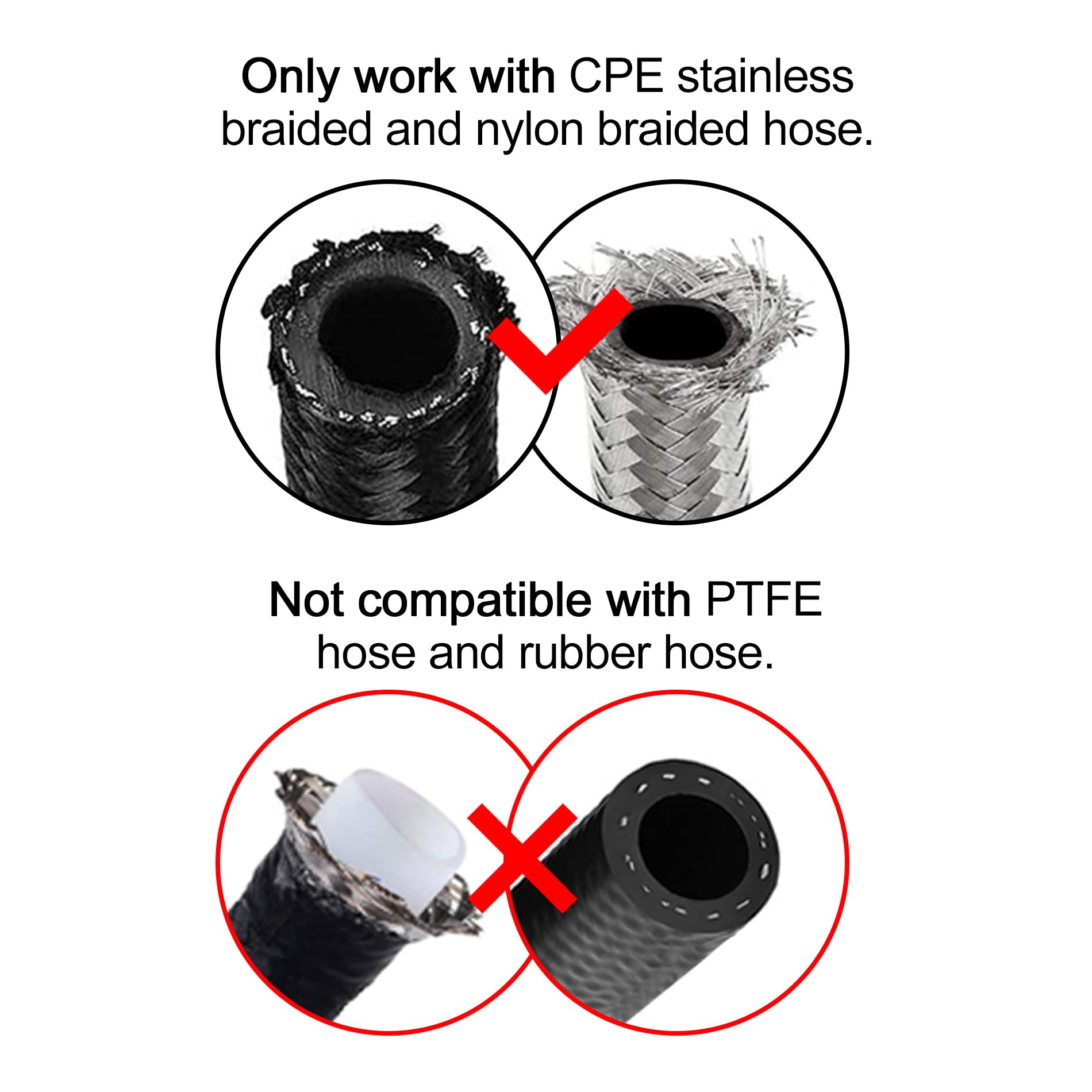

• Hose type: works with stainless steel braided or nylon braided CPE hoses only

Can these fittings be reused or adjusted after installation?

Yes—each 10AN fitting features a 360° swivel design allowing final hose orientation without forcing the hose during assembly. The fittings are reusable and can be disassembled for maintenance, replacement, or reconfiguration as long as sealing surfaces remain undamaged.

• 360° swivel body for final alignment without twisting the hose
• Designed for reuse provided sealing surfaces are intact and clean
• Simple disassembly helps with inspections and hose replacement

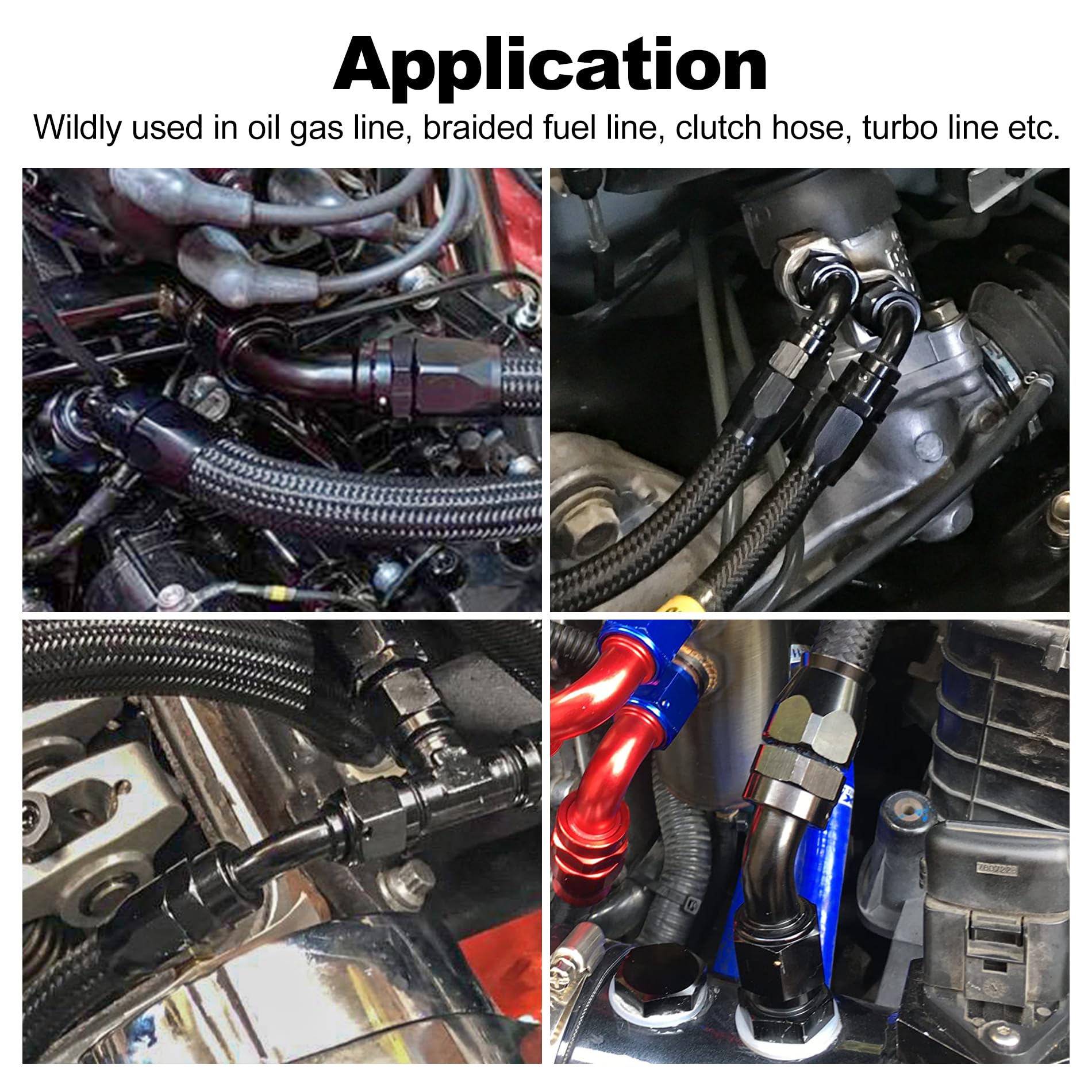

Who is this for? These EVIL ENERGY 10AN 45° hose end fittings are aimed at mechanics, tuners, and hobbyists who need durable AN-style connectors for braided fuel, oil, or coolant lines—especially where space is limited and reliable swivel adjustment is valuable. Choose them when you require a lightweight aluminum fitting with a 45° offset, 7/8-14 UNF thread compatibility, and a robust working-pressure and temperature range for typical automotive and motorsport applications.
