EVIL ENERGY 10AN 90° Hose End Fittings, 4-Pack — 6061-T6 Aluminum, 360° Swivel, 1500 PSI

These 10AN 90-degree hose ends from EVIL ENERGY provide a compact, angled connection for braided fuel and fluid lines where space and alignment matter. Built from aircraft-grade 6061-T6 aluminum and engineered with an AN-style 37° sealing face, the fittings combine corrosion resistance and reuse-friendly assembly. They suit performance vehicles, custom plumbing runs, and retrofit projects that require leak-resistant connections with ease of installation.

How do these fittings attach to my braided fuel hose?

The fittings use a clamped, hose-seat assembly designed specifically for stainless-steel and nylon braided hoses; they compress the hose end over the barbed or stepped tail and secure with the threaded swivel nut. The AN side seals with a precise 37° cone, creating a metal-to-metal seal when torqued to recommended specs.

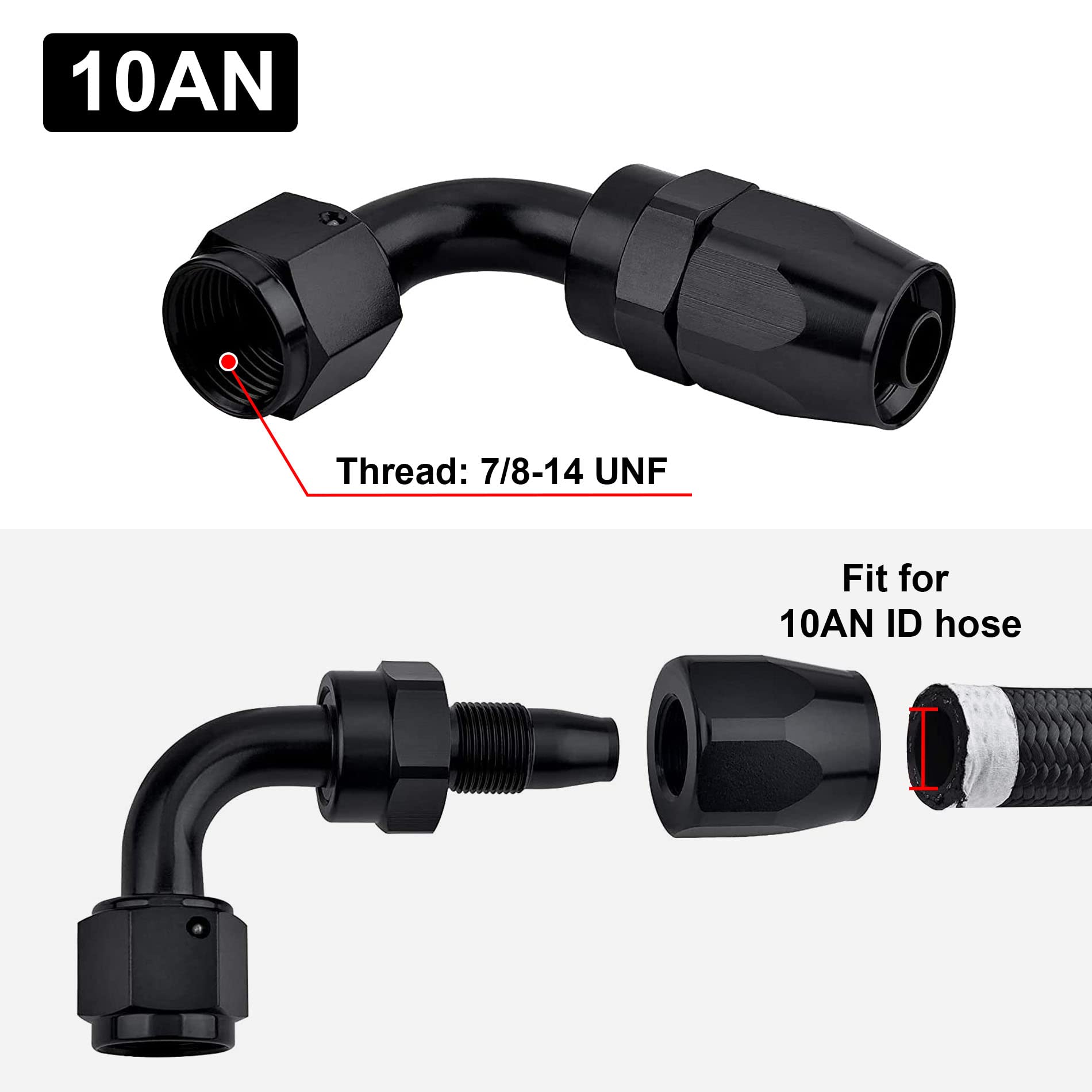

• Thread size: 10AN male thread is 7/8-14 UNF for standard AN ports.
• Sealing: 37° AN angle on the flare side for reliable metal-to-metal sealing.

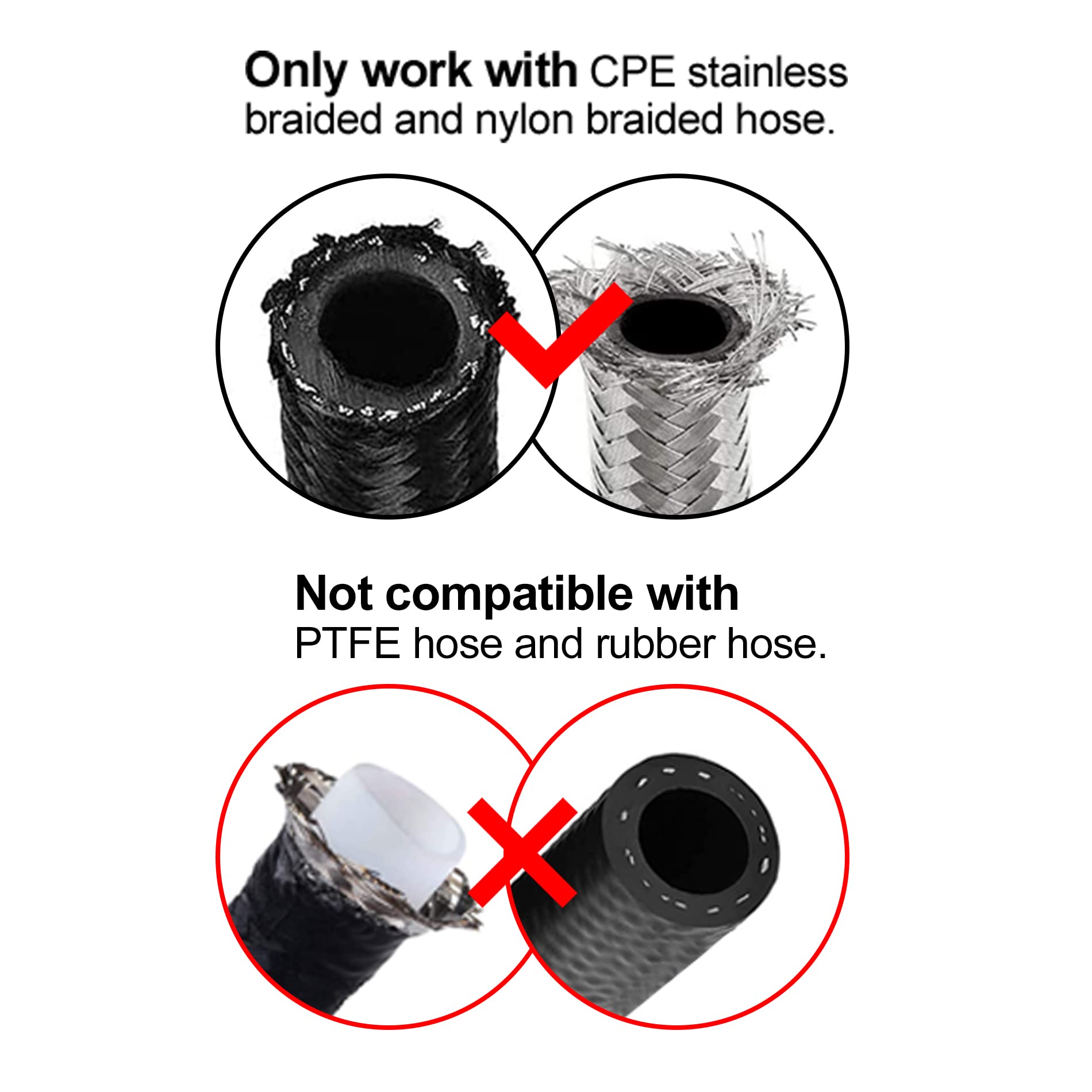

• Compatibility: Works only with stainless-steel braided or nylon braided fuel lines.

What performance and environmental limits should I expect?

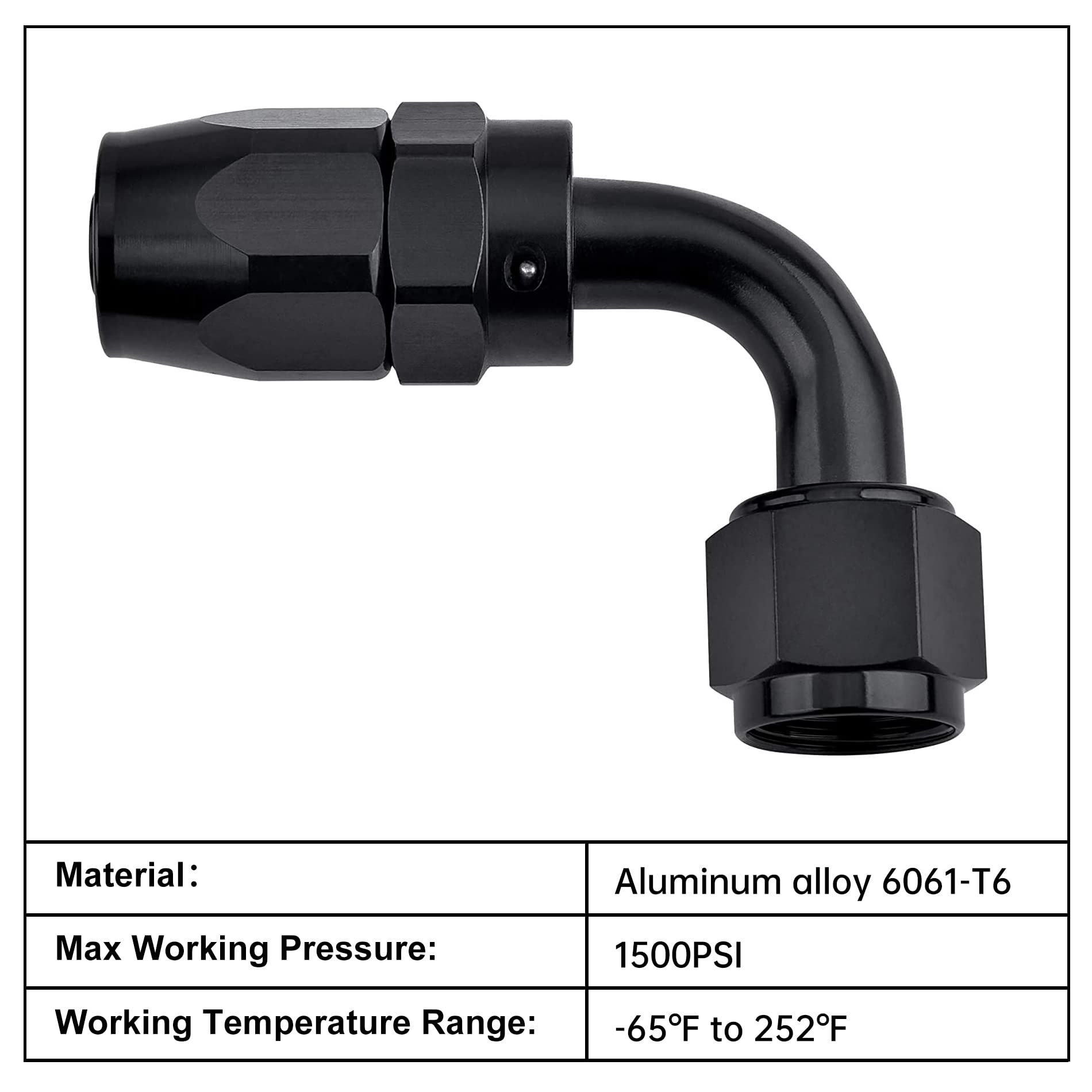

These fittings are rated for a maximum working pressure of 1,500 PSI and designed to operate across a wide temperature span. The temperature tolerance runs from -65°F up to 252°F (-53°C to 122°C), making them suitable for most automotive and motorsport under-hood environments.

• Working pressure: Up to 1,500 PSI for steady fluid-handling applications.
• Temperature range: -65°F to 252°F (-53°C to 122°C) for cold starts to hot engine bays.
• Material resilience: 6061-T6 aluminum resists corrosion and retains strength under heat.

How easy are these fittings to install and reuse?

EVIL ENERGY’s 90-degree fittings feature a 360° swivel nut that lets you orient the hose without twisting the braid, simplifying tight installations and final alignment. The hardware is designed for multiple uses: you can disassemble, inspect, and reassemble the fitting if needed for maintenance or rerouting.

• Swivel design: 360° rotation allows precise hose routing without stress.
• Reusable: Built to be disassembled and reassembled for service or changes.

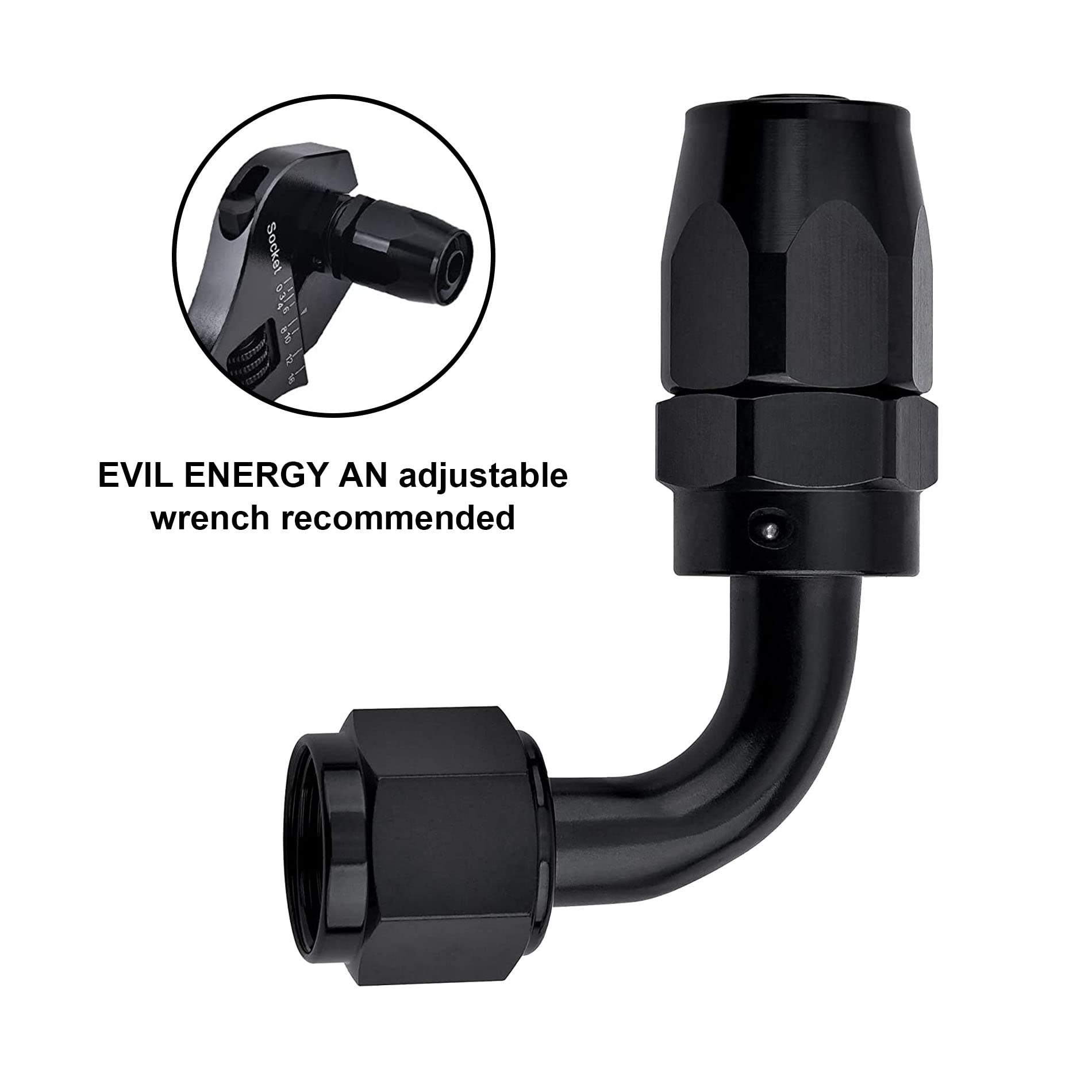

• Assembly tip: Use correct torque and inspect the 37° sealing face for debris before final installation.

Which systems and projects are these fittings best for?

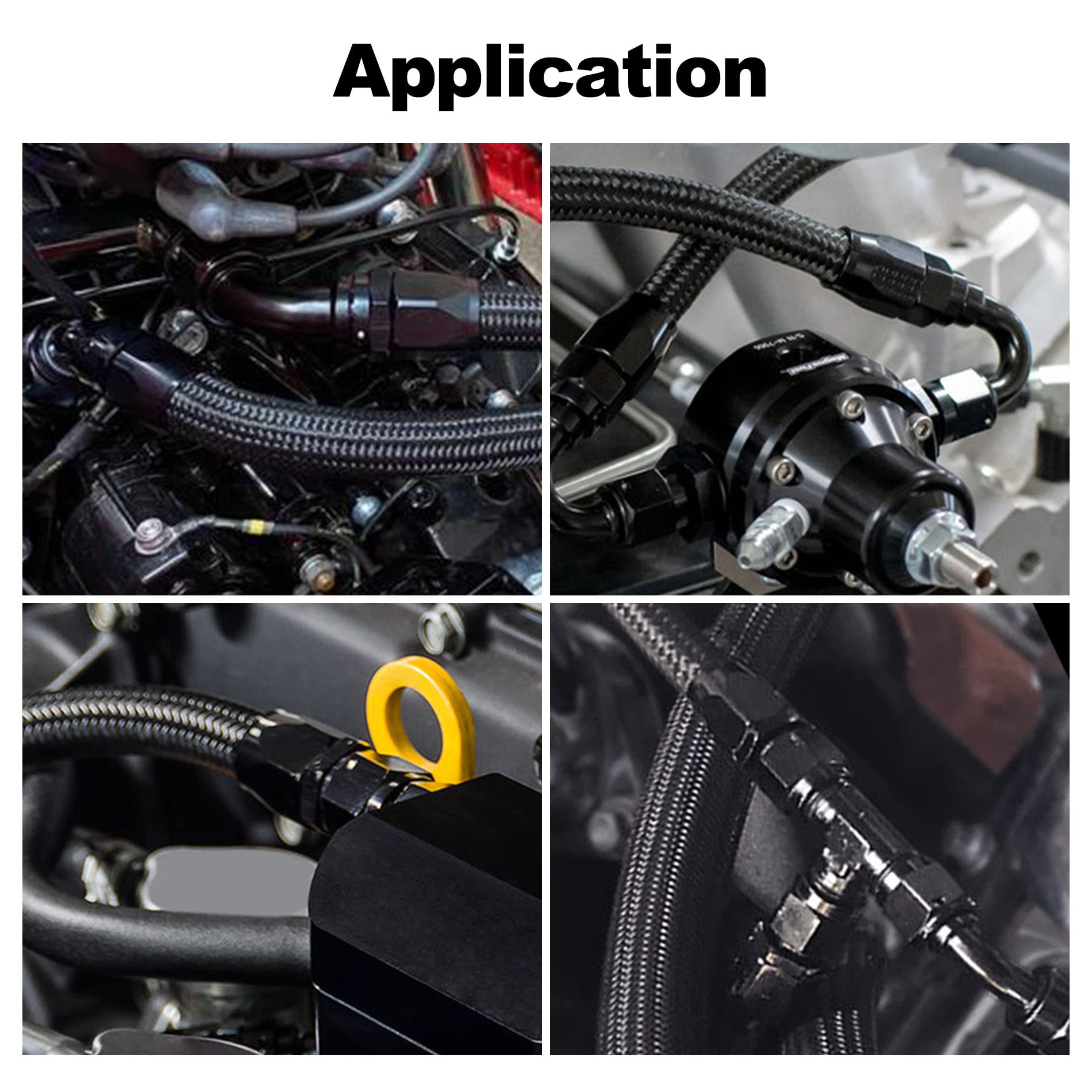

These hose ends are intended for braided fuel, oil, and fluid transfer lines on cars, trucks, racecraft and custom builds that use AN-standard ports. They're an option when a compact 90° turn is required while preserving an AN-style metal-to-metal seal and high pressure tolerance.

• Ideal for fuel and oil lines on performance vehicles and custom plumbing.
• Useful in engine bays where space constraints require a 90° connection.
• Not suitable for non-braided soft hoses or systems outside the listed temperature/pressure ranges.

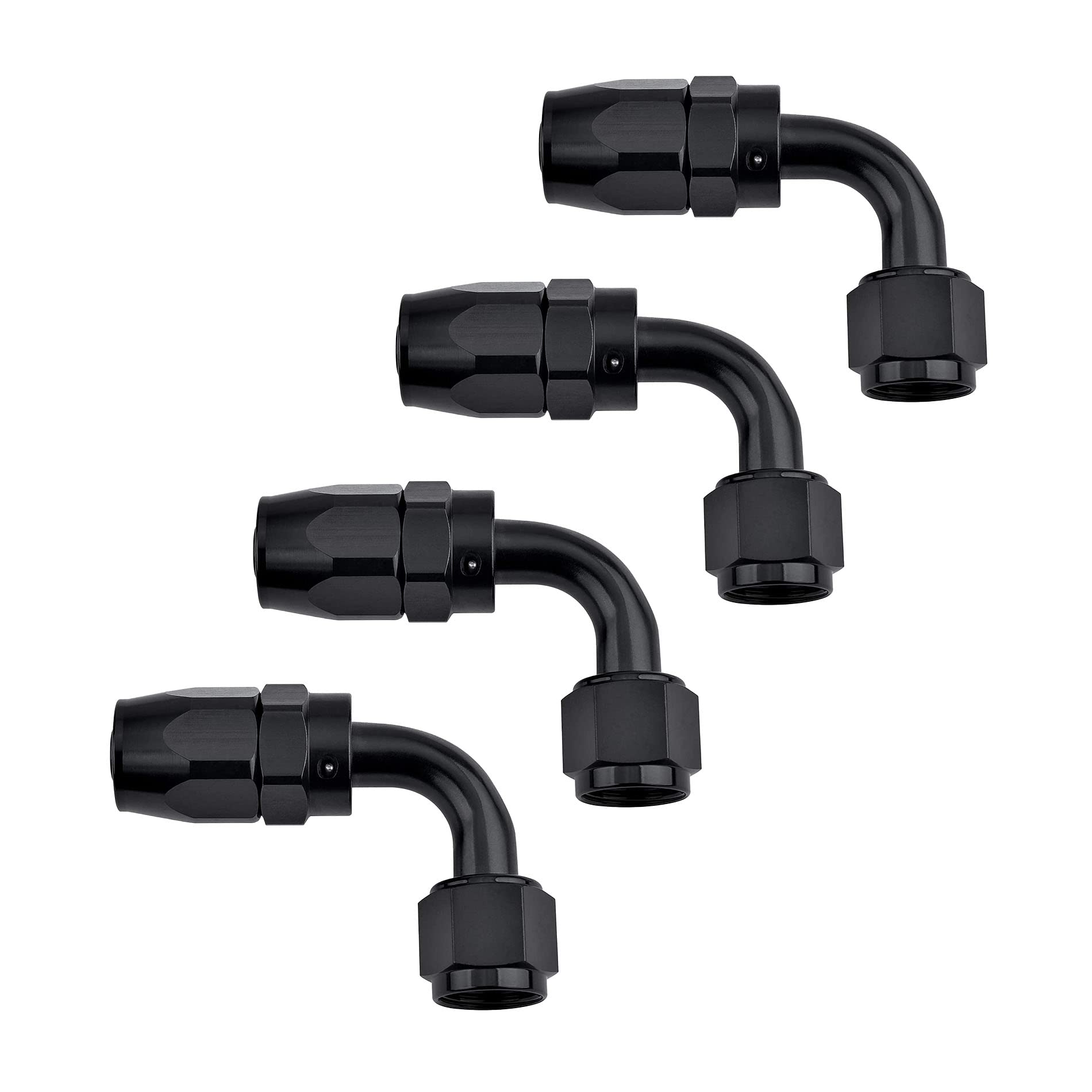

Who is this for: EVIL ENERGY 4PCS 10AN 90 Degree Hose End Fittings are aimed at automotive enthusiasts, race teams, and mechanics building or repairing braided fuel and fluid systems. Choose this four-piece pack if you need durable, reusable 90° AN fittings that save space, provide a secure 37° seal, and allow final hose orientation via a 360° swivel for tidy, dependable installations.
