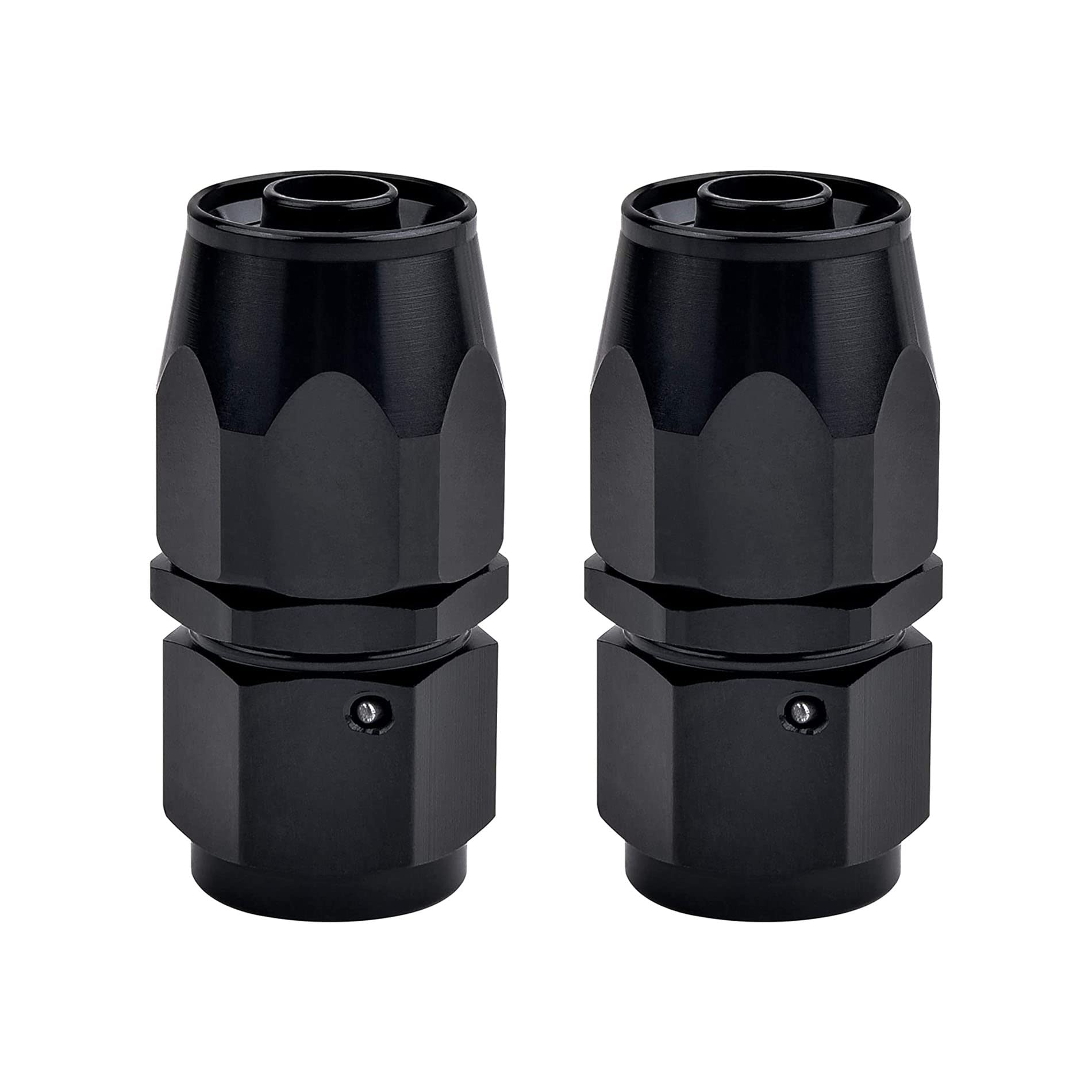

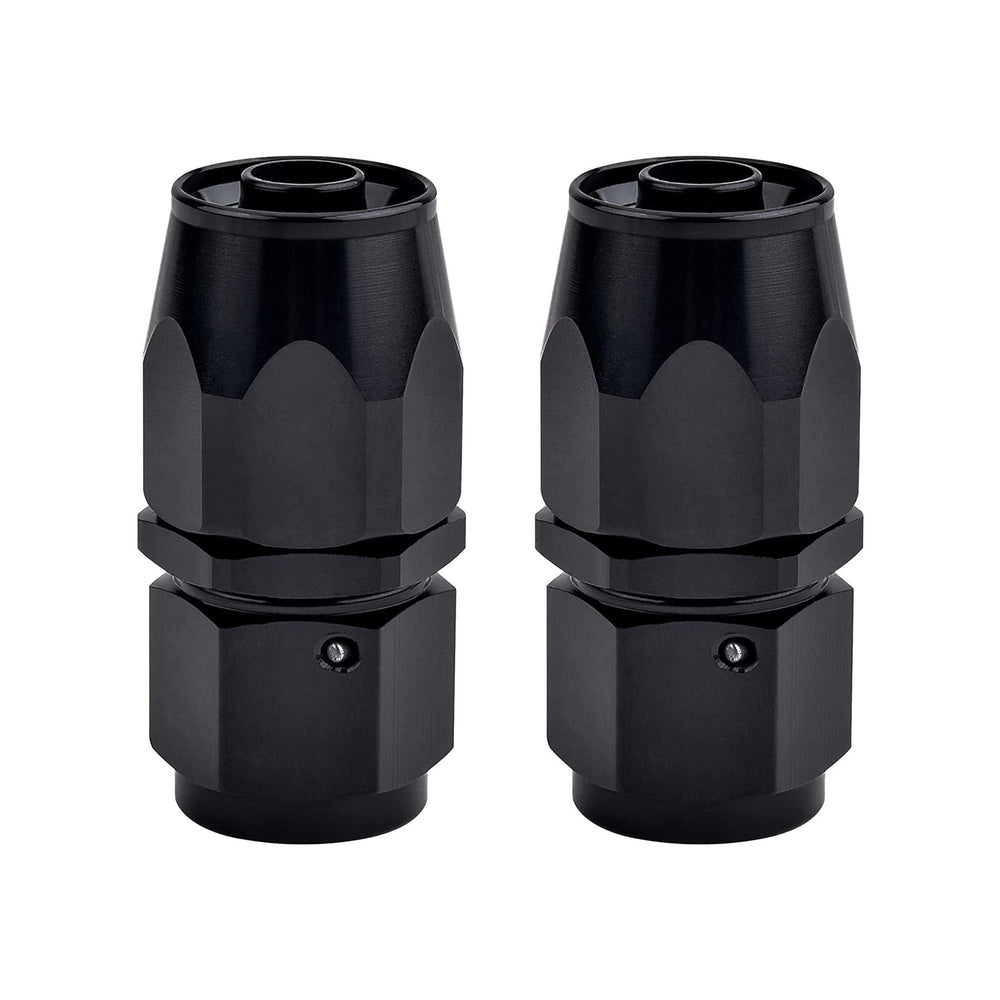

EVIL ENERGY 10AN Straight Swivel Hose End Fittings, Black 2pc — 360° Swivel, 1500 PSI

EVIL ENERGY 10AN straight swivel hose end fittings are aluminum, reusable 7/8-14 UNF threaded connectors designed to join CPE braided stainless or nylon hoses with a 37° seat for leak-resistant sealing.

These two black anodized fittings give you a compact, high-pressure solution for fuel, oil, coolant, and other fluid lines that use CPE-braided hoses. Machined from 6061-T6 aluminum and finished for corrosion resistance, each fitting swivels 360° to simplify routing and installation without twisting the hose. With a working pressure rating up to 1500 PSI and a wide temperature tolerance, they suit demanding automotive and industrial tasks where a reliable AN-style connection and ease of service are priorities.

How do these fittings create a secure seal with AN hoses?

The fittings use a 37° conical seat on the AN side that mates against the hose end to form a reliable metal-to-metal seal when tightened. This geometry is a standard in aerospace and motorsport plumbing for preventing leaks under pressure. Proper assembly and matching braided hoses are essential for the connection to perform as intended.

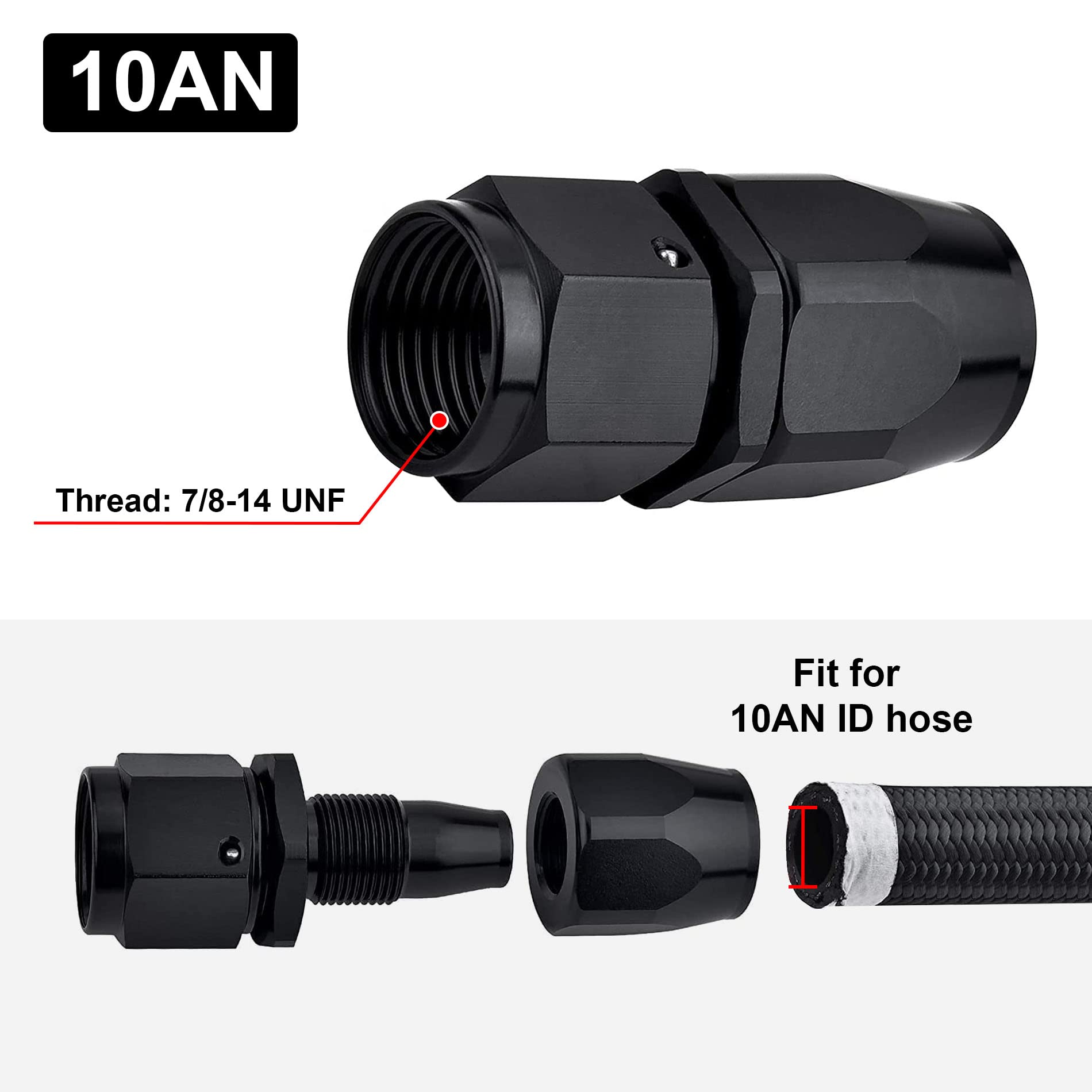

• 10AN thread size = 7/8-14 UNF with 37° sealing angle
• Compatible only with stainless braided and nylon braided CPE hoses
• Reusability—disassemble and reinstall without damage when correctly used

Will these fittings handle high pressure and temperature conditions?

Yes—each fitting is rated for a maximum working pressure of 1500 PSI and is built to tolerate broad temperature swings. The 6061-T6 aluminum construction balances strength and weight, while the black finish adds extra corrosion resistance. Always verify system components and installation practices match your application's pressure and thermal demands.

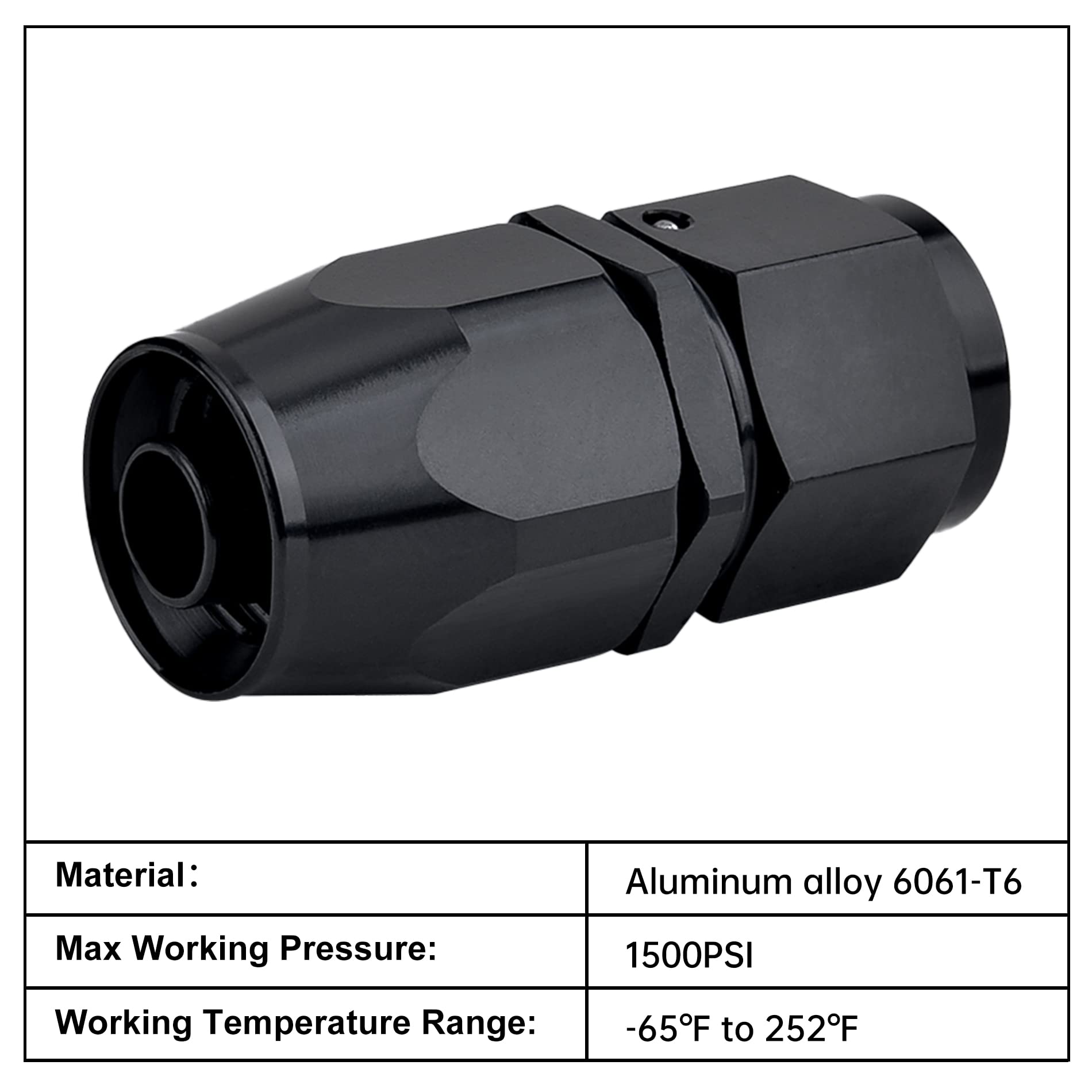

• Max working pressure: 1500 PSI
• Operating temperature range: -65°F to 252°F (-53°C to 122°C)
• Durable 6061-T6 aluminum for strength and lightness

How does the 360° swivel improve installation and maintenance?

The swivel feature lets the hose rotate freely relative to the fitting body, preventing twisting and kinking during routing. That makes tight bends easier to manage and reduces stress at the hose/fitting junction. It also speeds up assembly and future service work because you can orient the hose without loosening the entire line.

• 360-degree swivel for easy hose alignment and reduced torque
• Simplifies installation in confined spaces or complex plumbing runs
• Reusable design lowers replacement frequency and waste

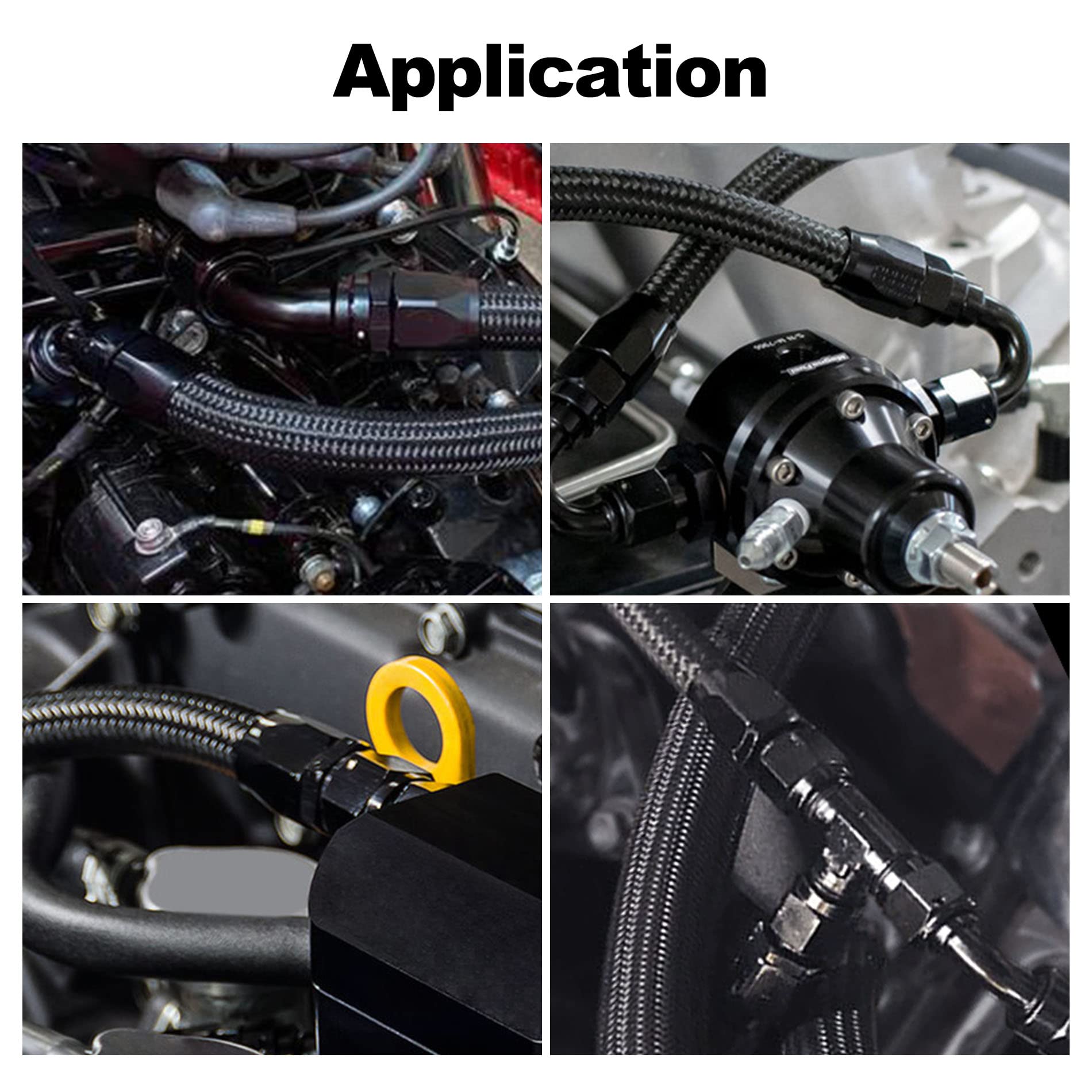

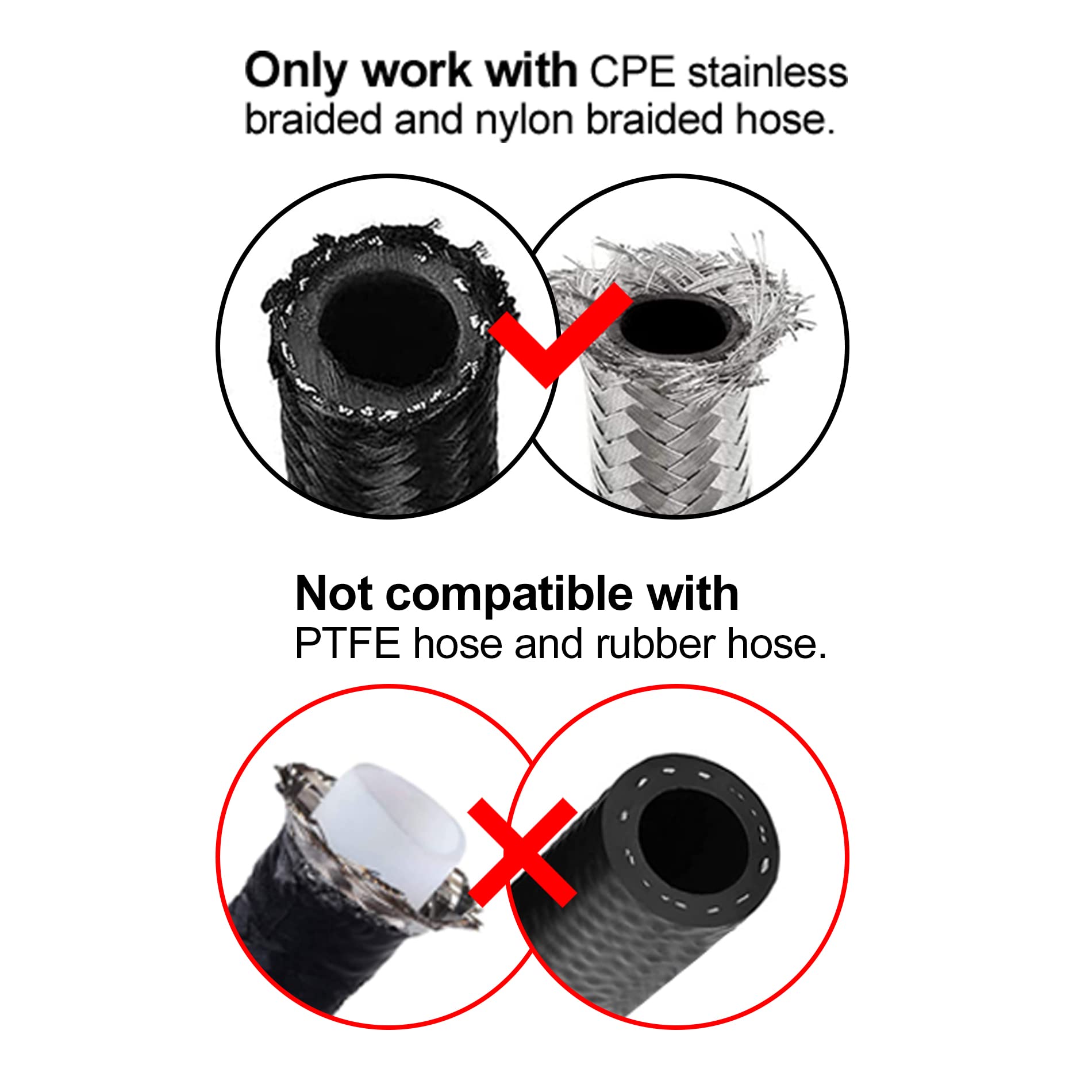

What hoses and applications are appropriate for these fittings?

These swivel fittings are intended specifically for use with stainless braided or nylon braided CPE hoses that accept AN-style ends. They are commonly used in automotive fuel, oil, cooling, and hydraulic accessory lines, plus light industrial fluid systems. They are not suitable for non-braided or incompatible hose types.

• Works with stainless braided and nylon braided CPE hoses only
• Ideal for fuel, oil, coolant, and accessory fluid lines
• Not for use with hoses that lack AN-style seating or incompatible materials

Who is this for: EVIL ENERGY 10AN swivel hose end fittings are aimed at DIY mechanics, performance shops, motorsport teams, and fabricators who need compact, serviceable AN connections for braided CPE hoses. If you install or maintain braided fluid lines and want a lightweight, high-pressure rated connector that eases routing and future servicing, this two-piece black anodized set is a practical choice.
