EVIL ENERGY 6AN PTFE 90° Hose End Fitting — Black Anodized, 2‑Pack, 360° Swivel, 1500 PSI

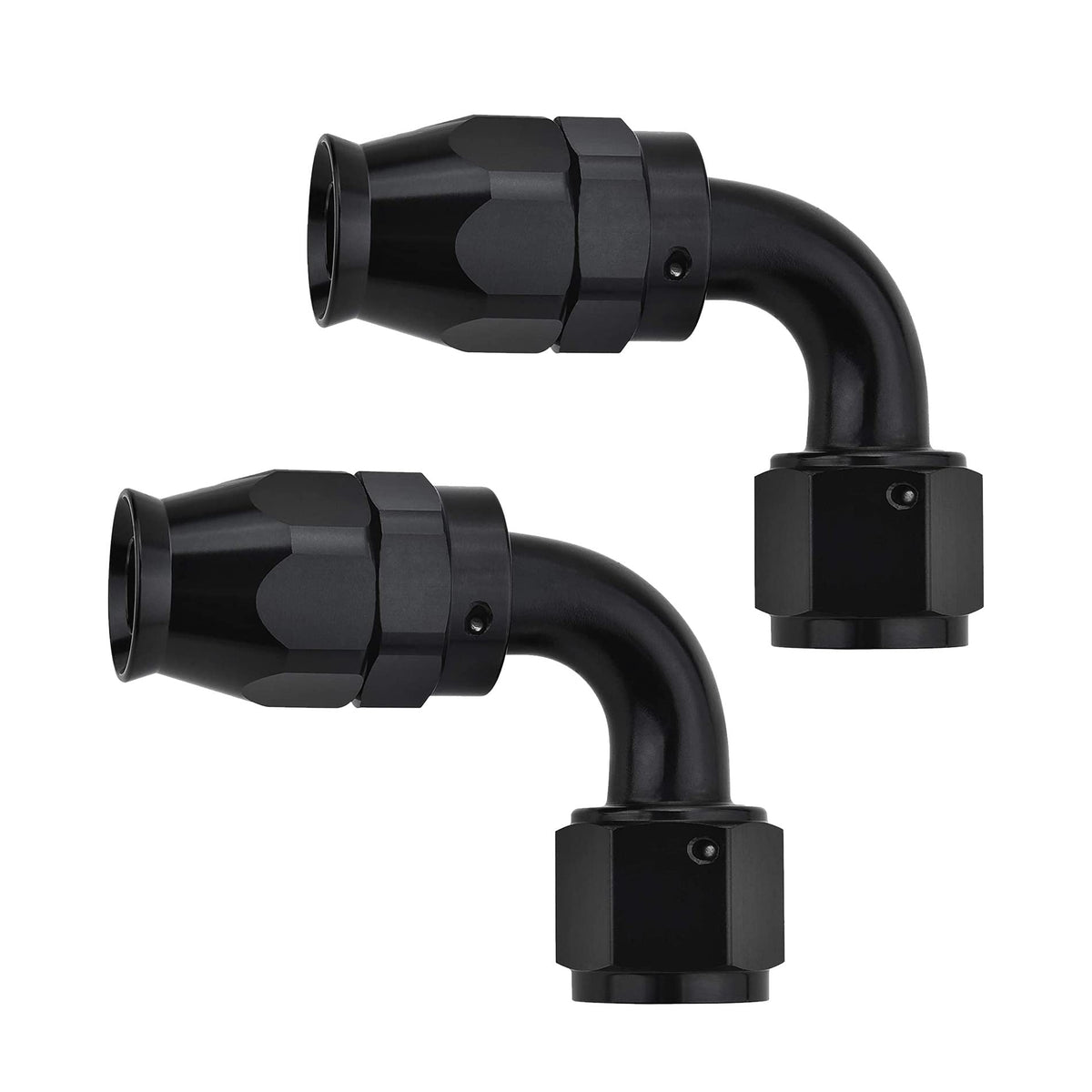

EVIL ENERGY's 6AN 90° PTFE hose end fittings are black anodized, 6AN (9/16-18UNF) aluminum swivel adapters made for PTFE fuel lines and sold as a 2-piece set.

These 90-degree hose ends are engineered specifically for PTFE fuel hose use, combining a corrosion-resistant 6061-T6 aluminum body with a 37° AN sealing face and a full 360° swivel for straightforward installation. Rated to 1500 PSI and built to withstand temperatures from -65°F to 252°F, they deliver reliable mechanical performance in automotive and motorsport plumbing where PTFE hose systems are specified.

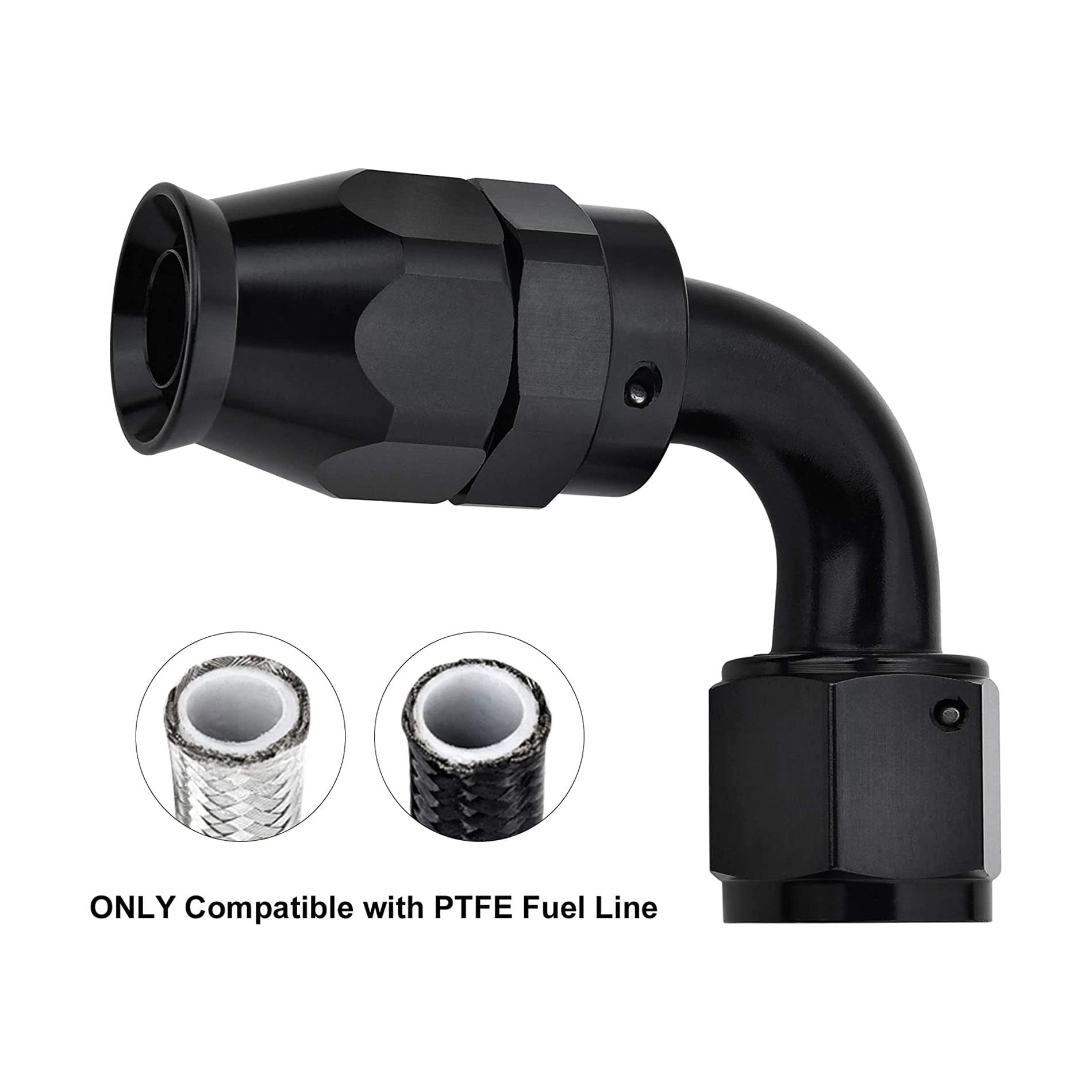

Will these fittings work with my existing fuel hose or only PTFE hose?

These fittings are designed exclusively for PTFE-lined hose assemblies. The mating surfaces and clamping geometry match PTFE hose construction, so they will not properly seal or perform with rubber, braided nylon, or non-PTFE hoses.

• Compatible only with PTFE-lined fuel hose.
• Not suitable for rubber or textile-braided hoses.
• Use with matching 6AN PTFE hose end components for reliable sealing.

How strong and temperature-resistant are these 6AN fittings?

Manufactured from 6061-T6 aluminum and anodized black, the fittings are rated for a working pressure up to 1500 PSI and a wide service temperature range. That range (-65°F to 252°F) covers most automotive, marine, and motorsport fluid applications when used with compatible PTFE hose.

• Working pressure: 1500 PSI.
• Temperature range: -65°F to 252°F.
• Aluminum 6061-T6 construction provides strength with reduced weight.

What thread, sealing type, and orientation do these hose ends use?

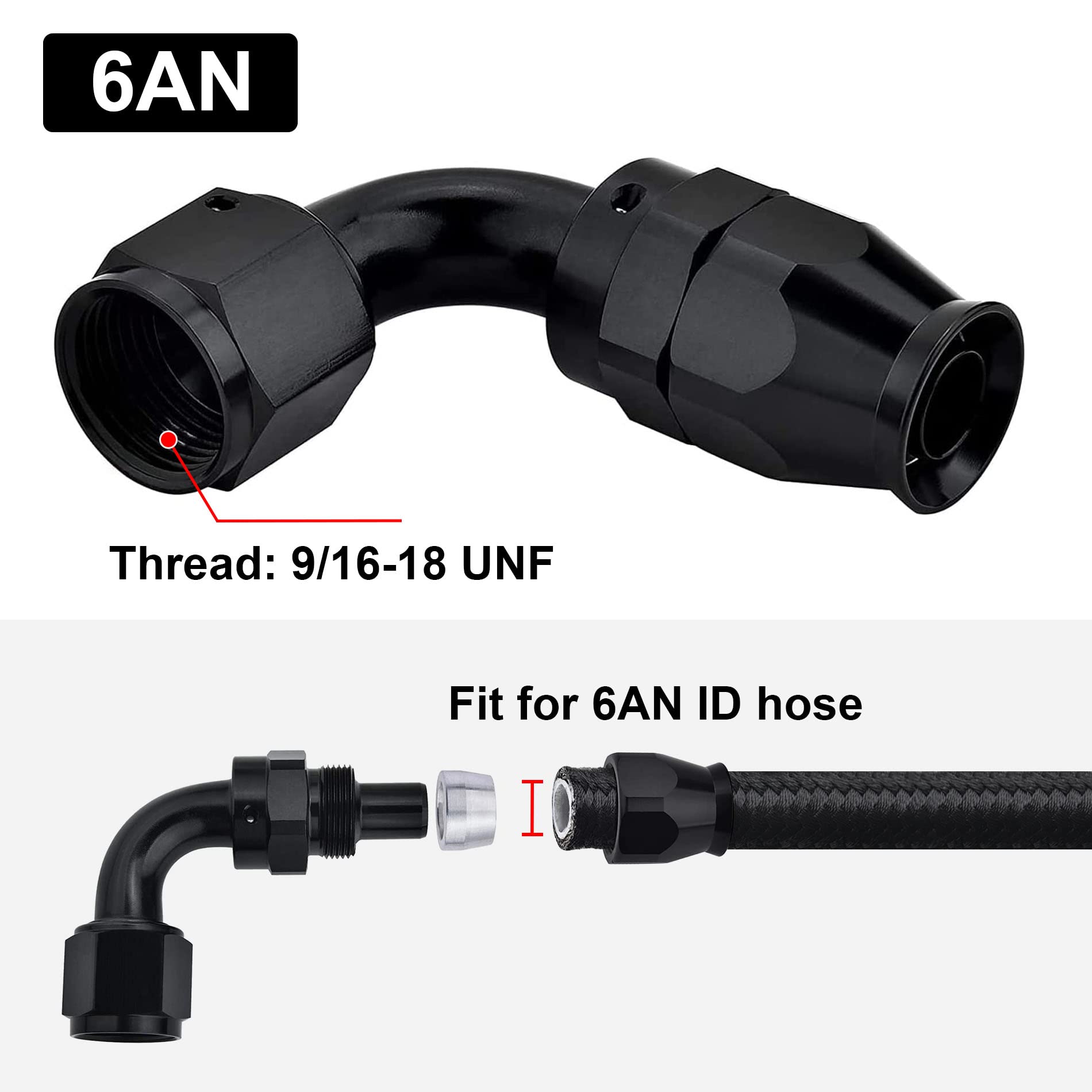

The thread specification is 6AN (9/16-18UNF) to match standard AN fittings. Sealing on the AN side is achieved with a 37° cone angle, the common AN sealing method, and the body is formed into a 90-degree orientation to route hose lines neatly in tight spaces.

• Thread size: 6AN (9/16-18UNF).
• AN-side seal: 37° cone seating surface.
• 90° elbow shape for compact hose routing.

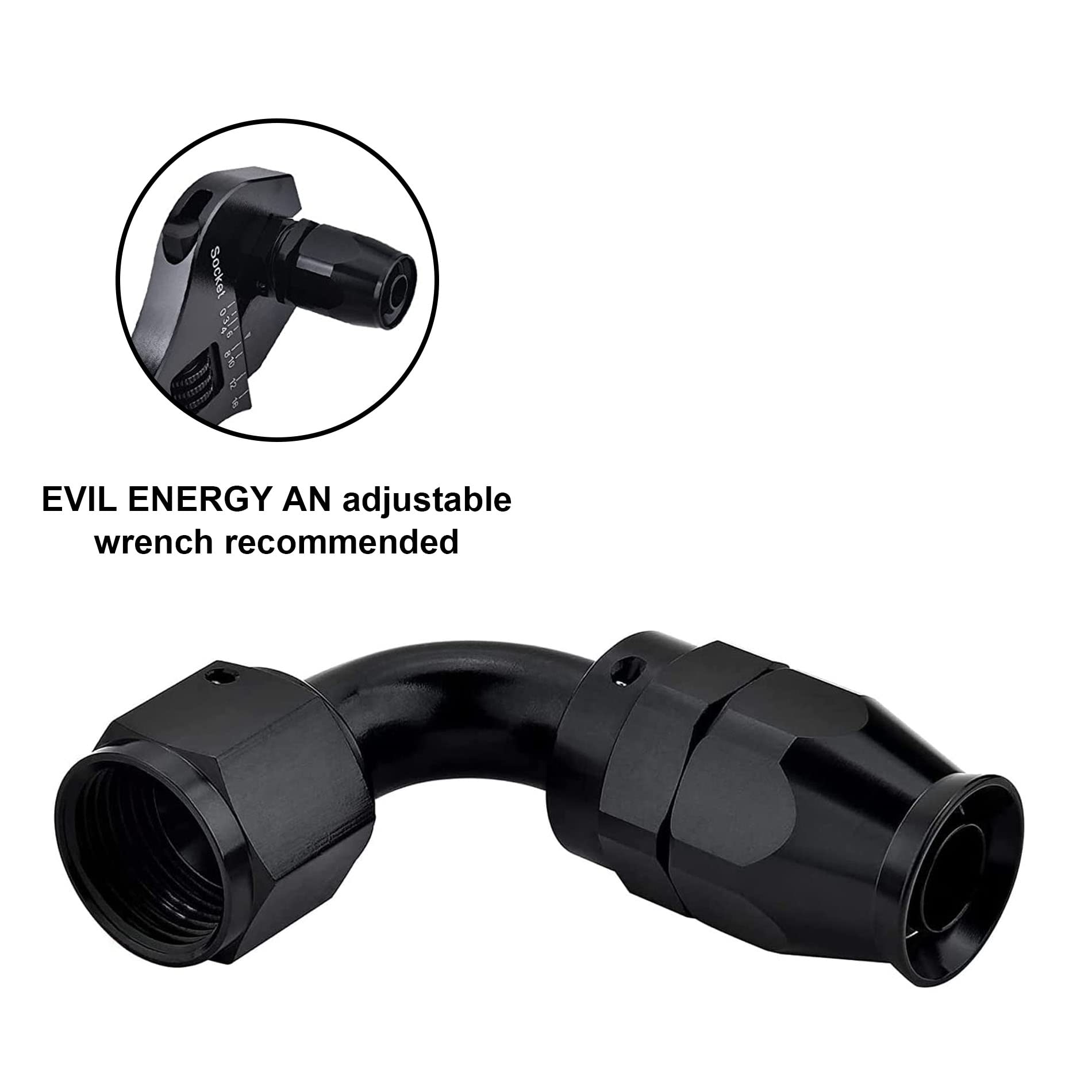

How easy are these fittings to install and service?

The fittings include a 360° swivel body so you can orient hose runs without twisting the hose assembly during installation. Their AN-standard thread and cone seal simplify assembly with compatible male AN fittings and PTFE hose ends, and the anodized finish helps resist corrosion during repeated use.

• 360° swivel reduces hose stress during installation.
• AN-standard threading simplifies mating with existing components.
• Black anodized finish adds corrosion resistance and clean appearance.

Who is this for? Installers, tuners, and fabricators who work with PTFE-lined fuel systems and need compact, reliable 90° 6AN connections will benefit most. This 2-piece set is ideal for custom fuel plumbing, race cars, boats, or any application specifying PTFE hose and 6AN fittings where a high-pressure, temperature-resistant swivel elbow is required. Do not use these fittings with non-PTFE hoses or outside AN-compatible plumbing systems.
