EVIL ENERGY AN6 Braided Fuel Line 10ft Black — CPE Inner, 750 PSI Working Pressure

EVIL ENERGY 6AN braided fuel line is a 10-foot, high-pressure AN6 hose with a CPE inner tube, 304 steel wire reinforcement, and nylon outer braid designed for fuel, oil, and coolant applications.

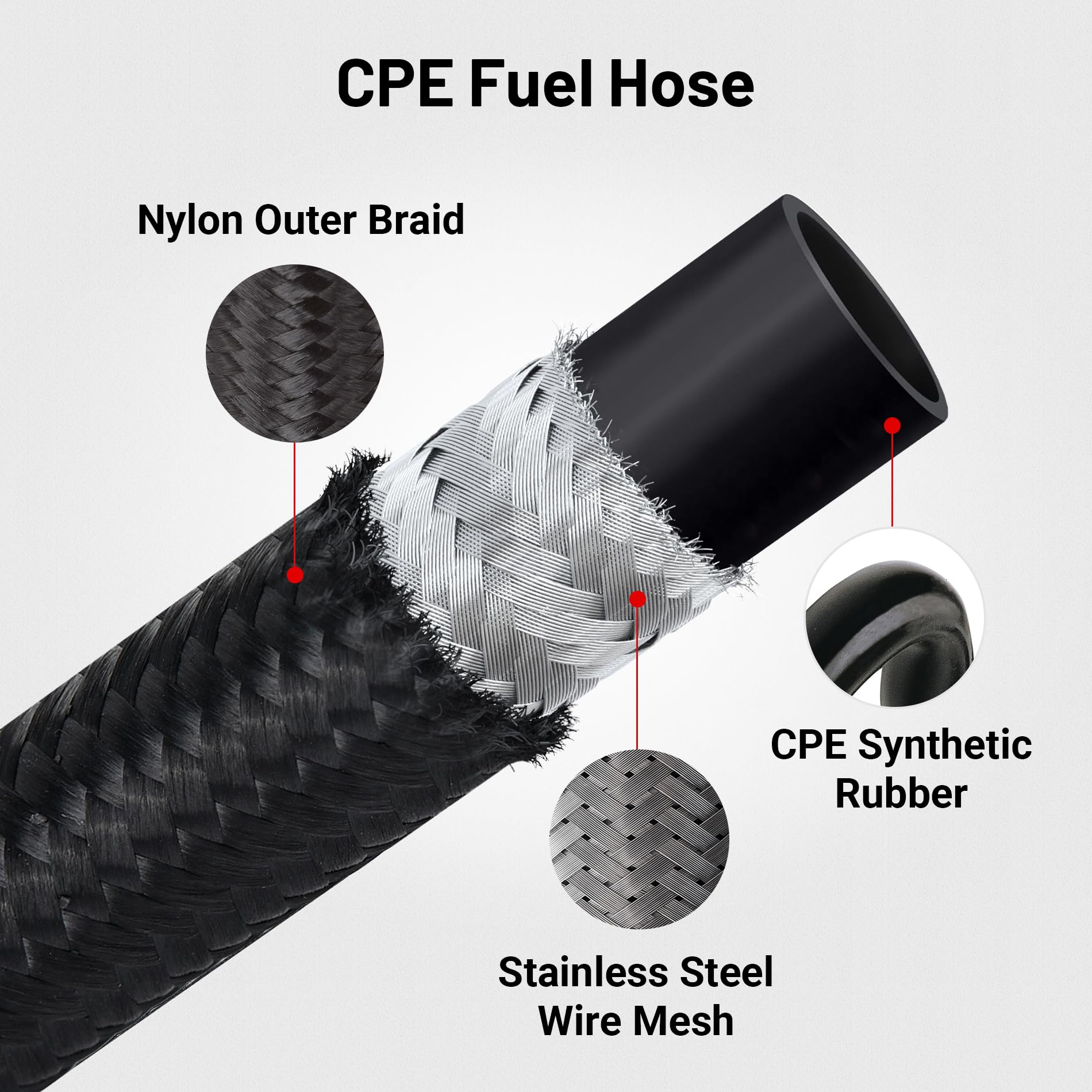

This heavy-duty AN6 fuel hose combines a chemical-resistant CPE inner layer, a 304 stainless-steel wire braid for strength, and a protective nylon outer sleeve to deliver durable, flexible fluid routing for performance vehicles, marine rigs, and industrial systems. Rated to 750 PSI working pressure and a 2,250 PSI burst threshold, the hose spans a broad temperature window and ships with installation guidance for use with 6AN swivel fittings.

How does this hose hold up under high pressure and temperature swings?

The EVIL ENERGY AN6 hose uses a multilayer construction to manage pressure and temperature stress. The CPE inner tube resists many fuels and oils while the 304 wire braid provides tensile strength; the nylon outer layer shields against abrasion and UV exposure.

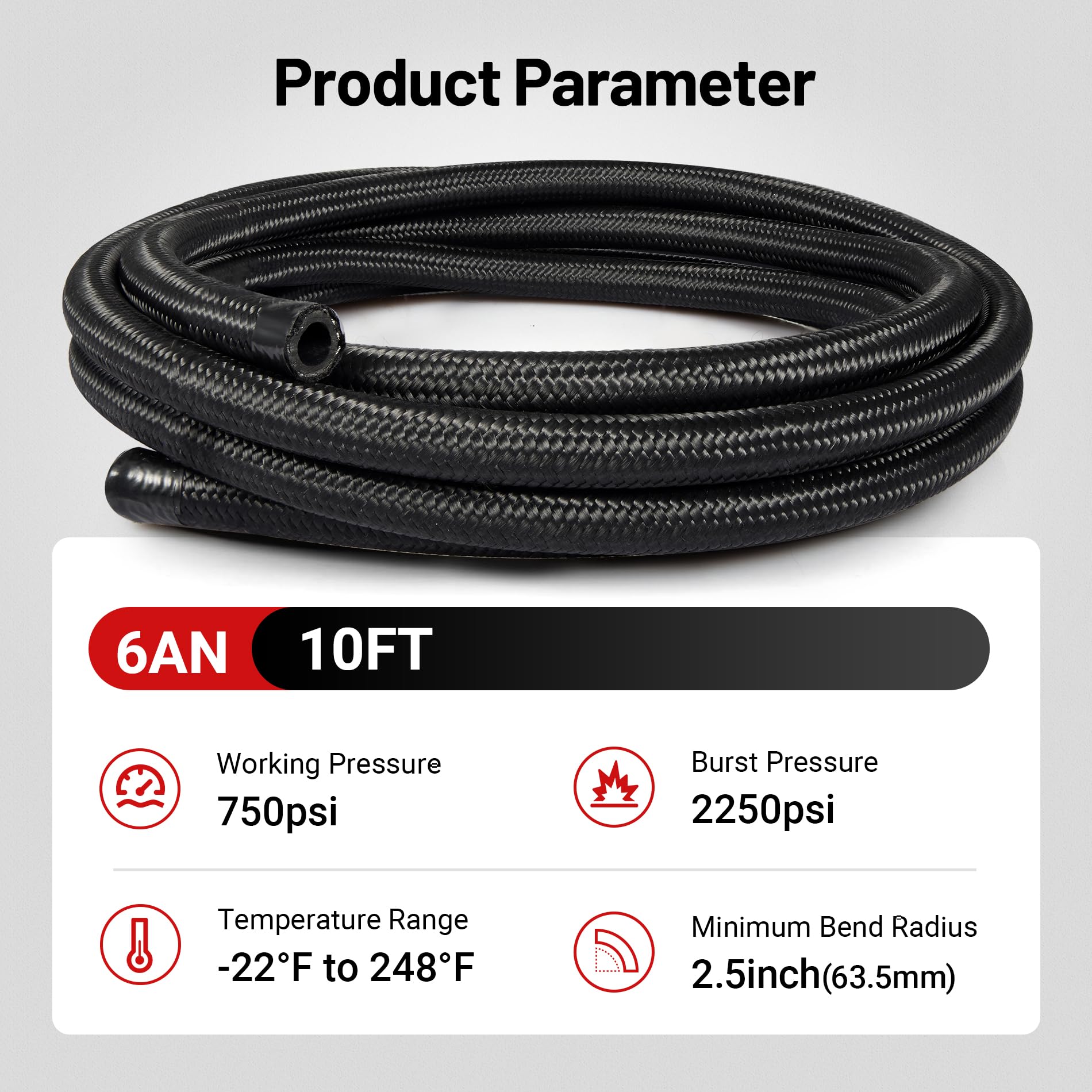

• Maximum working pressure: 750 PSI.
• Bursting pressure: 2,250 PSI for safety margin.
• Temperature range: -22°F to 248°F for cold starts and hot-running systems.
• 304 stainless braid resists deformation under load.

What fluids and systems is the AN6 hose compatible with?

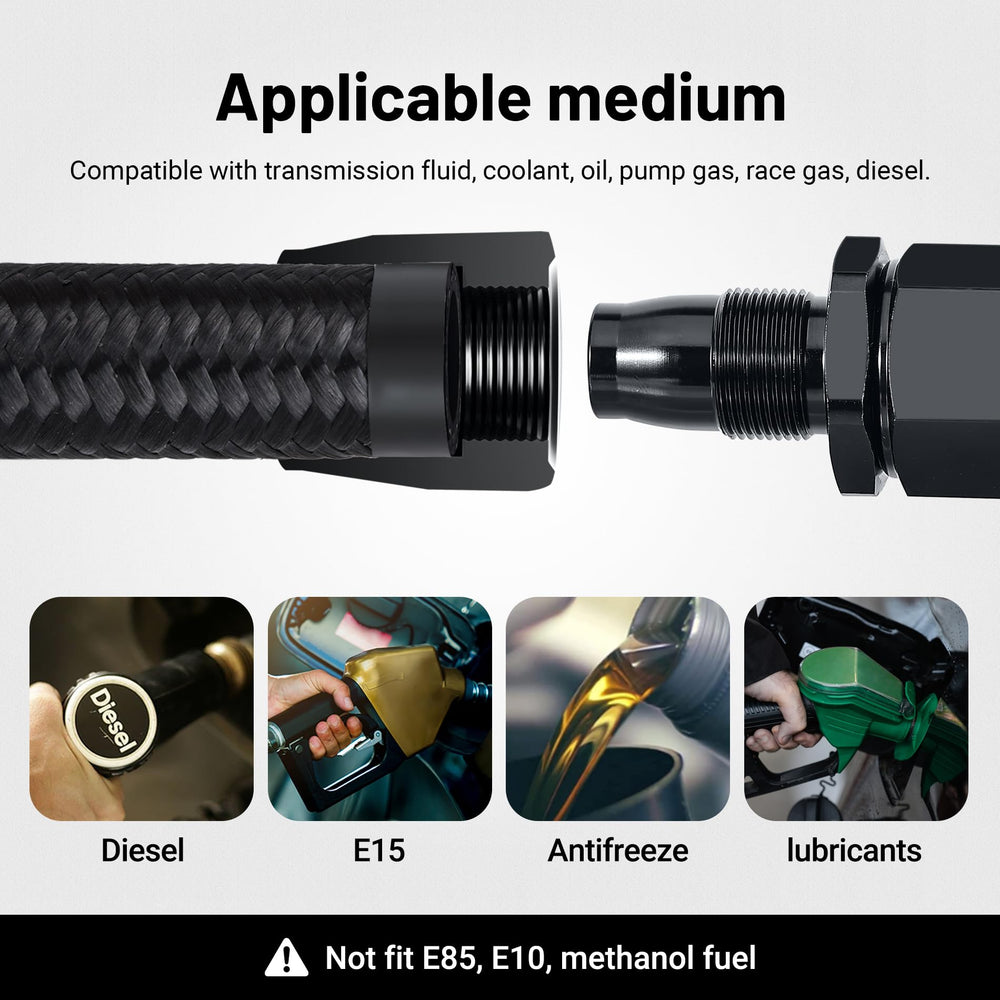

This braided hose is formulated to work with a wide variety of fluids common to automotive, racing, and industrial setups. It accepts fuels, oils, hydraulic fluids, transmission fluid and diesel, and can be used for vacuum or gauge lines where an AN6 connection is appropriate.

• Compatible with fuel, race gas, diesel, oil, and transmission fluid.
• Suitable for vacuum, hydraulic fluid, and coolant lines.
• Works with 6AN swivel hose ends; fittings sold separately.
• Not intended for specialty chemicals outside listed compatibility—test before use.

How easy is installation and what are the hose dimensions?

The hose comes in a 10-foot length that you can cut to size and terminate with standard 6AN swivel fittings. Installation instructions are included to help ensure proper clamping and routing; correct AN fittings are required for leak-free connections.

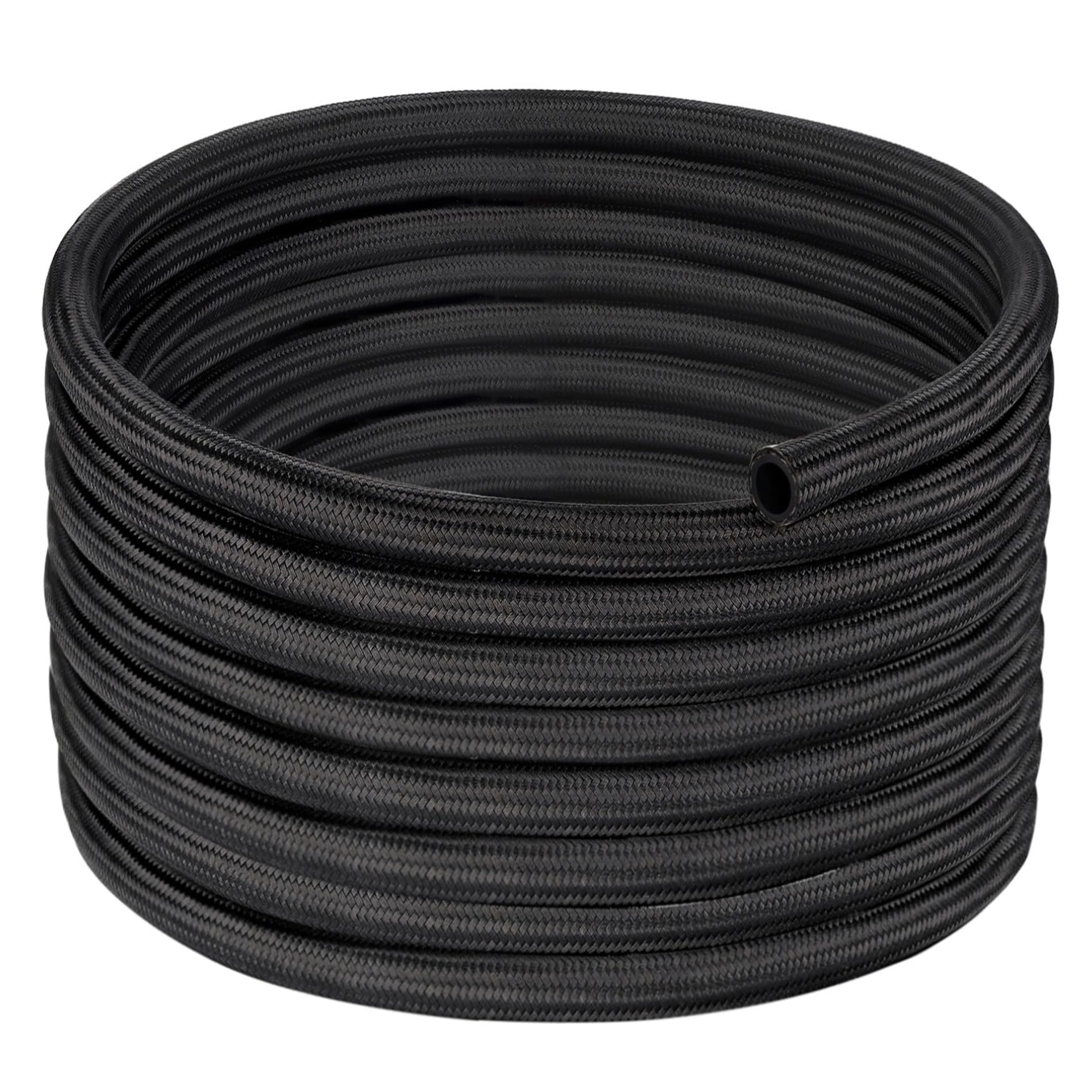

• Length: 10 feet (cuttable to custom lengths).

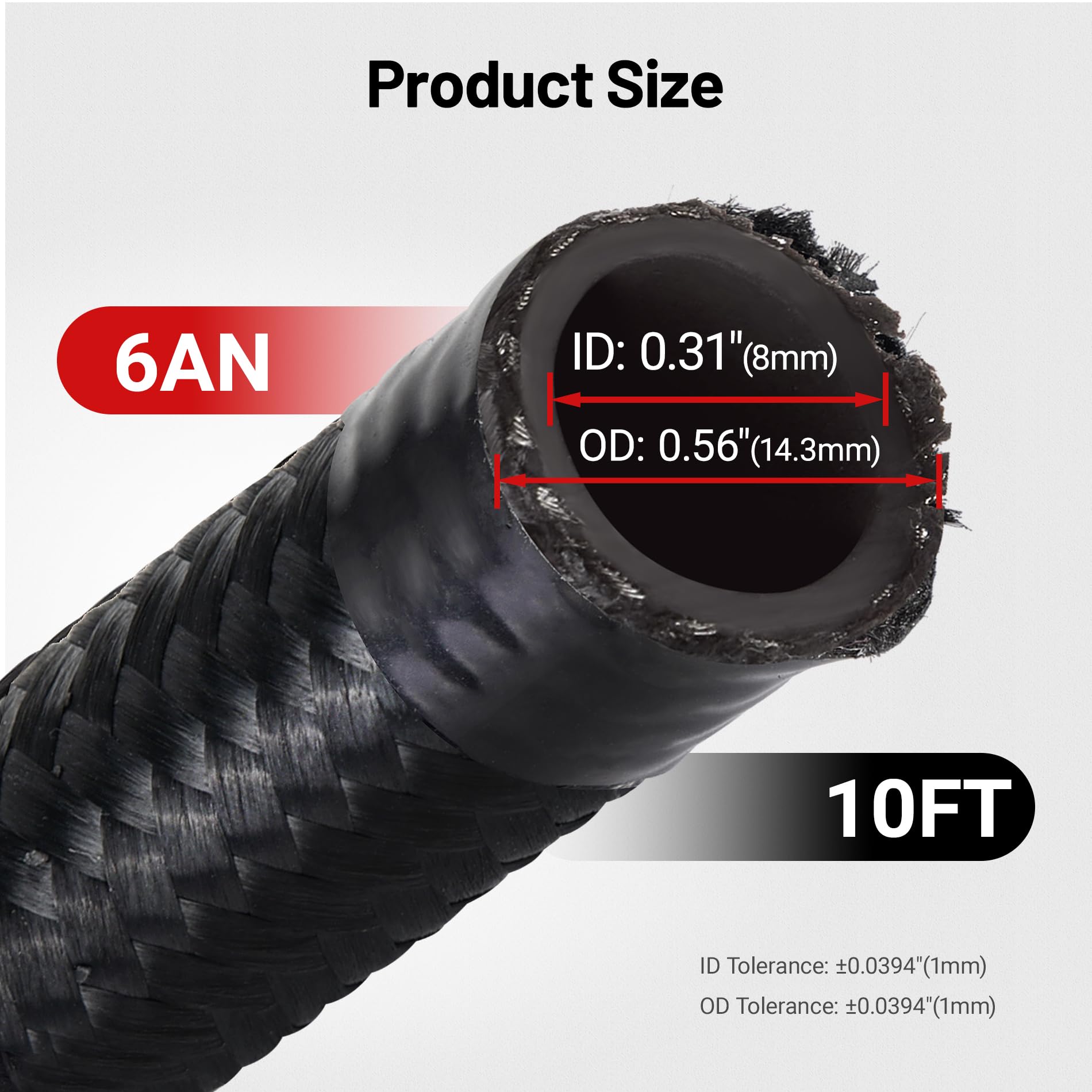

• Inner diameter (ID): 0.31 inch; outer diameter (OD): 0.56 inch.
• Designed for use with 6AN swivel hose ends only.
• Includes installation instructions; use proper tools and torque specs.

Will this braided line stand up to real-world wear and installation needs?

The combination of CPE, stainless steel braid, and nylon outer braid offers long service life under normal automotive and light industrial conditions. While highly abrasion- and pressure-resistant, proper routing, clamps, and avoiding sharp edges will maximize lifespan.

• Nylon outer braid protects against chafing and UV degradation.
• 304 steel wire braid prevents kinking and supports pressure loads.
• CPE inner tube resists common automotive fluids and heat cycles.
• Inspect fittings and hose for wear at service intervals to ensure safety.

Who this is for: Mechanics, racers, custom builders, restorers, and industrial technicians who need a reliable 6AN fuel or fluid line that balances flexibility, pressure capacity, and chemical resistance. Choose EVIL ENERGY's braided AN6 hose when you require a 10-foot, cut-to-fit solution that works with 6AN swivel fittings and handles common automotive and light-industrial fluids without sacrificing durability.
