EVIL ENERGY AN6 Fuel Hose 5ft — Nylon-Braided CPE, 750 PSI Working Pressure

EVIL ENERGY 6AN CPE nylon-braided fuel hose is a 5-foot, high-pressure AN6 line built for fuel, oil, and hydraulic applications that demand durable, heat- and pressure-resistant performance.

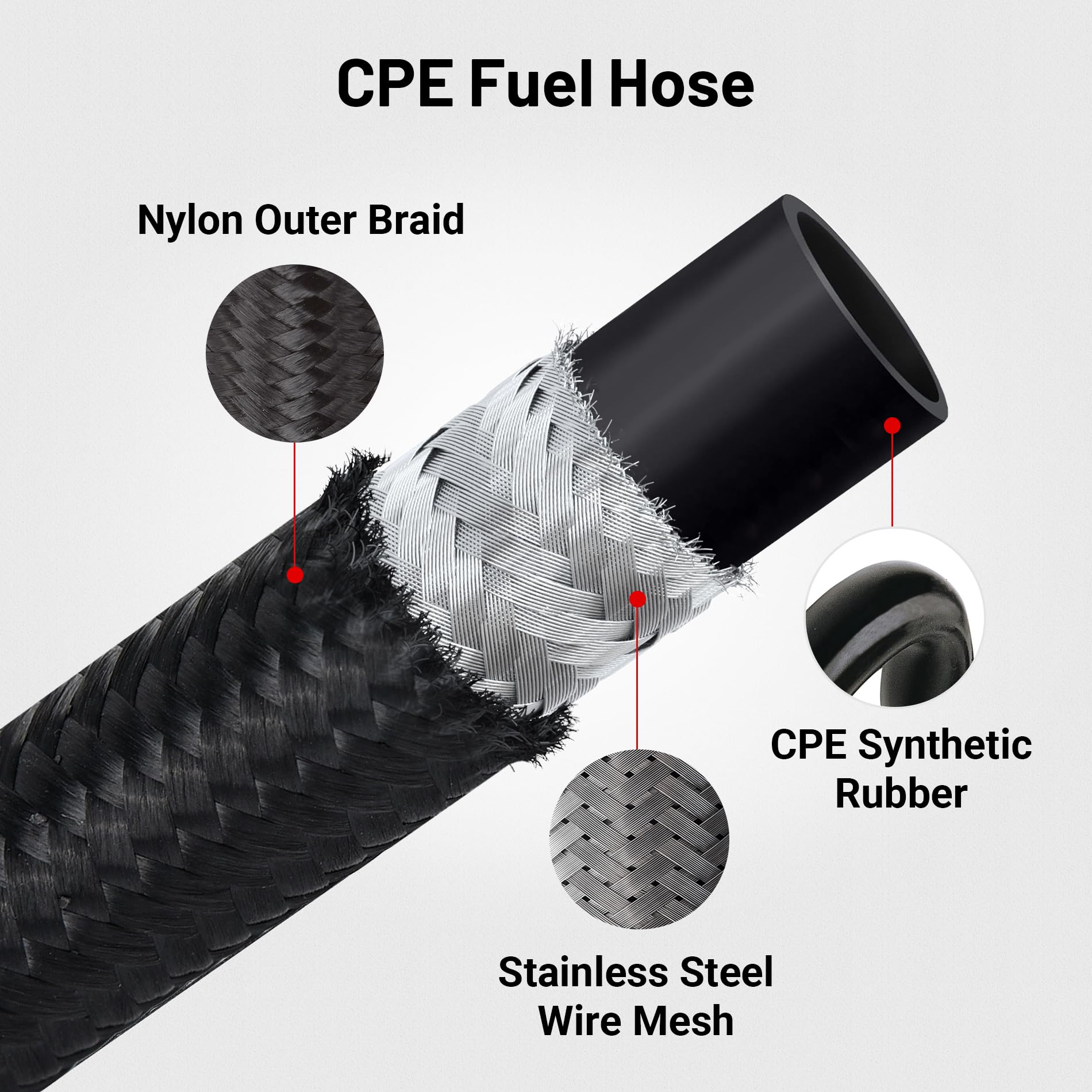

This braided AN6 hose combines a CPE rubber inner tube with 304 stainless steel wire reinforcement and a nylon outer braid to deliver a balance of chemical compatibility, abrasion protection and long service life. Rated for a maximum working pressure of 750 PSI and a burst pressure of 2,250 PSI, it’s designed to handle demanding automotive and motorsport tasks while staying flexible between -22 and 248. The hose measures 0.31" ID, 0.56" OD and installs with 6AN swivel fittings (sold separately); installation instructions are included.

How does this hose handle high-pressure fuel and fluid systems?

The multi-layer construction gives the EVIL ENERGY 6AN hose the strength to operate under elevated pressures without compromising flexibility. A stainless wire layer prevents expansion while the CPE inner resists many fuels and oils.

• Maximum working pressure: 750 PSI for routine system loads.
• Bursting pressure: 2,250 PSI for safety margin under extreme conditions.
• 304 stainless steel wire braid reduces hose swell and maintains shape.

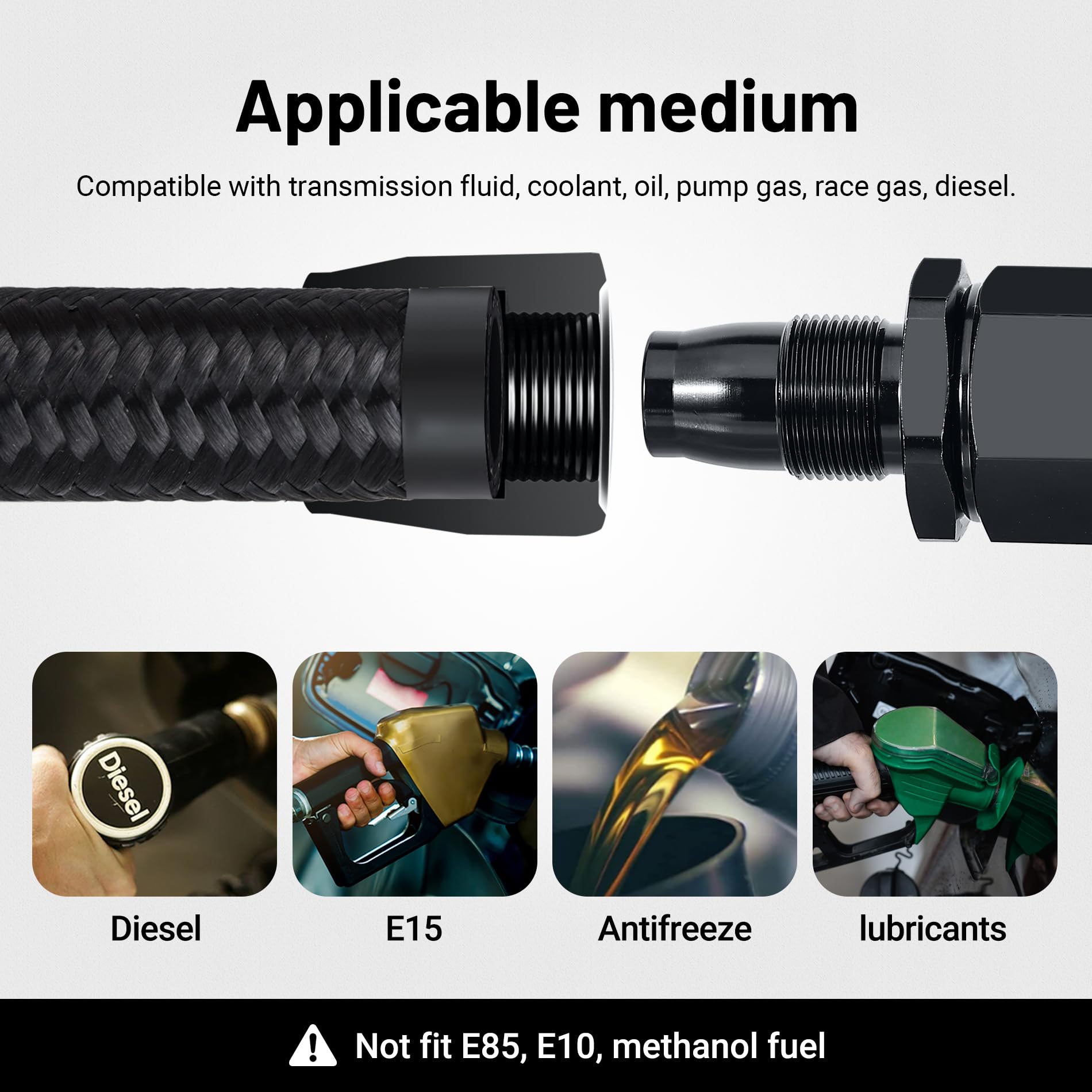

Will this AN6 hose resist heat, chemicals and abrasion in automotive use?

Yes — the hose is specified for a wide temperature window and built to tolerate common fuels, oils and hydraulic fluids. The nylon outer braid defends against rubbing and road debris, while the CPE inner lining offers enhanced chemical resistance compared with standard rubber.

• Temperature range: -22 to 248 for engine bay and exterior routing.
• CPE inner layer engineered for fuel, diesel, oil, and many hydraulic fluids.
• Nylon outer braid protects against scuffs and UV exposure during use.

What sizes and fittings are required for installation?

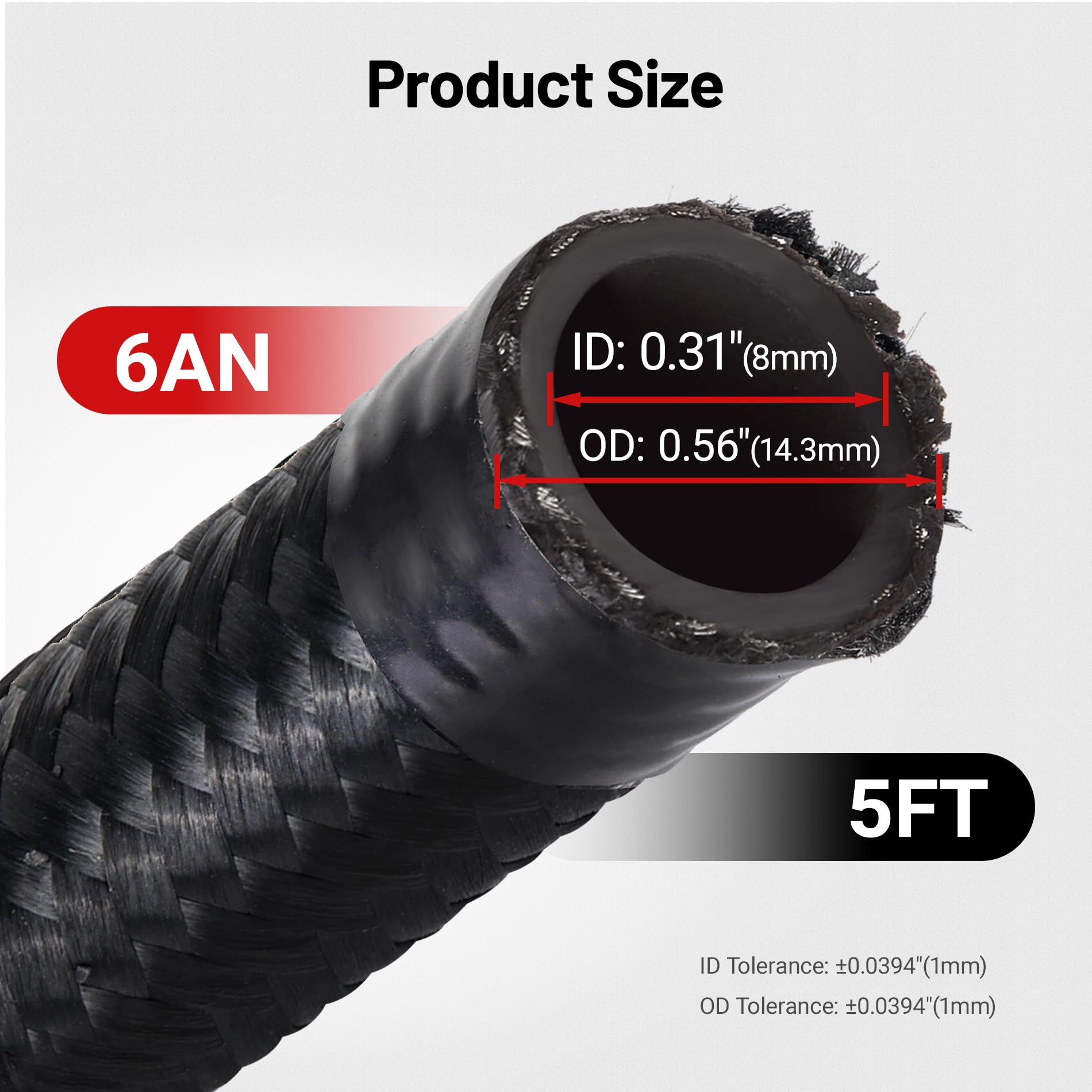

This hose is a standard AN6 dimension with a 0.31" inner diameter appropriate for many performance and replacement lines. It works with 6AN swivel hose ends and comes as a 5-foot length that can be cut to suit custom routing.

• Internal diameter: 0.31" (AN6 standard).
• External diameter: 0.56" for clamp and fitting compatibility.
• Length: 5 feet, includes installation instructions; fittings sold separately.

Where is this hose commonly used in vehicles and equipment?

The versatility of the EVIL ENERGY 6AN hose makes it suitable for many fluid-routing roles on cars, trucks and race vehicles. It performs well for both supply and return lines, plus secondary uses around cooling or vacuum systems where compatible fluids are present.

• Fuel supply and return lines for gasoline, diesel and race fuel setups.
• Transmission oil cooler lines and turbo oil feed/return lines.
• Vacuum lines, coolant bypasses, and hydraulic or oil feed applications.

Who is this for: The EVIL ENERGY 6AN CPE nylon-braided hose is aimed at automotive hobbyists, performance shops, racers and DIY mechanics who need a dependable AN6-rated line for fuel, oil or hydraulic duties. It’s a practical choice when you want a resilient, easy-to-route hose that pairs with 6AN swivel ends for custom installations and high-pressure environments.
