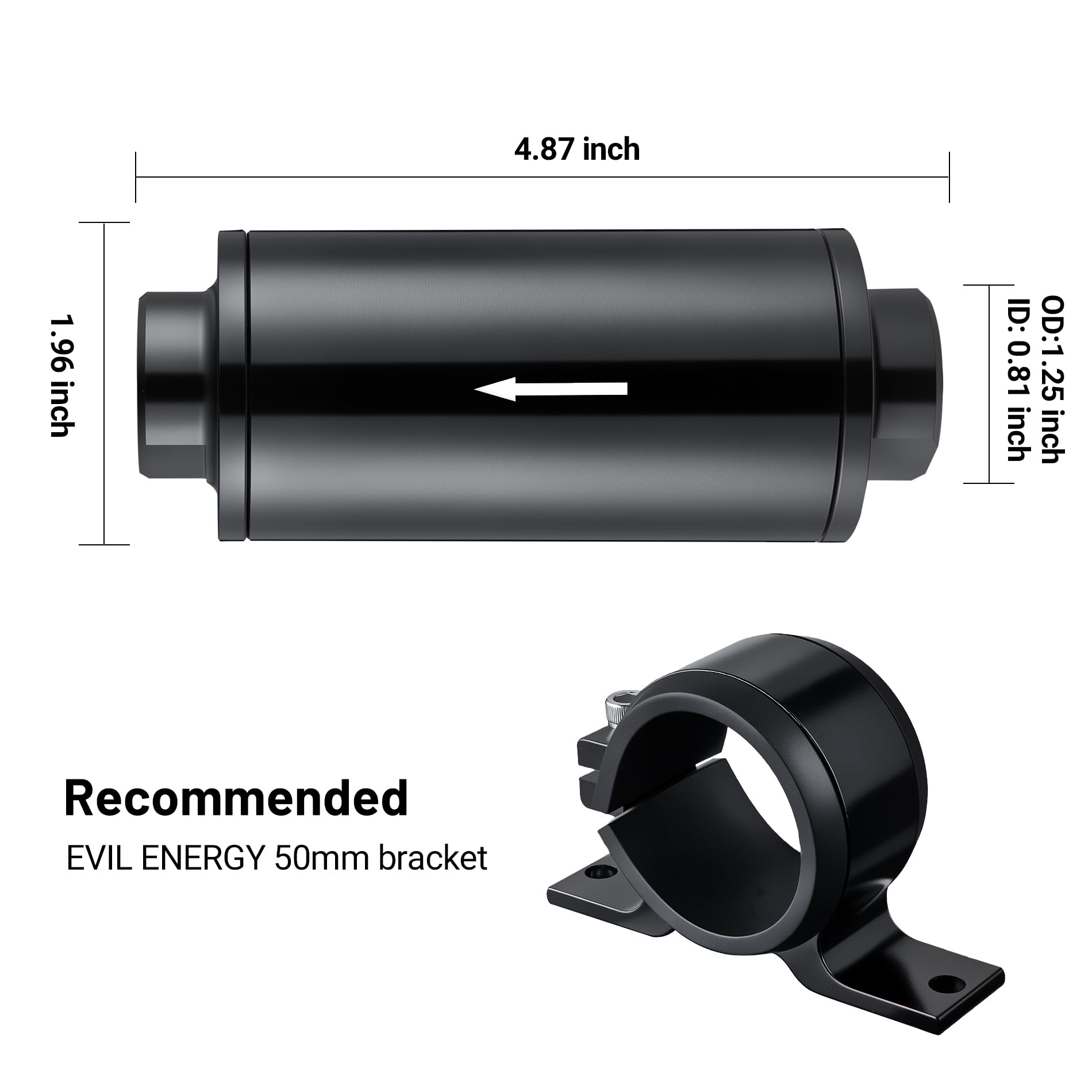

EVIL ENERGY Inline Fuel Filter 10-Micron Aluminum Black with 50mm Bracket and 3 Barb Adapters (1/2", 3/8", 5/16")

This compact inline filter is designed to reduce particulate contamination in automotive and small-engine fuel systems. Built from an aluminum housing and a stainless steel filter element, the unit captures particles 10 microns and larger while offering tool-free element access for routine cleaning or replacement. The kit includes three barb sizes—1/2", 3/8", and 5/16"—so it fits a wide range of flexible rubber fuel lines and can be mounted cleanly with the supplied 50mm bracket clamp.

How does this filter protect my engine's fuel system?

The 10-micron stainless steel media traps rust, debris, and other solids that can wear pumps and injectors. By stopping particles at a relatively fine level, it reduces the risk of clogged passages and premature component wear without dramatically restricting flow when installed correctly.

• 10-micron stainless steel element captures fine particulates
• Aluminum canister resists corrosion for long service life
• O-ring seals prevent fuel leaks at fittings and end caps
• Inline orientation maintains stock fuel routing with minimal pressure drop

Which fuel lines and engines will this fit?

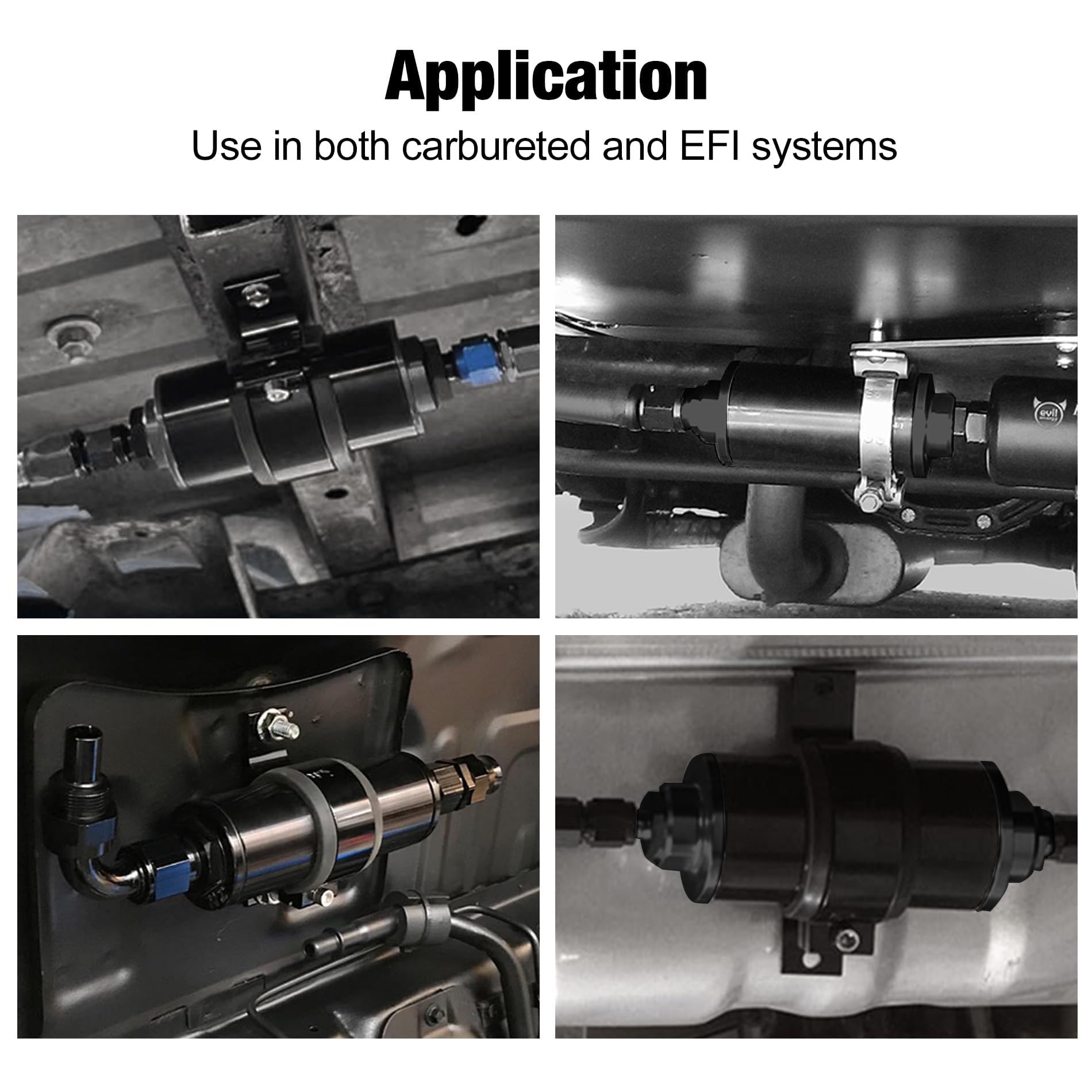

EVIL ENERGY's filter kit is created for universal use with flexible rubber fuel hoses on motorcycles, cars, lawn equipment, generators, and diesel or gasoline small engines. The included barb adapters let you match common OEM hose sizes without cutting or adding additional connectors.

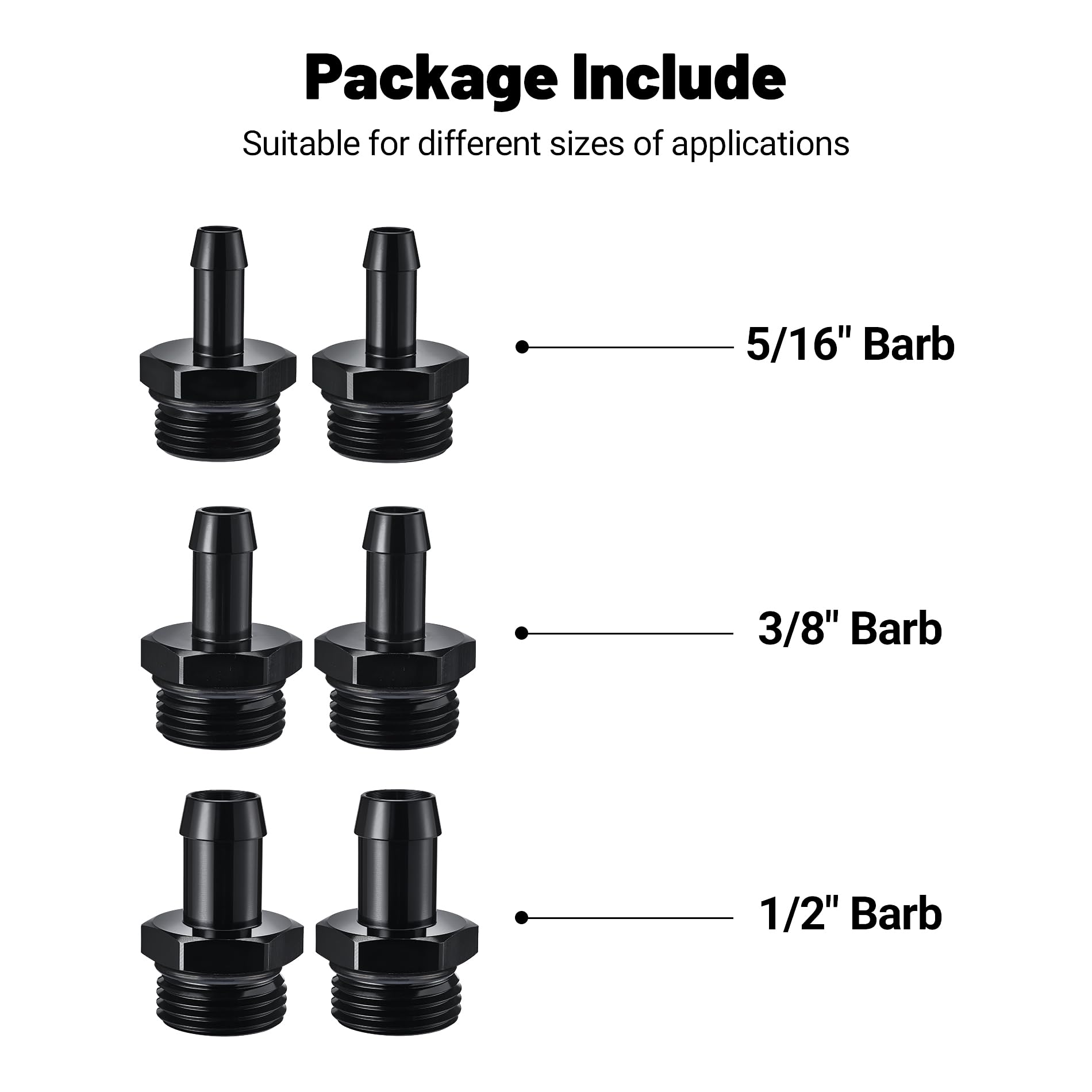

• Includes 1/2", 3/8", and 5/16" barb adapters for hose compatibility

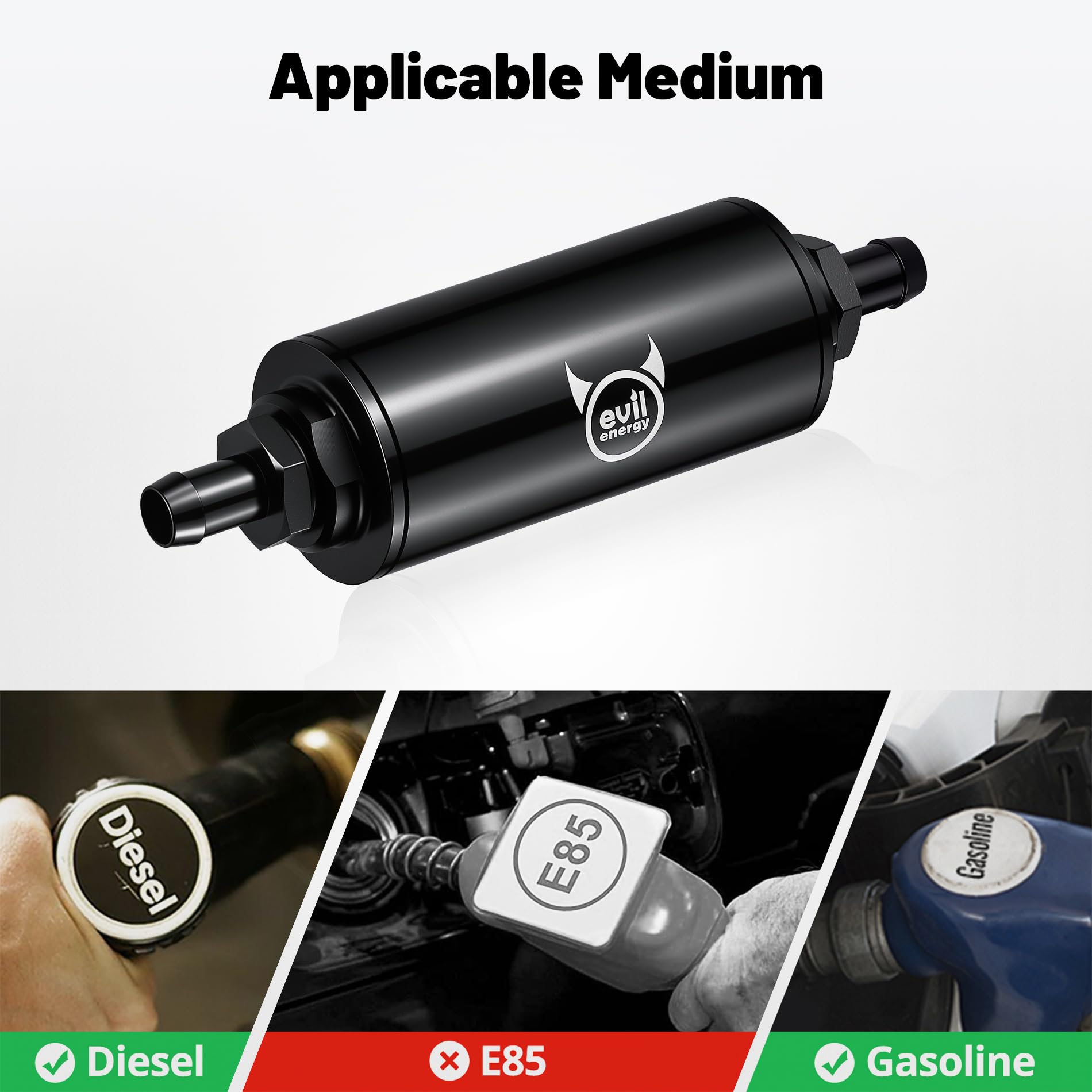

• Works with both gasoline and diesel fuel systems (non-pressurized or low-pressure lines)

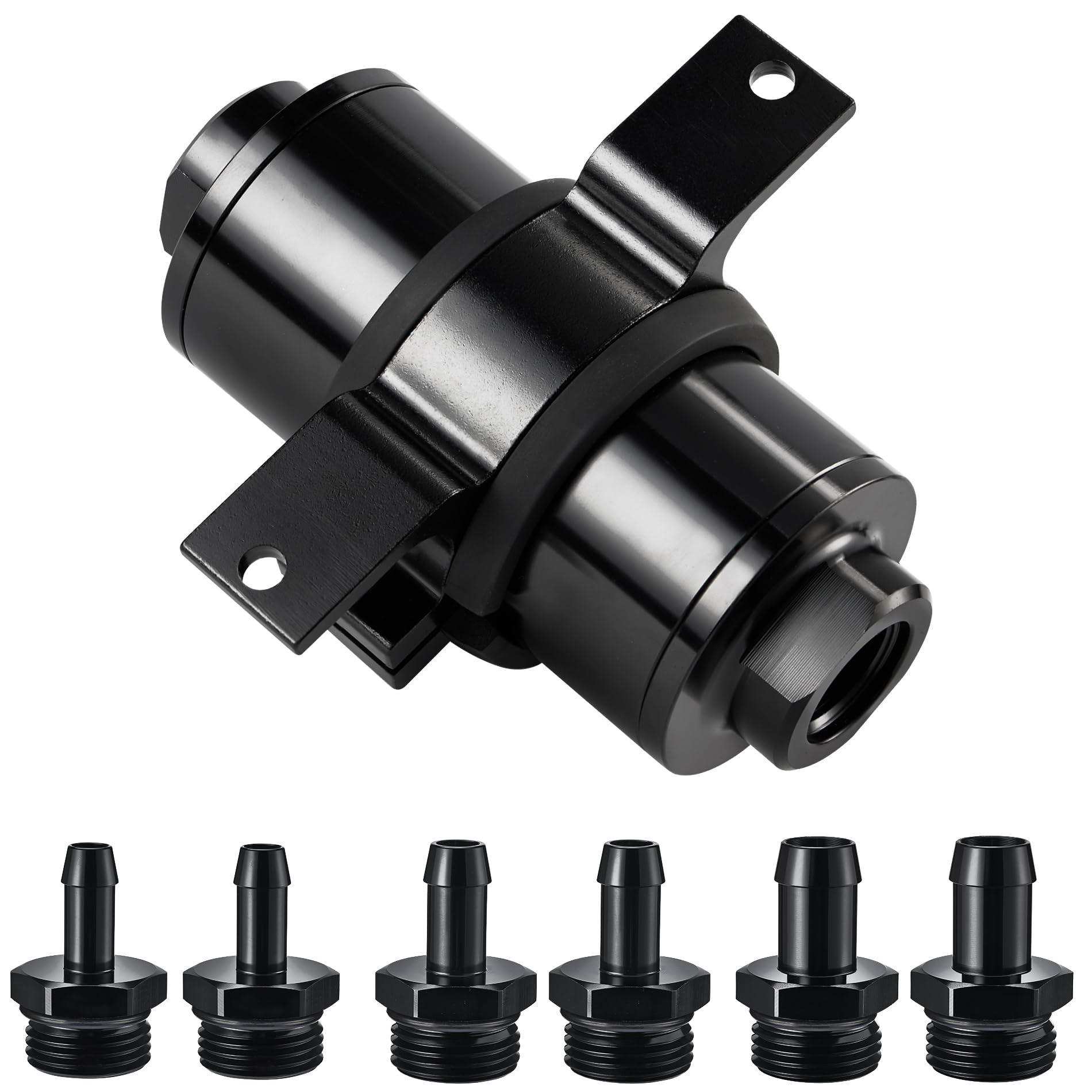

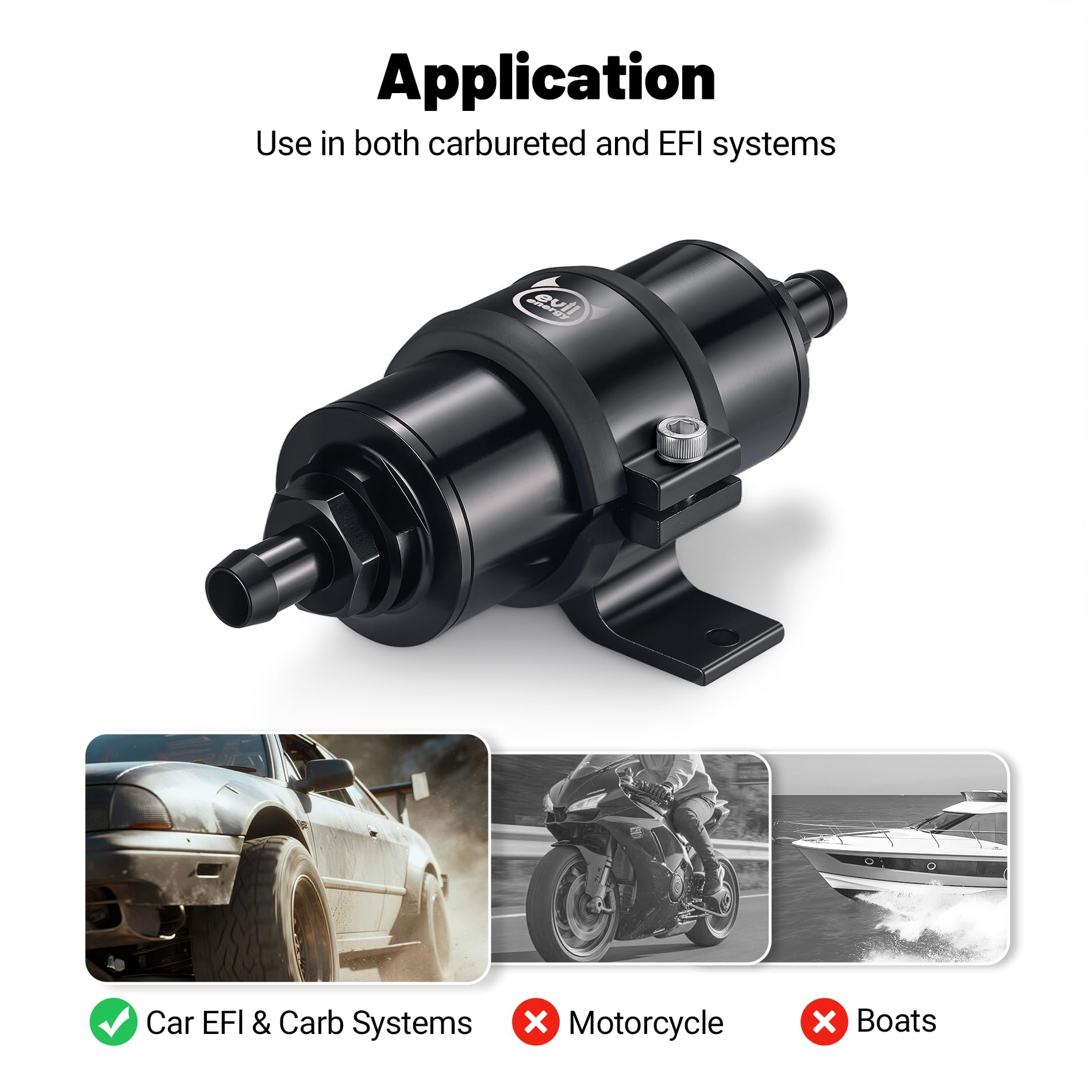

• 50mm bracket clamp for secure mounting to frames or engine bays

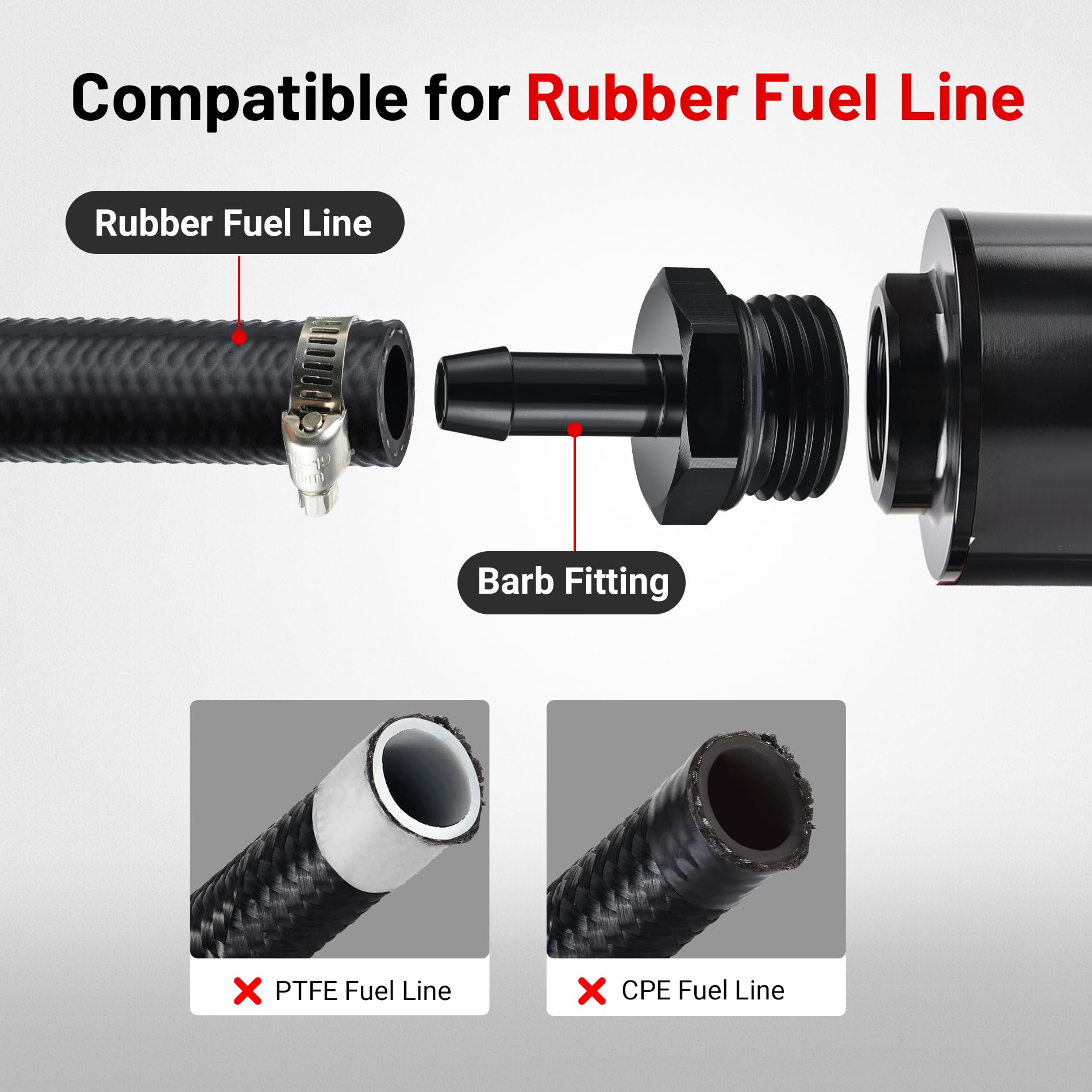

• Recommended for rubber fuel lines—verify compatible inner diameter before installing

How do I install and maintain the filter for best performance?

Installation is straightforward: choose the correct barb, push the hose fully onto the fitting, and secure the filter with the bracket clamp. The filter's removable design lets you access the stainless steel element for cleaning; always reassemble with the O-ring properly seated for a leak-free seal.

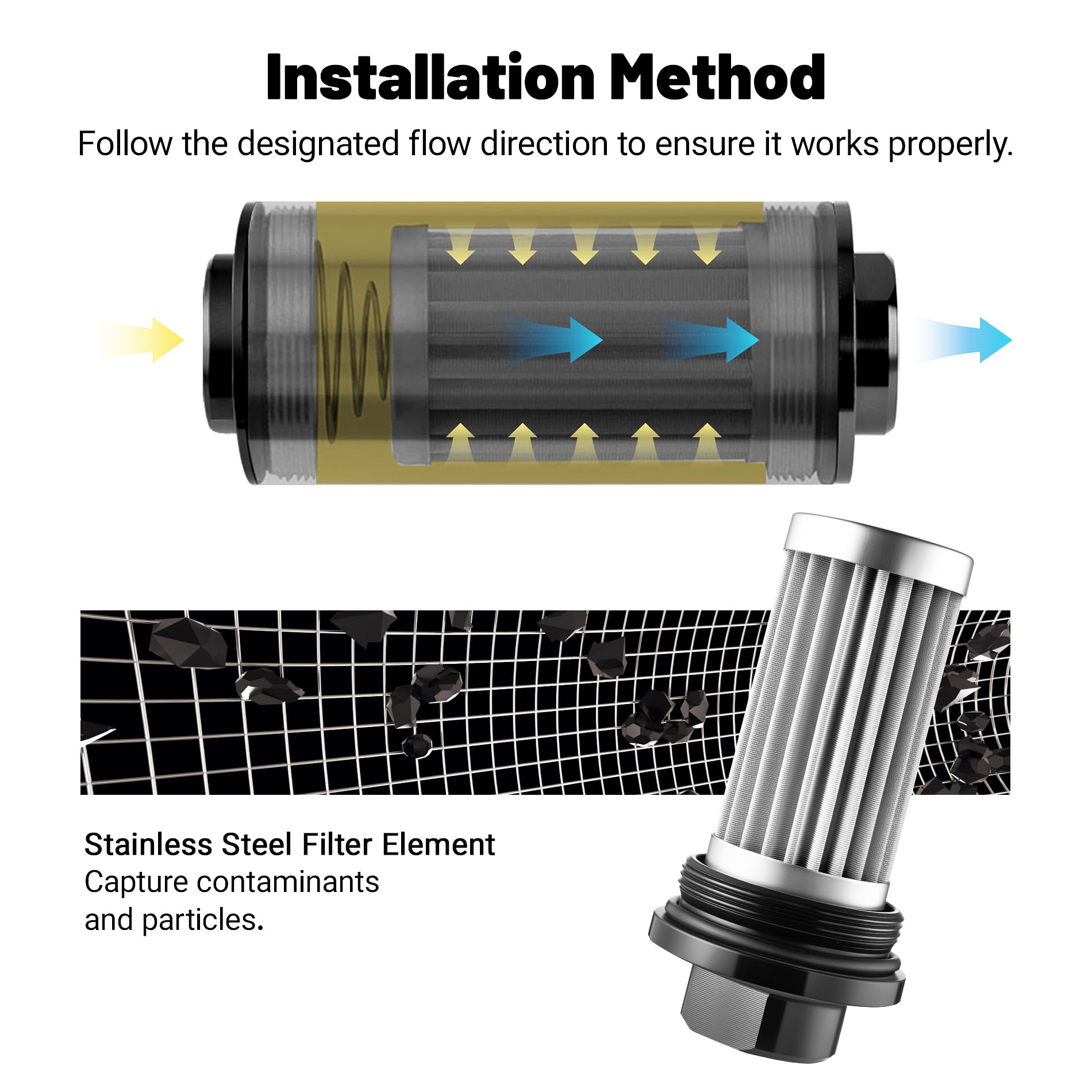

• Confirm flow direction: arrow points from spring end toward the outlet
• Ensure closed end of element docks with the internal spring for correct flow
• Clean or replace element on a regular schedule depending on fuel quality
• Use included bracket to mount away from extreme heat and moving parts

Will this filter affect fuel delivery or require special parts?

When fitted to the correct hose diameter and installed in low- to moderate-pressure lines, the 10-micron filter maintains adequate flow for most non-high-pressure fuel systems. It is not designed for direct use in high-pressure rail or injection systems without manufacturer guidance.

• Designed for inline, low-pressure fuel applications—check system pressure first
• No special fuel lines required; choose matching barb adapter for a snug fit
• Minimal pressure drop when element is clean; replace if flow decreases
• Not intended as a replacement for OEM high-pressure fuel filters in fuel-injected systems unless specified

Who is this for? EVIL ENERGY's Inline Fuel Filter kit suits mechanics, DIY enthusiasts, and fleet owners who want an adaptable, serviceable filter to protect pumps and carburetors in gasoline or diesel engines. It’s ideal when you need a compact, durable filter that mounts neatly, accepts multiple hose sizes, and gives repeatable, cleanable filtration without complex plumbing changes.
