EVIL ENERGY Inline Fuel Filter 100 Micron 50mm Red — Aluminum Housing with 6AN/8AN/10AN Adapters

EVIL ENERGY's 100‑micron inline fuel filter is a universal, serviceable aluminum filter with stainless steel element, three AN adapters, and a mounting bracket for clean, protected fuel delivery.

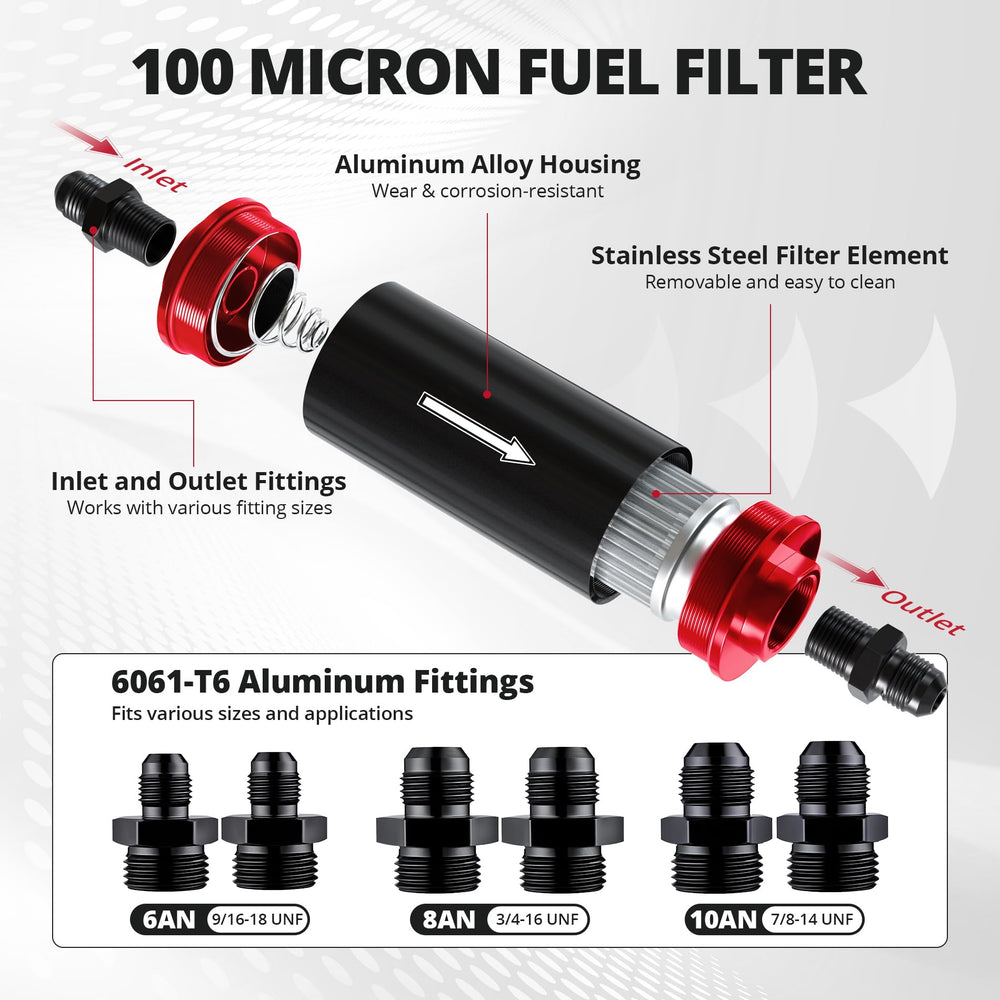

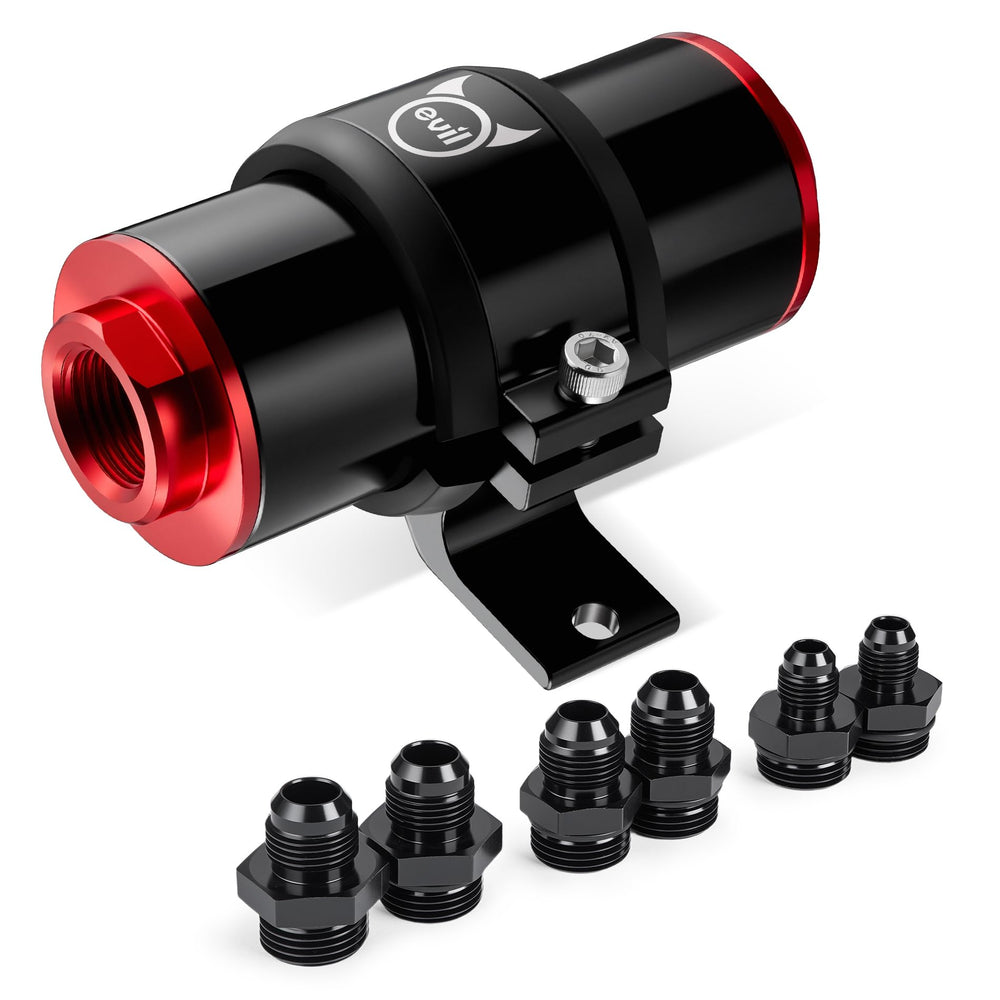

This compact 50mm filter is designed to trap particles 100 microns and larger while fitting a wide variety of fuel systems. Built from an aluminum housing and a stainless steel internal element, it ships with 6AN, 8AN, and 10AN adapters plus a clamp-style bracket for tidy installation. The removable core and O‑ring seals let you clean or replace the element, extending service life and keeping fuel lines neat.

Which vehicles and fuels work with this inline filter?

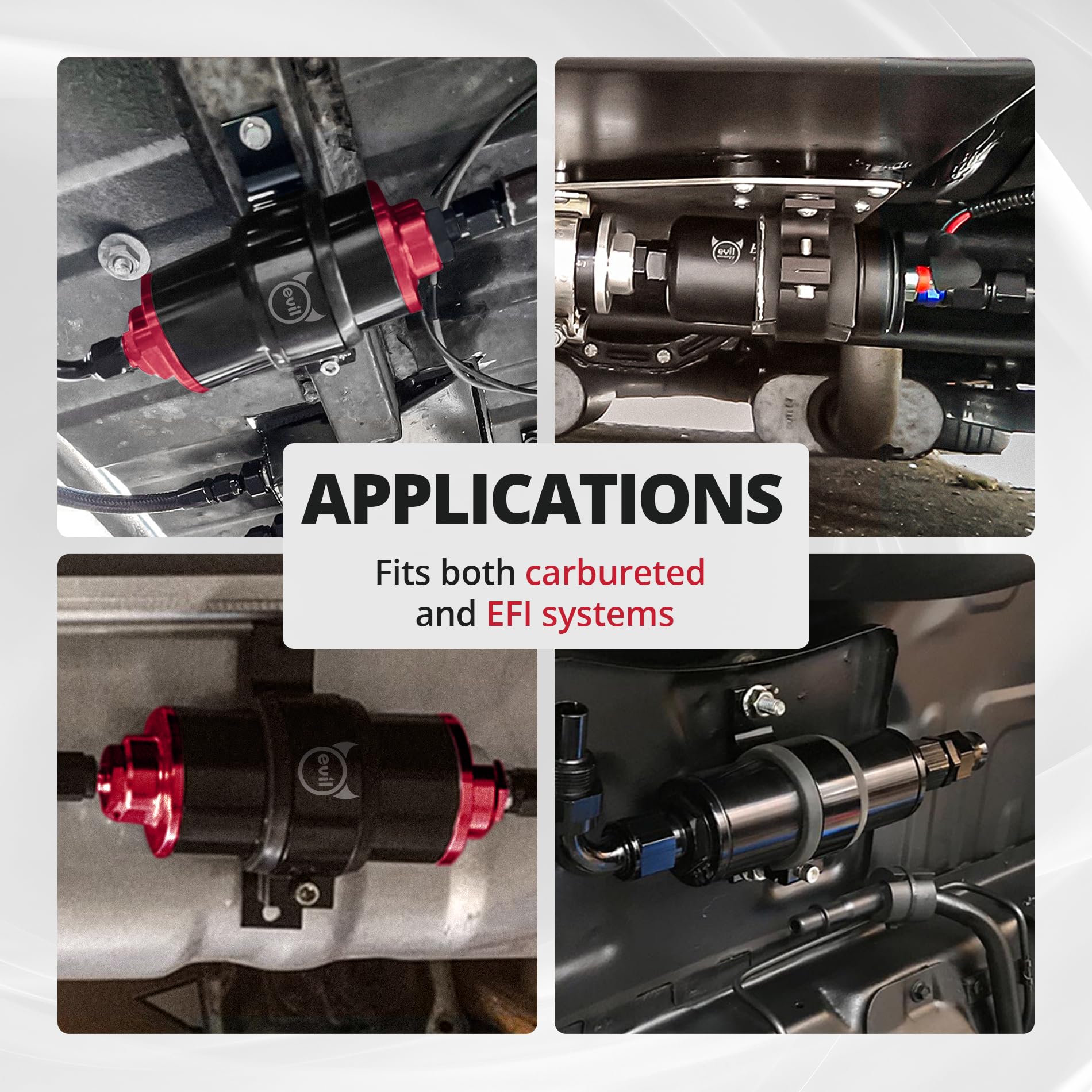

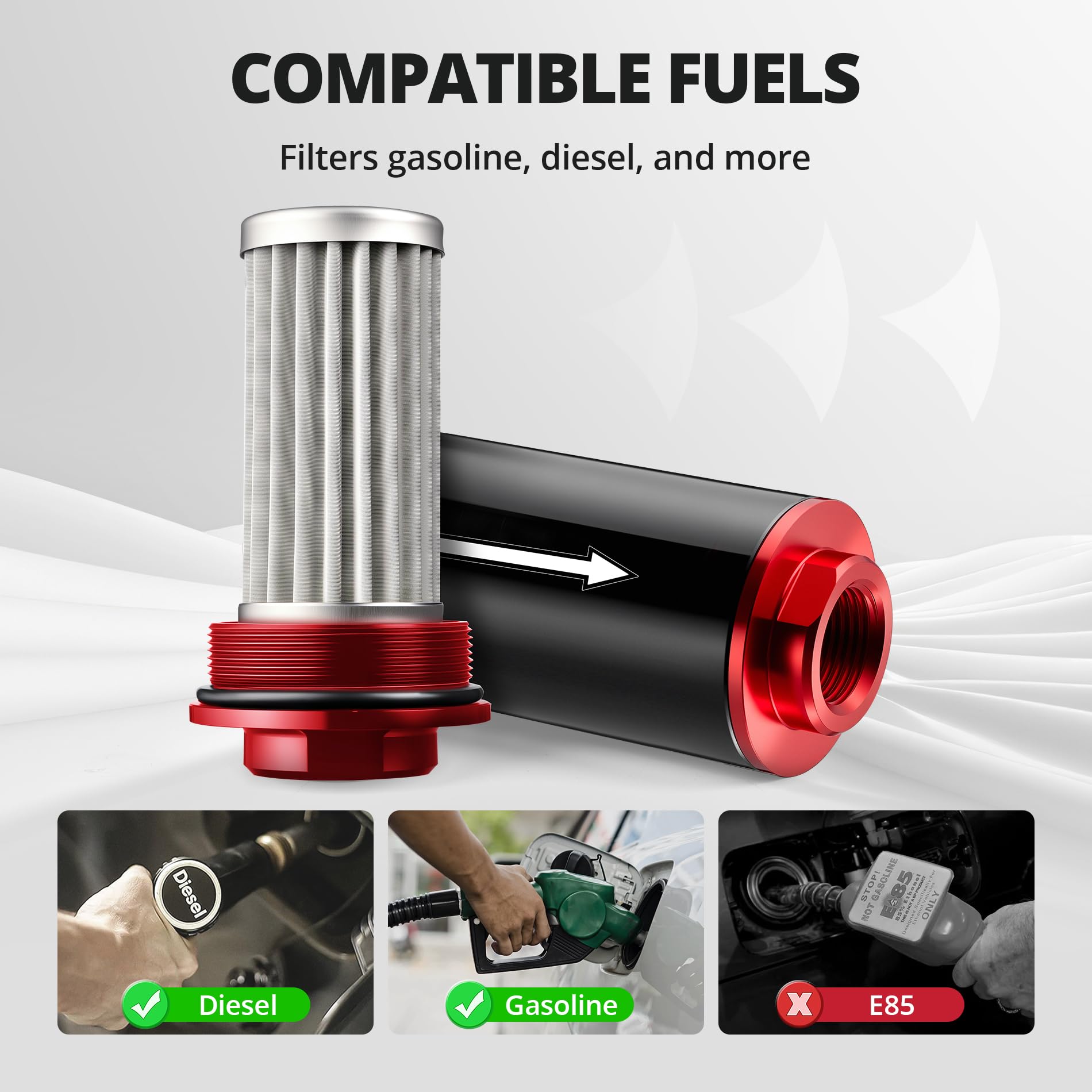

The filter is engineered as a universal inline unit compatible with gasoline and diesel systems (not rated for E85). The included 6AN, 8AN, and 10AN adapters let it fit many hose or AN‑fitting setups across cars, trucks, motorcycles, and marine engines. It’s best used where a 50mm compact filter will fit along the fuel line.

• Fits gasoline and diesel fuel systems (exclude E85).
• Adapters support 6AN, 8AN, and 10AN connections for broad compatibility.

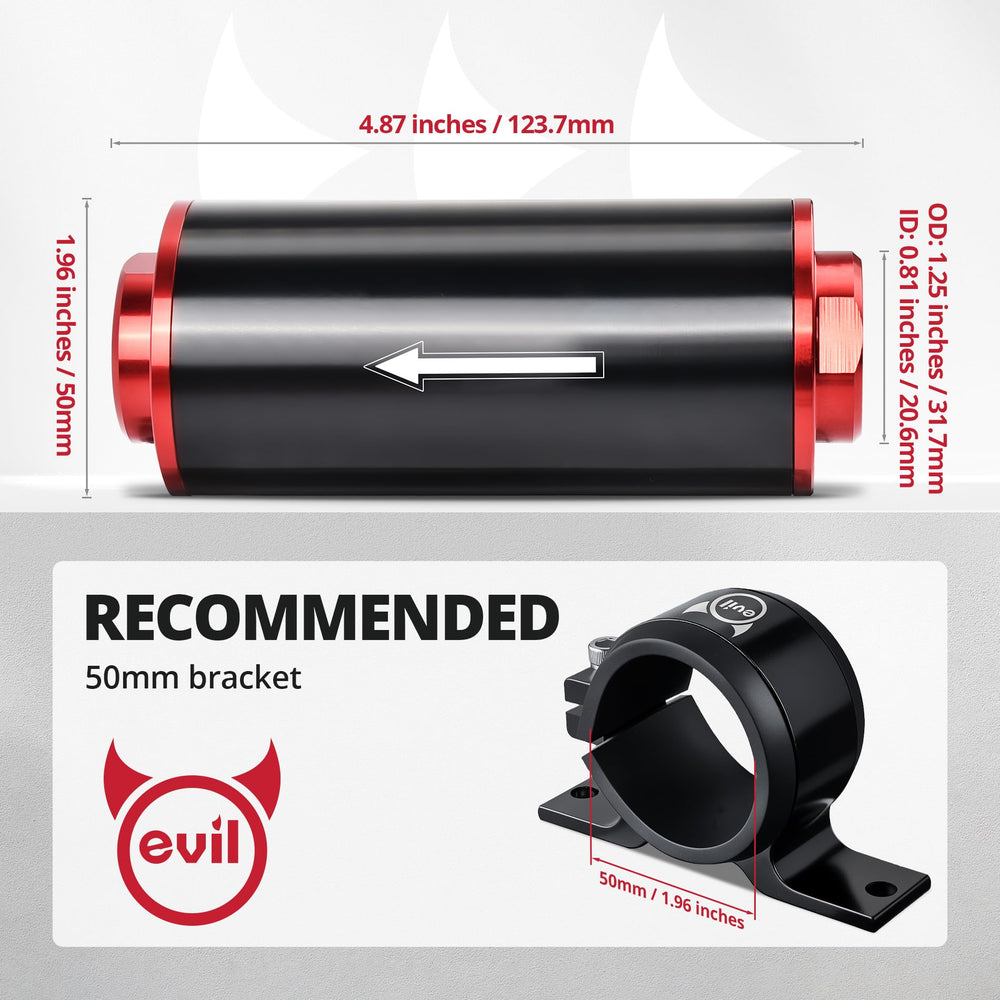

• Compact 50mm housing suits tight engine bays and aftermarket installations.
• Mounting bracket keeps the filter secured and visually tidy.

How effective is the 100‑micron filtration and what does it capture?

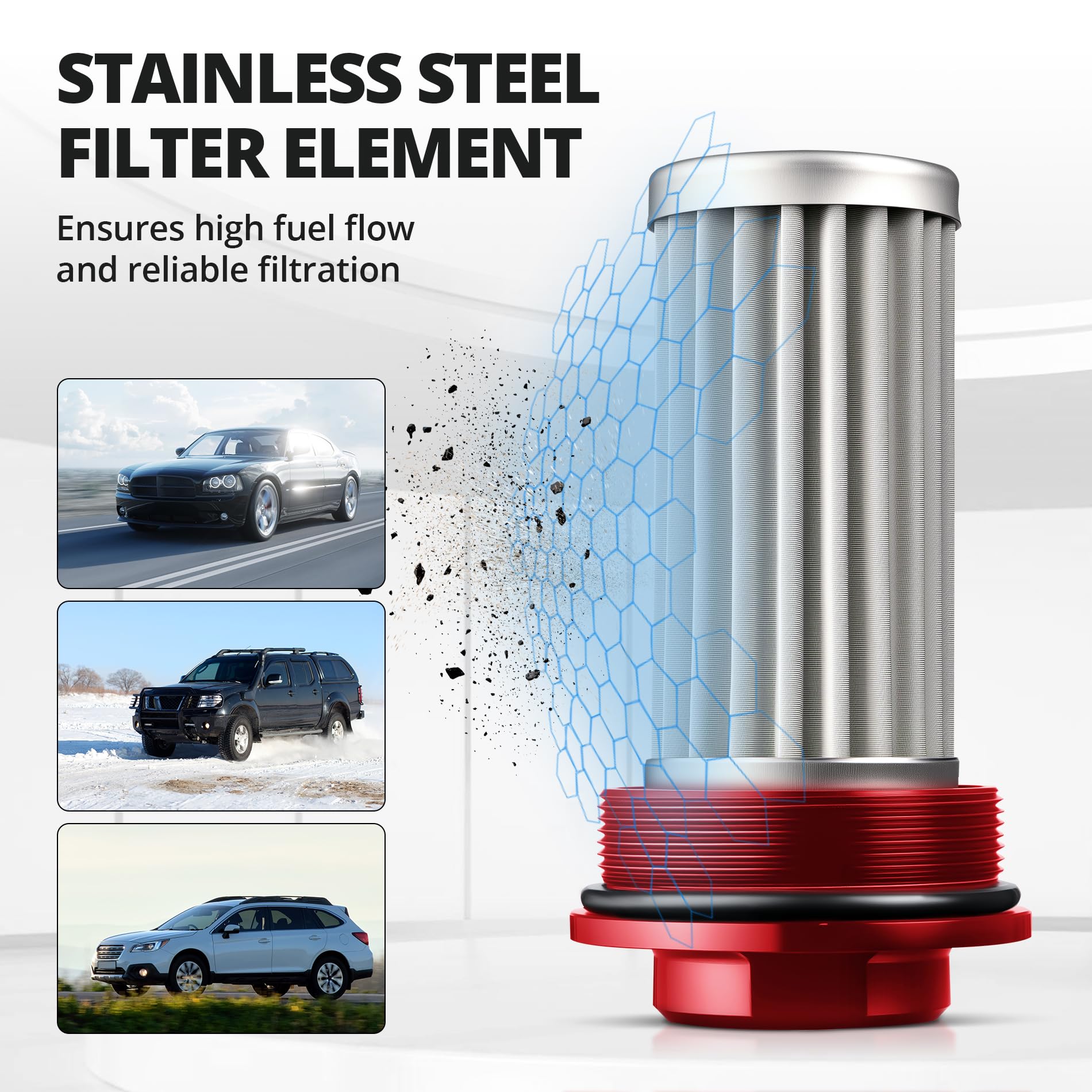

The 100‑micron stainless steel element captures visible and larger particulate contaminants before they reach pumps and injectors. While it won’t stop microscopic dissolved contaminants, it prevents sand, rust flakes, and larger debris that can damage mechanical fuel components and clog lines.

• Stainless steel mesh captures particles ≥100 μm.
• Removable element allows cleaning to restore flow and performance.
• Protects inline pumps, filters, and fittings from large debris.
• O‑ring seal reduces leak risk at fittings and end caps.

What are the key installation and maintenance tips?

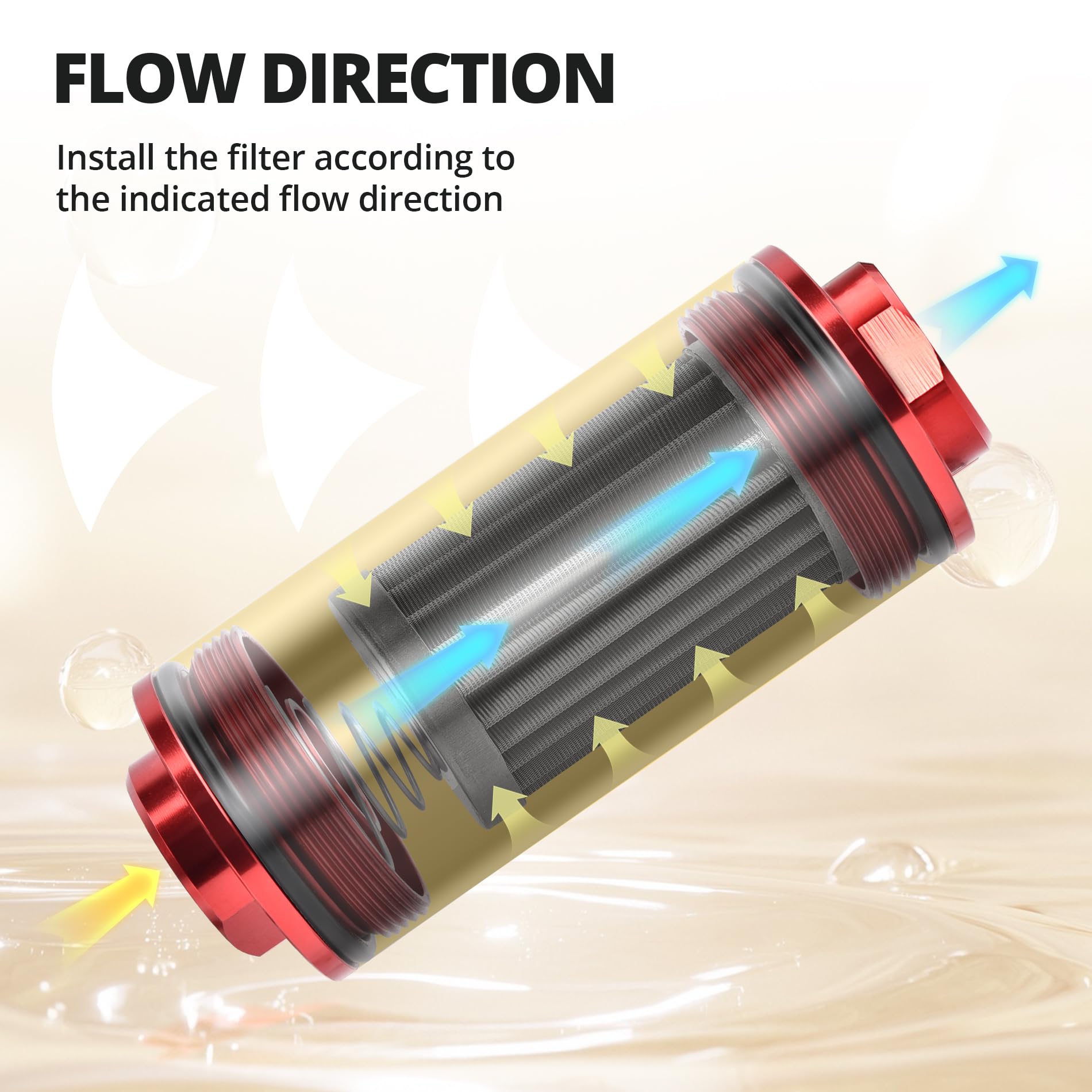

EVIL ENERGY prechecks flow direction before shipping, but confirm the arrow on the can aligns with fuel flow: spring end first. Tighten the AN adapters with the O‑ring seated; mount the clamp to a secure chassis point. Clean or swap the element on a regular schedule depending on fuel quality and mileage.

• Install with arrow pointing in the direction of fuel flow (spring end first).
• Ensure O‑ring is in place for a leak‑free seal at fittings and end caps.
• Use clamp bracket to secure filter away from heat or moving parts.
• Remove and clean the stainless element periodically, replace if damaged.

Who is this for? Mechanics, tuners, and DIY vehicle owners who need a compact, serviceable inline filter that adapts to different hose sizes. It’s aimed at anyone seeking a robust pre‑filter to guard pumps and downstream components from large debris, while keeping installation clean with AN adapter versatility and a red aluminum housing for a durable, attractive fit.
