EVIL ENERGY Inline Fuel Filter 50mm Red — 100 Micron, Serviceable Stainless Element

EVIL ENERGY's Inline Fuel Filter is a universal 50mm aluminum canister with a 100‑micron stainless steel element and 6AN, 8AN, and 10AN adapters for adaptable, serviceable fuel filtration.

This compact red inline filter is built for universal automotive and marine use where particle exclusion down to 100 microns is required. The anodized aluminum housing and stainless steel filtering element resist corrosion and are designed for repeat service: the element is removable for cleaning or replacement. The kit includes three AN adapters so you can fit common hose and line sizes, and an O‑ringed seal ensures leak‑resistant connections when installed correctly.

How does the filter protect my fuel system?

By capturing particles 100 microns and larger, the stainless steel element prevents debris from reaching injectors, carburetors, pumps, or filters downstream. It reduces mechanical wear and helps maintain consistent flow in the fuel delivery system without introducing chemical filtration media.

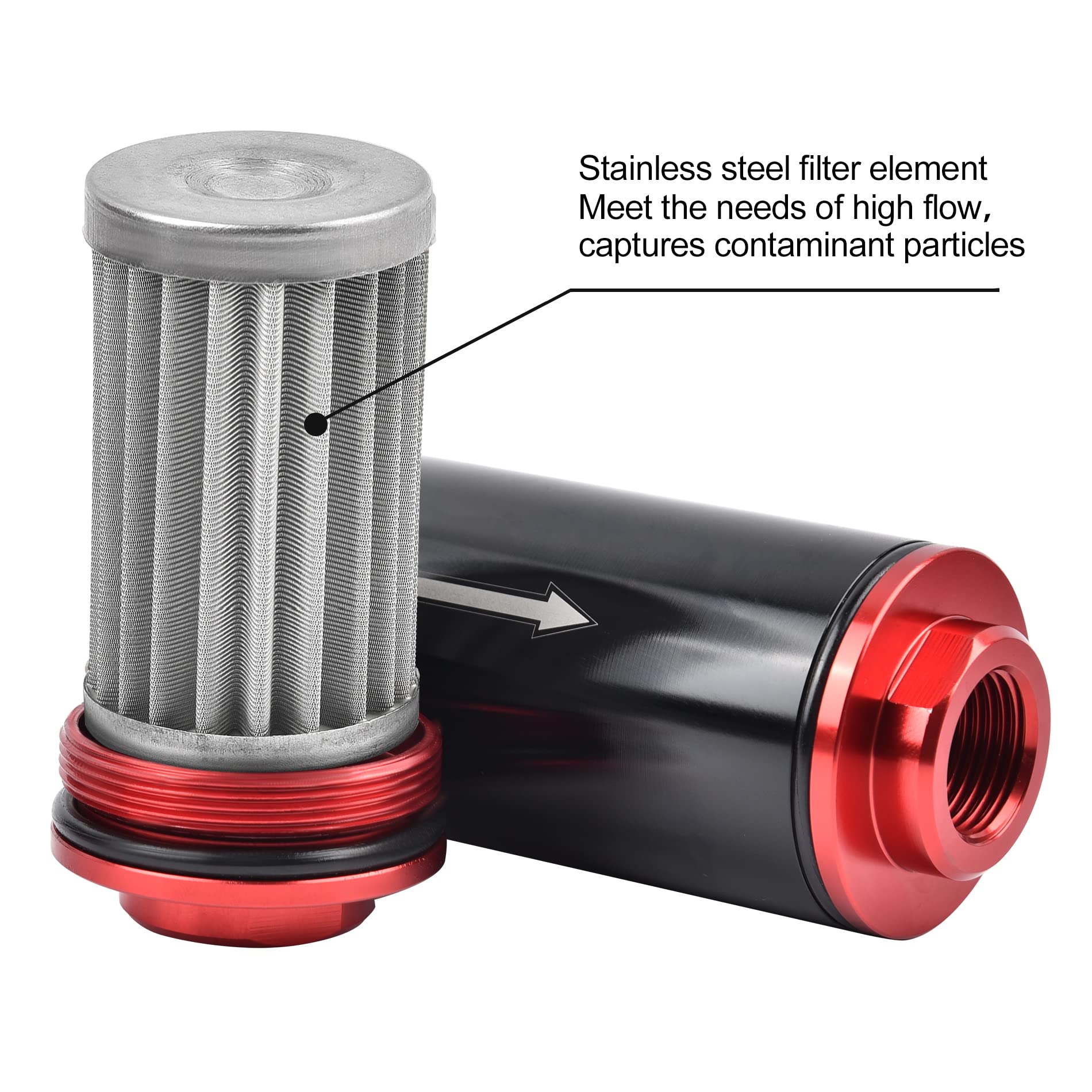

• 100‑micron stainless steel mesh traps grit, rust, and larger contaminants
• Aluminum housing shields the element and resists external damage
• O‑ringed end caps provide a tight seal to minimize leakage

What fittings and fuel types is it compatible with?

The filter ships with 6AN, 8AN, and 10AN adapters to match common AN hose ends and aftermarket lines. It supports gasoline and diesel applications, but it is not rated for E85 or fuels with high ethanol content.

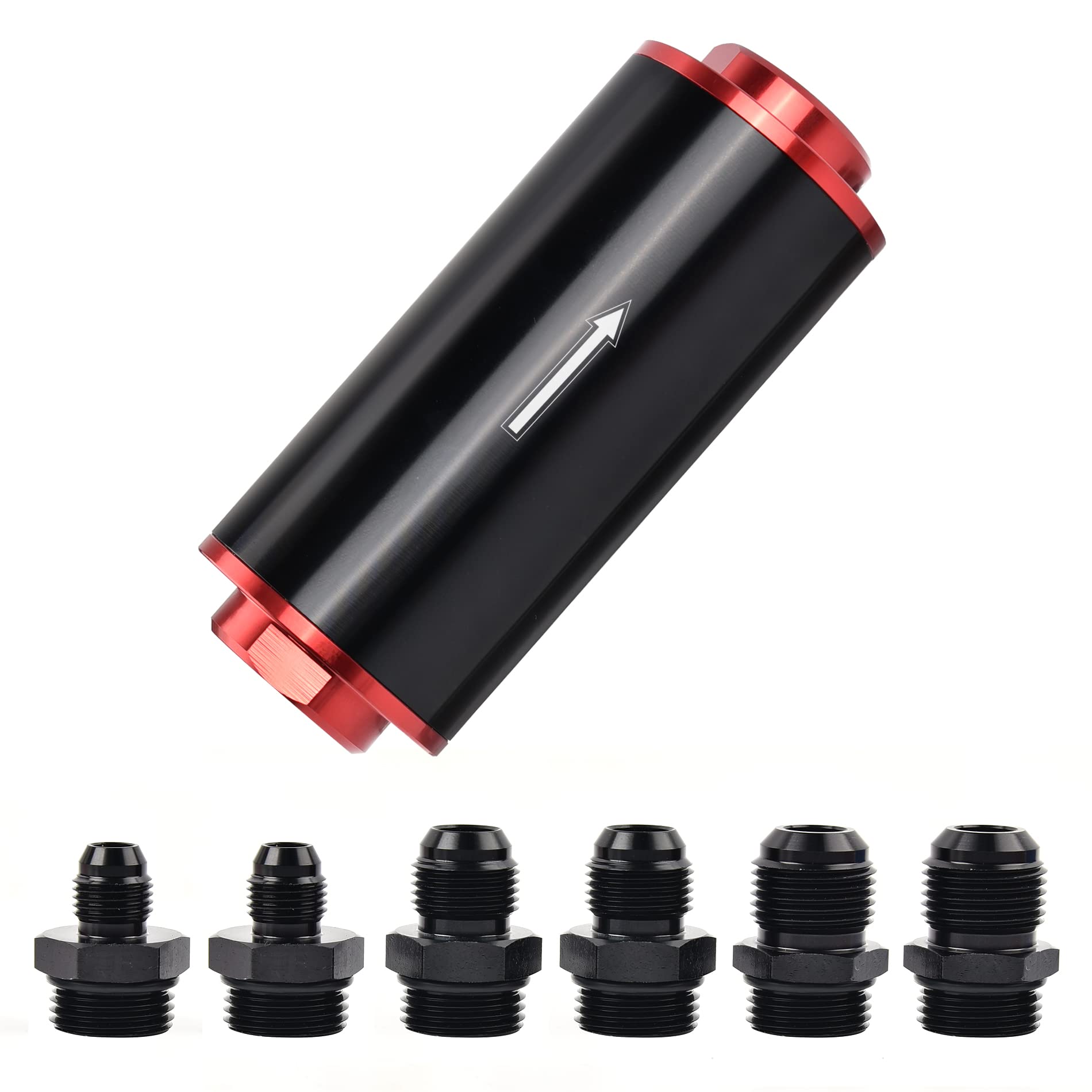

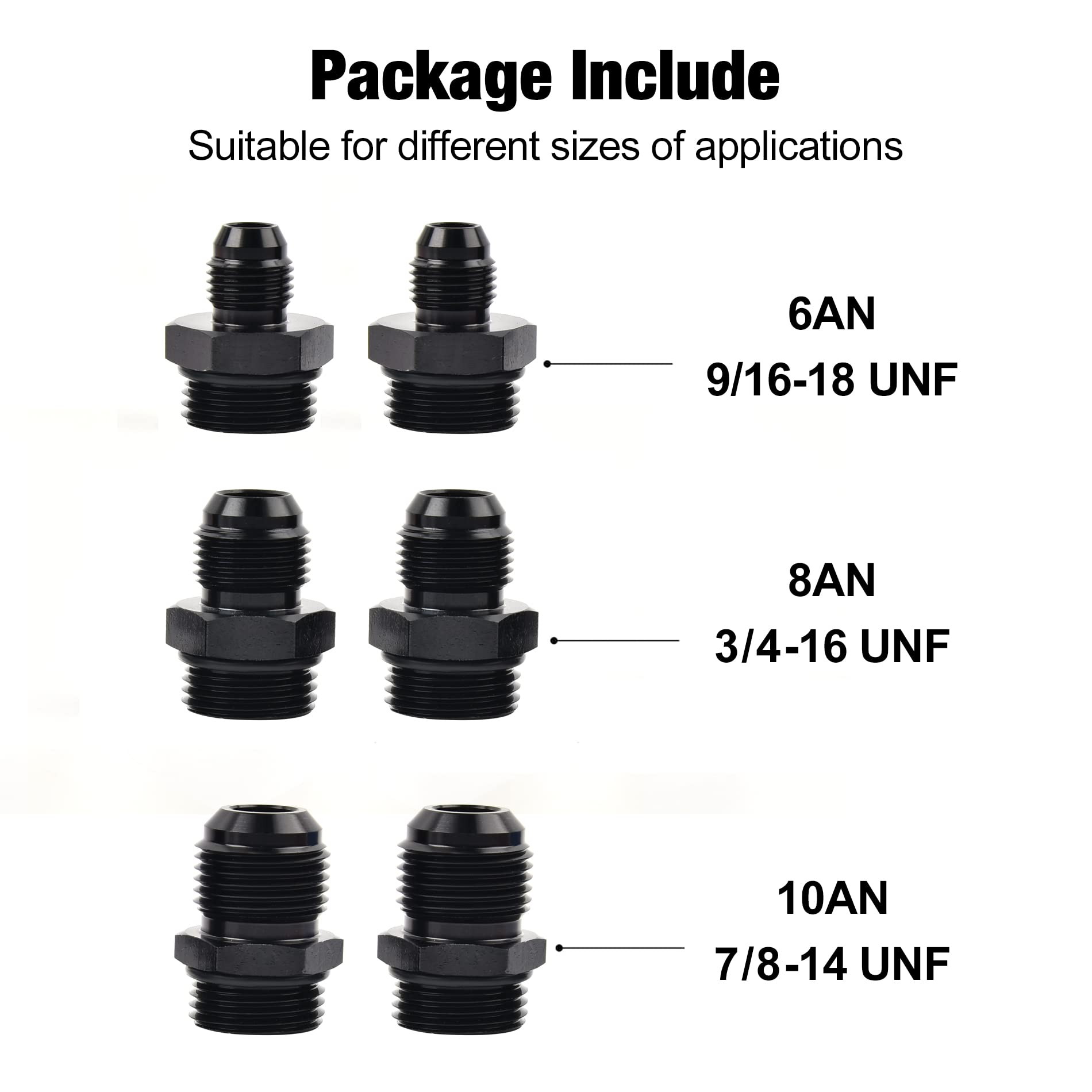

• Includes AN6, AN8, AN10 adapters for flexible installations
• Suitable for standard gasoline and diesel systems (not E85)
• Works with fuel lines where 50mm inline housings are practical

How do I install and maintain the inline filter?

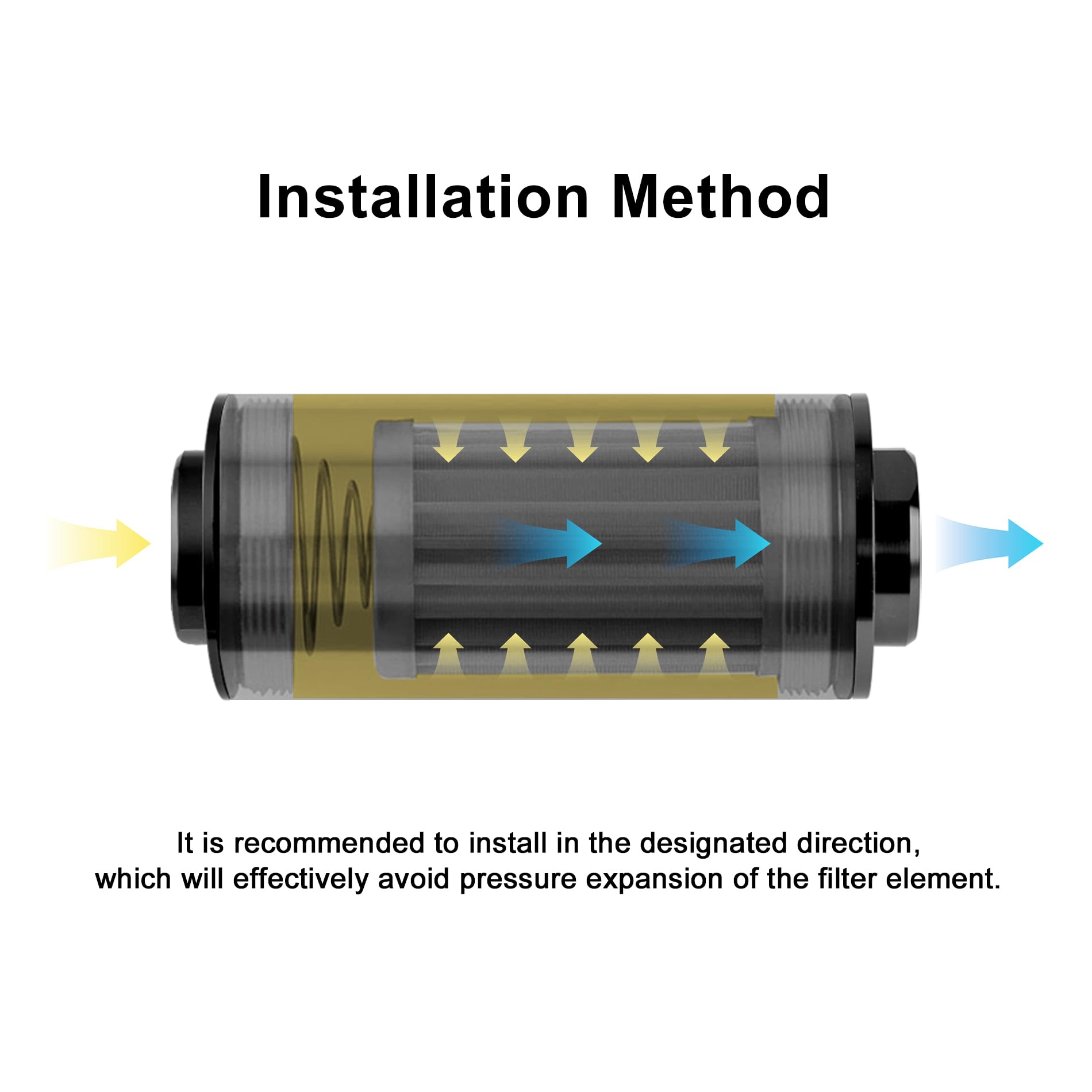

Installation is straightforward when you follow the flow direction printed on the canister: insert the closed end of the element against the internal spring and orient the arrow from the spring end toward the outlet. Periodically remove the housing, extract the stainless element, and rinse or replace it to maintain peak performance.

• Check arrow marking for correct flow orientation before final tightening
• Hand‑tighten fittings with O‑rings seated; use thread‑safe clamps if required
• Removable element allows cleaning with solvent or replacement at intervals

Will the filter affect fuel pressure or flow?

This 100‑micron inline unit is designed for minimal flow restriction under normal operating conditions; however, any filter introduces some drop when heavily loaded. For high‑performance or very high‑flow systems, monitor pressure and service the element more frequently to avoid restriction.

• Low baseline pressure drop with clean stainless element
• Increased restriction if the element accumulates debris—clean regularly
• Check system pressure if used on high‑flow racing applications

Who is this for: The EVIL ENERGY Inline Fuel Filter is ideal for DIY mechanics, performance hobbyists, and boat owners who need a compact, serviceable filter for gasoline or diesel systems. Choose this model if you want a durable aluminum housing, a washable stainless mesh element, and the flexibility of multiple AN adapters for retrofit or custom fuel lines—keeping in mind it is not suitable for E85 applications.
