EVIL ENERGY Marine Fuel Hose 3/8" x 25ft — SAE J1527 Type A1, Low-Permeation & UV-Resistant

EVIL ENERGY 3/8" Marine Fuel Line Hose Type A1-15 is a 25-foot, SAE J1527-compliant rubber fuel hose built for boats and marine engines, offering low permeation, UV resistance, and compatibility with gasoline, diesel and E85.

This heavy-duty marine fuel hose combines a nitrile inner layer with an NBR+PVC outer cover and a polyester braid to deliver reliable fuel delivery in recreational boating and light commercial marine settings. Engineered to satisfy industry standards for low emissions and safety, the hose balances flexibility for tight routing with working pressures suitable for small engine fuel systems.

What specifications define this 3/8" marine fuel hose?

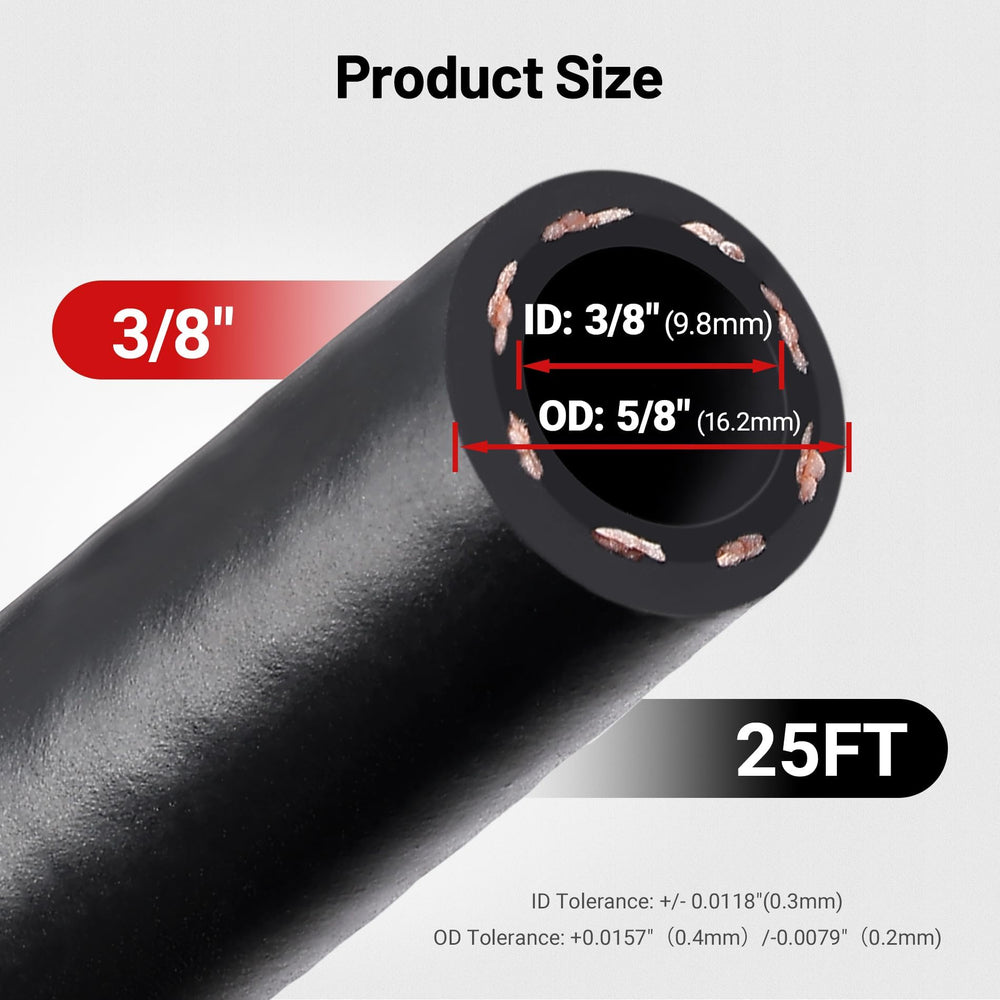

The hose has a 3/8" (9.8 mm) internal diameter and a 16.2 mm outer diameter, with a total length of 25 feet. Its minimum bending radius is 80 mm, making it manageable for typical engine bays and bilge layouts.

• Inner diameter: 3/8" (9.8 mm)
• Outer diameter: 16.2 mm

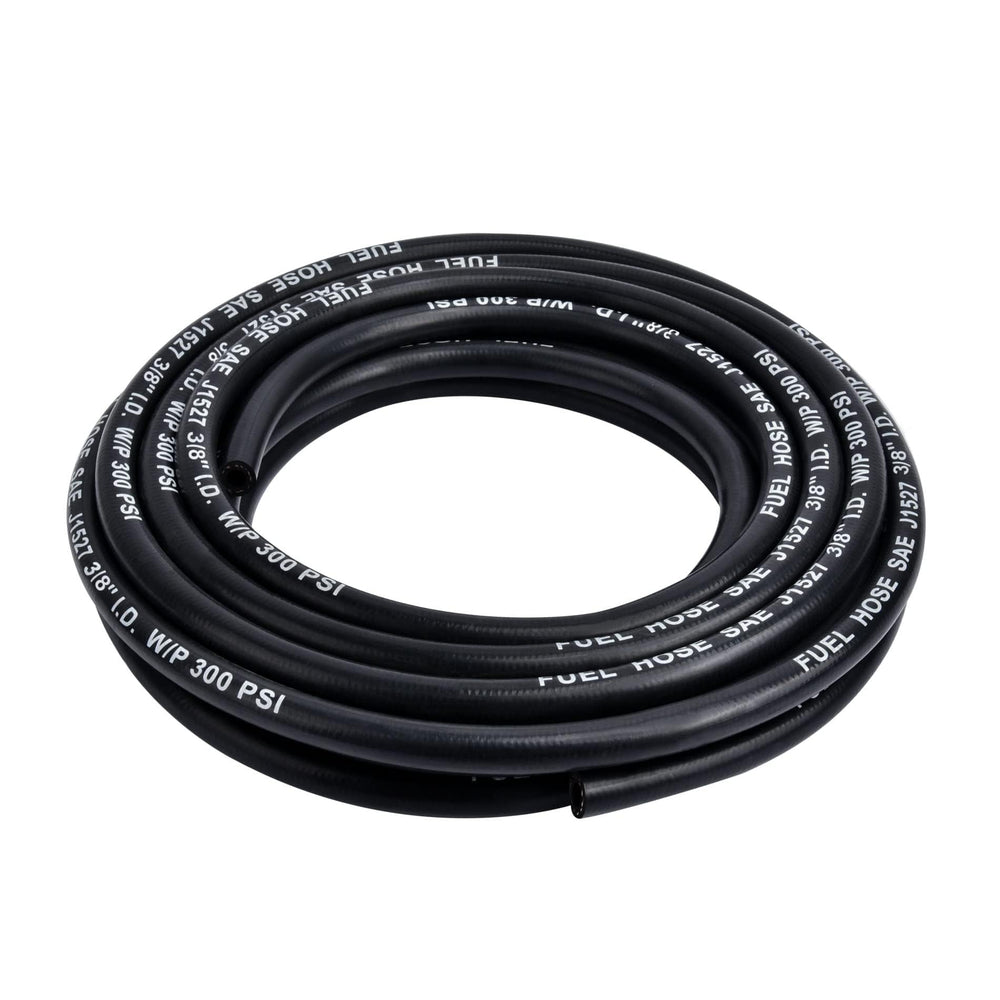

• Length: 25 ft (7.62 m)
• Minimum bending radius: 80 mm

How durable and safe is this hose for marine use?

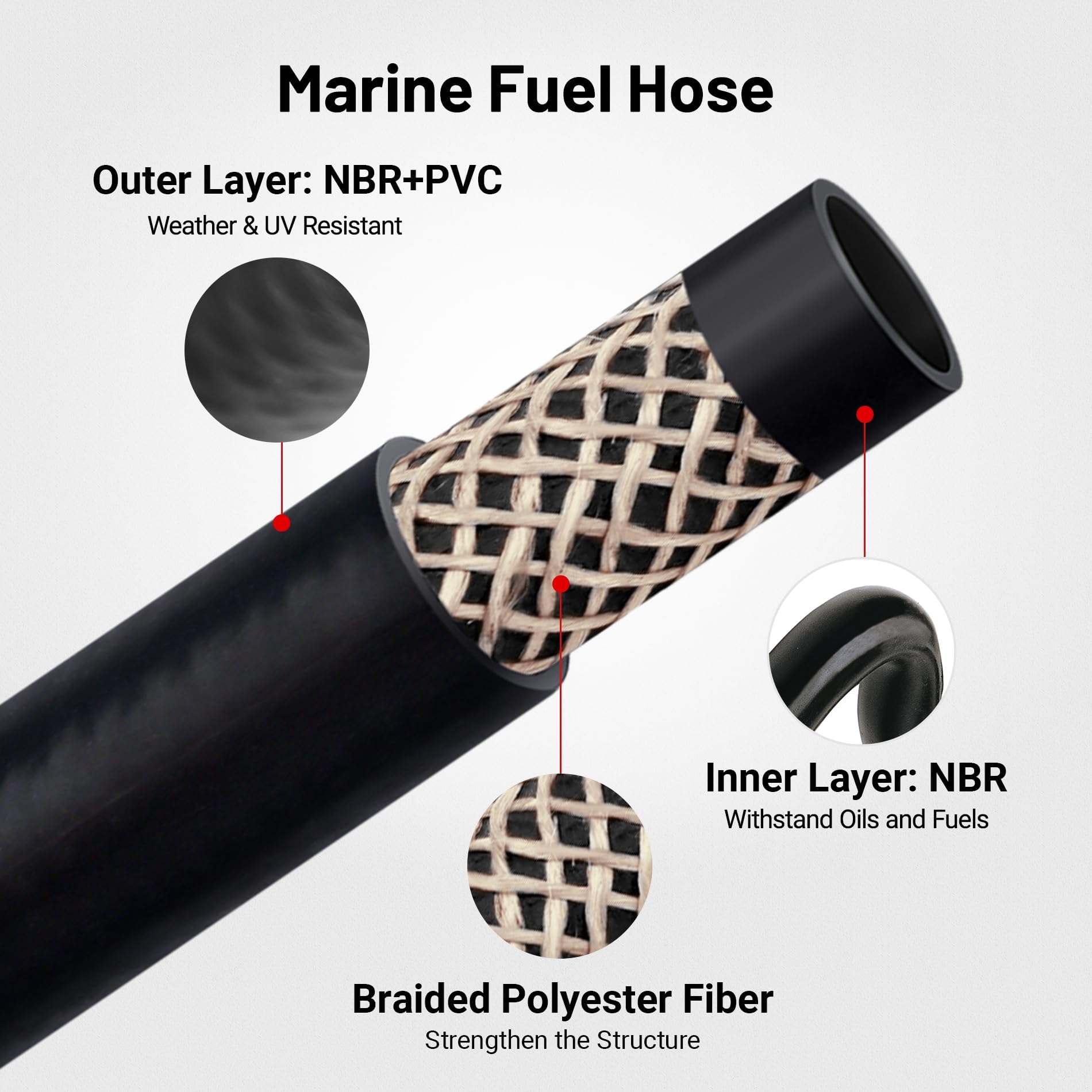

Constructed with an NBR (nitrile) inner tube and an NBR+PVC outer cover reinforced by polyester braid, the hose resists fuel degradation and external wear. It meets SAE J1527 Type A1-15, ISO 7840 Type A1, and NMMA/CE-accepted criteria and complies with W/EPA and CARB very low permeation limits for reduced evaporative emissions.

• Materials: NBR inner, NBR+PVC outer, polyester braid
• Standards: SAE J1527 Type A1-15 and ISO 7840 Type A1
• Permeation: Meets W/EPA and CARB low-permeation requirements
• Resistance: Weather- and UV-resistant cover

What pressure and temperature ranges can it handle?

The hose is rated for a maximum working pressure of 300 PSI with a burst pressure up to 900 PSI, giving a wide safety margin for most small craft fuel systems. It performs across a broad temperature span, suitable for temperate and colder conditions encountered in recreational boating.

• Maximum working pressure: 300 PSI
• Burst pressure: 900 PSI
• Temperature range: -20°F to 221°F (-30°C to 105°C)

Which fuels and applications are appropriate for this hose?

This reel of marine-grade hose is compatible with gasoline, diesel, E85, and similar liquid fuels, making it useful for outboard, inboard, and auxiliary engine fuel lines. Its Type A1-15 classification and low-permeation performance make it suitable for pleasure boats and many marine installations where regulatory compliance matters.

• Compatible fuels: Gasoline, diesel, E85 and like fuels
• Common uses: Boat fuel supply, engine connections, small fuel systems
• Compliance: Meets pleasure-boat Type A1-15 requirements

Who is this for? Boaters, marine mechanics, and DIYers who need a dependable, regulation-friendly fuel hose for recreational craft will find this EVIL ENERGY 3/8" Type A1-15 hose well suited to their needs. It is aimed at users who prioritize compliance, reduced evaporative loss, and a flexible hose that can be routed through compact engine compartments. If you need a long 25-foot length for spares, refits, or installing multiple runs, this hose provides a balance of strength, chemical compatibility and marine-grade construction.
