HiFind 14 AWG 25ft 6-Way Trailer Wiring Harness — Bonded Flat CCA Cable for 12V Lights & Aux, PVC Jacket

HiFind 14 AWG 25-foot 6-way bonded trailer wiring harness delivers durable, color-coded parallel wiring for complete 12V lighting and auxiliary needs on trailers, RVs, and boats.

This bonded, stranded harness is built to simplify trailer electrical work: six color-marked conductors run side-by-side in a flat, easy-to-route assembly that reduces tangles and speeds installation. The cable uses copper-clad aluminum (CCA) conductors in a heavier 14-gauge size, providing lower resistance and greater current capacity than typical 16 AWG assemblies. A tough PVC jacket protects the bundle from moisture, oils, UV, and temperature extremes so the harness holds up under towing and marine use.

How does this harness make wiring a trailer or RV easier?

The flat bonded layout keeps the six conductors together so you can pull one neat cable through tight channels and grommets instead of feeding multiple loose wires. Color coding eliminates guesswork during connections, and the thicker 14 AWG conductors reduce voltage drop for longer runs.

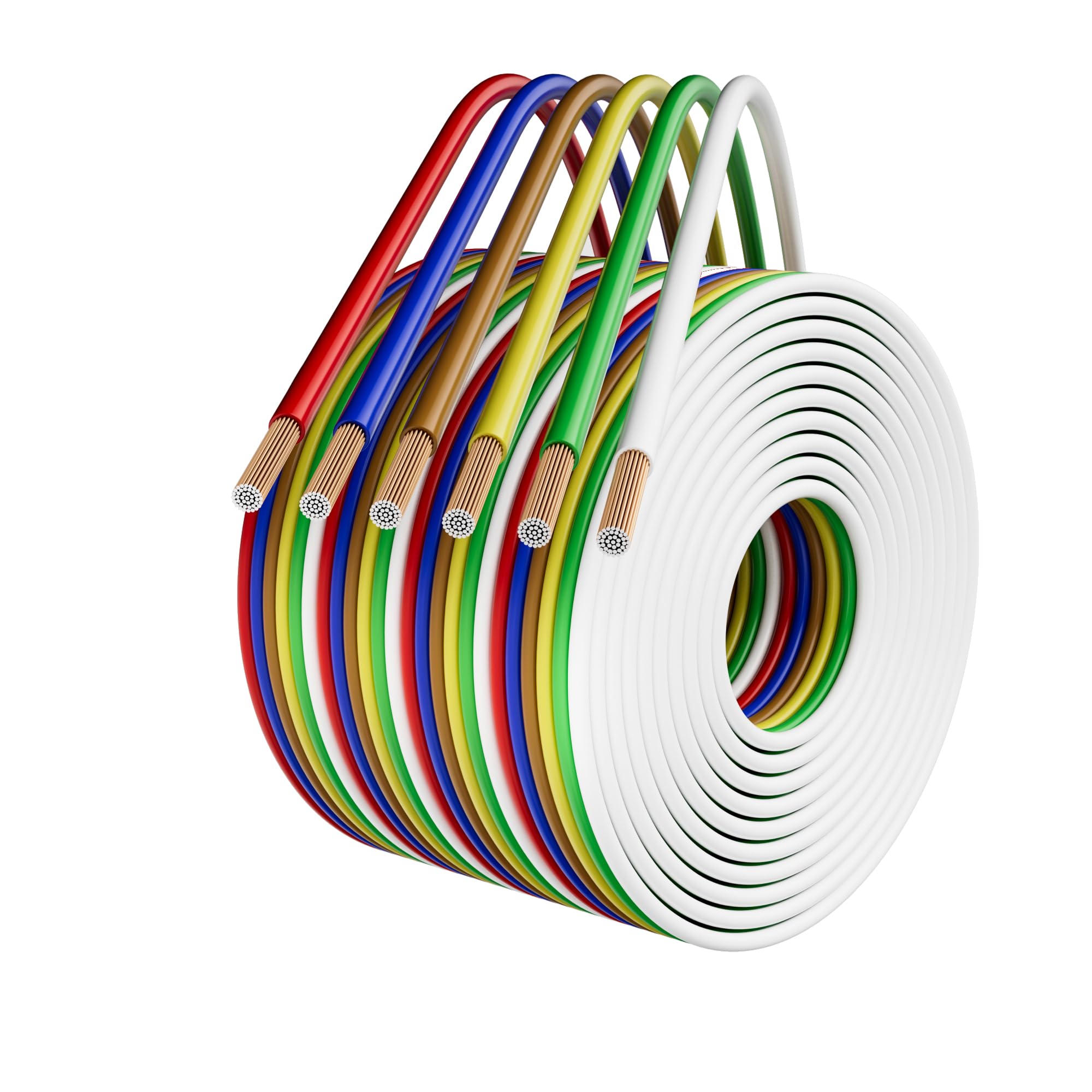

• Flat bonded design for simple routing and reduced tangling
• Color-coded conductors for fast, accurate hookups

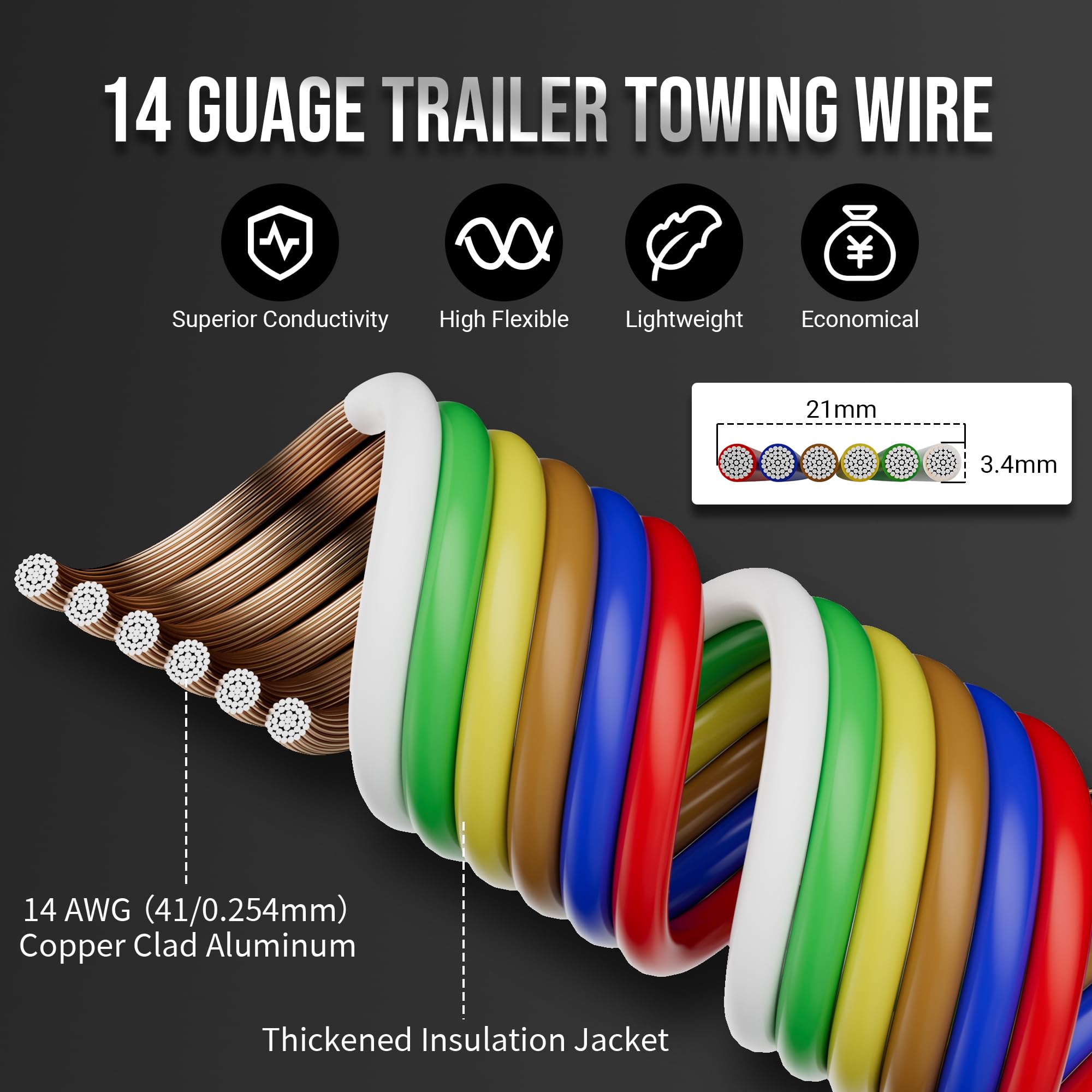

• 14 AWG stranded CCA for improved load handling on long runs

Will this wiring withstand outdoor and under-chassis conditions?

Yes — the harness is sleeved in a robust PVC jacket formulated to resist water, sunlight, oils, and common roadside chemicals. It is rated for a broad temperature range so it stays flexible in cold weather and stable in heat, while the stranded construction resists vibration and flex fatigue.

• PVC outer jacket resists moisture, UV and oils
• Temperature-tolerant from cold starts to hot climates (-40℃ to +105℃)
• Stranded conductors reduce breakage from movement and vibration

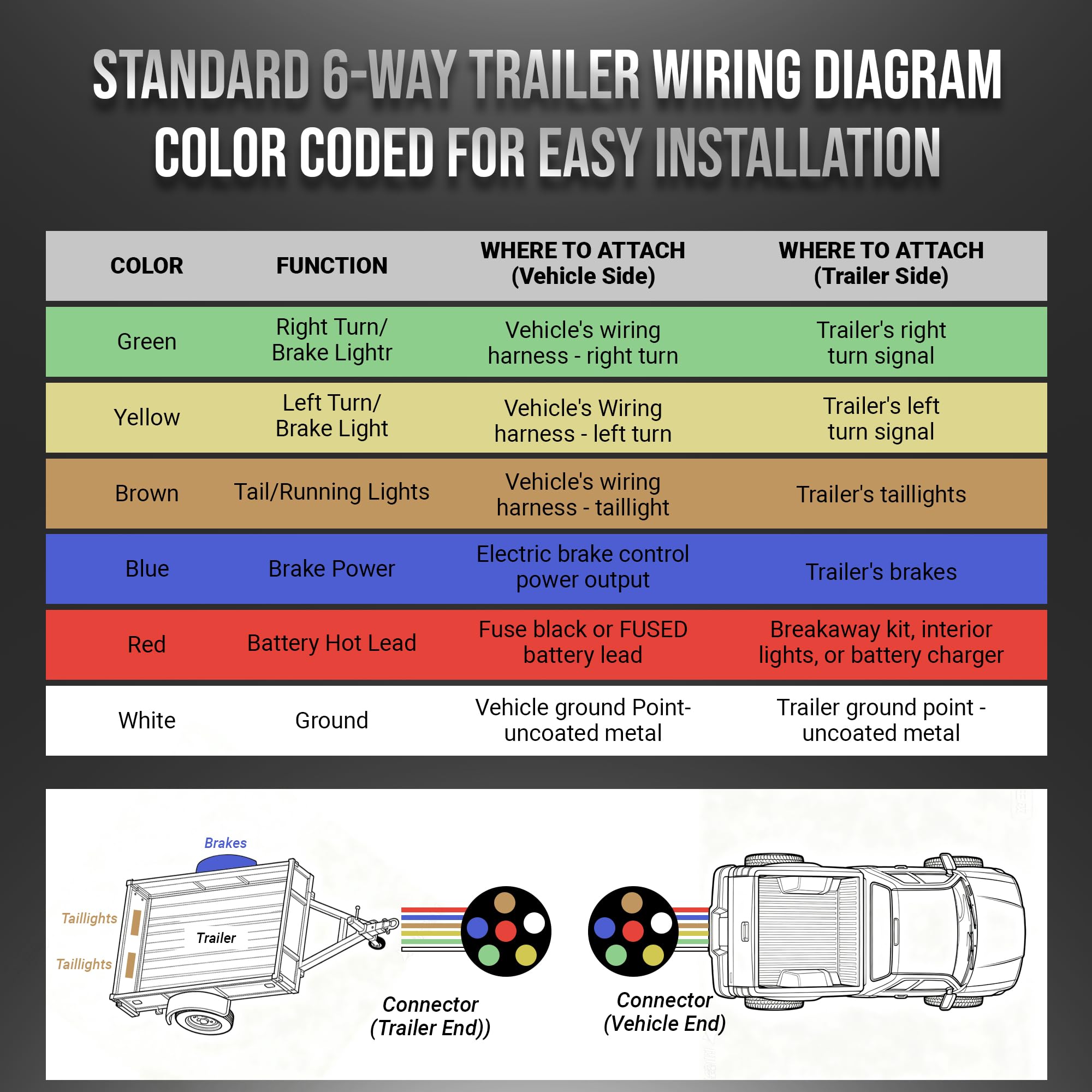

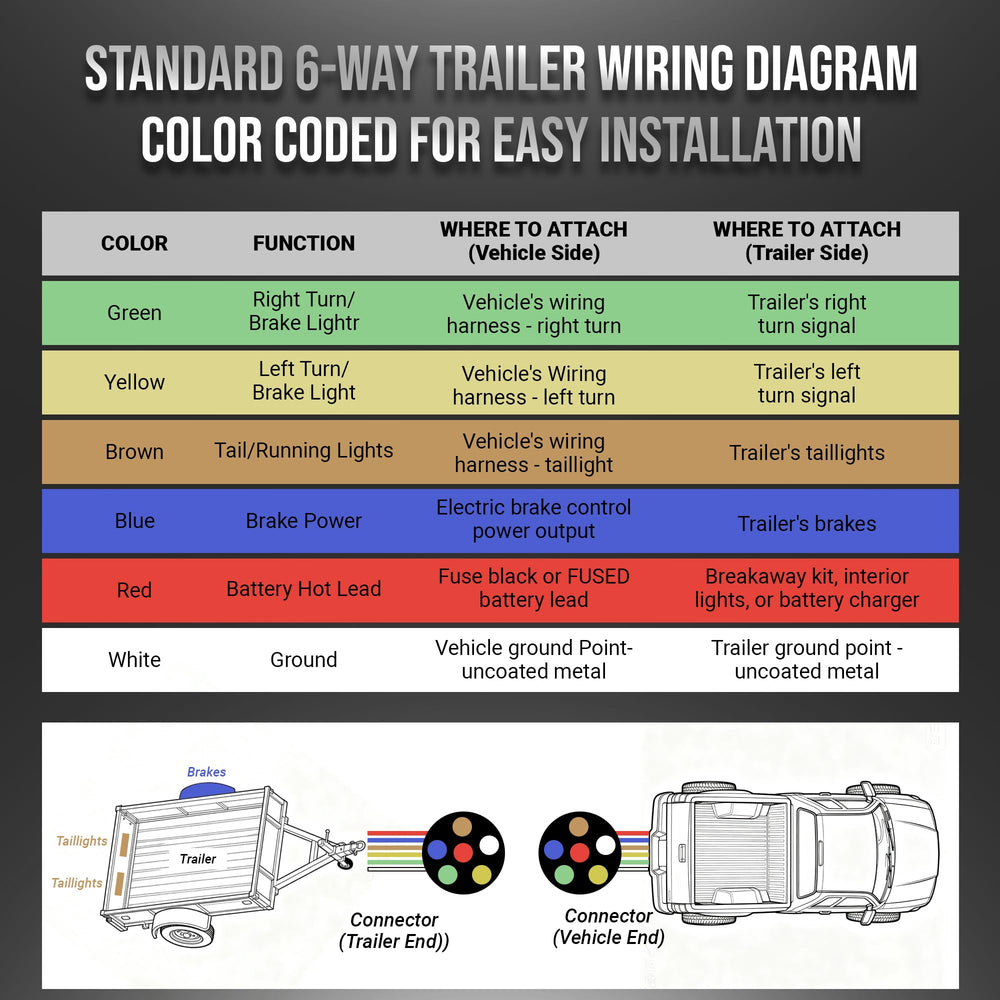

Which circuits are included and how are they labeled?

The harness gives you six dedicated 12V conductors for common trailer functions and an auxiliary power feed. Each wire is clearly color-marked to industry conventions so you can match signals to your vehicle or trailer wiring harness without test lamps or confusion.

• White — Ground (heavy 14 AWG for reliable return path)
• Brown — Tail/running lights
• Yellow — Left turn/stop
• Green — Right turn/stop
• Blue — Electric brake controller feed
• Red — 12V battery / auxiliary power

Is this harness suitable for my application and how do I use it?

The harness supports any standard 12V lighting and brake systems, making it suitable for utility trailers, boat trailers, campers, horse trailers, and many other tow vehicles. You can use the full bonded assembly for a bundled run or separate individual conductors where you need single-wire routing.

• Compatible with common 12V trailer, RV, and marine electrical systems
• Can replace worn harnesses, extend wiring, or serve new builds
• Easily split into individual wires for custom routing and terminations

Who this is for: This harness is aimed at DIYers, professional installers, and fleet owners who need a robust, tidy wiring solution for towing and mobile 12V systems. If you want a single, easy-to-pull cable with thicker 14 AWG conductors, clear color coding, and weather-resistant protection for lights, brakes, and auxiliary power, this HiFind bonded 6-way harness is designed to meet those needs while simplifying installation and improving long-run electrical performance.
