JRready Deutsch DTM 2-Pin Connector Kit — 4 Sets with Solid Size-20 Contacts, Waterproof

JRready ST6330-2 is a 2-pin Deutsch DTM connector kit that delivers four complete waterproof plug-and-receptacle sets with solid size-20 contacts for reliable 7.5A circuits.

This kit supplies every piece you need to build durable 2-pin Deutsch DTM connections for vehicles and marine equipment. The package combines PA66 nylon housings, copper-nickel alloy solid contacts, wedgelocks and seal plugs so you can crimp and assemble robust waterproof connections for engine bays, harness repairs, or accessories exposed to moisture and vibration.

What components are included and why do they matter?

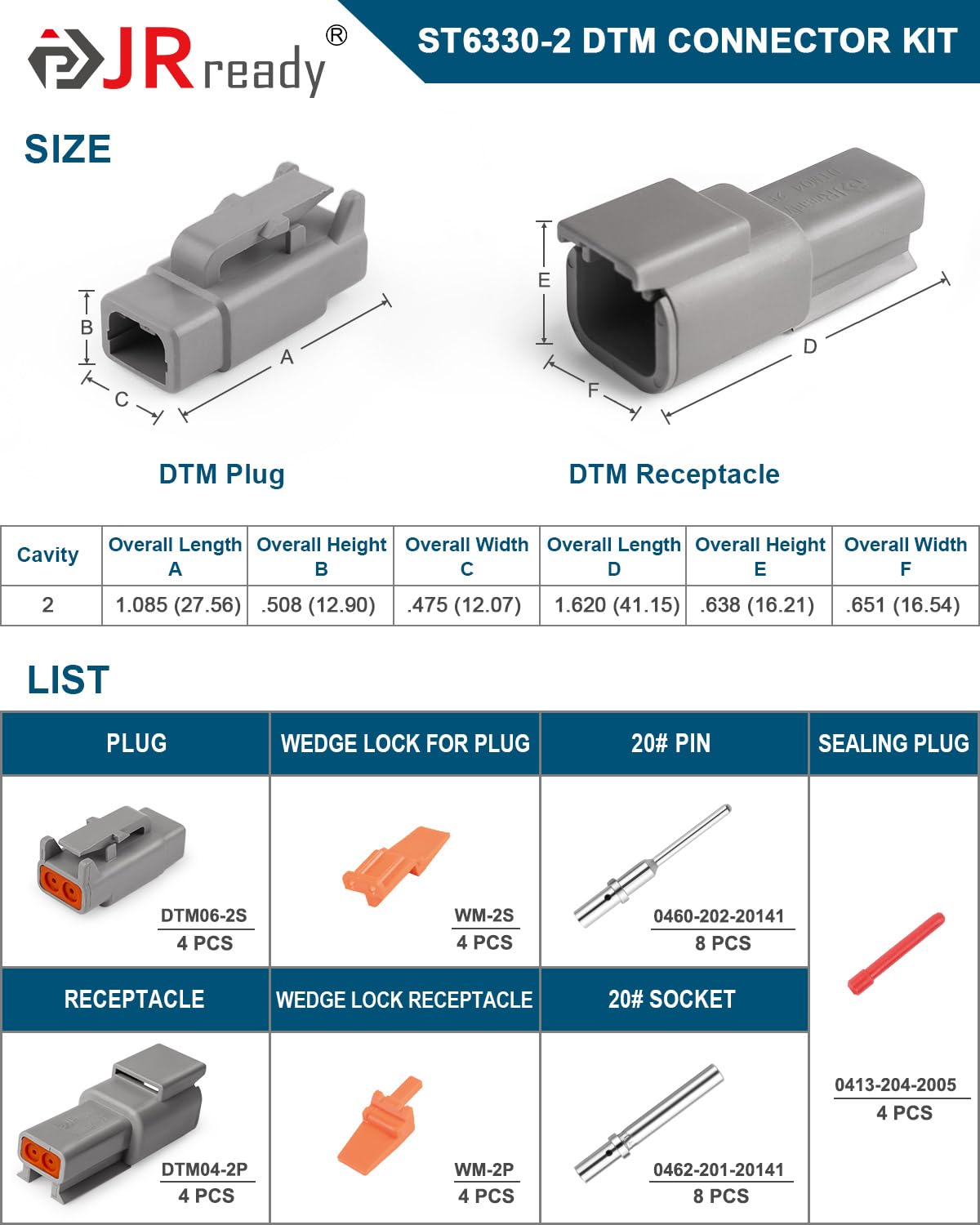

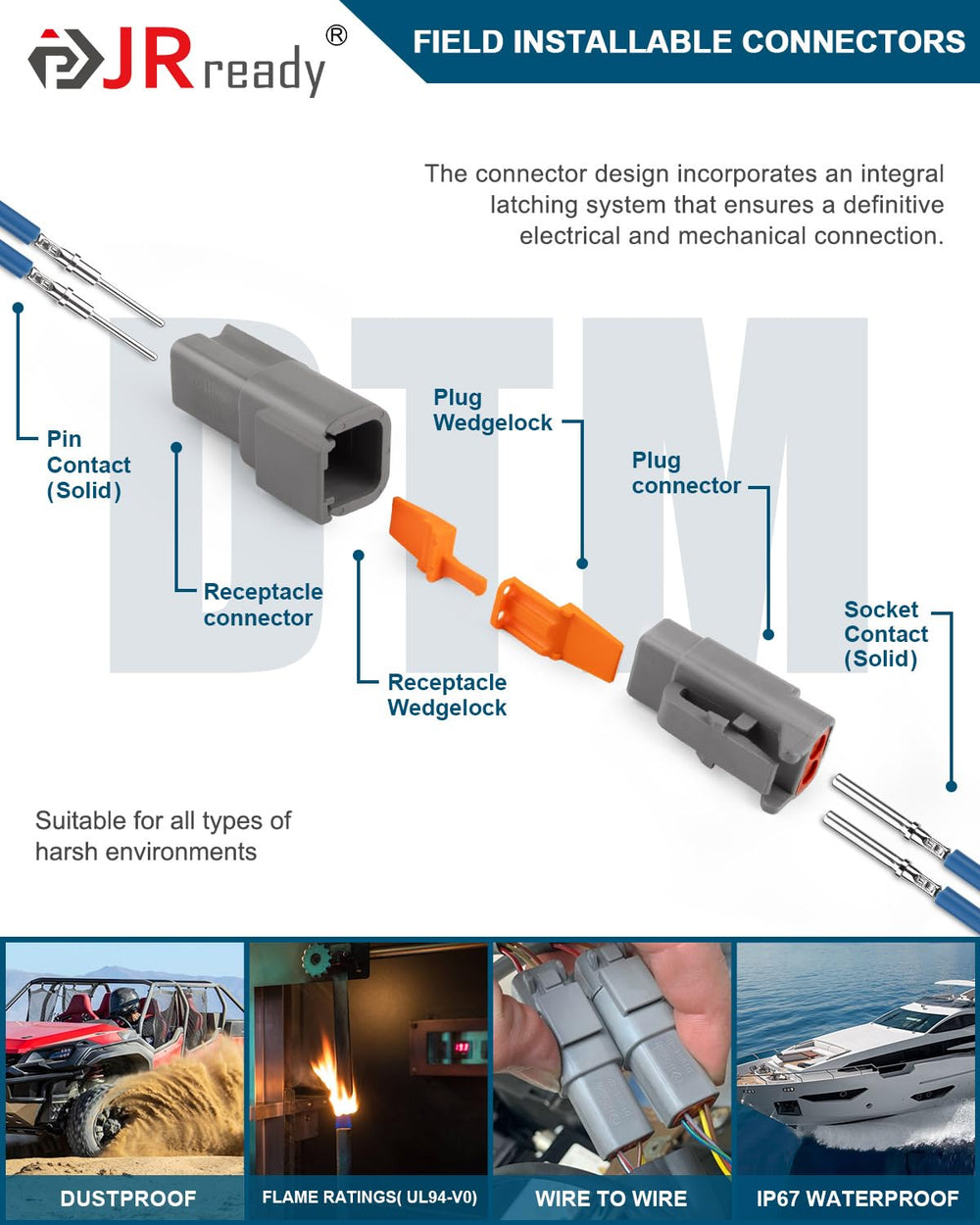

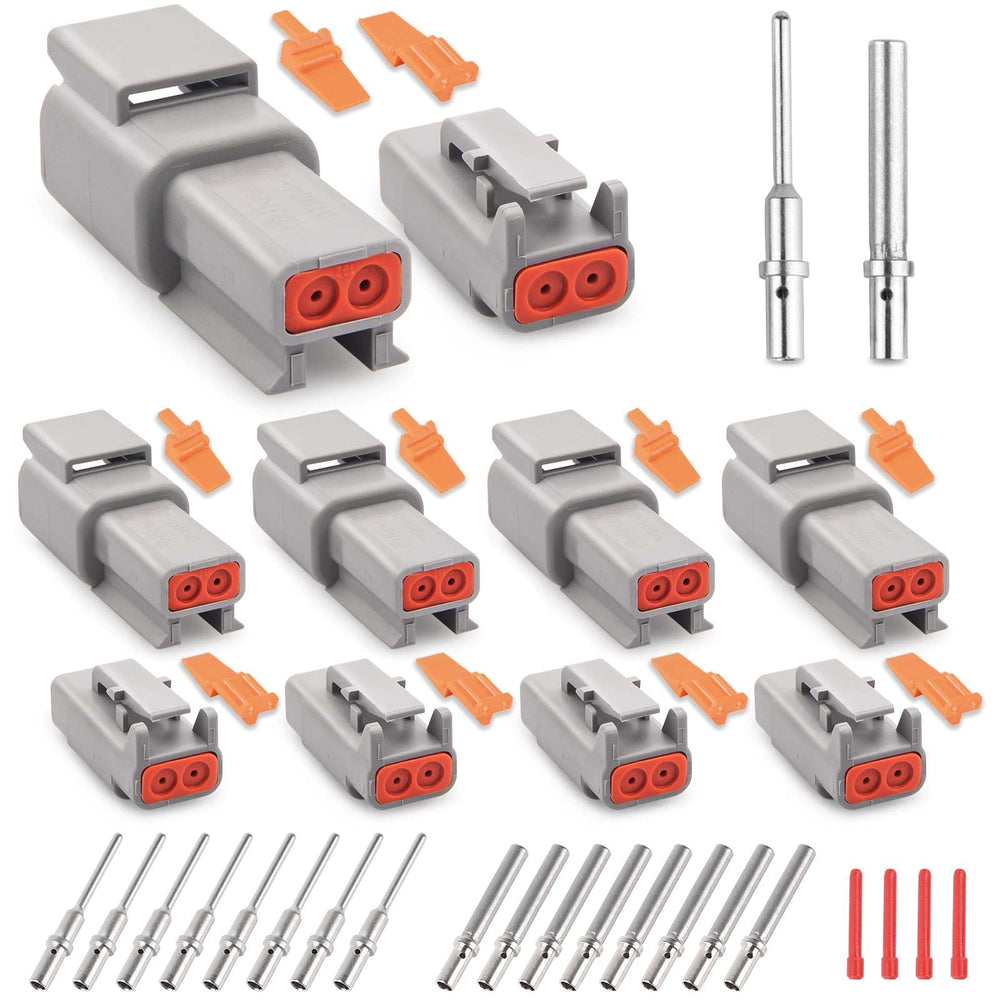

The kit contains four pairs of DTM 2-pin housings, eight pairs of solid size-20 contacts, four wedgelocks for plugs, four wedgelocks for receptacles and four seal plugs. Each part is selected to complete a sealed, vibration-resistant mating pair that performs in harsh vehicle environments.

• 4 pairs DTM housings (DTM06-2S/DTM04-2P) for plug and socket compatibility
• 8 pairs size-20 solid contacts (0460/0462 series) rated for 7.5A continuous
• 4 plug and 4 receptacle wedgelocks for secure contact retention
• 4 seal plugs to maintain IP-style moisture protection when pins are unused

How do the solid contacts perform in real wiring jobs?

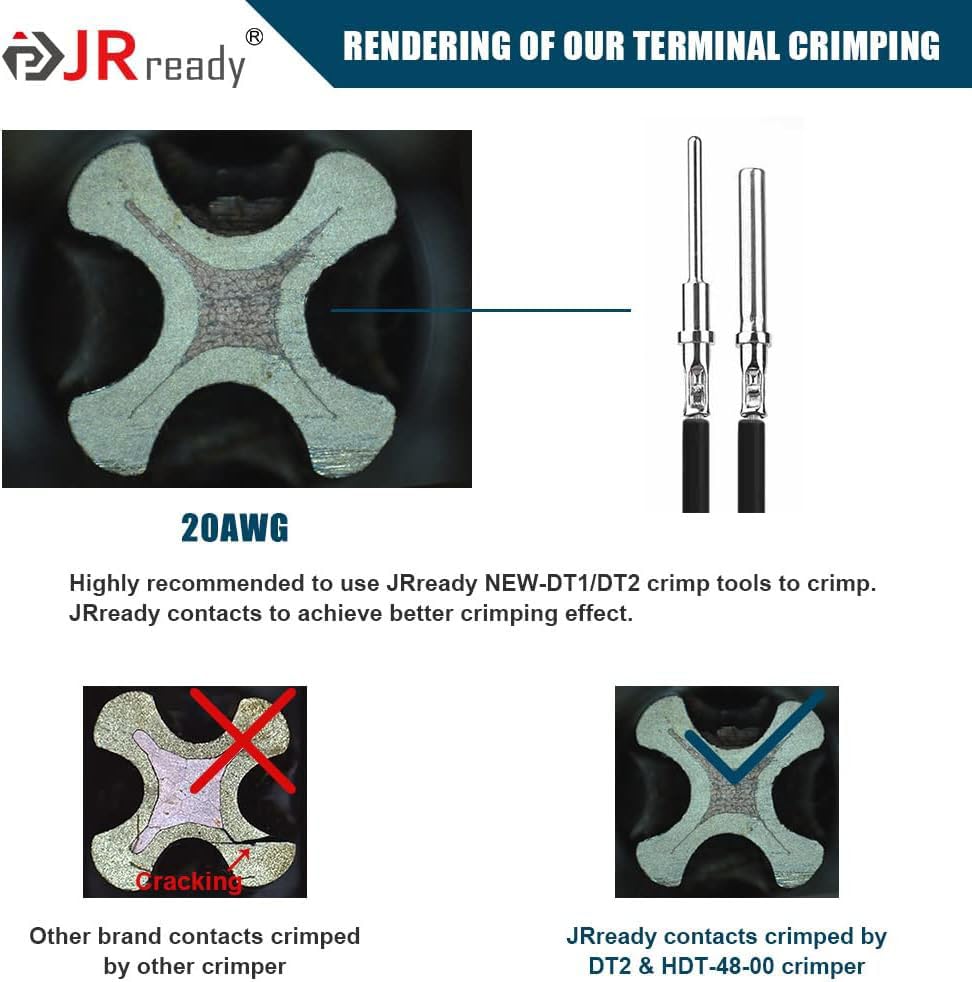

The contacts are forged from a copper-nickel alloy that balances conductivity and corrosion resistance; they accept 20–22 AWG wire and are intended for repeated crimping and insertion. Each terminal is surface-treated to reduce cracking during crimping and to keep electrical resistance low under load.

• Designed for 20–22 AWG wire, common in automotive accessory circuits
• 7.5-amp continuous current rating for lighting, sensors, and small motors
• Surface-treated terminals to improve crimp integrity and longevity

Are the housings waterproof and suitable for engine or marine use?

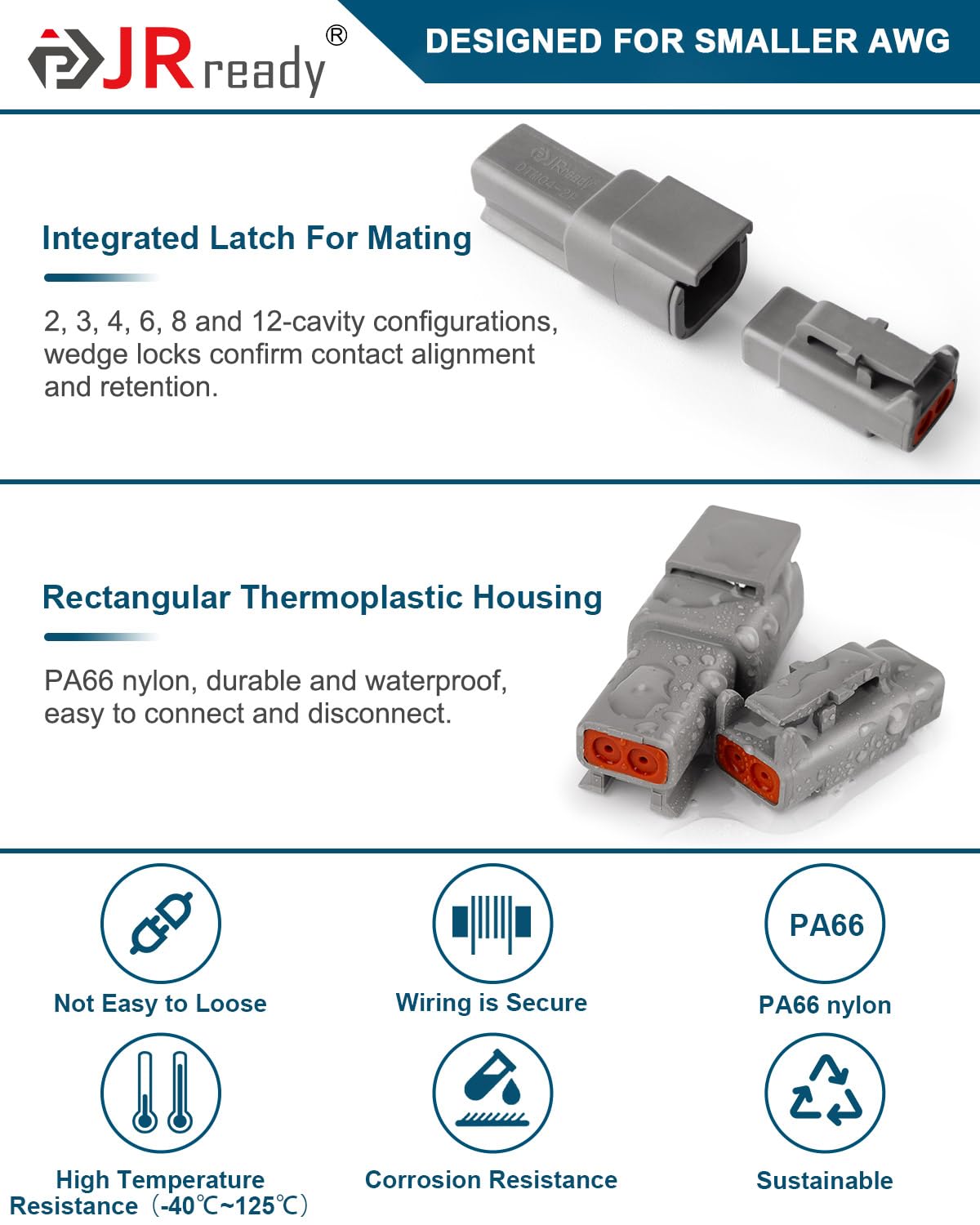

The housings are molded from PA66 nylon, a high-strength engineering plastic with good wear and chemical resistance. That material, combined with proper sealing and wedgelocks, yields connectors well suited for under-hood, onboard marine, and off-road applications where vibration and moisture are present.

• PA66 nylon resists heat, oils, and abrasion in demanding locations
• Seal plugs and mating interfaces reduce water ingress risk when assembled
• Wedgelocks prevent contact back-out under vibration

How will this kit speed up repairs or custom wiring projects?

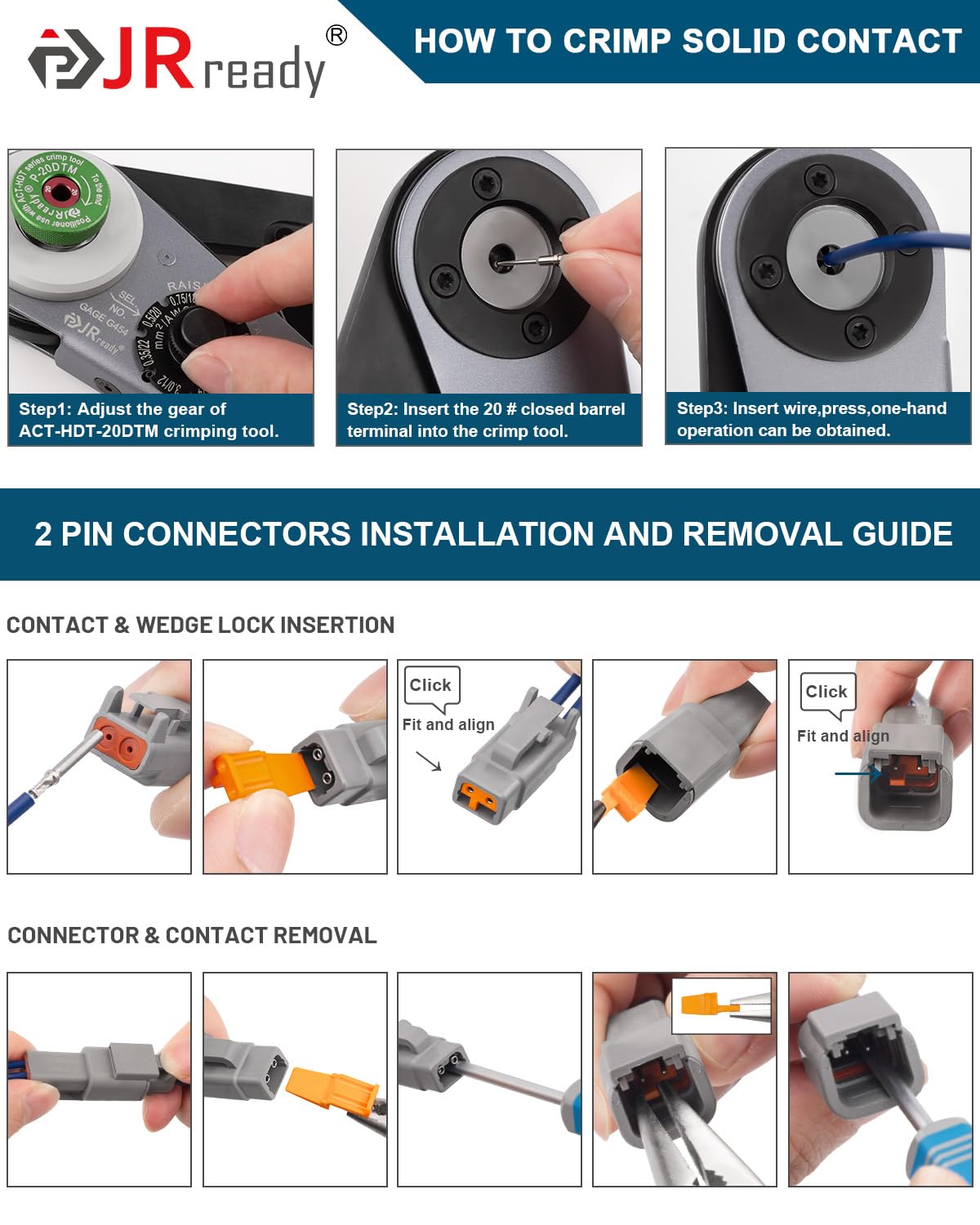

Supplied as complete sets, the kit saves time sourcing compatible housings, pins and retention parts separately. With all pieces matched for Deutsch DTM 2-pin systems, you can crimp, seal and plug in a single session, reducing trial-and-error and ensuring interchangeability with existing DTM devices.

• All necessary parts included for four finished 2-pin connections
• Interchangeable with standard Deutsch DTM 2-pin components and assemblies
• Ideal for quick harness repairs, accessory installs, or prototyping

Who this is for: electricians, mechanics, motorcyclists, marine technicians and DIY vehicle owners who need compact, factory-style 2-pin waterproof connections. Choose this JRready ST6330-2 kit when you want matched housings and solid, crimpable terminals that stand up to vibration, moisture and repeated service without hunting for parts individually.
