Lippert Components Quick Drop Tongue Jack for A-Frame Trailers, Black — 2,000 lb Capacity, 14" Travel

The Lippert Quick Drop Tongue Jack is a versatile A-frame trailer jack that accepts a 3/4" drill for powered operation or can be cranked manually, offering a 2,000 lb capacity and 14" vertical travel.

Whether you camp off-grid, tow a cargo trailer for work, or unhitch a 5th wheel at the lake, this Lippert Components Quick Drop jack gives you the choice of drill-powered speed or reliable manual control. Built with a powder-coated steel finish, a removable footpad, and a locking pin, it’s engineered to simplify hitching and leveling without needing a dedicated power source at the trailer tongue.

How does the Quick Drop jack let me use a power drill?

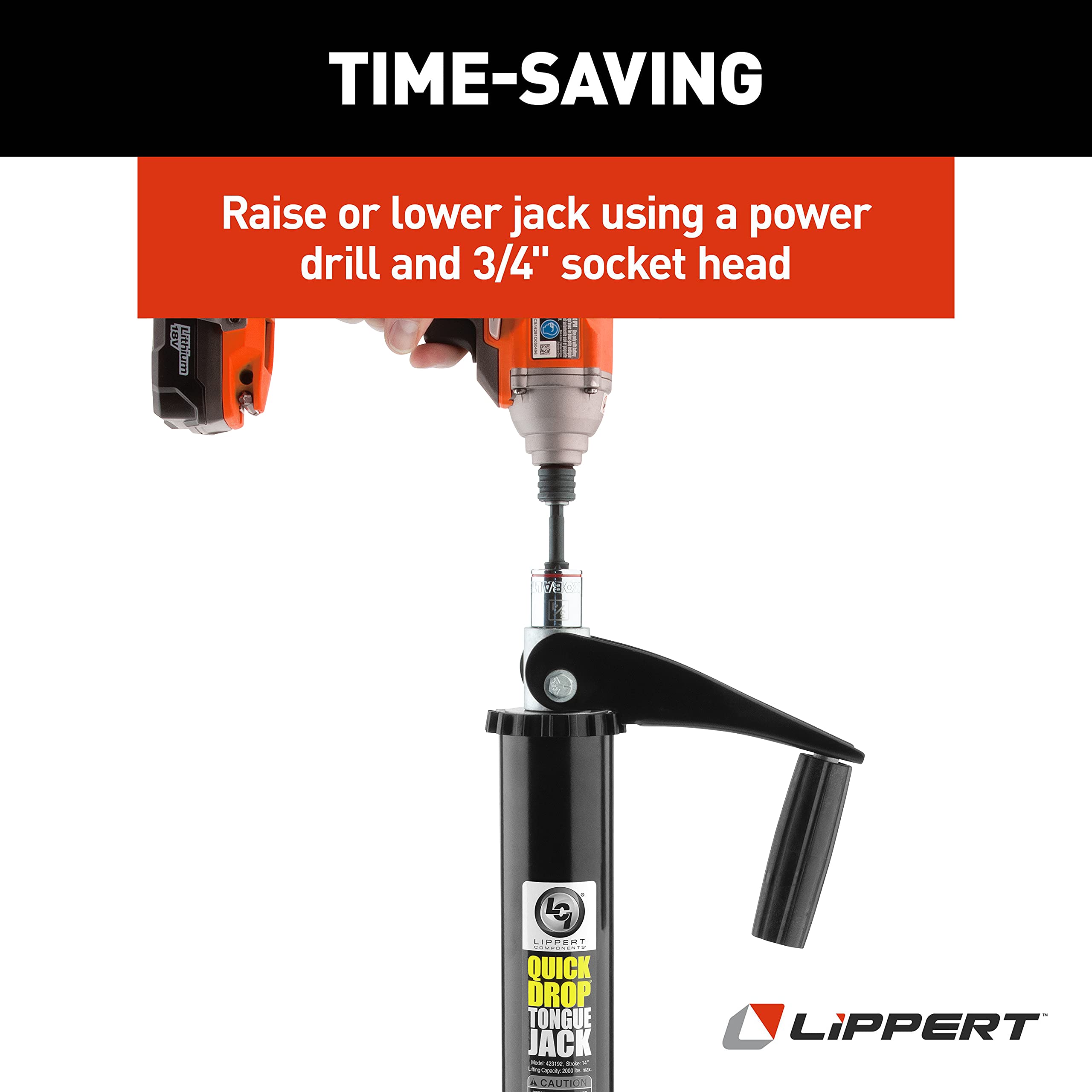

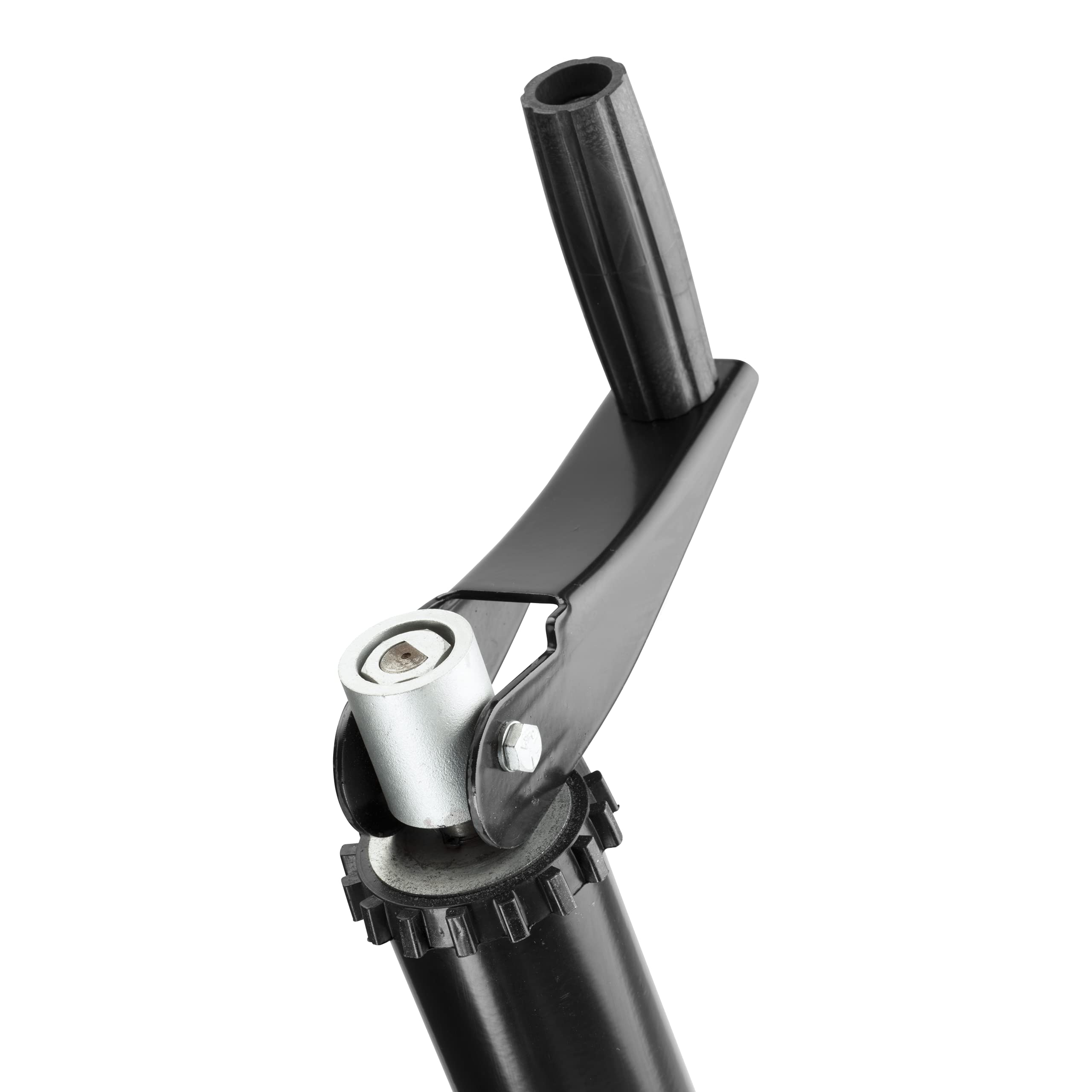

The jack’s top wind socket is formed around a 3/4" hex nut so most cordless drills or impact drivers fit directly to the crank point. With a drill attached you can extend or retract the jack much faster than by hand, saving time when hitching or camping at busy sites. If the drill battery dies, you can still operate the same jack manually using the supplied crank.

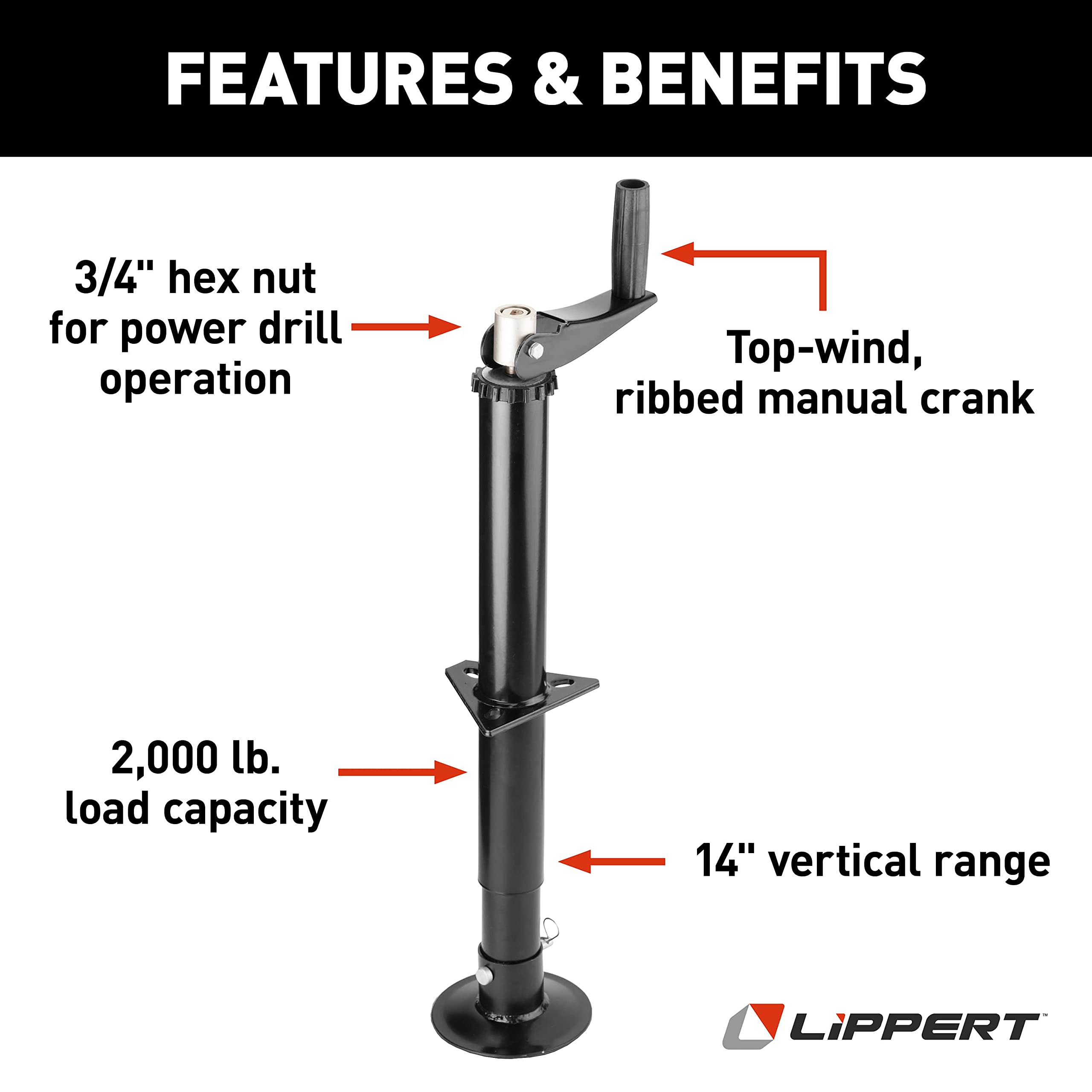

• 3/4" hex nut accepts common drill/impact drivers
• Drill operation speeds extension and retraction
• Manual crank option remains available as backup

What capacity and travel will it handle for my trailer?

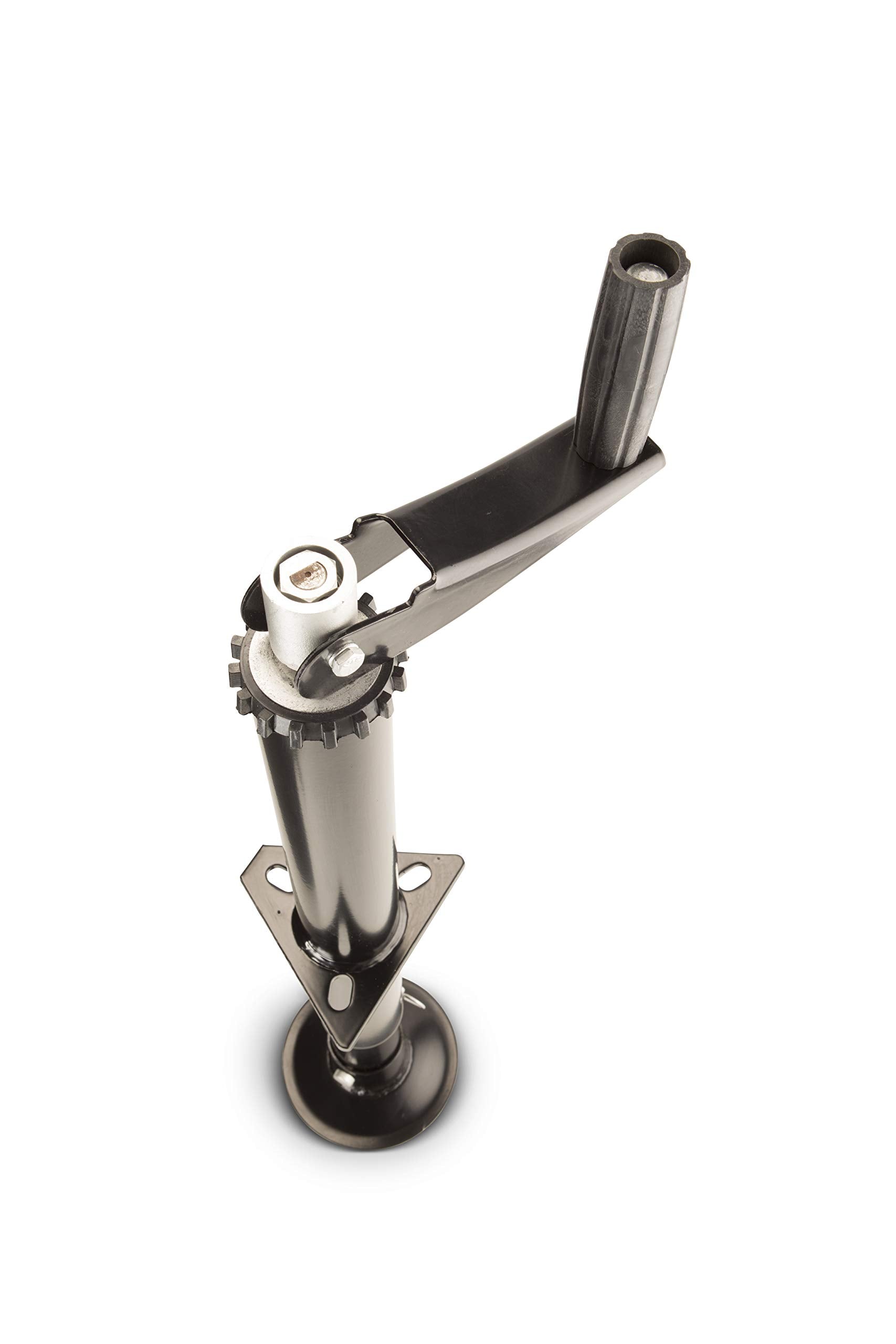

This tongue jack supports up to 2,000 pounds of vertical load and offers a 14" stroke to cover a wide range of trailer heights. The 5.4" removable footpad increases ground contact for stability on softer surfaces. Those ratings make it suitable for most travel trailers, utility trailers, and many 5th wheel applications when used as a tongue or A-frame jack.

• 2,000 lb load rating for tongue weight needs
• 14" vertical travel accommodates varied coupler heights
• 5.4" footpad improves stability and reduces sinking

Will it stand up to outdoor use and regular towing?

The jack body is finished in a durable black powder coat to resist rust and abrasion from road and campsite conditions. A removable footpad and locking pin secure the jack during use, and the simple mechanical design keeps service and maintenance straightforward. For longevity, periodic inspection and light lubrication of the screw and pivot points are recommended.

• Powder-coated steel resists corrosion and road wear
• Locking pin secures position while hitched or parked
• Easy maintenance: inspect, clean, and lubricate as needed

How does installation and compatibility work with my trailer?

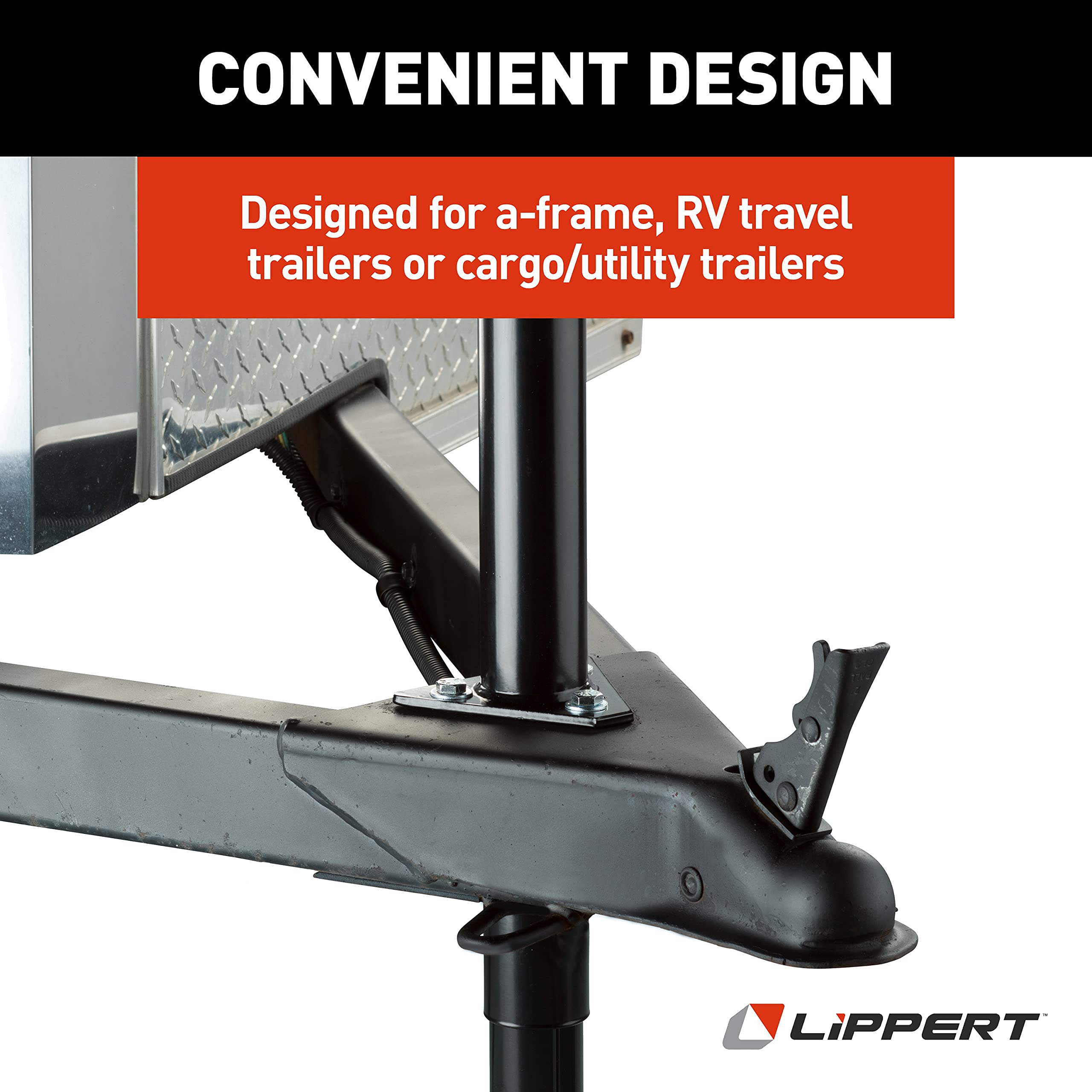

The Quick Drop jack mounts to standard A-frame trailer locations and installs using the typical bolt pattern for tongue jacks; confirm measurements against your trailer’s bracket before ordering. Its universal top-wind design fits most hand-crank setups and adds the benefit of drill conversion without changing jack hardware. No electrical wiring is required, making it ideal when no shore power or battery hookup is available at the hitch.

• Mounts to conventional A-frame jack brackets—check bolt spacing
• No wiring needed; drill-powered when you want it
• Works with most hand-crank jack layouts for straightforward swap-in

Who this is for: drivers who tow frequently and want flexibility at the hitch — campers, contractors, and weekend boaters who need a dependable, low-cost upgrade from a basic manual jack. If you value speed when setting up, want to avoid reliance on auxiliary battery systems at the tongue, and appreciate a rugged, low-maintenance design, the Lippert Quick Drop Tongue Jack is a practical choice to simplify hitching and leveling for travel trailers, cargo trailers, and many 5th wheel setups.
