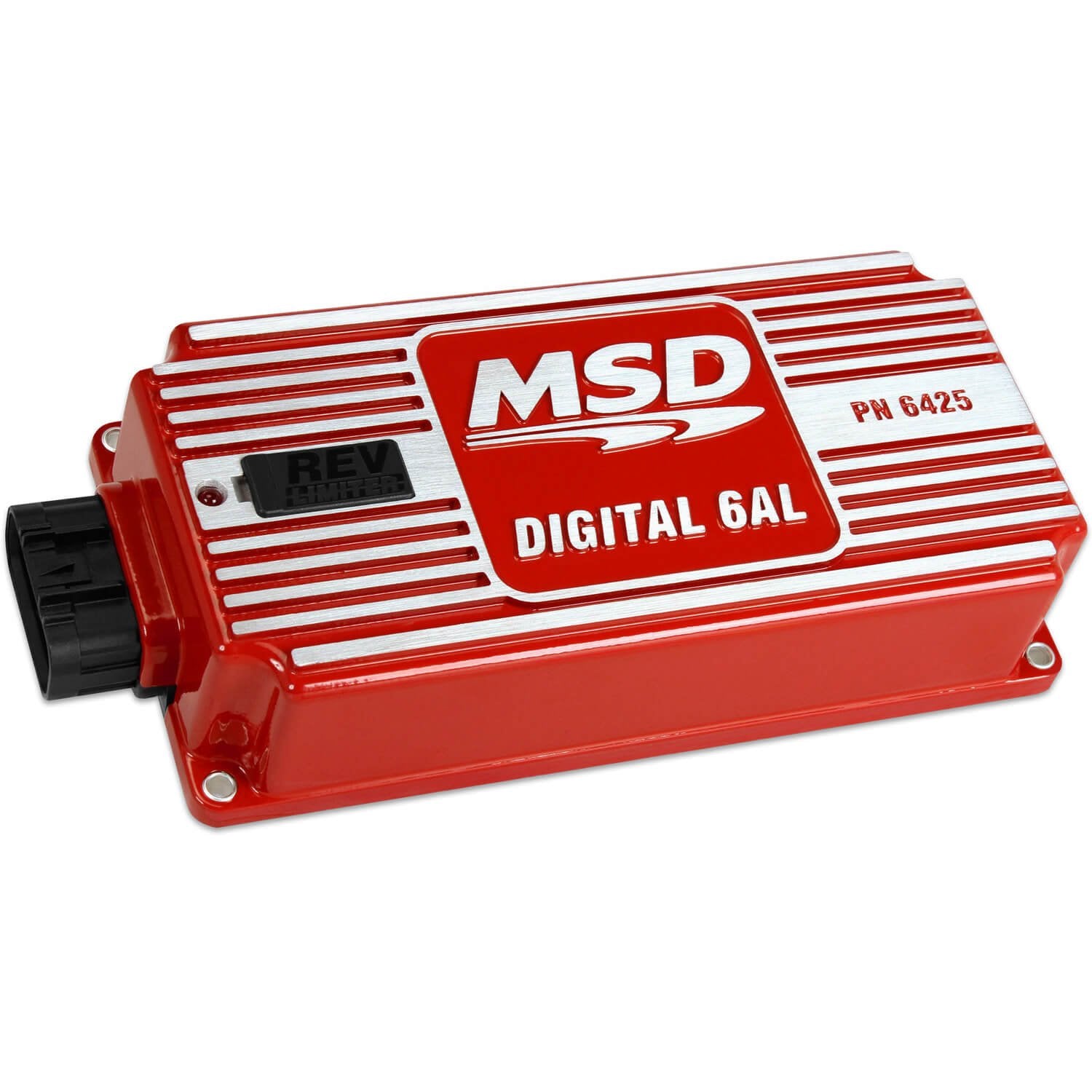

MSD 6425 Digital 6AL Ignition Control — Red compact high-energy box with rev limiter

MSD 6425 Digital 6AL is a compact, high-energy ignition control box with built-in rpm limiting and universal compatibility for 4, 6, or 8-cylinder engines.

Designed for racers and performance street machines, the MSD 6425 Digital 6AL delivers a strong 530-volt, 135 mJ spark while keeping installation tidy with a sealed multi-pin connector. The unit minimizes electrical draw thanks to efficient components and includes a visible LED for quick system checks. It also features a dual rotary rpm-limiter that lets you set rev caps in 100 rpm steps, and it operates across a wide input range for flexible use in diverse vehicles.

How does the MSD 6425 improve ignition performance?

The 6425 increases spark energy and consistency to support better combustion across rpm ranges without demanding excessive current from the charging system. Its high-voltage output and stored energy help ensure reliable ignition under load.

• 530 volts and 135 mJ of spark energy for stronger ignition
• Efficient internal components that reduce electrical draw
• Operational range of 12–15V with 7V start capability
• .7 amp per 1,000 RPM current profile for predictable electrical demand

Can I set a precise rev limit with this unit?

Yes — the MSD 6425 includes twin rotary dials that let you program an rpm ceiling in 100 rpm increments for accurate engine protection and control. The dual-dial layout makes it quick to fine-tune the cutoff while on the bench or in the paddock.

• Dual rotary switches for incremented rpm limit setting
• Range suitable for typical street and race applications
• Immediate mechanical-style cutoff for straightforward protection

What makes installation and maintenance easier?

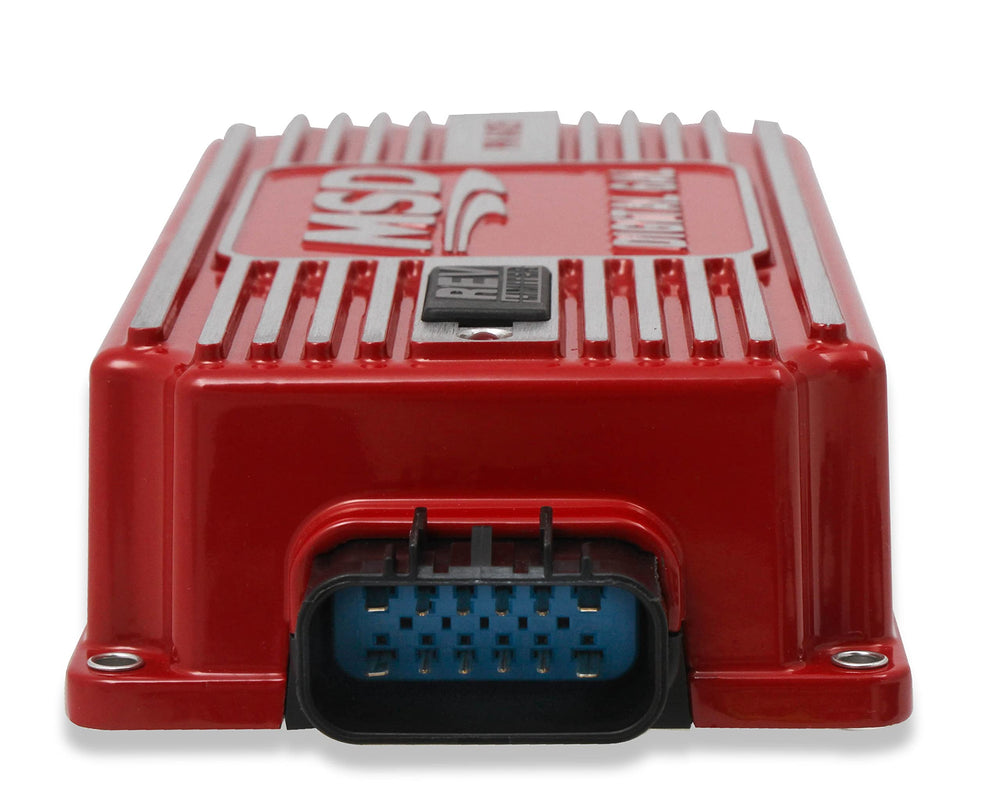

All wiring exits through a single, locked and sealed connector to simplify harness routing and protect the electronics from dirt and moisture. A built-in LED provides instant visual confirmation of system health during startup and troubleshooting.

• Locked sealed connector consolidates wiring and prevents corrosion

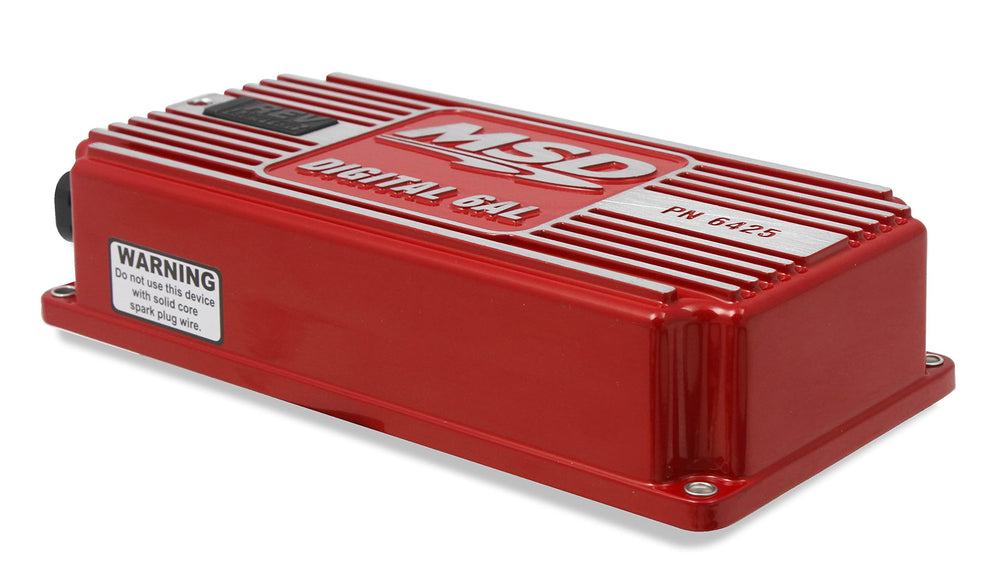

• Compact red anodized housing for tight engine bays
• Onboard LED offers quick diagnostic feedback

Will this work with my engine configuration?

The 6425 is built for flexibility — it supports 4-, 6- and 8-cylinder engines without additional model changes. Its electrical specifications make it suitable for a wide variety of street and competition setups.

• Direct compatibility with 4, 6, or 8-cylinder ignition systems
• Operates across common automotive voltage inputs
• High output tailored for both high-compression and boosted engines

Who is this for: The MSD 6425 Digital 6AL is aimed at performance enthusiasts, track-day drivers, and professional builders who need a compact, reliable ignition controller with a user-friendly rpm limiter. If you want a durable, high-energy ignition box that simplifies wiring, offers clear diagnostics, and fits multiple cylinder layouts, the 6425 is a practical upgrade for street machines, race cars, and restored classics.

Key technical snapshot:

• High output: 530 volts, 135 mJ
• Voltage range: 12–15V, 7V start
• Current draw: approx. .7 amp per 1,000 RPM
• All wires through a locked sealed connector; built-in LED; 100 rpm step rev control
