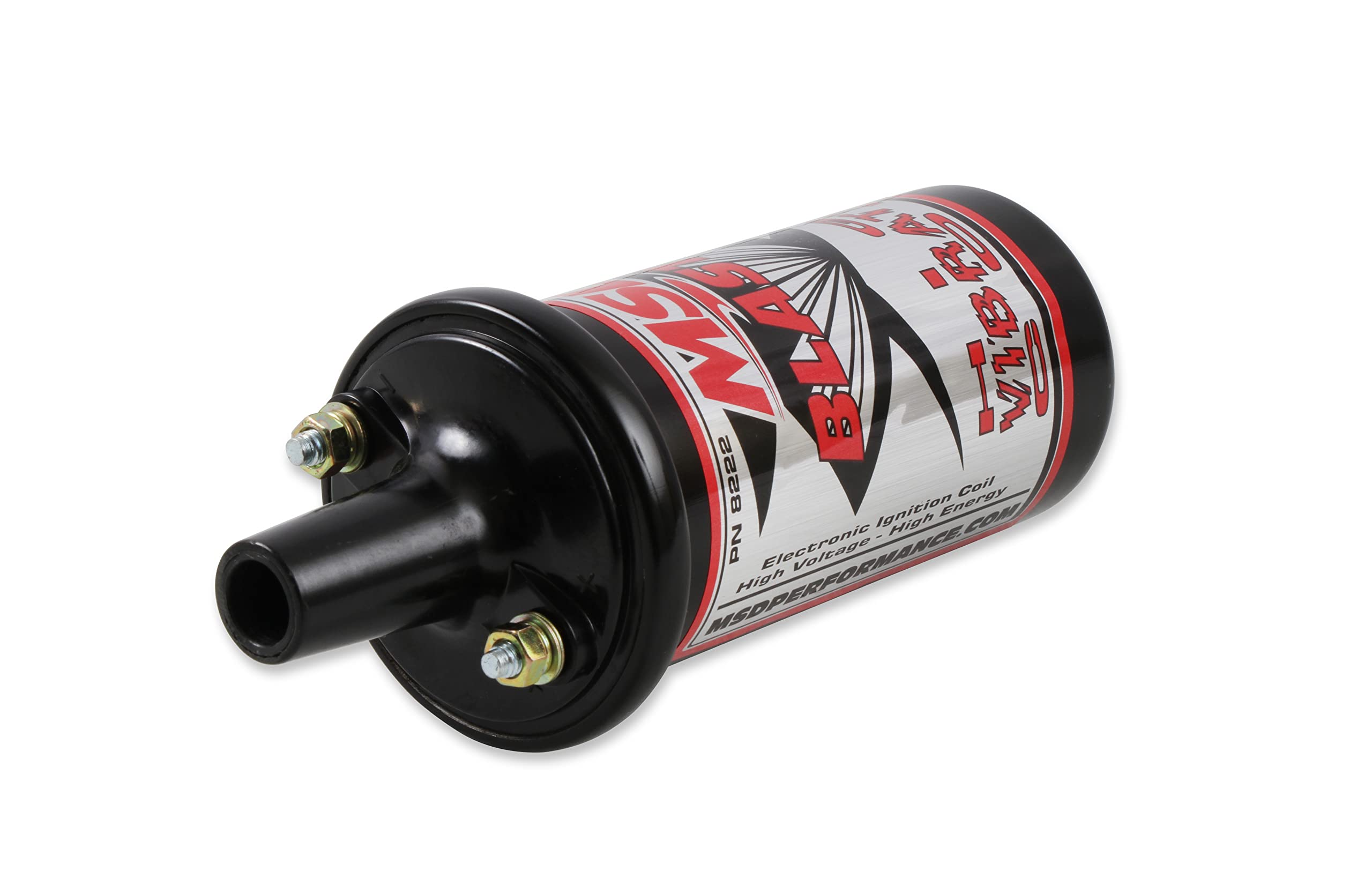

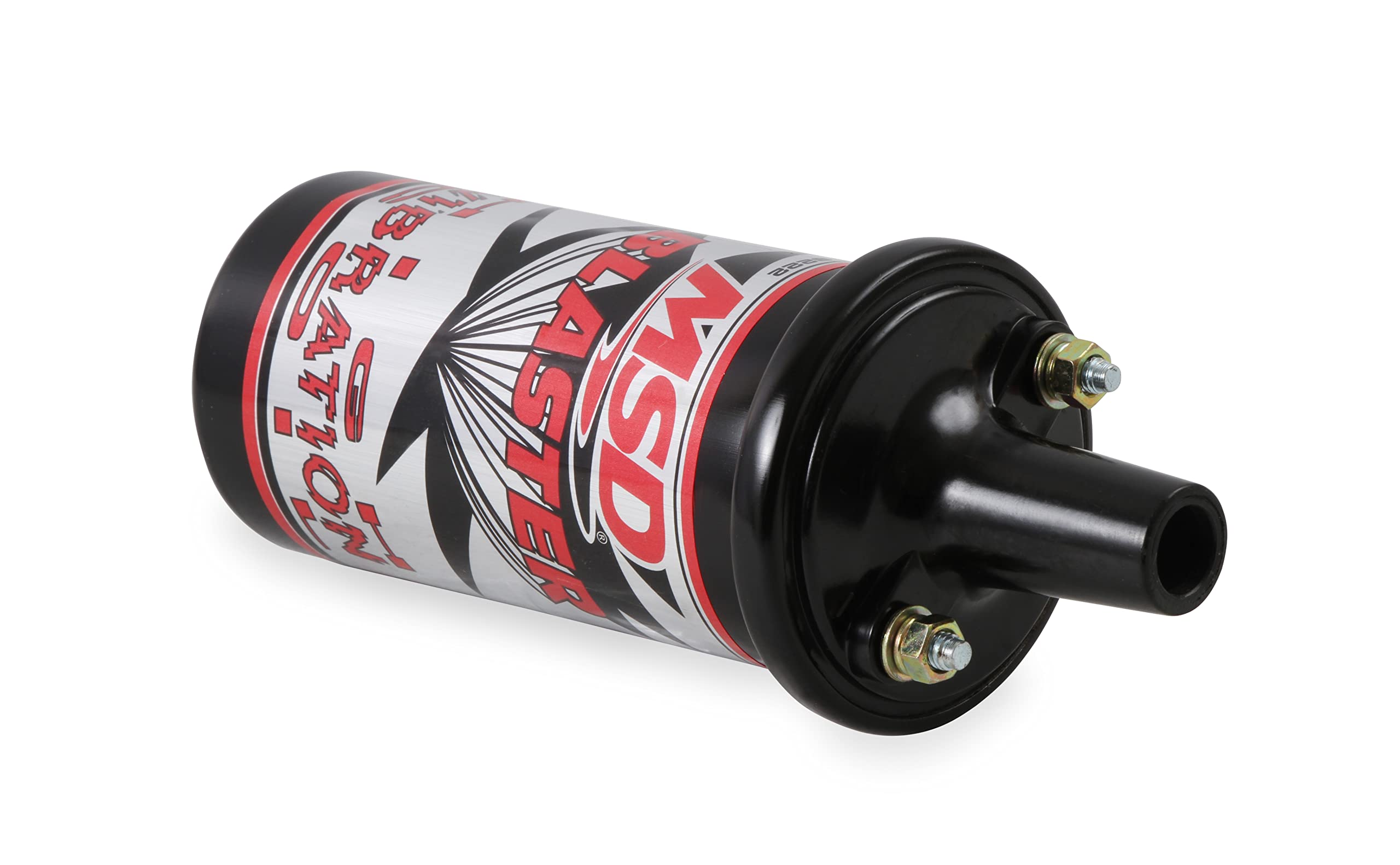

MSD Ignition Coil Canister High-Vibration 8222 Black — Epoxy-Potted, CARB-Approved

The MSD 8222 Blaster coil swaps into electronic ignition systems to provide stronger spark energy while resisting the stresses of tough operating environments. Encased in a metal canister and potted with epoxy, this coil protects its windings from vibration and impact. It meets CARB Executive Order approval for emissions compliance and is supplied as a single black unit for easy replacement or single-coil upgrades.

How does the MSD 8222 improve ignition performance?

This coil is designed with a 100:1 turns ratio and a lower primary resistance to produce higher secondary voltage compared with many stock coils. The increased voltage helps the ignition system generate a more robust spark across a variety of engine speeds and loads, benefiting combustion consistency without changing ignition timing.

• 100:1 turns ratio for higher secondary voltage output
• Reduced primary resistance to increase energy transfer
• Compatible with most electronic ignition systems for straightforward upgrades

Why is the canister construction important for high-vibration use?

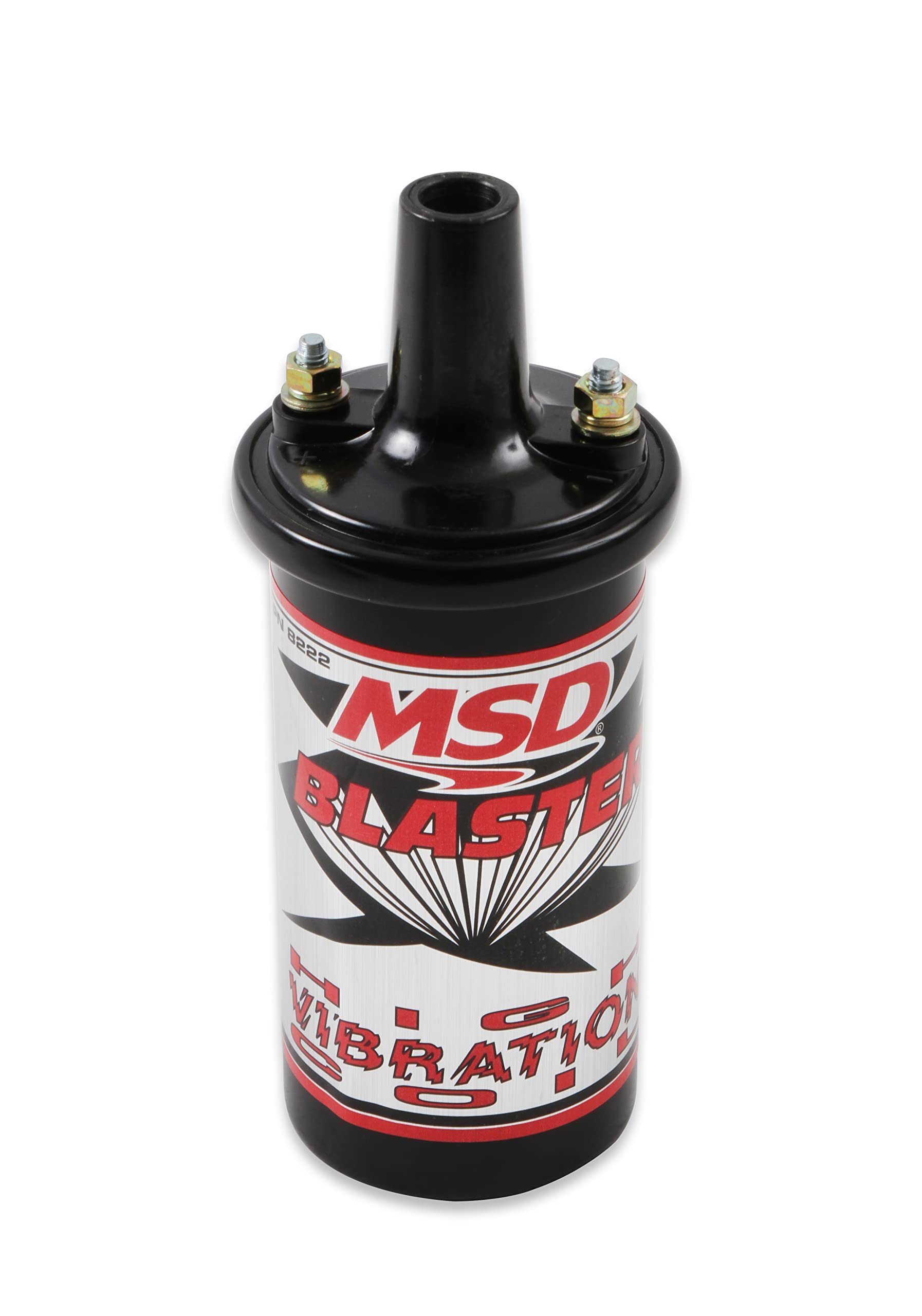

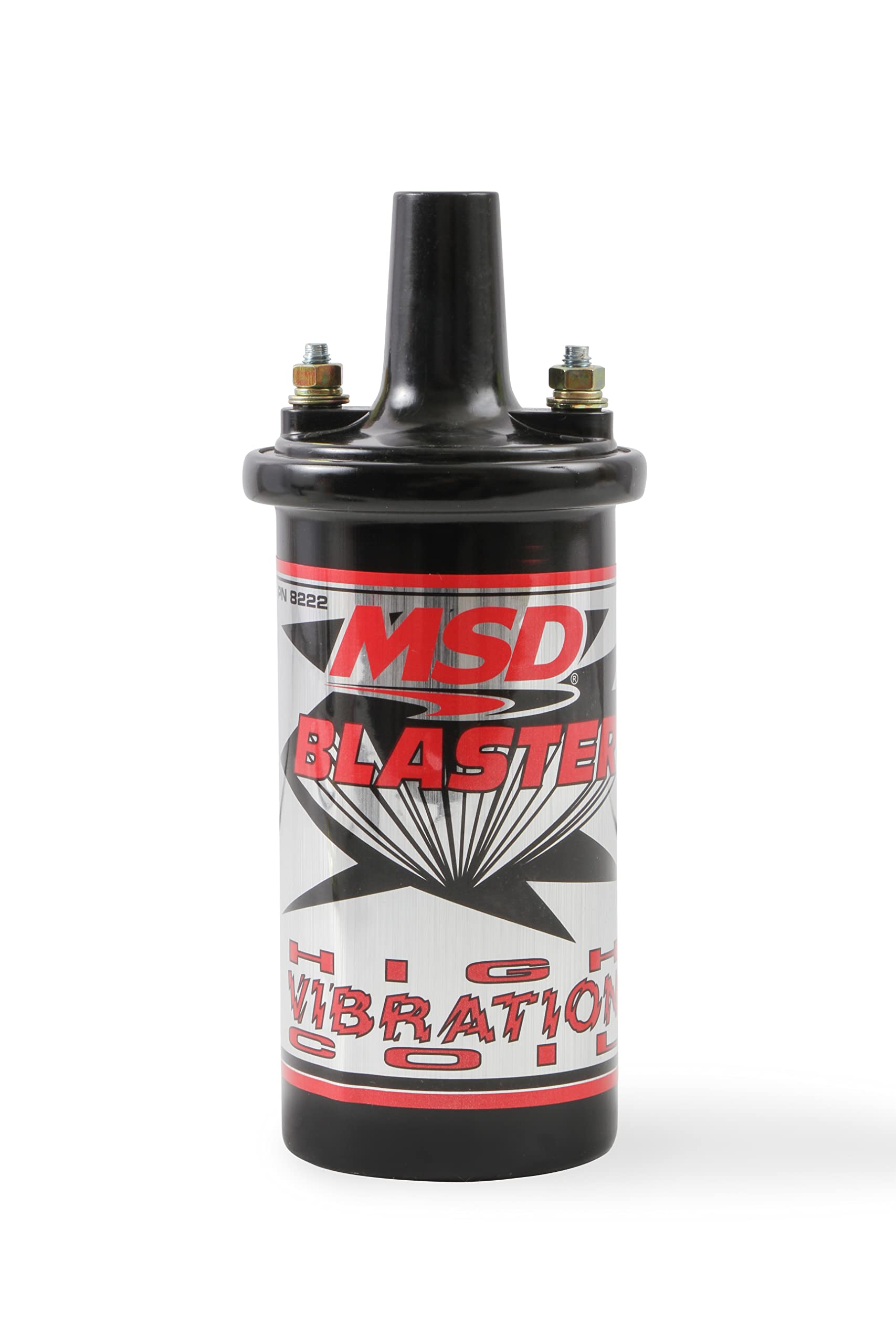

The metal canister is fully potted with epoxy to stabilize and shield the internal windings. This construction prevents coil damage and intermittent performance in engines that experience constant vibration, such as off-road, racing, or heavy-duty applications.

• Epoxy potting secures windings against movement and moisture
• Metal housing offers mechanical protection and heat dissipation
• Improved longevity in vibration-prone installations

Do I need any special wiring or resistors to install the MSD 8222?

For most modern electronic ignition systems, the 8222 installs like a standard coil. If you are replacing a points-style coil, a ballast resistor is required to match the coil to that ignition type; MSD notes that a ballast resistor is necessary when used with contact points.

• Standard plug-and-play installation for electronic ignitions
• Ballast resistor required when used with points-style distributors

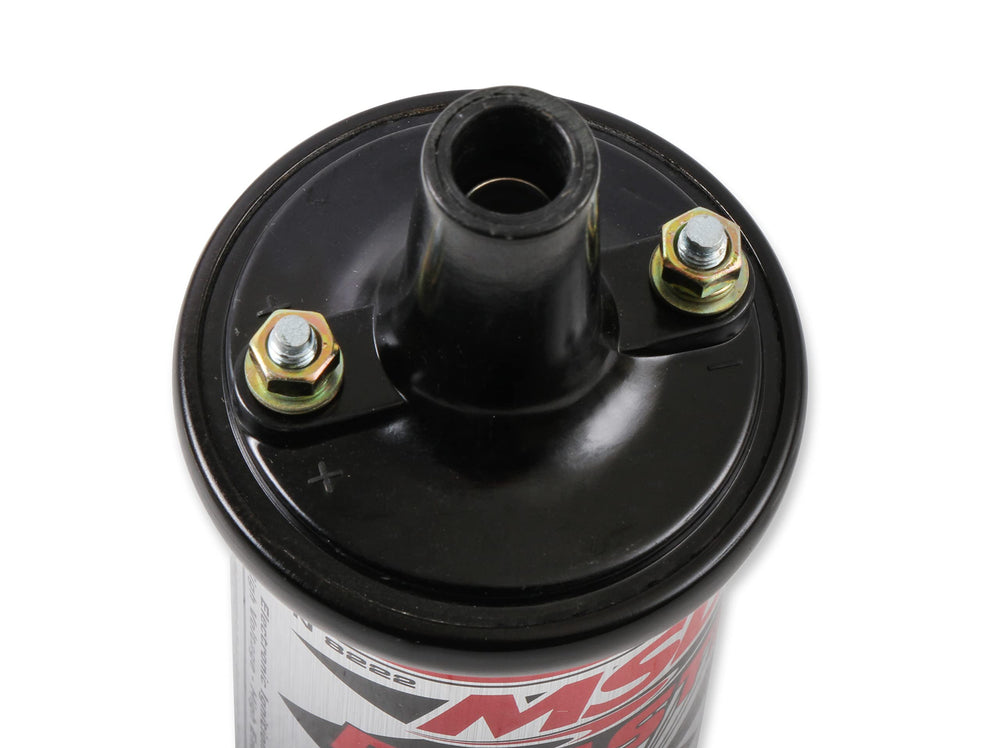

• Check connector polarity and mounting orientation during installation

Is the MSD 8222 compliant with emissions rules?

Yes — the MSD 8222 carries CARB Executive Order approval, indicating it meets applicable emissions and durability requirements for approved applications. Always verify your vehicle’s model year and local regulations before purchase or installation.

• CARB E.O. approved for compatible vehicle applications
• Designed to maintain emissions compliance when used as specified
• Sold as an individual coil for selective replacement or testing

Who is this for: The MSD 8222 Blaster coil is aimed at mechanics, hobbyists, and performance enthusiasts who need a rugged, high-output coil for electronic ignition systems — particularly in vehicles that experience high vibration or require reliable spark energy. It’s ideal for single-coil replacements, test installations, and use on engines where a durable canister-style coil and higher secondary voltage are desired. Verify compatibility with your ignition type and remember to install a ballast resistor if converting from points-based systems.
