Nilight 12V LED Light Bar Wiring Harness Kit with 5‑Pin Rocker Switch, 14 AWG, Relay & Fuse

The Nilight Off Road LED Light Bar Wiring Harness Kit is a complete 12V, 14 AWG relay-and-fuse protected wiring solution that includes a 5‑pin LED rocker switch for safe, plug-and-play installation of LED light bars.

This harness kit is designed to give you a tidy, reliable way to power and control auxiliary LED lighting on vehicles with 12V systems. Built with a heavy-duty 14 AWG stranded conductor, a power relay, inline blade fuse, and a nylon-jacketed cable, the package focuses on safety, durability, and straightforward installation. It’s packaged with a 5‑pin on/off rocker switch that features two indicator LEDs, spade connectors, blade fuses, and simple instructions so you can wire a light bar quickly and with confidence.

How does this harness protect my vehicle’s electrical system?

The kit protects circuits through a dedicated relay and an inline blade fuse that act as primary safeguards against overload and short circuits. Using a relay means the switch only carries low current while the heavy current flows through the fused relay circuit, reducing heat and wear at the switch contact points.

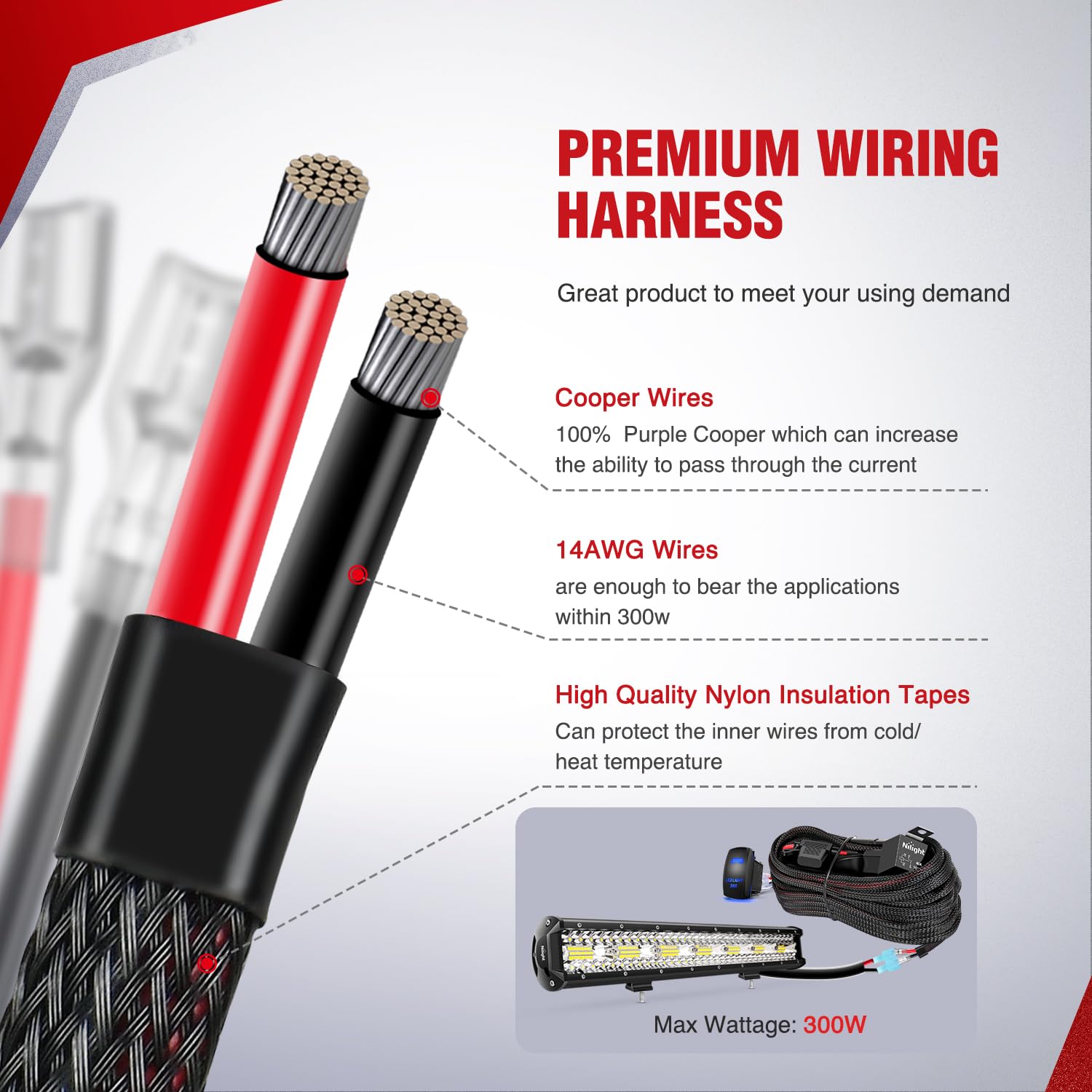

• 14 AWG stranded wire rated for up to 300 W loads

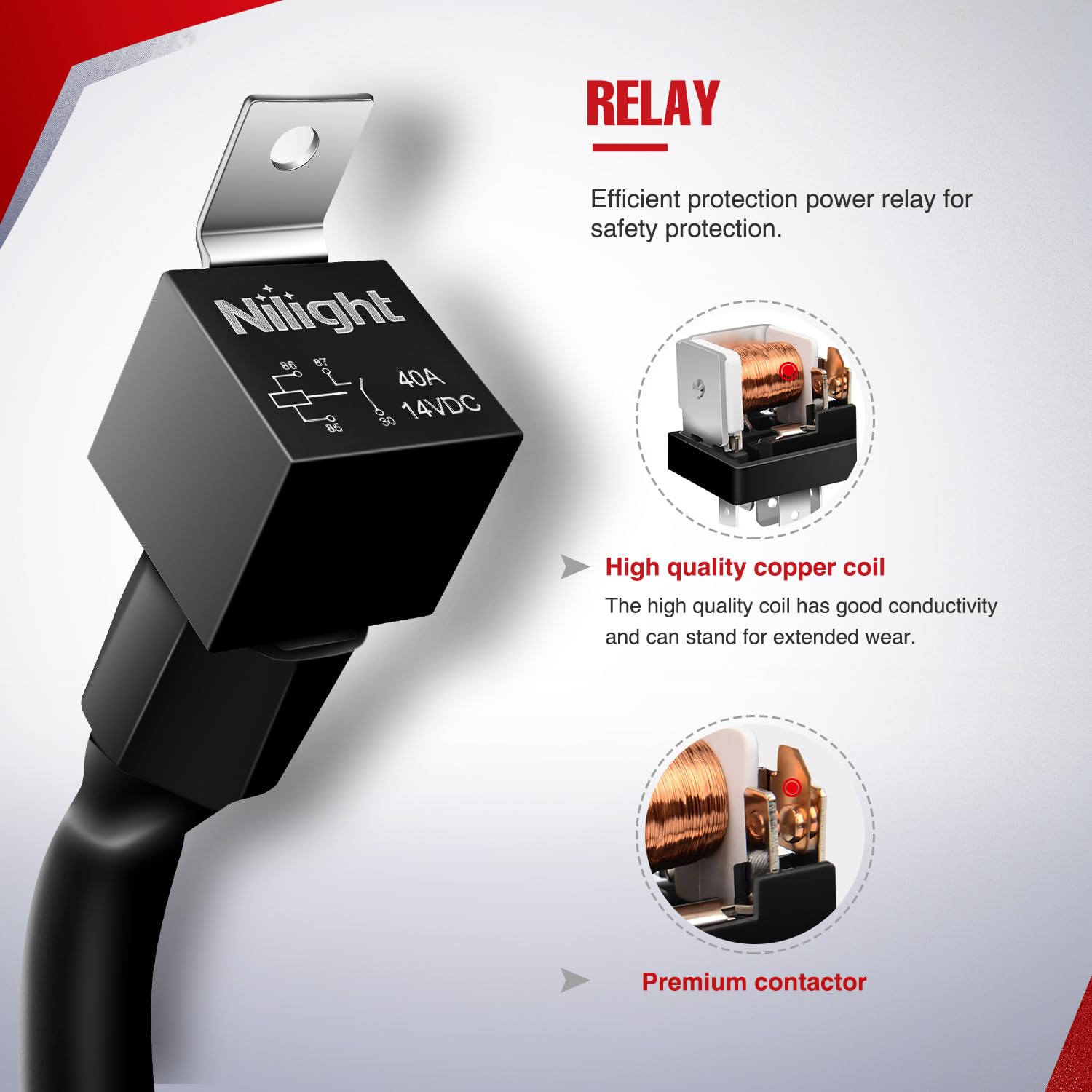

• Factory-installed power relay directs high current away from switch

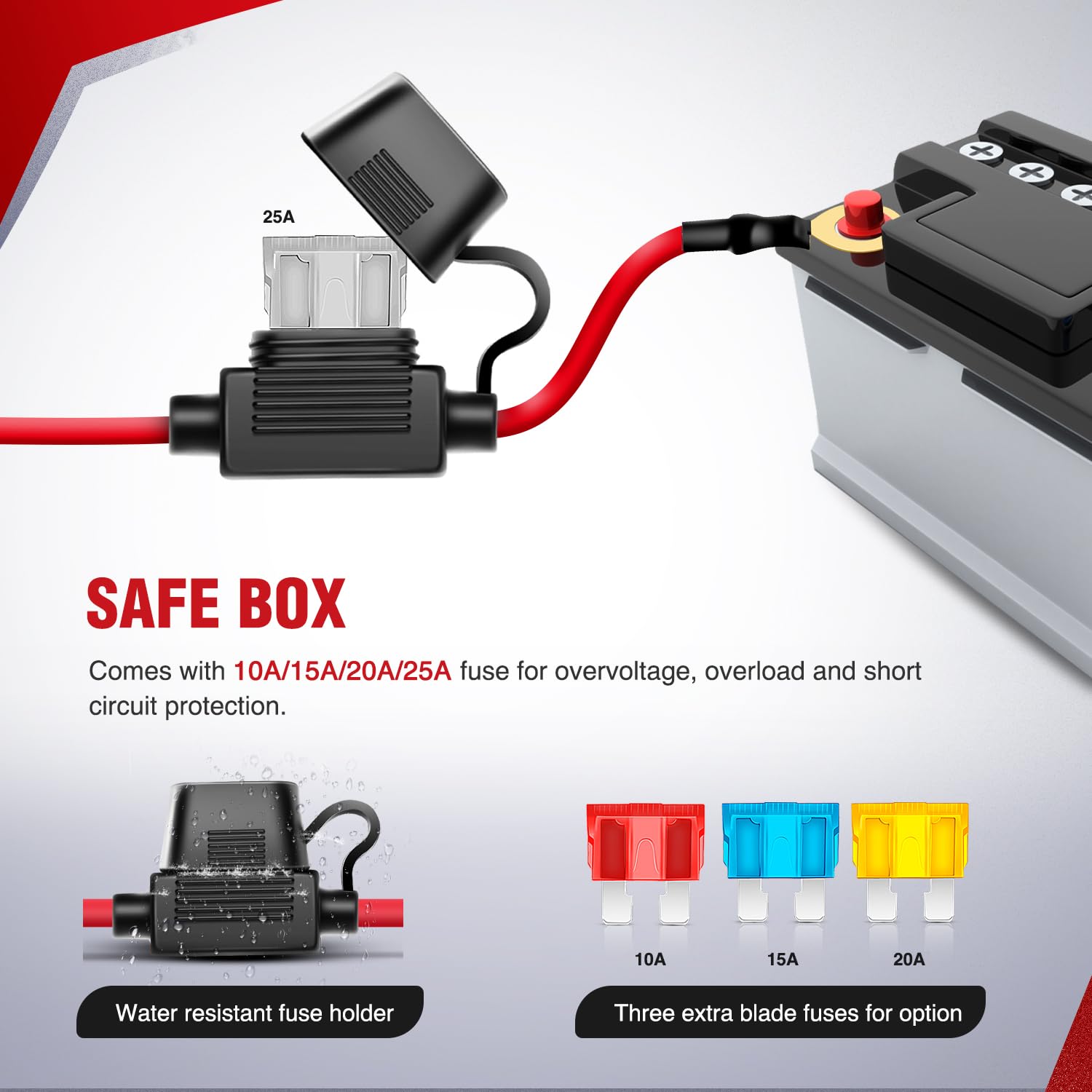

• Inline blade fuse provides first-line overcurrent protection

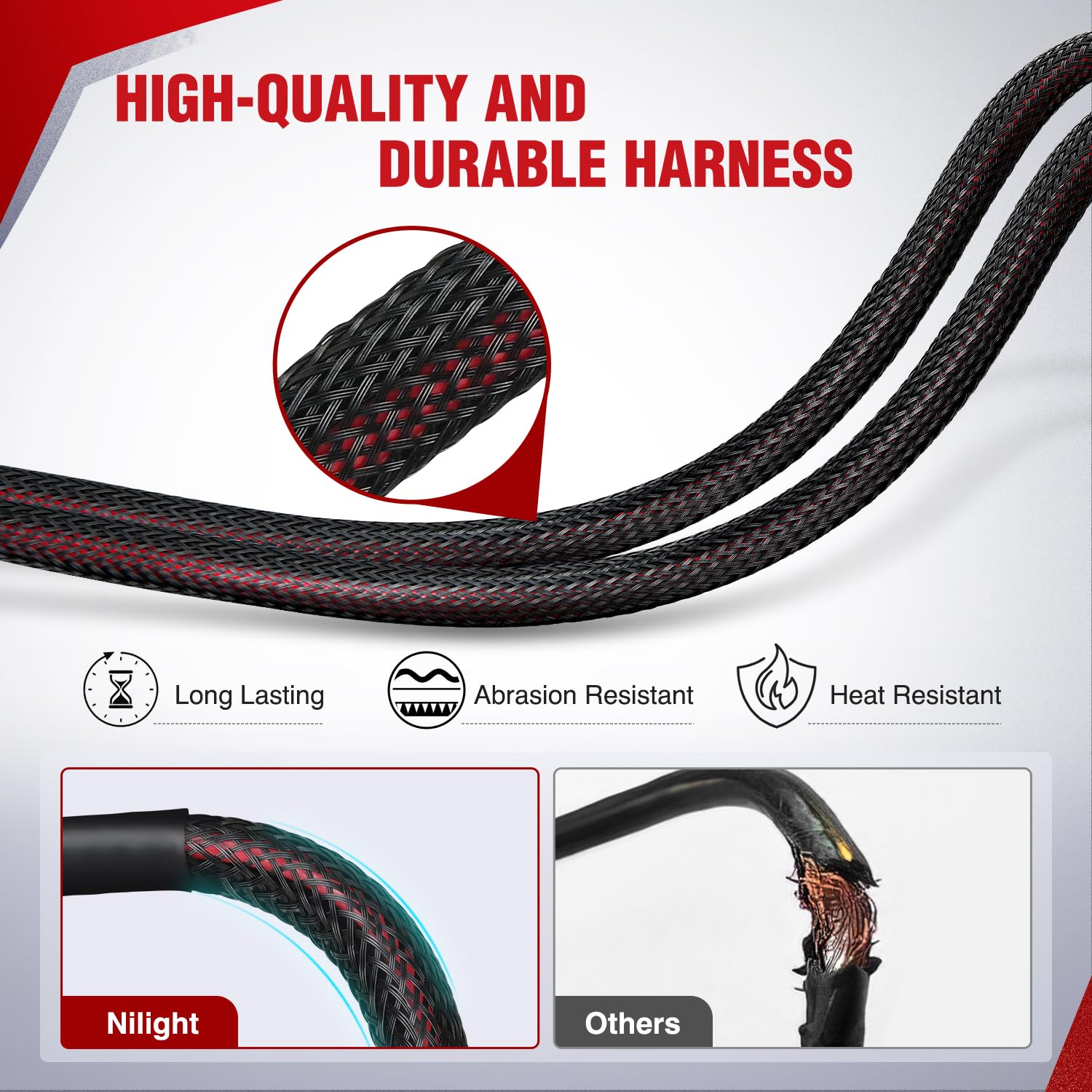

• Nylon jacket improves abrasion and heat resistance around wiring

What’s included and how easy is installation?

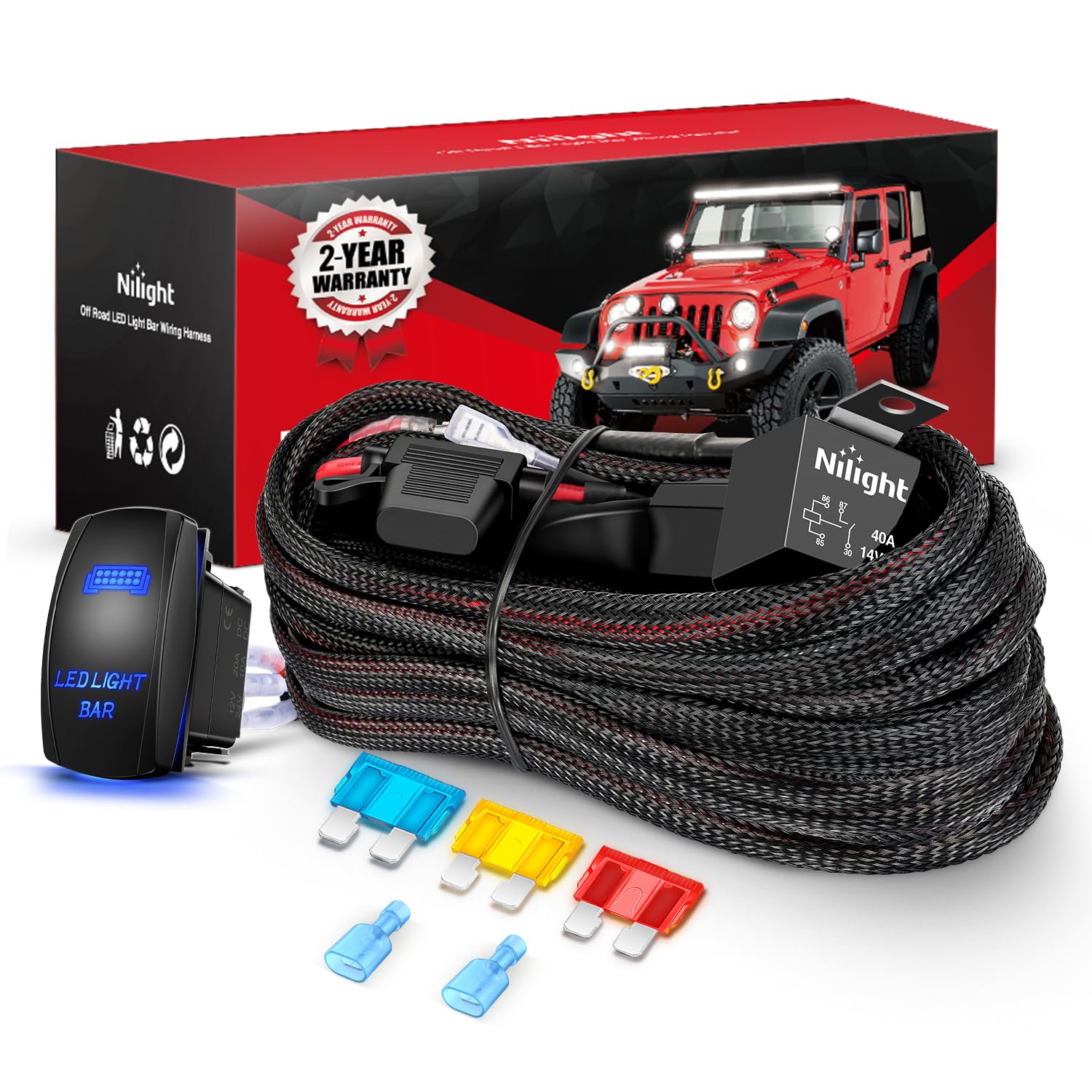

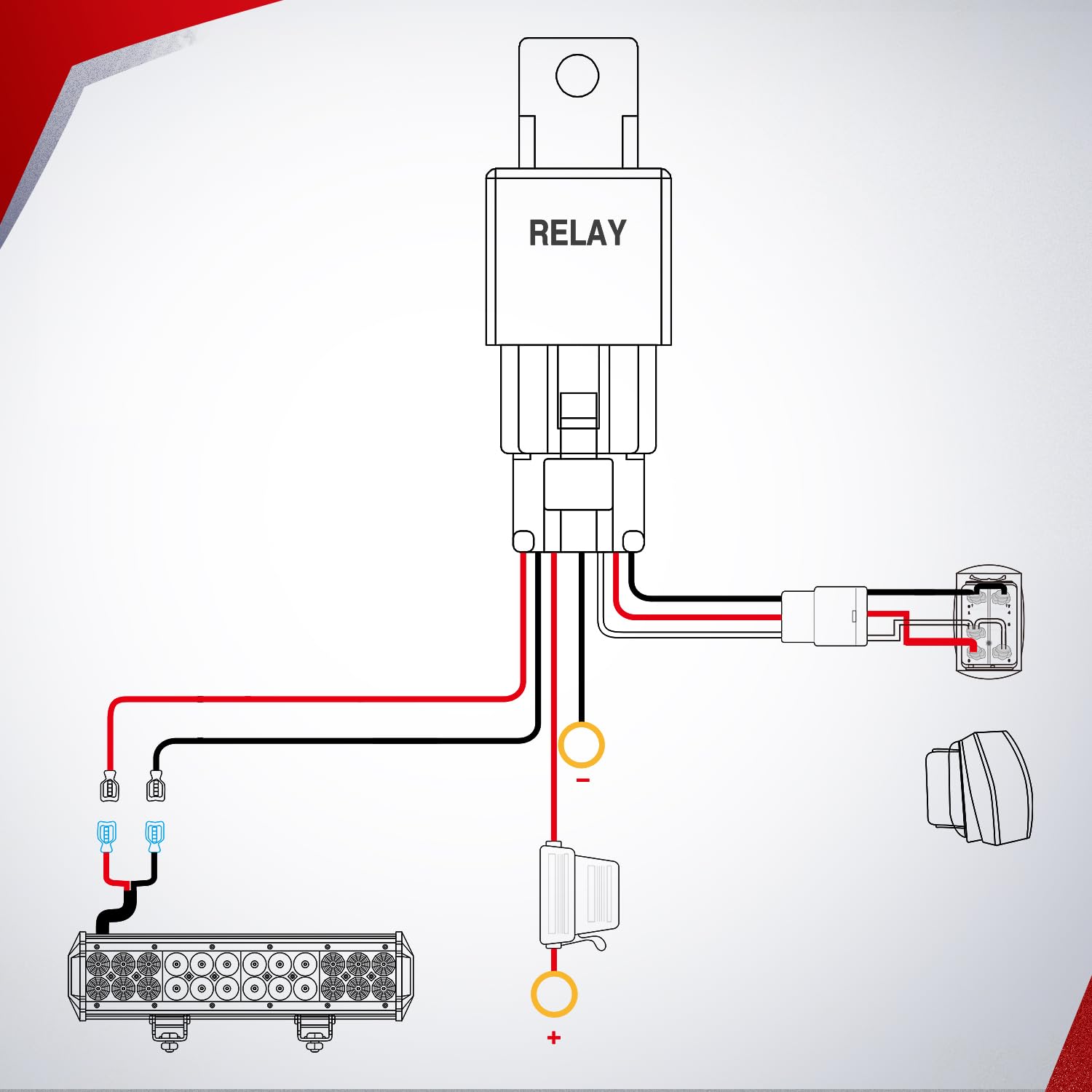

The package includes everything needed to connect most 12V LED light bars: the harness assembly, a 5‑pin SPST LED rocker switch, blade fuses, spade connectors, and step-by-step instructions. The wiring layout follows common automotive wiring conventions so you can mount the relay near the battery and route the switch to your dash or switch panel.

• 1 x wiring harness with 14 AWG wire and nylon jacket
• 1 x 5‑pin LED rocker switch with two built-in indicator LEDs
• Blade fuses and spade connectors for secure terminations
• Printed instructions for relay, fuse, power, ground, and lamp connections

Will this work with my vehicle and LED light bar?

The harness is compatible with nearly all 12V battery systems found in cars, trucks, SUVs, ATVs, UTVs, motorcycles, campers, RVs, boats, and trailers, provided the light bar’s wattage stays within the harness’s rated capacity. Check your LED light bar’s power draw to ensure it does not exceed the harness’s recommended maximum load.

• Rated for 12V systems common in automotive and marine use
• 14 AWG supports moderate to high-power LED arrays up to the kit’s limit
• Universal connectors adapt to common light-bar terminals
• Switch and relay placement options for dash-mounted control or remote installs

How does the 5‑pin rocker switch improve usability at night?

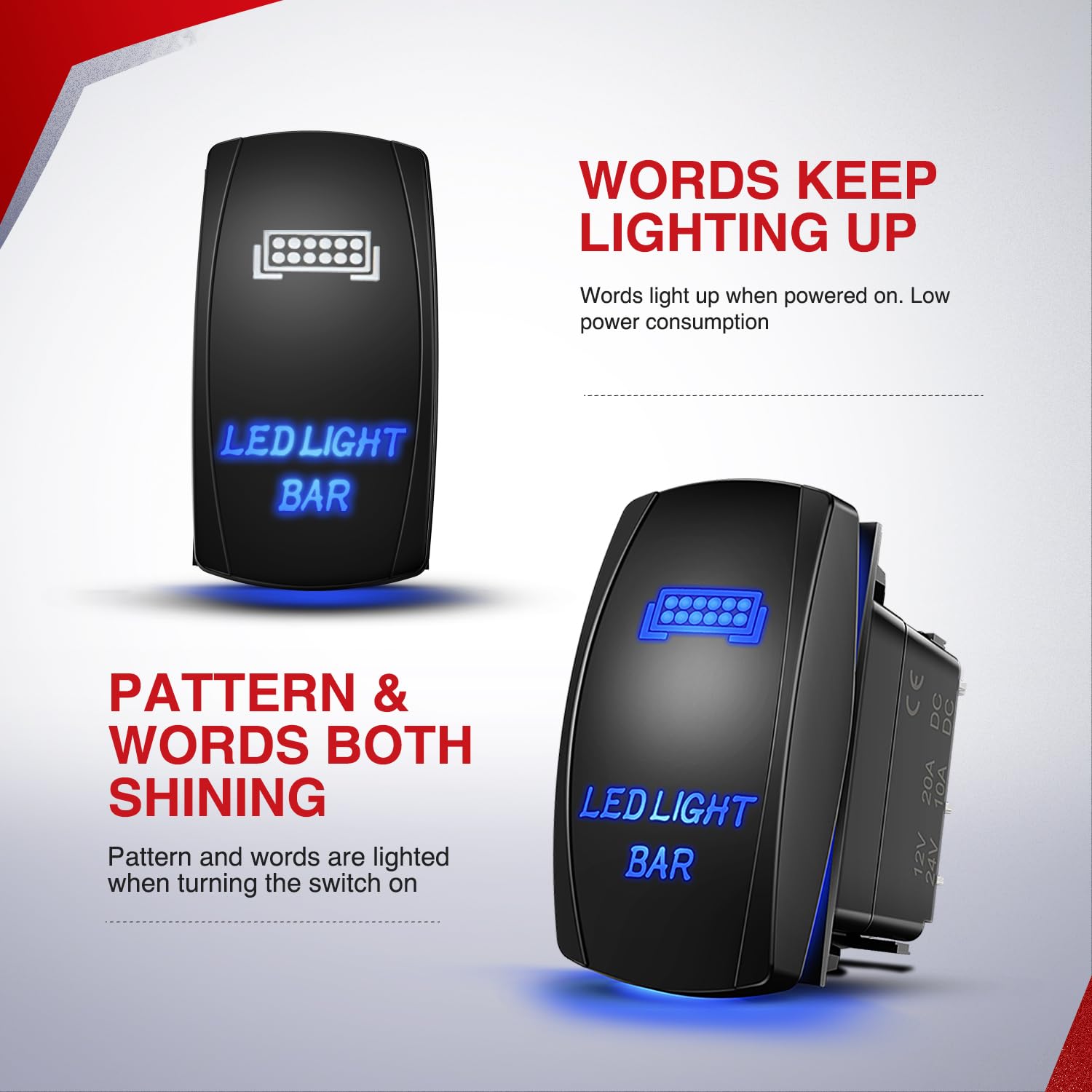

The Nilight 5‑pin SPST rocker switch includes two small LEDs that softly illuminate the switch pattern, making it easy to find and operate in low-light conditions. The switch’s SPST design keeps operation simple — flip to on or off — while the illuminated pattern avoids fumbling during nighttime drives or off-road sections.

• Two built-in indicator LEDs for quick visibility in the dark
• SPST design minimizes wiring complexity and points of failure

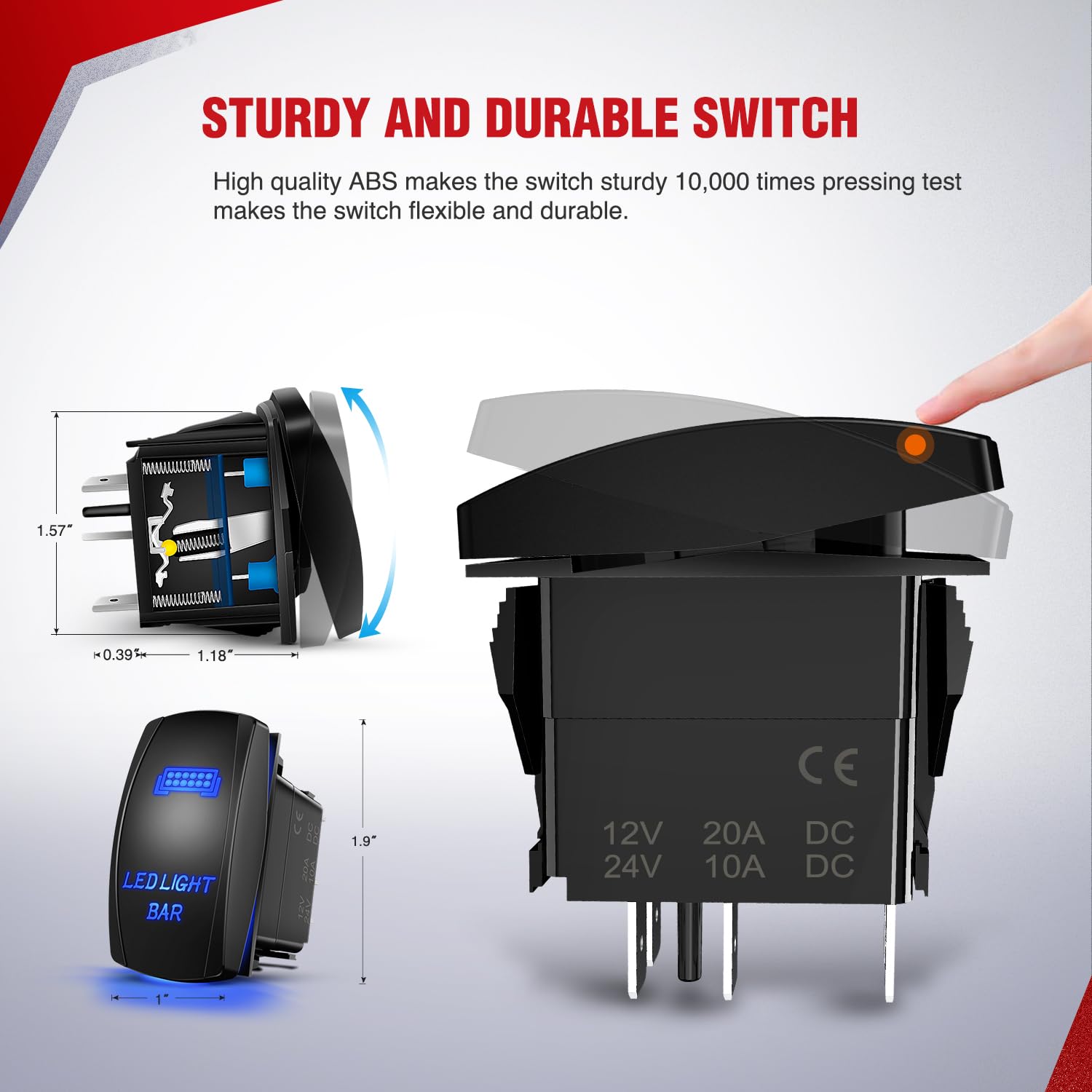

• Durable switch housing suited to automotive vibrations
• Simple on/off control keeps operation intuitive while driving

Who this is for: This Nilight wiring harness kit is ideal for DIYers, mechanics, and off-road enthusiasts who want a dependable, tidy, and protected wiring solution for mounting auxiliary LED light bars. It suits drivers who need a rugged harness for outdoor conditions, installers who prefer pre‑assembled relay/fuse protection, and anyone seeking an illuminated dash switch for nighttime use. Verify your LED light bar’s wattage before installation to match the harness capacity.
