Orion Motor Tech Front Hub & Rear Axle Puller Set — Universal Flange Kit, 5/8" Forcing Bolt, AISI 1045 Steel

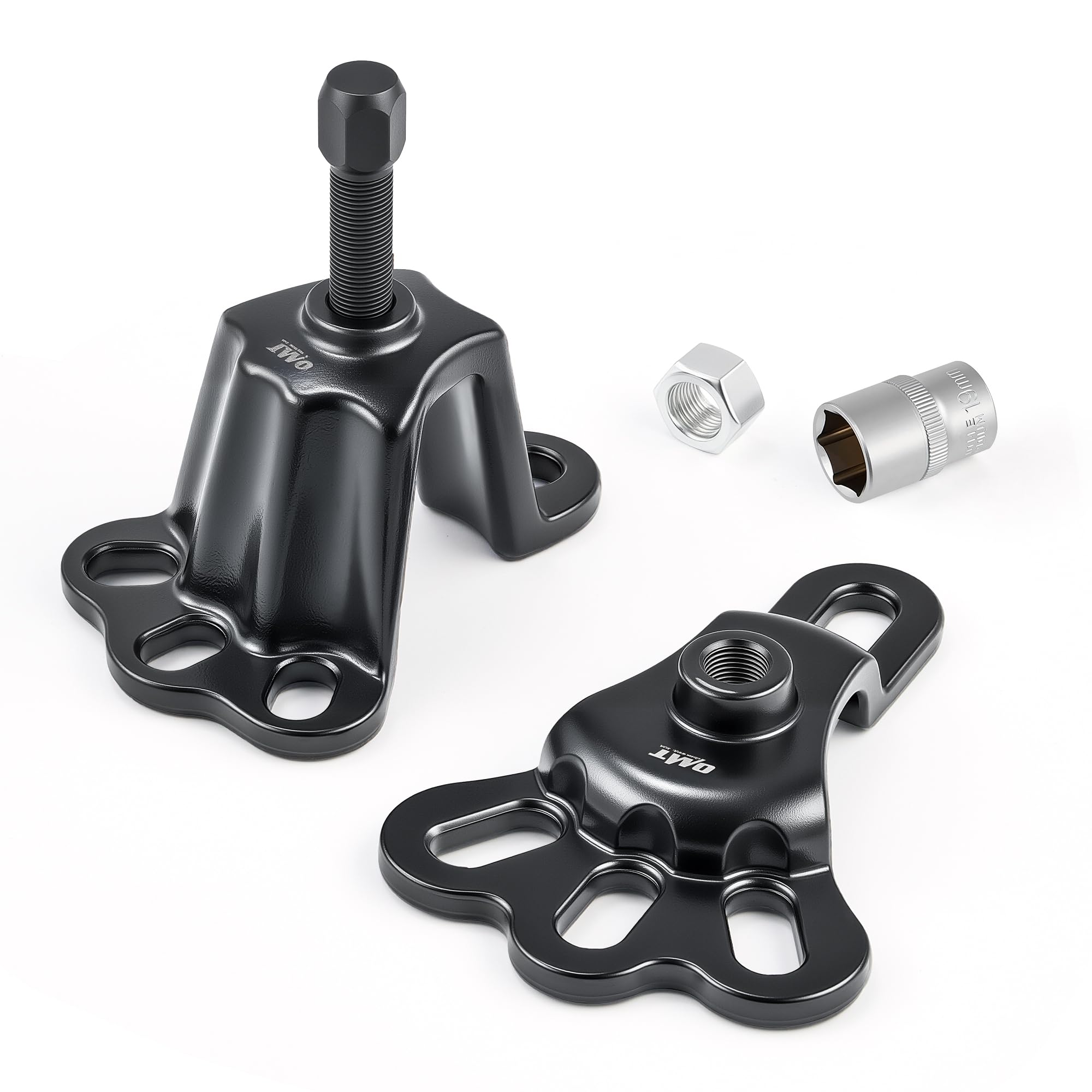

This compact set gives home mechanics and professional technicians a targeted way to separate hubs and axles without damaging surrounding components. Each piece is machined from AISI 1045 medium carbon steel and finished for corrosion resistance, and the kit includes the forcing bolt, nut and a socket so you can begin jobs quickly. The design centers on applying even, axial force to preserve the hub bearing and nearby assemblies while extracting the flange.

How does the puller remove seized hubs and axles without harming other parts?

The puller set locks onto the flange and transfers straight, even pressure through a hardened forcing bolt so the hub or axle slides free along its axis. Because force is concentrated at the flange interface, the inner bearing and suspension components remain undisturbed when used correctly.

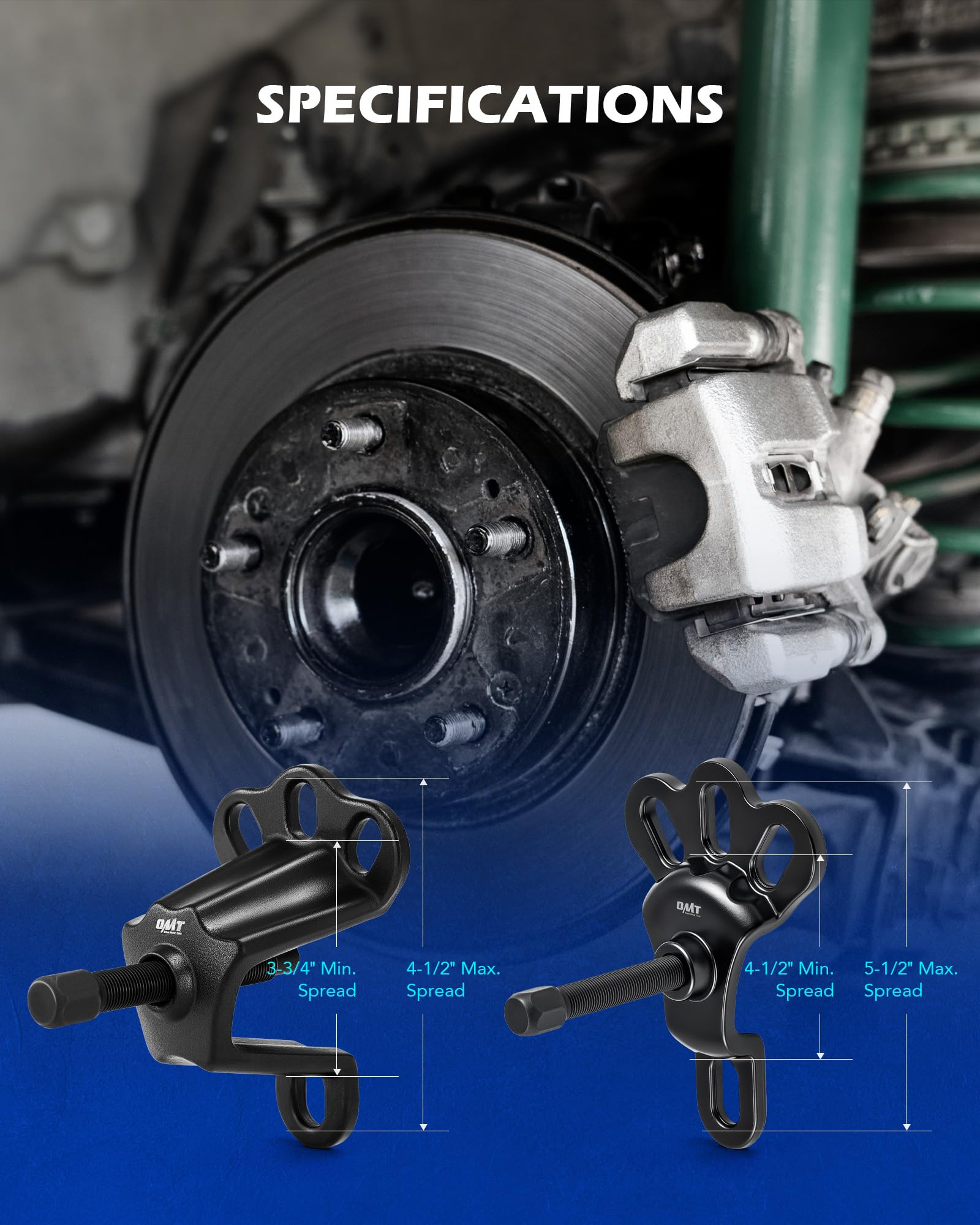

• Flange-style grip secures around 3-3/4" to 5-1/2" hub diameters for stable pulling.

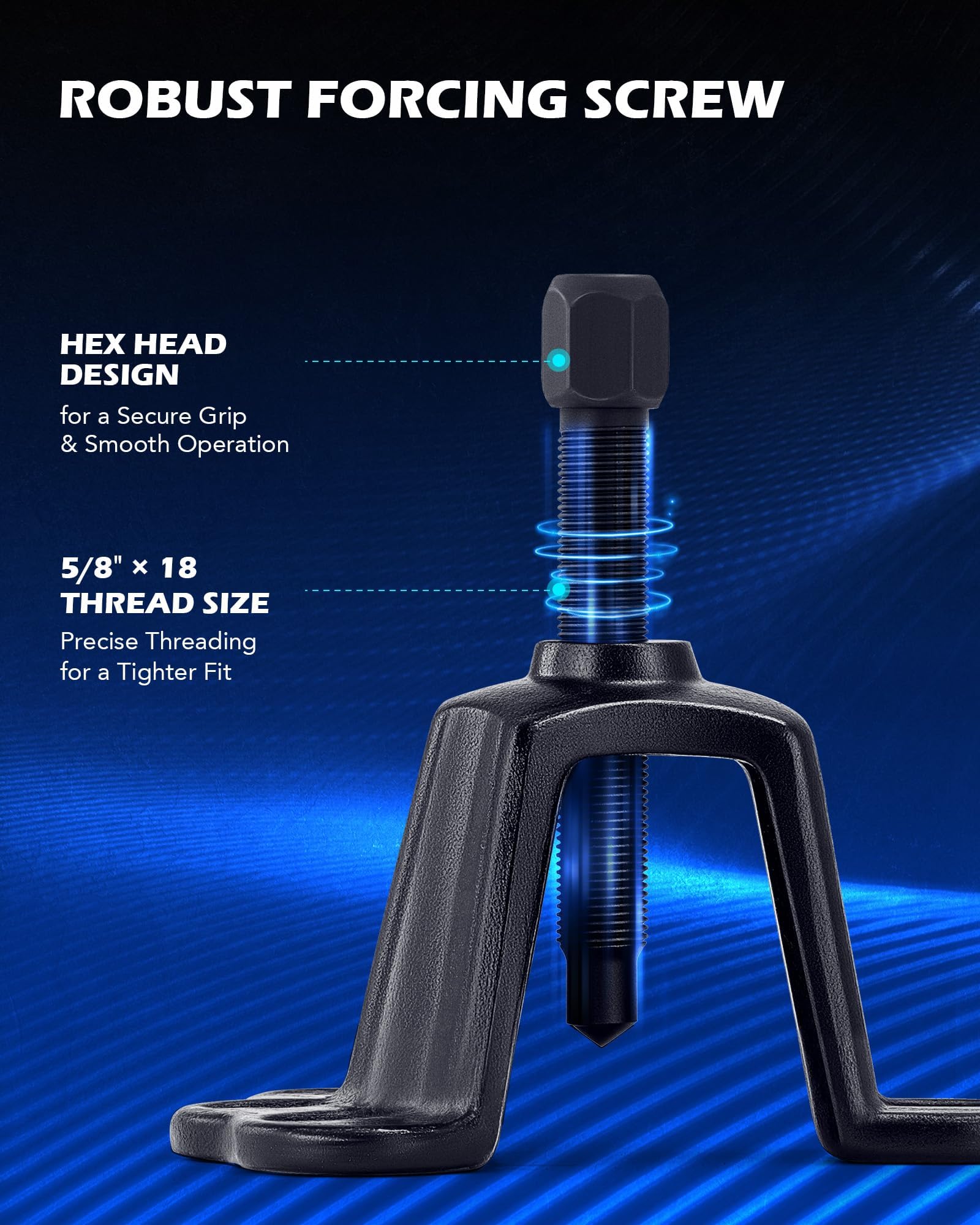

• 5/8" x 18 forcing bolt delivers controlled axial force to push the hub off the axle.

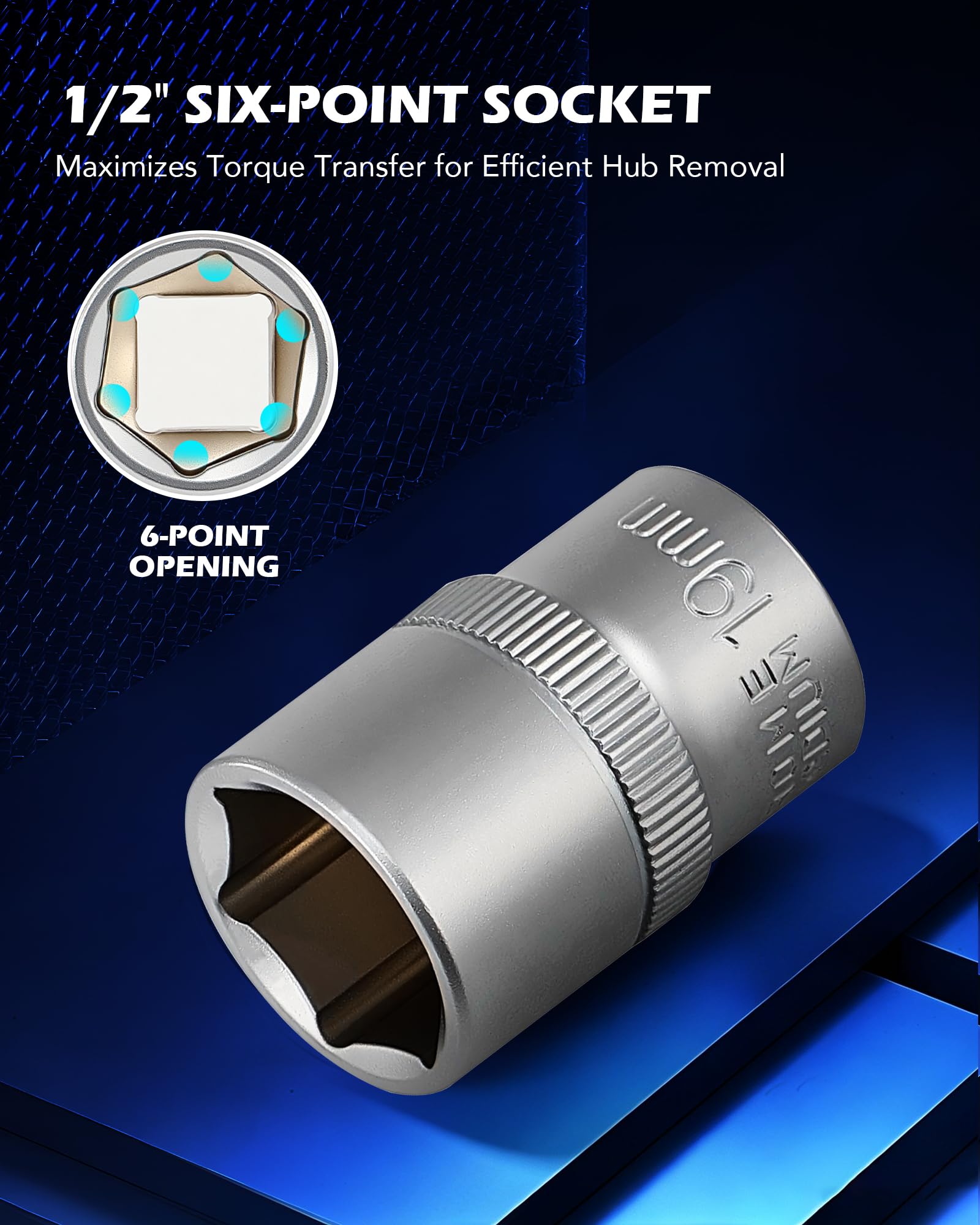

• Socket and nut allow ratchet or breaker-bar operation—no improvised hammering.

Which vehicles will this kit fit and how universal is it?

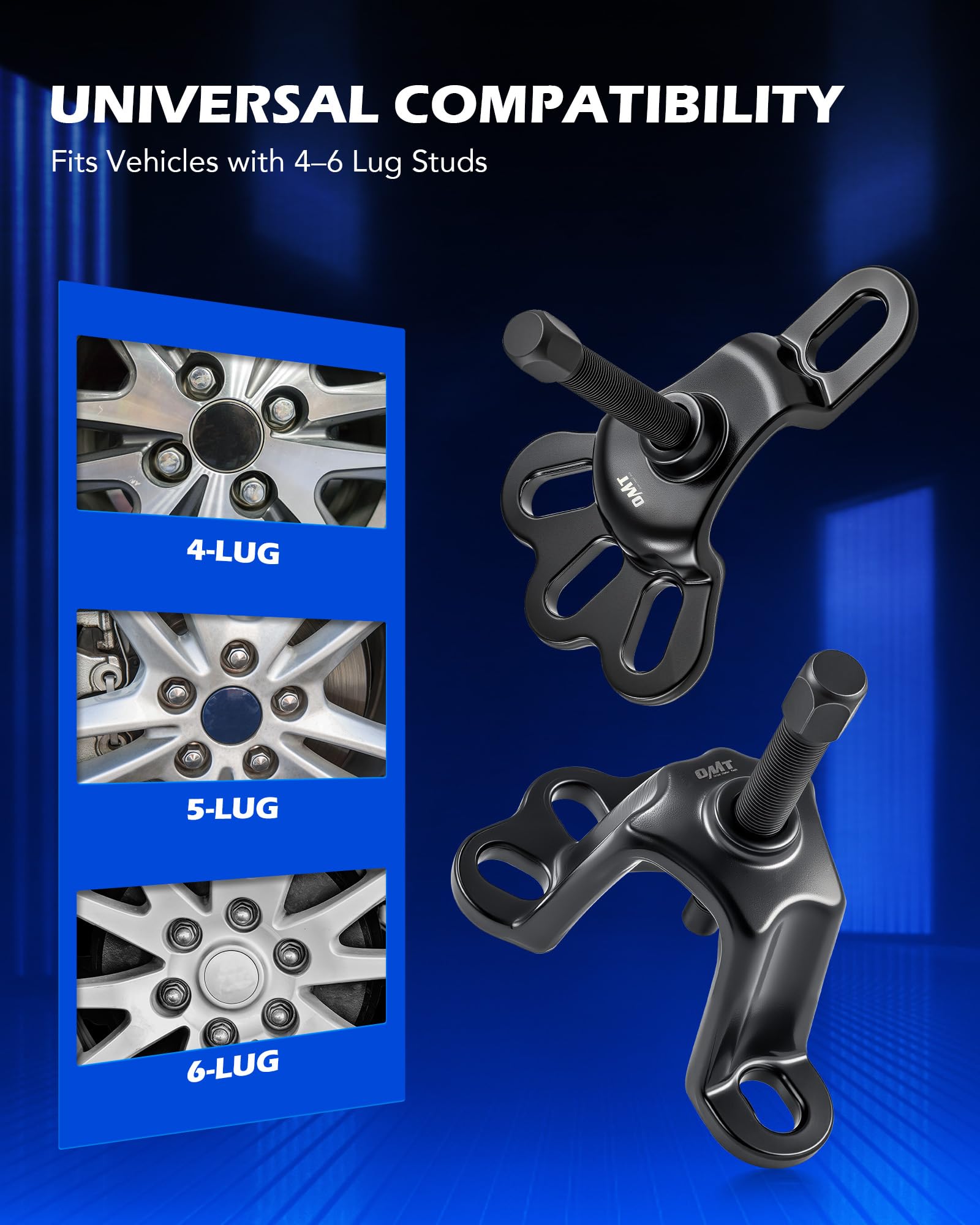

Designed as a universal kit, the front hub puller covers most independent front suspension hubs and the axle puller fits many 4.5"–5.5" flange applications. Threading on the forcing bolt is standard 5/8" x 18, letting you use other adapters for added compatibility with different models.

• Front hub puller works with common independent front wheel suspensions.
• Two-size range covers many wheel hub and axle flange dimensions.
• Standard forcing-bolt thread accepts aftermarket adapters where needed.

What materials and finishes make this set durable for repeated shop use?

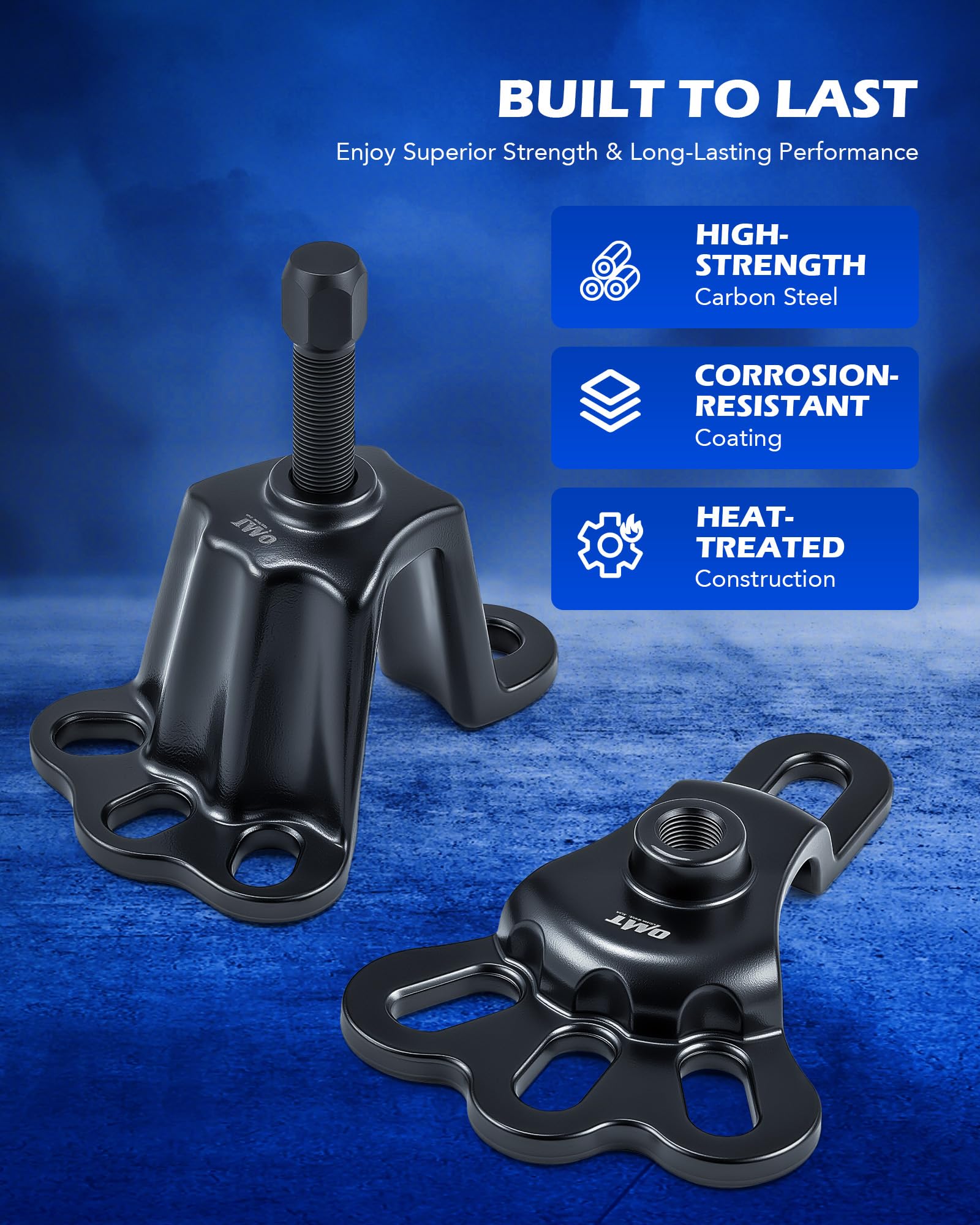

Each component is constructed from AISI 1045 medium carbon steel, offering a balance of strength and toughness for automotive pulling tasks. Parts are heat-treated and finished in black oxide or chrome plating to resist wear and corrosion, extending service life under harsh garage conditions.

• AISI 1045 medium carbon steel for high yield strength and fatigue resistance.
• Heat-treated forcing bolt maintains threads and compressive strength.
• Blackened or chrome-plated surfaces reduce rust and simplify cleanup.

How do I use the kit safely and what tools do I need?

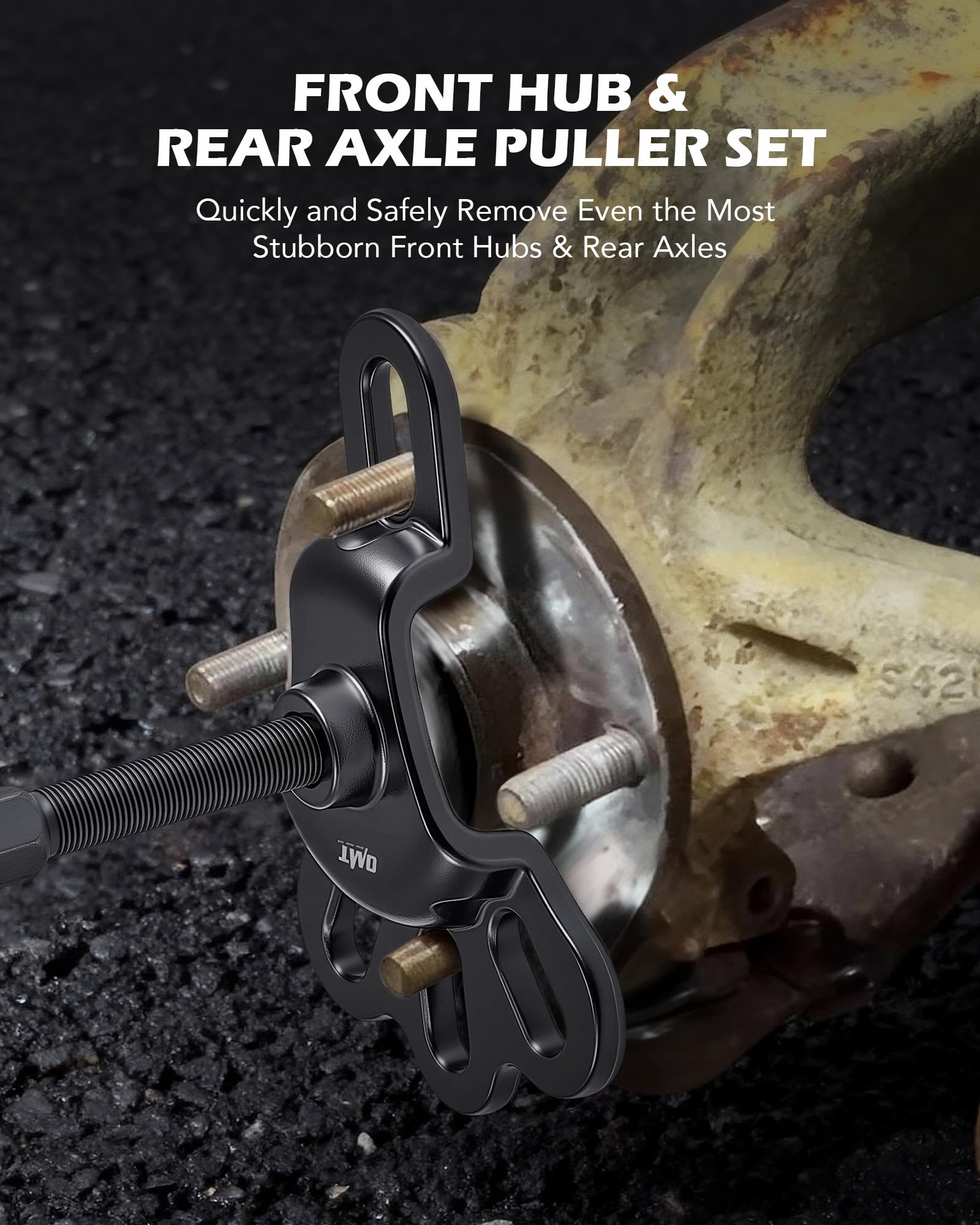

Position the flange jaws around the hub, thread the forcing bolt through the puller, then tighten with a ratchet or breaker bar until the hub releases. Work gradually, keep the assembly aligned, and inspect bearings and seals after removal. Use appropriate eye protection and follow vehicle-specific service procedures.

• Required: ratchet, breaker bar or impact wrench compatible with included socket.
• Recommended: penetrating oil, anti-seize, and a torque wrench for reassembly.
• Tip: apply steady, even turns; avoid sudden impacts that can damage threads.

Who is this for: The Orion Motor Tech OMT Front Hub and Rear Axle Puller Set is ideal for DIY car owners, mobile mechanics and small repair shops that need a reliable, reusable tool for removing stuck wheel hubs and axle flanges. It suits anyone working on common passenger vehicles with independent front suspensions and those who value durable, serviceable tools built to industry-standard specifications.
