Orion Motor Tech Front Wheel Hub Puller Set — Universal 3-3/4"–4-1/2", Heat-Treated Steel with Forcing Bolt

Orion Motor Tech's Front Wheel Hub Puller Set is a universal, heavy-duty kit designed to remove stuck front wheel hubs quickly and safely from most independent front suspension vehicles.

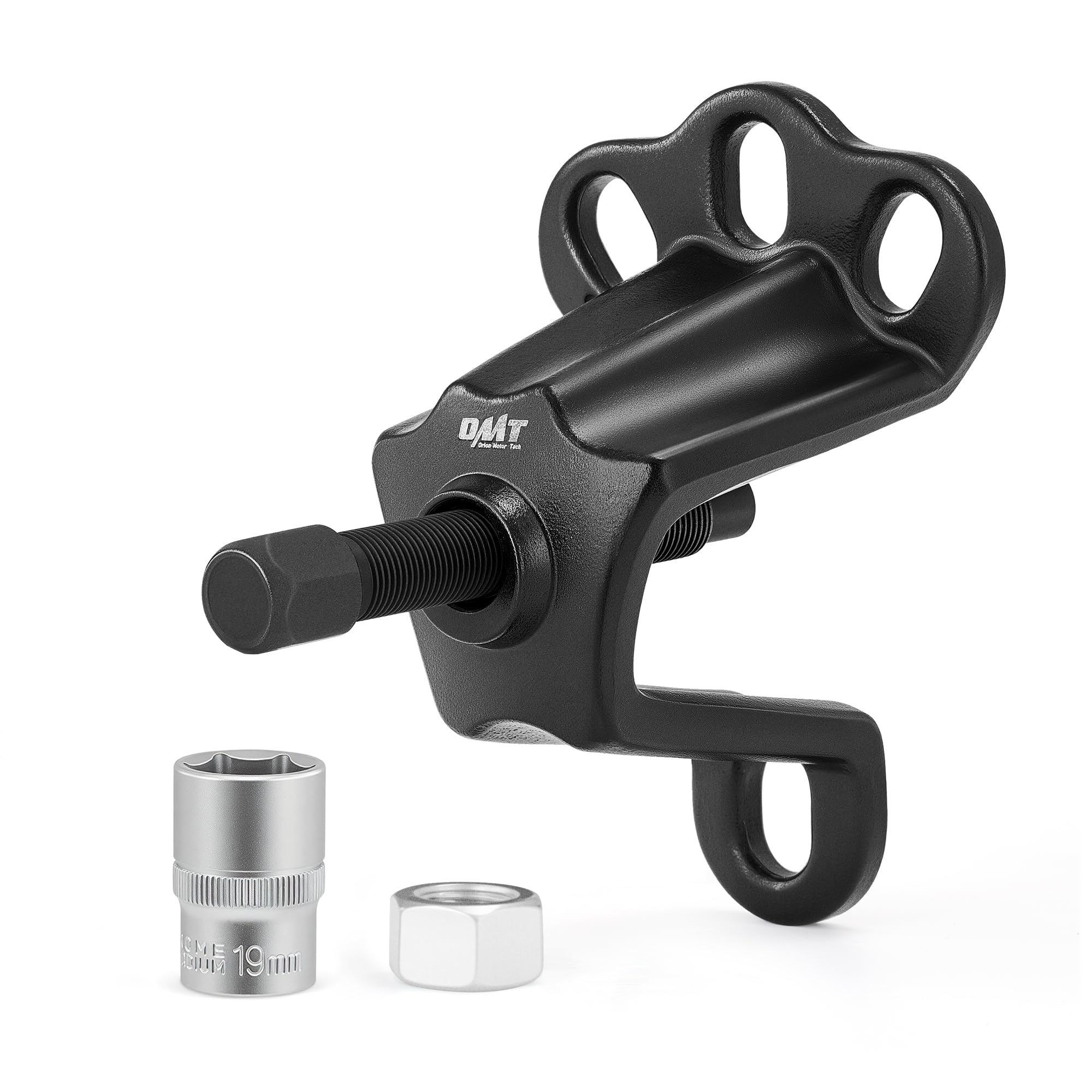

If you're facing a seized or stubborn front hub, this complete set gives you the right combination of parts and strength to extract the hub without harming the wheel bearing or surrounding components. The kit includes a universal 3-3/4" to 4-1/2" hub puller, a 5/8" x 18 forcing bolt, a fasten lug nut, and a dedicated socket—each component heat-treated and finished for durability. Built from AISI 1045 medium carbon steel and finished in blackened or chrome plating, the tools resist wear and corrosion while delivering reliable, straight pulling force when you need it.

How does this set remove a stubborn front wheel hub?

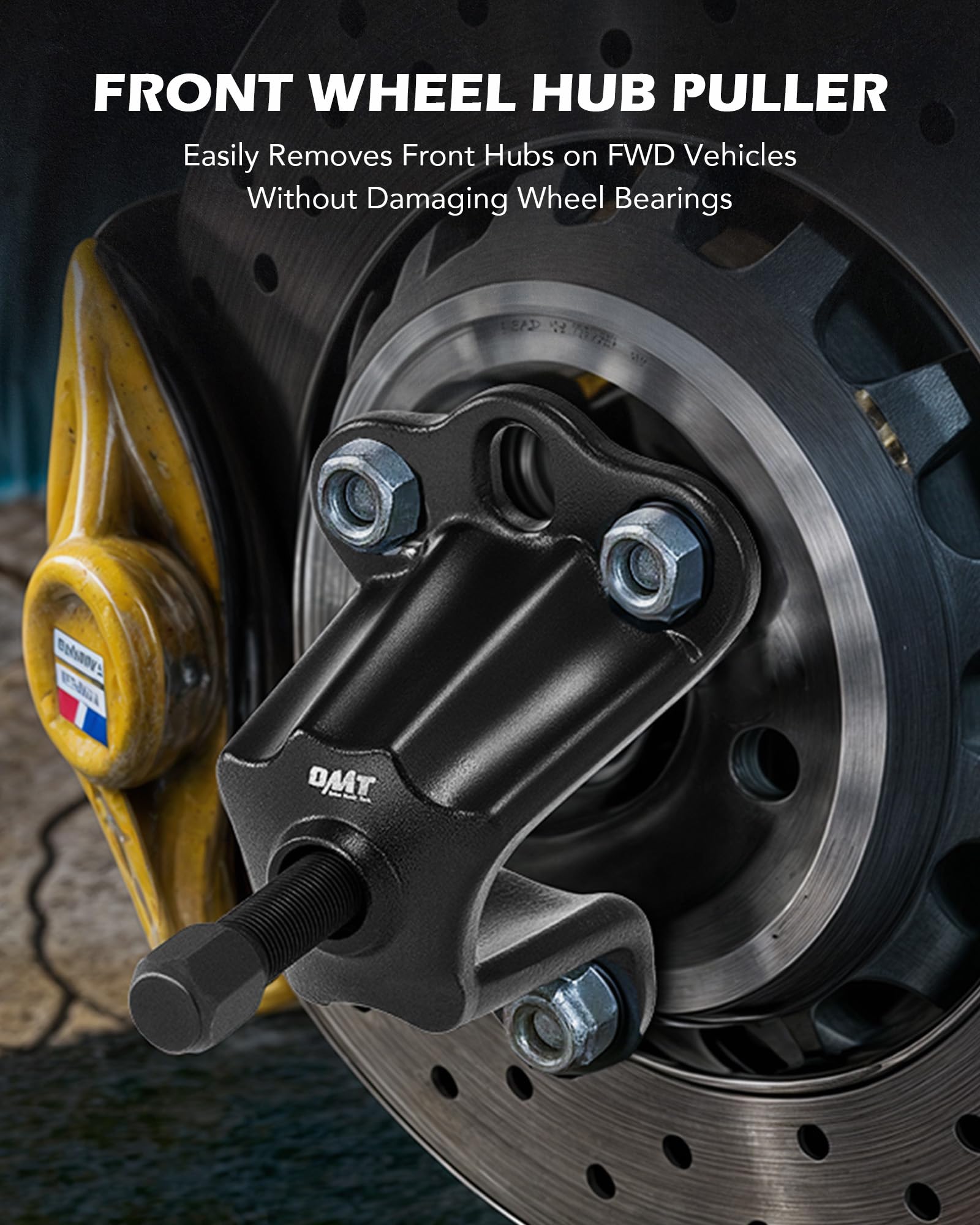

The kit works by centering and locking onto the axle assembly so the forcing bolt applies even axial pressure to pop the hub off its taper. Because the tool pulls the hub alone, the wheel bearing stays in place inside the joint and nearby components remain undisturbed.

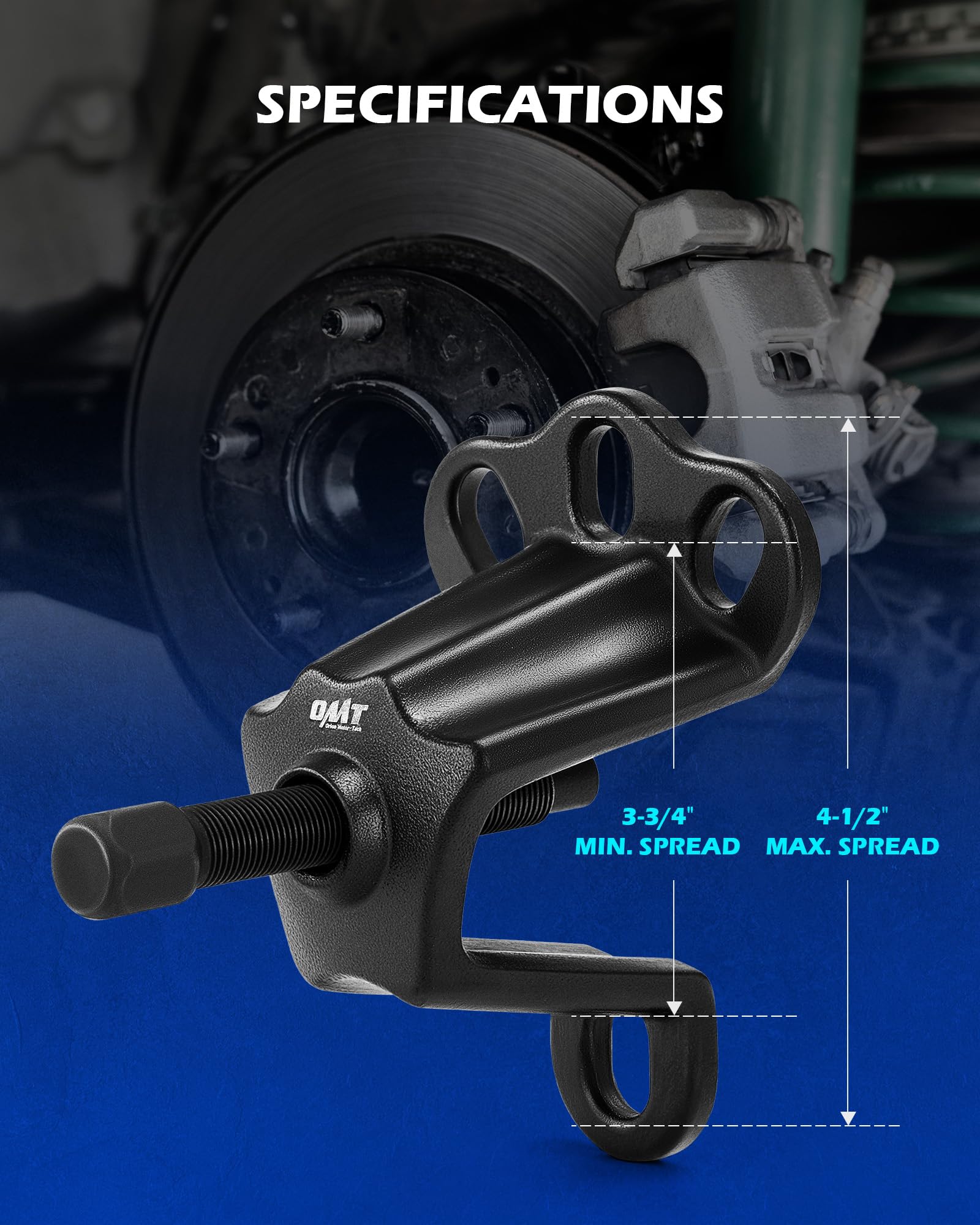

• Universal puller grips 3-3/4" to 4-1/2" hub diameters for broad fitment

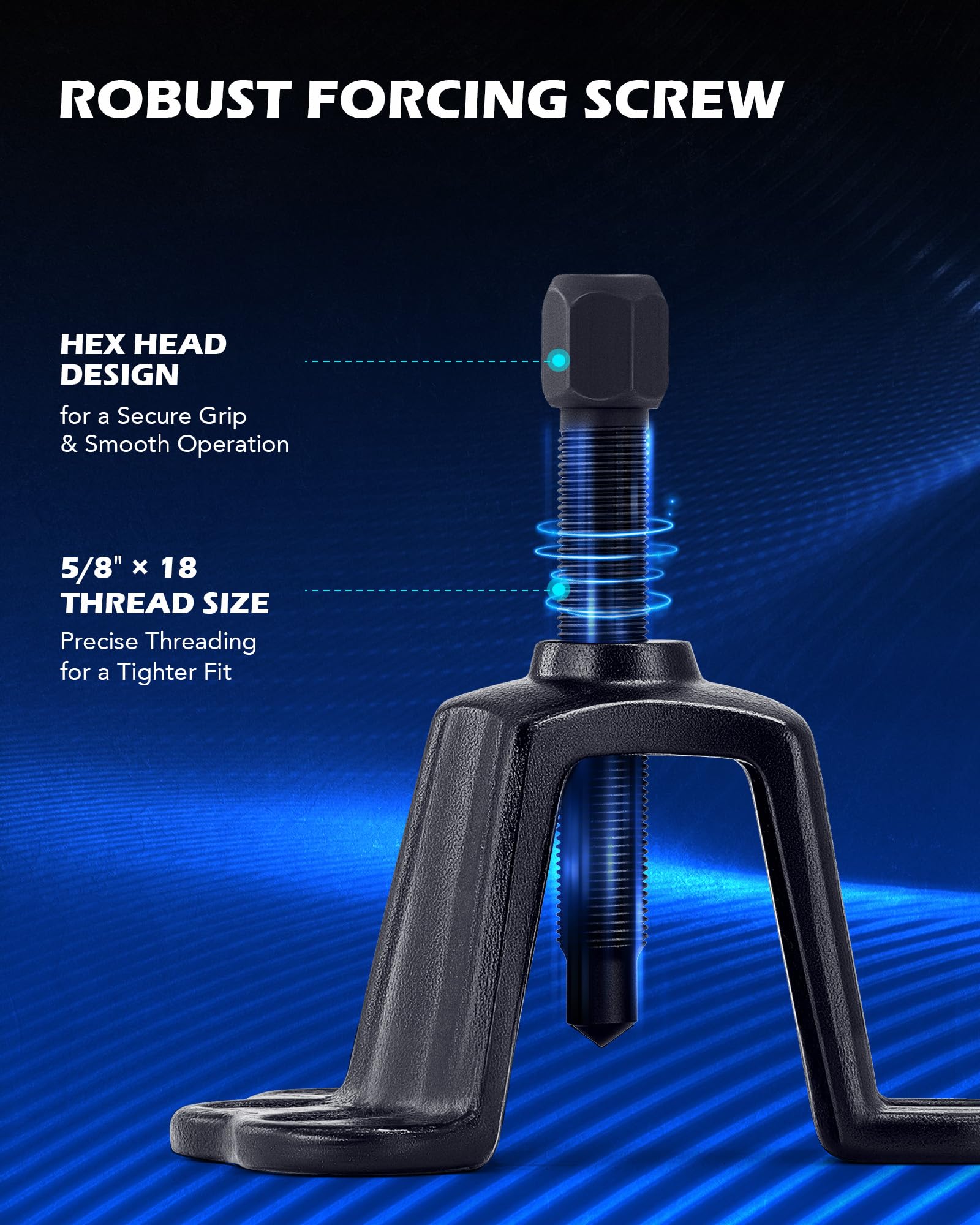

• 5/8" x 18 forcing bolt delivers aligned, controlled force

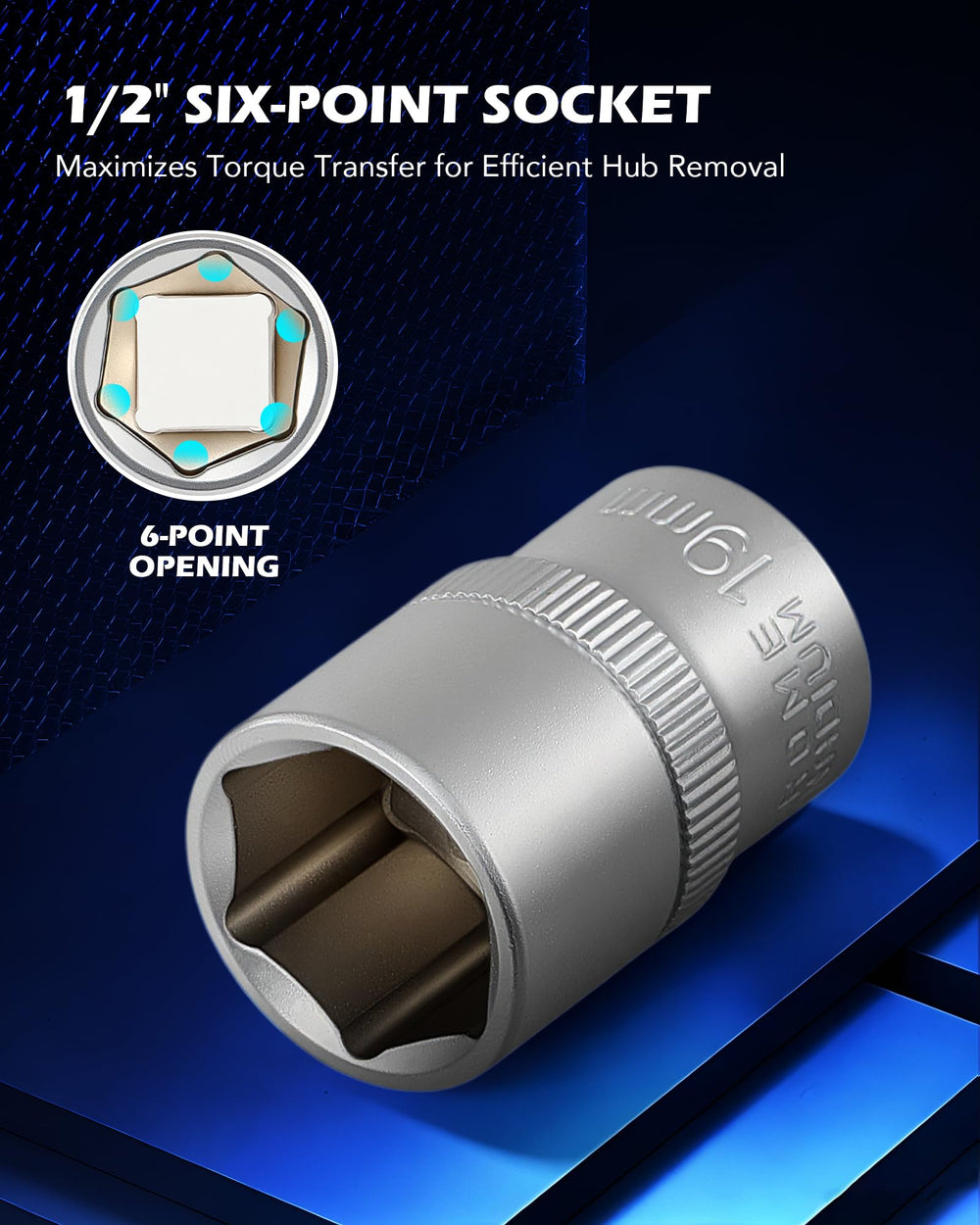

• Included socket and lug nut speed installation and removal
• Straight axial pull prevents side-load damage to bearings

Which vehicles and applications is it compatible with?

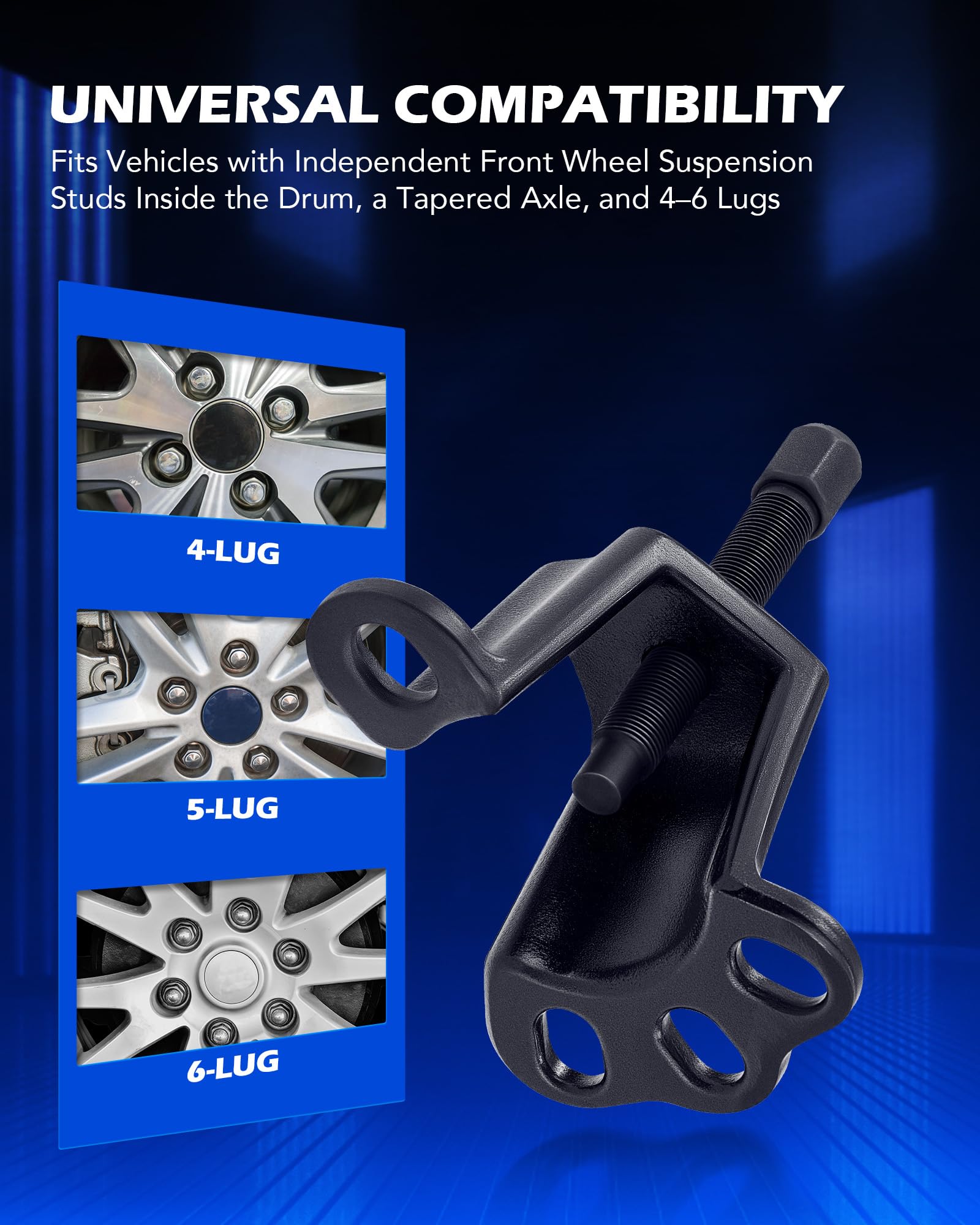

This puller is designed for most vehicles equipped with independent front wheel suspension and tapered hub assemblies. Its threading and adapter options also make it flexible for use with other 5/8" x 18 adapters in the shop.

• Fits many domestic and import light vehicles with independent front suspension
• Threading works with other 5/8" x 18 adapters for added versatility
• Useful for hub removal during bearing service, CV work, and front-end repairs

What materials and finishes ensure durability?

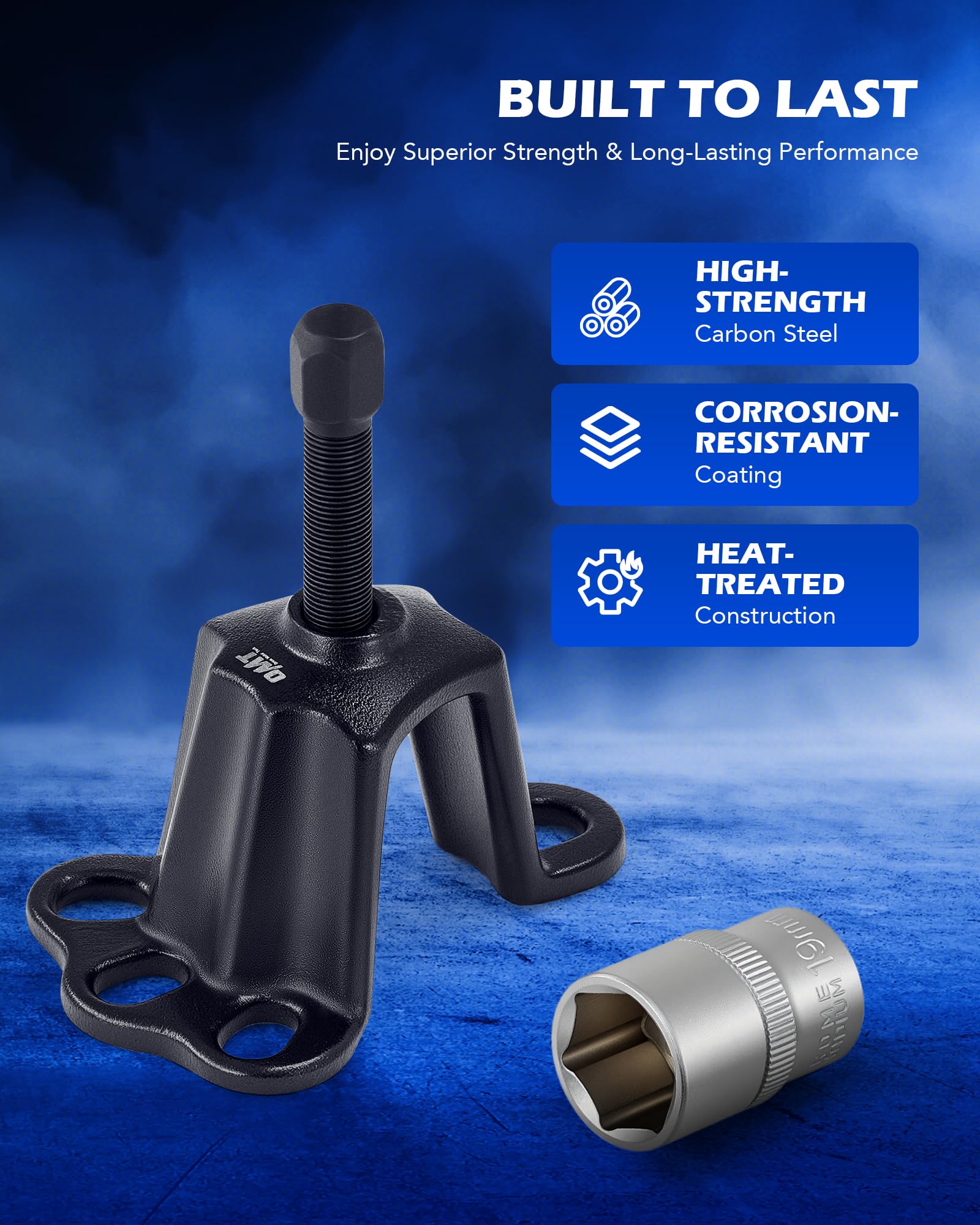

Each component is forged from AISI 1045 medium carbon steel and receives heat treatment for strength. The set is supplied with blackened or chrome-plated finishes to reduce corrosion and extend usable life in garage conditions.

• AISI 1045 medium carbon steel for tensile strength and toughness
• Heat-treated parts resist bending and thread wear under load
• Blackened or chrome finish improves corrosion resistance and service life
• Machined threads ensure smooth, repeatable operation

How do I use the kit safely and effectively?

Align the puller on the hub, fit the forcing bolt and socket, then tighten evenly to apply axial pressure until the hub releases. Use appropriate jack stands, wheel chocks, and follow manufacturer torque and safety procedures while working under the vehicle.

• Secure vehicle on jack stands and remove the wheel before installing the puller
• Center the puller on the hub and thread the forcing bolt straight to avoid binding
• Apply steady, controlled force; avoid sudden shocks that could damage parts
• Inspect bearings and seals once the hub is removed before reassembly

Who this is for: The Orion Motor Tech OMT Front Wheel Hub Puller Set is aimed at professional mechanics, experienced DIYers, and specialty shops that perform front-end, wheel bearing, or CV joint service. If you need a durable, universal tool to remove stuck front hubs without extra disassembly, this kit gives reliable, repeatable performance and long-term value.
