OXDFK 120A 600V Battery Quick Connect Plug Set — 6pcs, 2/4/6 AWG, Gray, Anderson-compatible

OXDFK 120A-600V quick connect/disconnect battery plug set provides a fast, reliable way to join and separate high-current battery lines for winches, trailers, ATVs and other heavy-duty equipment.

Designed for demanding power circuits, this six-piece jumper cable plug connector accepts 2, 4 and 6 AWG wires and is rated for 120 amps and 600 volts. The connector set combines corrosion-resistant spring contacts, silver-plated copper terminals and a rugged polycarbonate shell to deliver long service life and repeatable electrical performance in harsh conditions. It’s built to work with common Anderson-style power applications so you can install or swap battery feeds quickly during recovery jobs, maintenance or equipment storage.

How does this connector make heavy-duty hookups faster?

The push-fit design lets you mate and unmate power lines in seconds without tools, simplifying swaps between battery packs and accessories. The keyed housing prevents reverse polarity and the locking face keeps the connection secure under vibration.

• Push-to-connect mating for quick assembly and removal
• Keyed housing to stop reversed connections
• Locking feature maintains contact under shock and vibration

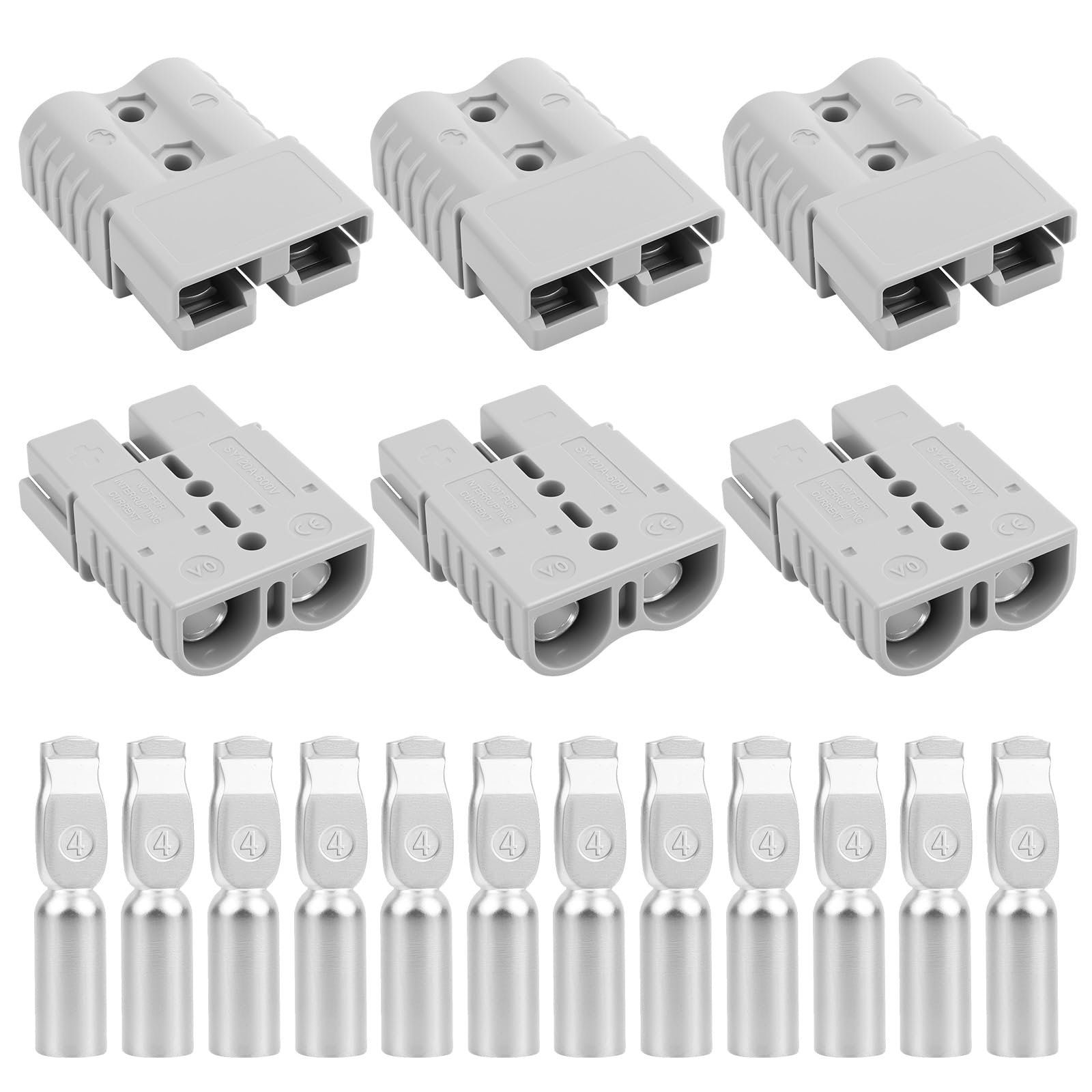

• Six connectors included for multiple circuits or spares

Will these connectors handle winch and recovery demands?

Yes — terminals use silver-plated copper for excellent conductivity and the stainless steel spring tabs resist rust, which together keep voltage drop low during heavy current draws. The 120 A continuous rating and 600 V insulation make these plugs suitable for many traction, winch and trailer power systems when used within their ratings.

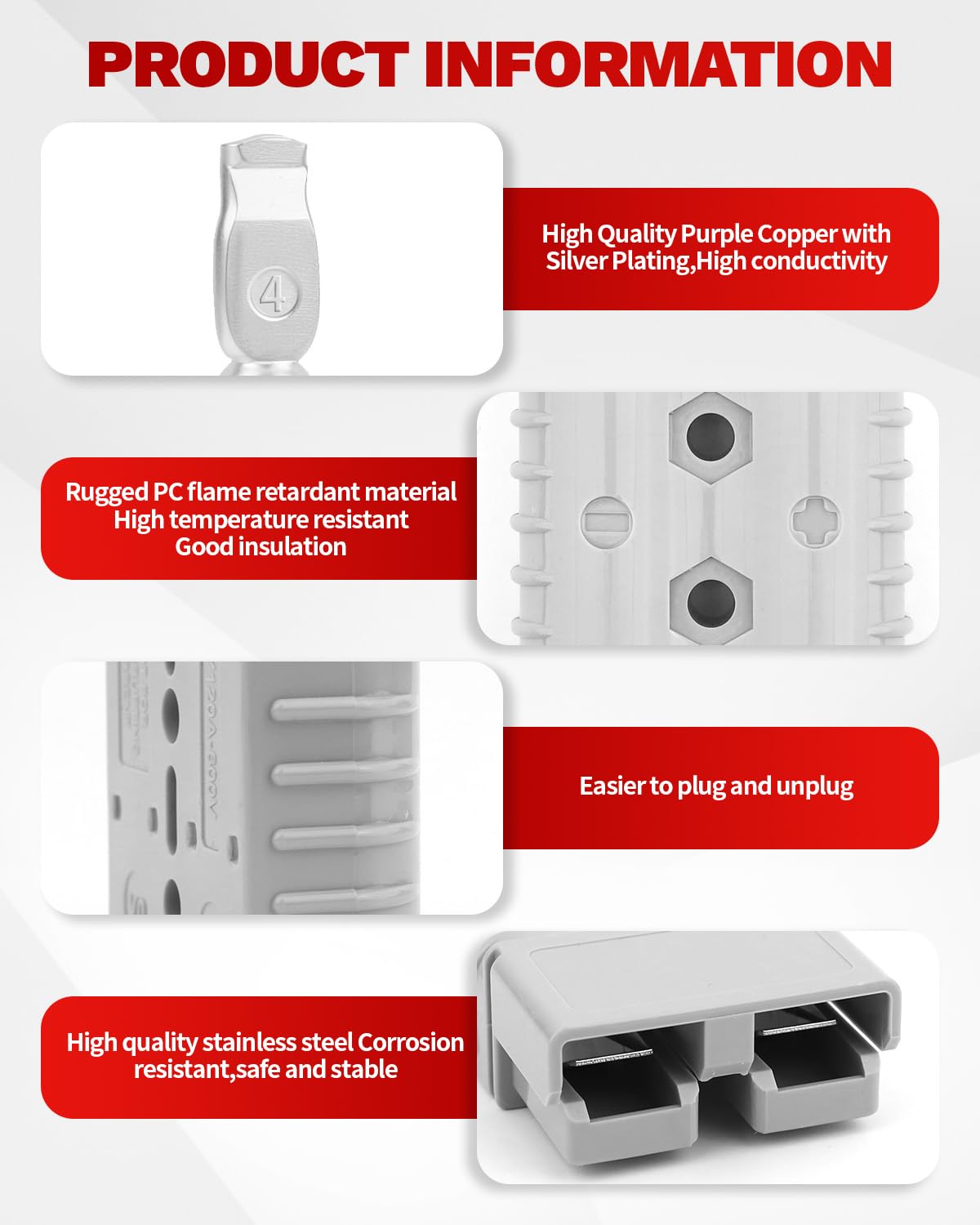

• Silver-plated copper terminals for strong conductivity
• Stainless steel spring tabs for corrosion resistance and reliable contact
• Rated 120 A / 600 V for robust DC applications
• Average contact resistance ~140 micro-ohms for consistent performance

What installation and maintenance steps are required?

Installation is straightforward: prepare the cable, crimp or solder the terminal to the conductor, slide it into the housing and lock it in place. Routine checks for secure seating and clean contacts will keep connections stable and safe over repeated use.

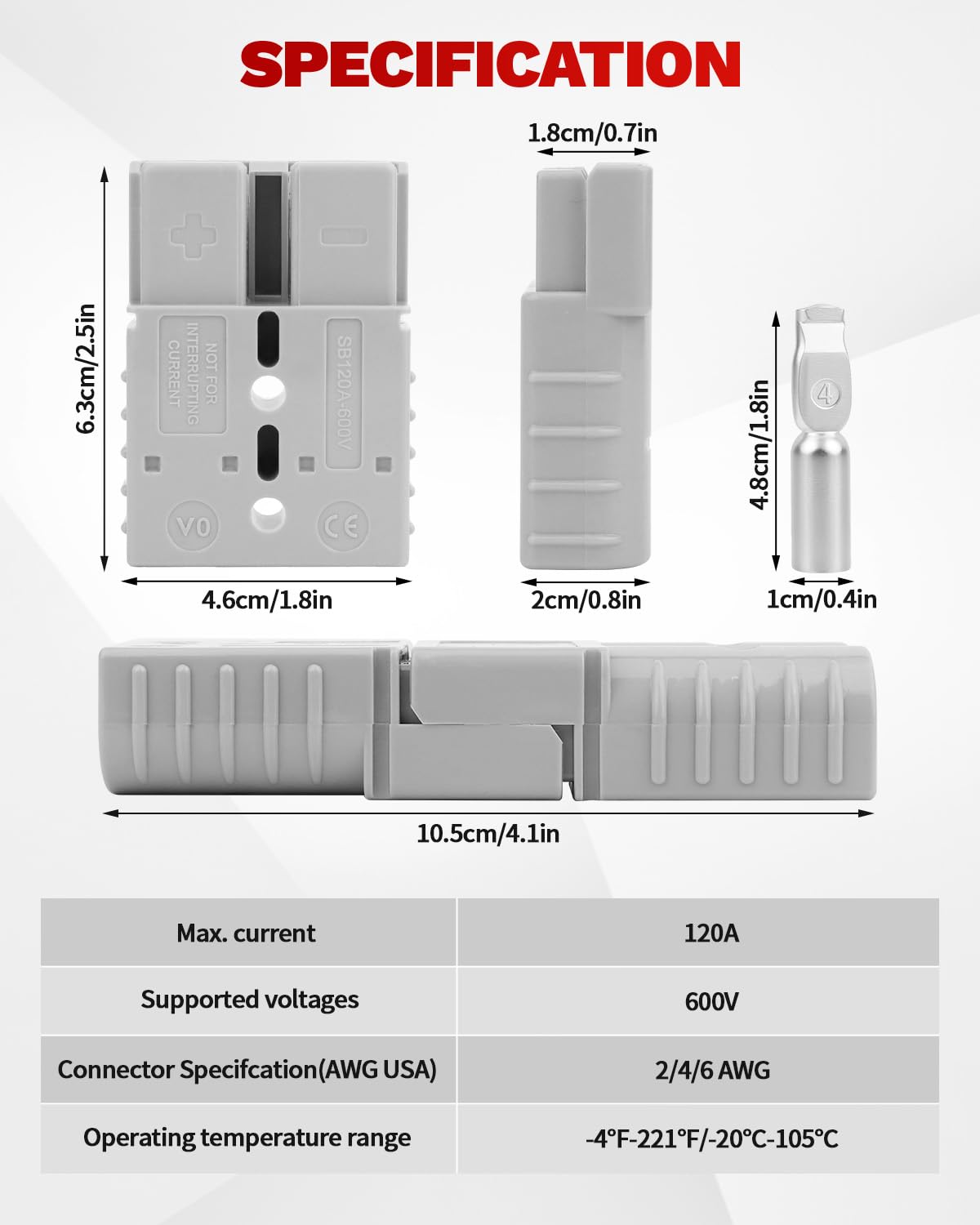

• Compatible with 2/4/6 AWG cable (wire insulation up to 0.575 in)
• Crimp or solder cable to terminals before insertion
• Inspect and clean contacts periodically to prevent dirt build-up
• Designed for over 10,000 insertions and withdrawals for long life

Is this connector safe and durable for outdoor and mobile use?

The housing is molded from impact-resistant polycarbonate with a UL 94-V0 flammability rating, and the temperature range supports common vehicle and marine environments. That makes the set a practical choice for equipment exposed to vibration, bumps and variable climates.

• PC housing resists cracking from physical impact
• UL 94-V0 flammability rating for improved safety
• Operating temperature range from about -20°C to 105°C (-4°F to 221°F)
• Rated for thousands of mating cycles without loss of fit

Who is this for? If you install, maintain or frequently reconfigure battery-powered equipment — including off-road winches, recovery rigs, trailers, RV systems, marine engines and industrial traction setups — this OXDFK quick connect kit offers a practical, durable solution for fast, repeatable power connections. It is well suited to mechanics, fleet operators, outdoor enthusiasts and service technicians who need dependable, corrosion-resistant connectors that install quickly and perform under load.
