OXDFK Battery Quick Connect 6-Pack Gray — 175A 600V Silver-Plated Terminals, 4/2/1/0 AWG

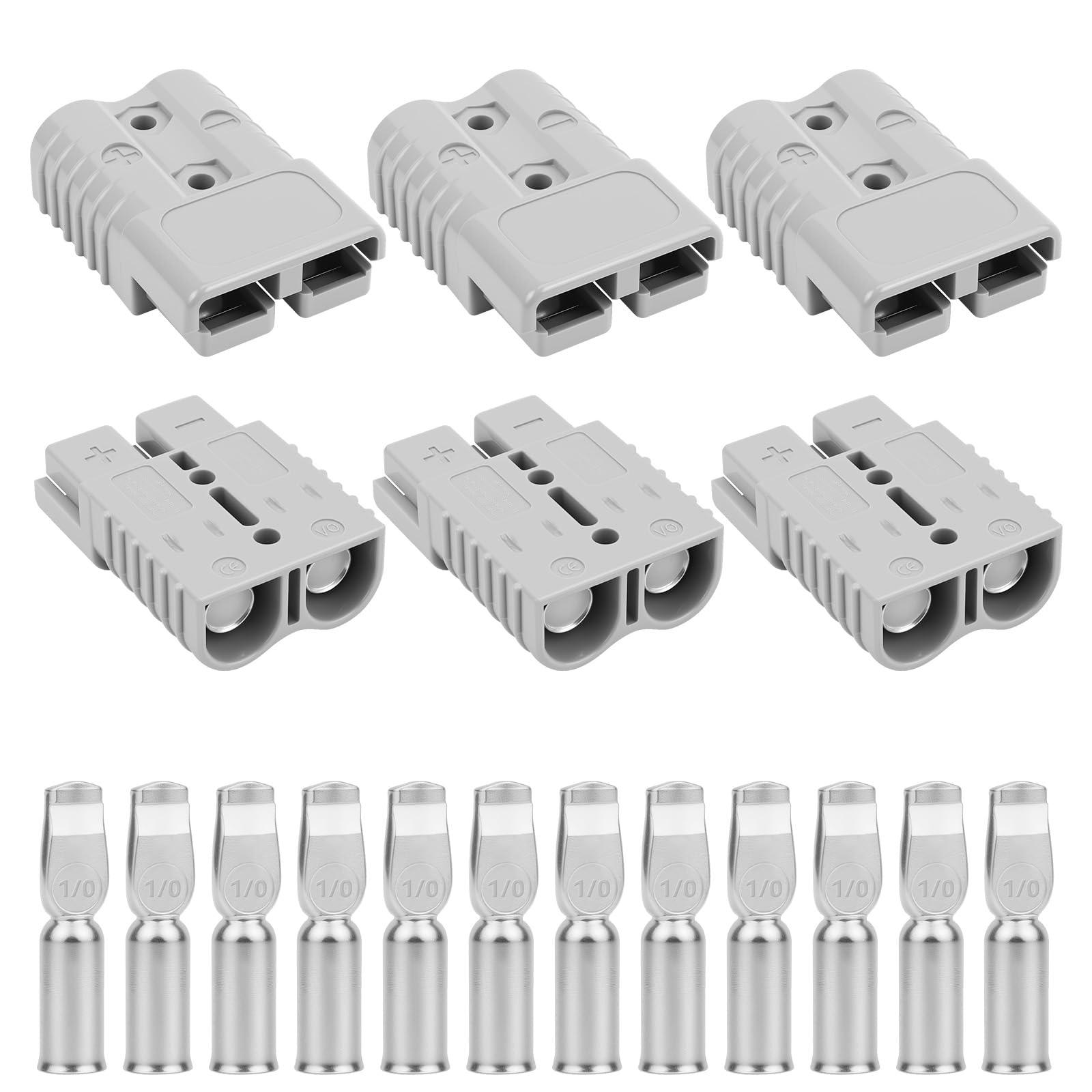

OXDFK 175A-600V battery quick connect is a heavy-duty, six-piece jumper plug set that lets you attach and detach 4/2/1/0 AWG battery cables fast and reliably for winches, recovery gear, trailers, and other high-current equipment.

Designed for rugged field use, this six-piece kit pairs silver-plated copper terminals with a high-impact polycarbonate housing and stainless steel spring tabs to deliver dependable power transfer up to 175 amps and 600 volts. Installation requires only soldering or crimping the proper gauge cable into the terminal, sliding it into the plug body, and locking it in place — no special tools beyond a crimper or soldering iron. The result is a modular quick-disconnect solution suited to vehicles, marine, and industrial gear where fast, repeatable connections matter.

How does this connector handle high-current loads?

The OXDFK plug uses silver-plated copper terminals that improve conductivity and reduce voltage drop at elevated currents. Stainless steel spring tabs maintain solid contact pressure so connections stay stable under vibration and repeated cycles.

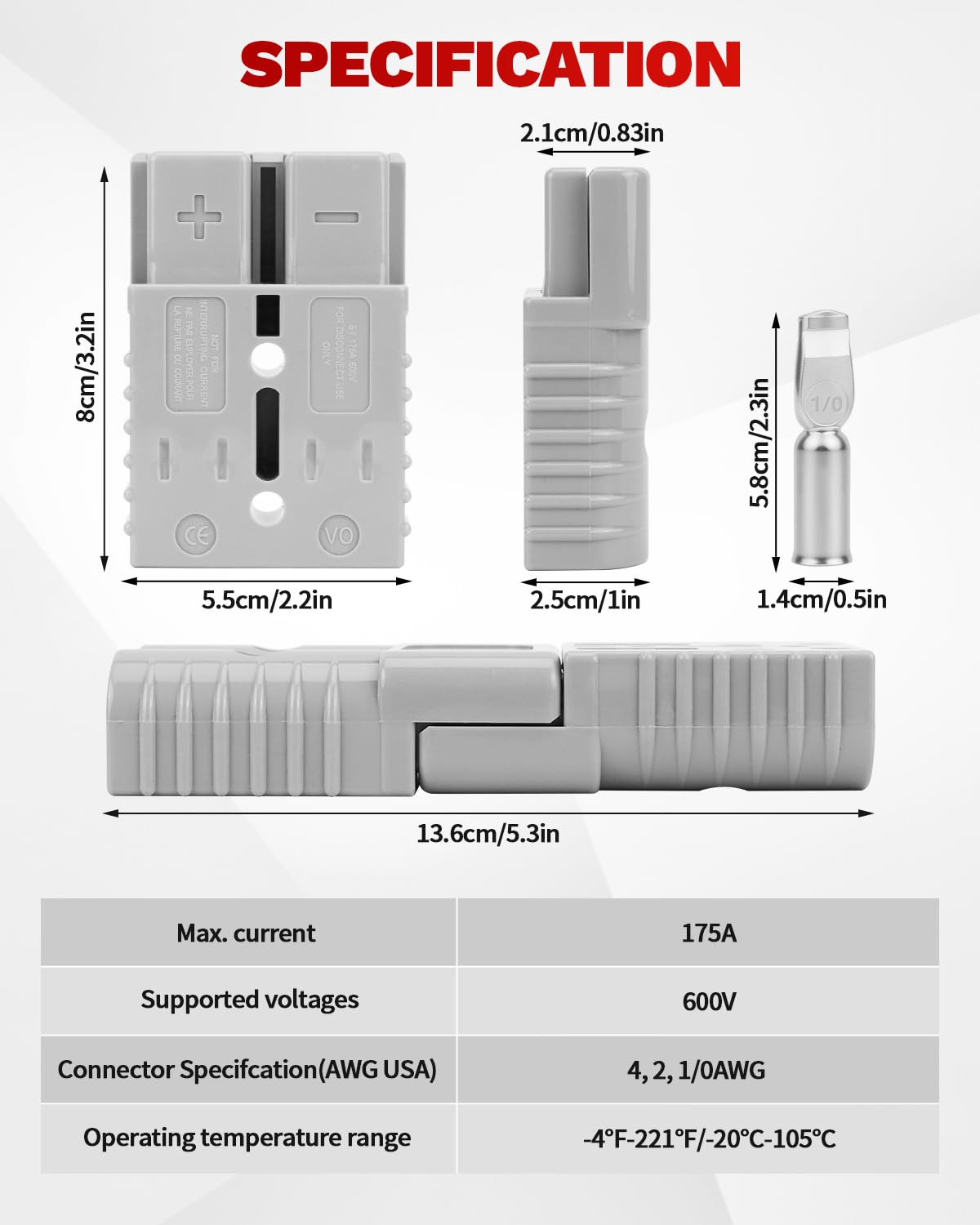

• Rated 175 amps continuous at up to 600 volts for demanding tasks
• Silver-plated copper terminals for low resistance and reliable conduction
• Spring-tab retention minimizes intermittent contact under load

What cable sizes and installation method work with this kit?

Terminals are compatible with 4, 2, 1, and 0 AWG cable, covering the common ranges used for winches, starter connections, and battery banks. You install by inserting the stripped conductor into the terminal, then soldering or crimping; after that, slide the terminal into the housing and lock it in place.

• Supports 4/2/1/0 AWG cables for flexible deployment
• Accepts either crimp or solder termination per installer preference
• Plug locks into housing for a secure, vibration-resistant fit

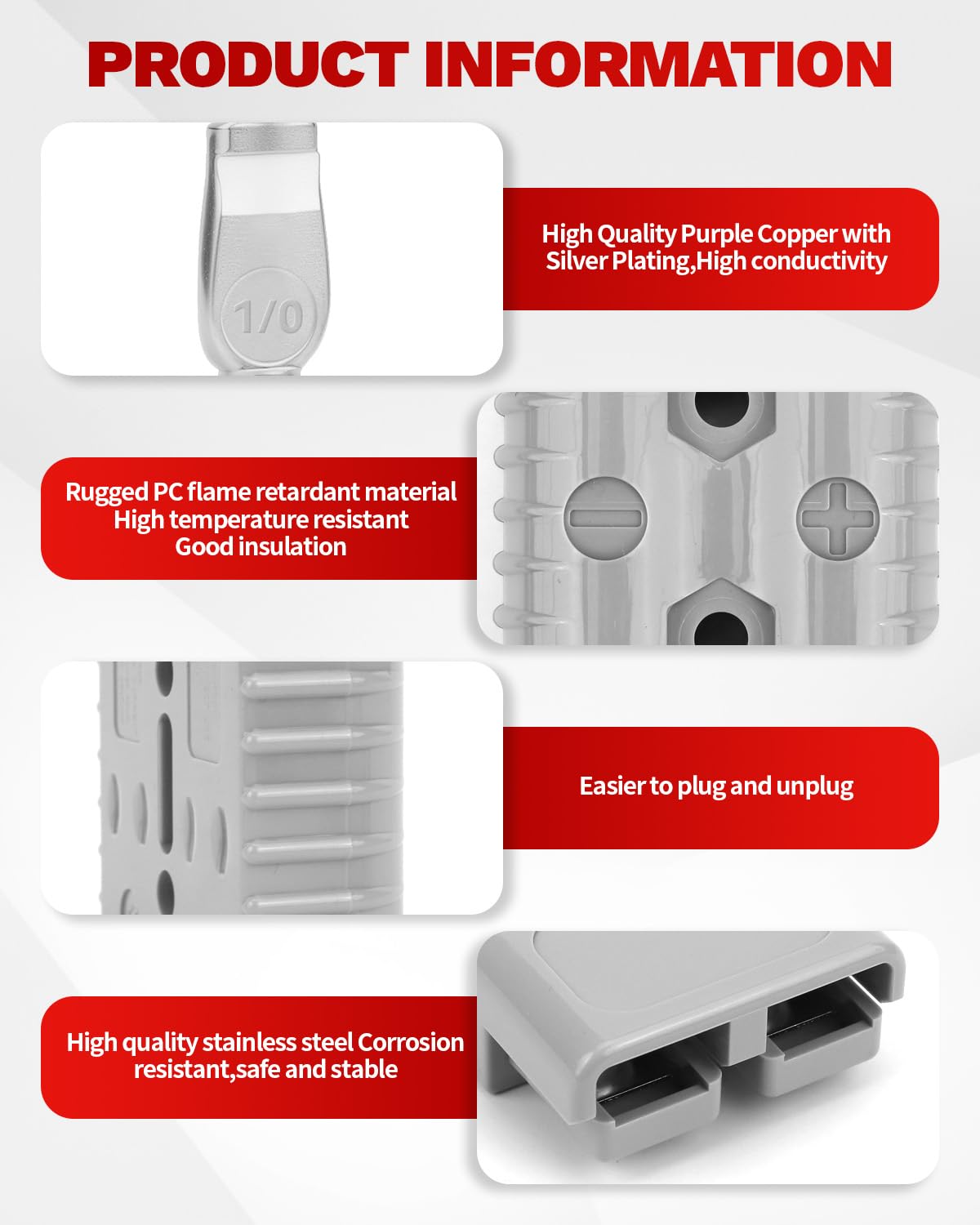

Will the housing and contacts last in outdoor or rough conditions?

The plug body is molded from impact-resistant polycarbonate and rated for more than 10,000 insertions and removals, helping it survive frequent use. Corrosion-prone parts are minimized: stainless steel spring tabs resist rust and the silver plating on contacts helps prevent oxidation.

• Durable PC housing resists cracking from impact
• Over 10,000 insertion cycles for long service life
• Corrosion-resistant materials for marine and off-road use

How can I use these connectors in practical recovery or marine setups?

These quick connects streamline hook-up and teardown for equipment that needs frequent disconnection or sharing across vehicles. Use them to pre-wire winches, create removable battery leads for emergency kits, or outfit trailers and RVs with fast, serviceable power points.

• Pre-wire winches and recovery gear for rapid mobilization
• Create dedicated removable battery leads for multi-vehicle use
• Fit on boats, ATVs, trailers, and RVs where space and access are limited

Who is this for: Technicians, off-road enthusiasts, marine operators, and DIY mechanics who need a rugged, repeatable quick-disconnect for high-current battery connections will find this OXDFK 6-piece set useful. It suits anyone wiring winches, auxiliary battery systems, or removable power leads who values corrosion resistance, secure contact, and a housing built to withstand frequent use.
