Partsam LED Third Brake Light for Ford F-150 2009-2014 — Chrome Housing, Clear Lens, Plug-and-Play

Partsam’s LED third brake light replaces the high‑mount center lamp on 2009–2014 Ford F‑150 trucks with a chrome‑housed, clear‑lens LED module that’s plug‑and‑play compatible.

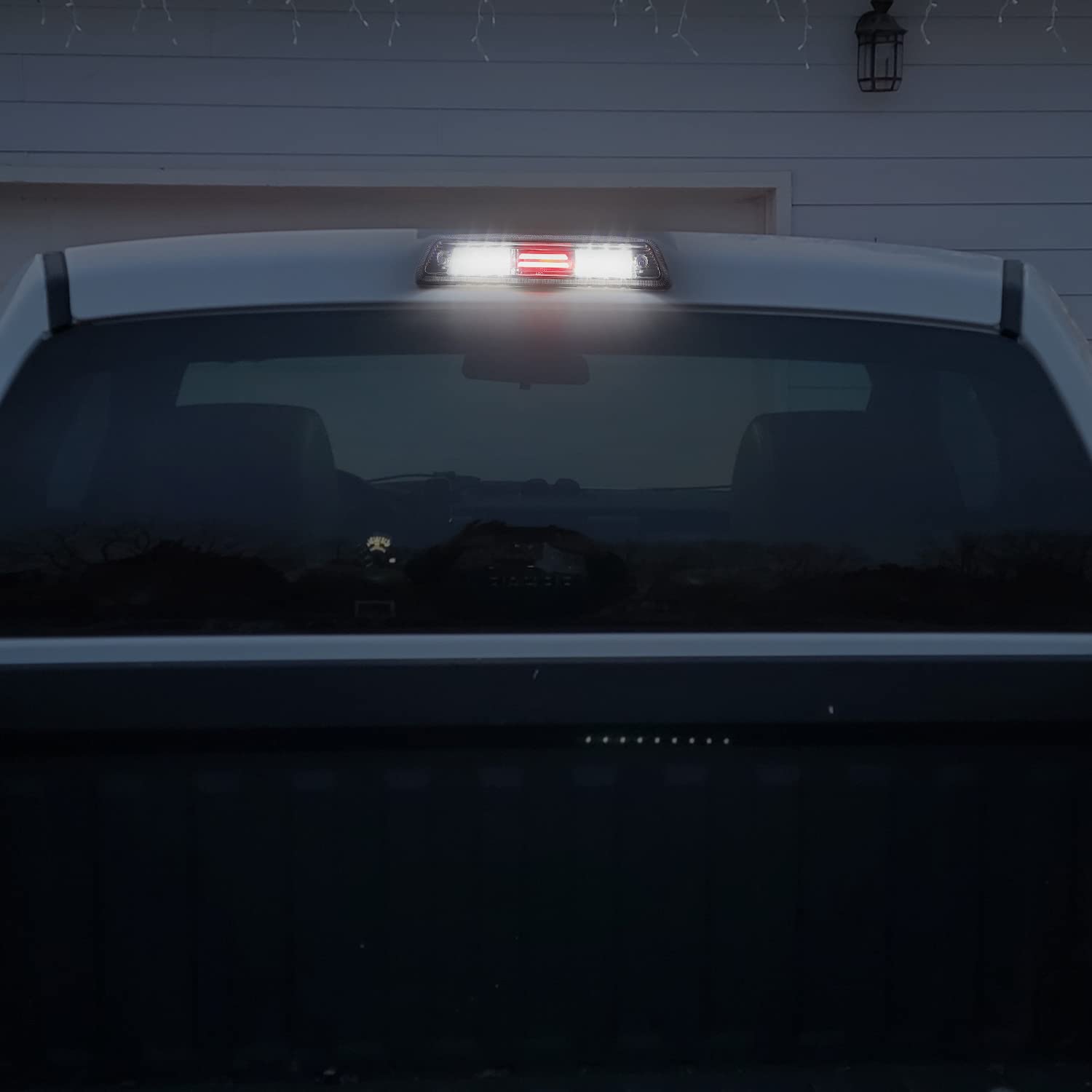

If your F‑150’s top center stop lamp is dim, cracked, or relying on old incandescent bulbs, this aftermarket LED assembly offers an easy, long‑lasting swap. Designed to fit model years 2009 through 2014, the unit replaces OEM part numbers such as AL3Z‑13A613‑E and AL3Z13A613G and connects using the factory three T10 plugs. The chrome housing and clear lens give the rear roofline a refreshed, modern look while full LED illumination improves visibility and durability compared with halogen bulbs.

Will this fit my Ford F‑150 from 2009 to 2014?

Yes — this Partsam assembly was built to replace the factory high‑mount stop light on 2009–2014 F‑150 trucks. It matches the original mounting footprint and electrical connector layout for a straightforward swap.

• Compatible with model years 2009, 2010, 2011, 2012, 2013, 2014.
• Direct replacement for part numbers AL3Z‑13A613‑E, AL3Z13A613G and FO20890104.
• Uses the stock three T10 plug connectors for plug‑and‑play installation.

How simple is the installation process?

Installation is designed to be straightforward: remove the original lamp, clean the gasket area, transfer the gasket, and plug in the new unit. The replacement uses the vehicle’s existing screw points, so no special tools or wiring modifications are typically required.

• Keep your original mounting screws — new screws are not included with the lamp.
• Clean the mounting lip with alcohol before seating the foam gasket for a reliable seal.
• If the LEDs don’t light after plugging in, flip each T10 plug 180° to correct polarity.

Is this replacement LED durable and weather resistant?

The assembly arrives with a foam gasket and a sealed chrome housing intended for all‑season use, but sealing the screw holes and edges with a small bead of silicone or clear RTV is recommended for extra protection. The full LED array avoids filament failures common with incandescent bulbs.

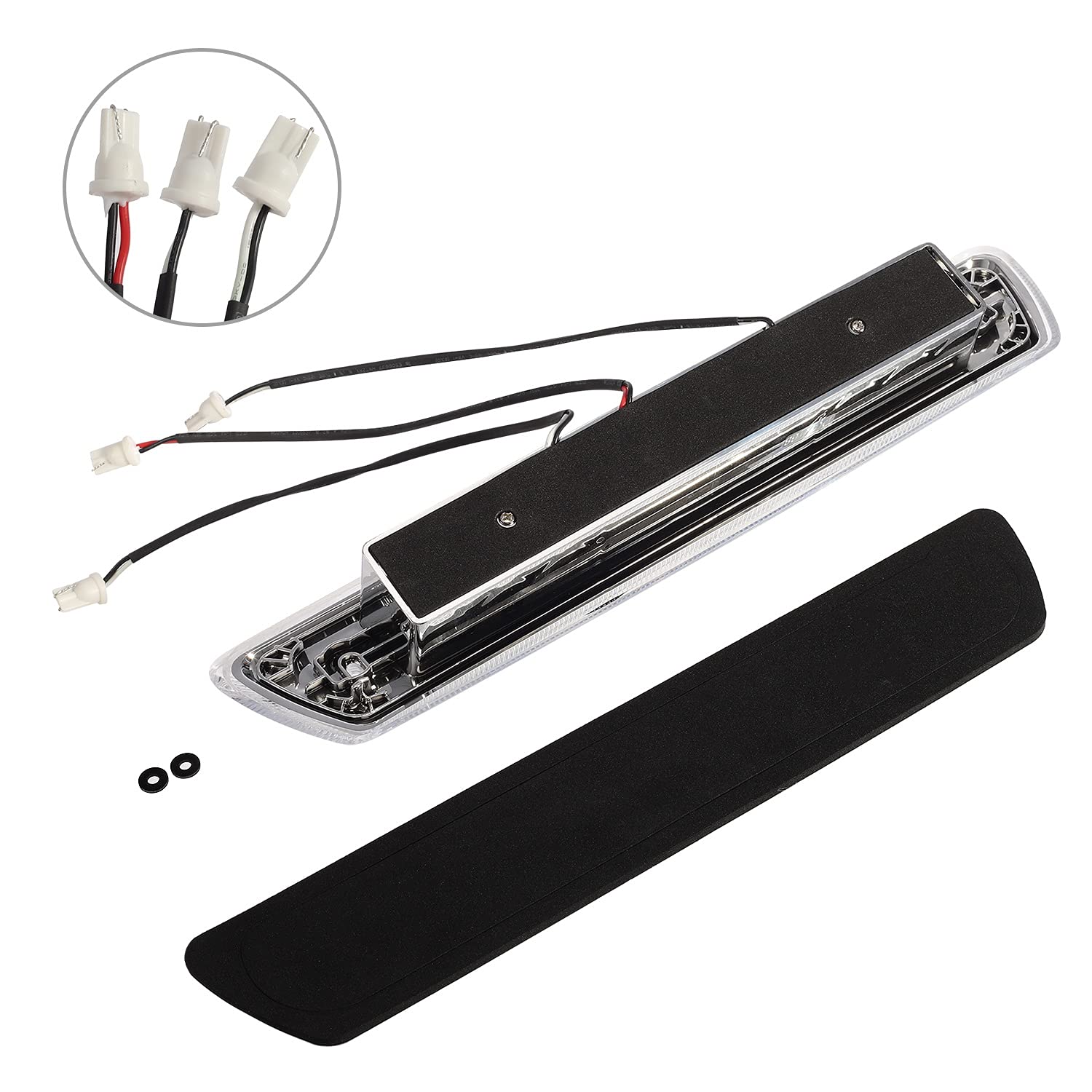

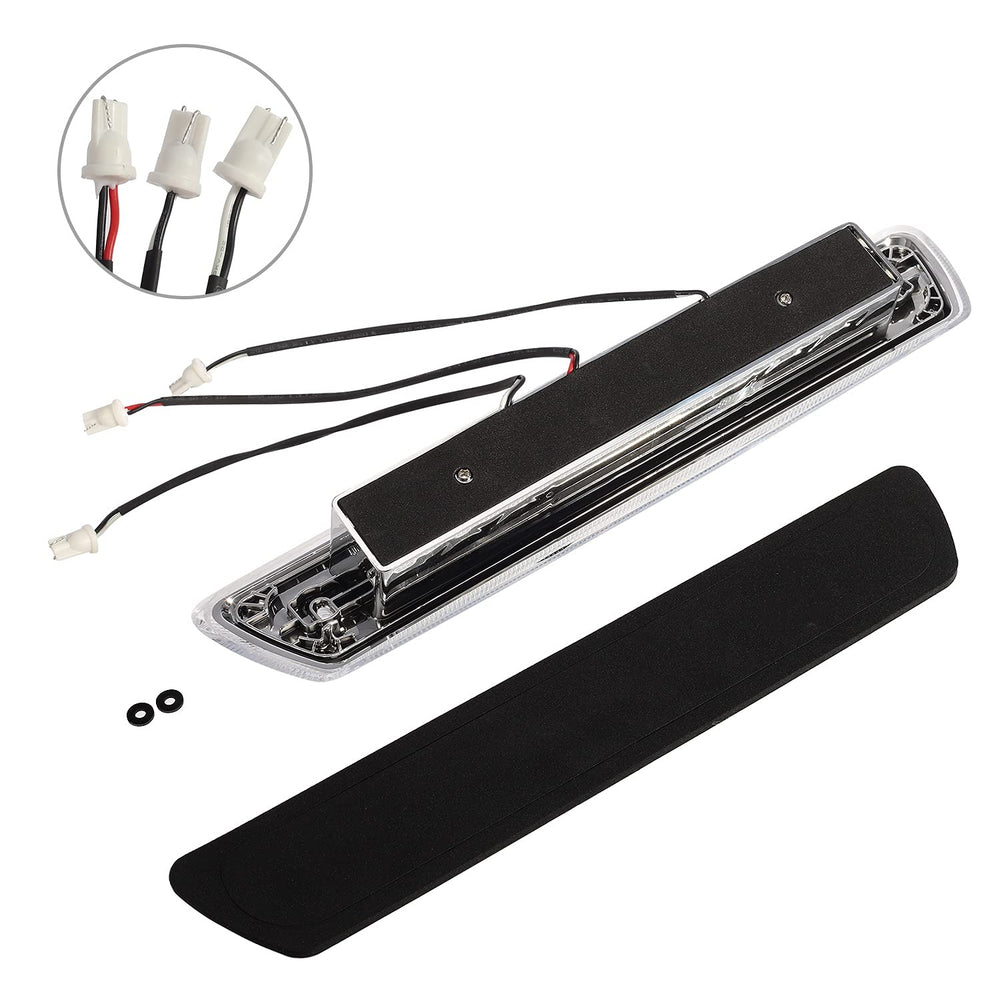

• Includes one foam gasket to reduce water intrusion at the roof seam.

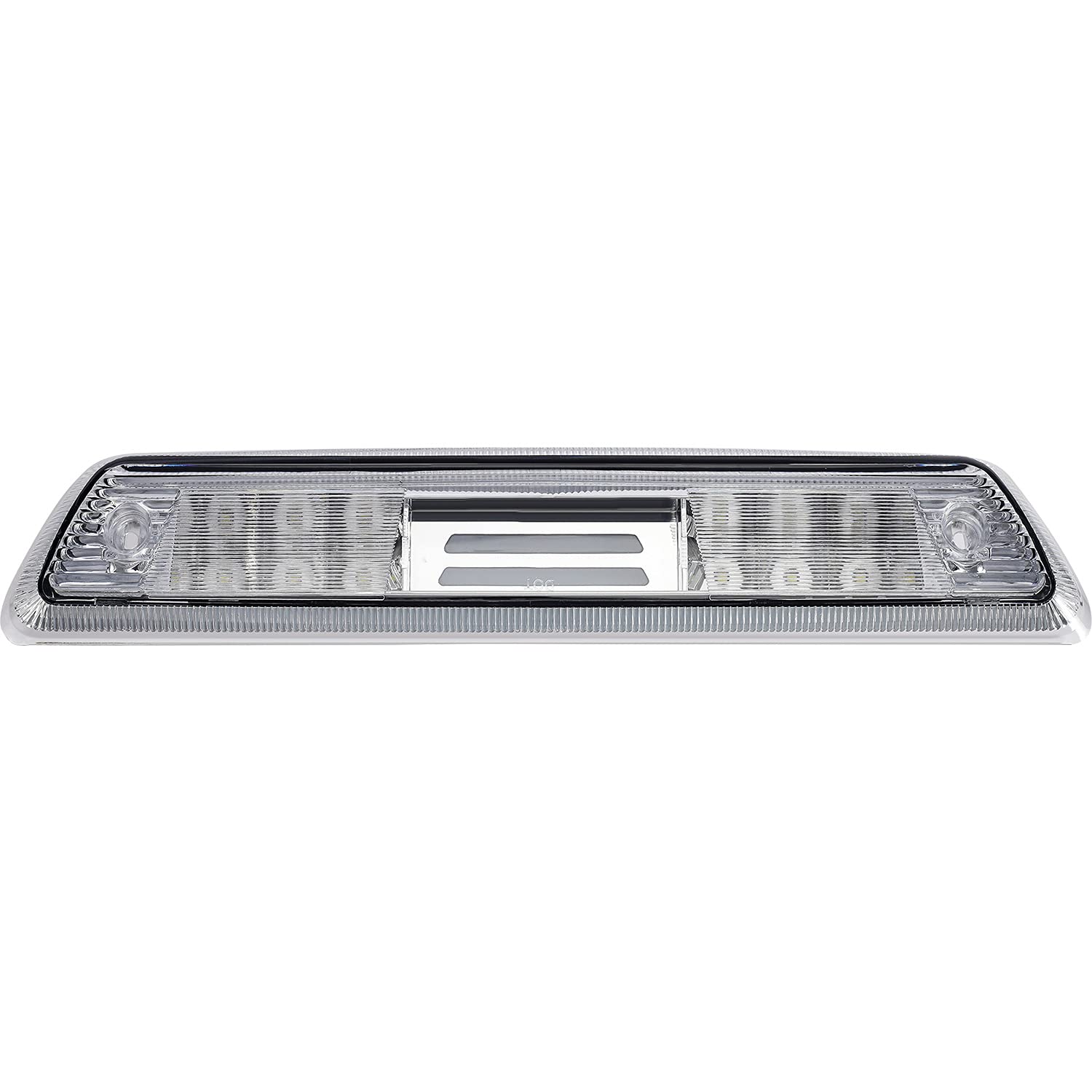

• Chrome housing and clear lens for long‑lasting appearance and light output.
• Recommended to apply silicone or RTV around screw holes for added waterproofing.

What should I know about the light functions?

This Partsam lamp provides bright LED brake illumination and an integrated cargo/utility light; the white LEDs are intended for cargo area lighting and are not a substitute for reverse lamps. No electronic conversion is required when installed correctly with the factory harness.

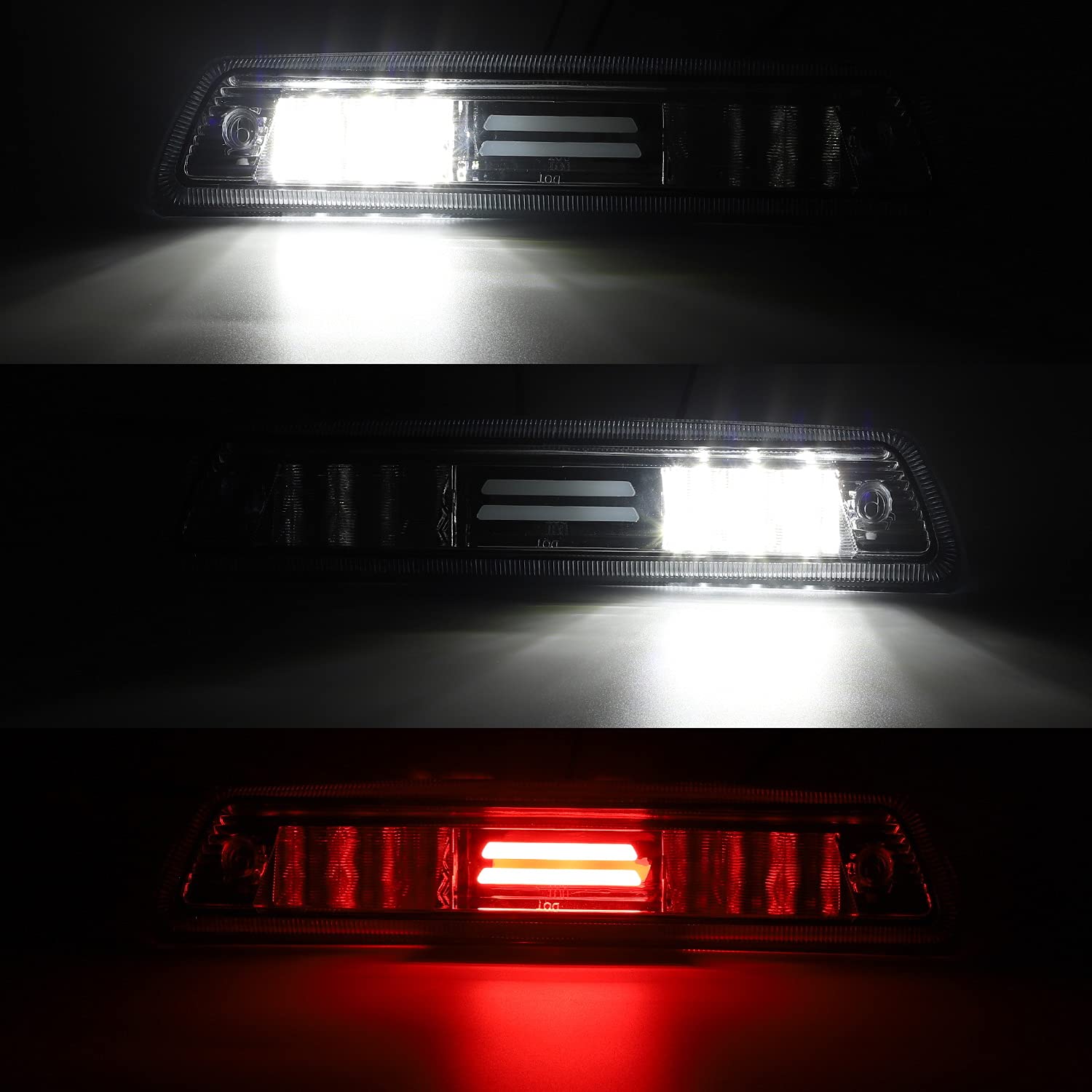

• Super‑bright full LED output for the brake/stop signal.
• White cargo lights illuminate the bed area; not a reverse light replacement.
• Polarity‑sensitive T10 plugs — rotate 180° if a circuit does not light initially.

Who is this for: This Partsam LED third brake light is aimed at Ford F‑150 owners (2009–2014) who want a reliable, maintenance‑free upgrade from incandescent lamps, or anyone repairing a cracked or faded factory high‑mount brake lamp. It’s ideal for DIY installers who prefer plug‑and‑play replacements that restore function and add a cleaner, more modern look to the truck’s rear roofline.
