Partswcgg 6" Oval LED Trailer Tail Lights 4-Pack — Red Stop/Turn with White Backup, IP67 Waterproof

Partswcgg 4Pcs 6" oval dual stop/turn tail lights combine bright red LED running, stop and turn signals with a dedicated white reverse light in one flush-mount housing.

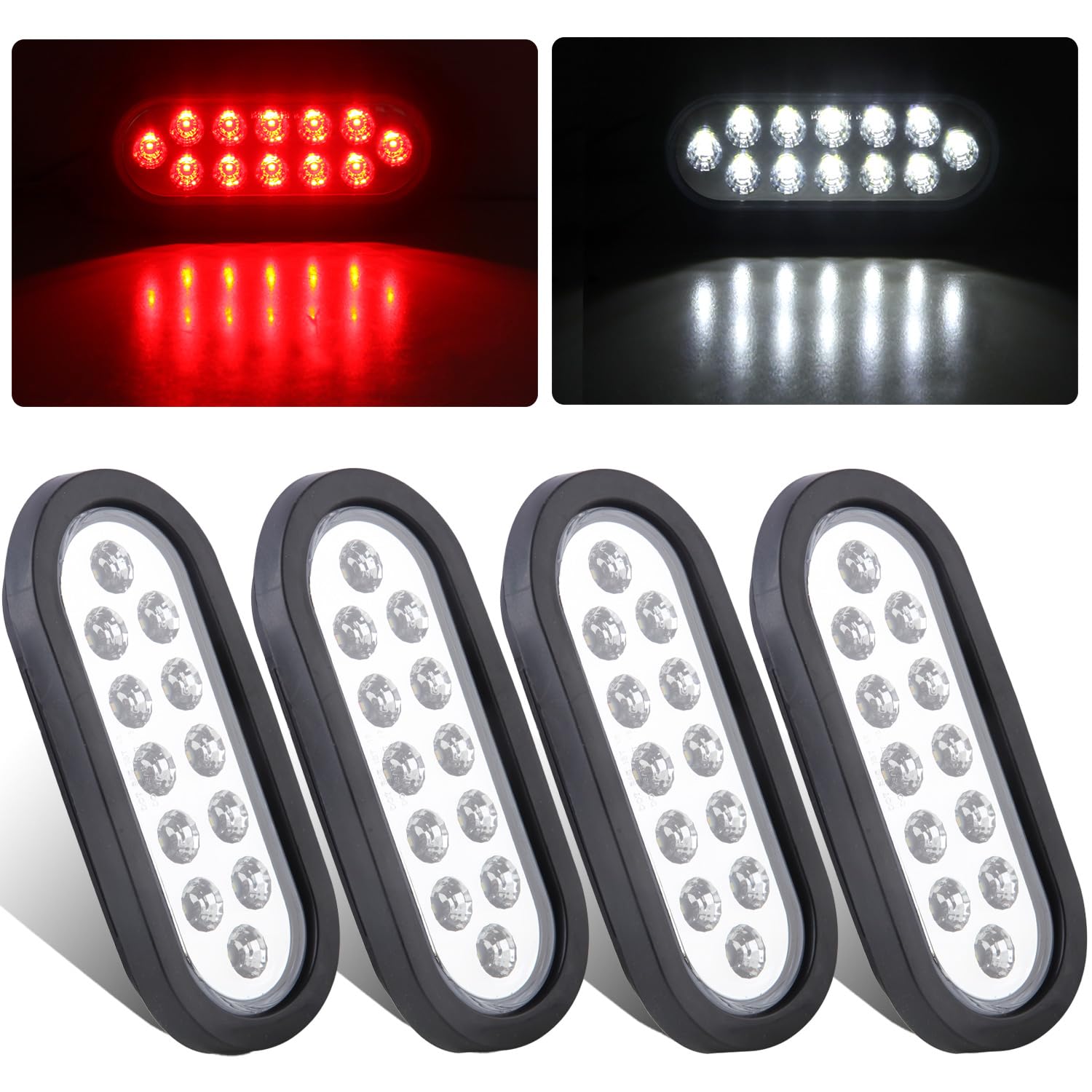

These 6-inch oval trailer lights are built for trailers, trucks and utility vehicles that need a compact, dual-color LED solution. Each lamp houses 12 LEDs that operate as red stop/turn/running lights and switch to white for reversing via an auxiliary lead. The kit includes four lights, rubber grommets and three-prong pigtails for straightforward wiring and a clean flush installation.

How do these lights handle dual-color operation?

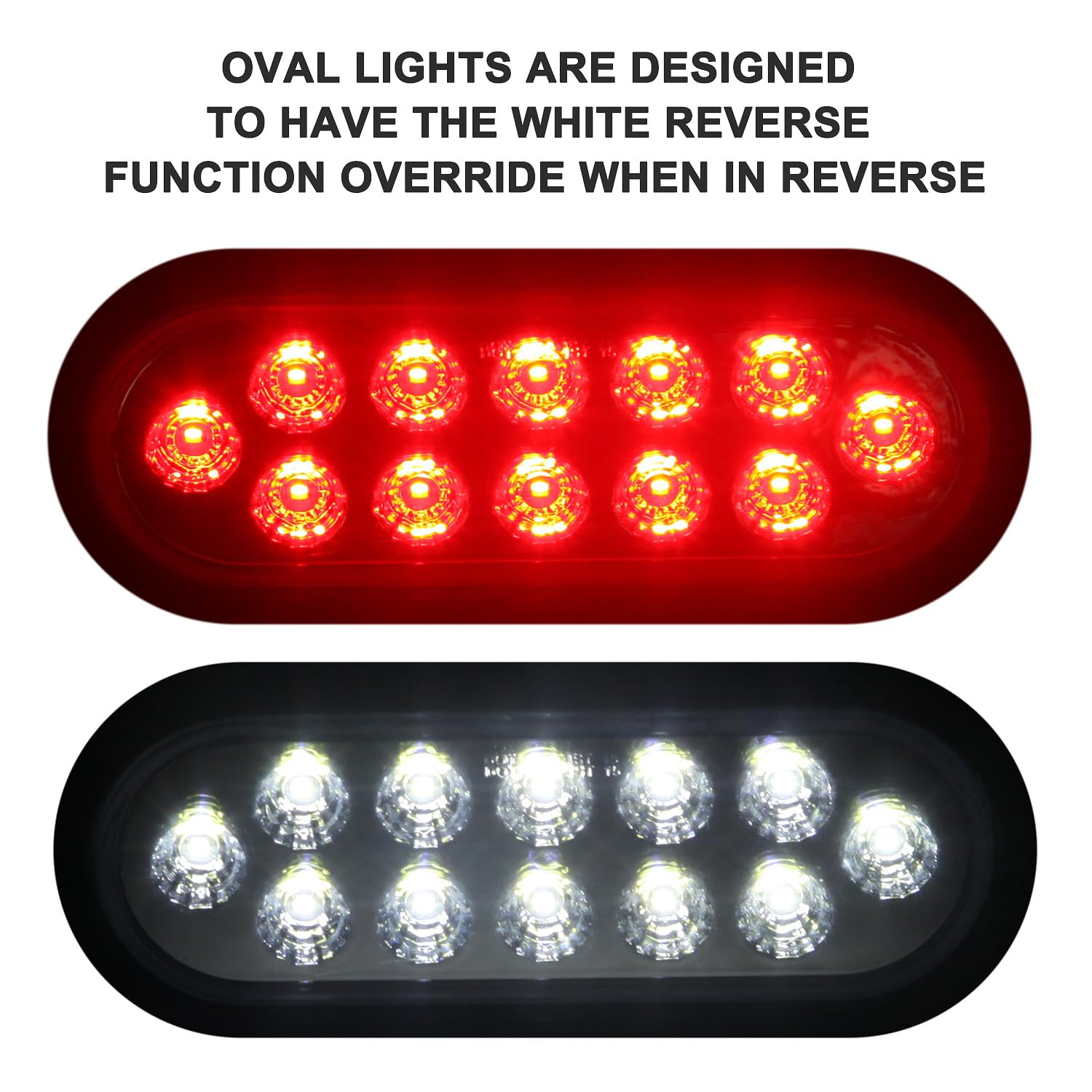

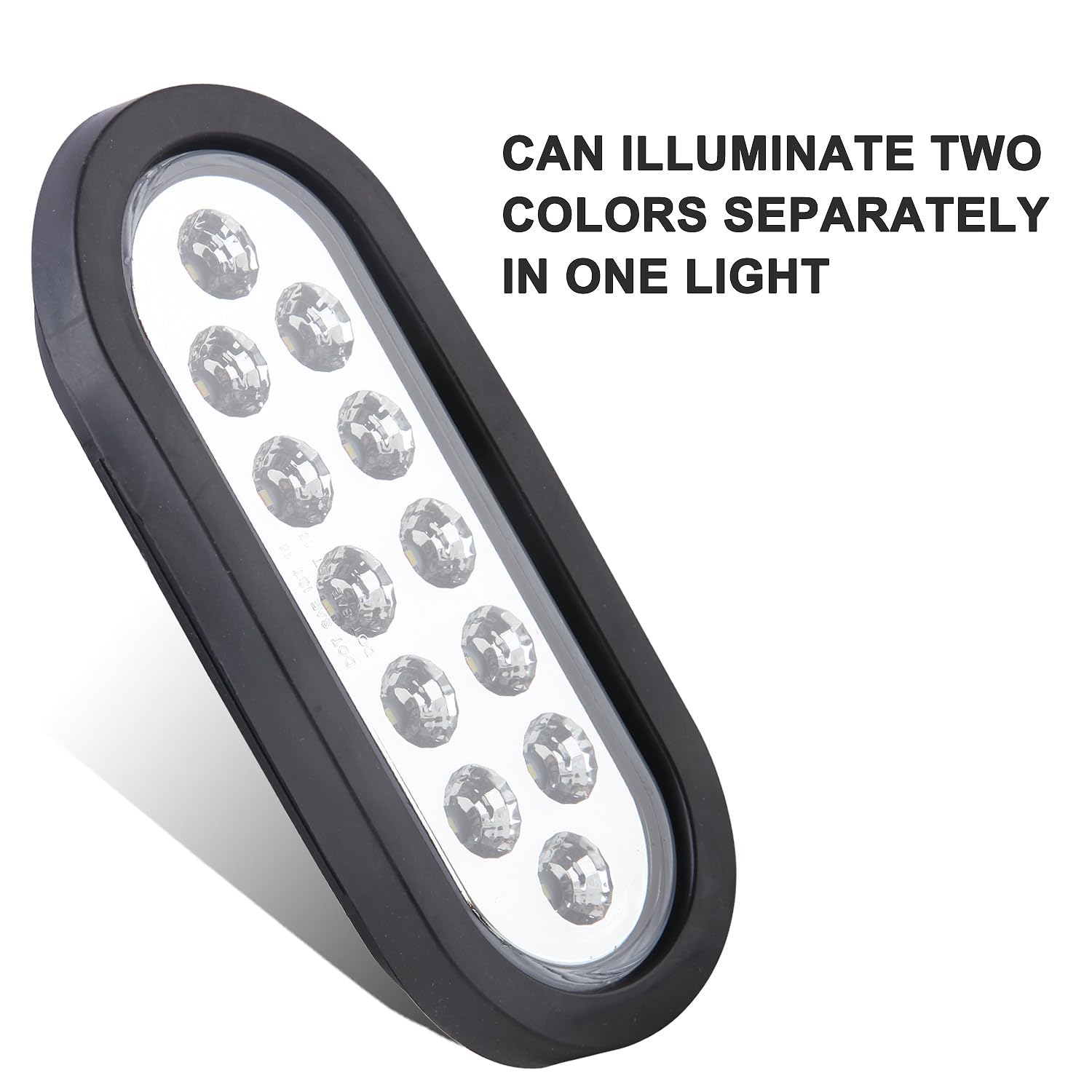

Each oval lamp uses the same LED array to emit red for stop/turn/running and white for reverse. A separate auxiliary wire triggers the white reverse function so the red output is overridden when backing up.

• 12 LEDs per lamp produce clear red signal illumination.
• Blue auxiliary wire with a male bullet plug activates white reverse mode.
• White reverse output overrides red signals for safe backing visibility.
• Standard three-prong pigtail for power/ground/tail functions.

What are the installation steps and size requirements?

These lights are designed for flush mounting with rubber grommets and require a roughly 6.5" mounting hole. Wiring follows a simple color code so you can fit them to most trailers and trucks.

• Overall lamp dimensions: approximately 7.4" long by 3.2" thick.
• Drill a 6.5" hole for the flush mount and seat the rubber grommet.

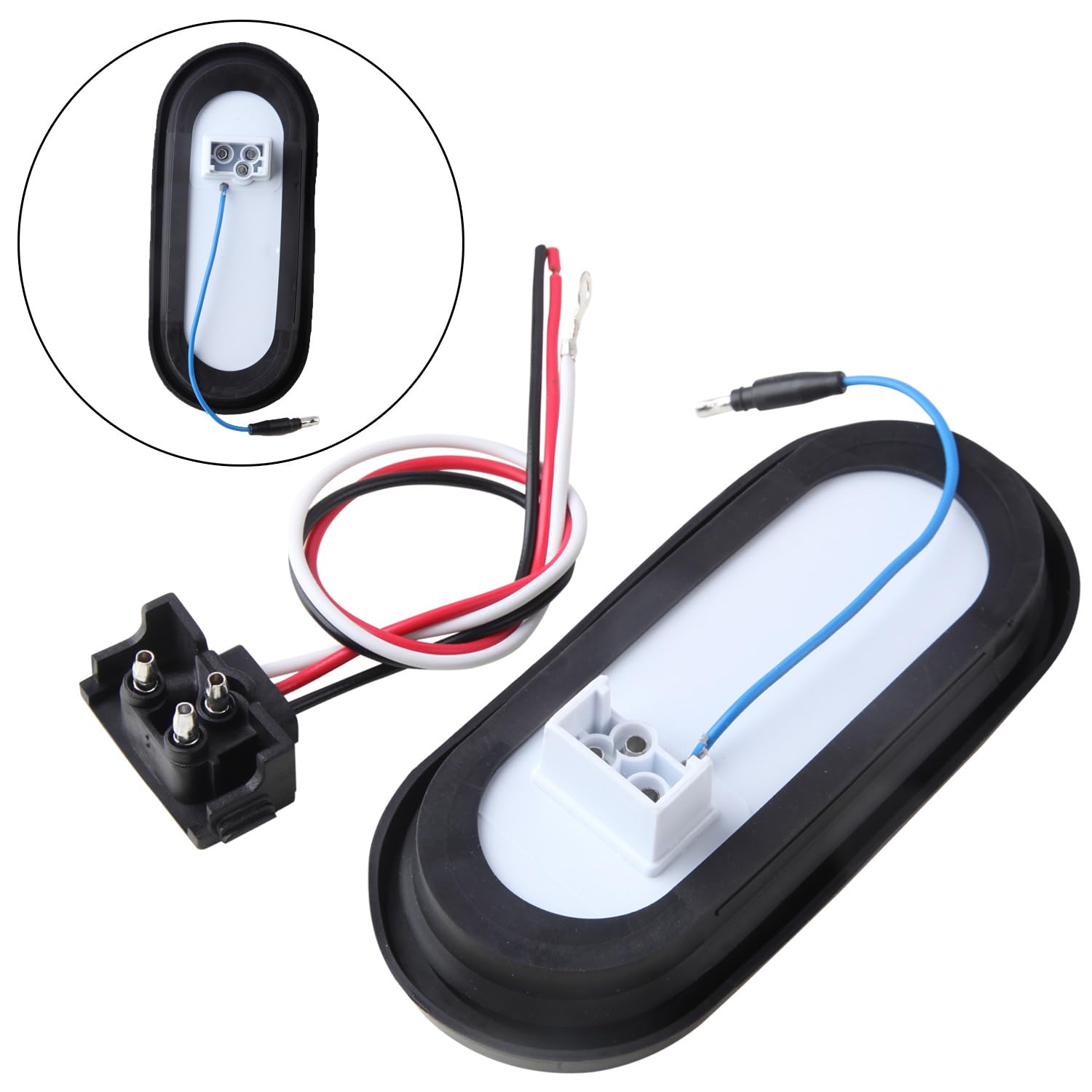

• Wiring: white = ground, red = stop/turn, black = tail running, blue (bullet plug) = reverse.
• Included three-prong pigtails and plugs speed installation on standard 12–16V DC systems.

Are these lights weatherproof and suitable for heavy use?

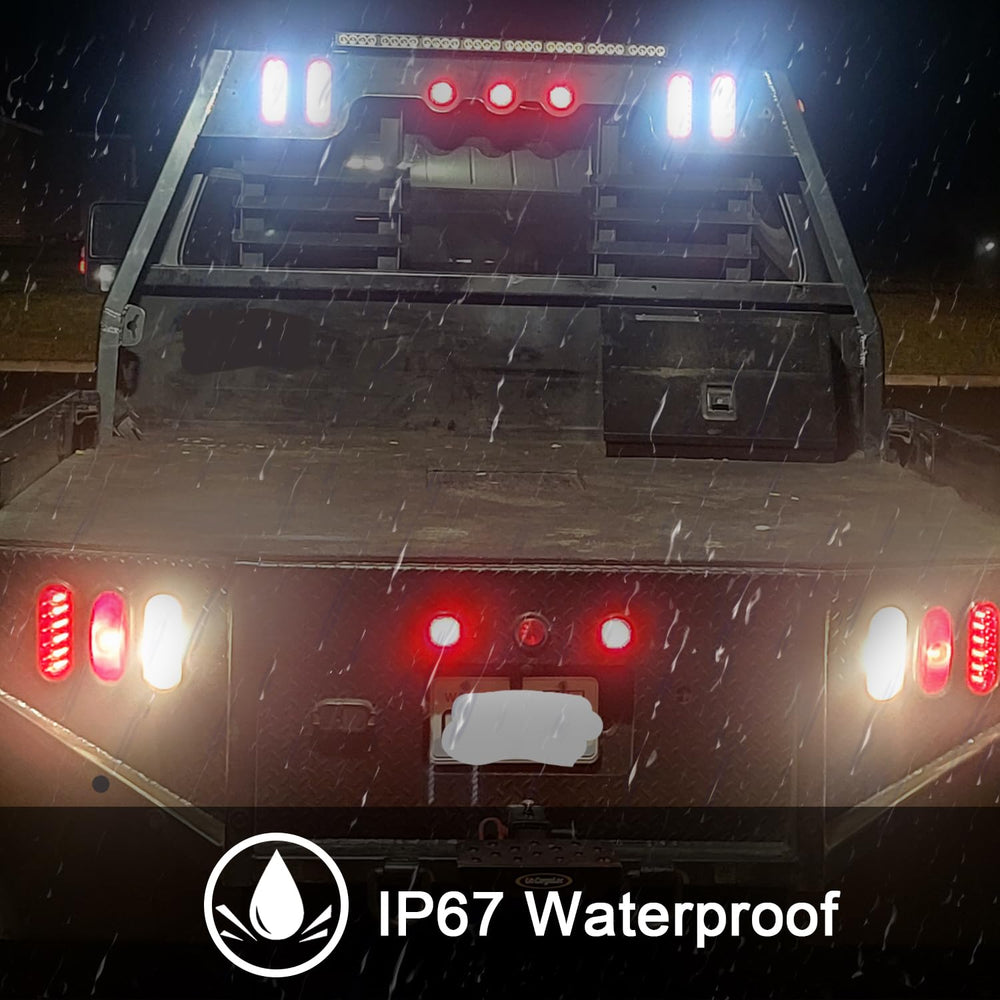

Yes — the housings are sonically sealed and rated to IP67 for waterproof performance. They are built for outdoor exposure and can withstand rain, splashes and occasional submersion, making them dependable on road or water trailers.

• IP67 submersible rating protects internal LEDs and circuitry.
• Sonic sealing keeps moisture and contaminants out of the lens and housing.
• Durable construction suited to commercial vehicles and recreational trailers.
• Operational across typical 8–16V DC vehicle electrical systems.

What vehicles and uses are these lights compatible with?

These 6" oval LED combos fit a wide variety of trailers and utility vehicles that require compact, multi-function exterior lighting. They’re common on commercial trailers, pickup trucks, boats and specialty rigs.

• Compatible with semi trailers, utility trailers, horse trailers, boat trailers and more.
• Works with service trucks, buses, vans, UTVs and pickup trucks on 8–16V systems.
• Ideal for retrofitting older incandescent lights with brighter LED performance.
• Good for parade floats and specialty vehicles where compact dual-function lights are needed.

Who is this for? If you need compact, reliable trailer lighting that combines red stop/turn/tail functions with a bright white reverse light, the Partswcgg 6" oval LED set is designed for fleet managers, trailer owners and DIY mechanics who want a weatherproof, easy-to-install upgrade. The included grommets and wired pigtails make it practical for both professional installs and weekend retrofit projects, and the IP67 sealing helps ensure long-term outdoor performance.
