Performance Tool 12V 4- & 5-Pin Automotive Relay Tester 3009 — Self-Contained LED Pass/Fail, Battery Powered

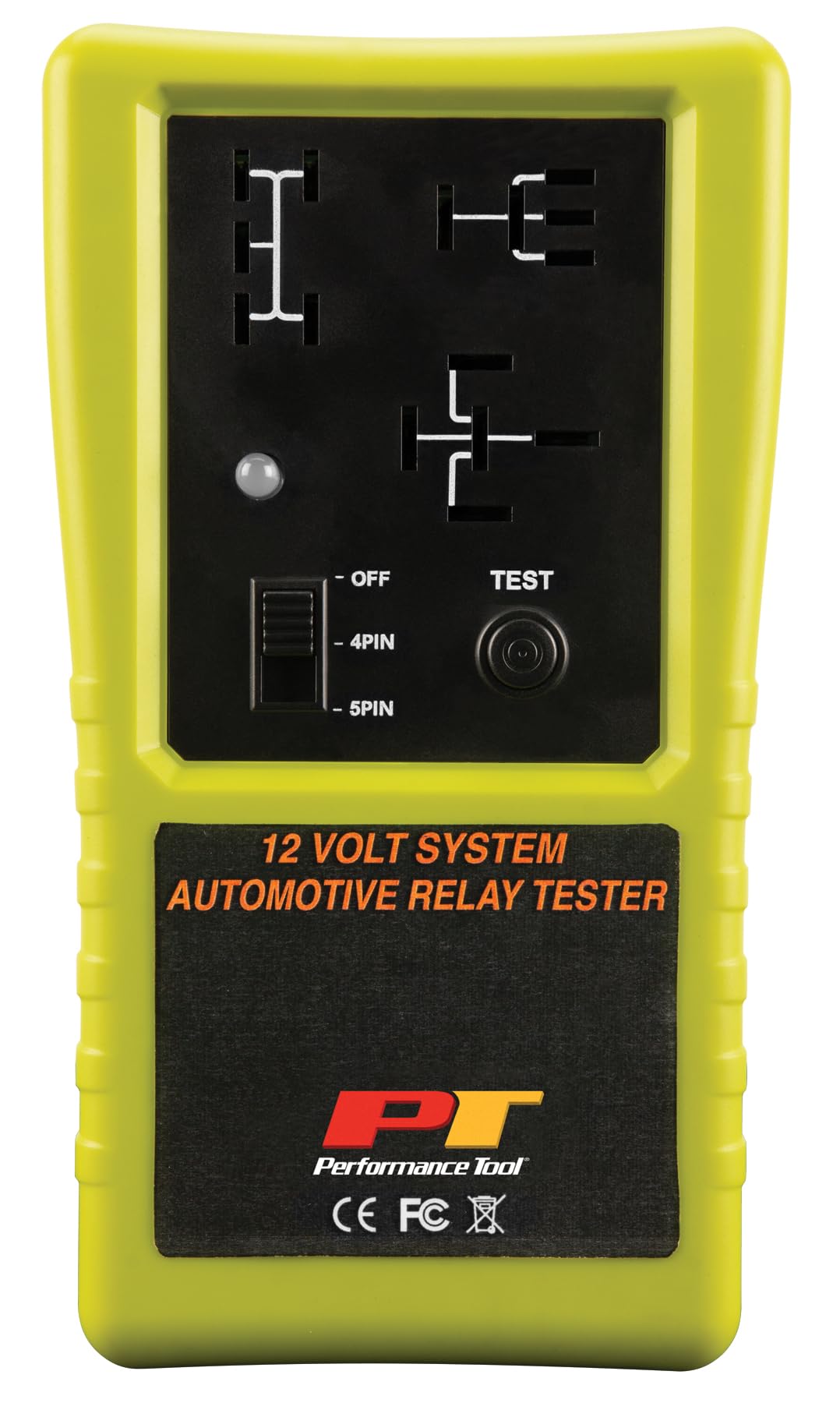

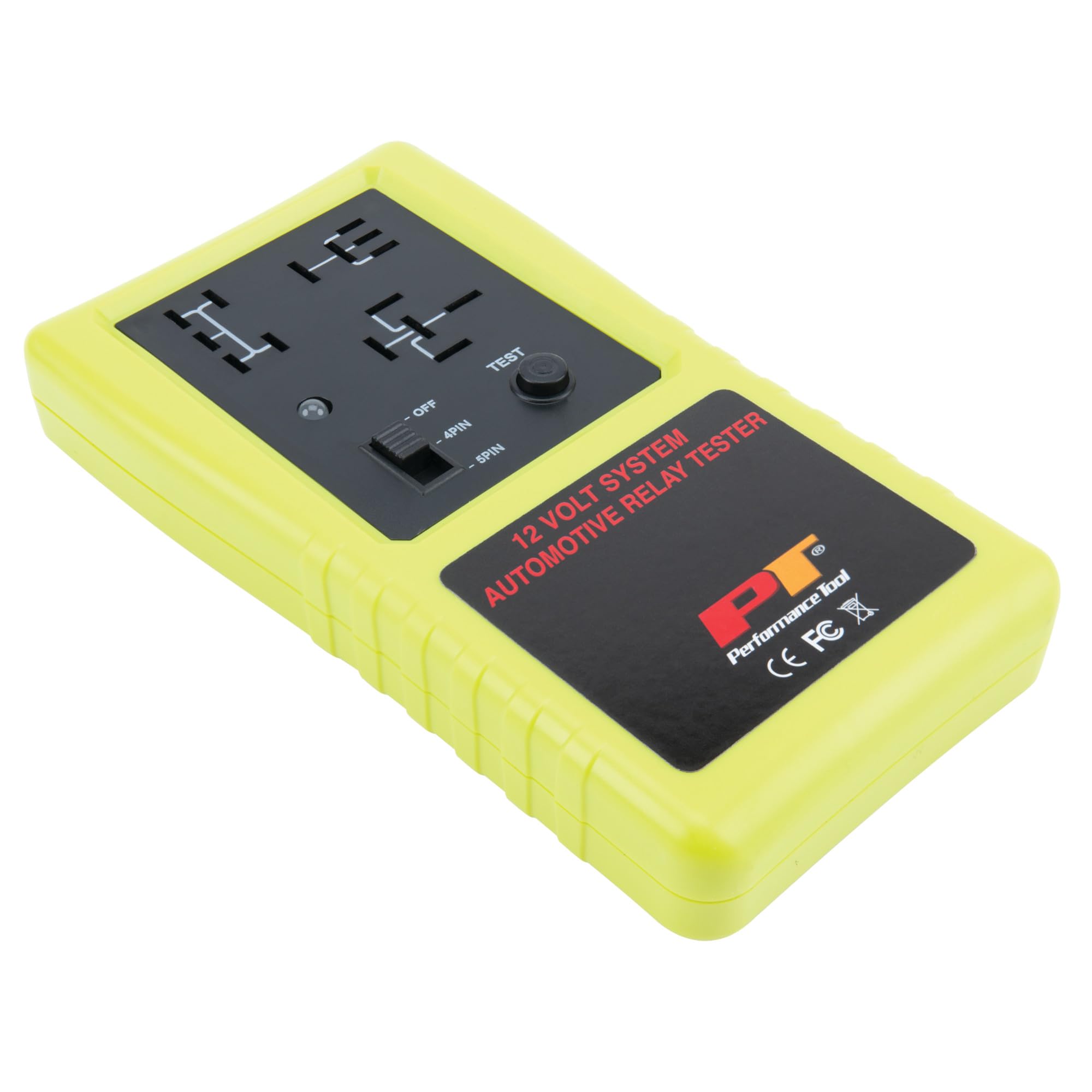

Performance Tool 3009 is a handheld, self-contained tester that quickly verifies 12-volt 4- and 5-pin automotive relays outside the vehicle with clear green/red LED pass/fail results.

Replace guesswork with a compact diagnostic tool designed to check relay coils and switch contacts without any vehicle hookups. The Performance Tool 3009 runs on included AA batteries and gives immediate pass/fail feedback, making relay troubleshooting faster and less disruptive than bench swaps or partial installations. Because it tests the most common relay types used in modern cars, trucks, and SUVs, it’s a practical addition to a mechanic’s kit, fleet toolbox, or a DIY enthusiast’s garage.

How does this tester confirm a relay is good or bad?

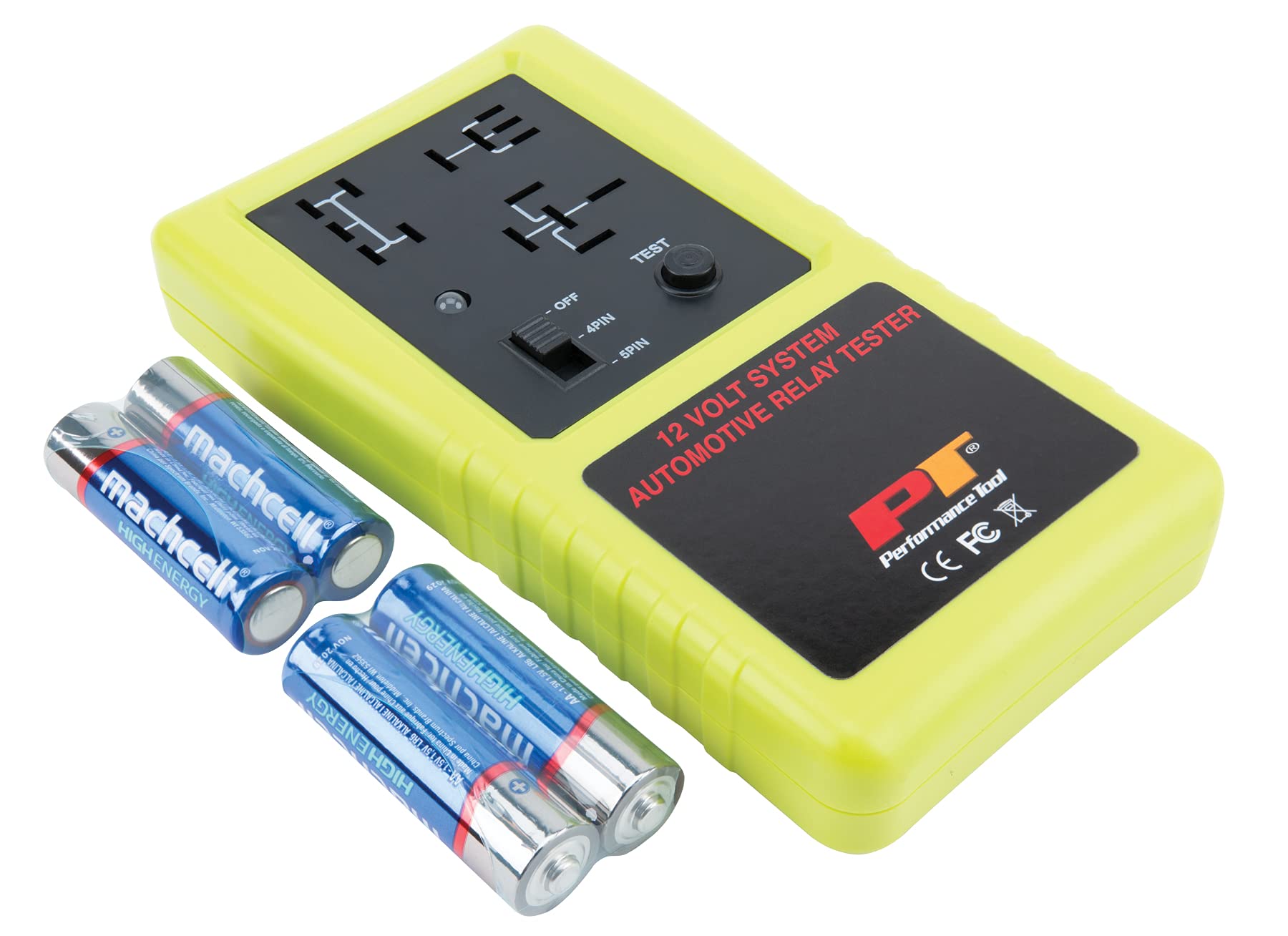

The tester energizes the relay coil and checks the switch contacts, then displays the result with two LEDs: green for pass, red for fail. It reveals both coil circuit continuity and whether contacts are switching as expected, so you avoid reinstalling a faulty relay or chasing unrelated wiring problems.

• Applies 12V to the coil to simulate in-vehicle operation
• Monitors switch contacts for open or closed conditions
• Instant green LED = relay functioning correctly
• Instant red LED = coil break or contact failure detected

Can I use it directly on a car, or do I need extra cables?

No clamps, jumpers, or vehicle battery connections are required—the unit is fully self-contained for out-of-vehicle testing. That makes it safer and faster to verify relays removed from their sockets, and it reduces the risk of accidental shorts while probing live circuits.

• Self-powered by included AA batteries—no external power source needed

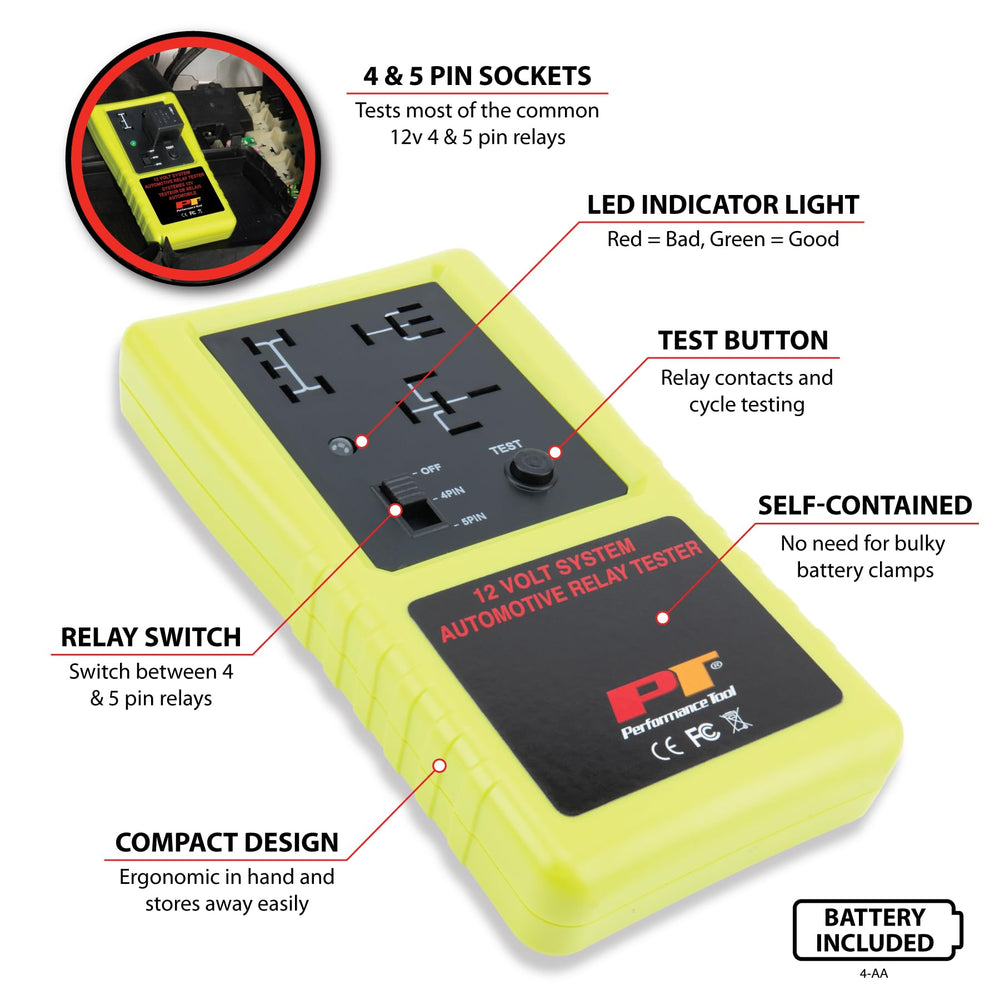

• Plug-in socket fits common 4- and 5-pin relay configurations
• Compact footprint for bench testing or mobile service calls

Which relays and vehicles will this tester work with?

The Performance Tool 3009 is built to test the most widely used 12-volt 4-pin and 5-pin automotive relays found across consumer and light-duty vehicles. It doesn’t cover uncommon relay pinouts or specialized high-current modules, but it handles the majority of HVAC, lighting, fuel pump, and accessory relays you’ll encounter.

• Compatible with standard 4-pin changeover and 5-pin common automotive relays
• Designed for 12-volt automotive systems typical in cars, trucks, and SUVs
• Not intended for proprietary or large industrial relay formats

How easy is it to use for non-professionals?

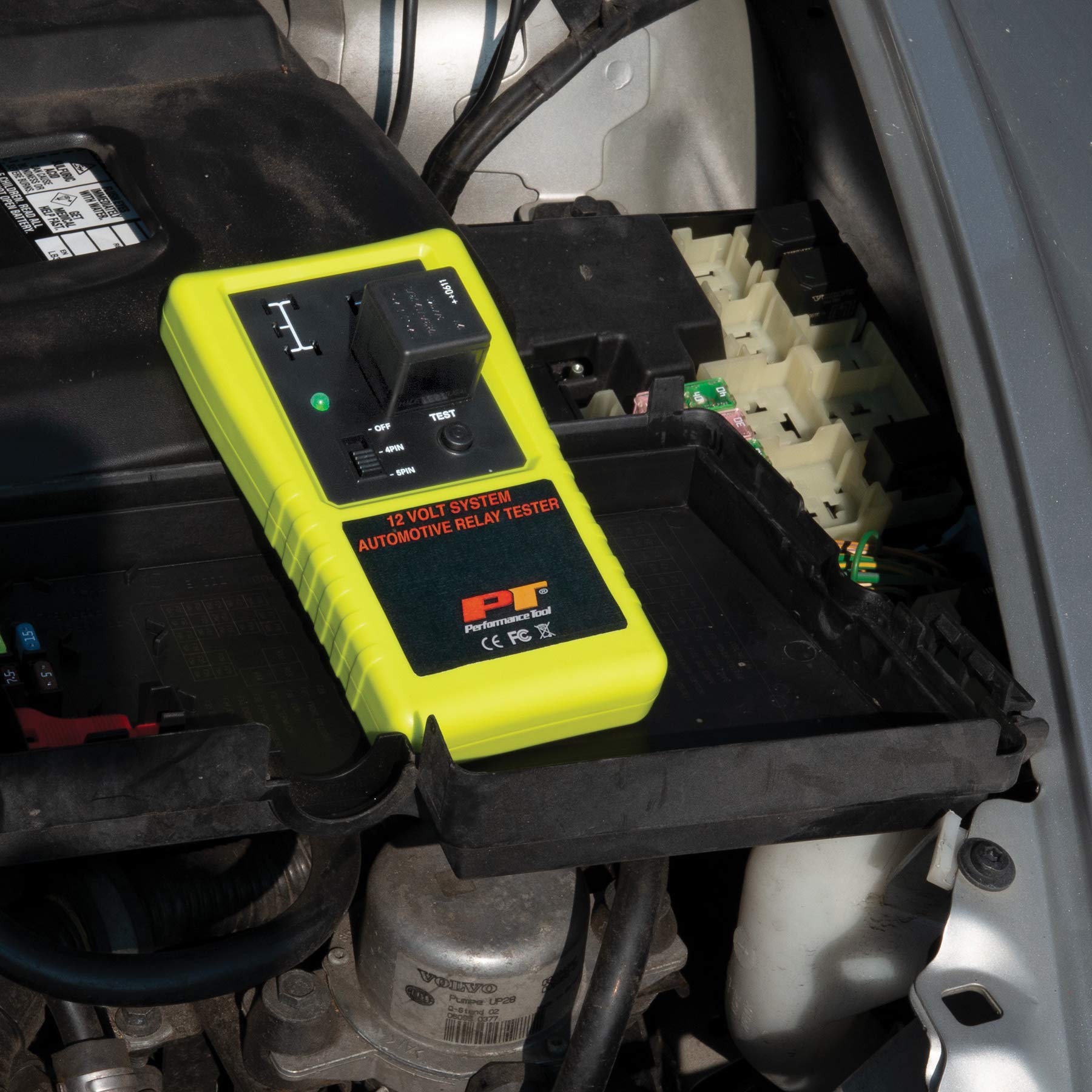

Operation is straightforward: insert the relay, press the test contacts, and read the LED indicator. The compact, no-fuss design and clear pass/fail lights let hobbyists and fleet technicians get reliable results without a long learning curve or specialized equipment.

• Plug relay into the tester’s socket—no wiring diagrams needed for common relays
• Green LED confirms functional coil and contacts; red LED flags failure

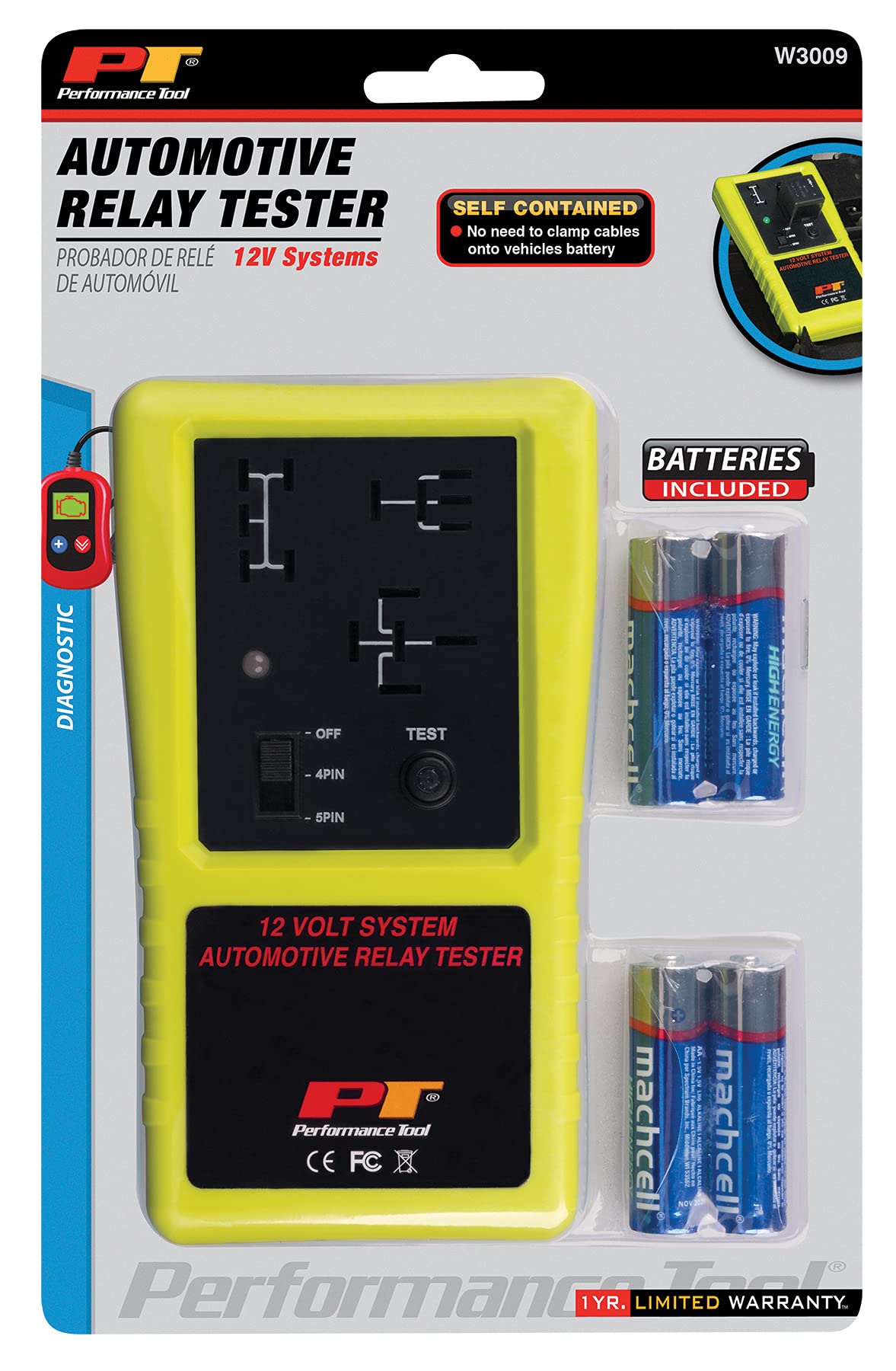

• Comes with 4 AA batteries so it’s ready to use out of the box

Who is this for: The Performance Tool 3009 is ideal for auto technicians, mobile mechanics, fleet maintenance crews, and DIY car owners who need a fast, portable way to validate 12V 4- and 5-pin relays. If you regularly diagnose electrical problems, replace relays, or service multiple vehicles, this tester reduces diagnostic time and prevents unnecessary parts swaps. It’s also a practical tool for hobbyists who want a reliable way to confirm relays before reinstalling them.
