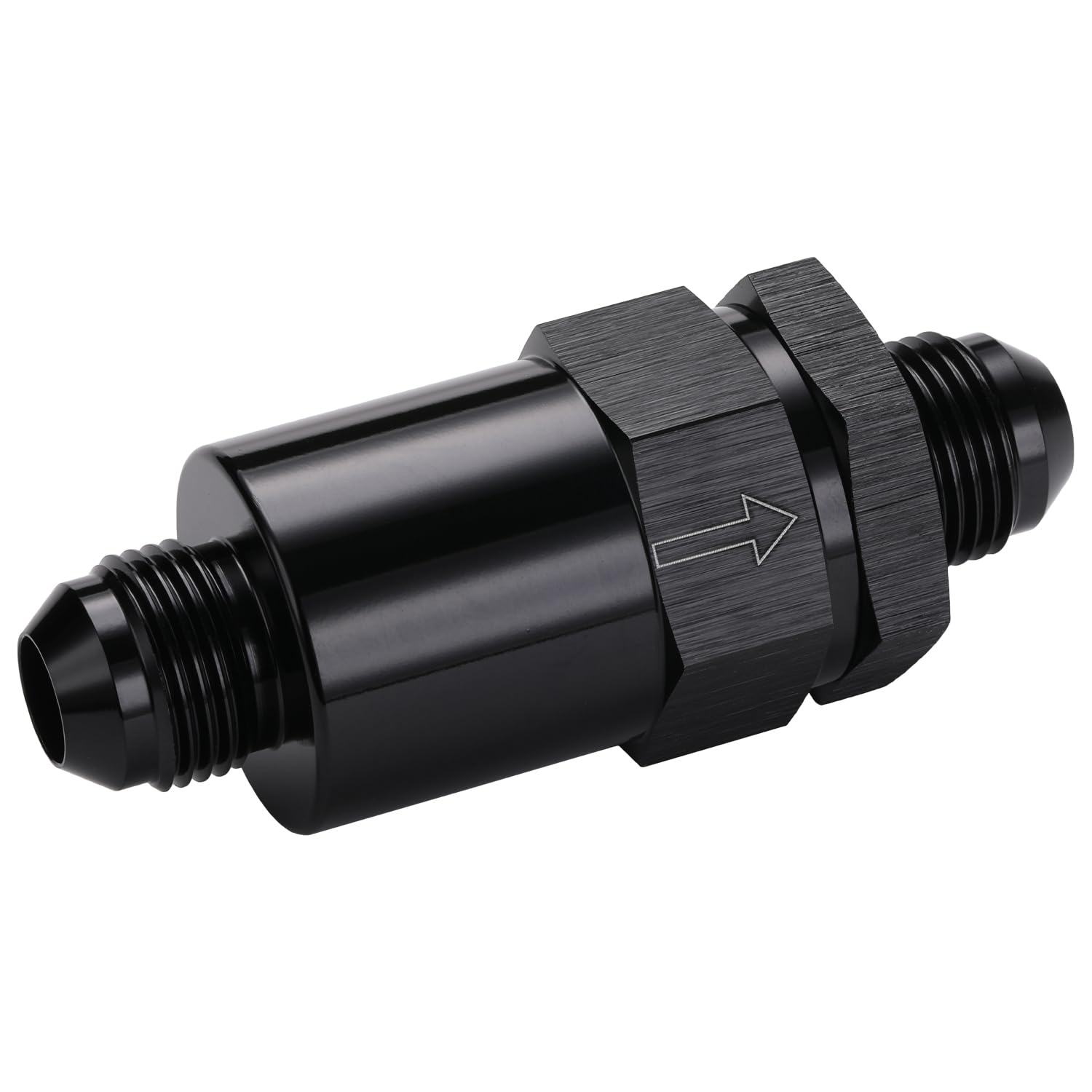

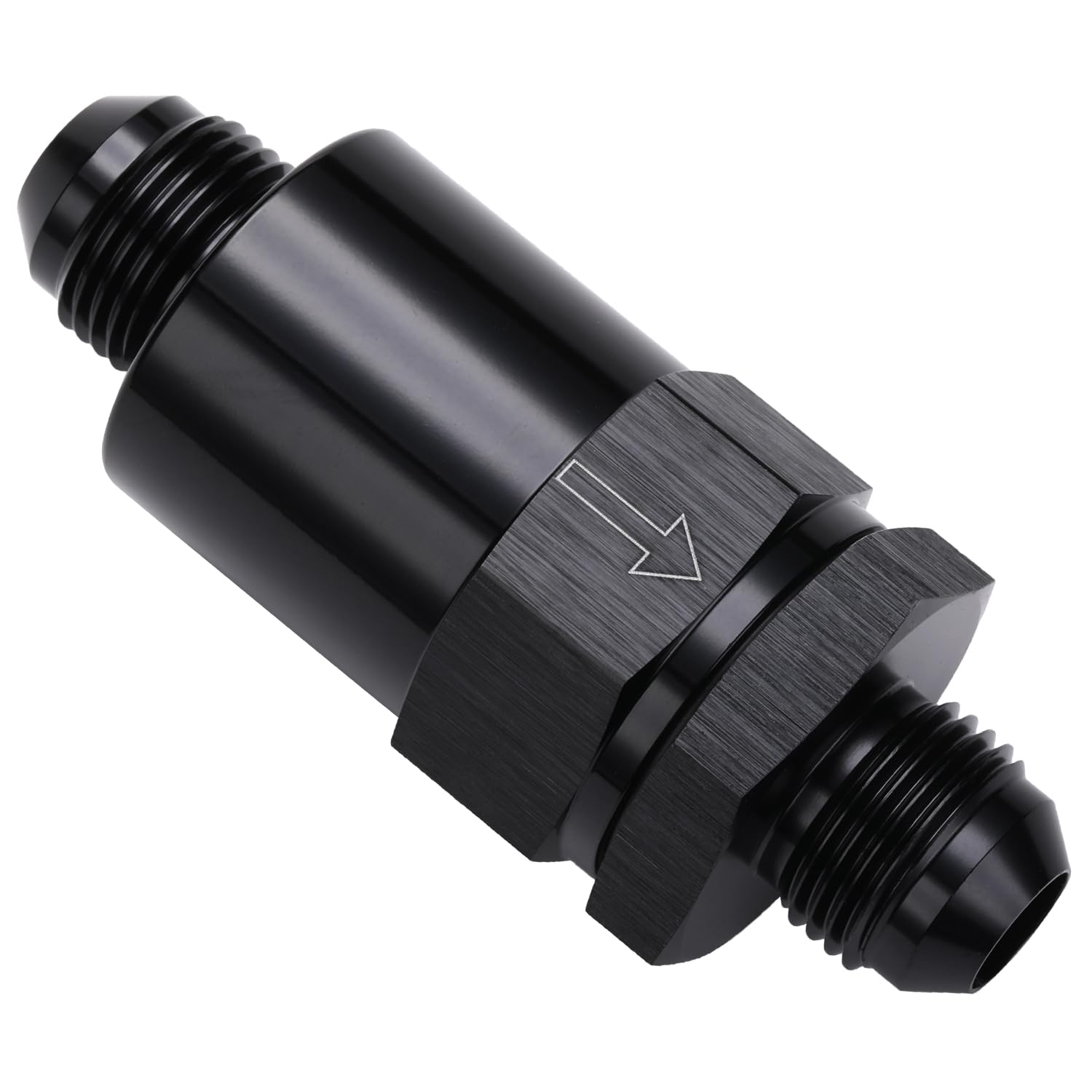

Podavelle 8AN Billet Inline Fuel Filter — Black Aluminum, 30‑Micron Reusable Bronze Element, High Flow

Podavelle's 8AN billet inline fuel filter is a compact, high-flow aluminum filter with a reusable 30‑micron sintered bronze element designed for high‑volume EFI and carbureted fuel systems.

This precision-machined inline filter combines lightweight 6061‑T6 billet aluminum construction, a durable black anodized finish, and a sintered bronze core to protect injectors and carburetors from fine particles while maintaining strong flow rates. Its -8 AN (3/4-16 UNF) threaded inlet/outlet and compact housing make it easy to integrate into tight fuel lines on performance cars, race rigs, motorcycles, or marine applications. The removable, reusable element reduces waste and ongoing replacement costs, while the design keeps pressure loss to a minimum — critical for modern fuel systems that demand steady delivery.

How does this filter manage high fuel flow without causing pressure loss?

The Podavelle 8AN filter is engineered to deliver substantial flow while keeping pressure drop under one PSI. A 30‑micron sintered bronze element presents a large surface area for filtration, and the internal geometry supports 900 liters per hour throughput at low restriction. This balance helps preserve pump efficiency and fuel rail pressure in high‑demand setups.

• Flows up to 900 liters per hour with minimal restriction
• Pressure drop less than 1 PSI under rated flow
• Wide-area sintered bronze media reduces clogging frequency

Is the filter element serviceable and how do I maintain it?

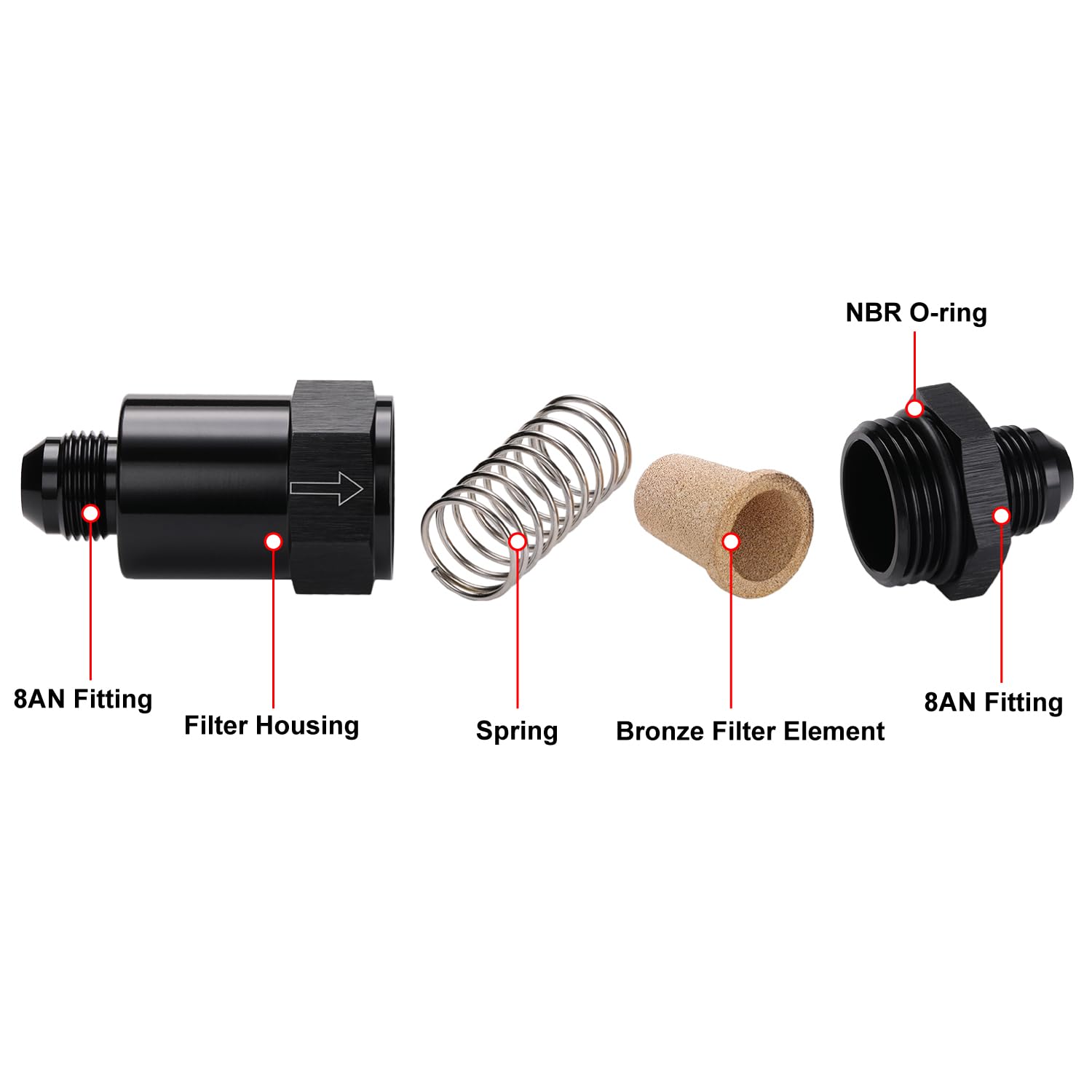

The filter's sintered bronze cartridge is removable and designed for cleaning and reuse, avoiding frequent cartridge replacements. Routine inspection and ultrasonic cleaning or solvent soaking typically restore performance. Always allow the element to fully dry before reinstalling and follow safety practices when working with fuel system components.

• Removable sintered bronze element for cleaning or replacement
• Compatible with solvent soaking or gentle ultrasonic cleaning
• Dry completely before reinstalling; inspect for damage each service

Will this fit my vehicle's fuel lines and where is it best placed?

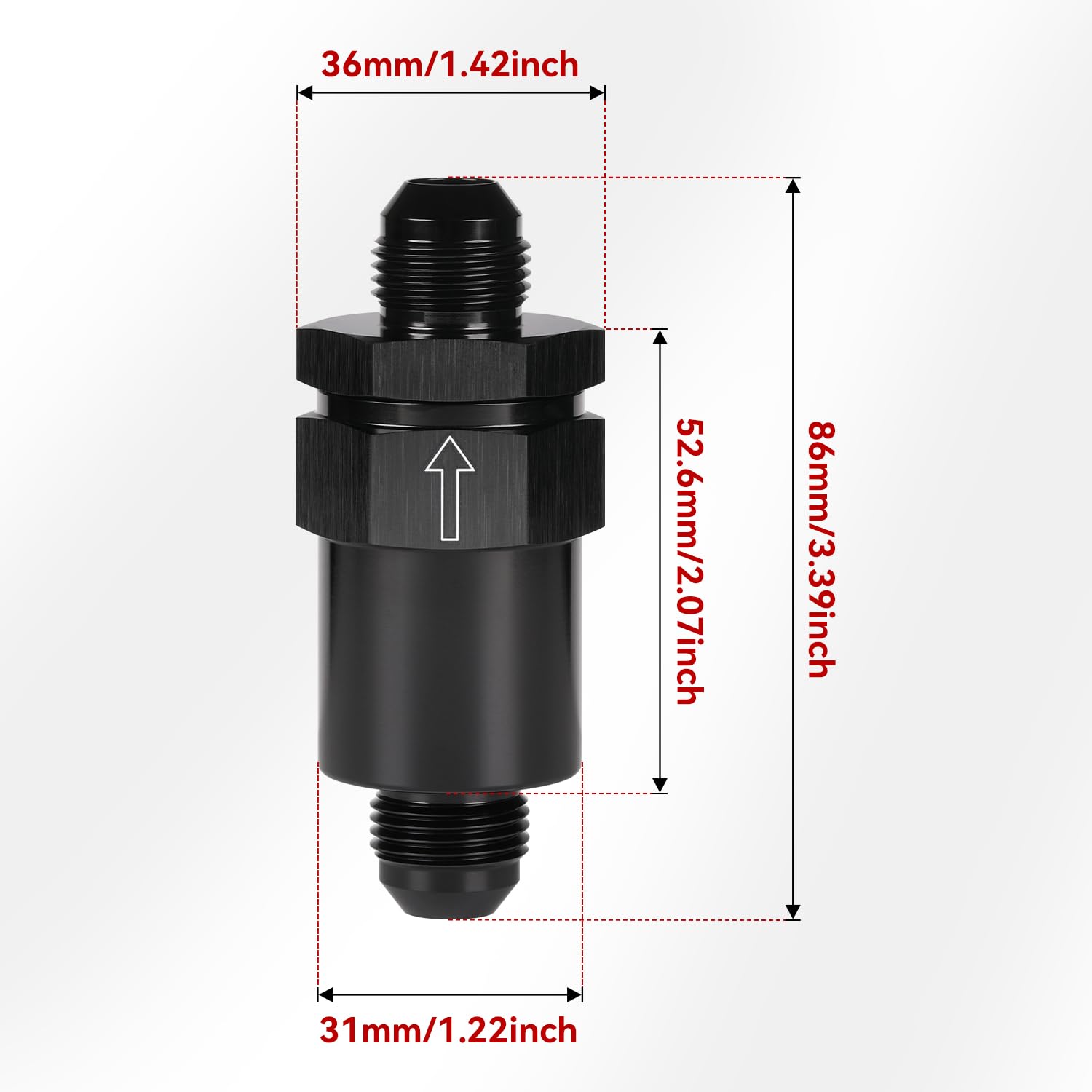

This unit uses -8 AN (3/4-16 UNF) threaded inlet and outlet fittings, matching standard AN8 plumbing. Its compact housing (approx. 52.6 mm length excluding fittings) allows mounting in confined locations along the feed or return lines. Position it downstream of the fuel pump but upstream of injectors or the carburetor for optimal protection.

• -8 AN thread size for direct fit with AN8 hoses and adapters
• Compact 52.6 mm housing fits tight engine bays and chassis mounts
• Recommended placement: after the pump, before the fuel rail or carburetor

What materials and finish protect the filter from corrosion and wear?

The main body is CNC machined from 6061‑T6 aluminum for strength with minimal weight, and the surface receives a black anodized coating to guard against corrosion and abrasion. The sintered bronze filter media resists chemical attack from common fuels and additives while retaining structural integrity over multiple cleaning cycles.

• 6061‑T6 billet aluminum body for high strength-to-weight ratio
• Hard-anodized black finish for corrosion resistance and longevity
• Sintered bronze element resists fuel chemistry and repeated cleaning

Who is this for: The Podavelle 8AN billet inline filter is aimed at performance enthusiasts, racers, custom builders, and anyone running high‑volume EFI or carburetor systems who needs reliable contamination control with minimal flow restriction. Professional installation is strongly recommended to ensure proper sealing, routing, and compatibility with your vehicle's fuel system. This product is ideal where compact size, serviceable filtration, and durable construction are priorities.
