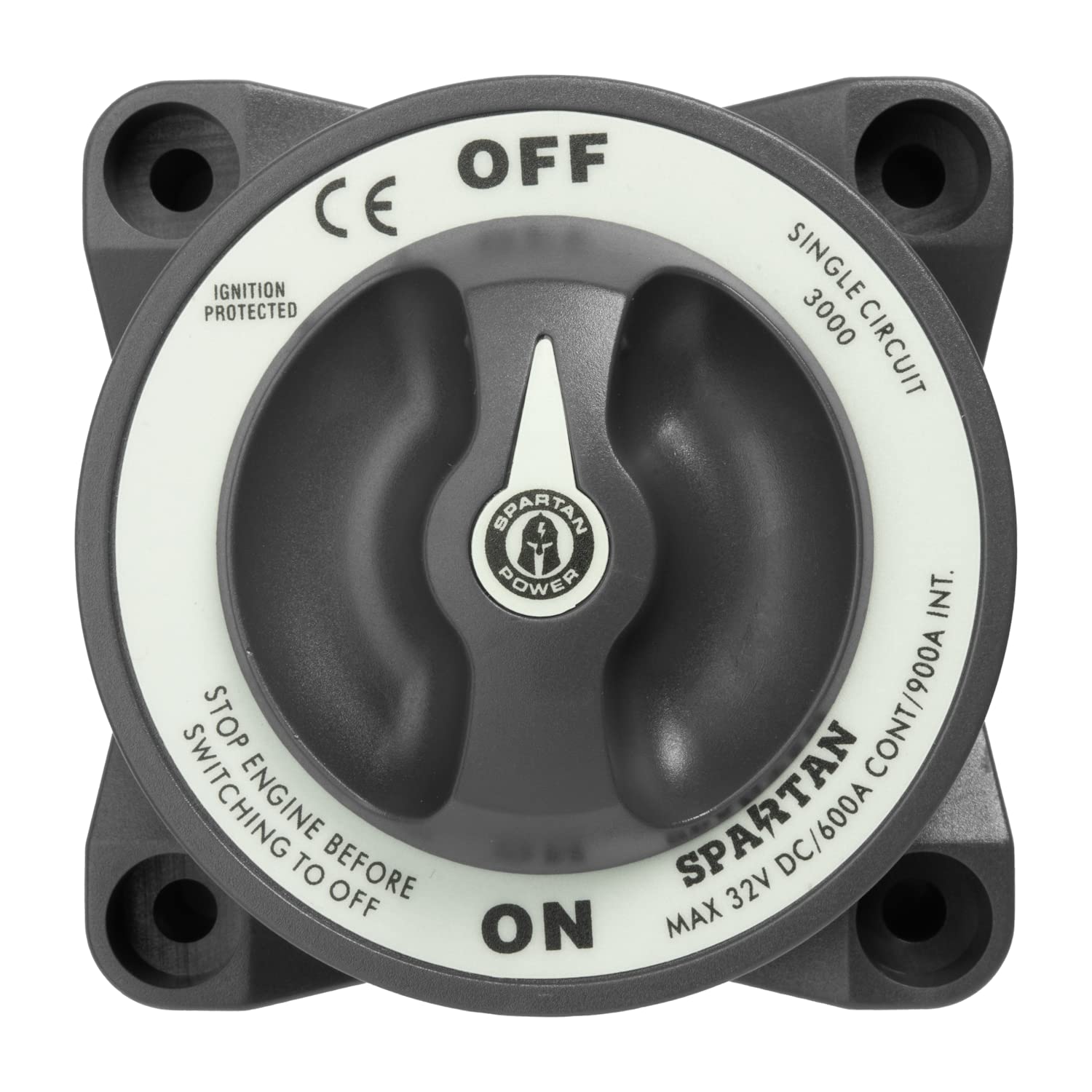

Spartan Power 600A Heavy-Duty ON/OFF Battery Switch — Single-Circuit, IP66 Waterproof, Ignition-Protected

This heavy duty battery switch from Spartan Power gives you a reliable way to control power from one battery to one load group. Built to withstand demanding conditions, it offers high crank ratings, waterproof protection, and flexible mounting so you can install it on boats, RVs, or industrial equipment with confidence. The switch accepts two 4/0 AWG cables and includes the mounting screws for a straightforward setup.

How rugged is this switch for marine and outdoor use?

The Spartan Power 600A switch is engineered for tough environments: it carries an IP66 waterproof rating and complies with ISO 8846 and ABYC ignition-protection standards. The casing and contacts are made to resist moisture, vibration, and corrosion encountered in marine and off-grid applications.

• IP66 rated for dust-tight and powerful water jets
• Ignition protected to meet gasoline-powered boat safety needs
• Heavy-duty contacts designed for long-term durability

What electrical loads and cranking demands can it handle?

This model supports a continuous current of 600A and higher short-term crank currents to handle engine starting loads. Spartan Power specifies a 1750A crank rating for 30 seconds and 900A for 5 minutes, making it suitable for most starter motors and high-demand accessories within a 32V system.

• 600A continuous rating at up to 32V operating voltage
• 1750A for 30 seconds and 900A for 5 minutes for cranking
• Accepts two 4/0 AWG (95mm²) battery cables for low-resistance connections

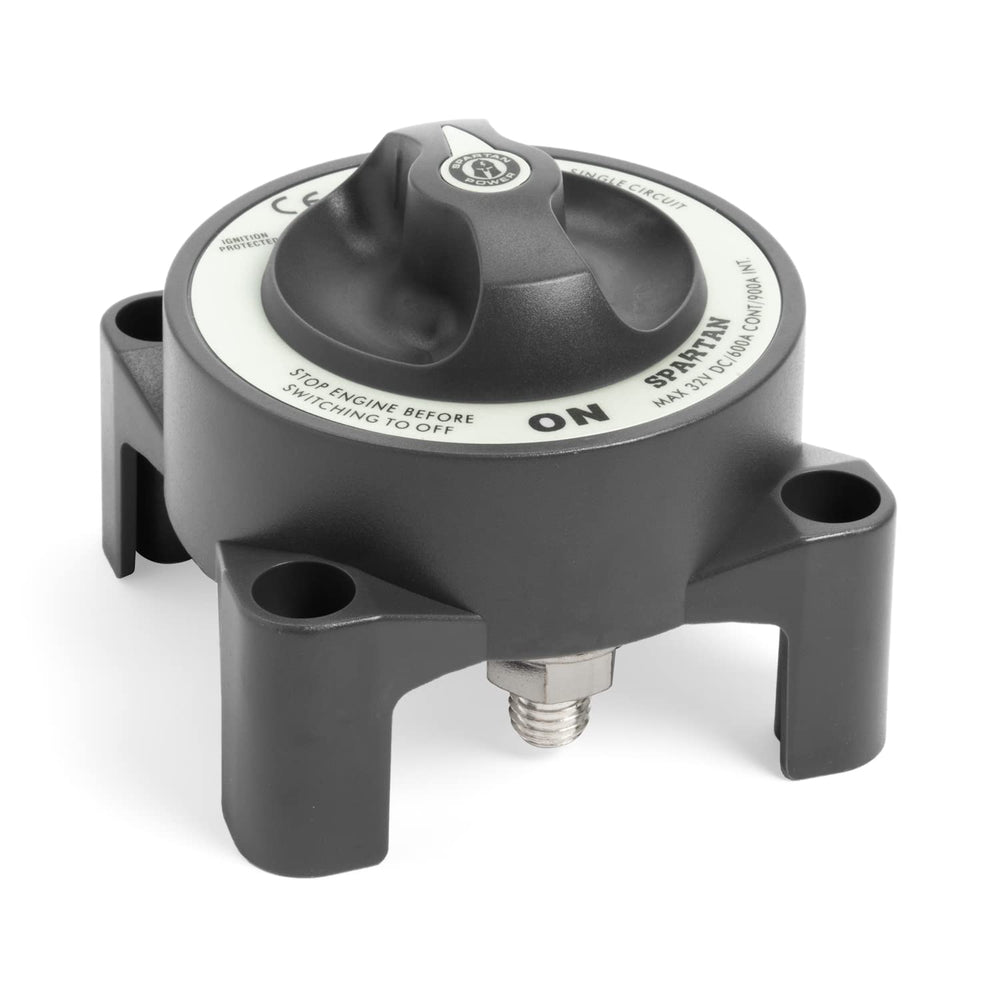

How easy is it to install and mount this battery switch?

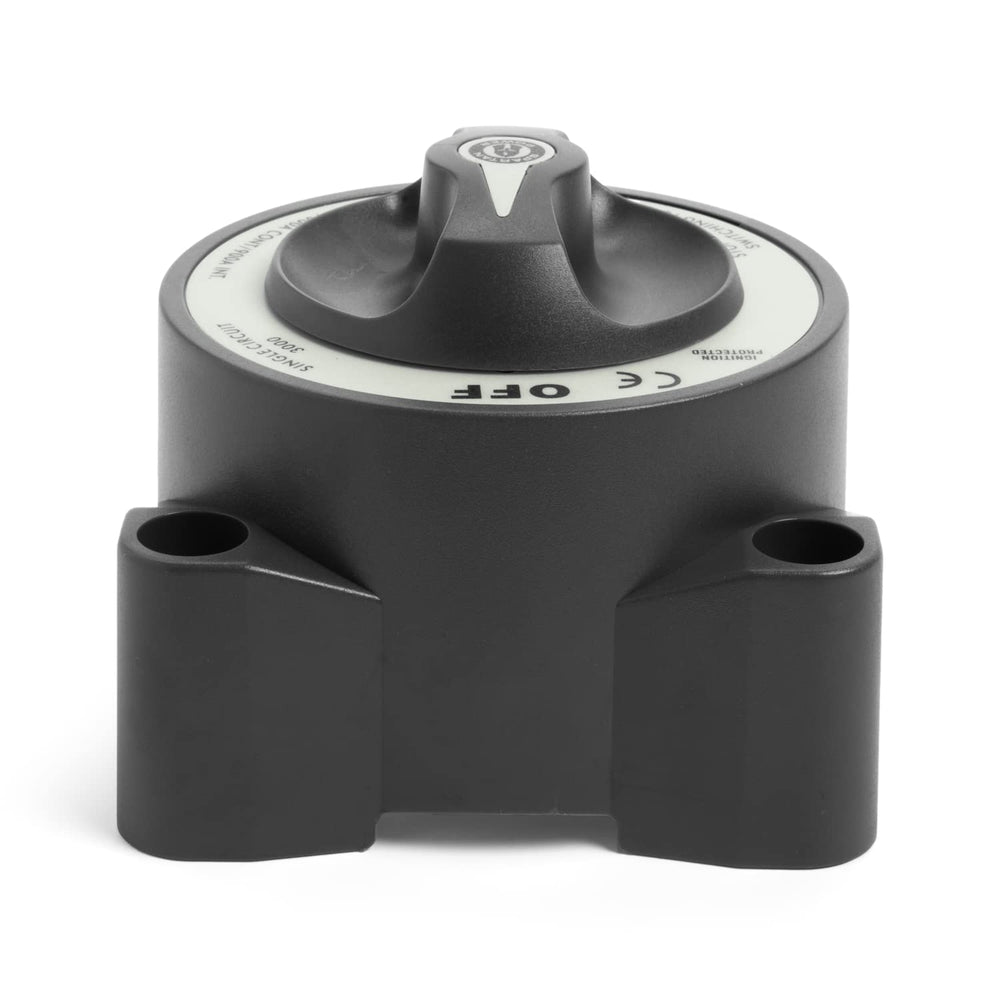

The switch’s enclosure supports either surface mounting or rear-panel installation, giving installers flexibility in tight spaces. Spartan Power supplies screws with the unit so you can secure it quickly; the terminal layout and wide cable acceptance simplify routing and lug attachment.

• Surface or rear-panel mounting options for flexible placement
• Includes mounting screws for quicker installation

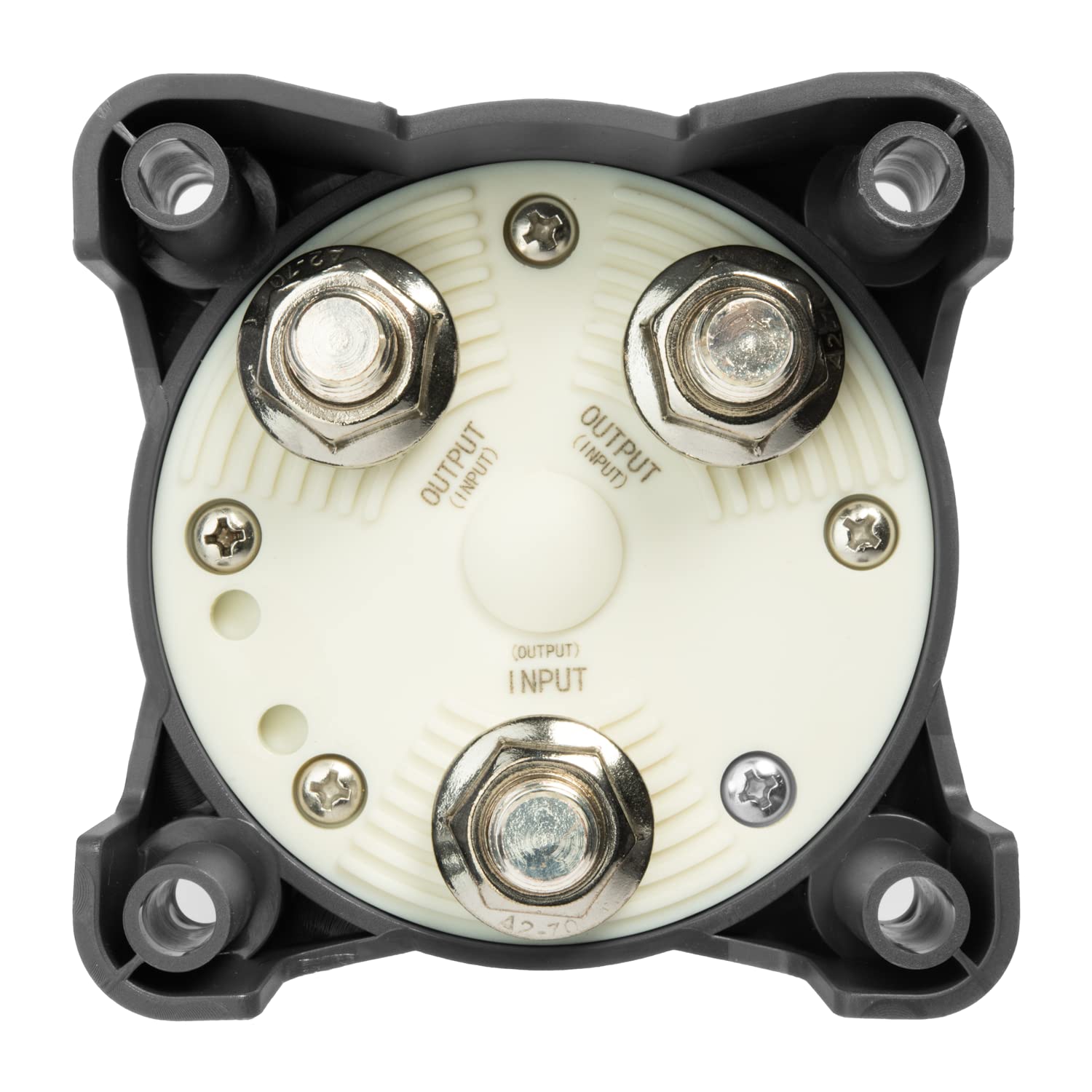

• Large terminal acceptors ease connection of two 4/0 AWG cables

What safety and certification features should I know about?

The switch meets important safety standards for marine use, providing peace of mind when installed aboard gasoline-powered boats or in other ignition-sensitive environments. The construction reduces the risk of accidental arcing, and the specified ratings let you match it appropriately to your system's demands.

• Compliant with ISO 8846 and ABYC ignition-protection standards
• Designed to minimize arcing under load changes and cranking
• Rated for a maximum operating voltage of 32V

Who is this for? Installers, boat owners, RV enthusiasts, and maintenance technicians who need a high-capacity, ignition-protected master switch will find the Spartan Power 600A ON/OFF battery switch a practical choice. It’s tailored for single-battery-to-single-load configurations where reliable, heavy-current switching and compliance with marine safety standards matter. Choose this switch when you need a robust, easy-to-mount isolator that accepts large gauge cables and handles cranking loads without compromise.
