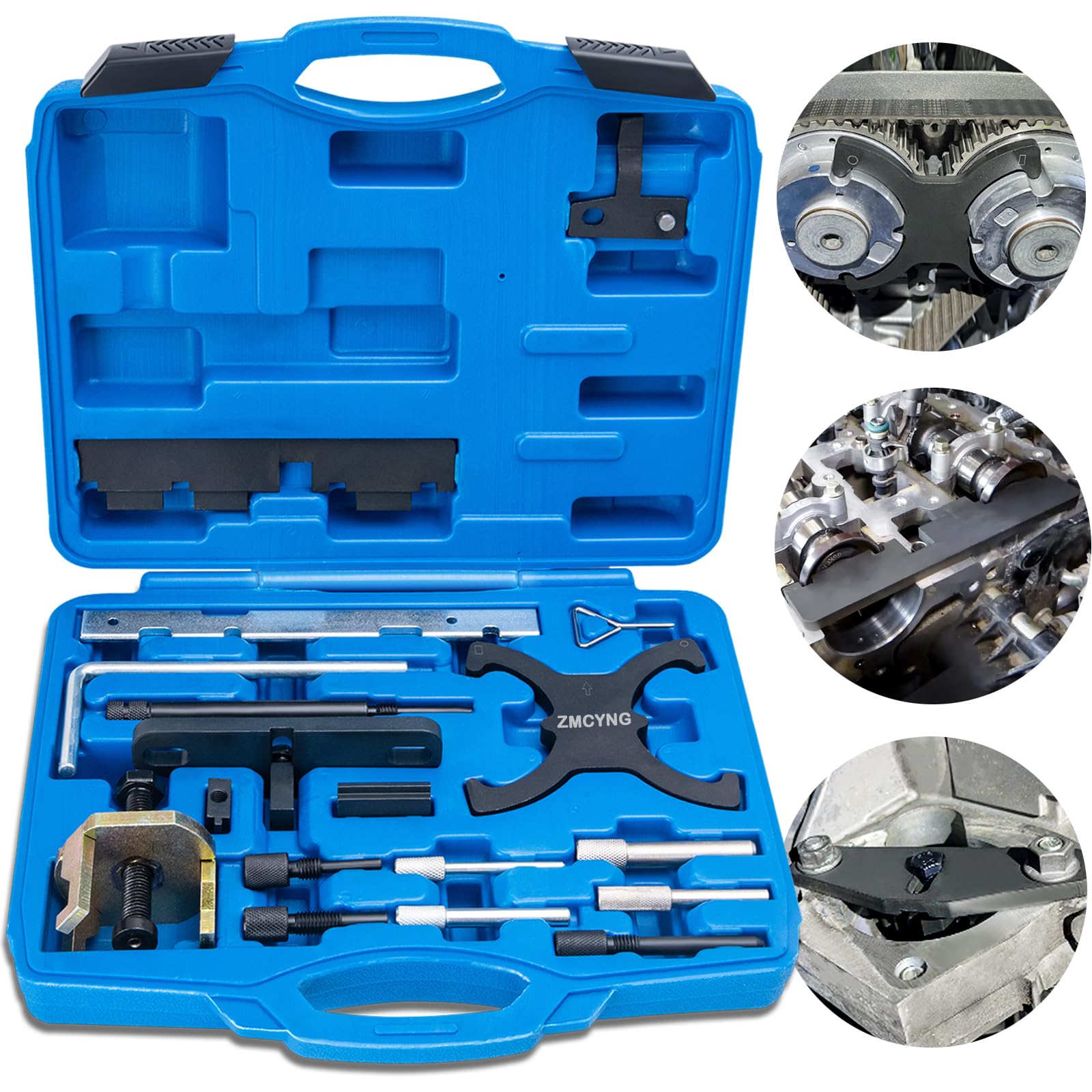

ZMCYNG Timing Tool Kit for Ford & Mazda 1.5/1.6 Engines — Cam, Crank & VTC Alignment Set

ZMCYNG 1.5/1.6 Timing Tool Kit is a complete camshaft, crankshaft and VTC alignment set built to lock and set timing on Ford and Mazda 1.4–2.0 engines accurately and reliably.

This timing tool kit bundles the patterned pins, locking plates and tensioner guides needed to service, adjust or replace timing belts and chains on a wide range of Ford Duratec, Duratorq, EcoBoost and compatible Mazda engines. Every component is shaped to match OE locating points so you can hold camshafts, crankshafts and VTC devices in the correct position while you inspect or replace timing components. The kit aims to reduce guesswork, speed up the job, and protect valves and pistons from incorrect timing alignment during maintenance.

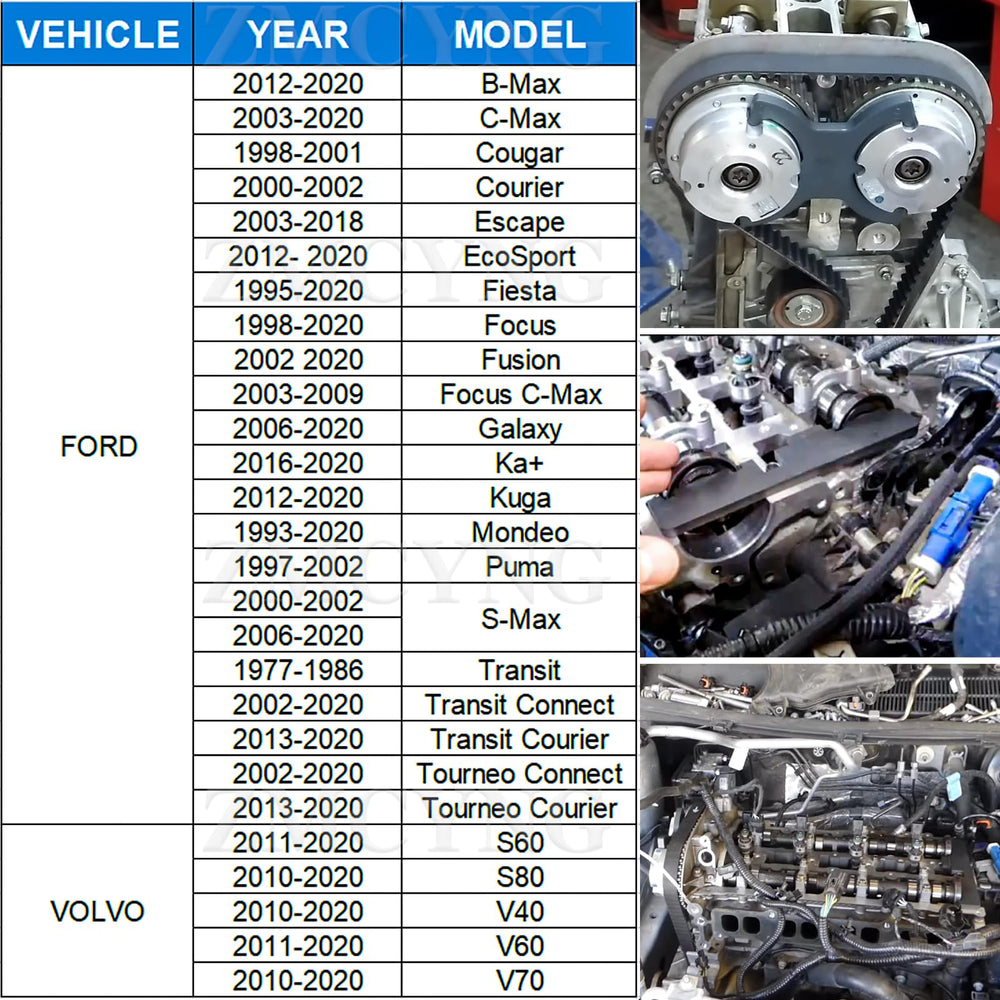

Which engines and vehicle models will this kit work with?

The set supports a broad list of small-displacement Twin-Cam petrol and TDCi diesel engines. It covers 1.25–2.0L Duratec petrol variants, Duratorq diesel units and Ecoboost/VVT families, plus many Mazda PSA-compatible 1.4–2.3L engines. Check your engine code against the included compatibility listings before purchase.

• Supported engines: 1.25, 1.4, 1.5, 1.6, 1.7, 1.8, 2.0 (various codes)
• Compatible systems: camshaft, crankshaft, timing belt tensioner and VTC locks
• Typical vehicles: Ford Fiesta, Fusion, C-Max, Transit; Mazda 3, Tribute, MP models

How does this kit help during timing belt or chain service?

The kit provides purpose-made tools to hold each timing component in its exact service position so the engine remains correctly timed while you remove or replace belts, chains or tensioners. Using the correct locks prevents rotation that can lead to bent valves or piston contact and makes reassembly faster and more precise.

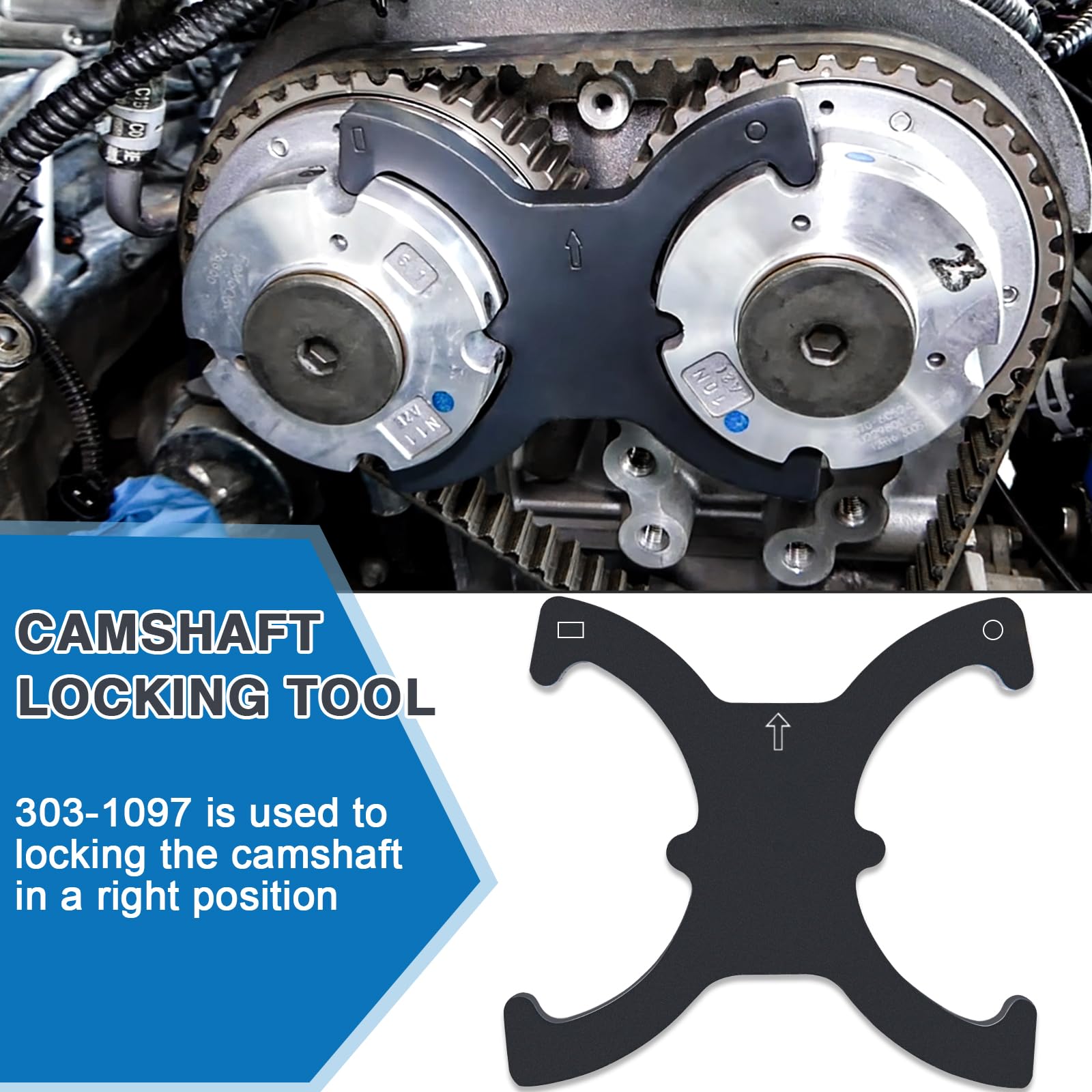

• Locks camshafts and crankshaft to factory alignment points
• Secures the timing belt tensioner for safe removal and installation
• Adjusts the VTC (variable timing control) components when required

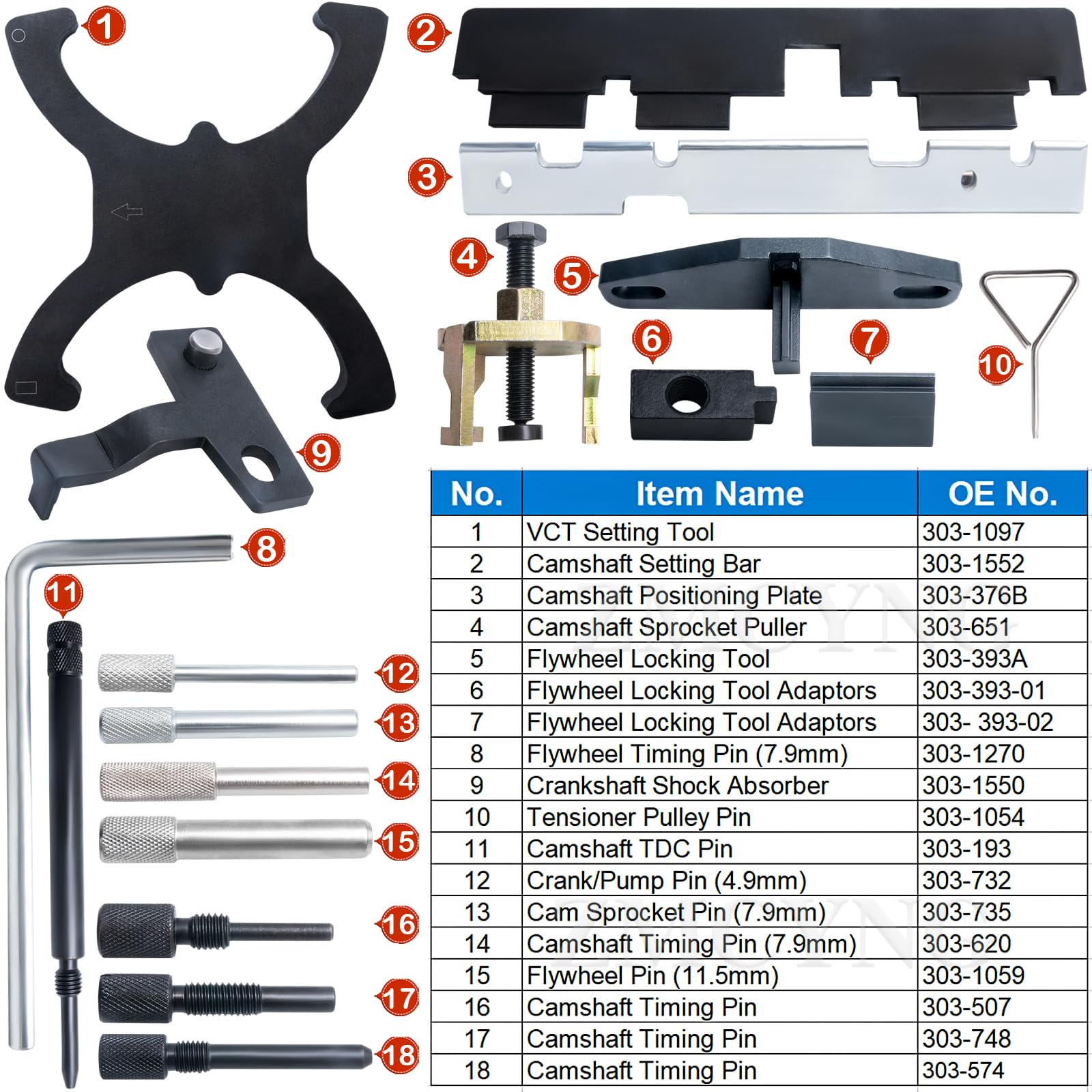

What OE references and part replacements does this set cover?

This ZMCYNG kit is engineered as an equivalent to multiple OE timing-tool part numbers, allowing it to substitute standard dealer tools for many common repair tasks. It lists numerous OE references so you can confirm interchangeability with workshop manuals or parts guides.

• Replaces OE tools including 303-1097, 303-1552, 303-376B and more
• Designed to fit factory locating holes and splines used in service
• Handy single kit for technicians working across Ford and Mazda platforms

What is included and how should I use the pieces safely?

The kit contains pins, plates and driver pieces sized to match the various engine codes listed in the product fitment. Use the appropriate pin or plate for your engine code, follow the vehicle service manual for lock positions and torque specs, and keep the crankshaft at TDC while fitting the tools to avoid misalignment.

• Contents: camshaft pins, crank locking pin, tensioner jig, VTC adjuster tools
• Usage tip: always consult the model-specific timing procedure first
• Safety: verify tool engagement before loosening timing components

Who is this for: The ZMCYNG 1.5/1.6 Timing Tool Kit is aimed at professional mechanics, independent garages and experienced DIYers who service Ford and Mazda small-displacement engines. If you perform timing belt or chain replacement, tensioner repairs, or variable timing adjustments on compatible engines, this kit gives the location-specific fixtures needed to work accurately and reduce the risk of engine damage during timing service.
