EVIL ENERGY 10AN 180° Hose End Fitting — 6061‑T6 Aluminum, 360° Swivel for Braided Fuel Hose

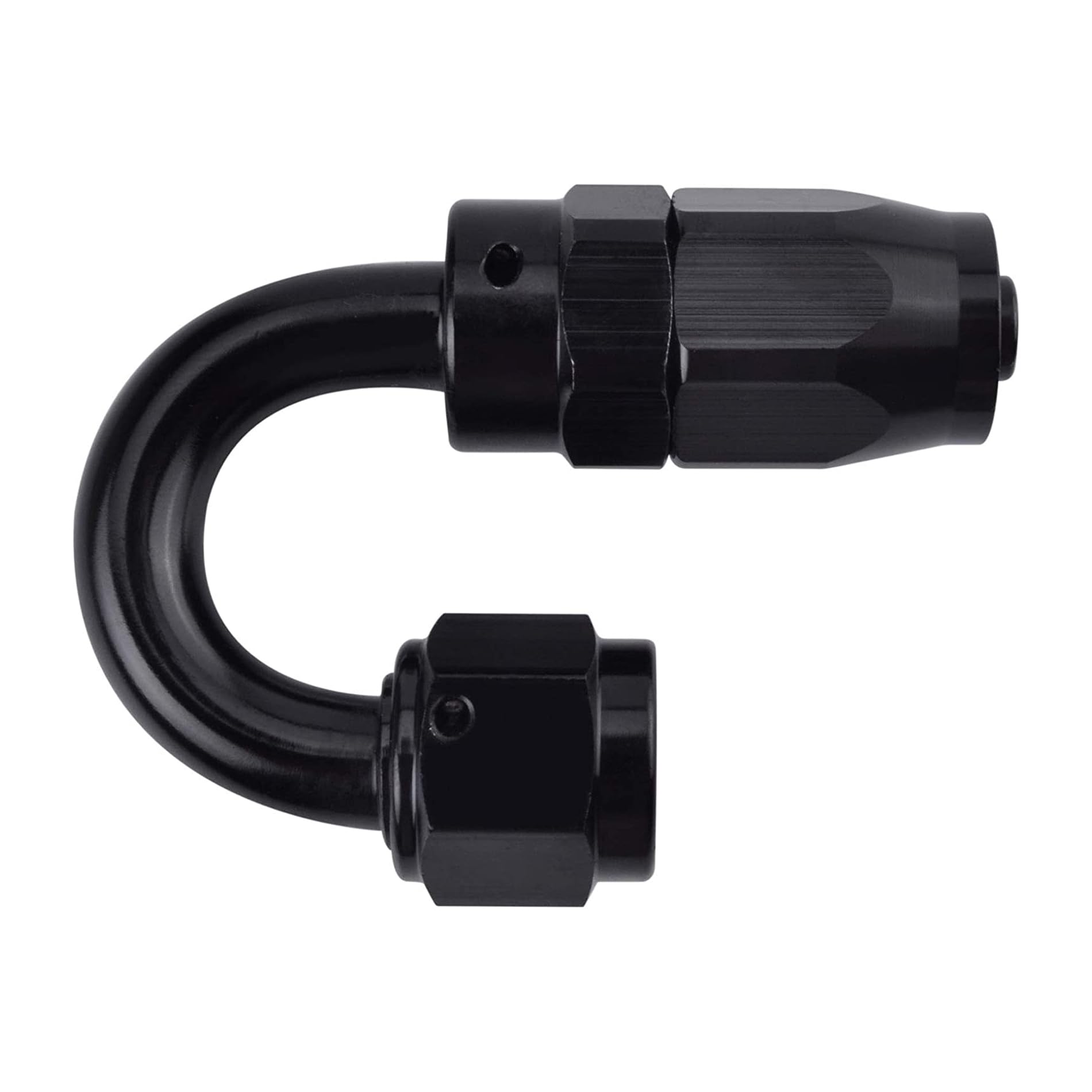

This high‑strength hose end fitting combines a low‑profile 180° bend with a 360° swivel to simplify routing in tight engine bays and fuel systems. Designed for reuse and recycling, the fitting accepts 10AN braided hoses and seals on the AN side with a 37° seat. Its material and pressure ratings make it suitable for many automotive and motorsport applications where durable, compact connections are required.

How does the 180° angle improve hose routing?

The 180° shape lets you reverse the hose direction near bulkheads or inside confined spaces without stressing the hose or creating sharp kinks. That saves clearance and reduces the risk of premature wear at bend points.

• Reverses hose direction in tight areas with minimal bend radius.
• Reduces stress and chafe at hose exits and fittings.
• Makes low‑profile installs behind manifolds or panels easier.

What materials and pressure/temperature specs does it offer?

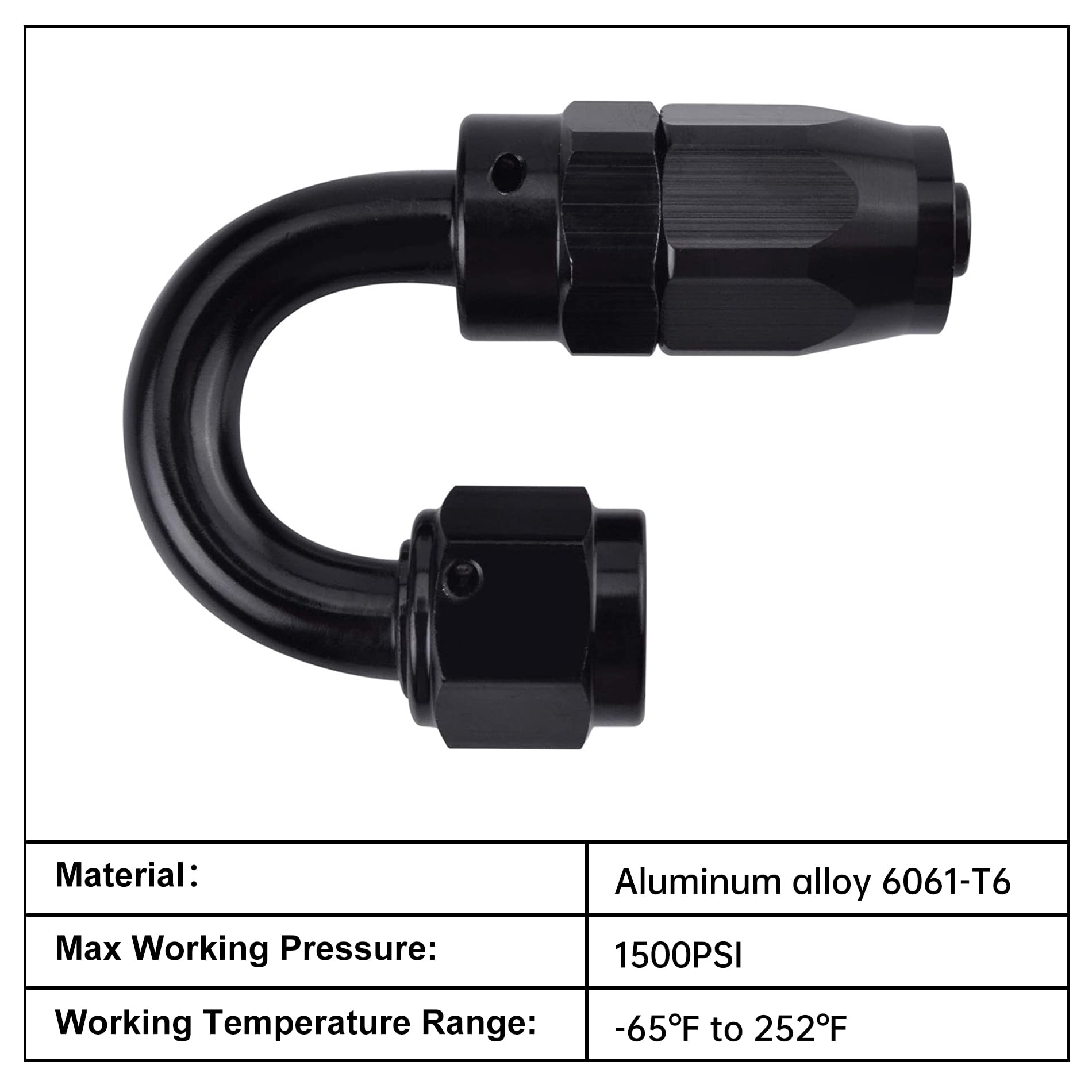

The fitting is machined from 6061‑T6 aluminum for strength while keeping weight low. It’s rated to a maximum working pressure of 1,500 PSI and performs across a broad temperature range suitable for many fuel and fluid systems.

• 6061‑T6 aluminum construction for a robust yet lightweight connection.
• Maximum working pressure: 1,500 PSI for typical automotive uses.
• Operating temperature range: −65°F to 252°F (−53°C to 122°C).

Which hoses and sealing style are compatible with this fitting?

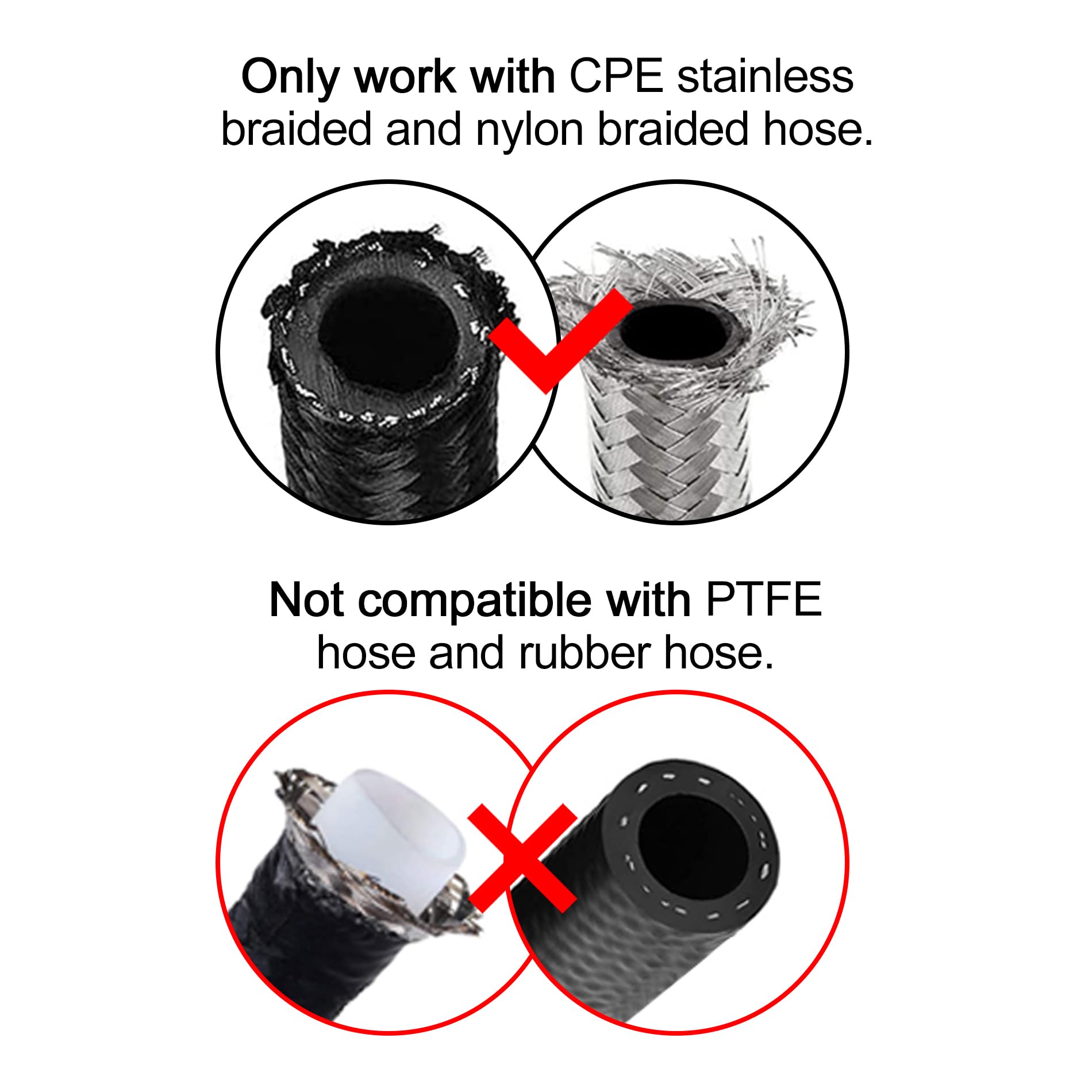

This swivel hose end is designed specifically for braided hose assemblies, including stainless steel and nylon braided lines. The AN side seals with a 37° cone, so it pairs with standard AN flared ports and mating fittings.

• Compatible with stainless steel braided and nylon braided fuel hoses.

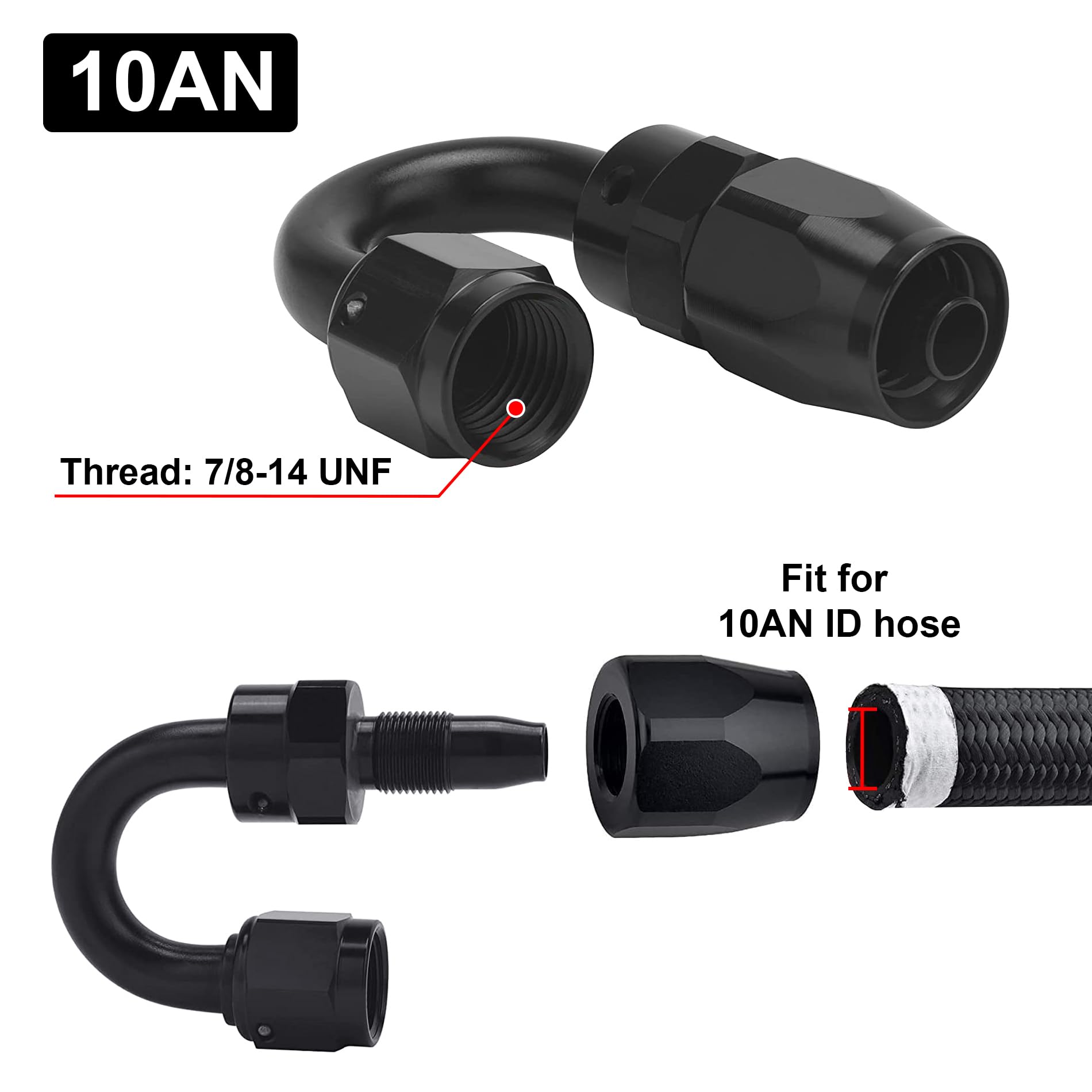

• 10AN thread size: 7/8‑14 UNF, AN side uses 37° sealing angle.
• 360° swivel allows easier orientation during assembly and maintenance.

How does the 360° swivel and reuse feature help during installation?

The integrated swivel lets you rotate the hose connection independently of the threaded port, preventing twisting of the hose during tightening. Because the fitting is serviceable and recyclable, it can be reused when replacing hoses or rerouting lines.

• 360° swivel reduces hose twist and simplifies final alignment.
• Reusable design cuts replacement cost over multiple service cycles.
• Recyclable aluminum construction for long‑term sustainability.

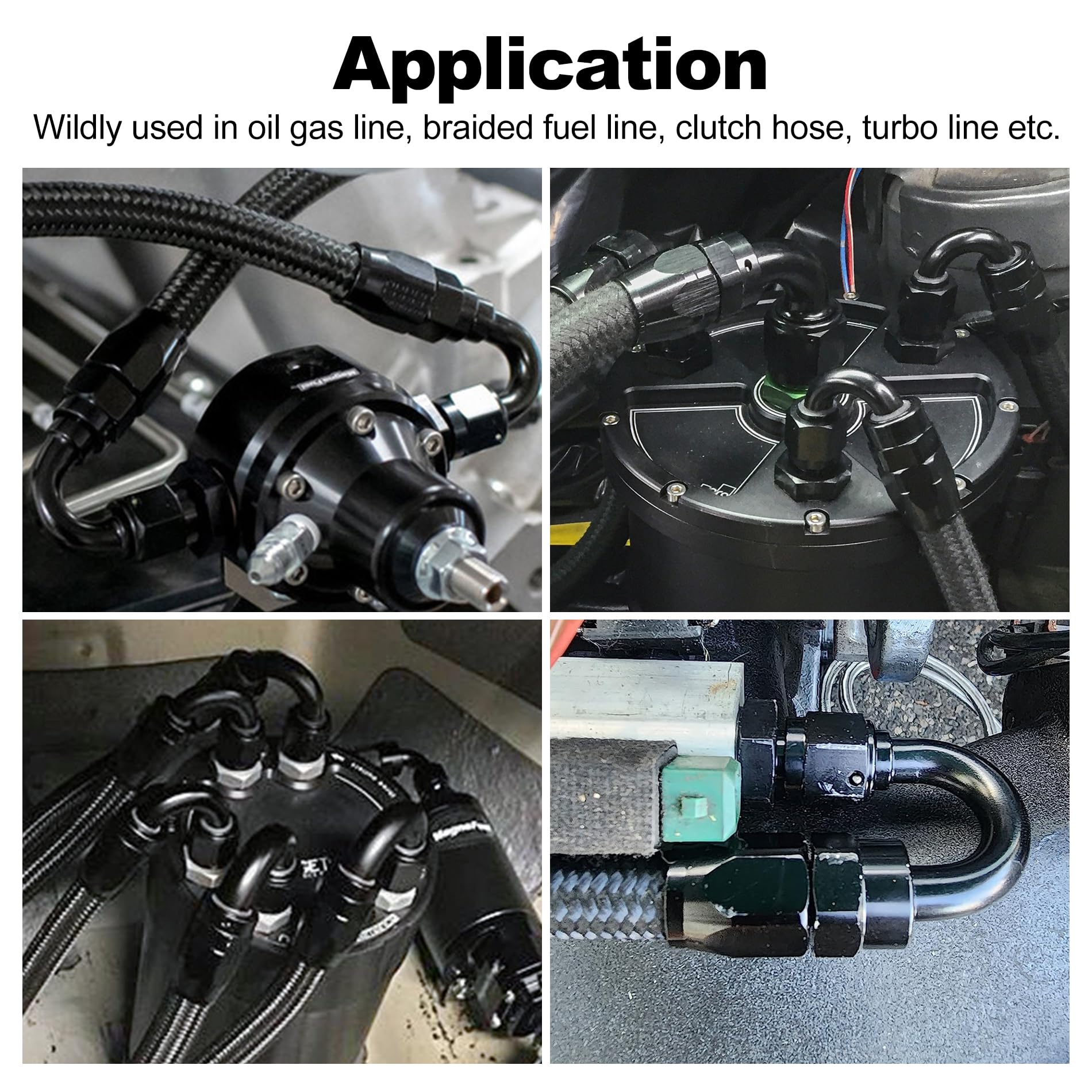

Who is this for: Technicians, tuners, and DIY mechanics who build, service, or modify fuel systems and braided fluid lines will find this EVIL ENERGY 10AN 180° hose end useful. It’s tailored for projects that need a compact, durable AN‑style connection with easy orientation, such as fuel rails, return lines, turbo plumbing, and custom race car installations. Choose this fitting when you need a high‑pressure capable, low‑profile swivel solution that matches standard AN plumbing hardware.
