EVIL ENERGY Inline Fuel Filter 10-Micron - Black Aluminum, 3 Barbs (1/2, 3/8, 5/16) for EFI & Carb

EVIL ENERGY's inline fuel filter is a universal 10-micron aluminum filter with three barb adapters (1/2", 3/8", 5/16") designed to trap particles and protect gasoline and diesel fuel systems.

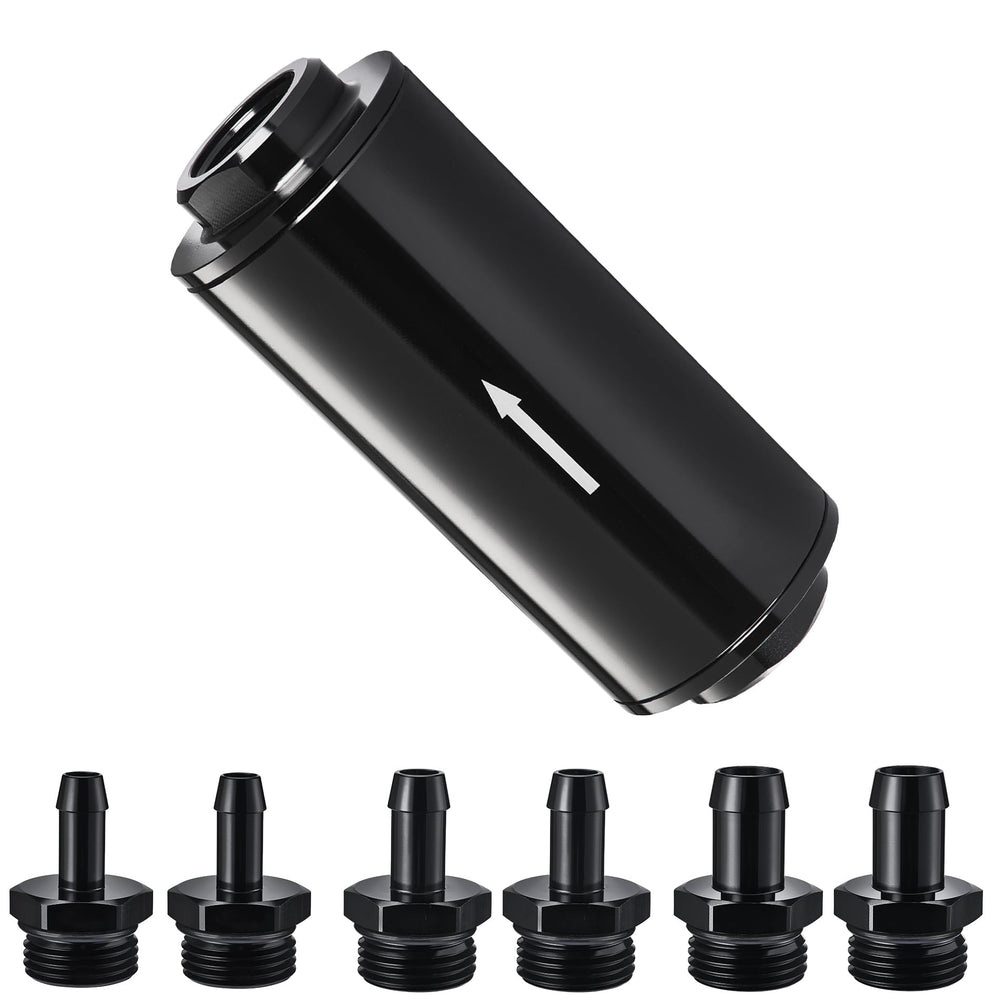

This compact, serviceable inline filter combines a lightweight aluminum housing with a stainless steel 10-micron element and three removable barb fittings to suit common rubber fuel lines. Built for both EFI and carbureted systems, the filter is reversible-checked at the factory and includes an O-ring seal and spring-backed element seating to ensure a reliable connection and longer service life. It’s black-anodized for corrosion resistance and sized to fit many aftermarket and OEM applications where simple, on-line filtration is required.

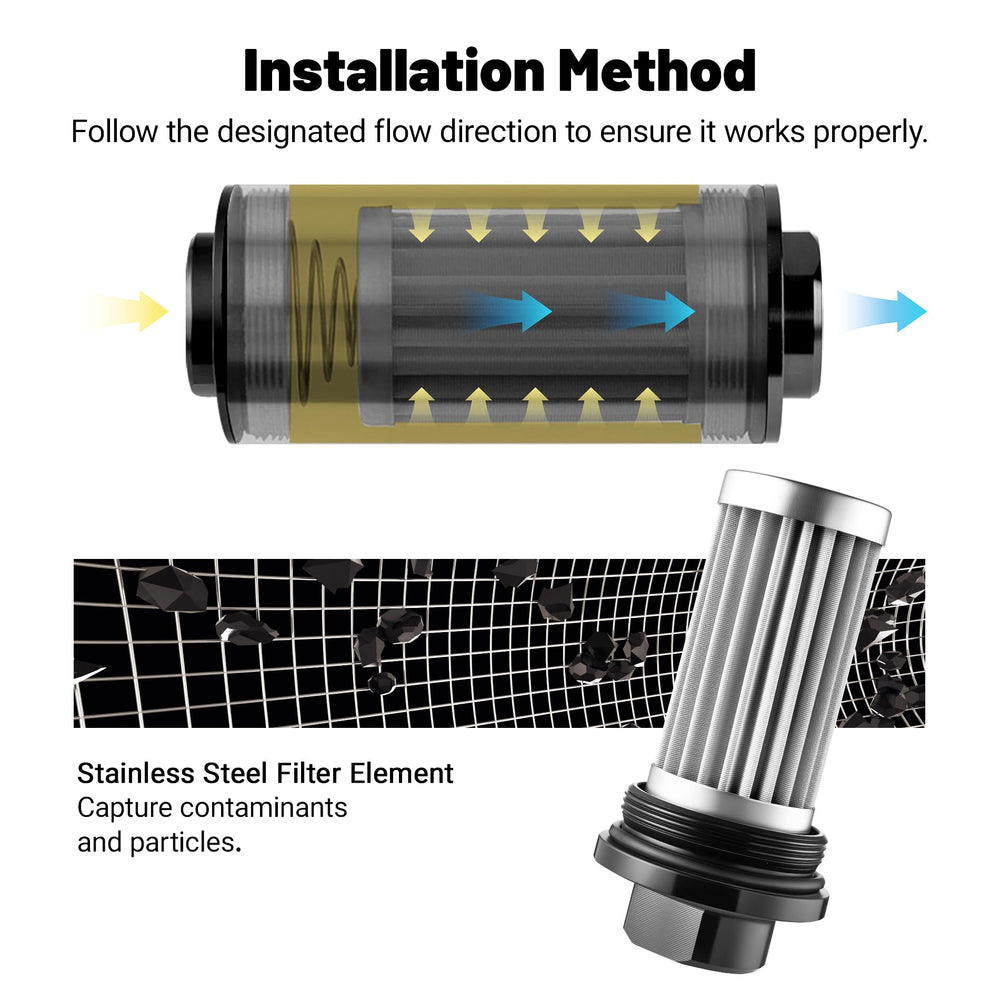

How do I install the EVIL ENERGY inline fuel filter correctly?

Installation is straightforward but direction matters: the unit is assembled so fuel flows from the spring-mounted closed end toward the opposite end. Verify the arrow direction on the housing, align the spring with the closed end of the element, and push the chosen barb adapter into your rubber fuel line. Use clamps where needed and check the O-ring seating to prevent leaks.

• Confirm arrow direction and spring end alignment before mounting.

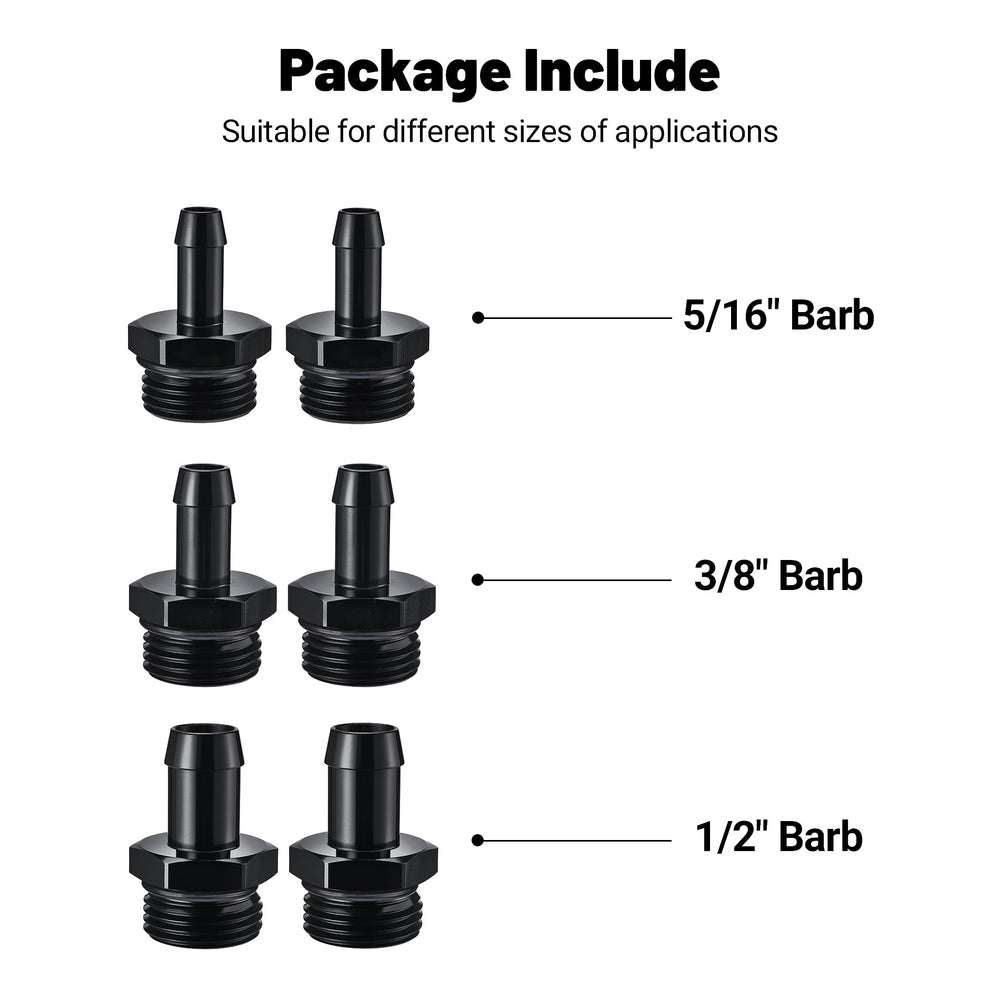

• Select the matching barb (1/2", 3/8", or 5/16") and trim hose for a snug fit.
• Secure with fuel-grade hose clamps and inspect O-ring seating.
• Pressure-test for leaks before normal operation.

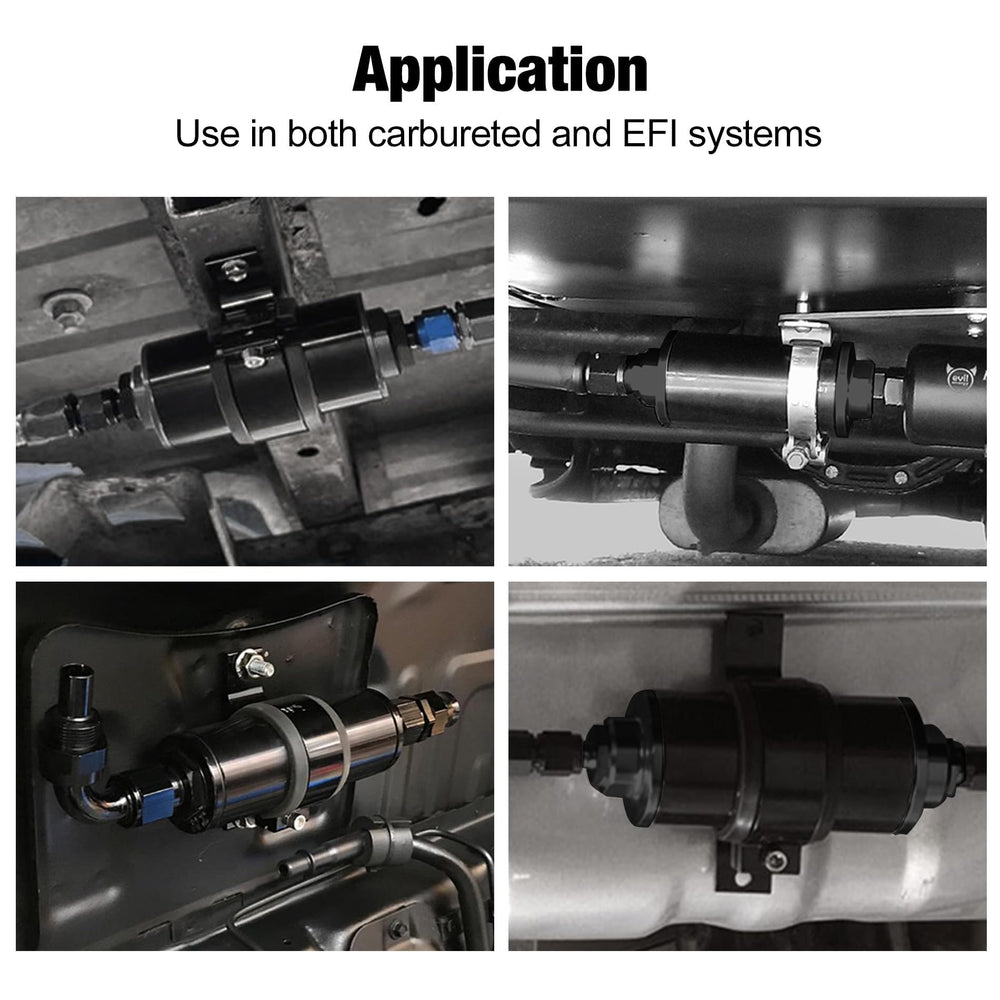

Will this filter fit my car’s fuel system and fuel types?

The EVIL ENERGY inline filter is designed for broad compatibility with rubber fuel lines and supports gasoline and diesel fuels used in both EFI and carburetor setups. The included barb adapters make it adaptable to multiple hose sizes without requiring extra fittings.

• Compatible with rubber fuel hoses commonly found on cars and light trucks.
• Suitable for gasoline and diesel (non-corrosive fuels and additives typical to automotive use).
• Works with EFI and carbureted systems as an inline particulate filter.
• Aluminum housing resists corrosion; stainless element resists clogging and corrosion.

How is maintenance performed and how long will the element last?

The filter is designed for easy servicing: the canister is removable so you can extract and either clean or replace the stainless steel element. Longevity depends on fuel cleanliness and driving conditions; inspect at regular service intervals and whenever you notice reduced flow or symptoms of contamination.

• Removable housing for element access and cleaning.
• Stainless steel element can be cleaned with solvent and patted dry before reinstalling.
• Replace element if damaged or if cleaning does not restore flow.
• Inspect O-ring each service and replace if hardened or damaged.

Who is this for: The EVIL ENERGY 10-micron inline fuel filter is aimed at DIY mechanics, performance tuners, and general vehicle owners who need a compact, serviceable inline particulate filter for gasoline or diesel systems. It suits people who want adaptable hose fittings, a metal housing for durability, and a cleanable stainless element rather than a disposable plastic cartridge. Ideal for emergency replacements, routine maintenance upgrades, or as a protective addition to older fuel systems.
