JRready Deutsch DT 3-Pin Connector Kit ST6328-3 — 5 Sets with Solid Tin-Bronze Contacts, Seals & Tools

JRready ST6328-3 is a complete Deutsch DT three-pin wiring kit with five assembled connectors, solid tin-bronze contacts, seals and installation tools for rugged automotive and industrial use.

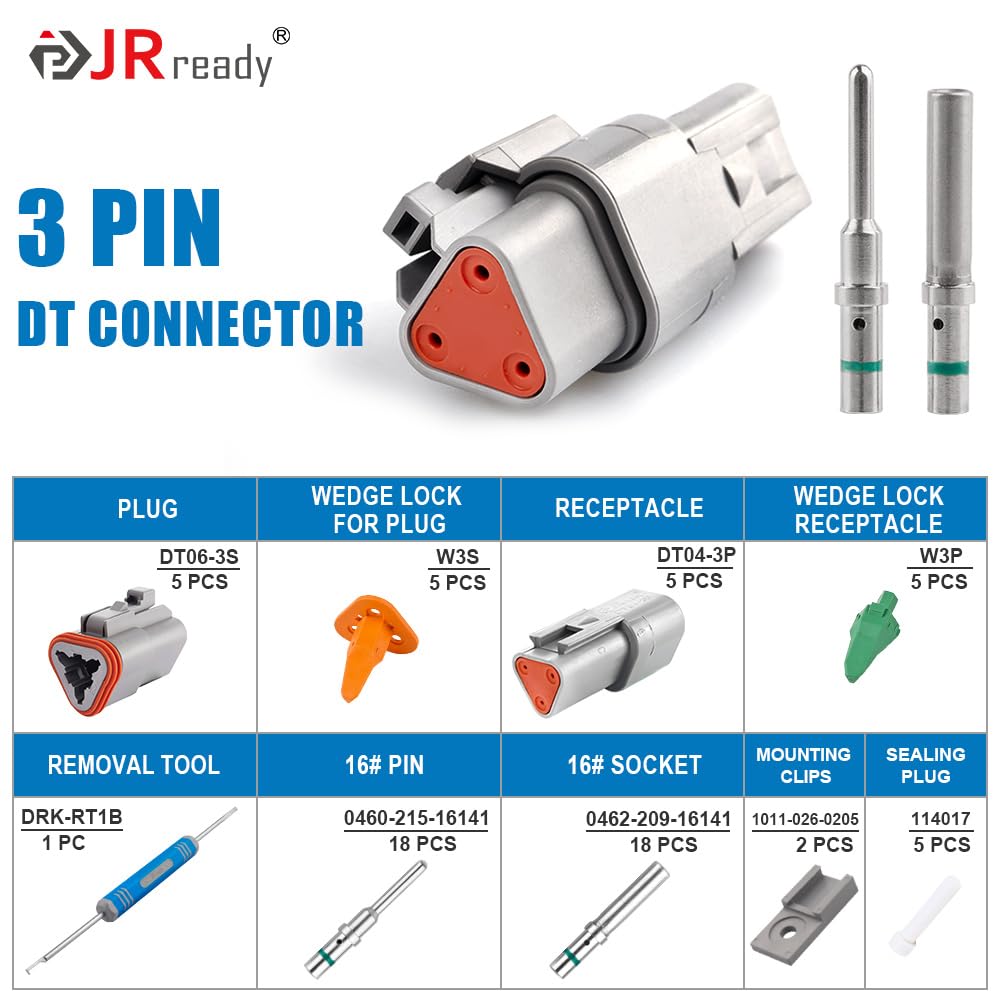

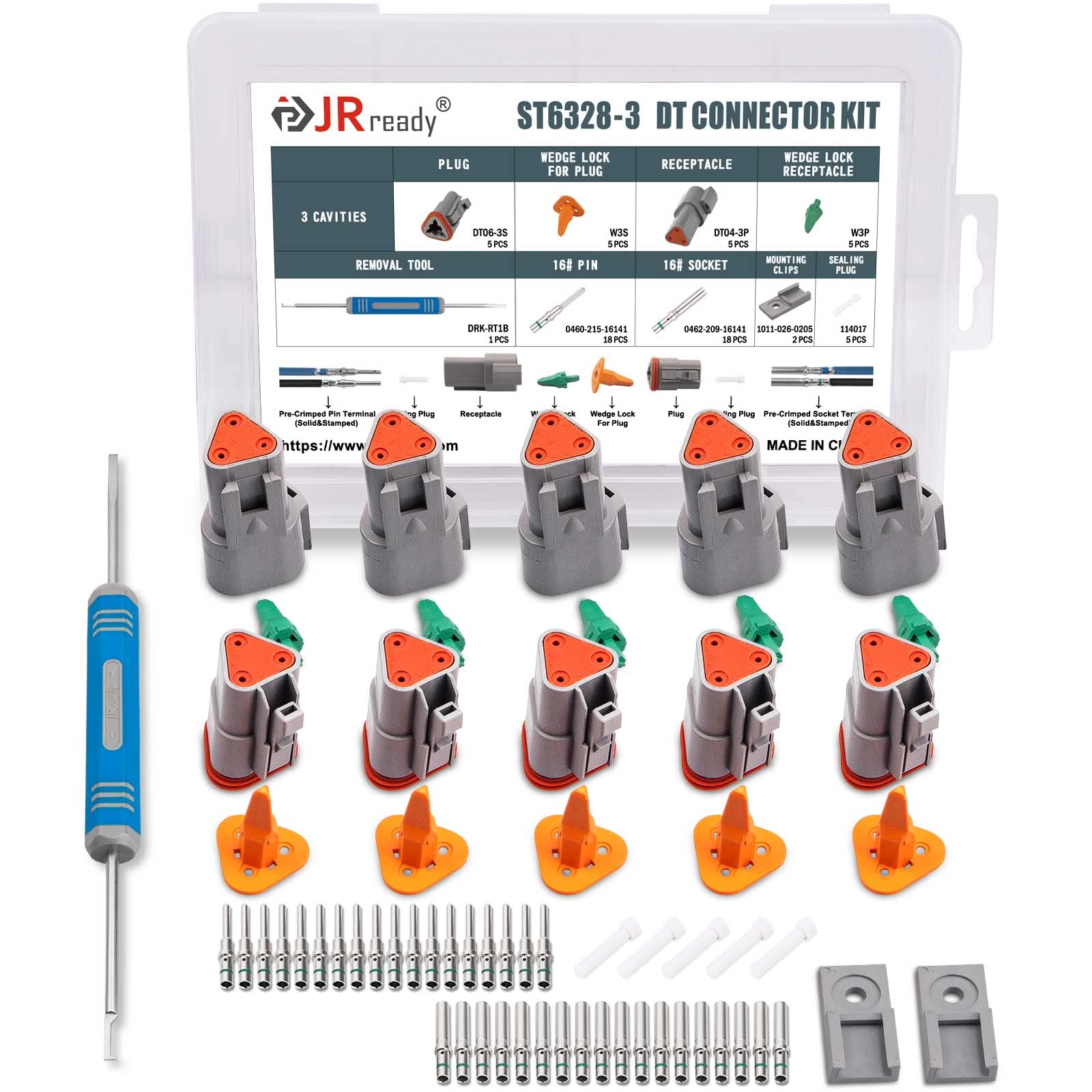

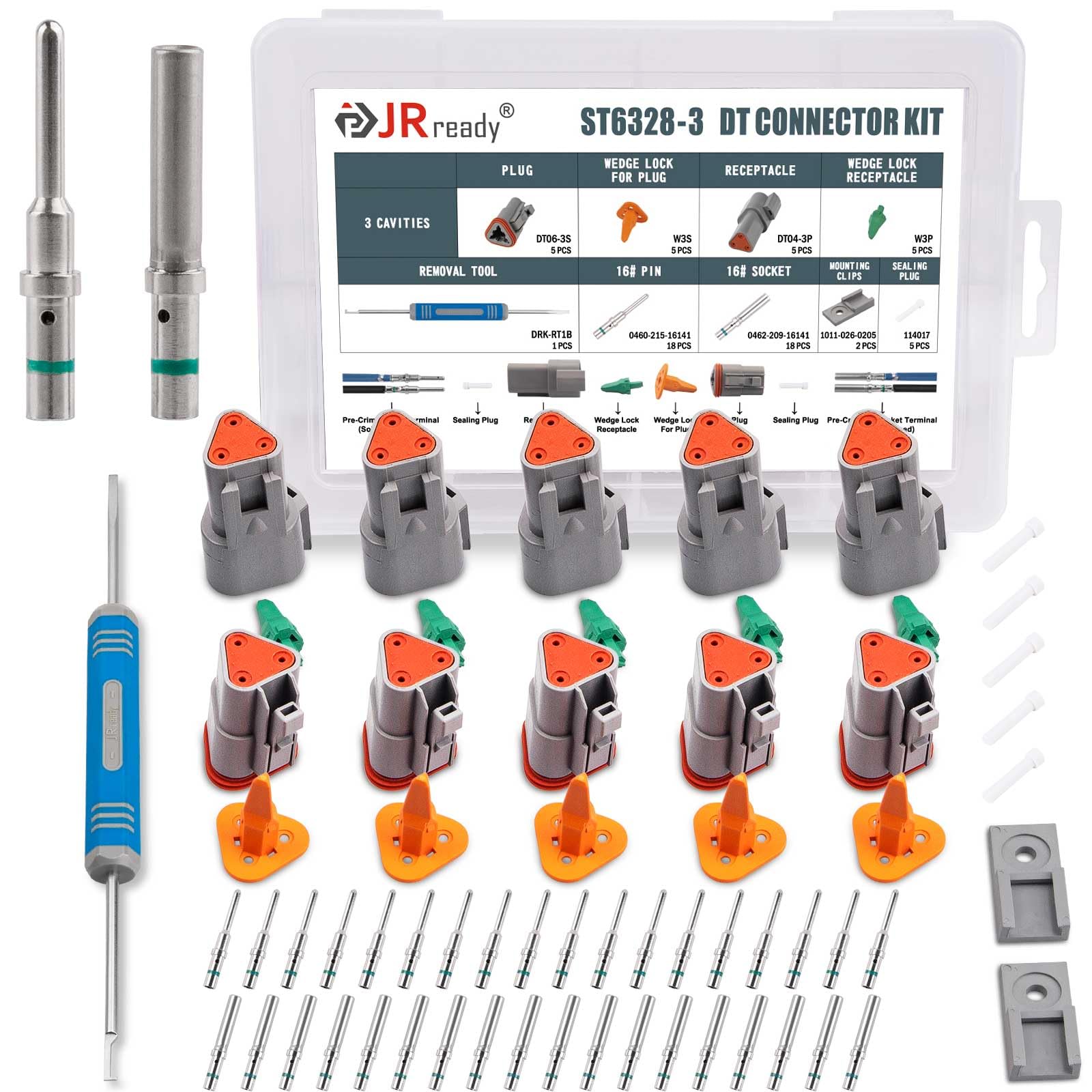

This kit bundles everything needed to build reliable Deutsch DT 3-pin connections: five female and male housings with wedgelocks and seal plugs, a removal tool, mounting clips and 18 pairs of pre-tinned solid contacts rated for 13 A. The housings are molded from PA66 nylon with a UL94-V0 flame rating, and the contacts accept 14–20 AWG wire using crimp or solder terminations. It’s designed for situations where moisture resistance, vibration tolerance and long-term durability matter.

How does this kit protect electrical connections in wet or dirty environments?

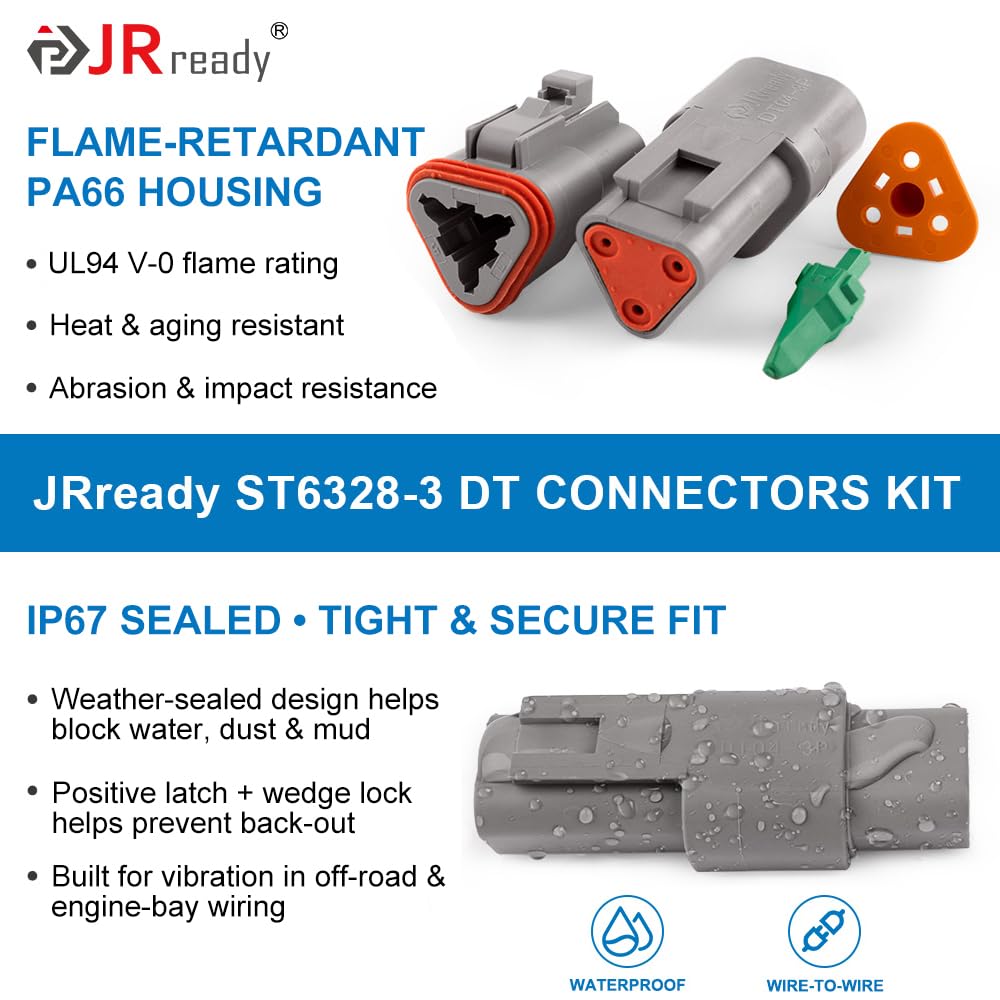

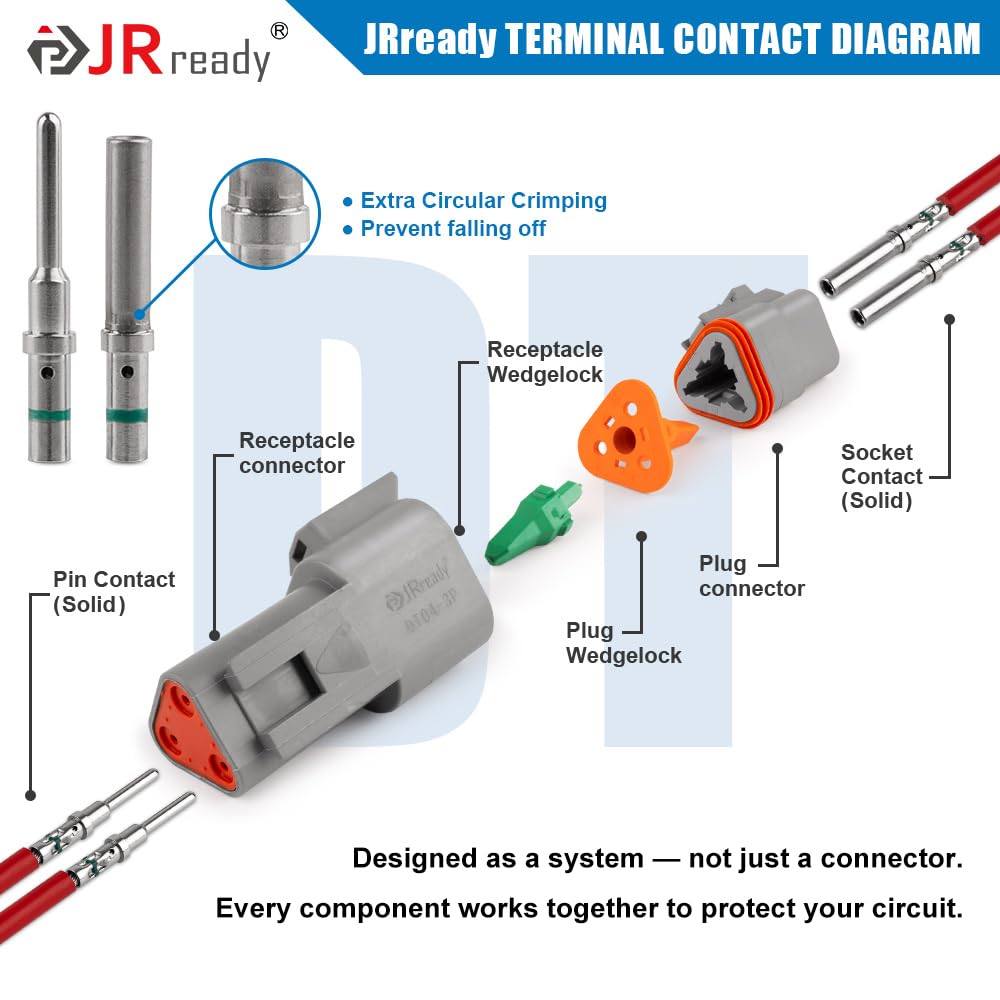

The Deutsch DT family is engineered for sealing and mechanical robustness. Each connector includes seals and wedgelocks to keep out water, dust and contaminants while maintaining contact retention under vibration.

• PA66 nylon housings with UL94-V0 flame rating for heat resistance.
• Seal plugs and wedgelocks provide IP-style protection and secure terminals.
• Solid contacts with nickel plating resist corrosion in harsh conditions.
• Mounting clips and robust latch geometry reduce strain on wire runs.

What electrical and wire specifications should I expect?

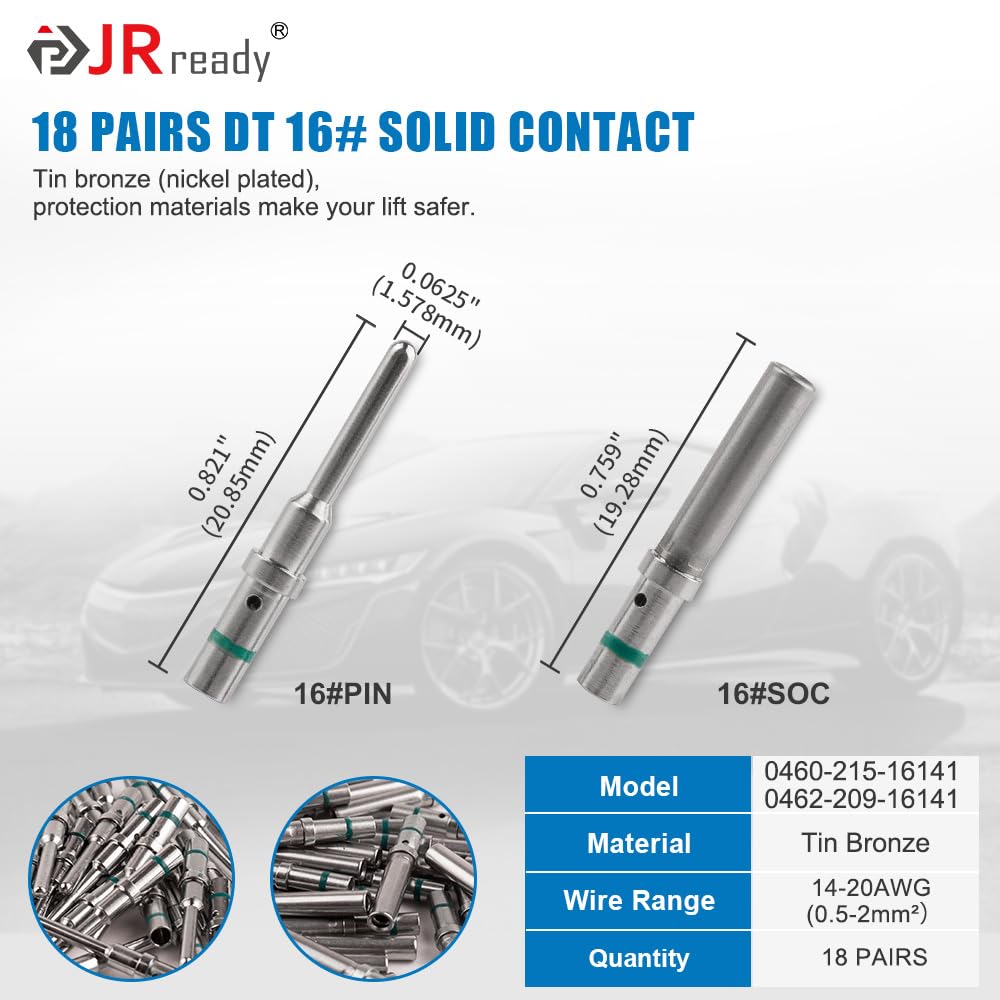

Each solid terminal in the kit is rated up to 13 A and accepts wire sizes from 14 to 20 AWG, giving flexibility for common vehicle and equipment circuits. The tin bronze, nickel-plated contacts are optimized for both crimping and soldering.

• Contact amperage: 13 A maximum per terminal.
• Compatible wire gauge: 14–20 AWG.
• Contact finish: tin bronze base with nickel plating for conductivity and corrosion resistance.
• Works with recommended crimp tool sizes for reliable termination.

Which tools and accessories are included or recommended for installation?

The kit supplies essential installation aids plus recommends a purpose-built crimping tool for consistent results. You’ll find both removal and mounting hardware included so you can install, service and reconfigure connectors quickly.

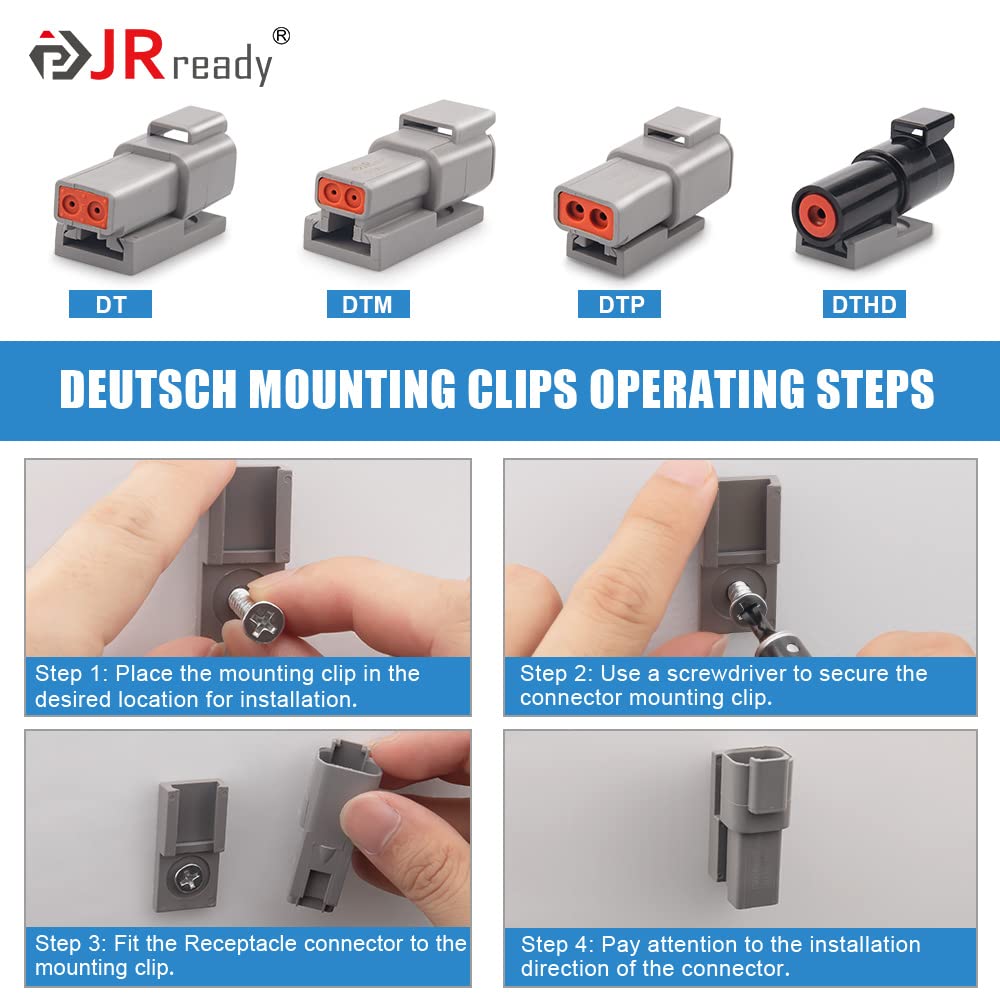

• Included: Deutsch connector removal tool and two mounting clips for panel or bracket installation.
• Included: five orange and five green wedgelocks and five seal plugs for each connector set.
• Recommended tool: JRready ACT-DT1 crimping tool for size 12, 16, and 20 turned pin/socket contacts.

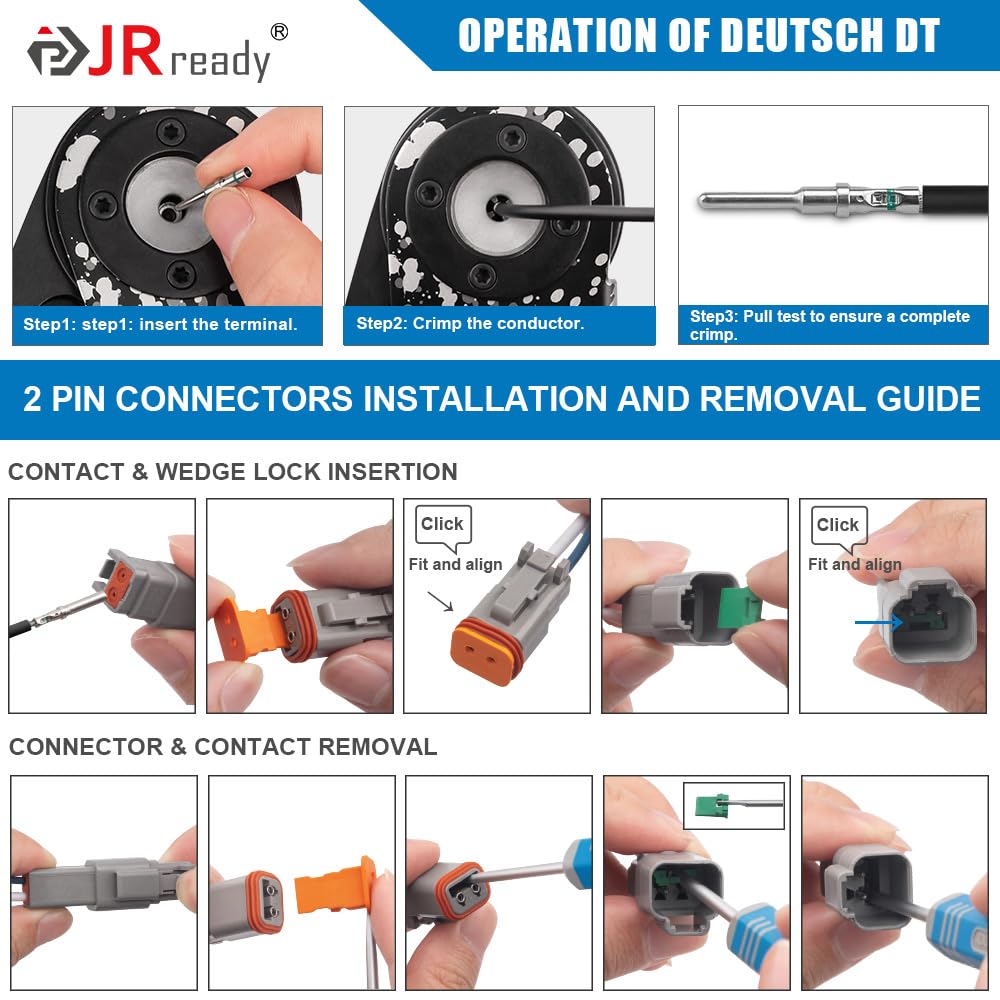

• Terminations supported: both crimping and soldering for flexibility.

Where are these connectors commonly used and why choose them?

Deutsch DT connectors are widely adopted across heavy-duty, off-highway and marine applications because they combine sealing, mechanical retention and ease of service. JRready’s kit provides full connector assemblies and spare contacts for rapid field repairs or custom harness fabrication.

• Common installations: trucks, buses, construction and agricultural equipment, marine, motorcycles and emergency vehicles.
• Typical locations: under-hood, engine controls, solenoids, transmission sensors and cab wiring.
• Advantage: quick replacement of contacts and connectors without full harness rebuilds.
• Use case: service techs, fabricators and OEMs needing pre-matched kits for DT 3-pin interfaces.

Who is this for? JRready ST6328-3 is aimed at professional technicians, fleet maintenance teams, equipment fabricators and advanced DIYers who need dependable Deutsch DT three-pin connections. If you wire vehicles, heavy machinery or marine craft and require sealed, repeatable terminations with spare contacts and service tools included, this kit provides the components and durability expected for harsh-environment electrical systems.
