Linkstyle LED Digital Volt Meter 12V/24V (Green x2) — Waterproof IP65, Touch Switch & Battery % Readout

This slim digital voltmeter from Linkstyle monitors vehicle and marine battery voltage and converts that reading into a clear battery percentage, giving you an easy snapshot of power status. The unit accepts DC input from 6 to 30 volts, reports voltage to ±0.1V accuracy, and displays power percentage from 0–100% with the same precision. Designed for demanding environments, it includes an IP65 rating, a 10A inline fuse for overload protection, and reverse-connection safeguarding so the meter won't be damaged if wiring polarity is accidentally swapped.

How does the Linkstyle gauge display both voltage and battery percentage?

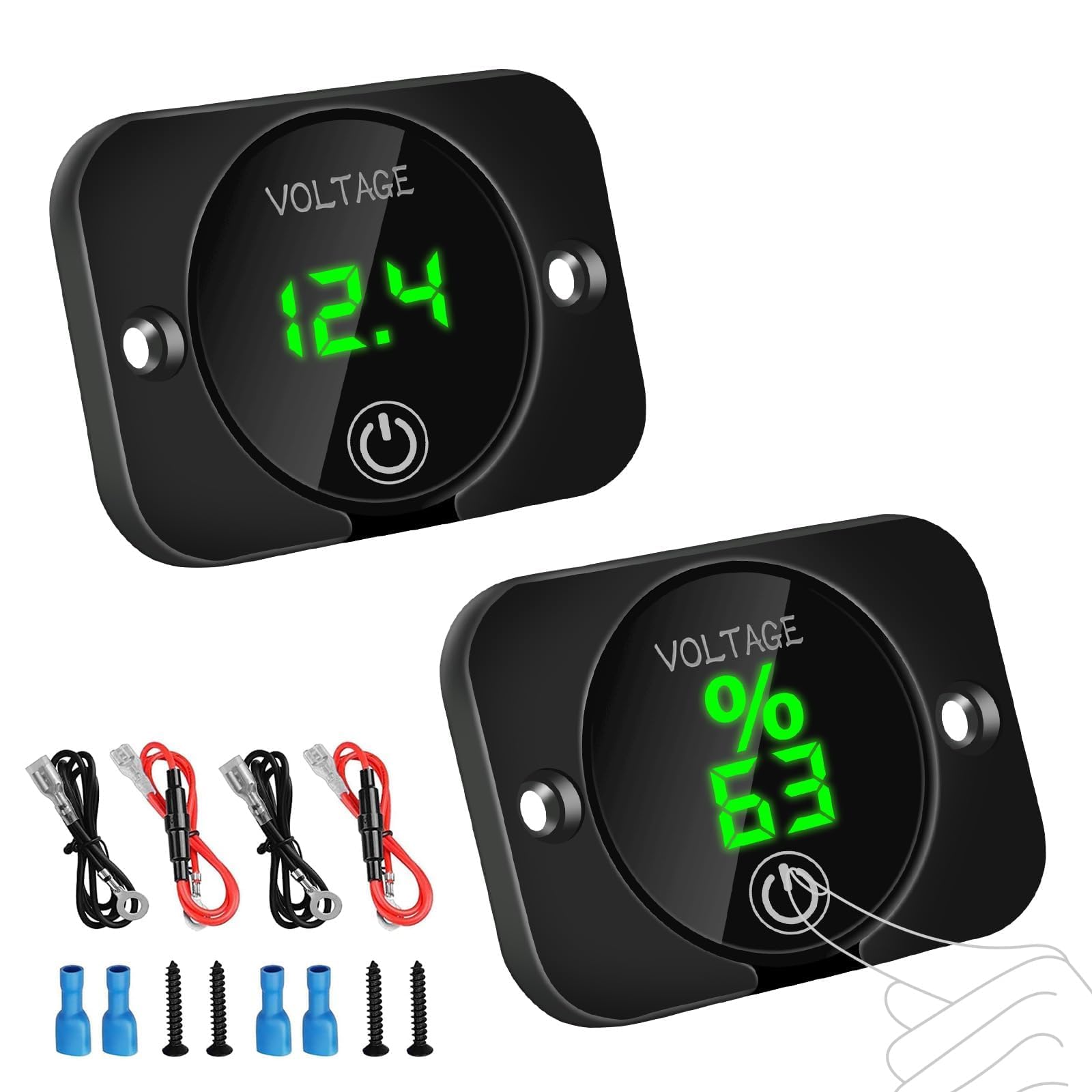

The meter uses an internal conversion algorithm to translate measured DC voltage into an estimated state-of-charge percentage for typical 12V/24V lead-acid and lithium systems. A single touch switch toggles the LED readout between numeric volts and a percent value, or powers the display off to conserve energy when stored.

• Touch control cycles between voltage, percentage, and off modes.
• Voltage range: DC 6–30V with ±0.1V accuracy.
• Percentage range: 0–100% with ±0.1% indicated precision.
• Low-power standby when switched off to reduce battery drain.

Is the voltmeter durable enough for outdoor and marine use?

Yes — Linkstyle built the meter with weather-resistant protection and electrical safeguards for rough conditions. IP65-rated sealing keeps out water spray and dust, while the included 10A fuse and reverse-polarity protection reduce the risk of electrical damage during installation or operation.

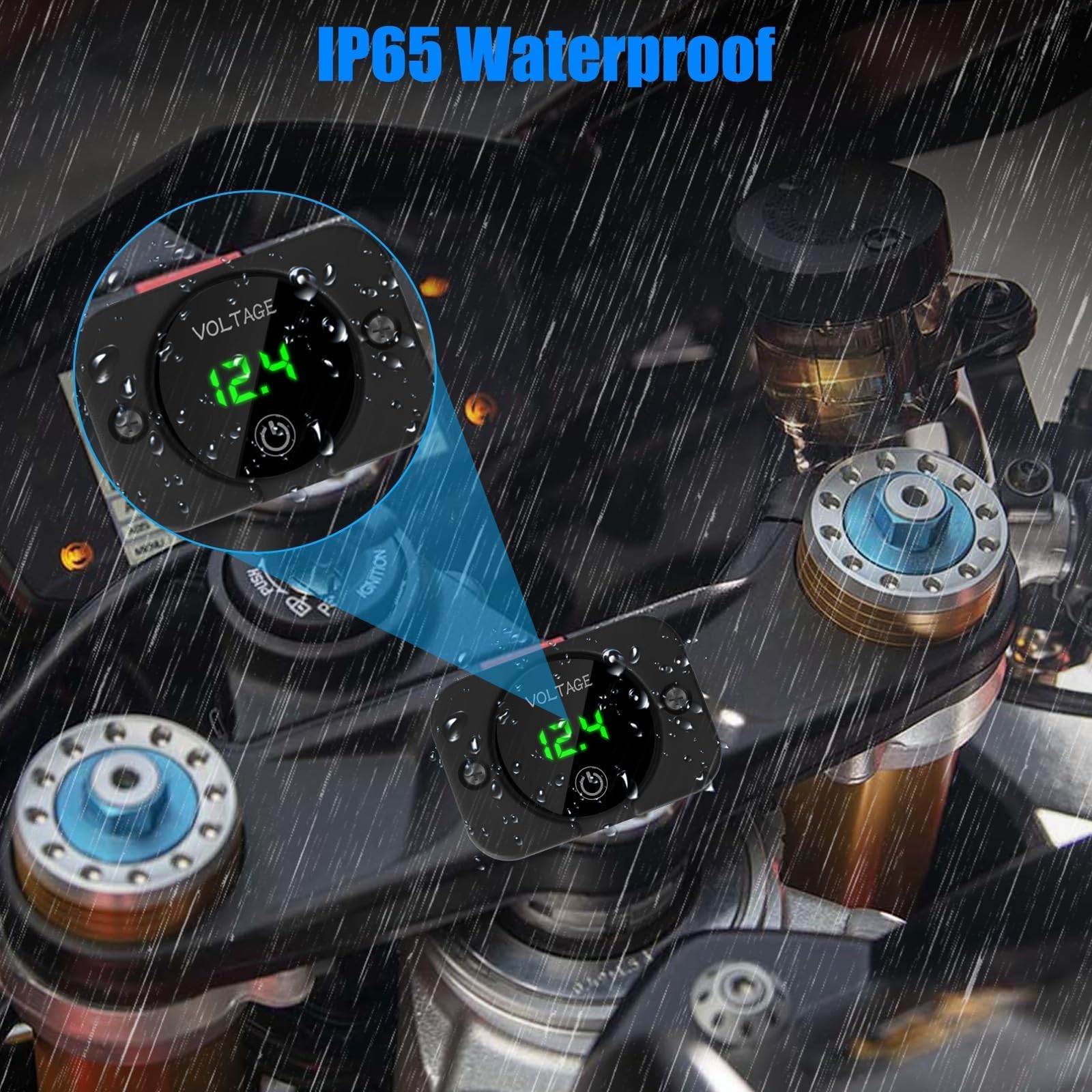

• IP65 protection against dust and low-pressure water jets.

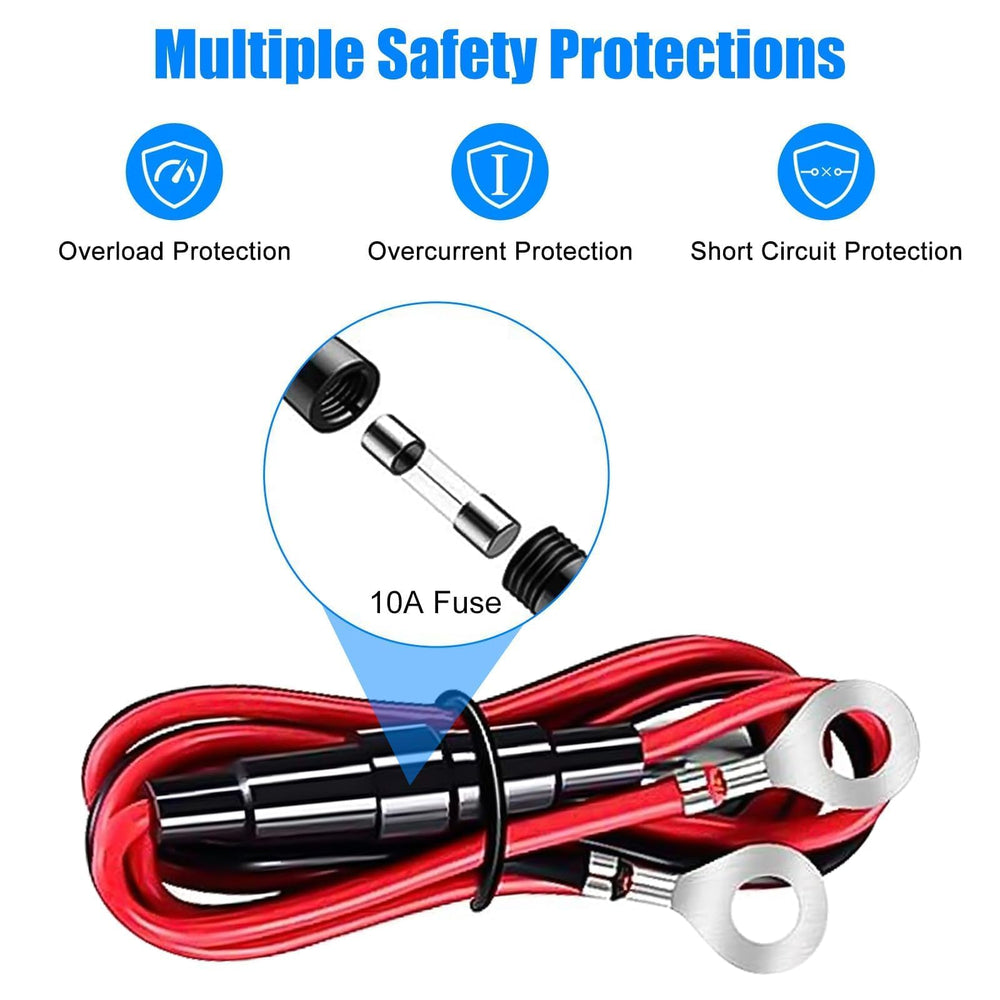

• 10A fused input provides overload and short-circuit safety.
• Reverse-connection protection prevents burn-out if wired backward.
• Compact profile mounts neatly on dashboards, console panels, or instrument clusters.

Which vehicles and systems can use this voltmeter?

The Linkstyle DC voltmeter is compatible with a wide range of 12V and 24V systems commonly found in road and marine applications. It’s especially useful where a quick visual battery check helps prevent unexpected failures — from daily commuter vehicles to recreational and commercial equipment.

• Cars, trucks, SUVs, and off-road vehicles (12V and 24V compatible).
• Motorcycles, ATVs, and golf carts where panel space is limited.
• RVs, boats, and marine craft requiring weather-resistant instrumentation.
• Tractors and utility equipment with DC battery banks.

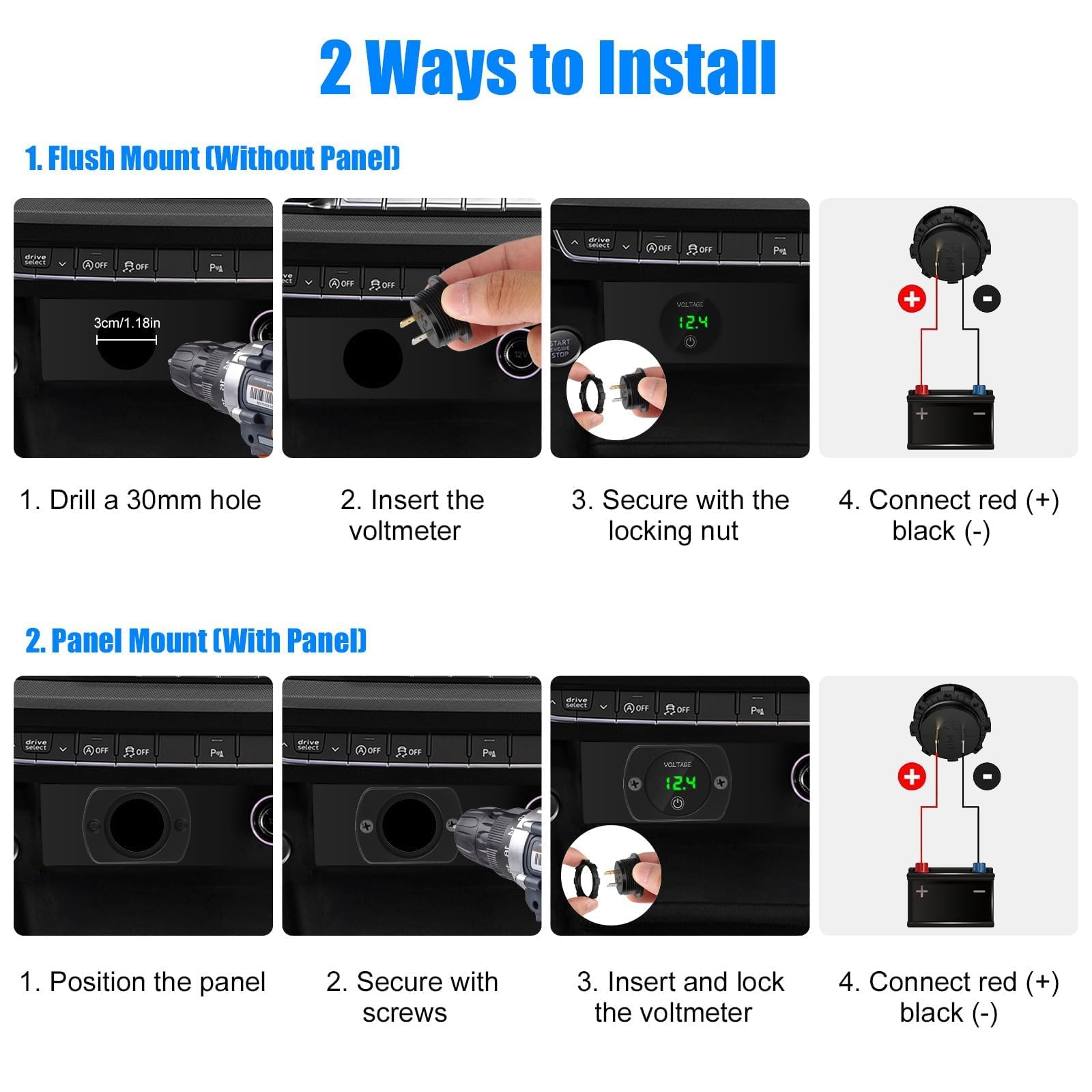

How easy is installation and daily operation?

Installation is straightforward for anyone familiar with basic DC wiring: the meter connects across the battery or a fused accessory feed and requires minimal panel cutout space. Daily use is simple — tap the capacitive touch area to switch modes and read either volts or percent at a glance.

• Simple two-wire hookup across the battery or accessory circuit.

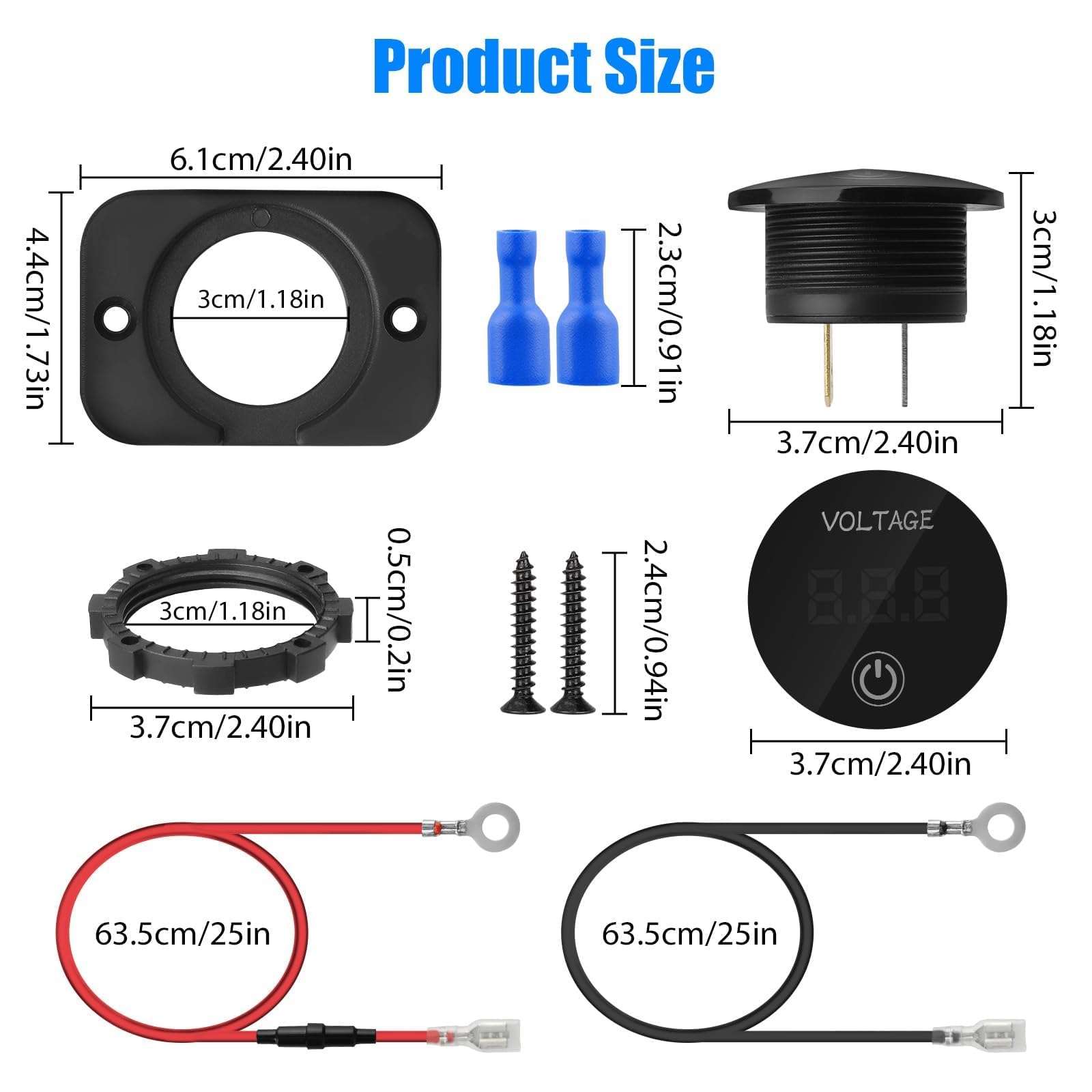

• Small mounting footprint fits standard dash openings or adhesive mounts.
• Touch switch requires no mechanical buttons to wear out.
• LED readout is bright and visible in daylight and low light.

Who is this for? The Linkstyle Battery Voltage Gauge suits DIY installers, professional technicians, and vehicle owners who want a compact, reliable way to monitor their DC battery health. It’s ideal for drivers, boaters, RV owners, and fleet managers needing a low-cost instrument to quickly assess voltage and approximate state-of-charge while benefiting from basic electrical protections and weather resistance.
