Lisle Hub Remover 40100 — Black 5/6/8-Lug Hub Puller with Heavy-Duty Driving Plate

If a corroded or seized hub assembly has sidelined a repair, the Lisle 40100 offers a controlled, mechanical method to break the bond between the hub and axle. Designed to work with the vehicle's existing lug nuts and hardened hardware, this tool converts simple hand torque into a concentrated pushing force that separates the hub from its mounting surfaces. Built for professional shops and serious DIYers, it reduces prying, hammering and guesswork while helping protect studs, bearings and brake components.

How does the Lisle 40100 make hub removal safer and faster?

The tool provides a stable, bolt-on driving plate that distributes force evenly across the hub face so technicians can apply steady pressure rather than repeated impact blows. A hardened acme-threaded forcing screw pushes against solid points to unseat the assembly, which minimizes collateral damage to nearby parts. This method preserves studs and avoids excessive use of penetrating chemicals or torch heat.

• 1/2" thick driving plate bolts on with existing lug nuts for a secure mount.
• Hardened washers and components resist deformation during high-torque use.
• Forcing screw pushes from at least two solid points to fully free the hub.

Which vehicles and hub patterns will this remover fit?

The Lisle 40100 is built to work with most common 5-, 6- and 8-lug hub assemblies used on cars and light trucks. It relies on the vehicle's factory lug nut pattern to attach the driving plate, so compatibility covers a wide range of domestic and import applications. Check lug spacing and clearance to confirm fit before use.

• Compatible with most 5, 6 and 8 lug hubs found on cars and light trucks.
• Mounts using the vehicle's existing lug nuts—no special adapters required in typical cases.
• Verify hub face access and thread engagement before starting the pull.

What are the key components and how are they used?

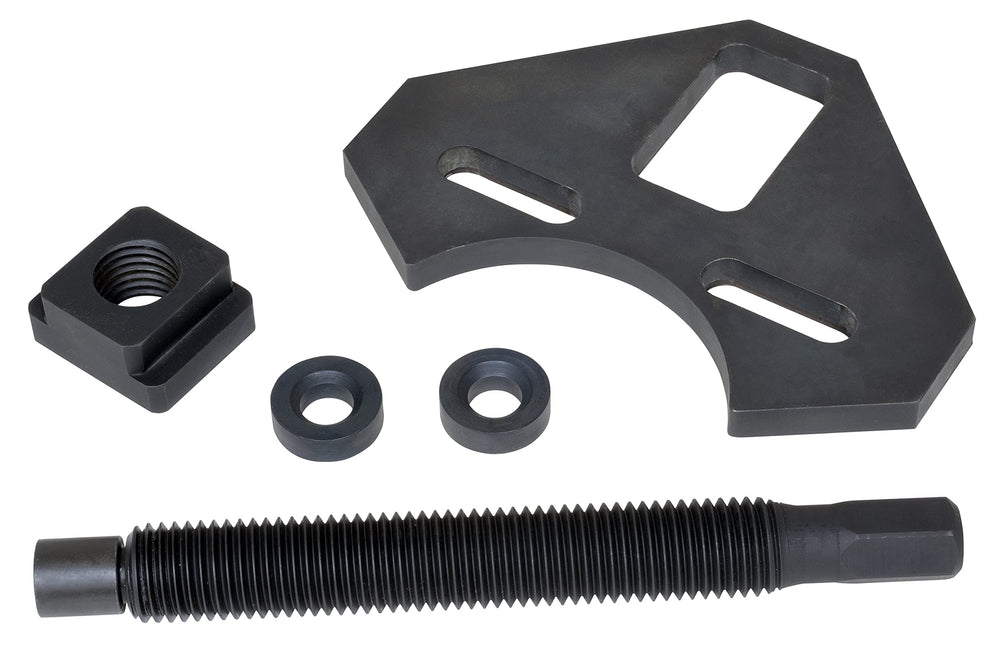

The kit couples a solid driving plate, hardened washers, and a heavy-duty acme forcing screw to convert rotational torque into linear separating force. Bolt the driving plate to the hub with the lug nuts and hardened washers, then thread the forcing screw into position so it bears against a solid surface on the axle or backing plate. To fully free the hub, the forcing screw must press from at least two distinct solid contact points while torque is applied.

• 1/2" driving plate: attaches to hub through lug nuts for even force distribution.
• Hardened acme-thread forcing screw: provides strong, controlled pushing action.
• Hardened washers and hardware: protect threads and maintain alignment under load.

What safety and usage tips should technicians follow?

Use steady, measured torque—avoid sudden impact—to let the forcing screw work gradually and reduce the risk of part breakage. Ensure the forcing screw contacts at least two solid points to achieve a balanced separation, and inspect studs and wheel bearings after removal. Wear eye protection and secure the vehicle properly before starting any hub service.

• Apply progressive torque rather than hammering the assembly free.
• Confirm at least two solid contact points for the forcing screw to push against.
• Always support the vehicle and wear proper PPE when working under a wheel hub.

Who is this for: The Lisle 40100 Hub Remover is intended for professional mechanics, automotive technicians, and experienced DIYers who regularly service wheel hubs on cars and light trucks. It is particularly useful where corrosion or tight fits make hubs difficult to remove with conventional pullers, helping save time and protecting related suspension and brake components from damage. Note: always follow vehicle manufacturer guidance and shop safety procedures when performing hub removal.
