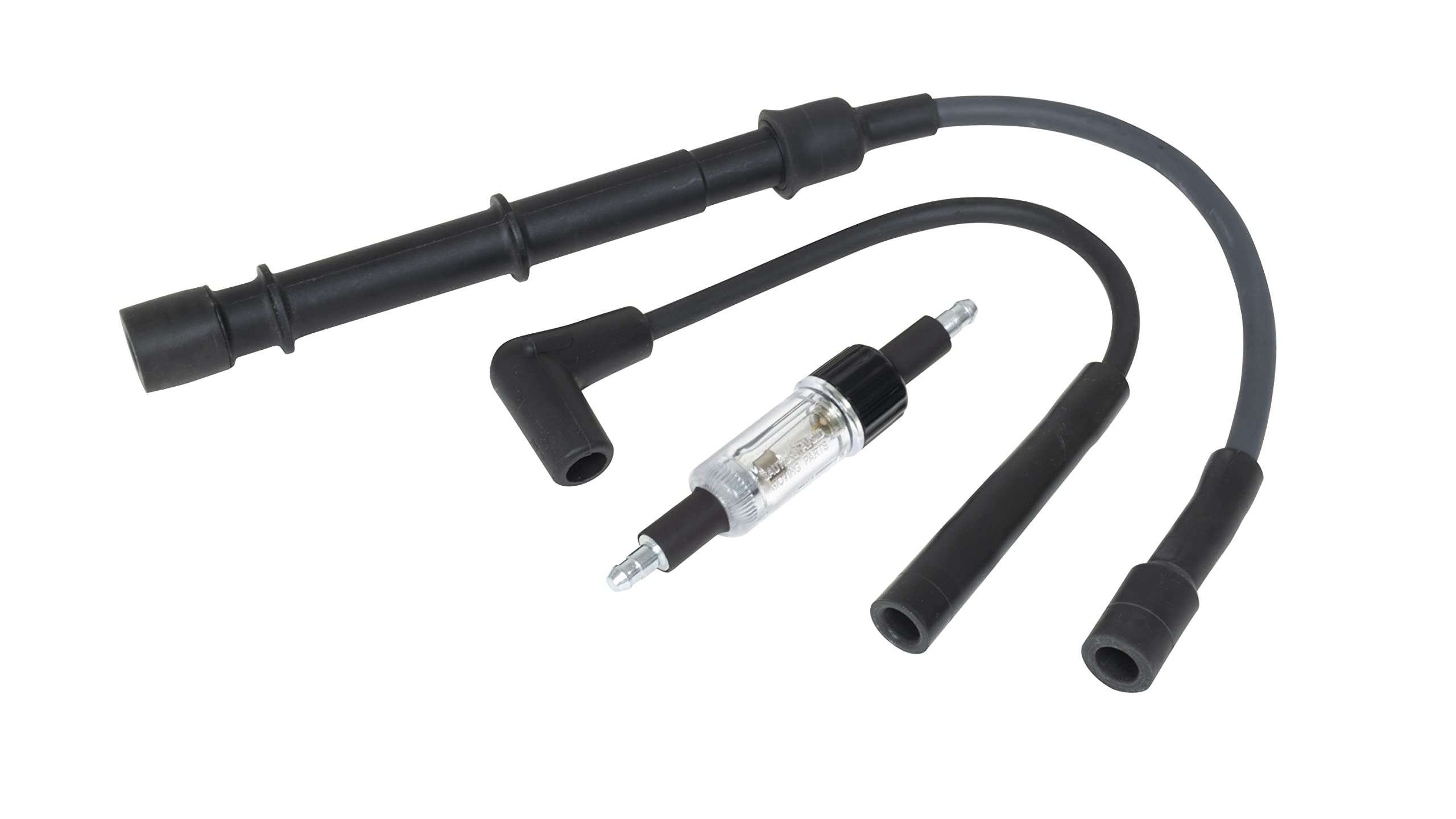

Lisle in-line spark tester 20580 — 7" extension for coil-on-plug, live engine testing

Lisle 20580 is a handheld in-line ignition tester that lets you safely observe a live spark between the plug and wire, with a 7" extension for recessed coil-on-plug applications. The Lisle 20580 in-line spark tester is a compact diagnostic tool designed to help mechanics and DIYers verify ignition activity without removing the plug or disabling the engine. It connects between the spark plug and its high-tension lead, producing a visible mirror-image flash while the engine runs so you can detect misfires, weak sparks, or intermittent ignition problems quickly and without complex equipment.

How does this tool show whether an ignition circuit is working?

The tester sits inline between the plug and wire and creates a visible spark path that mirrors the ignition system’s output. With the engine running, you watch the tester’s spark to confirm firing regularity, intensity, and timing behavior.

• Produces a visible flash that corresponds to the plug’s firing
• Lets you observe spark strength and consistency while idling or revving
• Works on conventional and modern ignition systems without complicated setup

Can it reach recessed coil-on-plug spark plugs and tight spaces?

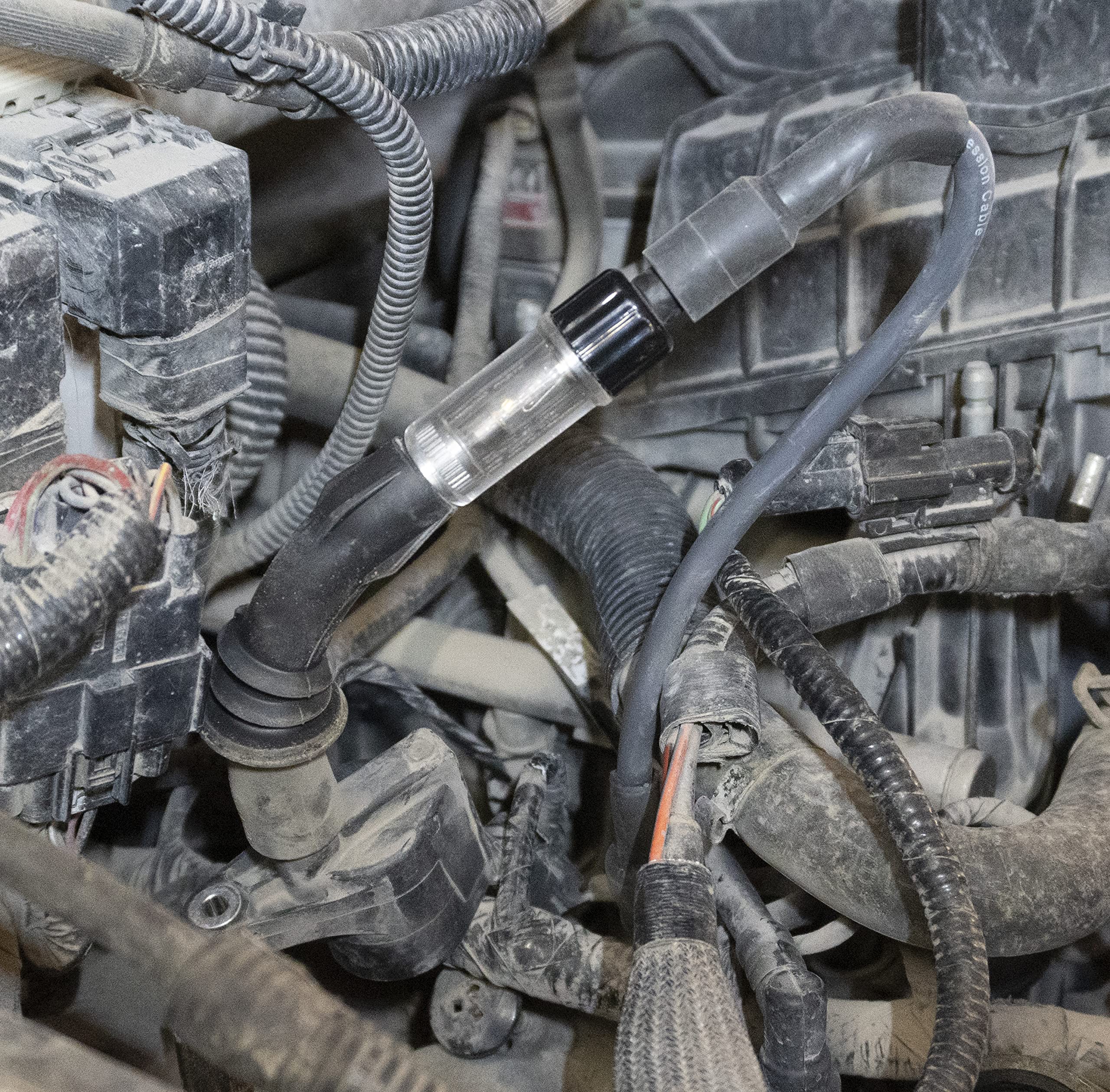

Yes — the unit includes a 7" extension wire specifically for coil-on-plug or recessed installations. The short main lead has both a straight and a 90° boot to adapt to different plug orientations for secure connections in cramped engine bays.

• 7-inch extension plugs into recessed or hard-to-reach coil locations

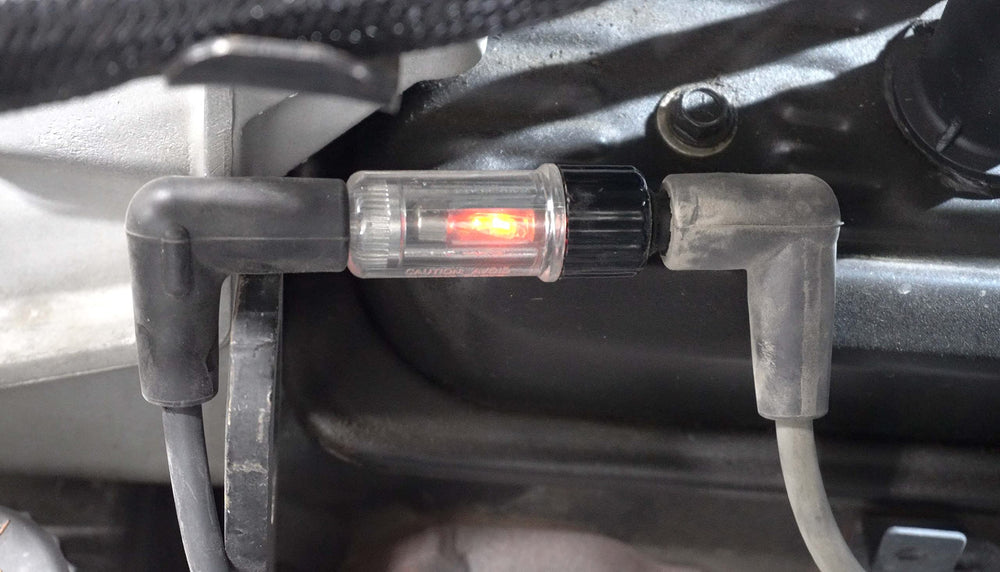

• Double-ended short wire offers straight and 90° boot options for fit
• Flexible leads allow access around manifolds and other obstructions

Is it safe to use while the engine is running?

The Lisle 20580 is built to be used with the engine operational so you can monitor real-time ignition behavior. As with any high-voltage work, follow standard safety practices: keep hands and tools clear of moving parts and use insulated grips when connecting or removing the tester.

• Designed for live testing without removing the spark plug
• Insulated connections and boots reduce electric shock risk when used properly
• Observe from a safe distance and avoid contact with rotating engine components

What sorts of ignition problems can this help diagnose?

The in-line tester helps you spot weak or missing sparks, intermittent firing, and irregular spark patterns that indicate coil, wire, or distributor issues. It’s a simple first-step diagnostic before moving on to component replacement or advanced electrical testing.

• Quickly identifies misfires and inconsistent spark delivery
• Helps differentiate between ignition and fuel/air issues
• Useful for troubleshooting spark plug wires, coils, and connectors

Who is this for? The Lisle 20580 is intended for professional technicians, backyard mechanics, and vehicle owners who need a fast, portable way to confirm ignition operation. It’s particularly useful when working on modern engines with coil-on-plug designs or when access is restricted. Keep it in a diagnostic kit for routine tune-ups, troubleshooting intermittent faults, or verifying repairs after replacing ignition components.

FAQ

Q: Will this tester work on modern coil-on-plug engines?

A: Yes. The included 7" extension lets you reach recessed coil-on-plug assemblies for live spark checks.

Q: Can I use it while the engine is running?

A: Yes, the tool is designed for live testing, but follow safety precautions and avoid contact with moving parts.
