Partswcgg 6" Oval LED Trailer Tail Backup Light Kit — 7-Piece IP68 Sealed, 25ft Harness

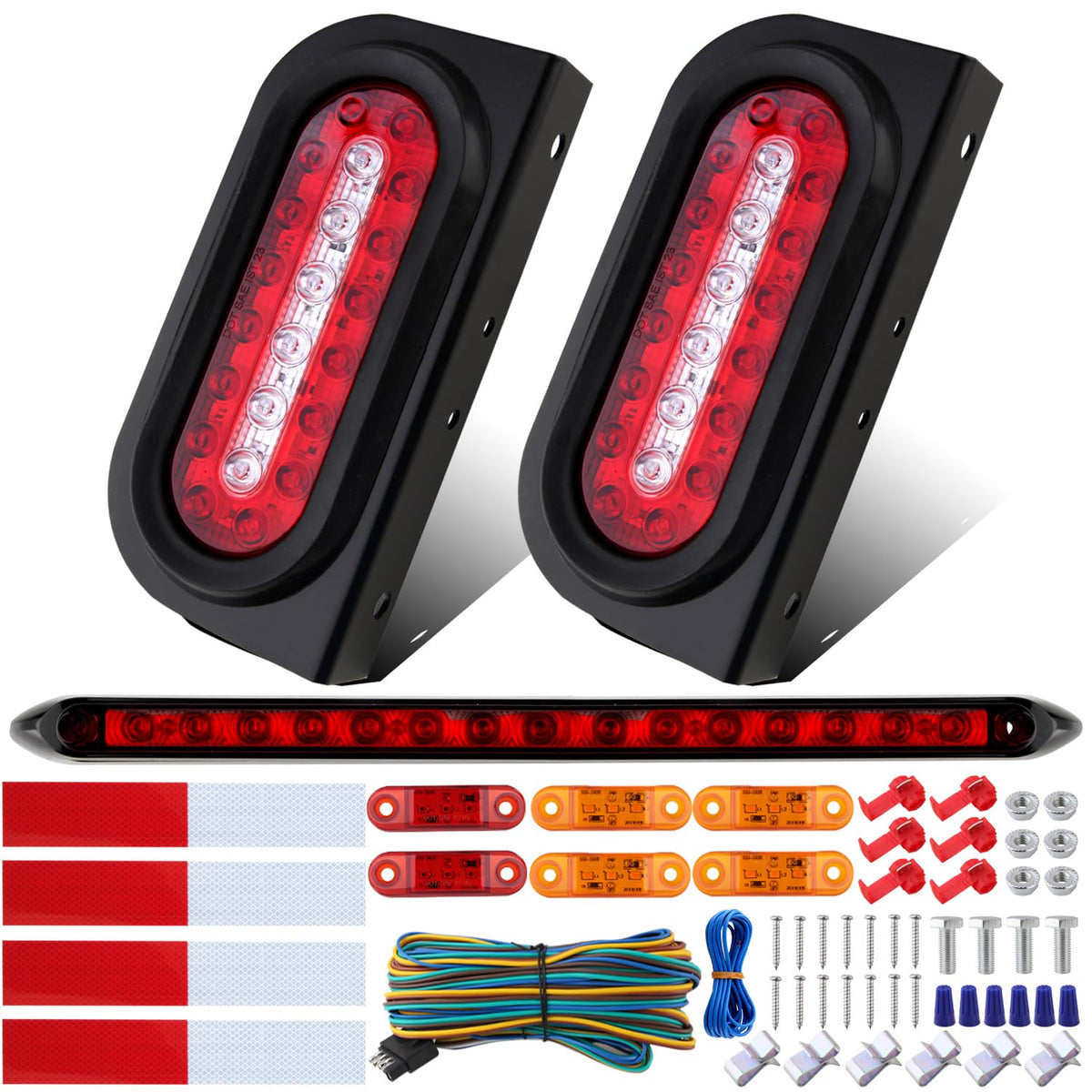

Partswcgg 6" Oval LED Trailer Tail Backup Light Kit is a complete 7-piece lighting system that combines dual 6" oval stop/tail/turn lamps with built-in reverse LEDs, a 13.8" third-brake ID bar, six mini marker lights, a 25ft 5-pin wiring harness, and four reflective stickers for safe, weatherproof trailer illumination.

This all-in-one kit was designed to replace or upgrade trailer lighting for flatbeds, utility trailers, horse trailers and other tow rigs that need a 6" oval lamp configuration with integrated reverse. Every electrical and mounting component required for installation is included, and the lights are sealed to IP68 standards so they resist water and road debris. The system uses a 5-pin flat plug tailored for oval lamps that include a white backup circuit, which differs from typical 4-pin setups.

How do these oval LED tail lights improve visibility at night?

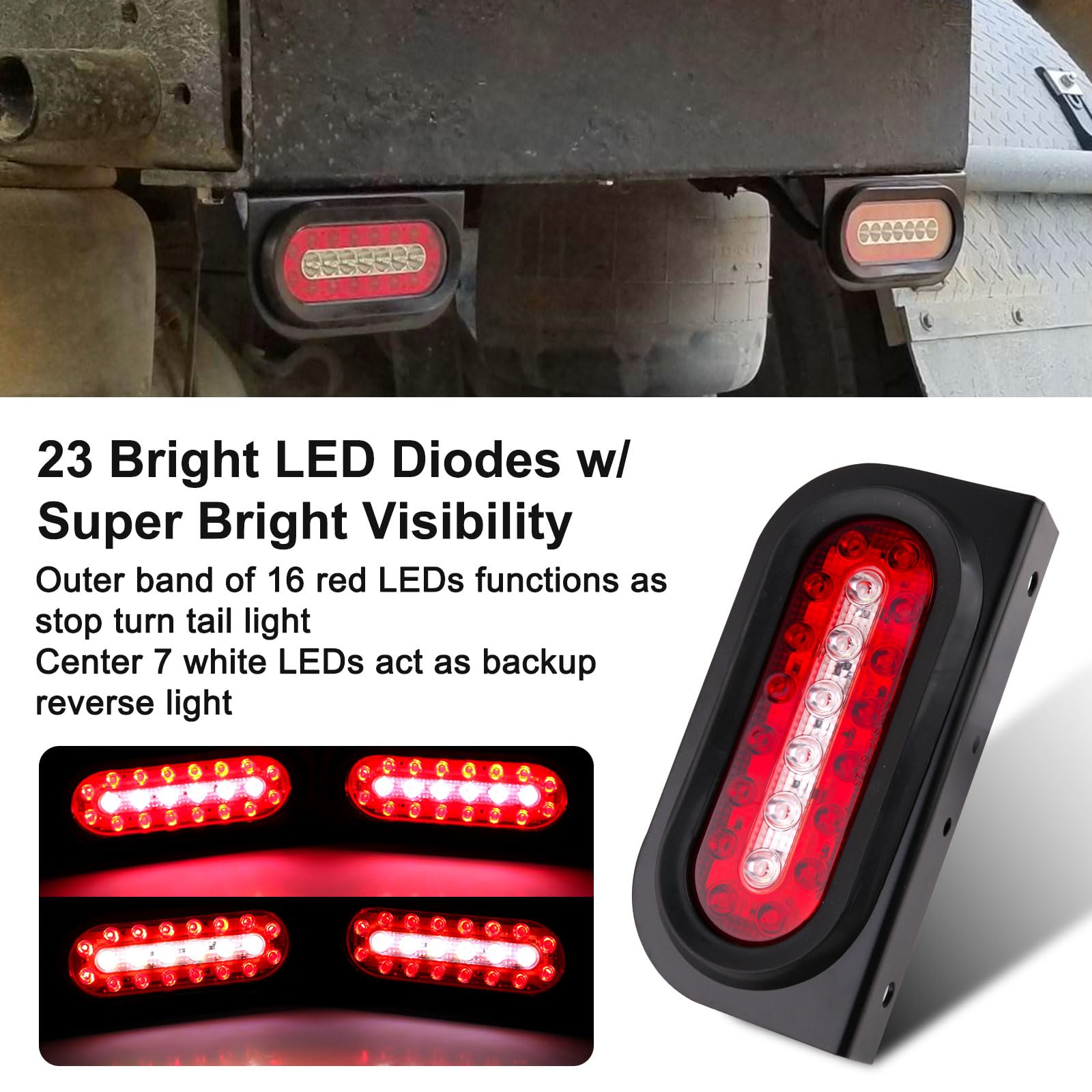

The 6" oval assemblies use 23 LEDs per lamp (16 red for tail/stop/turn and 7 white for reverse) delivering bright, even illumination visible from a distance. The 13.8" red LED bar serves as a clear center-mounted ID/third-brake light to complement the outer lamps and alert following drivers during braking.

• 23 high-output LEDs in each oval lamp for distinct stop/turn and backup signals
• 13.8" LED brake bar with 15 bright LEDs for center high-mount visibility
• Separate white reverse LEDs reduce confusion between tail and backup lights
• Reflective stickers add passive night visibility when lights are off

What mounting and build features help the lights last outdoors?

The oval lamps come with heavy-duty steel mounting brackets coated to resist rust and maintain a firm attachment to trailer frames. The housings are fully sealed to IP68, protecting internal electronics from immersion, road spray and dust, which helps the LEDs stay reliable season after season.

• Steel mounting brackets included for secure, corrosion-resistant attachment
• IP68-rated sealed housings for submersible waterproof protection
• Compact marker lights and brake bar designed for surface mounting on trailers
• Durable LED diodes with long life and impact-resistant lens covers

How is the kit wired and what connectors are included?

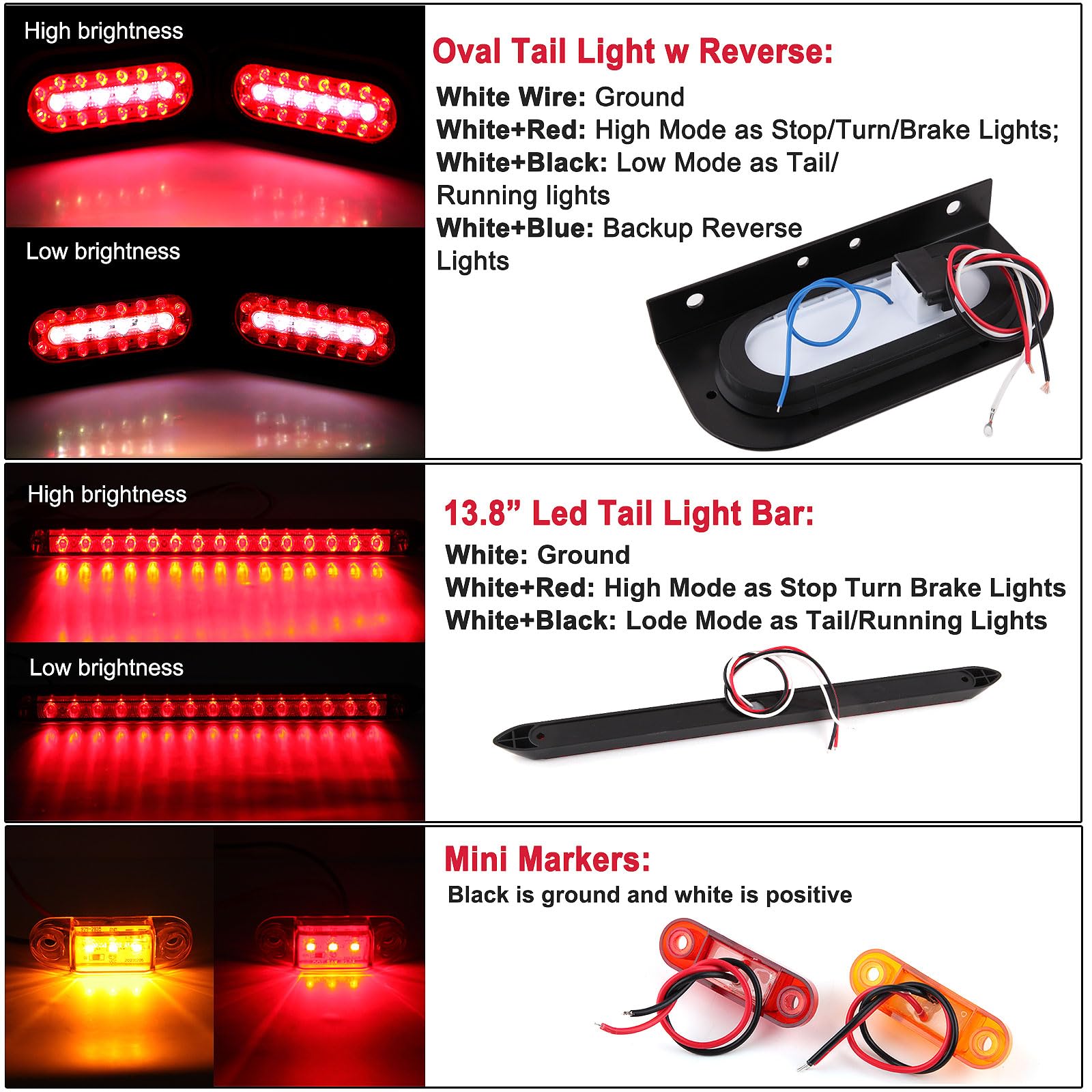

The set includes a 25ft wiring harness ending in a 5-pin flat plug configured specifically for oval lamps with a dedicated white reverse circuit. Color-coded leads simplify hookup: white is ground, red is the brighter stop/turn circuit, and black carries low-intensity tail/running power. An extra 180° bullet-style male plug on a short blue lead powers the white reverse LEDs on the oval lamps.

• 25ft 5-pin flat harness designed for oval lamps with white reverse wire
• Color-coded wires: white = ground, red = stop/turn, black = tail running
• Additional bullet-style plug on blue wire for the reverse circuit
• Clear wiring layout reduces installation time and confusion

Who is this kit for? This Partswcgg lighting package fits owners who need a full trailer lighting overhaul or upgrade to LED technology—particularly those with trailers that call for 6" oval lamps and a separate reverse light. It suits do-it-yourself installers, fleet maintenance teams, and anyone who wants a single purchase that includes lamps, brackets, a long harness and markers. The waterproof build and included hardware make it practical for daily-use trailers, work rigs and recreational towing where weather resistance and visibility matter.
