SENNMONN M8x1.25 Thread Repair Kit — 10 Solid Stainless Inserts, HSS Drill & Tap for Automotive Repairs

The SENNMONN M8x1.25 Thread Repair Kit is a complete repair set that restores damaged M8x1.25 internal threads using 10 solid stainless steel inserts, an HSS drill, tap, counterbore, and installation driver.

This kit supplies everything needed to fix stripped or damaged M8x1.25 threads in metal components. Rather than relying on fragile coil inserts, the kit's solid stainless inserts form a durable internal thread replacement designed for automotive, engine, and industrial applications. The included HSS drill and tap match the insert size for a consistent repair, while the special counterbore creates a recessed lip to seat the flange and finish the repair neatly.

How does this kit repair stripped M8x1.25 threads?

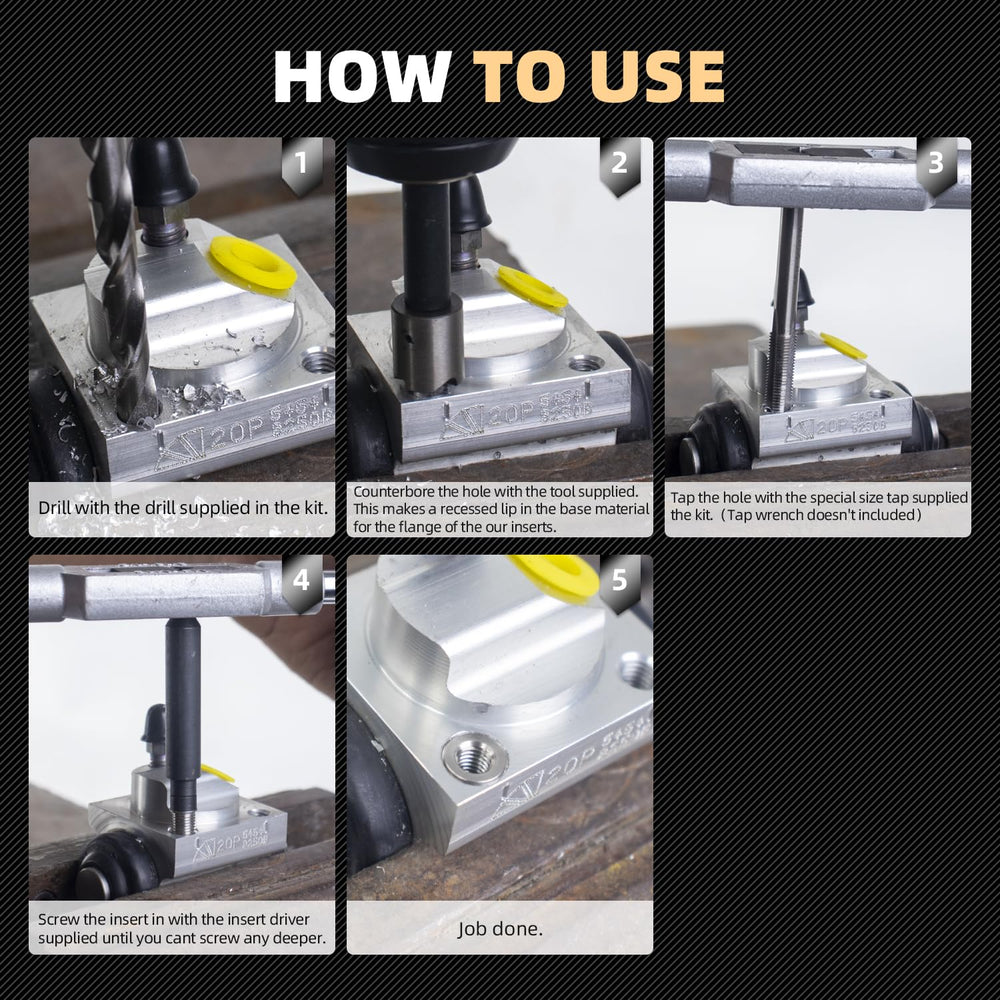

The process uses a larger pilot hole and a new precision-cut thread formed by the solid insert. First you drill to the recommended size, then tap the hole, counterbore the recess for the insert flange, and finally install the solid insert with the driver. The insert's external diameter and flange lock it into the parent material to recreate a reliable M8x1.25 thread.

• HSS drill sizes matched for clean, concentric pilot holes.
• Tap cuts new internal threads sized for the insert.

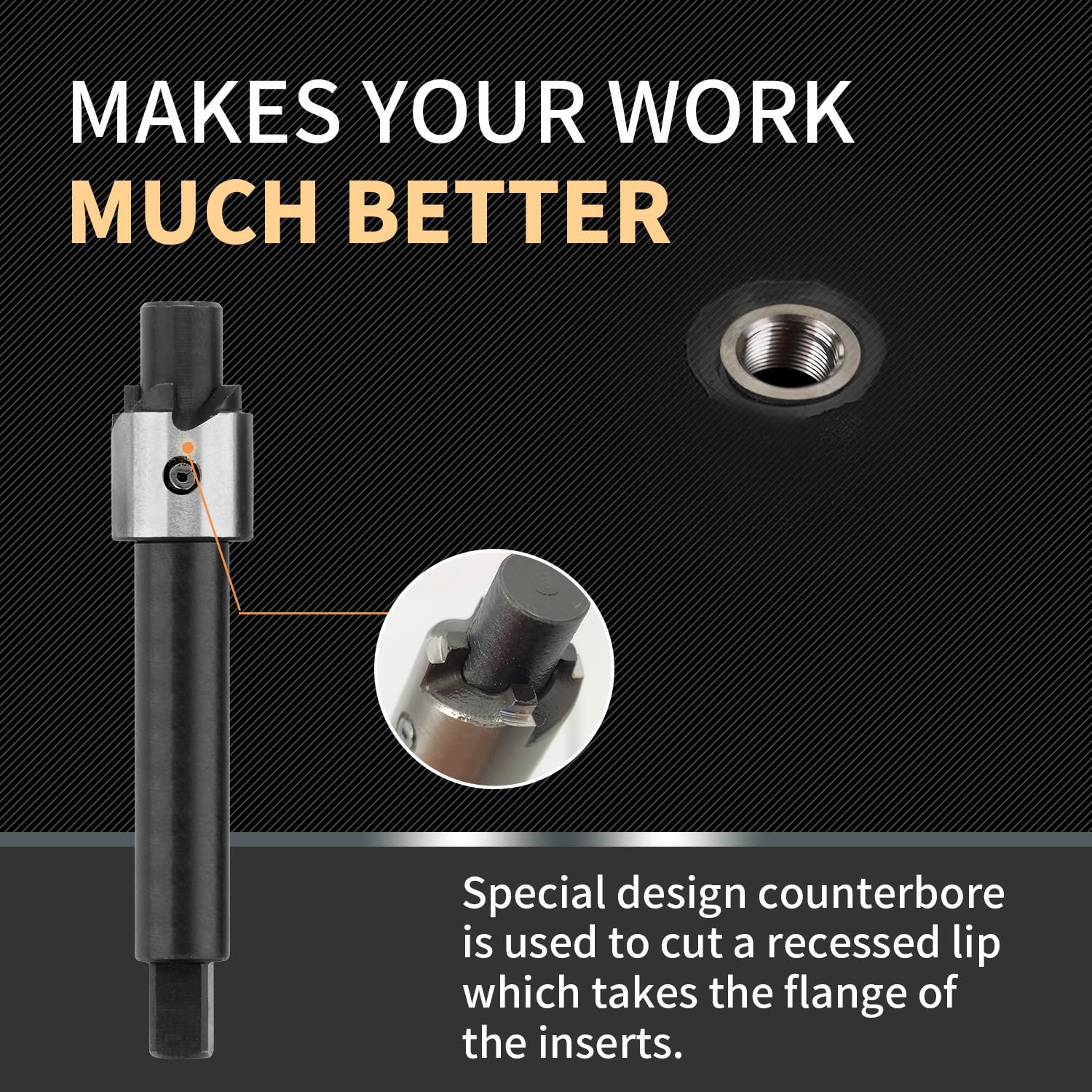

• Counterbore forms a recessed seat for the insert flange.
• Installation driver seats inserts consistently and securely.

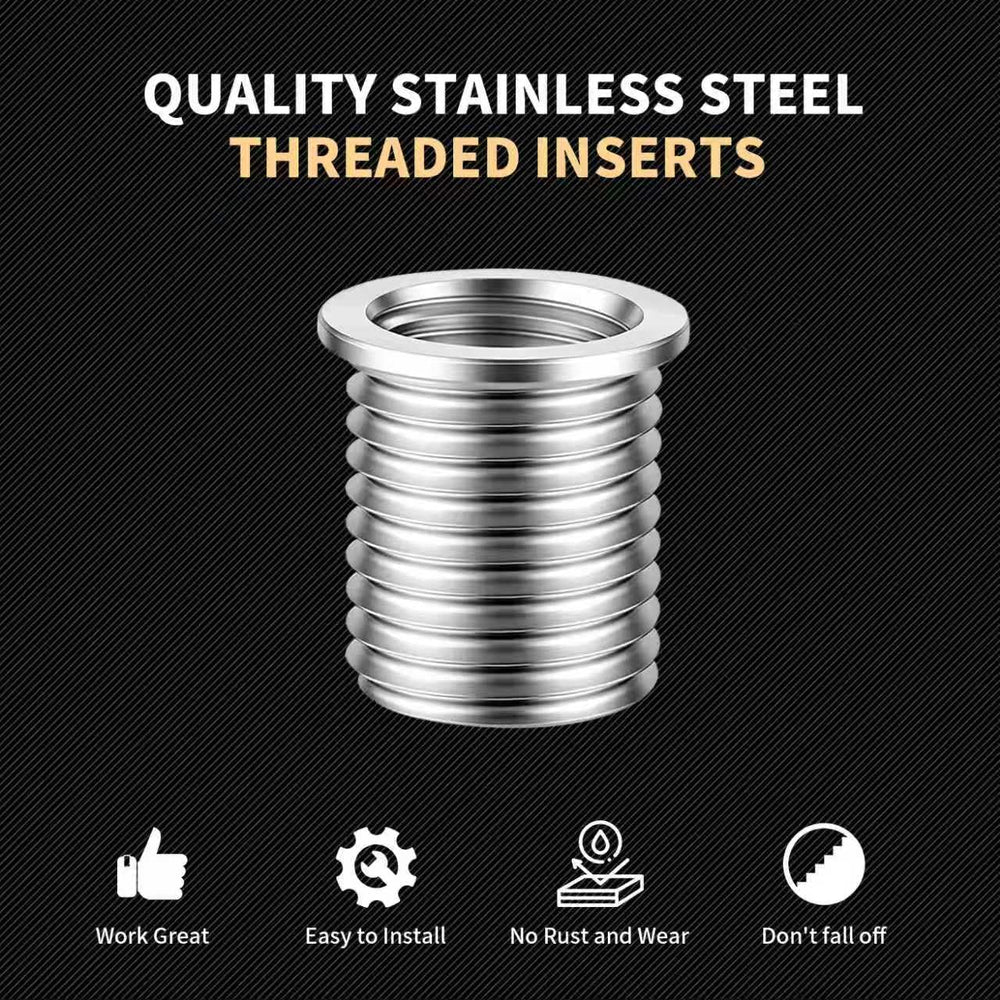

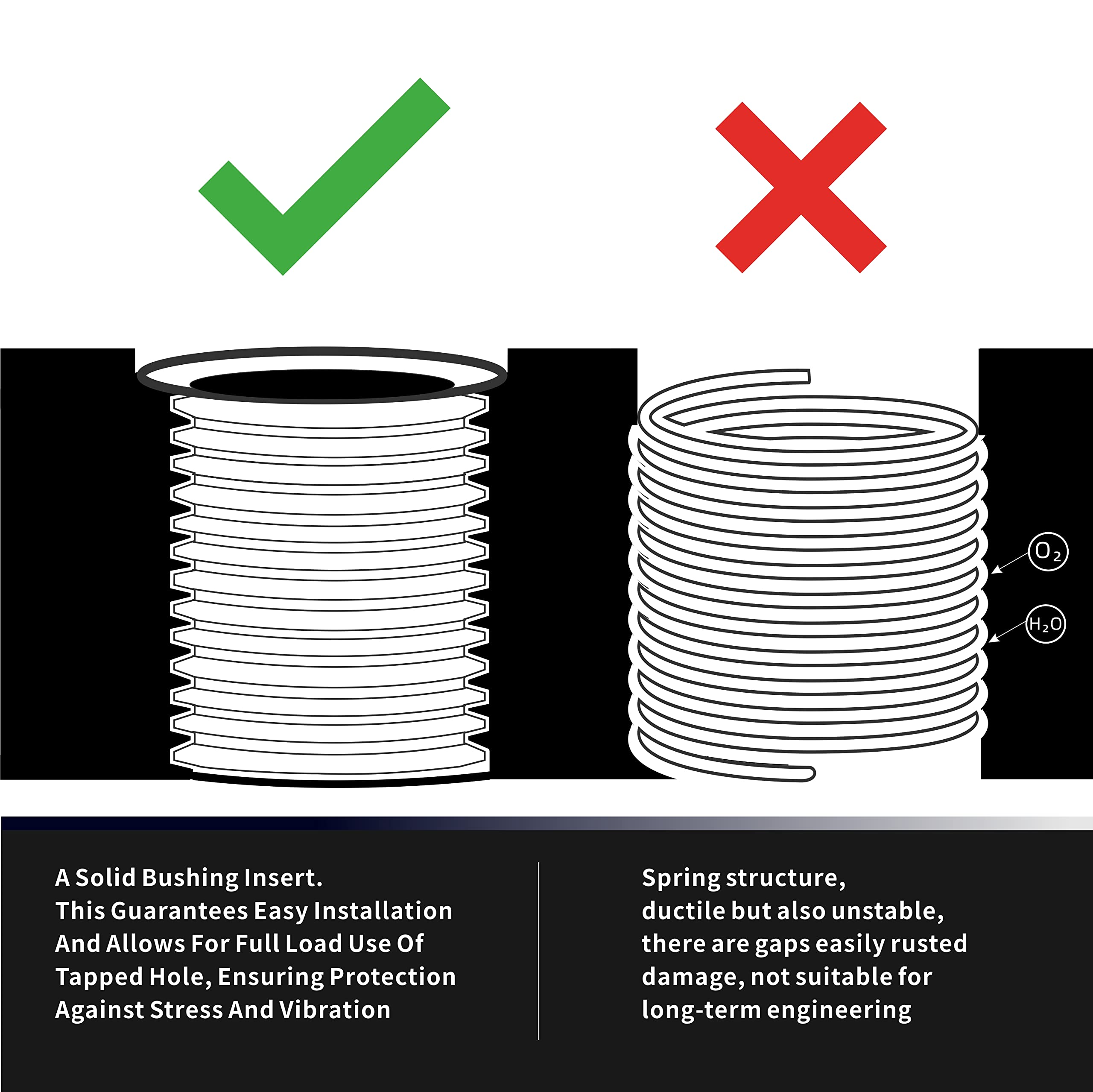

What makes solid stainless inserts better than coil-style inserts?

Solid stainless inserts provide higher shear and tensile strength than coiled wire inserts and resist deformation under torque. Their one-piece construction eliminates spring-back and reduces the likelihood of loosening in high-vibration environments. For repairs in engine blocks or critical assemblies, that extra robustness improves service life.

• Solid 316/304 stainless offers corrosion resistance for longevity.
• One-piece design resists deformation and pull-out under load.
• Flanged option seats flush for even load distribution.
• Suitable for repeated assembly/disassembly in mechanical parts.

Which parts and applications are best suited to this M8x1.25 kit?

This kit is tailored for M8x1.25 thread repairs in metal components commonly found in automotive engines, motorcycle frames, gearbox covers, and industrial machinery. Use it on cast iron, aluminum, and steel where original threads have been stripped or cross-threaded. The solid inserts restore usable threads without welding or part replacement.

• Engine blocks, cylinder heads, and intake manifolds.
• Transmission housings and gearbox covers.
• Chassis brackets and mounting flanges on vehicles and equipment.
• Any metal part originally specified with M8x1.25 internal threads.

What tools and steps are included, and what else might you need?

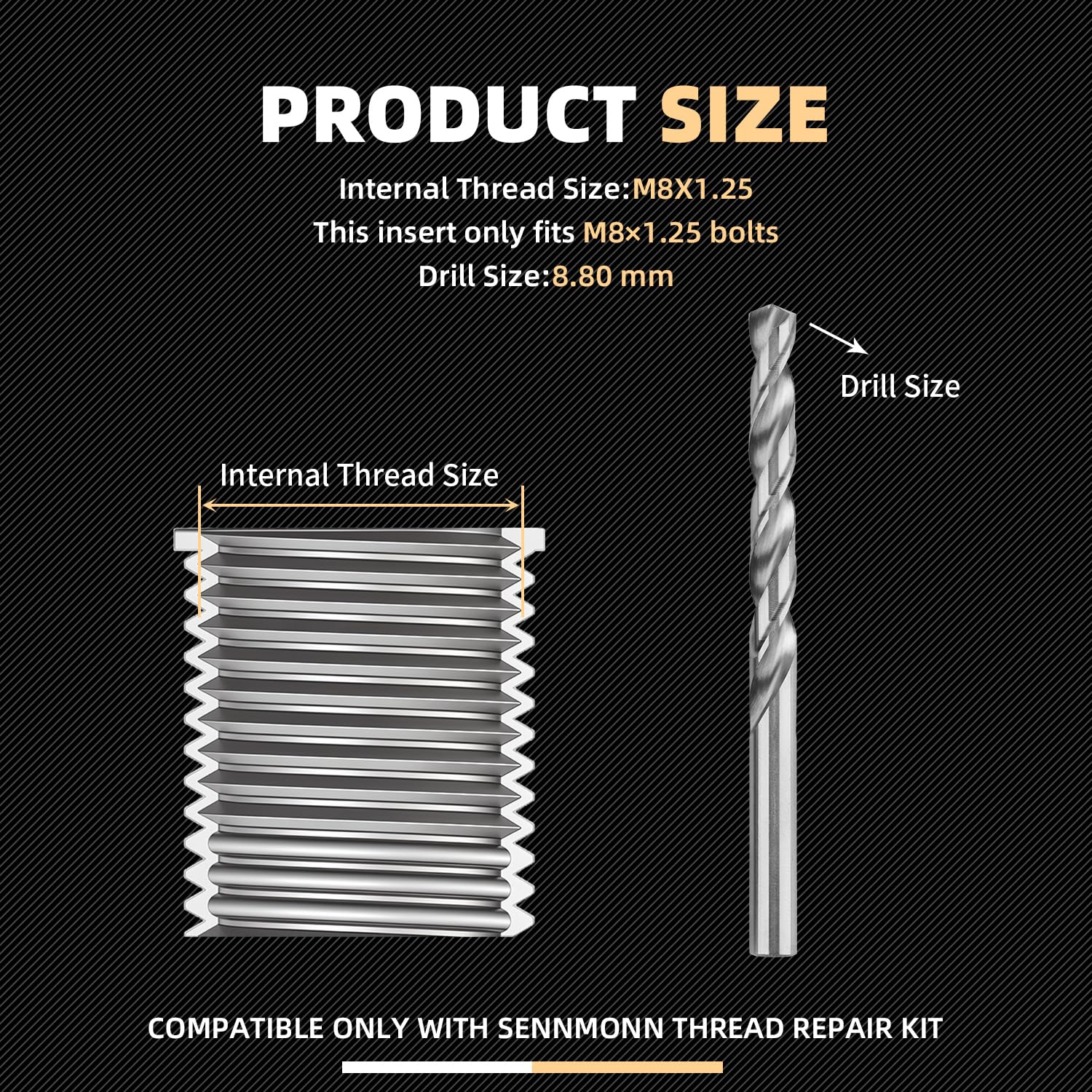

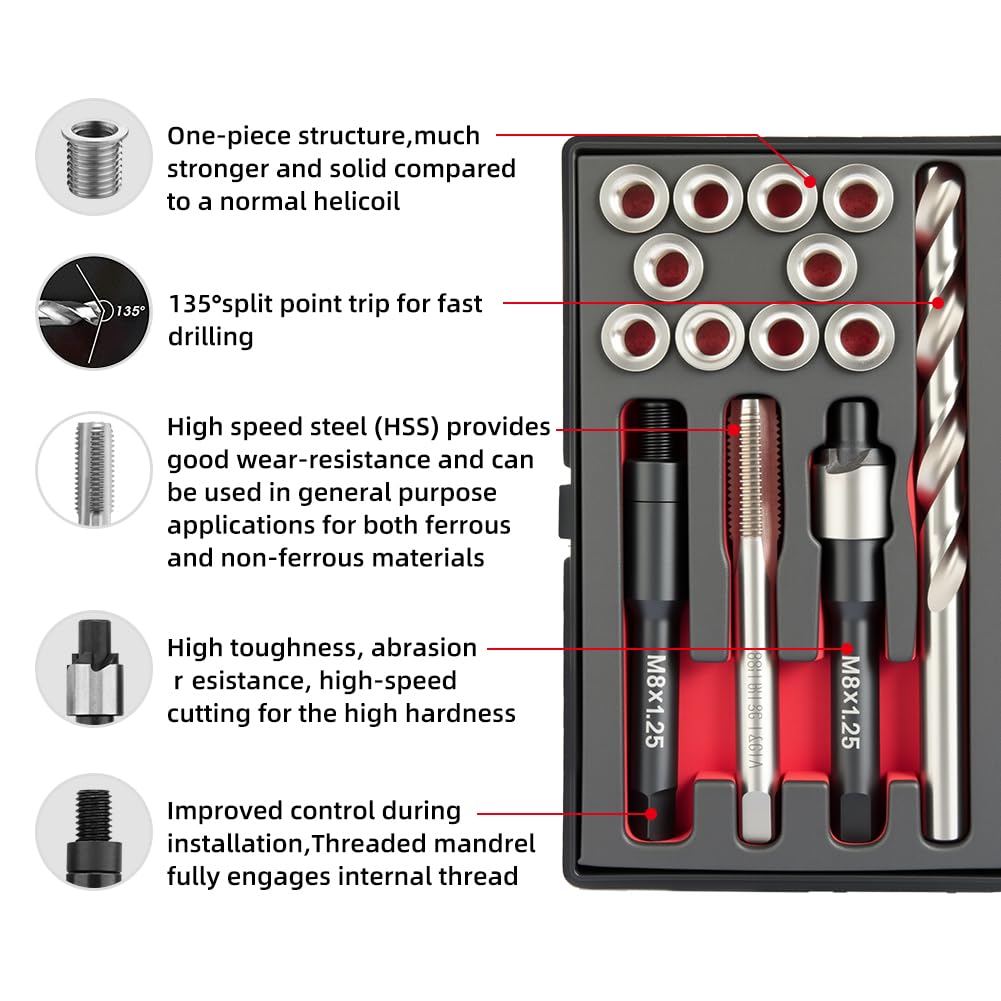

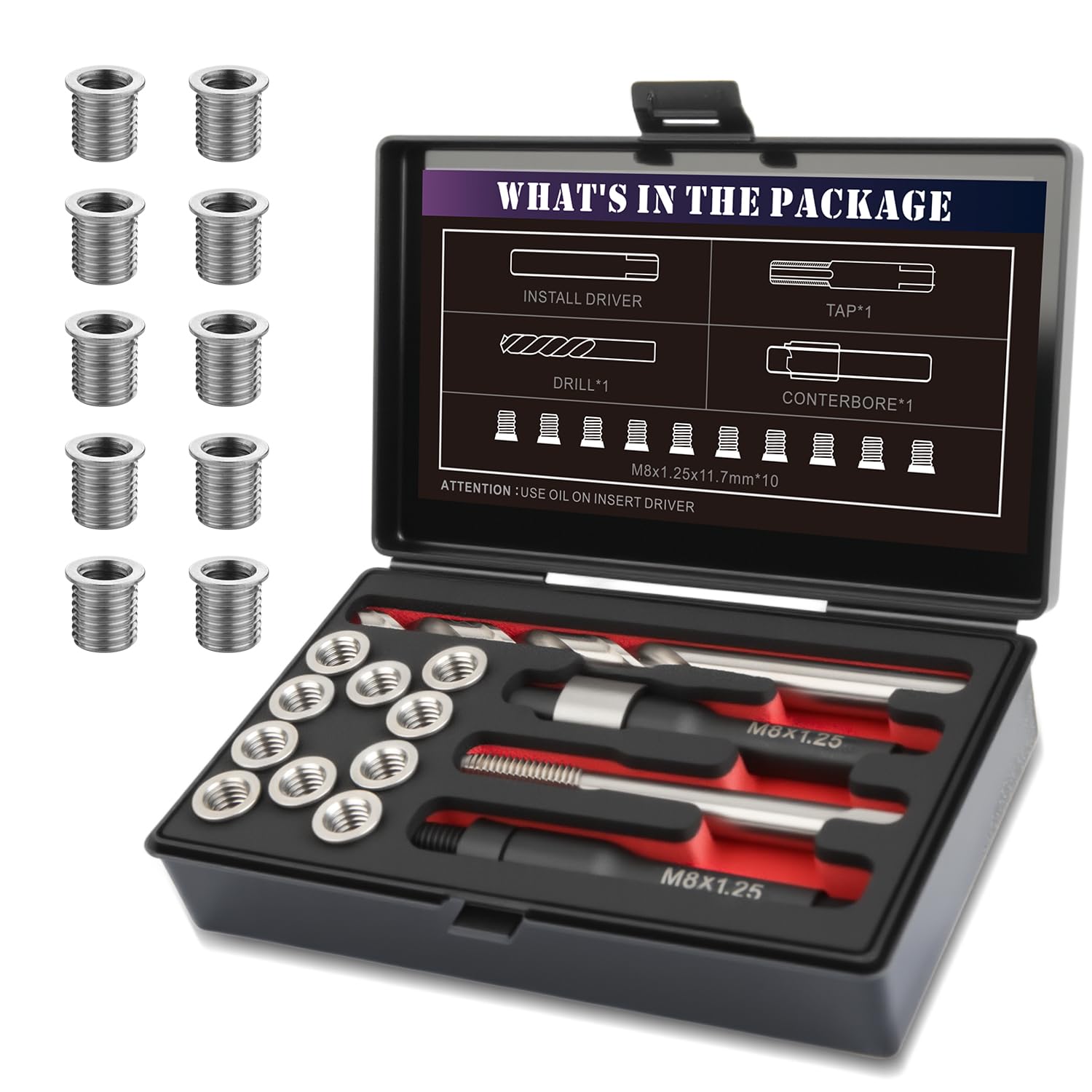

The SENNMONN kit includes a matched HSS drill, HSS tap, counterbore, installation driver, and ten M8x1.25x11.7mm solid stainless inserts. These items cover drilling, tapping, creating the recessed seat, and installing the inserts. You may still want threadlocker, anti-seize, and basic shop tools like a drill press or hand drill, torque wrench, and safety equipment for best results.

• Included: HSS drill, tap, counterbore, install driver, 10 solid inserts.
• Recommended: drill press or straight hand drill for alignment.
• Optional: threadlocker or anti-seize on fasteners after installation.
• Safety: eye protection and cutting oil to extend tool life.

Who is this for: The SENNMONN M8x1.25 Thread Repair Kit is designed for professional mechanics, automotive DIYers, maintenance techs, and fabricators who need a dependable permanent repair for stripped M8x1.25 threads. It suits anyone repairing engine components, transmission housings, or metal assemblies where a strong, corrosion-resistant internal thread is required. The kit’s complete tooling and solid inserts make it a practical shop staple for repeated thread restoration tasks.
