SENNMONN M8x1.25 Thread Repair Kit — 10pc 304 Stainless Solid Inserts, HSS Drill & Tap, Counterbore

SENNMONN M8x1.25 Metric Thread Repair Kit is a complete set of HSS drill, tap, counterbore, installation driver and ten 304 stainless steel solid inserts for restoring stripped or damaged M8x1.25 internal threads.

When an M8x1.25 threaded hole is worn, cross‑threaded or stripped, this kit provides the cutting tools and solid stainless inserts needed to rebuild a strong, corrosion‑resistant internal thread. The package includes two insert lengths to suit different material thicknesses, a specially shaped counterbore for proper insert flange seating, and an installation driver to set each insert quickly and accurately. Everything fits in a custom EVA case for organized storage and transport.

How does the kit rebuild a stripped M8x1.25 thread?

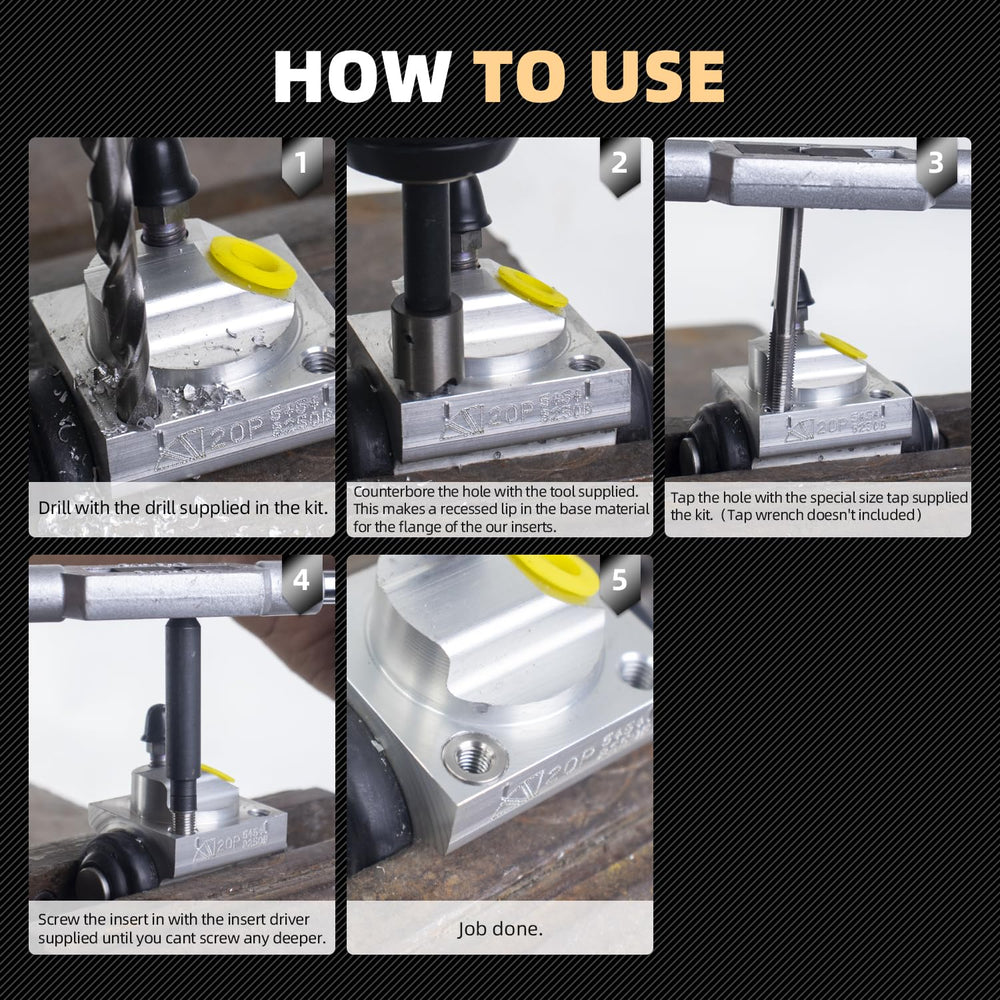

The process uses a drill to remove damaged material, the counterbore to form a recess for the insert flange, and the HSS tap to cut the new mating thread. Solid 304 stainless inserts are then driven and seated with the installation driver, creating a fresh, durable internal thread. This reconstitutes strength and restores full fastening capability.

• Drill prepares the hole to factory dimensions before tapping.
• Counterbore forms a consistent recess to accept the insert flange.
• HSS tap cuts precise M8x1.25 internal threads for the insert.
• Driver installs and seats the solid stainless insert reliably.

Which components are included and why do they matter?

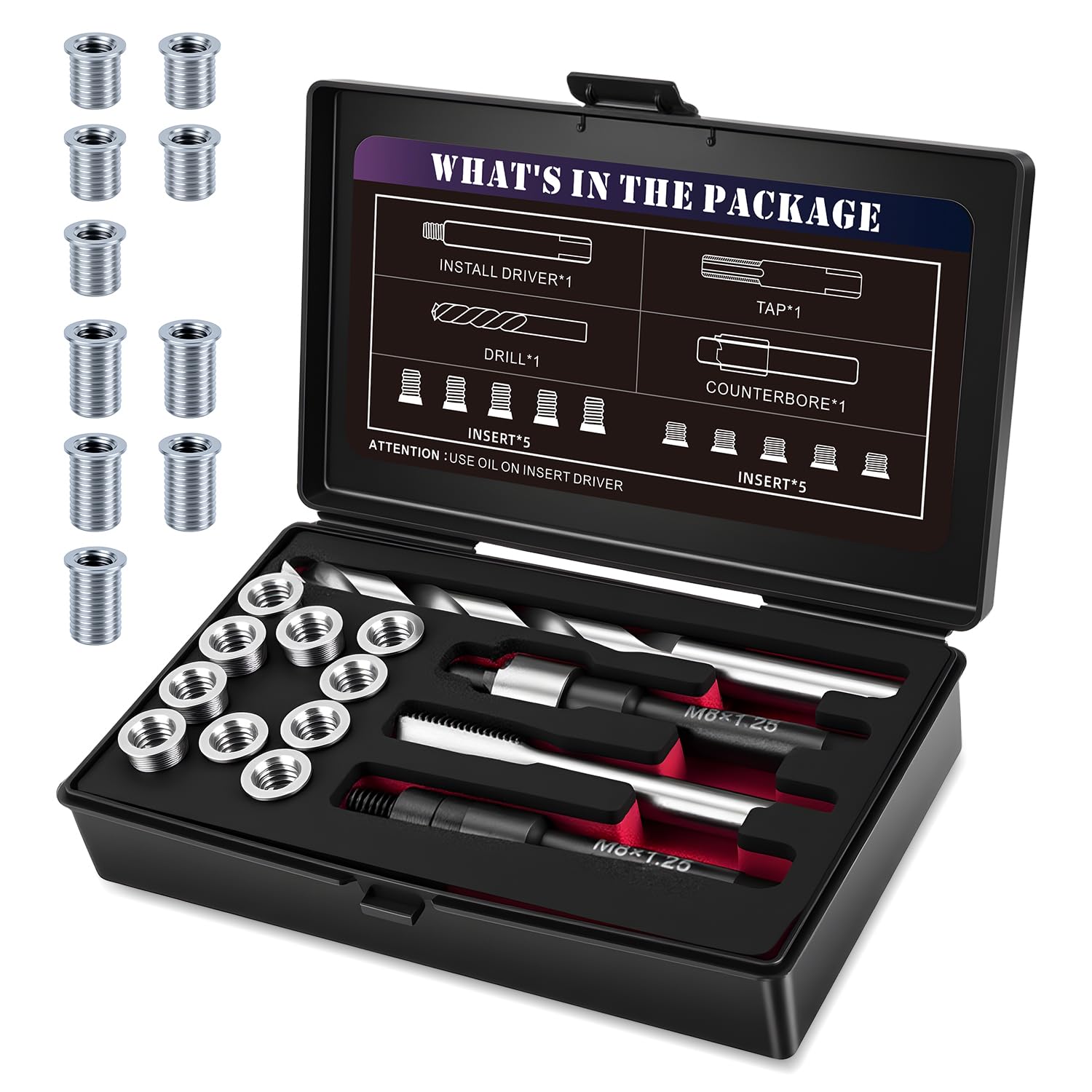

The kit contains one drill, one counterbore, one HSS tap, one installation driver, and ten solid stainless inserts (five 11.7mm length and five 16.2mm length). Each component is sized to work together so you can complete a repair without sourcing extra parts. The dual insert lengths give flexibility for thin panels or deeper threaded bosses.

• HSS drill and tap for long life and clean cutting performance.

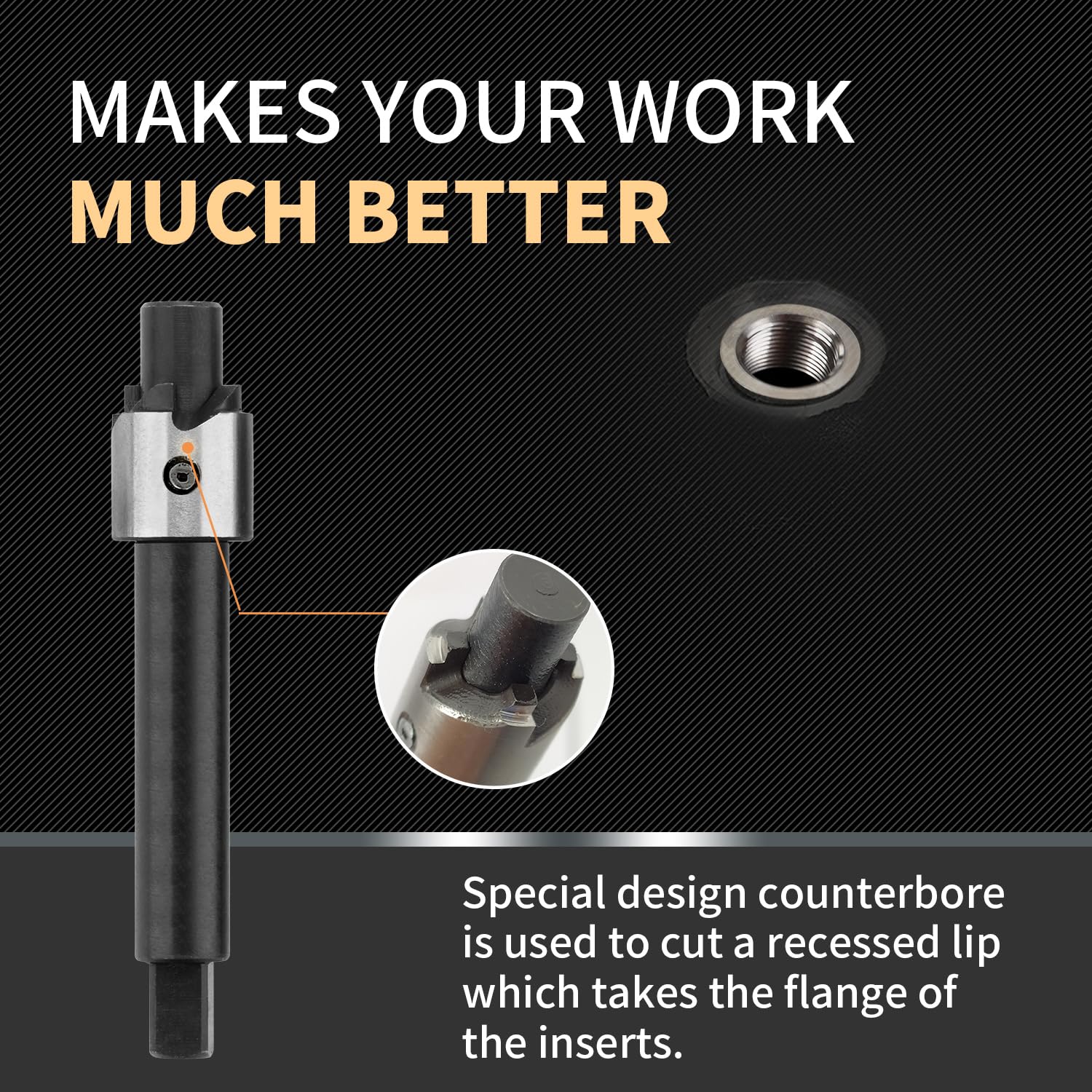

• Special counterbore ensures insert flange sits flush and secure.
• Two insert lengths (11.7mm, 16.2mm) for different material depths.
• Custom EVA storage box keeps parts organized and protected.

What benefits do solid 304 stainless steel inserts provide over helicoil?

Solid 304 stainless inserts are machined from corrosion‑resistant steel and provide a larger contact area than thin wire coil repairs. That creates a stronger, longer‑lasting internal thread especially suited for high‑stress or frequently serviced fasteners. They resist galling and corrosion that can compromise cheaper repair methods.

• Greater tensile and shear strength compared with wire coils.
• Improved corrosion resistance from 304 stainless steel material.
• Flanged design distributes clamping loads and prevents pull‑through.
• Suitable for engine bays and automotive environments.

How do I choose between the two insert lengths when repairing?

Select the shorter 11.7mm inserts for thin panels, sheet metal or shallow bosses where minimal protrusion is required. Use the 16.2mm inserts for thicker components, deeper thread engagement or applications needing maximum pull‑out resistance. When in doubt, measure the boss depth and choose the insert that provides full engagement without bottoming out.

• 11.7mm for thin walls, flanges and shallow threaded bosses.
• 16.2mm for deep bosses and higher load applications.
• Measure hole depth before drilling to avoid over‑penetration.
• Use the counterbore to control flange seating for either length.

Who this kit is for: technicians, mechanics and home DIYers who need a reliable way to restore M8x1.25 threads in engines, automotive components, machinery or structural parts. It's ideal for repair shops, restoration projects and routine maintenance where a strong, corrosion‑resistant replacement thread is required. The complete tool set and organized case let users perform on‑site repairs without hunting for supplemental tools or hardware.
